Carlo GavazziEM112-DIN.AV0.1.X.M1.PF.ASingle-Phase DIN-Rail Energy Meter, 230 V L-N, 5(100) A Direct Connection, M-Bus Port, MID Class B

Condition: Used

Availability:

3 in stock

Carlo Gavazzi EM112 single-phase DIN-rail energy meter, 230 V L-N, 5(100) A direct connection, M-Bus port, MID certified. Two DIN modules wide. 1 Pc.

Same day shipment

List Price

$72.99

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandCarlo Gavazzi
MPNEM112-DIN.AV0.1.X.M1.PF.A
ModelEM112 DIN AV0 1 X M1 PF A

Technical Specifications

Base NumberEM112-DIN
Industry Termsenergy analyzer; energy analyser; kWh meter; energy meter; sub-meter; DIN rail power meter; MID meter
Common MisspellingsCarlo Gavazi; Carlogavazzi; Carlo-Gavazi; EM112 DIN AVO
Application TypesSub-metering; cost allocation; dual-tariff billing; M-Bus building automation networks; panel energy monitoring
Output Amperage5(100) A measuring range, direct connection
Mpn VariantsEM112DINAV01XM1PFA; EM112-DIN AV0 1 X M1 PF A; EM112DIN.AV0.1.X.M1.PF.A; EM112-DIN.AV0.1.X.M1.PFA
Nominal Rated Input Voltage230 V AC L-N
Part NumberEM112-DIN.AV0.1.X.M1.PF.A
Mounting TypeDIN rail
Communication StandardM-Bus (EN13757-3), 0.3 / 2.4 / 9.6 kbaud
Seller Part Number: AD3B3#LK773D

Product Description

What this part is:

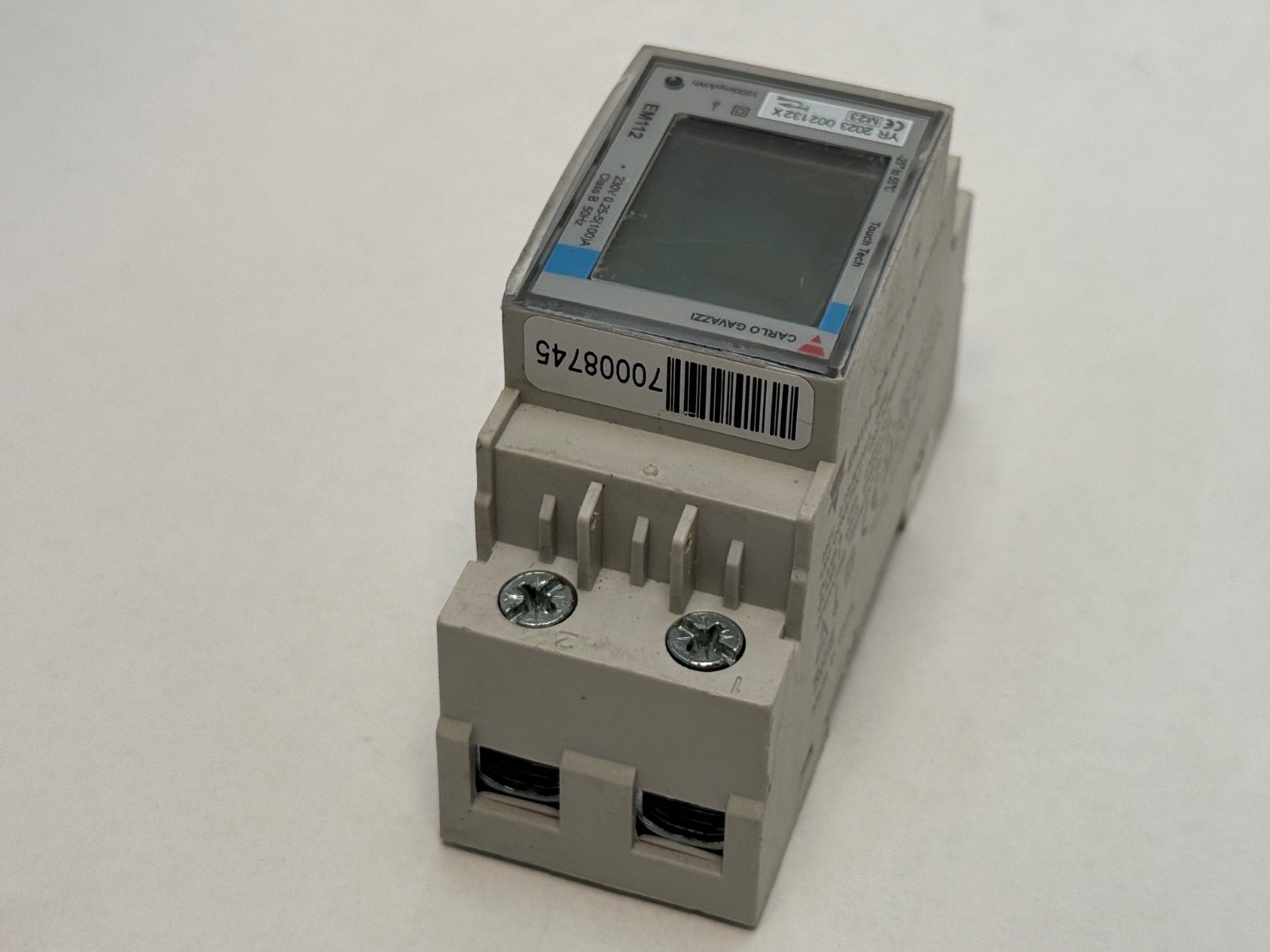

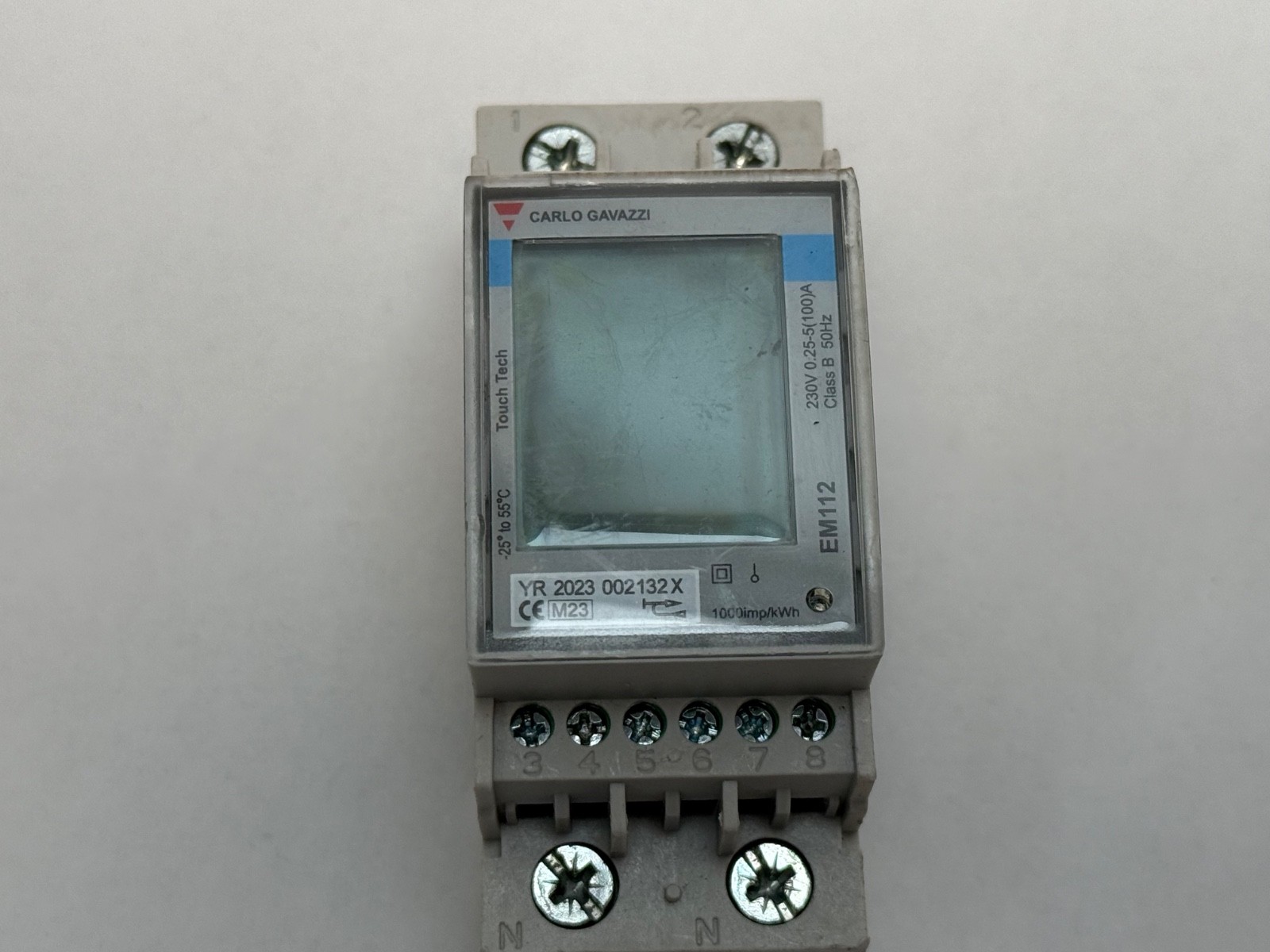

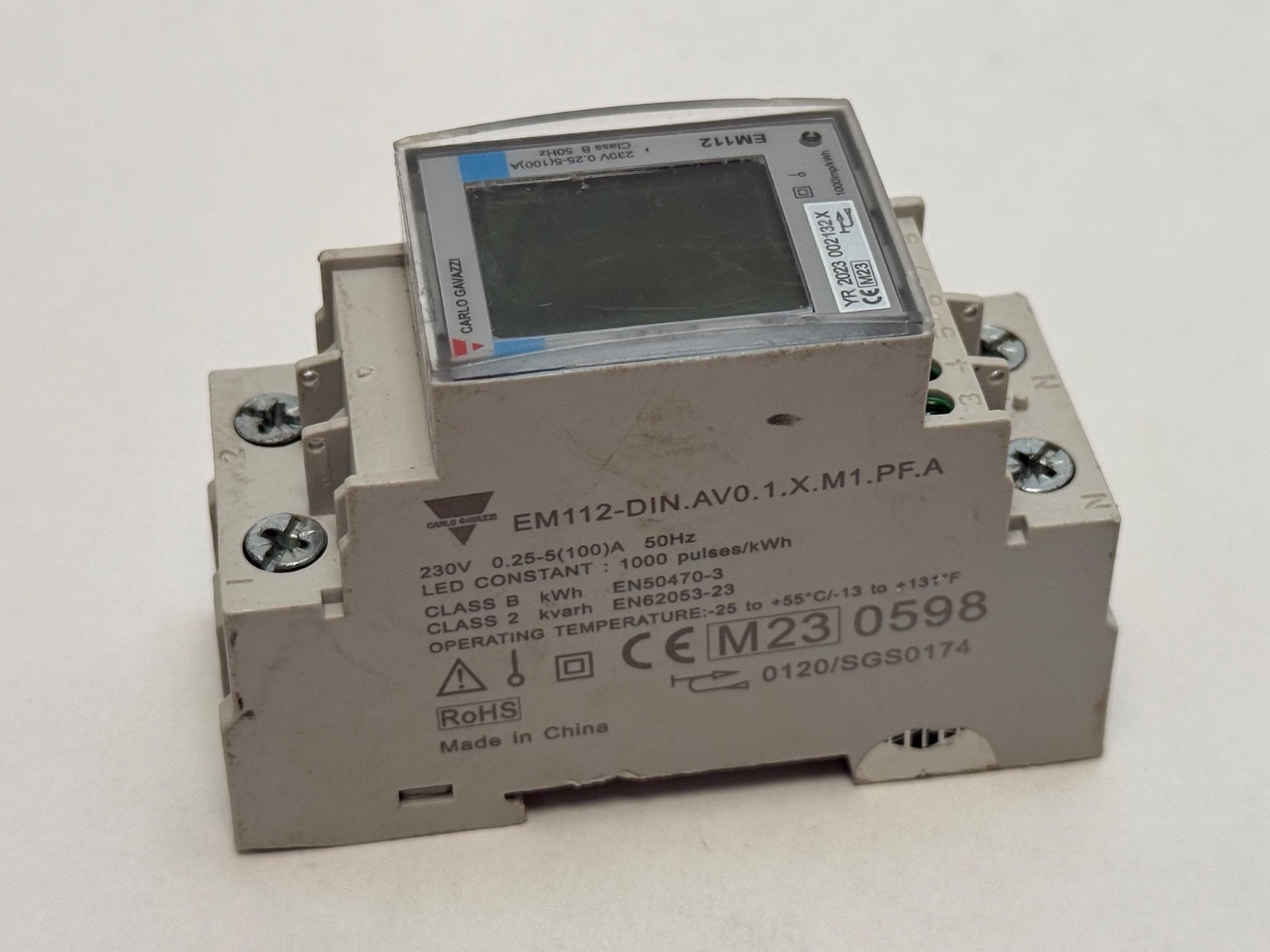

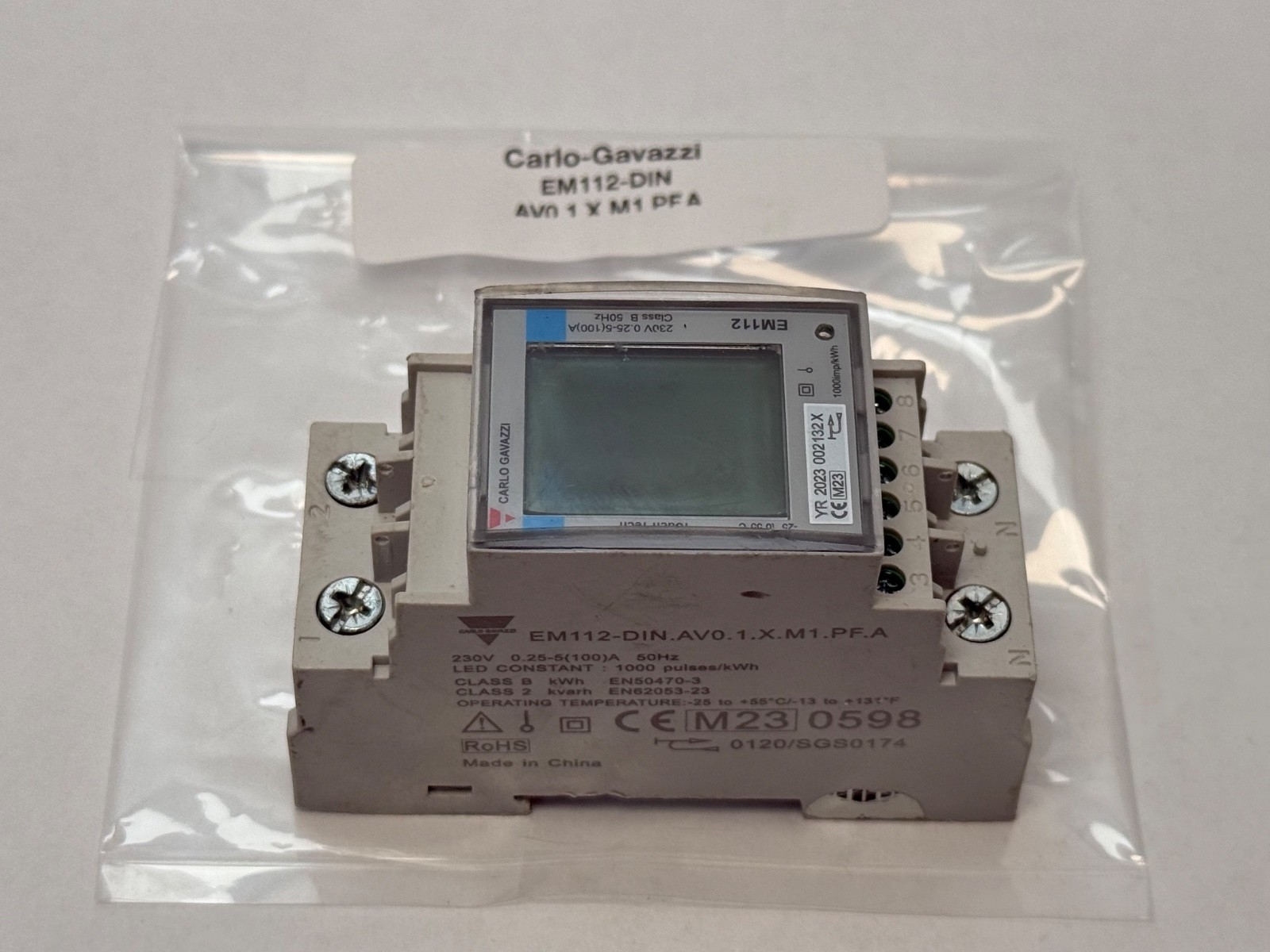

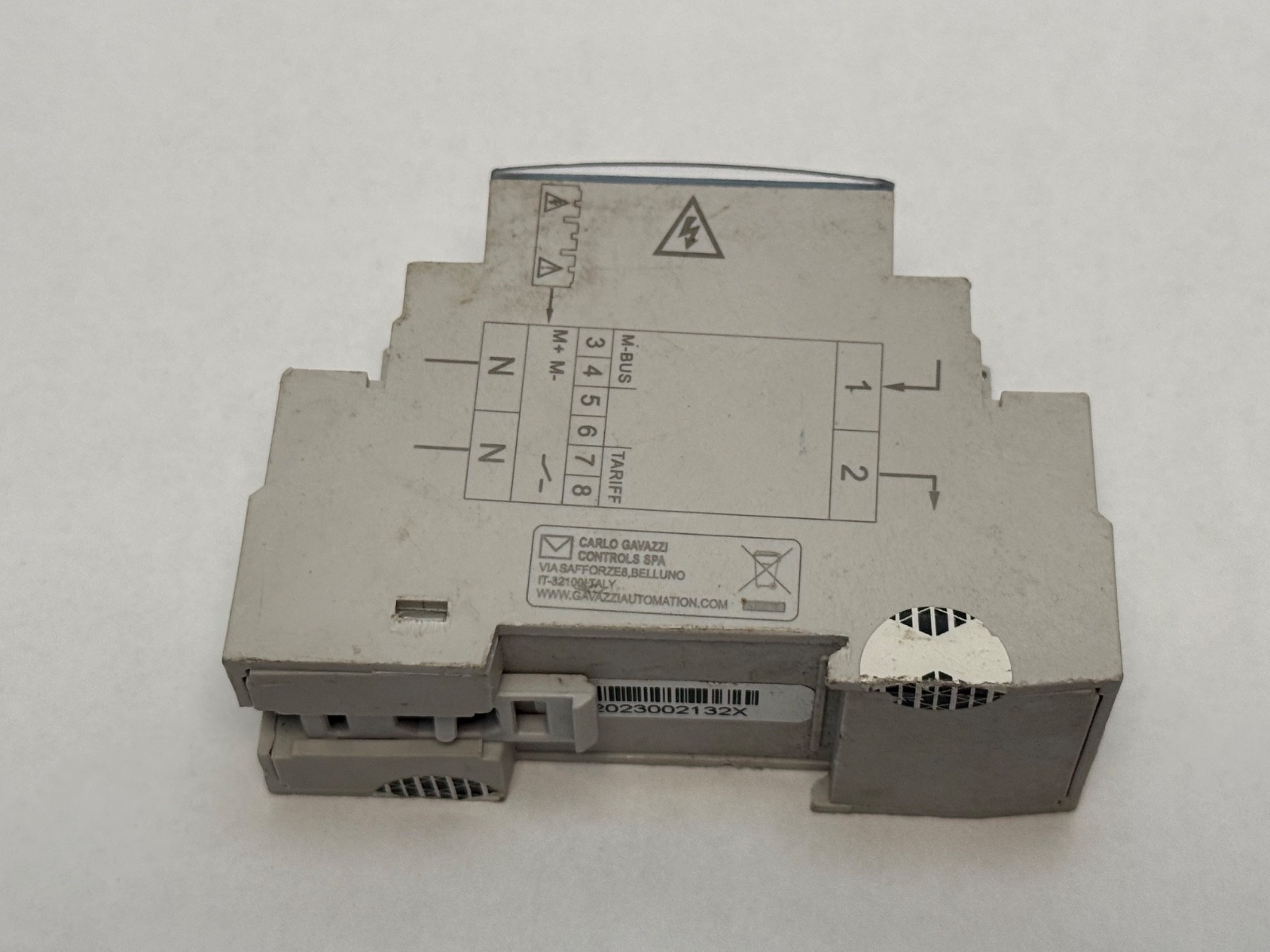

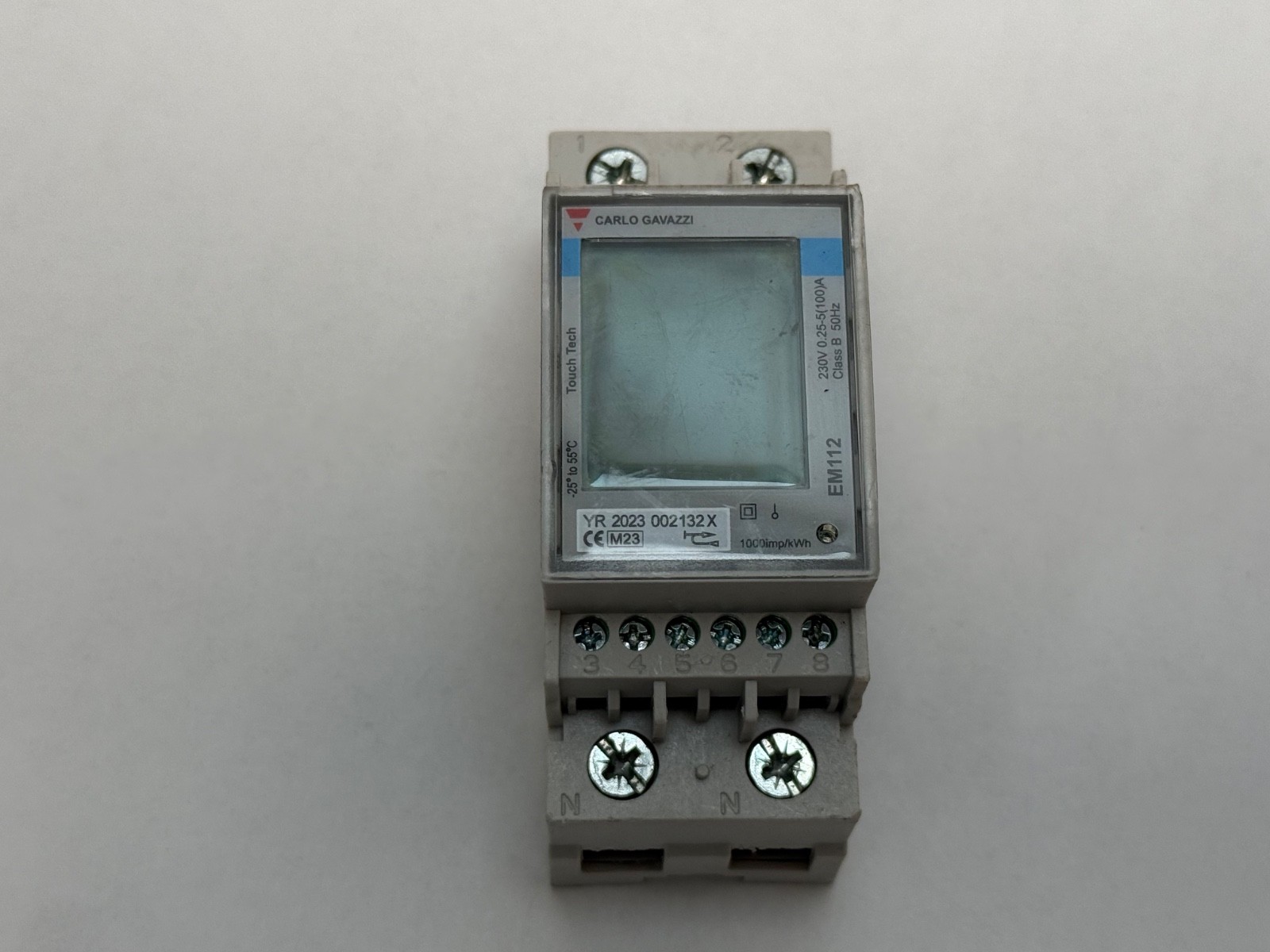

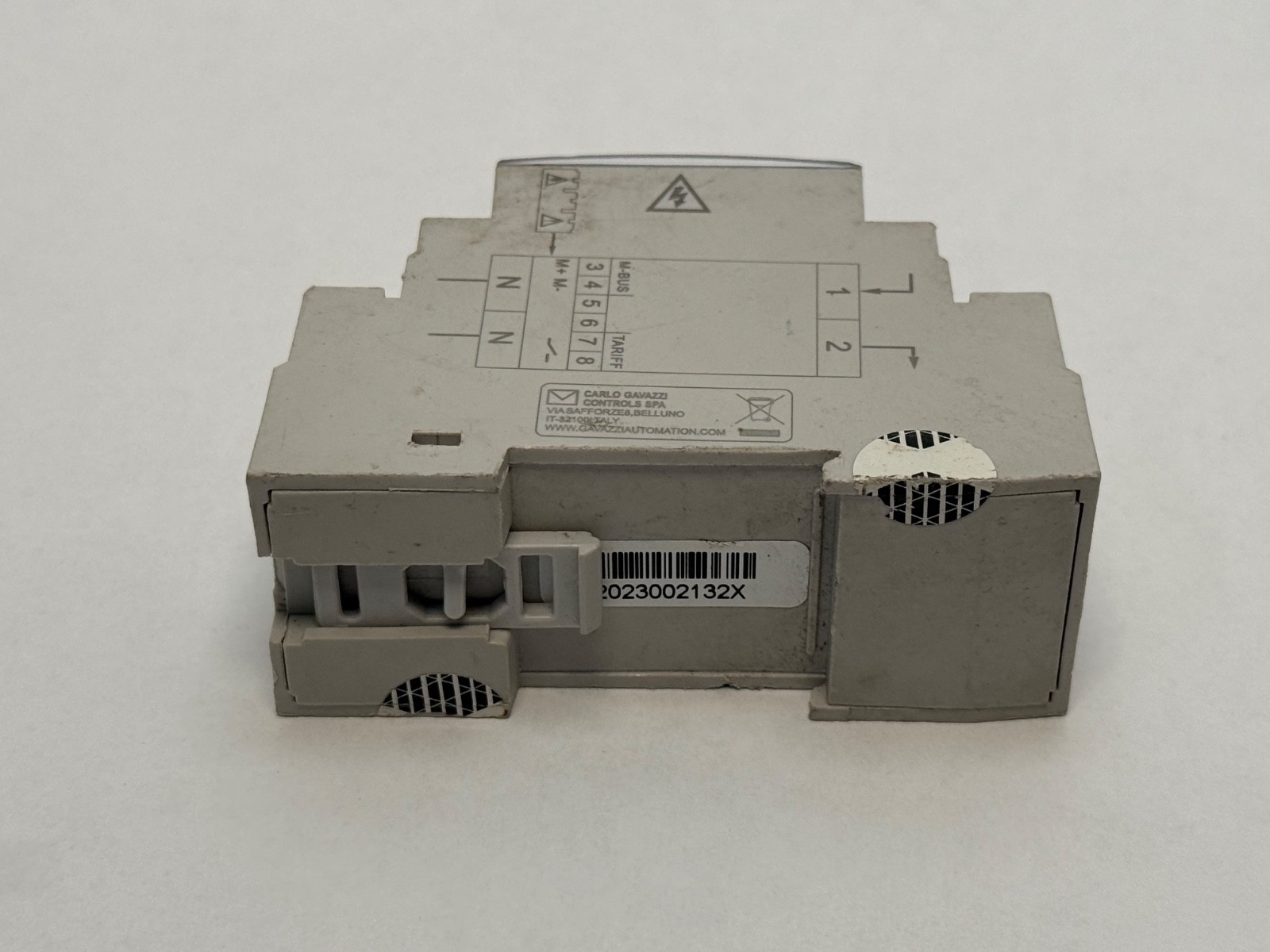

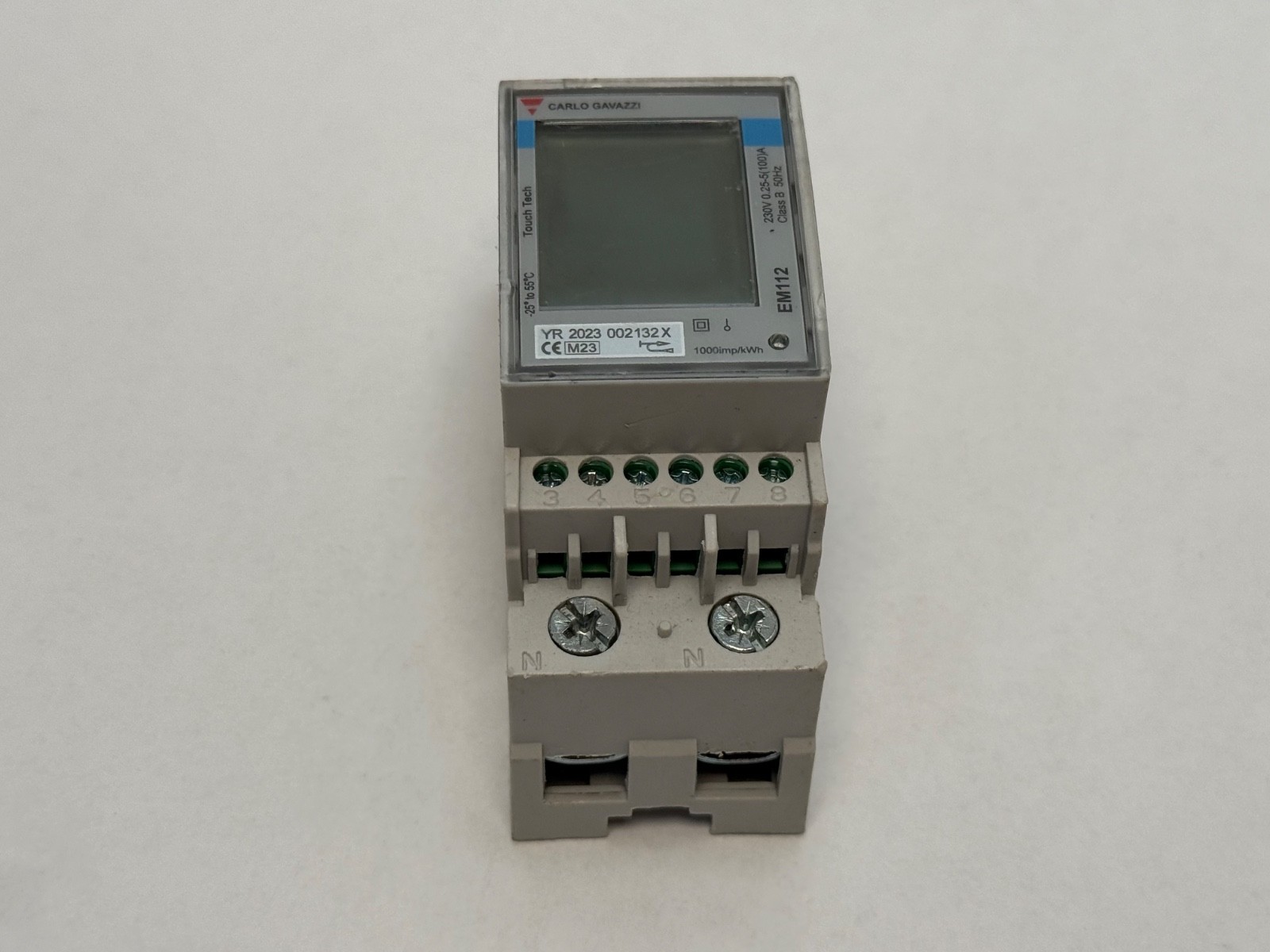

A Carlo Gavazzi EM112 single-phase energy analyser in a 2-module DIN-rail housing. It meters active and reactive energy on a 230 V line-to-neutral circuit with the load current passing directly through the meter — no current transformer is needed up to 100 A. The backlit LCD carries three rows of eight digits with an integrated touch keypad, and this version reports over M-Bus. Unit Quantity: 1 Pc.

Decoding the designation:

EM112-DIN — single-phase analyser, DIN-rail housing, 2 modules.

AV0 — 230 V L-N AC, 5(100) A direct connection. AV1 is the 120 V variant.

1 — 1-phase, 2-wire system.

X — self powered from the measured voltage, no auxiliary supply.

M1 — M-Bus communication port. S1 is RS485 Modbus, O1 a pulse output.

PF — certified to the MID Directive, Modules B and D, usable for fiscal metrology.

A — power is always integrated in both directions and the total energy register is the MID-certified one.

Specifications:

System: 1-phase, 2-wire. Nominal Voltage: 230 V L-N AC, −30% +20%. Current: Ib 5 A, Imax 100 A, Imin 0.25 A, direct connection. Start-up Current: 40 mA; start-up voltage 161 V L-N. Active Energy: Class 1 per EN62053-21, Class B per EN50470-3. Reactive Energy: Class 2 per EN62053-23. Current/Voltage Accuracy: ±0.5% of reading. Registers: kWh and kvarh imported/exported, kWh+ on two tariffs. Instantaneous Values: kW, kvar, V, A, PF, Hz, kW demand and demand peak.

Communication: M-Bus per EN13757-3, 0.3 / 2.4 / 9.6 kbaud, up to 250 meters on the network. M-Bus Primary Address: 1 to 250. M-Bus Baud Rate Default: 2.4 kbaud. Secondary M-Bus Address: fixed at production in the 7000 0000 to 7999 9999 range. Demand Integration Time: 1 to 30 minutes, default 1 minute. Digital Input: 1, volt-free contact, for tariff switching. Front LED: 1000 imp/kWh. Sampling: 4096 samples/s.

Insulation: 4000 V AC RMS for 1 minute; overvoltage category III. Operating Temperature: −25 to +55 °C (PF option). Protection: IP51 front, IP20 terminals. Power Consumption: ≤1 W, ≤8 VA. Weight: approx. 160 g. Material: PBT, self-extinguishing UL 94 V-0.

Dimensions and mounting:

Housing: 35 x 63 x 90 mm (W x H x D), 2 DIN modules. Mounting: DIN rail. Direct 100 A connection means the busbar or cable runs through the meter, with 25 mm² conductors at the measuring terminals.

Compatibility and replacement:

The EM112 family differs in the order-code suffixes. EM112-DIN.AV0.1.X.S1.PF.A is the same meter with RS485 Modbus instead of M-Bus; the .PF.B variants certify only the positive register; AV1 is the 120 V variant. The 1-DIN EM111 is the 45 A version and the 3-DIN EM340 is the three-phase version, related models. Also written EM112DINAV01XM1PFA and EM112-DIN AV0 1 X M1 PF A.

Frequently asked questions:

What voltage and current does it measure?

Nominal Voltage: 230 V L-N AC. Current: Ib 5 A, Imax 100 A, direct connection with no current transformer.

What communication does it have?

M-Bus per EN13757-3 at 0.3 / 2.4 / 9.6 kbaud, primary address 1 to 250. The RS485 Modbus version is EM112-DIN.AV0.1.X.S1.PF.A.

Is it MID certified?

Yes. The PF code is MID Directive certification, Modules B and D, usable for fiscal metrology.
