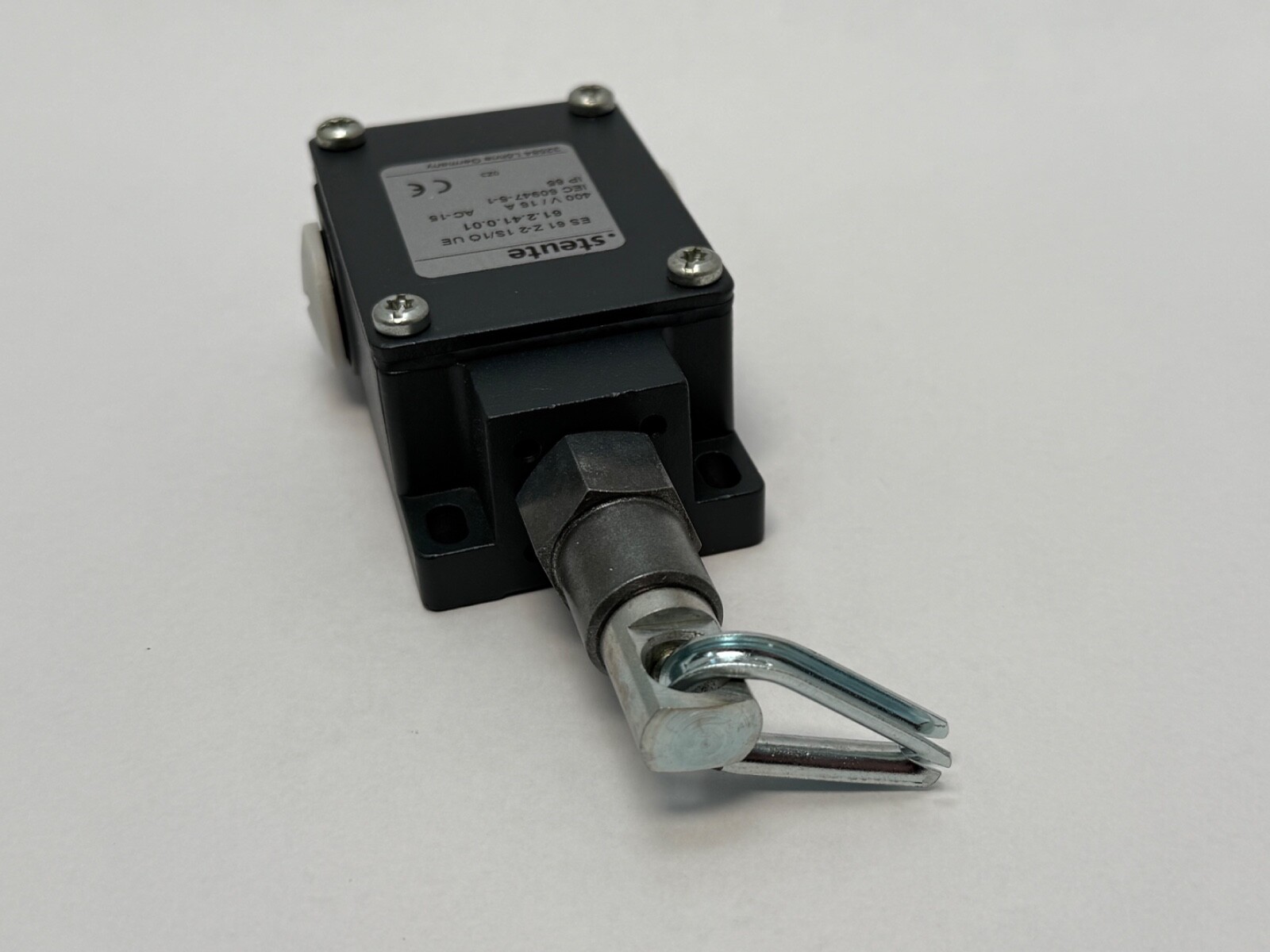

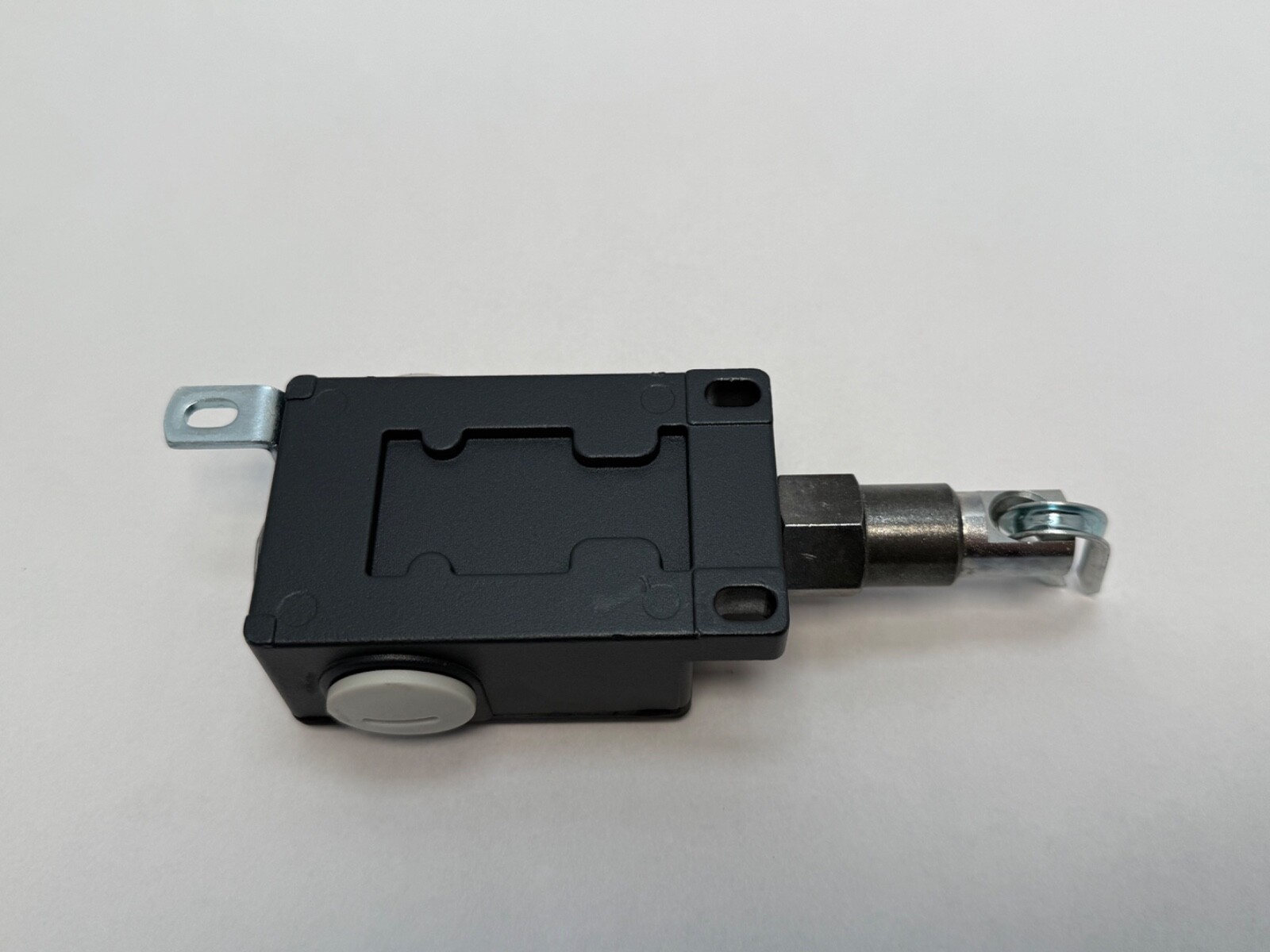

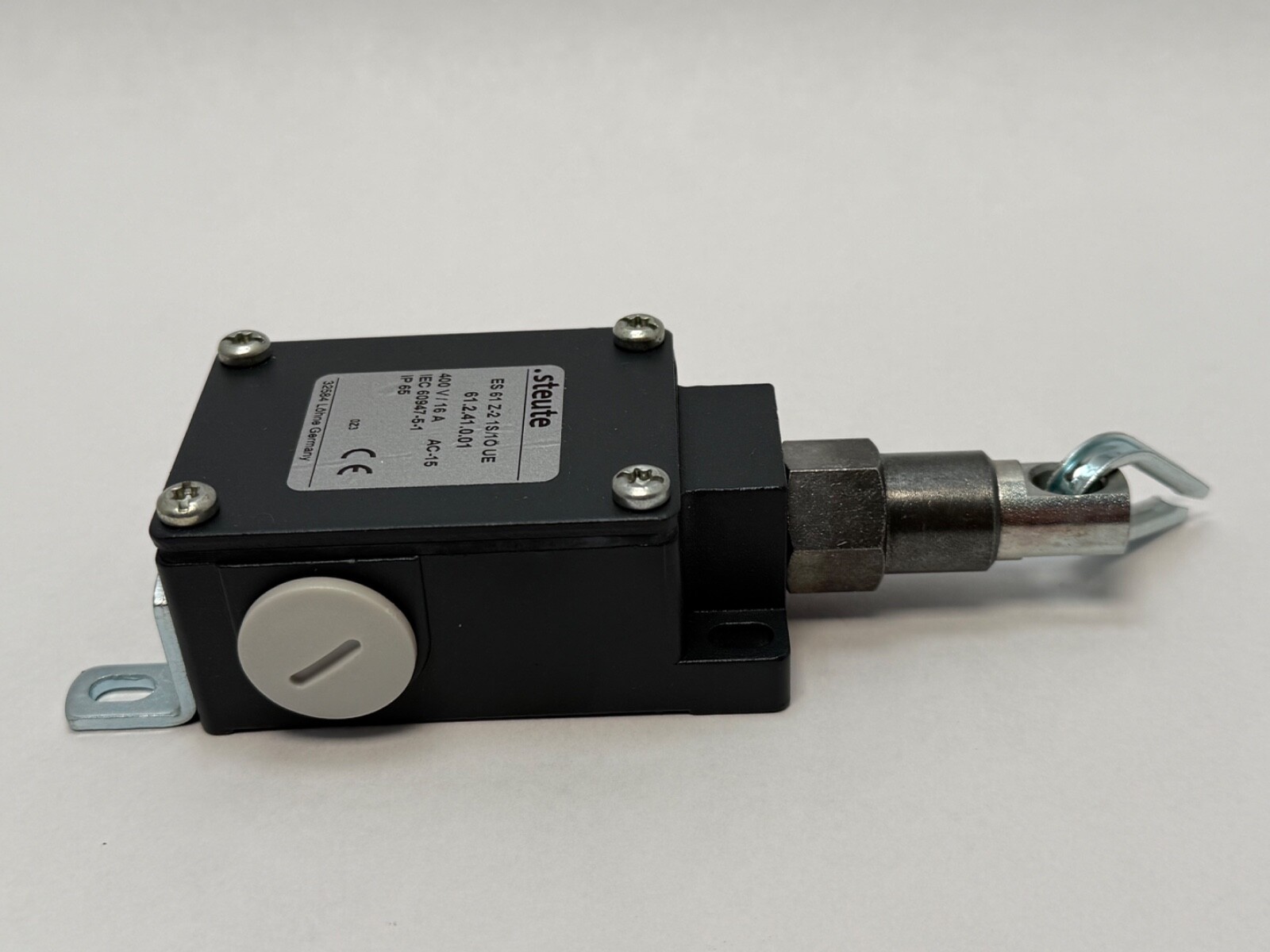

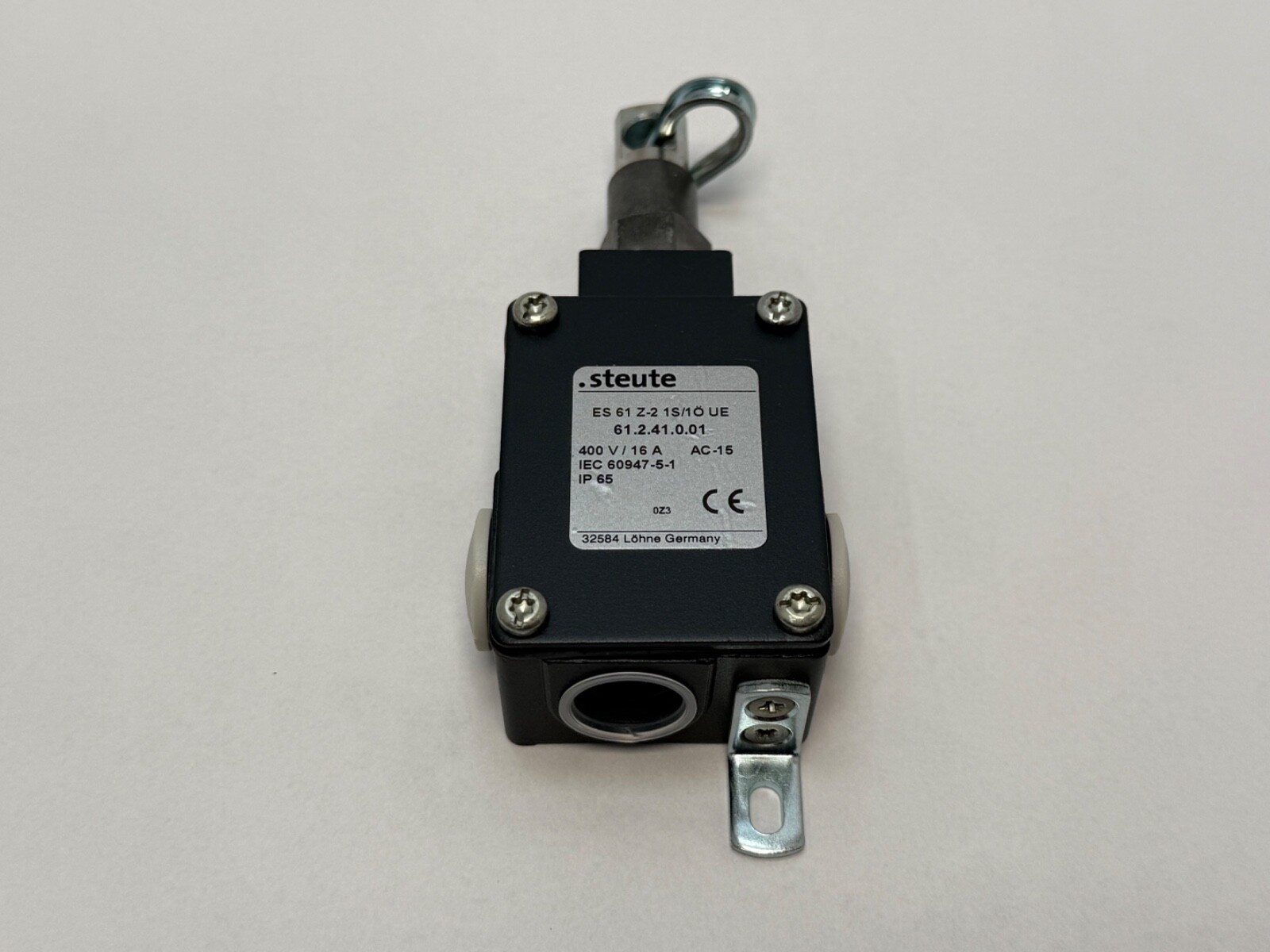

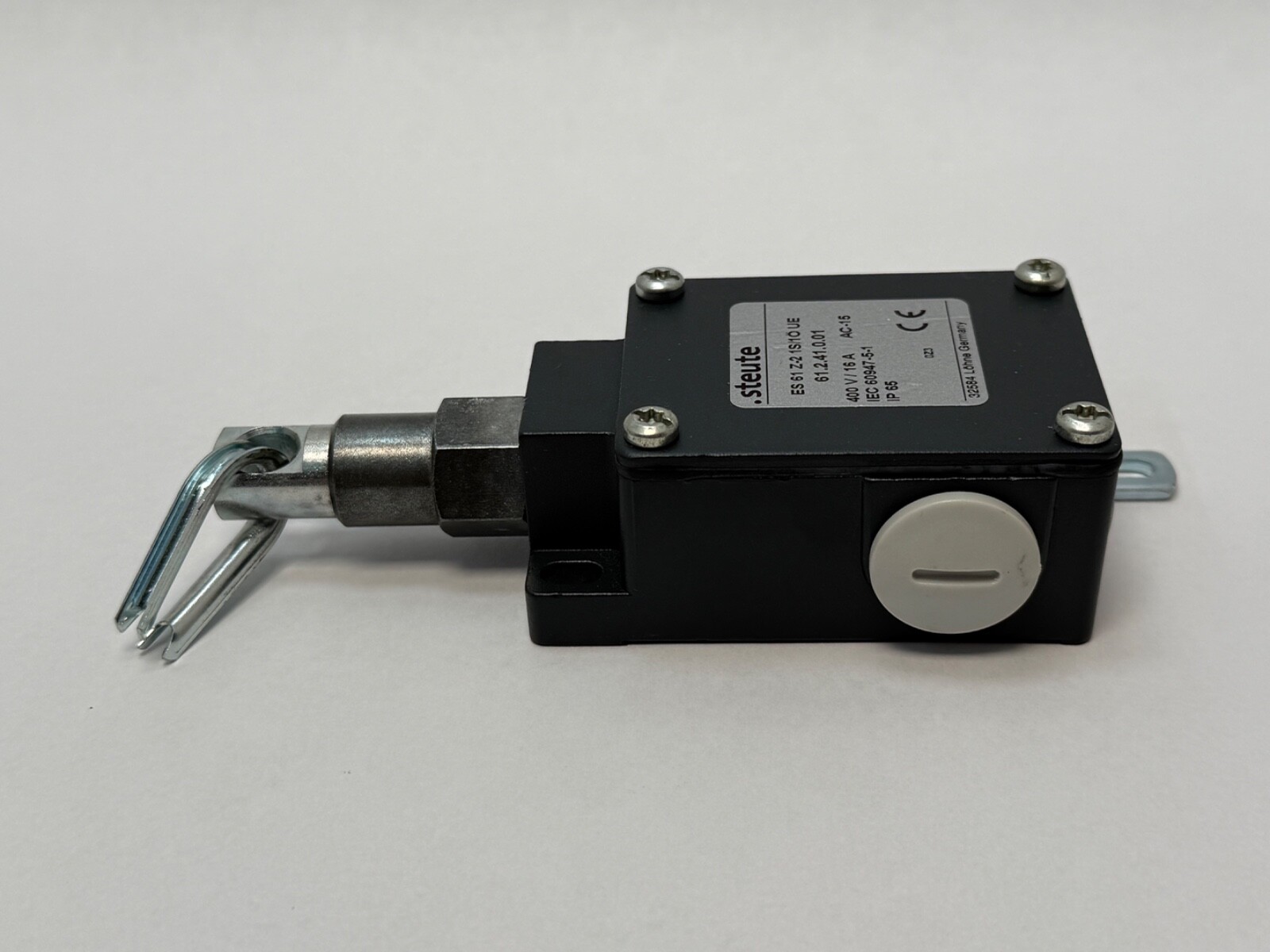

STEUTEES 61 ZPull-Wire Switch – 1 NO / 1 NC Contacts

Condition: New – Open box

Availability:

3 in stock

Steute ES 61 Z pull-wire switch, 1 NC / 1 NO slow-action contacts, IP65 die-cast aluminium enclosure, 16 A / 400 VAC. Order number 61.2.41.0.01. New old stock.

Same day shipment

List Price

$41.99

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSTEUTE
MPNES 61 Z
ModelES61Z

Technical Specifications

Switch StylePull-Wire
Item Width6
Item Height3
Item Length6
Actuator TypePull Wire
Mpn VariantsES 61 Z, ES-61-Z, ES61Z, ES-61-Z-2-1S/1O, 61.2.41.0.01
Additional AttributesSwitching system: slow action; Contact material: silver; Enclosure: aluminium die-cast, powder-coated RAL 7016; Cover: steel, powder-coated RAL 1003; Degree of protection: IP65; Rated operating current/voltage: 16 A / 400 VAC (AC-15); Conventional thermal current: 16 A; Rated insulation voltage: 400 V; Rated impulse withstand voltage: 6 kV; Connection: screw terminals, max 2.5 mm2; Cable entry: 3 x M20 x 1.5; Mechanical life: over 1 million operations; Standard: EN 60947-5-1
Min Temp-20 °C
Max Temp80 °C
Item Weight0.34 kg (0.75 lb)
Contact Configuration1 NO / 1 NC
Industry Termspull-wire switch; rope pull switch; pull cord switch; cable pull safety switch
Common MisspellingsES61Z; ES 61Z; Steut ES 61 Z; Steute ES61-Z; Stuete ES 61 Z
Seller Part Number: AP2B2#CIPFV8

Product Description

What this part is:

Steute ES 61 Z pull-wire switch, a rope-operated safety switch with one normally open and one normally closed contact. Order number 61.2.41.0.01. Condition: New old stock, open box. Unit Quantity: 1 Pc.

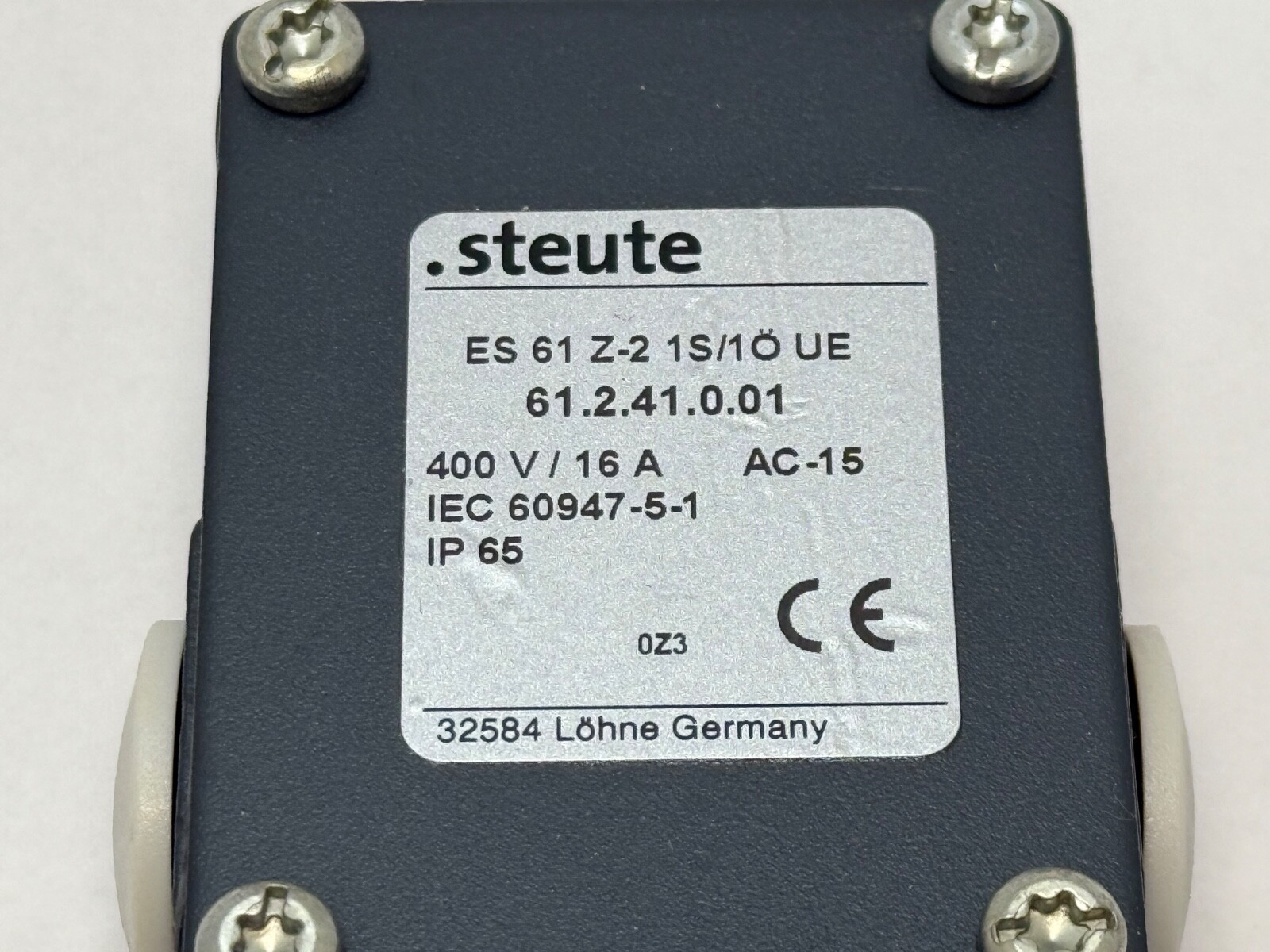

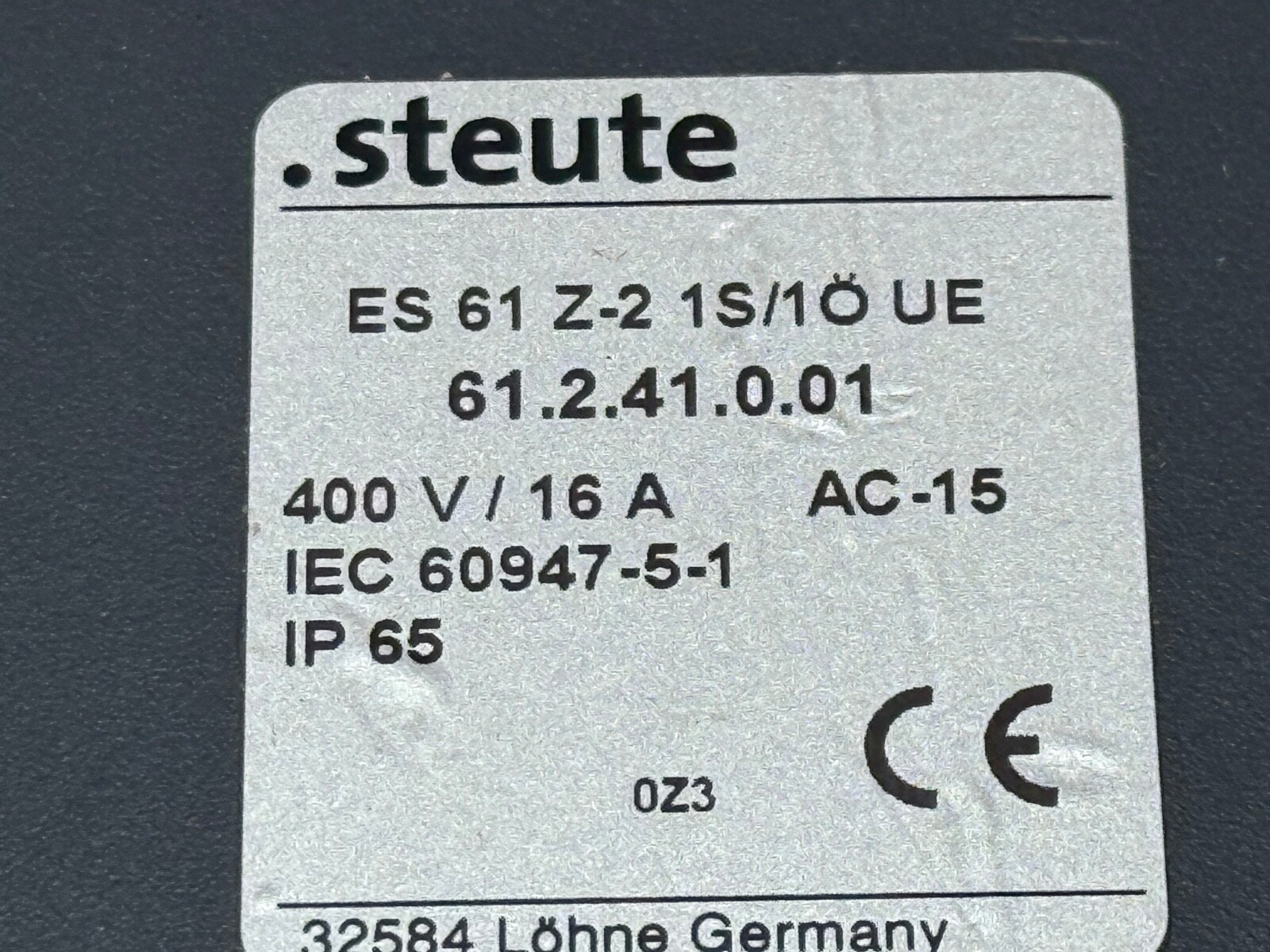

Decoding the designation:

ES 61 Z — Steute ES 61 series pull-wire switch.

1S/1O — one normally open (S, Schliesser) and one normally closed (O, Oeffner) contact.

61.2.41.0.01 — Steute order number.

Specifications:

Switch Type: Pull-Wire Switch. Actuator: Pull wire. Contacts: 1 NO / 1 NC. Switching System: slow action. Contact Material: silver. Enclosure: aluminium die-cast, powder-coated RAL 7016. Cover: steel, powder-coated RAL 1003. Degree of Protection: IP65. Rated Operating Current/Voltage: 16 A / 400 VAC, utilisation category AC-15. Conventional Thermal Current: 16 A. Rated Insulation Voltage: 400 V. Rated Impulse Withstand Voltage: 6 kV. Connection: screw terminals, cable cross-section max. 2.5 mm². Cable Entry: 3 x M20 x 1.5. Ambient Temperature: –20 °C to +80 °C. Mechanical Life: over 1 million operations. Applied Standard: EN 60947-5-1. Weight: 0.34 kg (0.75 lb).

Dimensions and mounting:

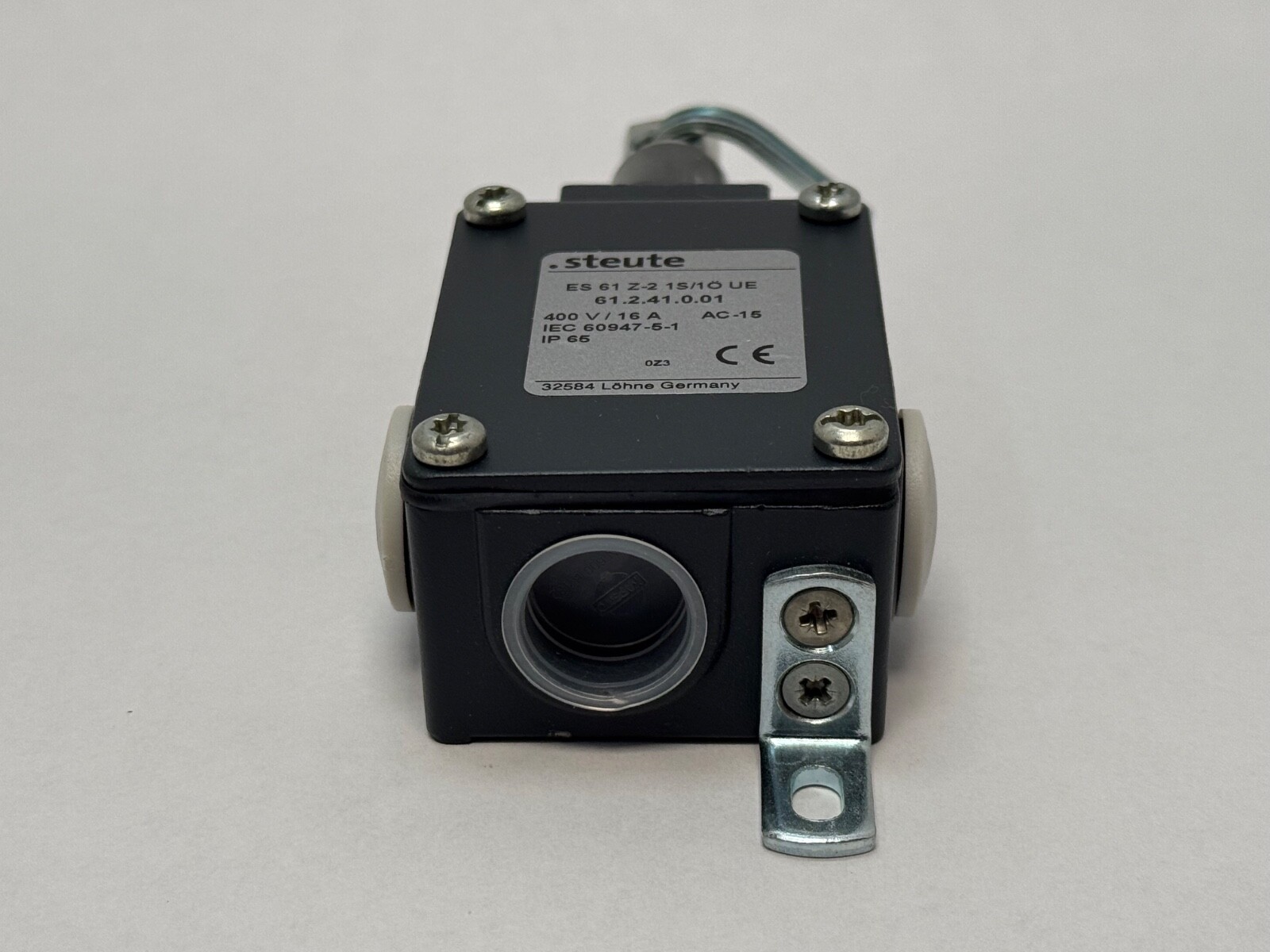

Mounting: wall mounting with mounting angle, rope actuated. Cable Entry: 3 x M20 x 1.5, for cable glands only.

Compatibility and replacement:

Steute ES 61 Z series pull-wire switch, 1S/1O, order number 61.2.41.0.01. Also marked UE. CAD model and data sheet: available from Steute (steute-controltec.com).

Frequently asked questions:

What contacts does it have?

One normally open and one normally closed contact, slow action, silver contact material.

What are the electrical ratings and enclosure rating?

Rated Operating Current/Voltage: 16 A / 400 VAC (AC-15). Degree of Protection: IP65. Ambient Temperature: –20 °C to +80 °C.

What is the order number?

61.2.41.0.01.
