SICKFX3-MPL000001S01Flexi Soft System Plug, Screw-Type Terminals – Supplies and Stores Configuration for FX3-CPU0 / FX3-CPU1

Product Description

What this part is

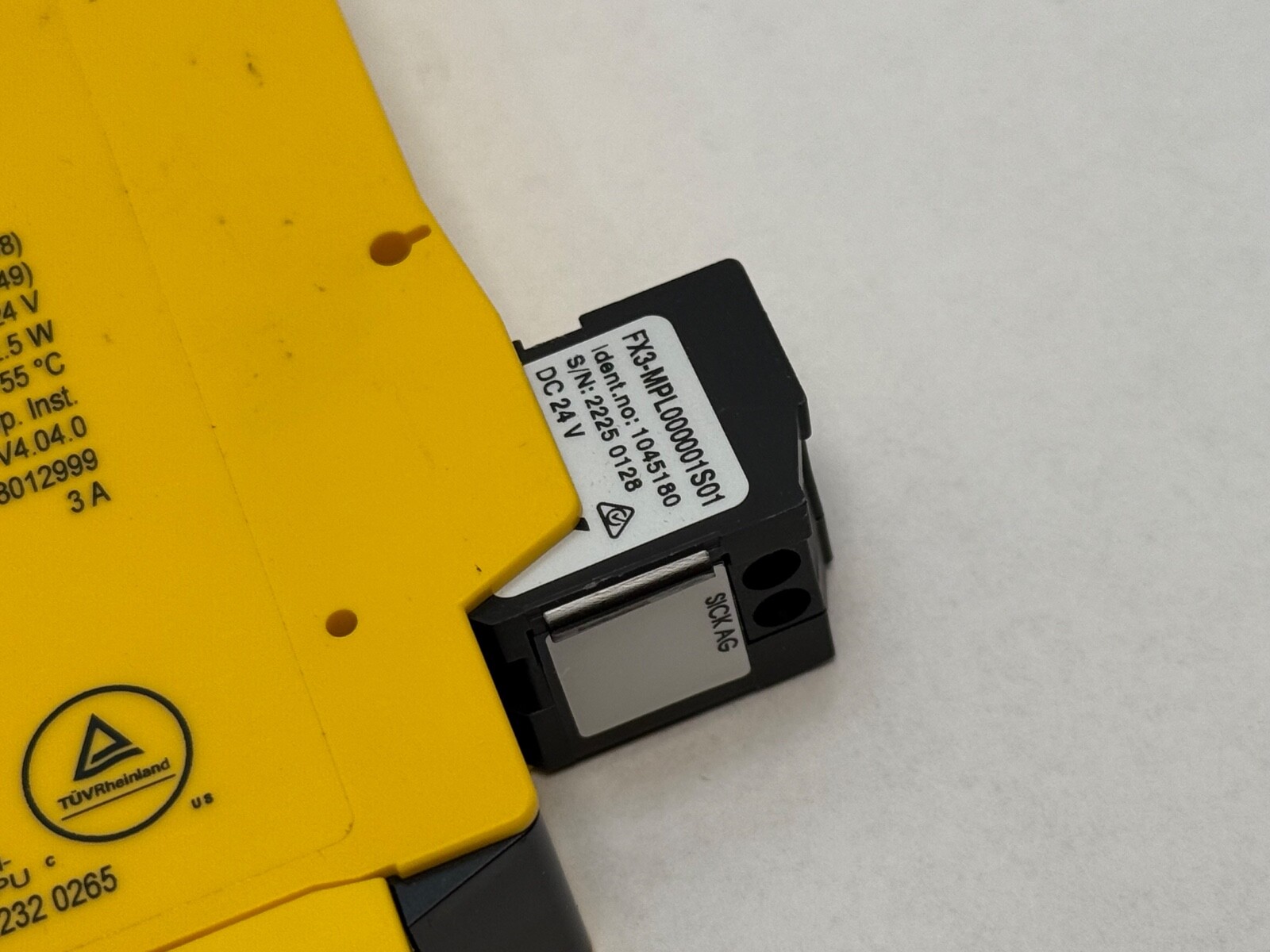

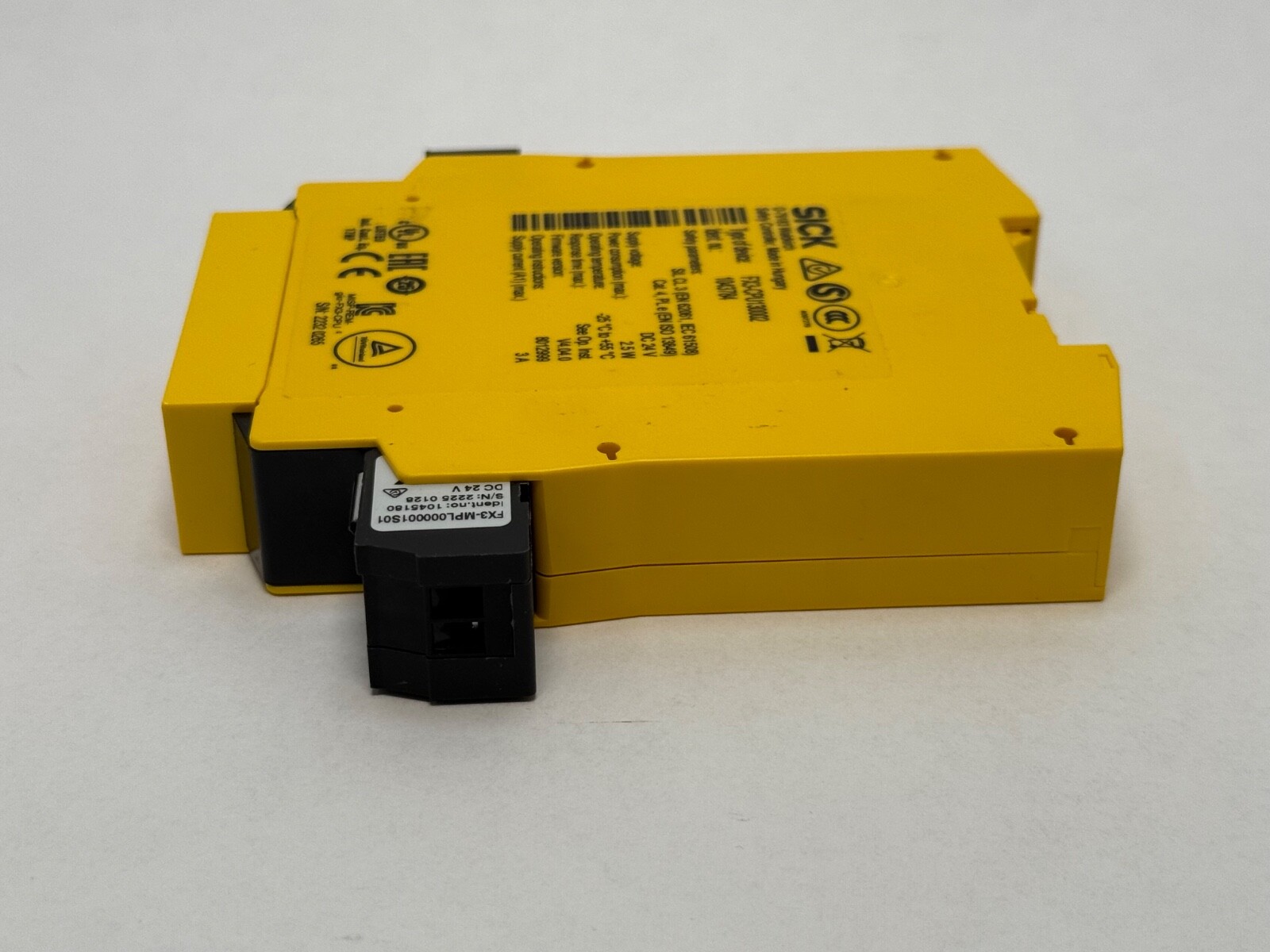

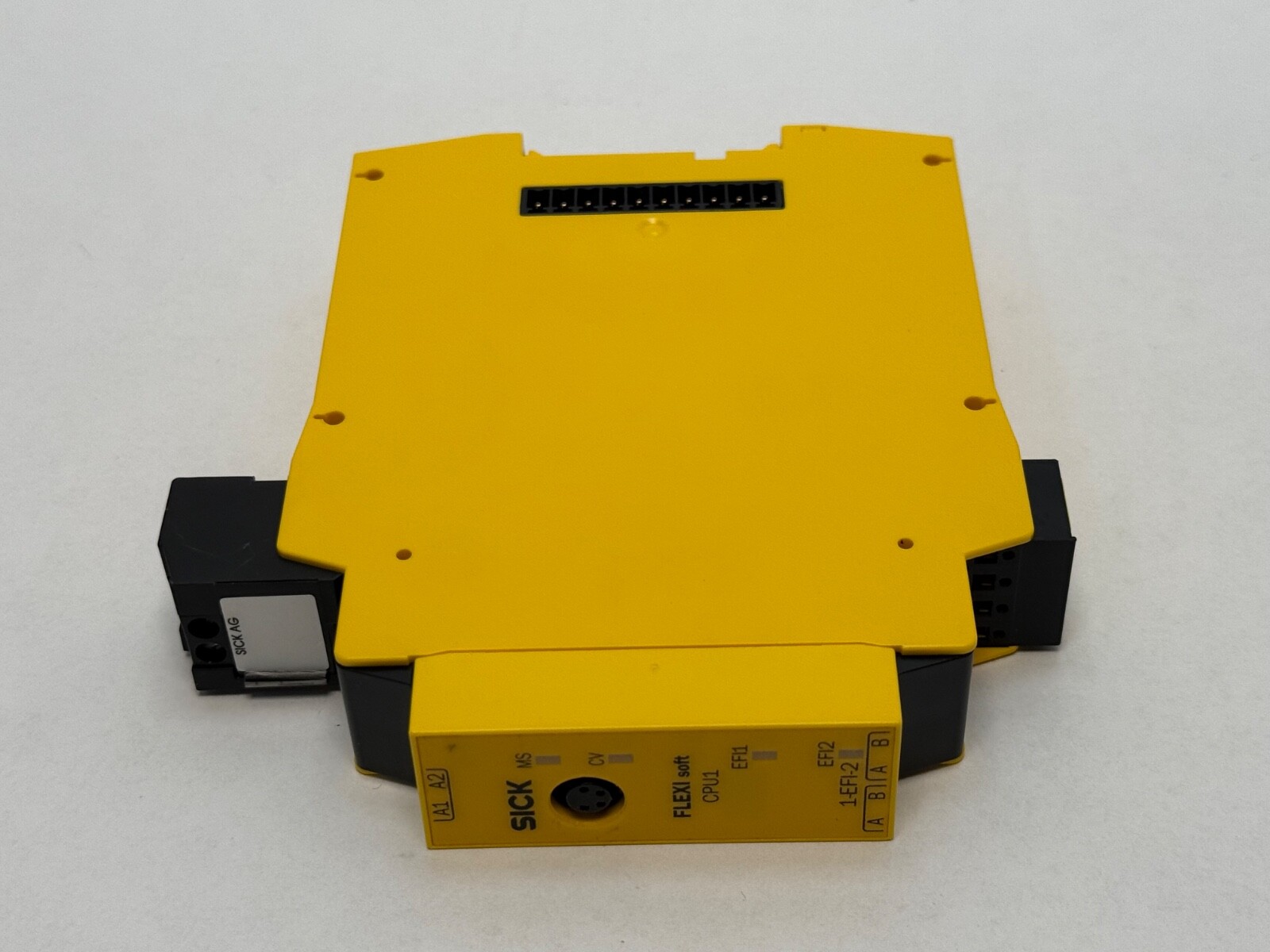

SICK FX3-MPL000001 Flexi Soft system plug. Manufacturer: SICK AG. Type: FX3-MPL000001. SICK Part Number: 1043700. Product Family: Flexi Soft safety controller, system plugs and extension modules. Connection Type: screw-type terminals. Compatible Devices: FX3-CPU0 and FX3-CPU1 main modules. Function: voltage supply to the Flexi Soft system and non-volatile storage of the system configuration. EFI Support: this is the non-EFI variant.

What these specs mean in practice

The system plug is the part of a Flexi Soft station that both feeds the 24 V supply into the CPU and holds the safety configuration. Because the configuration lives in the plug rather than in the CPU, a failed main module is swapped and the replacement picks the project up from the plug, so the station returns to service without a laptop, without the SICK Safety Designer software and without re-validating the download. Connection Type: screw-type terminals, which accept a bare conductor and hold it under a captive screw, so the plug is field-wireable with a screwdriver and needs no crimped ferrule or tooling. Compatible Devices: FX3-CPU0 and FX3-CPU1 — the two Flexi Soft main-module generations that take a plug of this connection type.

Certification

Certificates listed by SICK against this type: EC-Type-Examination approval, EC-Type-Examination approval under the Machinery Regulation, UK-Type-Examination approval, EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, cULus certificate, cTUVus certificate, KC Mark certificate and China RoHS. The cULus and cTUVus listings are what a North American panel build is inspected against, and the EC and UK type-examination approvals are what carry the plug into a CE- or UKCA-marked safety function.

Quantity and configuration

Unit Quantity: 1 Pc. One system plug.

Interchange guidance

FX3-MPL000001 is the screw-terminal, non-EFI system plug. The EFI-capable equivalent in the same form is the FX3-MPL100001, SICK part no. 1047162, which adds the EFI device bus. Searchable variants of the number: FX3-MPL000001, FX3-MPL000001S01, FX3 MPL000001, FX3MPL000001, FX3-MPL-000001, 1043700.
