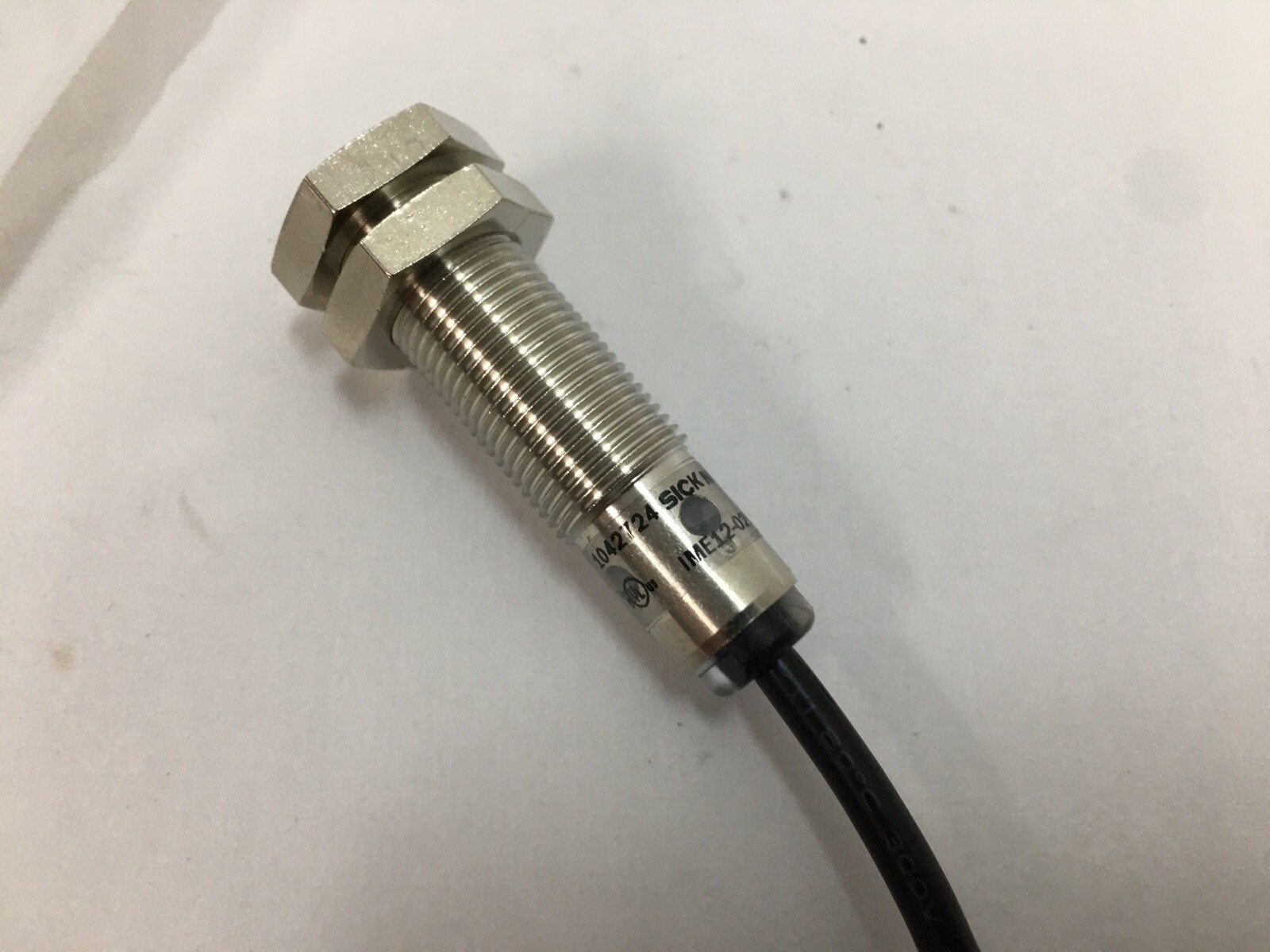

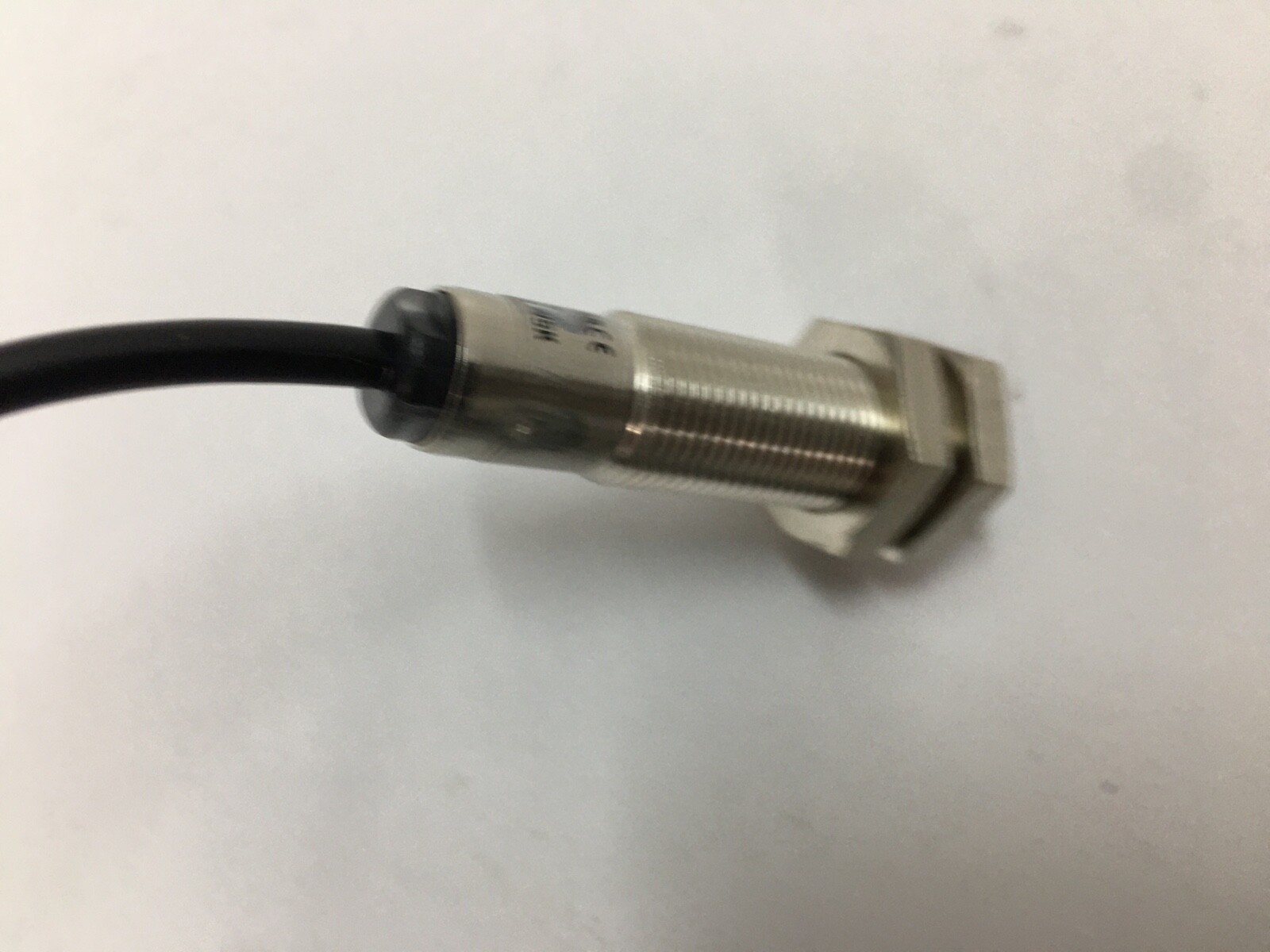

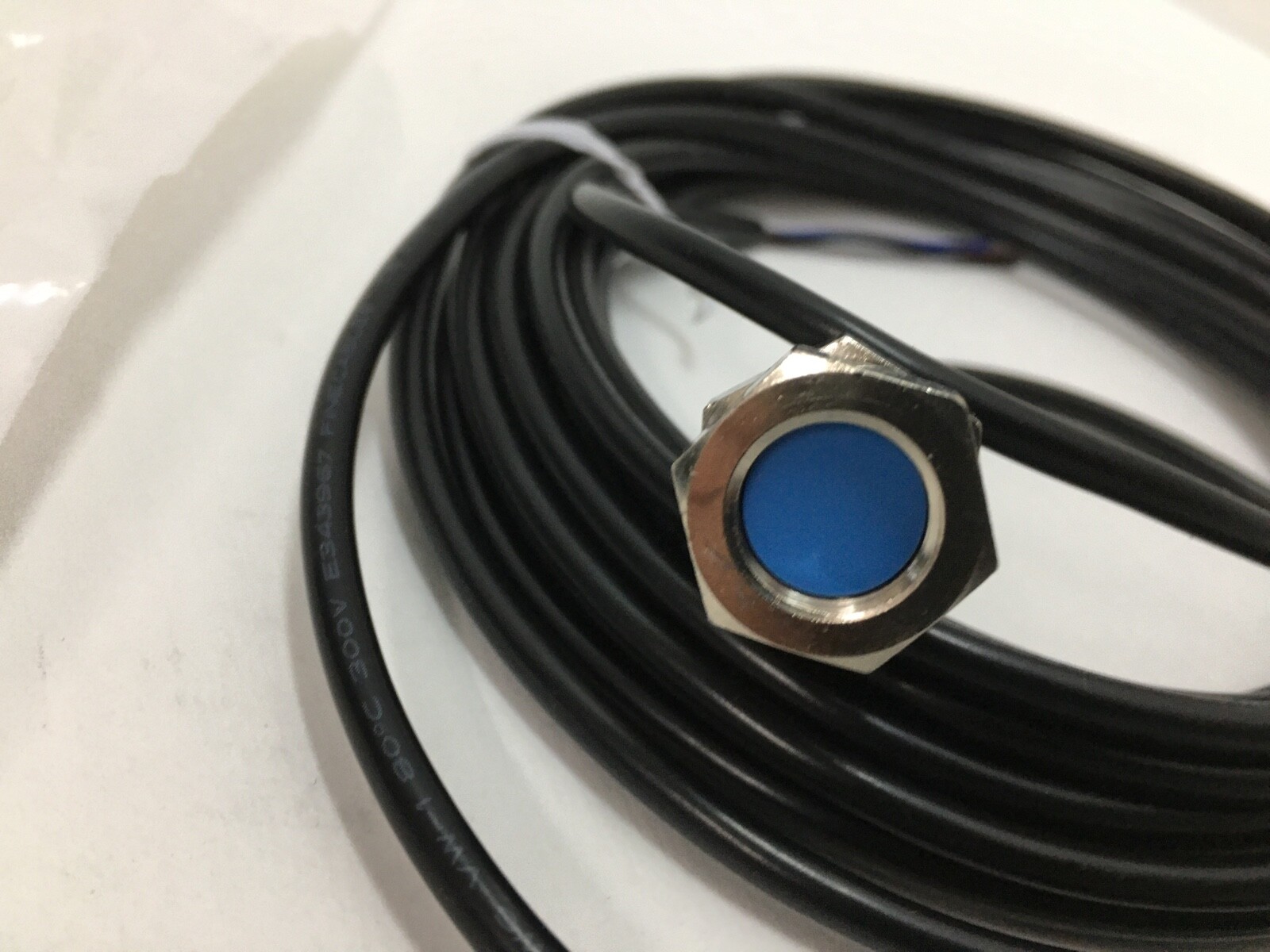

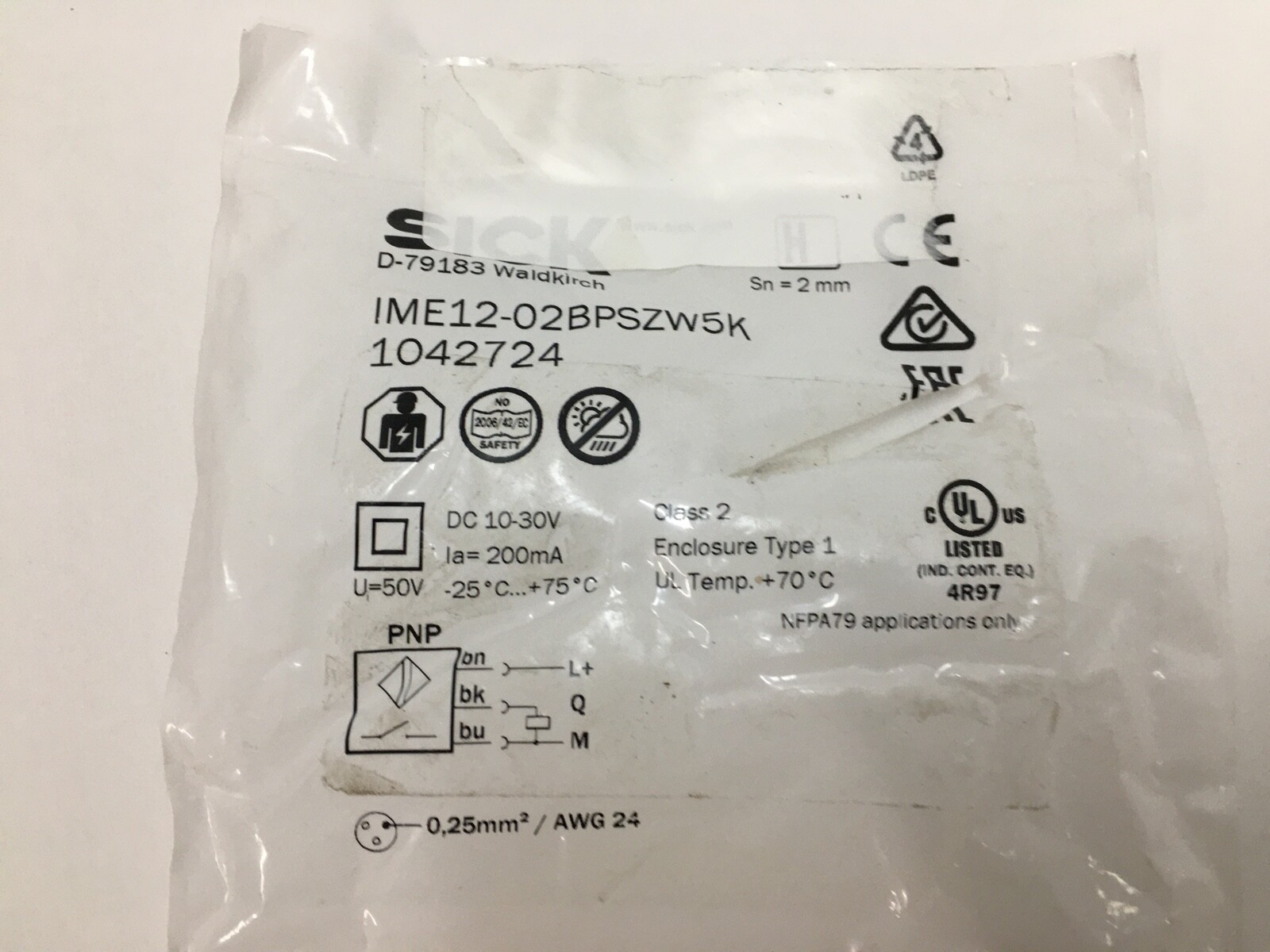

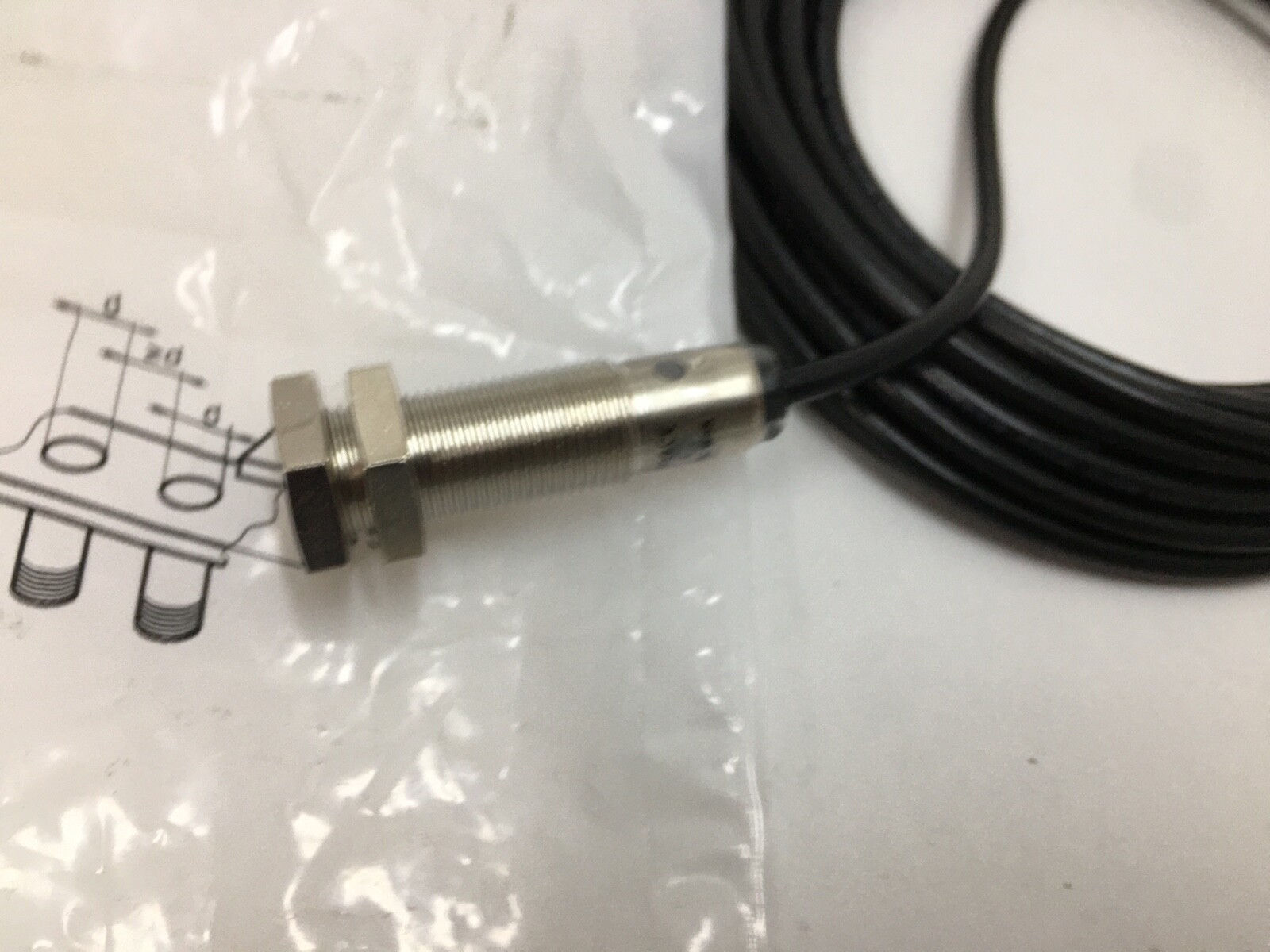

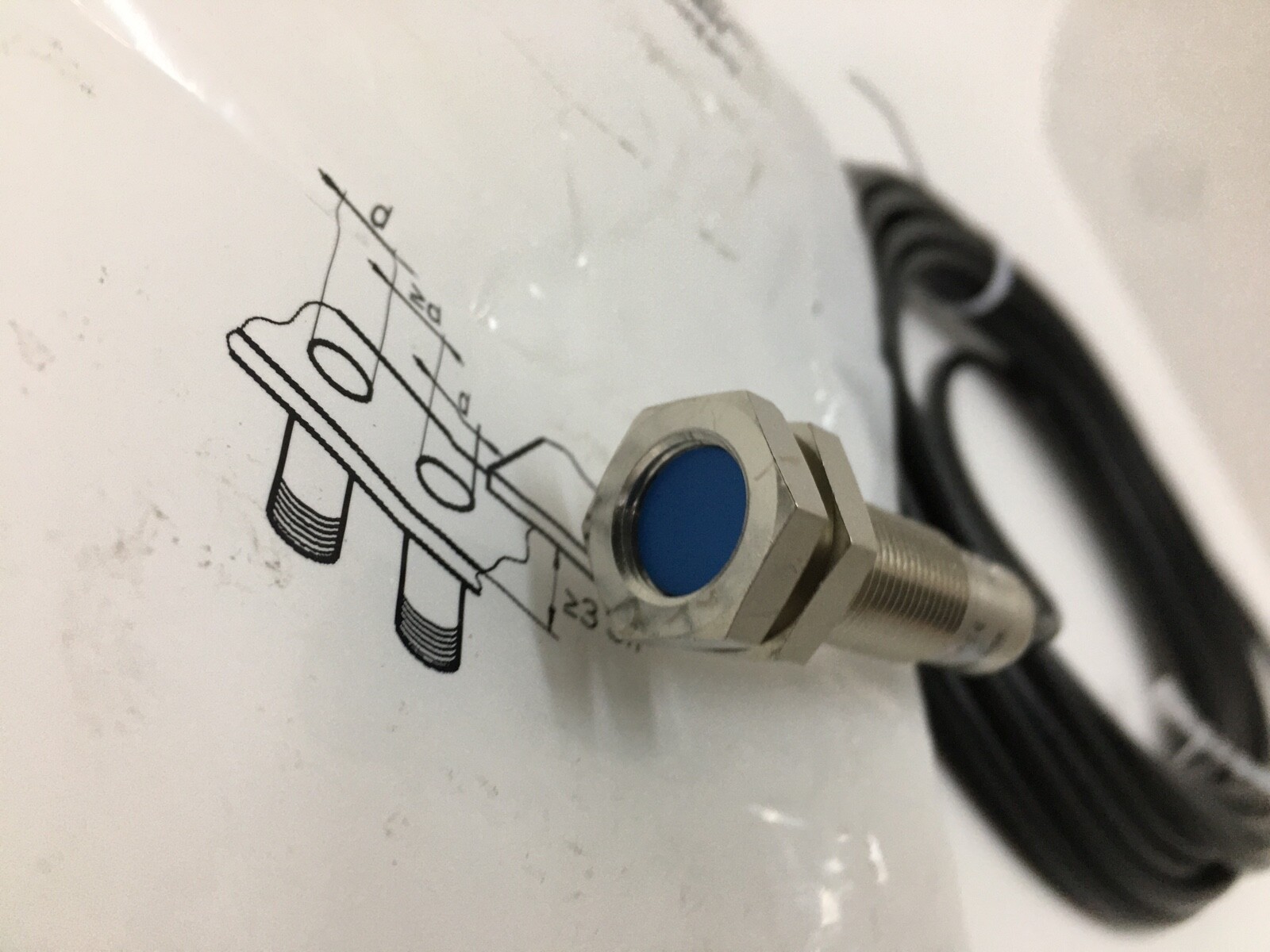

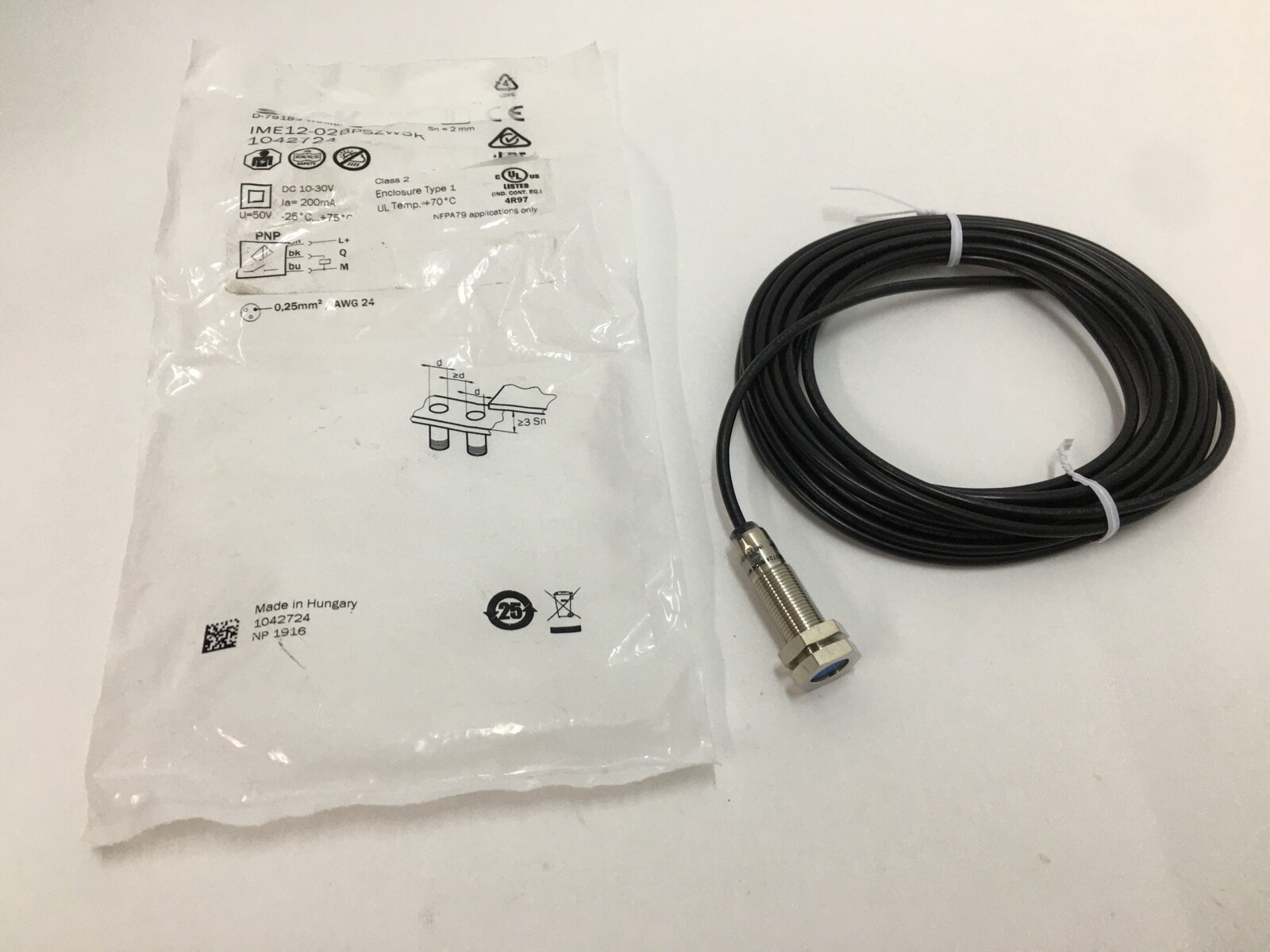

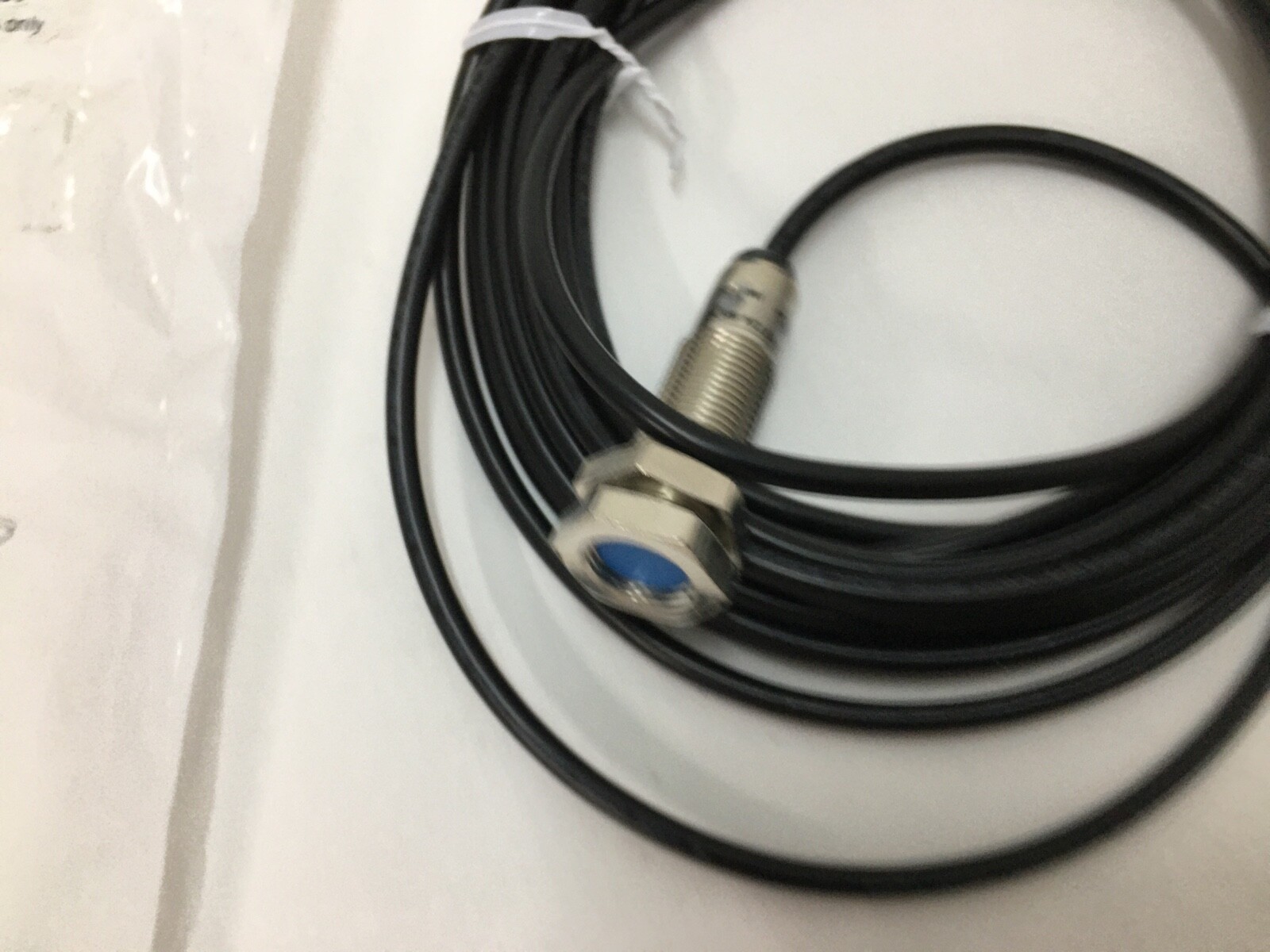

SICKIME12-02BPSZW5KInductive Proximity Sensor — M12 x 1, 2 mm Sensing Range, Flush, PNP NO, 10–30 VDC, Cable

Condition: New

Availability:

1 in stock

SICK IME12-02BPSZW5K inductive proximity sensor, M12 x 1 brass barrel, 2 mm flush sensing range, PNP NO, 10–30 VDC, 3-wire cable, IP67. SICK part 1042724.

Same day shipment

List Price

$203.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSICK
MPNIME12-02BPSZW5K
ModelIME1202BPSZW5K

Technical Specifications

ShieldShielded
Sensor TypeInductive
Body TypeBarrel
Current TypeDC
Base NumberIME12-02BPSZ
Industry Termsinductive proximity sensor, prox switch, M12 prox, PNP sensor
Common MisspellingsIME12-02BPSZW5, IME12-2BPSZW5K, IME1202BPSZW5
Application Typesmetal object detection, position sensing, machine automation
Output TypePNP
Voltage10-30 VDC
Mpn VariantsIME12-02BPSZW5K, 1042724, IME1202BPSZW5K, IME 12-02 BPSZW 5K
Compatible With ReplacesIME12-02BPSZW2K (same sensor, 2 m cable)
SeriesIME
Thread SizeM12 x 1
Seller Part Number: AD1B3#HEXXAQ

Product Description

What this part is:

A SICK IME12-02BPSZW5K inductive proximity sensor from the IME family, SICK part number 1042724. An M12 short-body threaded barrel sensor with a pre-wired cable. Unit Quantity: 1 Pc.

Decoding the designation:

IME12 — SICK IME inductive sensor, M12 x 1 metric thread.

02 — sensing range, 2 mm.

B — flush installation.

P — PNP switching output.

S — normally open (NO) output function.

W — cable connection.

Specifications:

Sensing Range: 2 mm. Safe Sensing Range: 1.62 mm. Installation Type: Flush. Switching Output: PNP. Output Function: NO. Electrical Wiring: DC 3-wire. Supply Voltage: 10–30 VDC. Continuous Current: 200 mA max. Switching Frequency: 2,000 Hz. Enclosure Rating: IP67. Ambient Operating Temperature: –25 °C to +75 °C. Housing Material: brass, nickel-plated. Sensing Face Material: PA 66. Cable Material: PVC, 0.25 mm² conductors, 3.9 mm diameter. Short-circuit protection: yes. Unit Quantity: 1 Pc.

Dimensions and mounting:

Thread Size: M12 x 1. Housing Length: 44 mm. Thread Length: 29 mm. Tightening Torque: 12 Nm max. Two nickel-plated brass mounting nuts, 17 mm across flats.

Compatibility and replacement:

Same sensor as the SICK IME12-02BPSZW2K (1040733) with a different cable length. The number is also written IME1202BPSZW5K and IME 12-02 BPSZW 5K.

Frequently asked questions:

What is the sensing range of the SICK IME12-02BPSZW5K?

2 mm, flush installation.

What is the output of the IME12-02BPSZW5K?

PNP, normally open, on a DC 3-wire connection at 10 to 30 VDC.

What thread does it have?

M12 x 1, with a 44 mm housing length.
