Siemens3-424-2327A01Handheld Operator Pendant, Acramatic A2100 CNC Control, Feedrate and Spindle Override

Product Description

What this part is

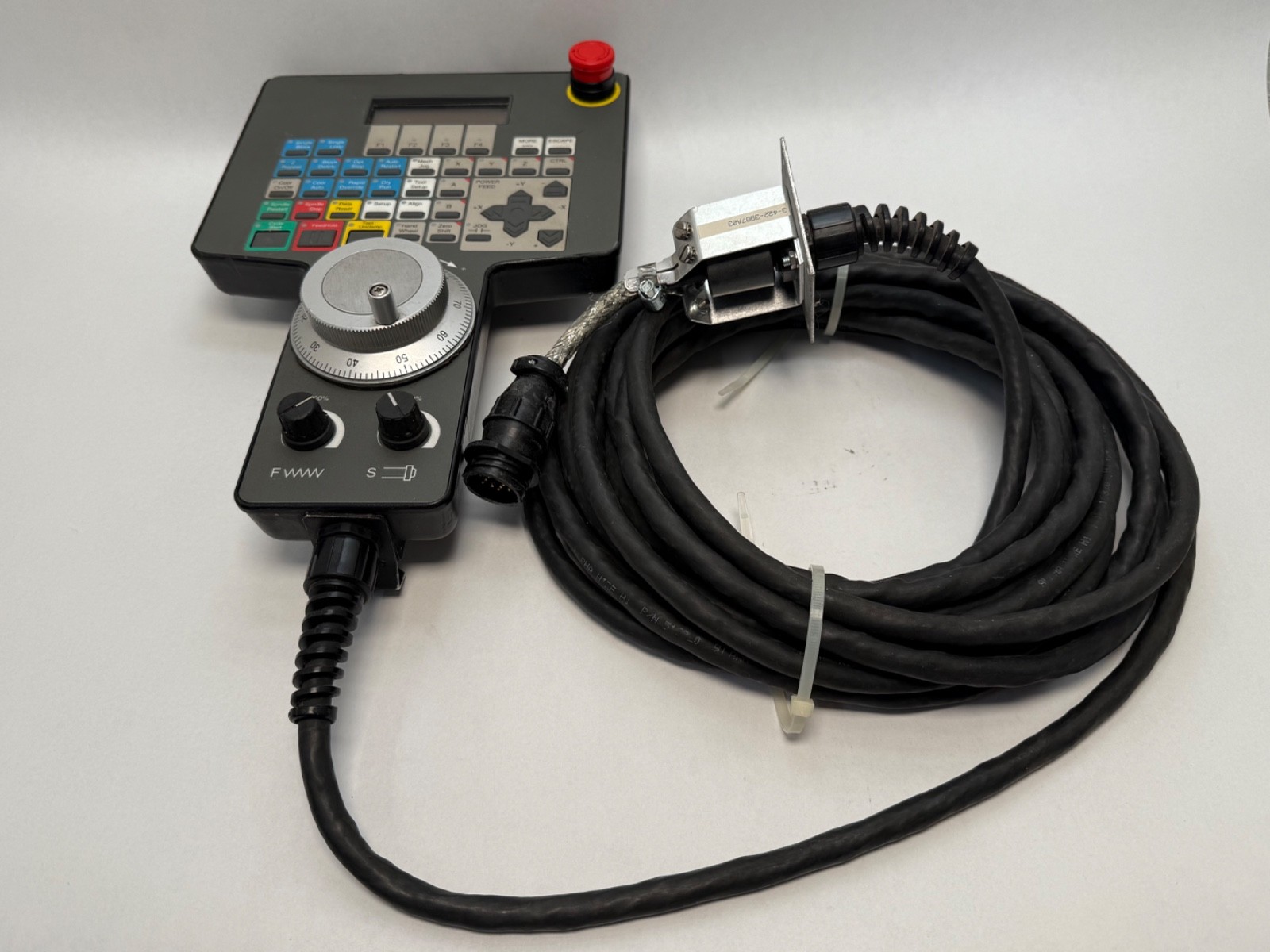

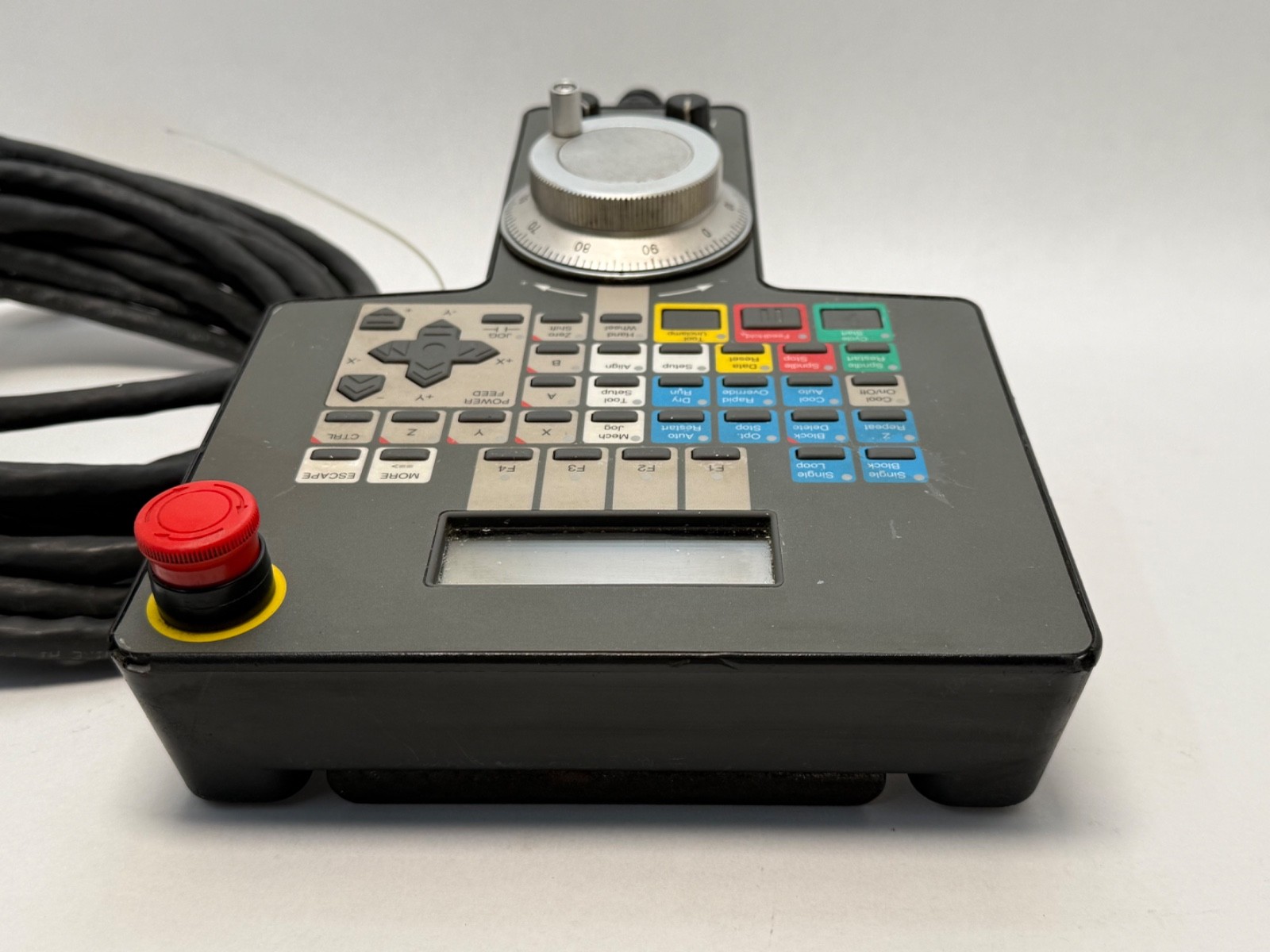

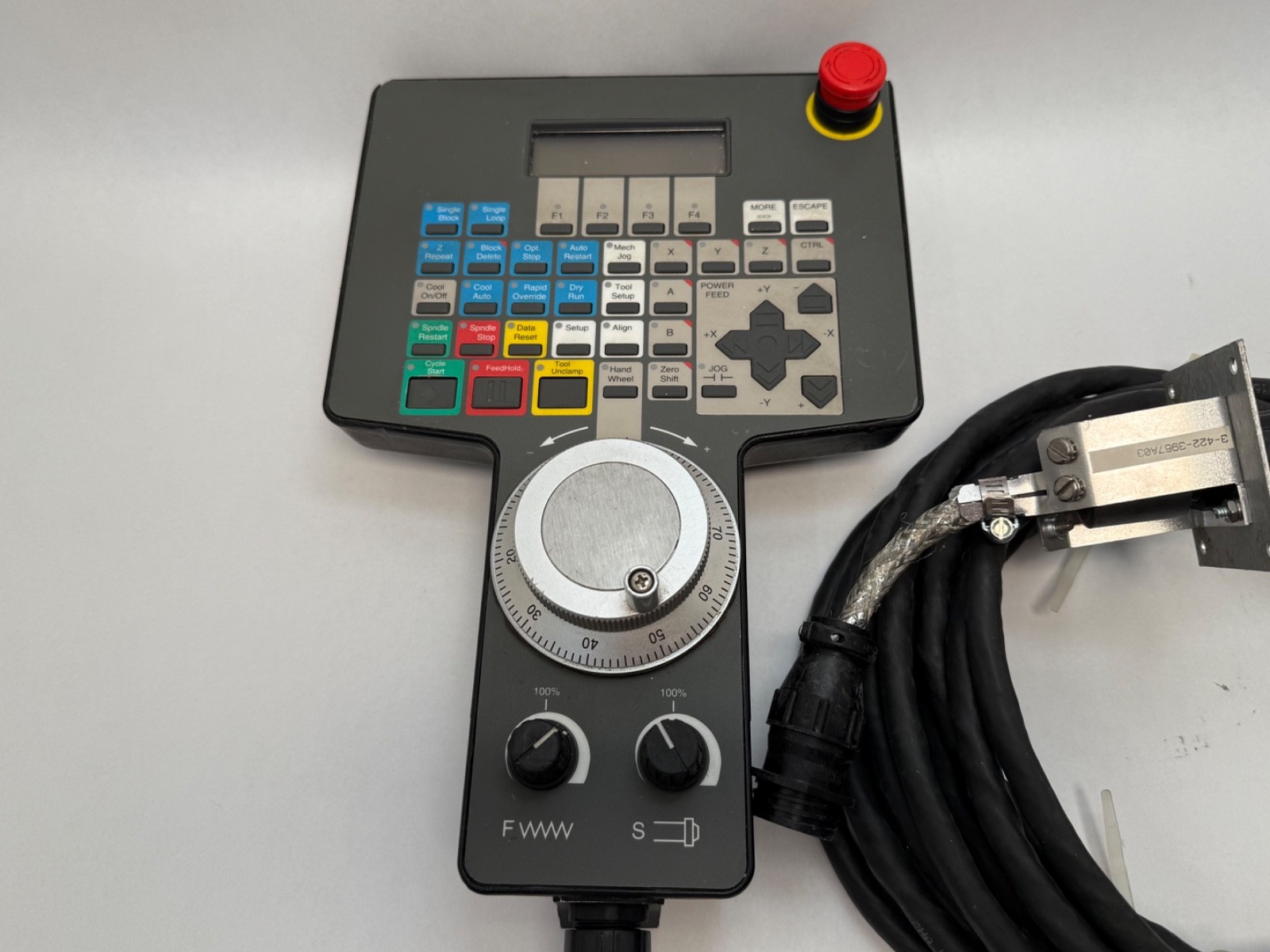

Handheld operator pendant for the Acramatic A2100 machine tool control. Brand: Siemens. Part Number: 3-424-2327A01. Product Type: handheld operator control unit. Controller Platform: Acramatic A2100. Unit Quantity: 1 Pc. Country of Origin: United States. The pendant gives an operator manual axis jogging and override control at the machine, away from the main console.

Decoding the designation

3-424 — the Cincinnati Milacron control-products number group carried forward into the Siemens machine tool control line.

2327 — the assembly number identifying the handheld pendant within that group.

A01 — the revision and execution suffix for this build.

Controls and configuration

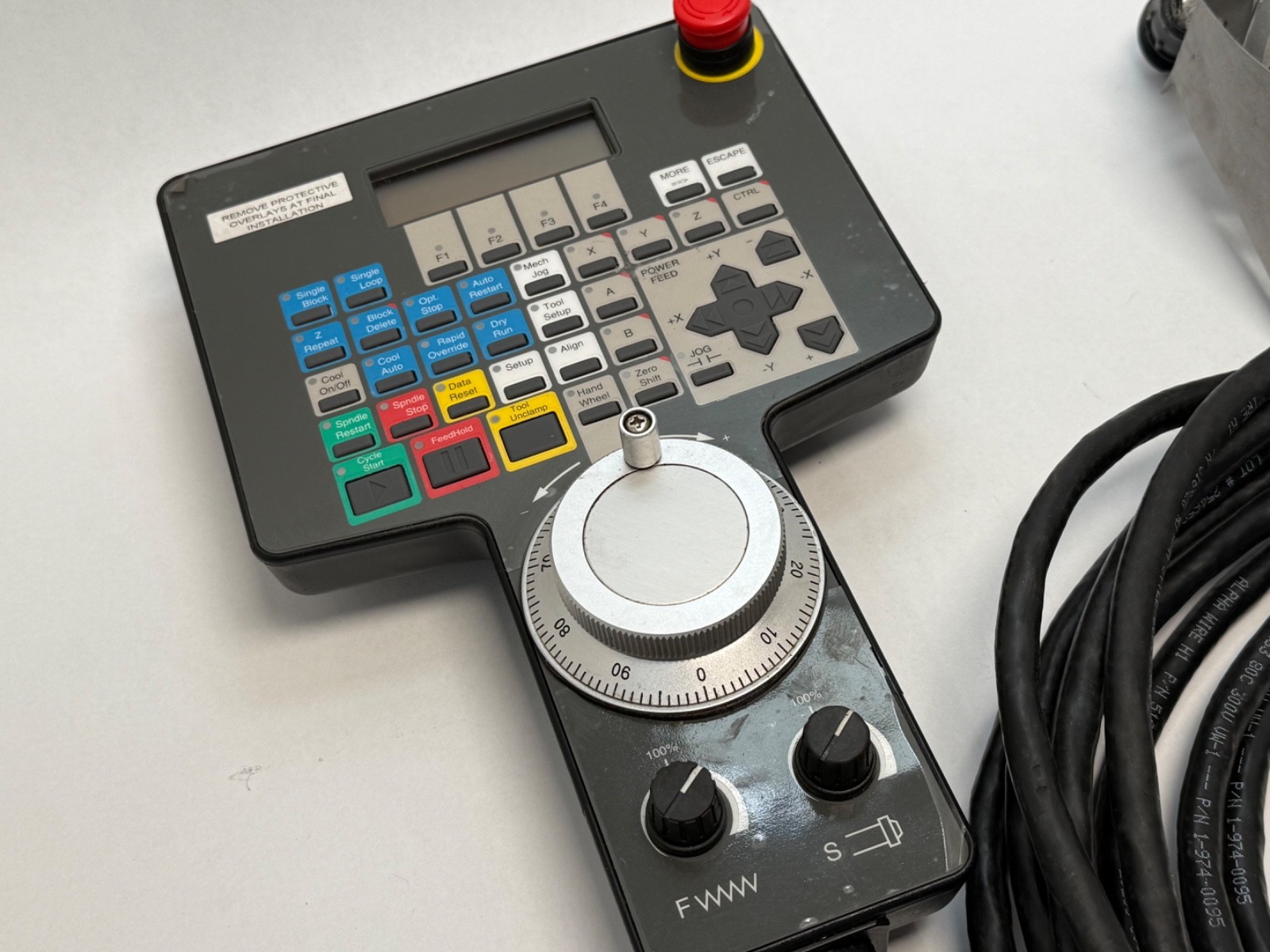

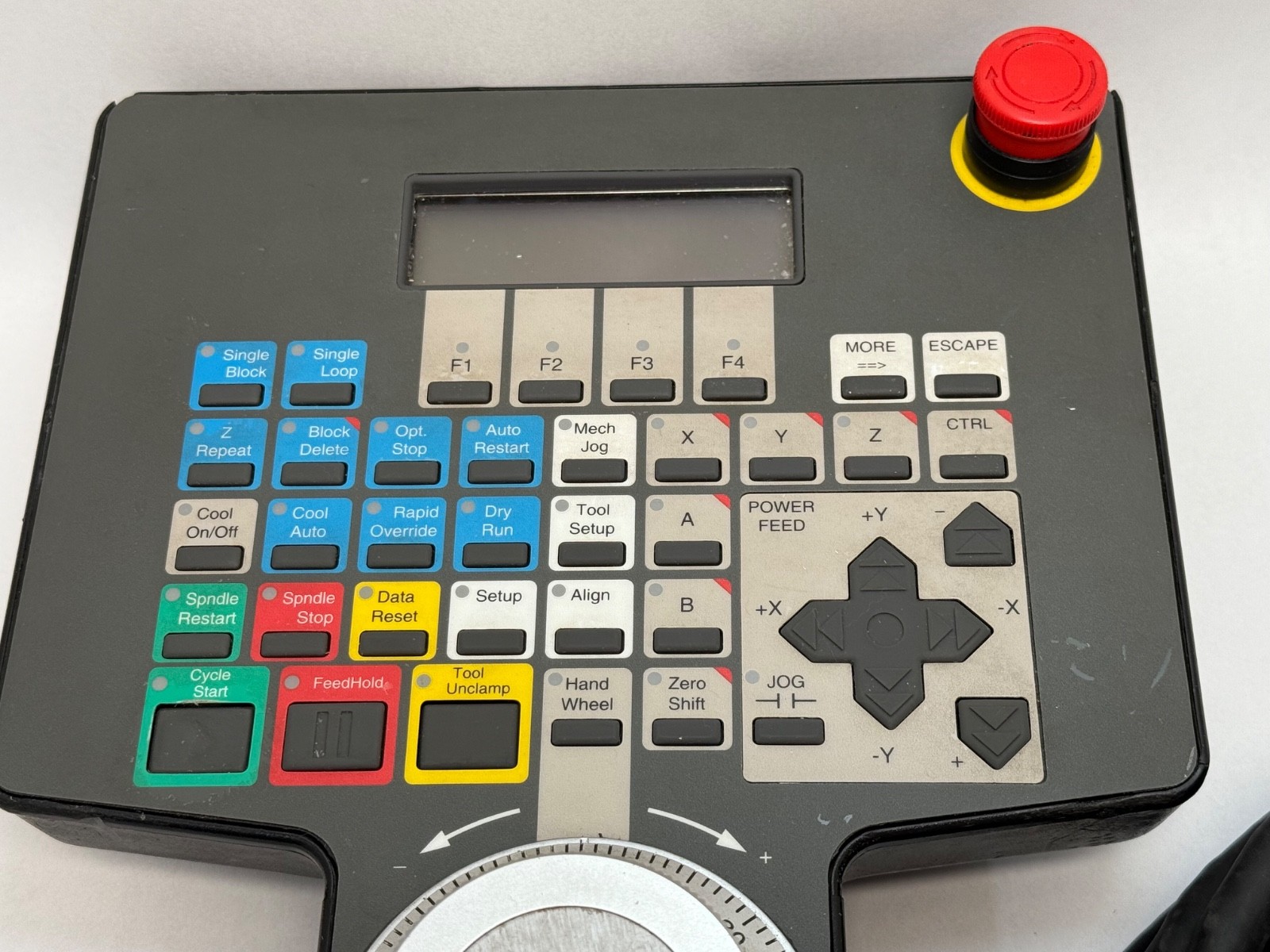

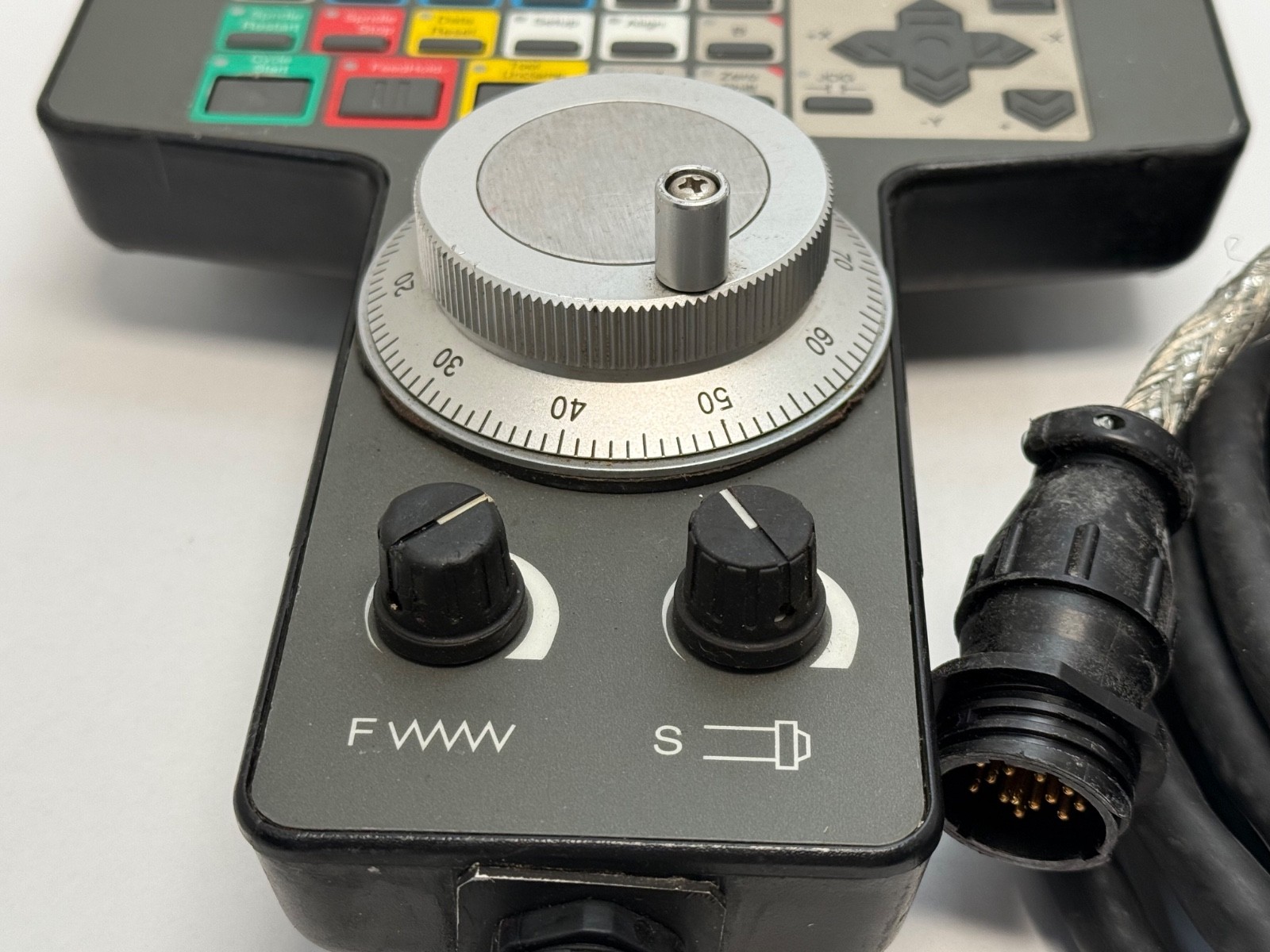

Override Controls: feedrate and spindle-speed potentiometers. Addressing: DIP switches set the unit identifier so the control recognises which pendant is connected. Function: axis jog and machine status monitoring from the pendant.

What these specs mean in practice

Setting feedrate and spindle speed by potentiometer puts the two adjustments an operator reaches for most often under the hand that is already at the workpiece, which is the point of a pendant on a machining centre or turning centre. The DIP-switch identifier means one control can distinguish between pendants on a multi-station machine.

Quantity and configuration

Unit Quantity: 1 Pc. Pendant unit. Condition: new old stock.

Interchange guidance

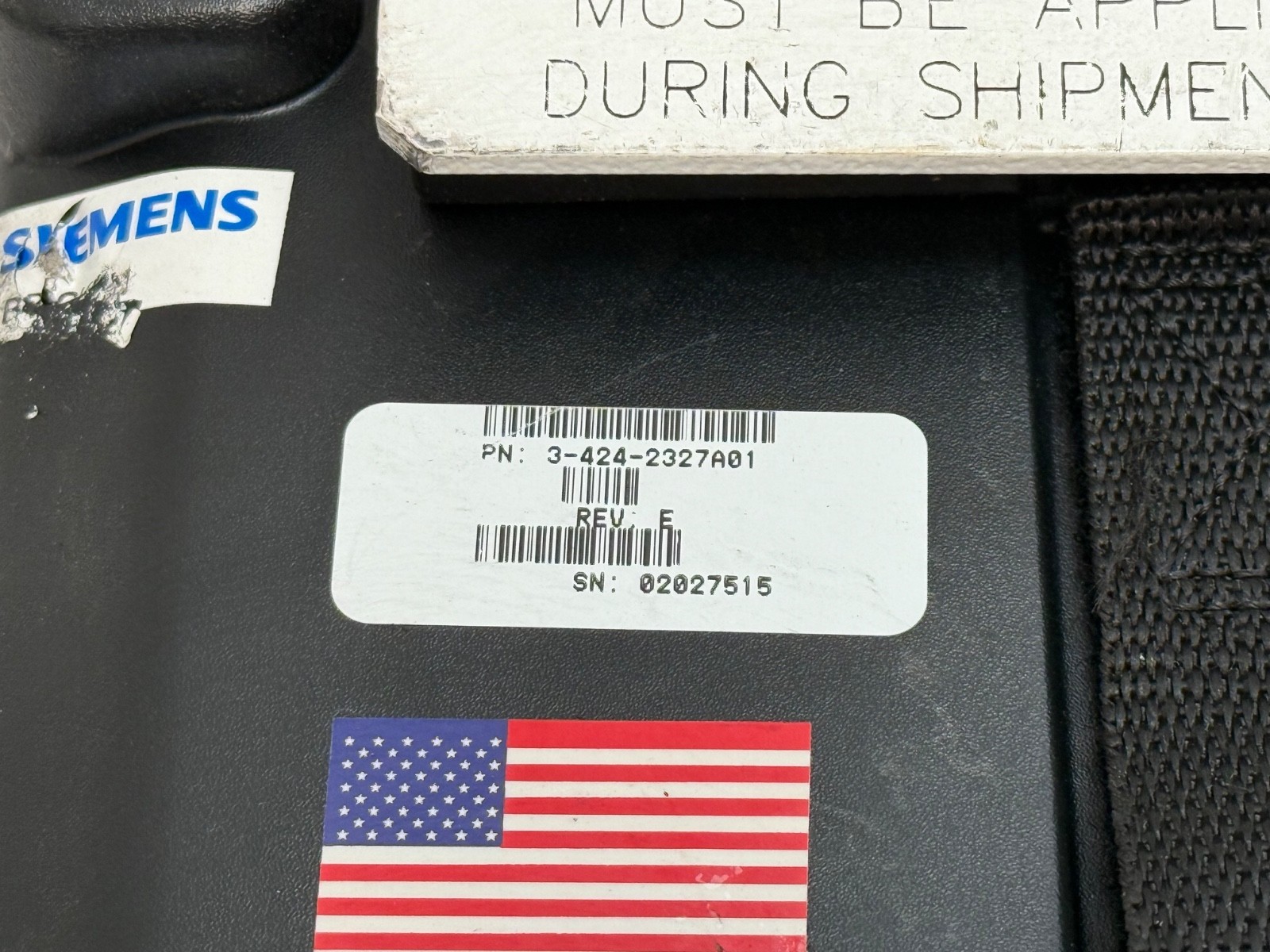

Searchable forms of the number: 3-424-2327A01, 3 424 2327A01, 34242327A01 and 3-424-2327-A01. Related pendants in the same 3-424 group carry the numbers 3-424-2326A01 and 3-424-2227A; the four-digit assembly number is the element to match.
