Availability:
2 in stock

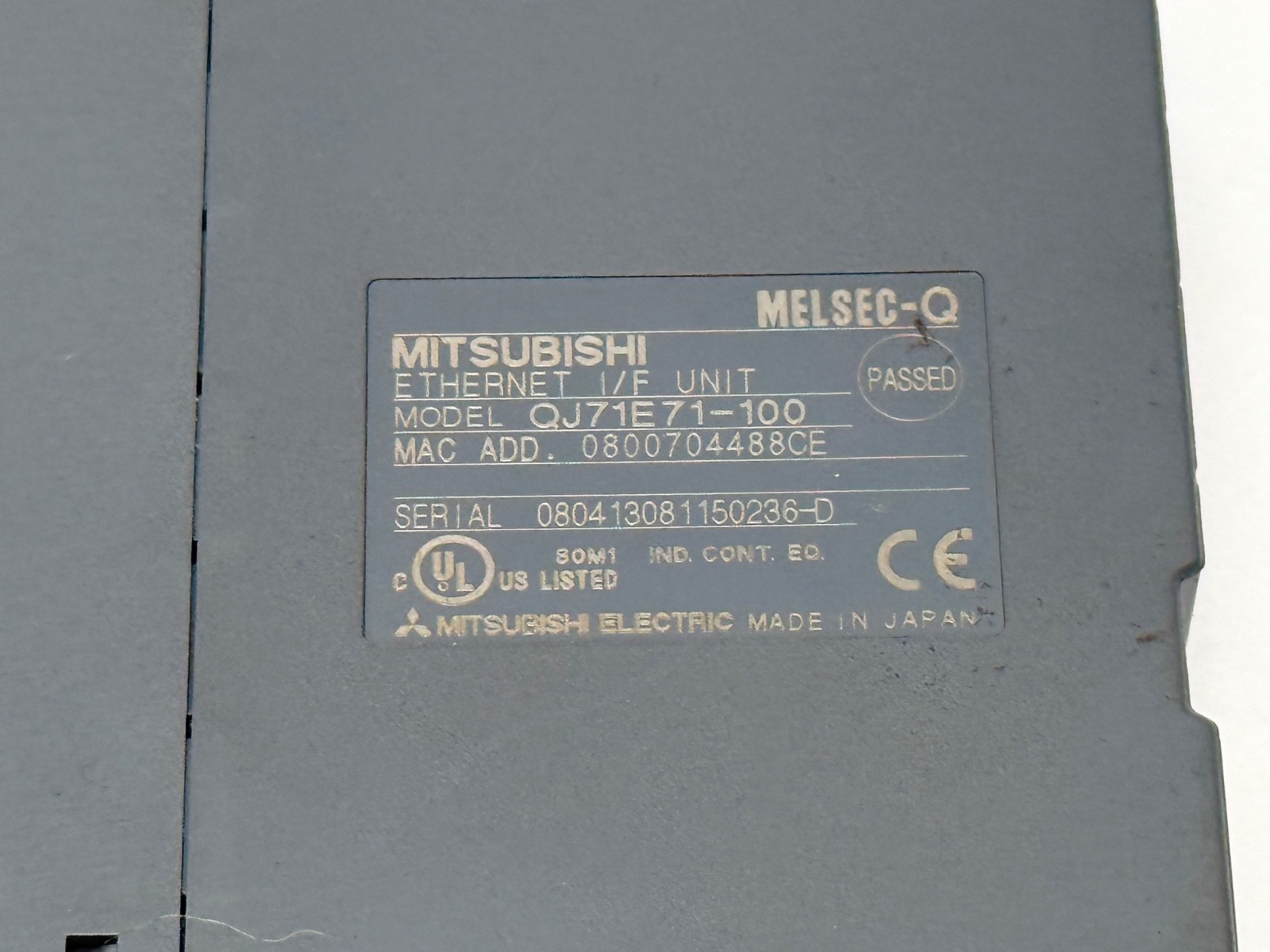

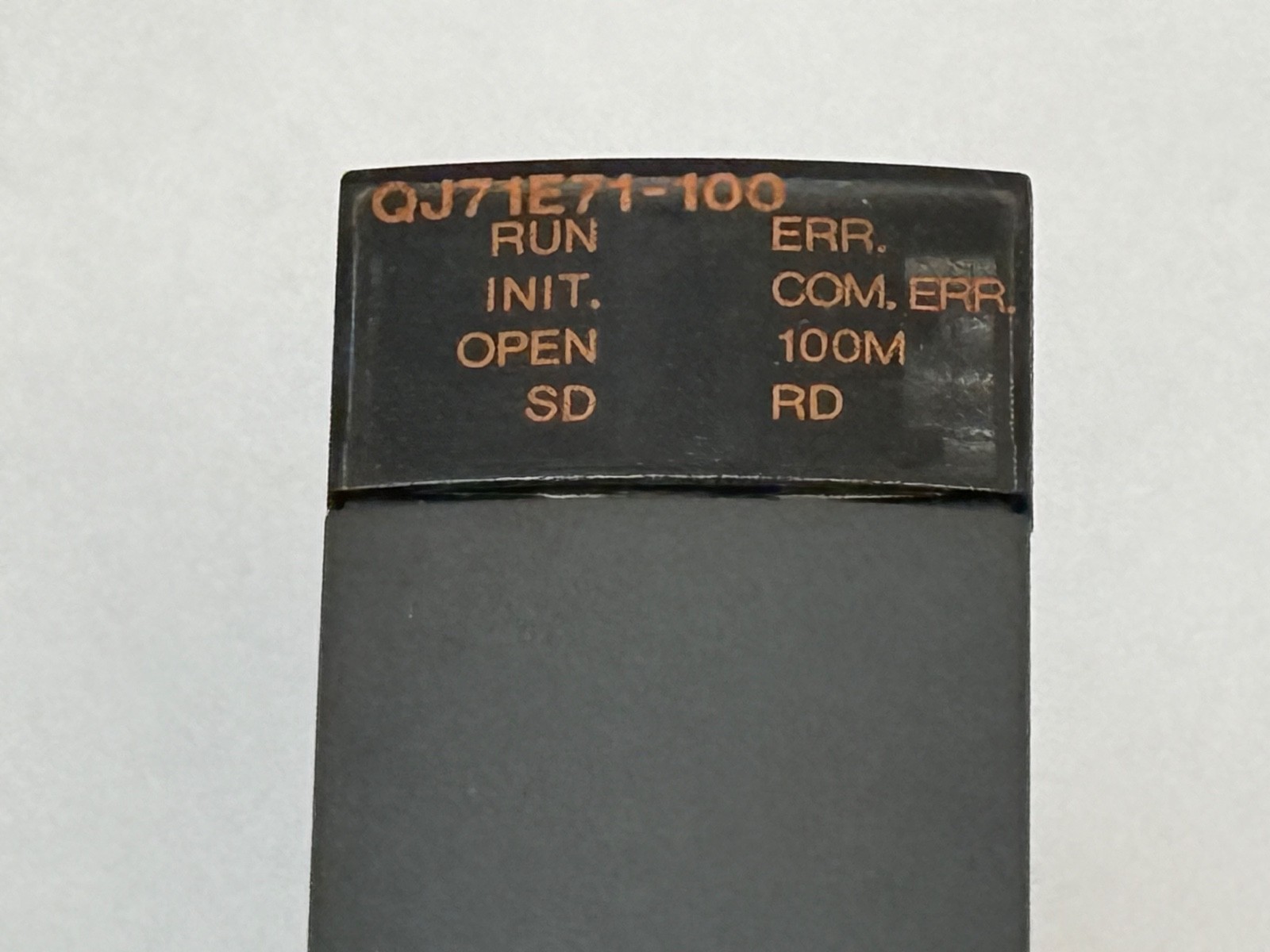

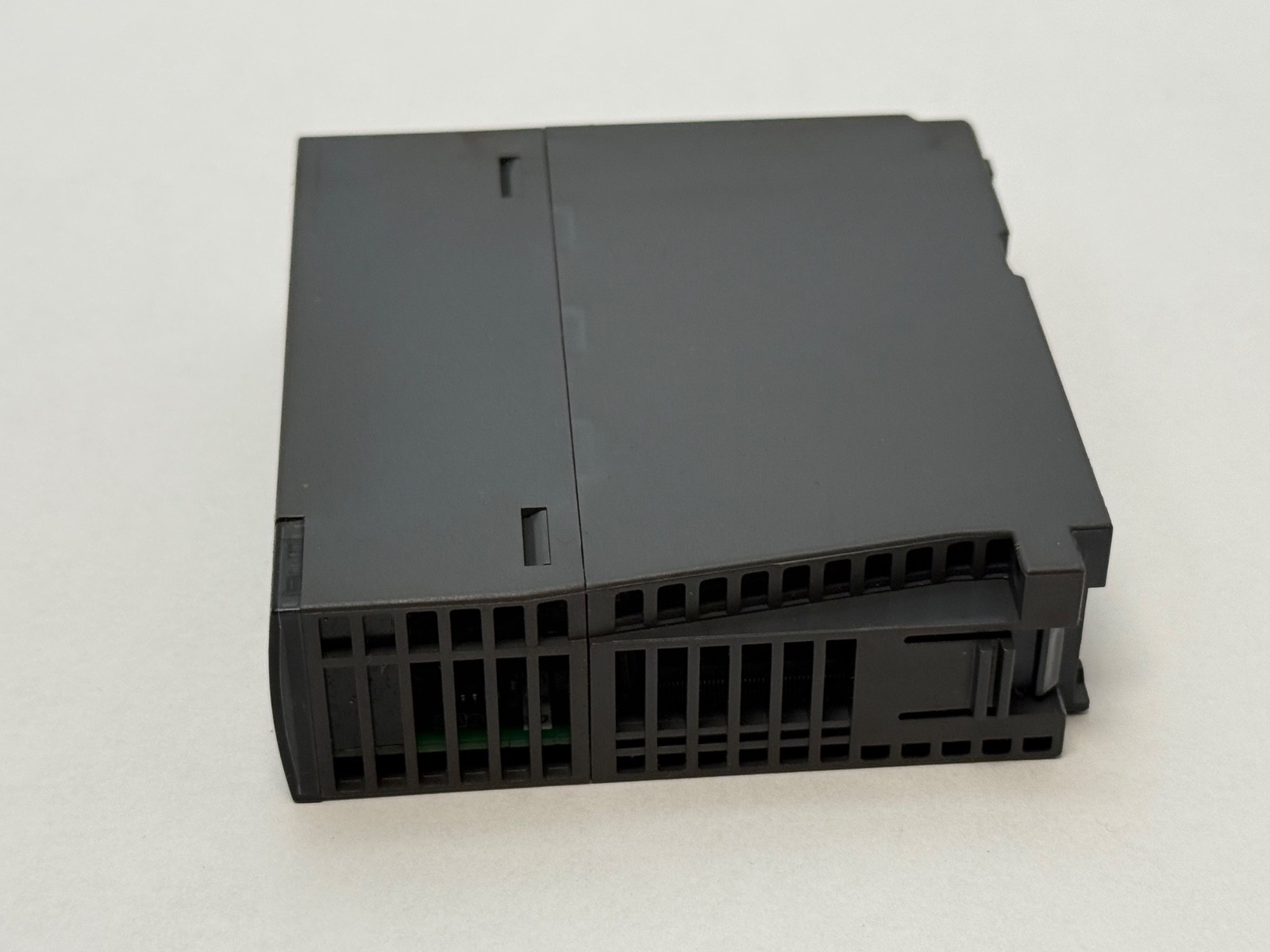

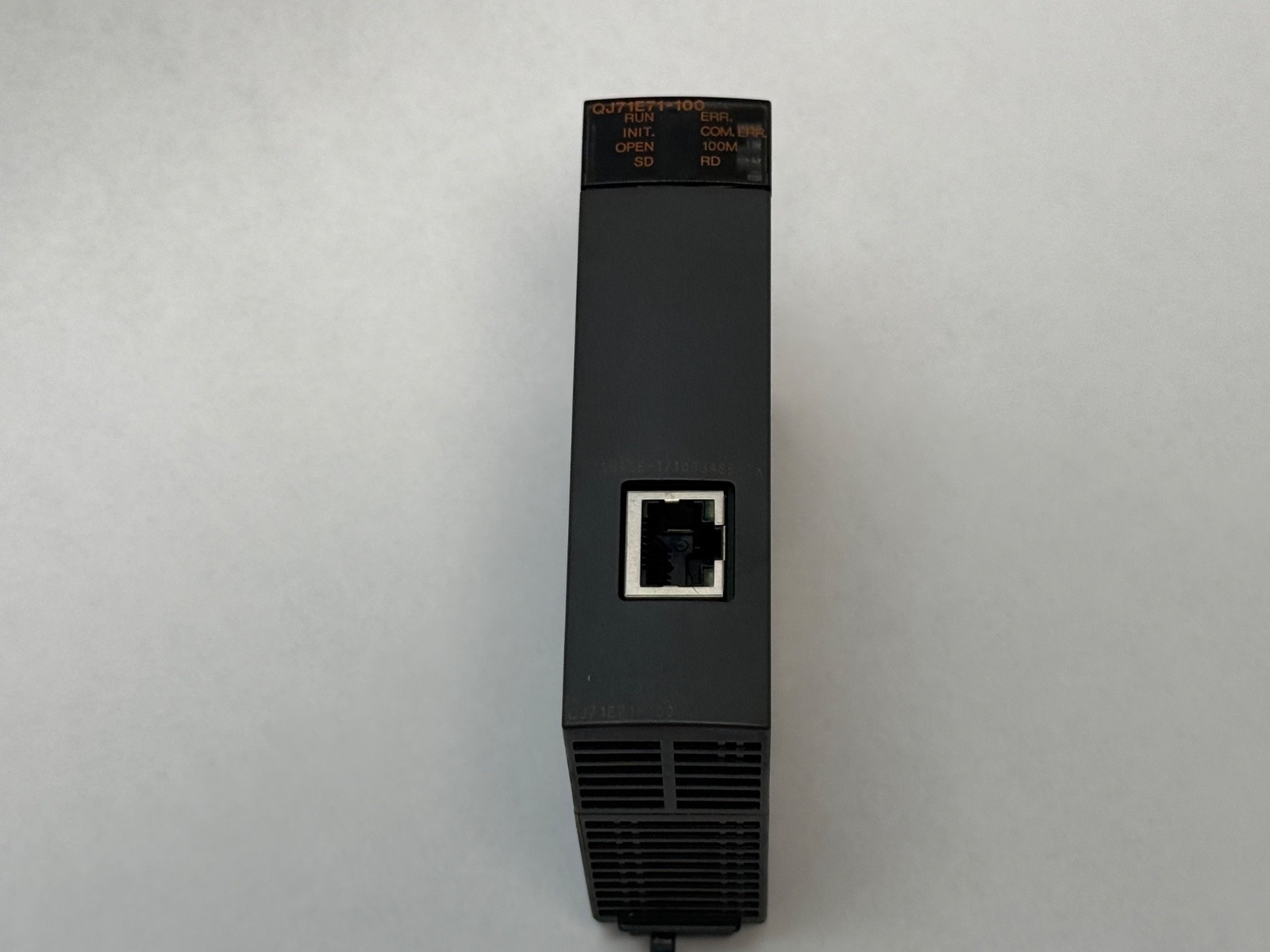

Mitsubishi QJ71E71-100 Ethernet interface module, MELSEC-Q, 100BASE-TX/10BASE-T on RJ45, 16 open connections, 32 I/O points, 0.50 A at 5 V DC.
List Price
$133.78
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Mitsubishi |
|---|---|
| Model | QJ71E71-100 |
| Type | Ethernet Interface Module |
|---|---|
| Series | MELSEC-Q |
| Connector Style | RJ45 |
| Item Width | 27.4 mm |
| Item Height | 98 mm |
| Item Length | 90 mm |
| Controller Platform | MELSEC-Q |
| Number Of Ports | 1 |
| Connectivity | Ethernet |
| Mpn Variants | QJ71E71-100, QJ71E71100, QJ71E71 100 |
| Manufacturer Status | Standard item (active) |
| Compatible With Replaces | Replaces QJ71E71; successor RJ71EN71 |
| Additional Attributes | Station Type: Master/Local; Data Transmission Speed: 100 Mbps / 10 Mbps; Maximum Segment Length: 100 m; Occupied I/O Points: 32; Internal Current Consumption: 0.50 A at 5 V DC; Certifications: CE, UL/cUL, UKCA, RoHS; Shipping Approvals: ABS, BV, DNV GL, LR, NK, RINA |
| Item Weight | 0.11 kg (0.24 lb) |

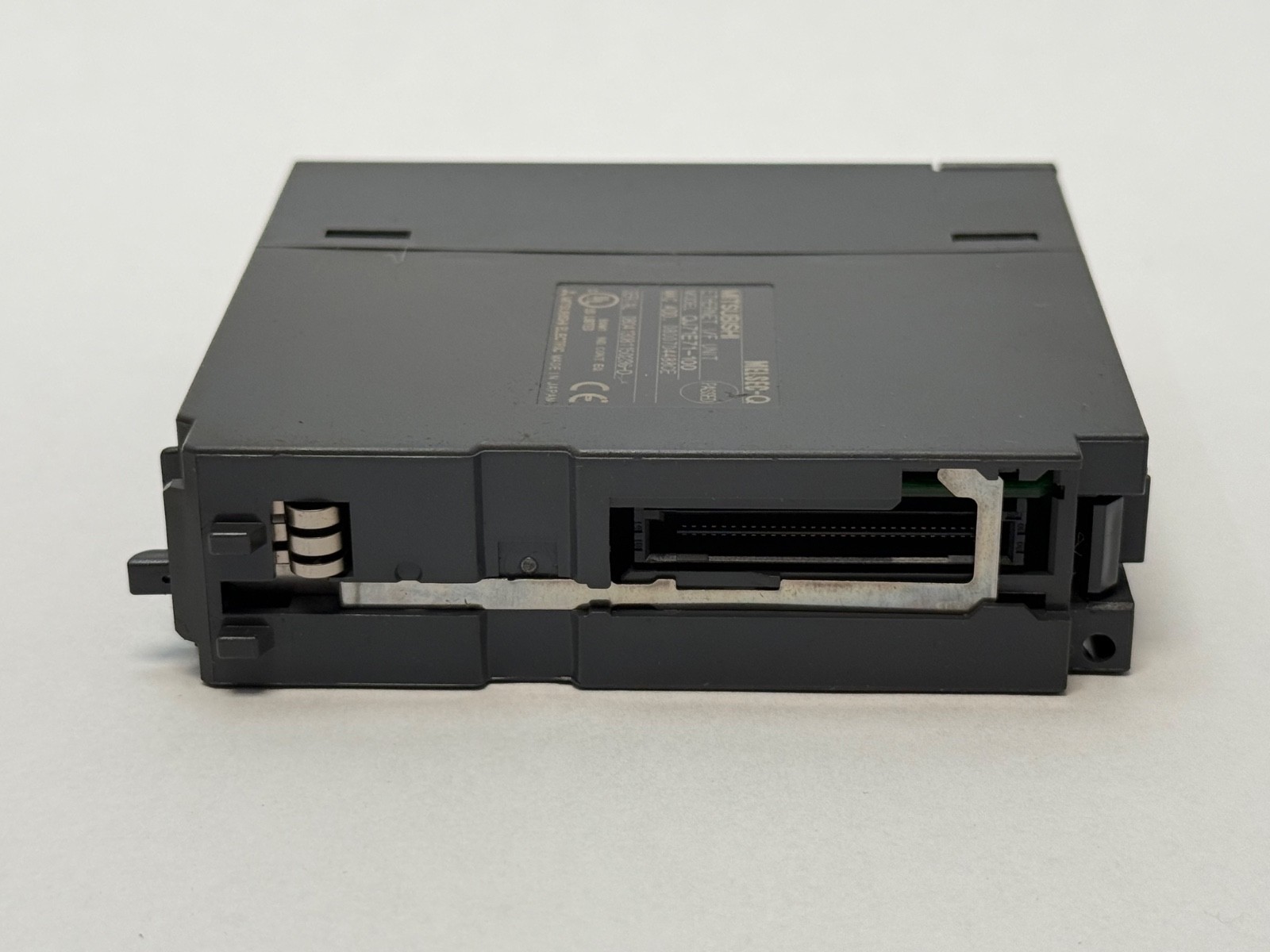

| Mounting Type | MELSEC-Q base unit |
| Communication Standard | Ethernet 100BASE-TX / 10BASE-T |

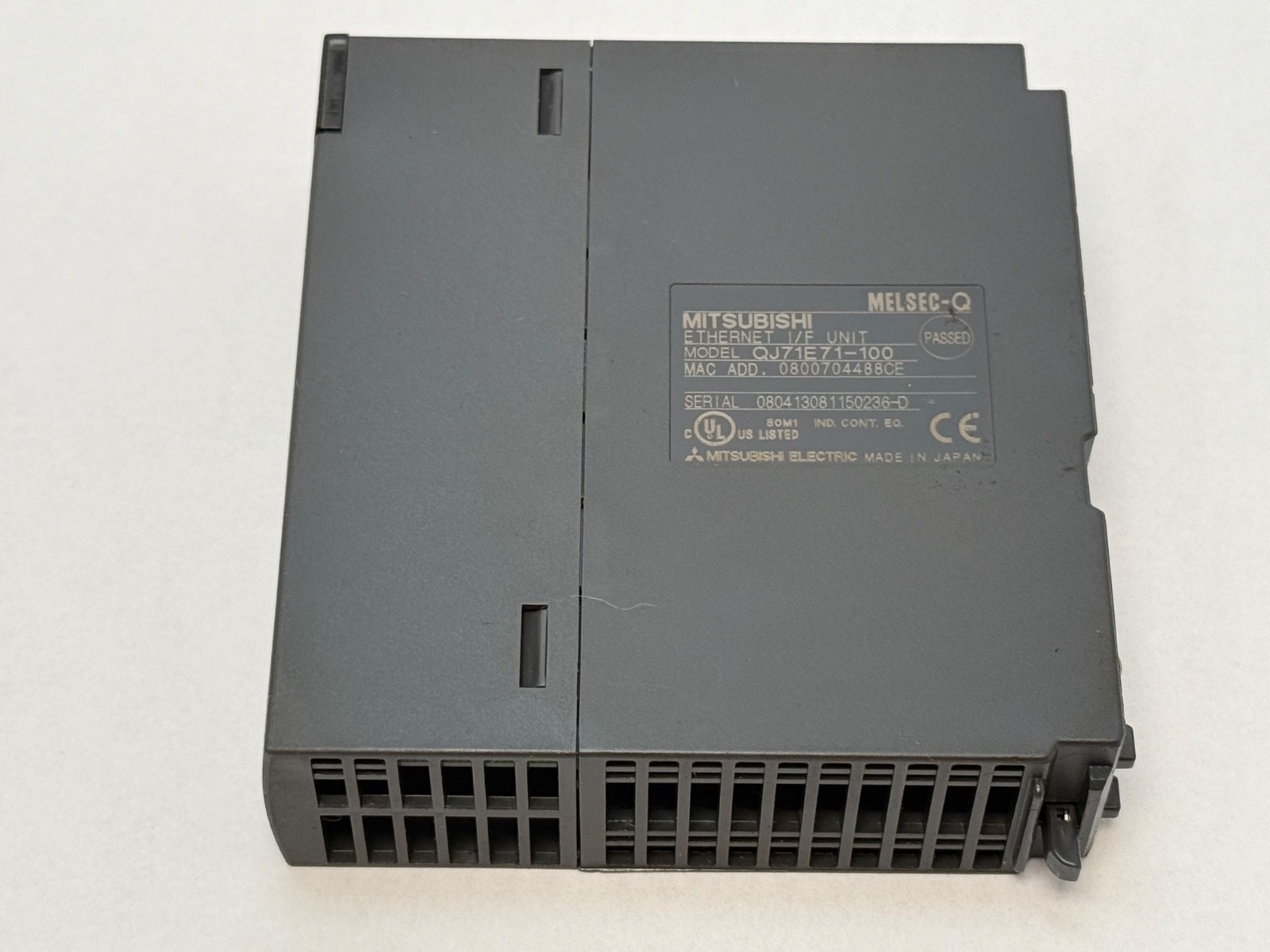

The Mitsubishi Electric QJ71E71-100 is an Ethernet interface module for MELSEC-Q series programmable controllers. It connects a Q-series PLC to a 100BASE-TX or 10BASE-T Ethernet network through a single RJ45 port and operates as a master/local station.
Interface Type: 100BASE-TX/10BASE-T. Data Transmission Speed: 100 Mbps / 10 Mbps. Communication Mode: 100BASE-TX full-duplex or half-duplex; 10BASE-T half-duplex. Flow Control: none on 100BASE-TX; back-pressure congestion control on 10BASE-T half-duplex. Transmission Method: baseband. Maximum Segment Length: 100 m between hub and node.
Simultaneously Open Connections: 16 usable in a program. Fixed Buffer: 1K words x 16. Random Access Buffer: 6K words x 1. E-mail: attached file 6K words x 1, main text 960 words x 1.
Occupied I/O Points: 32 (intelligent, 32 points). Internal Current Consumption: 0.50 A at 5 V DC. General environmental specifications follow the host MELSEC-Q CPU module.
Certifications: CE, UL/cUL, UKCA; RoHS compliant. Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA.

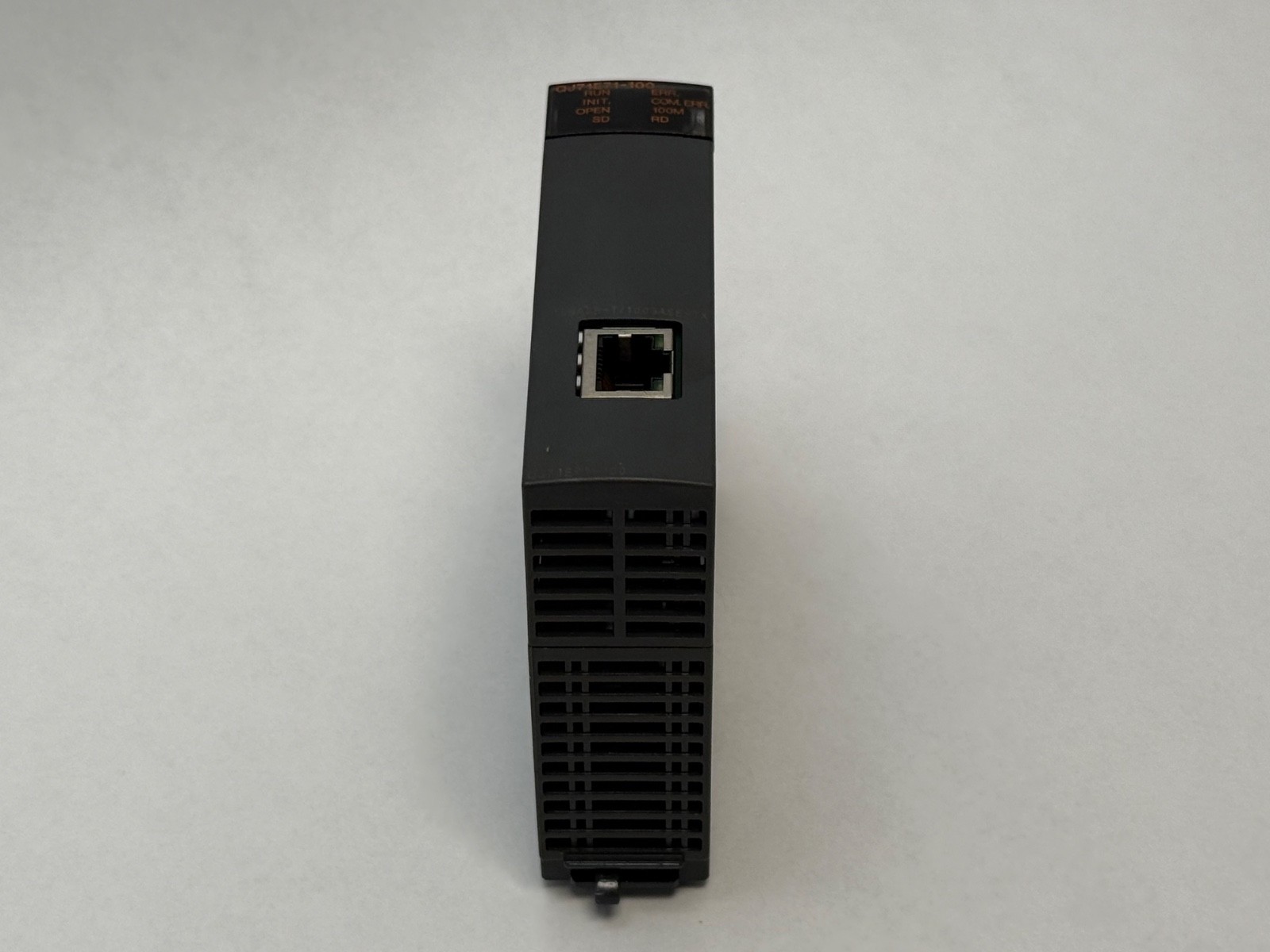

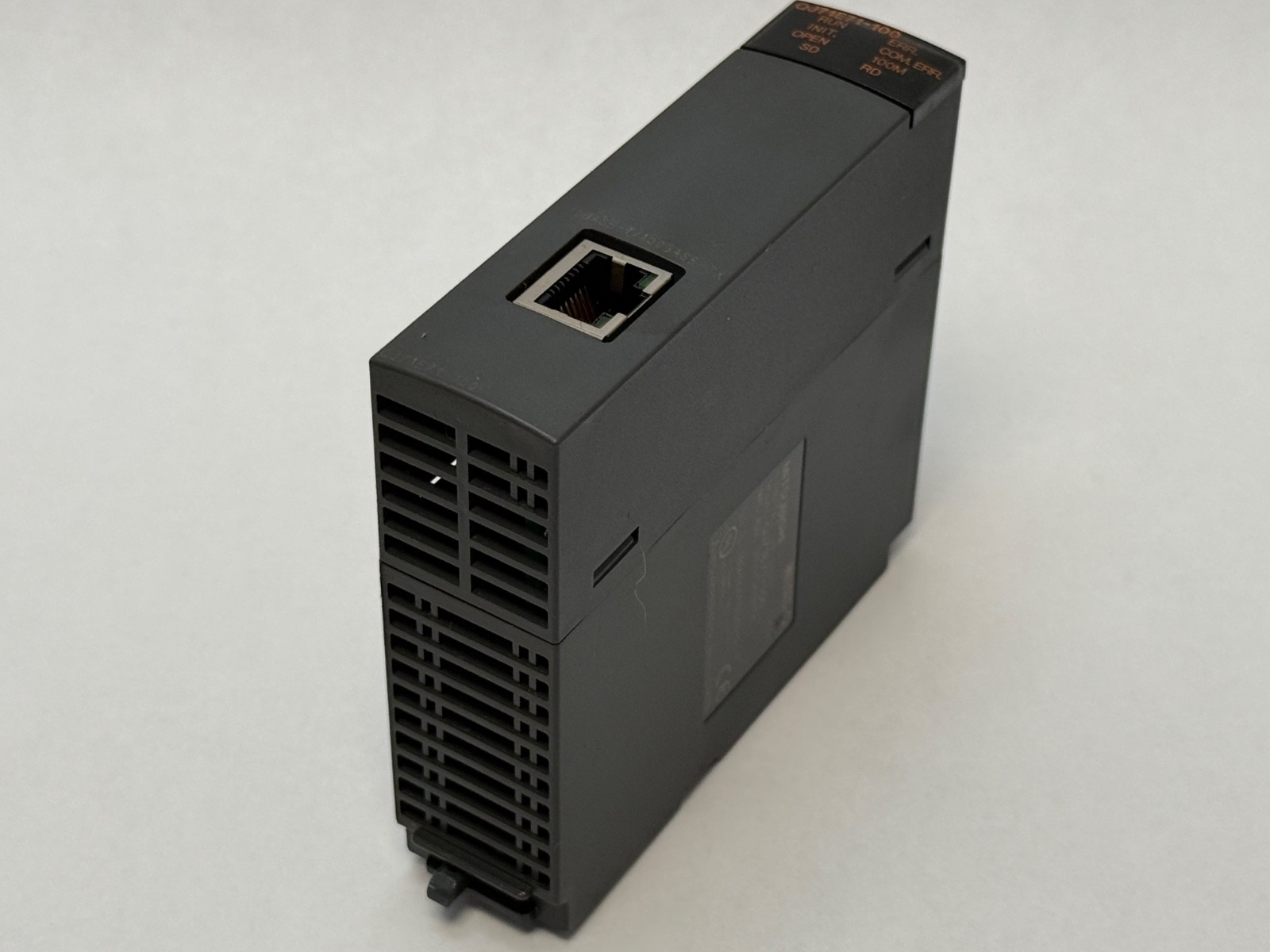

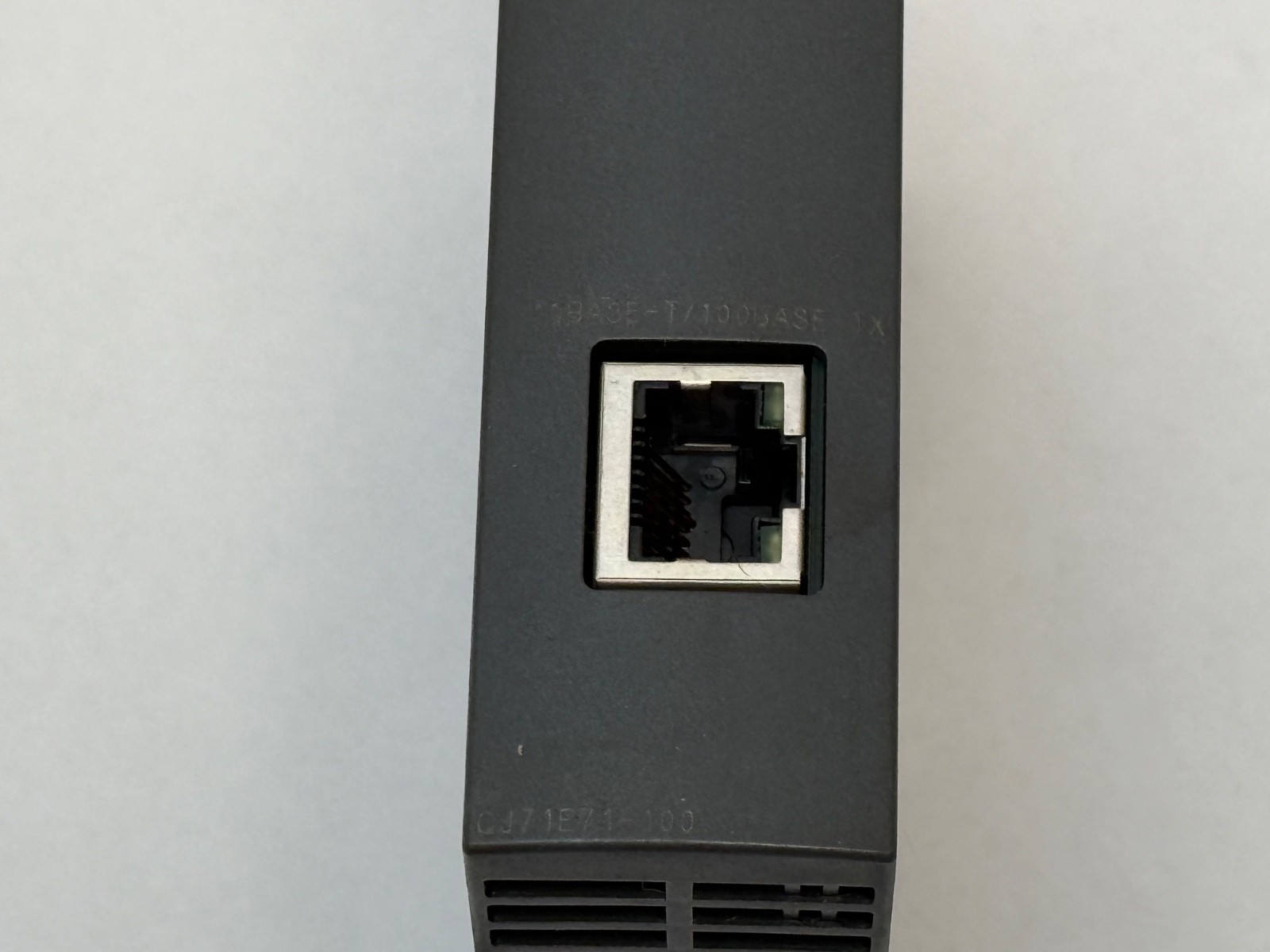

Network Connector: RJ45, fixed to MDI. Mounts on a MELSEC-Q base unit. Dimensions: 98 mm high x 27.4 mm wide x 90 mm deep. Weight: 0.11 kg.

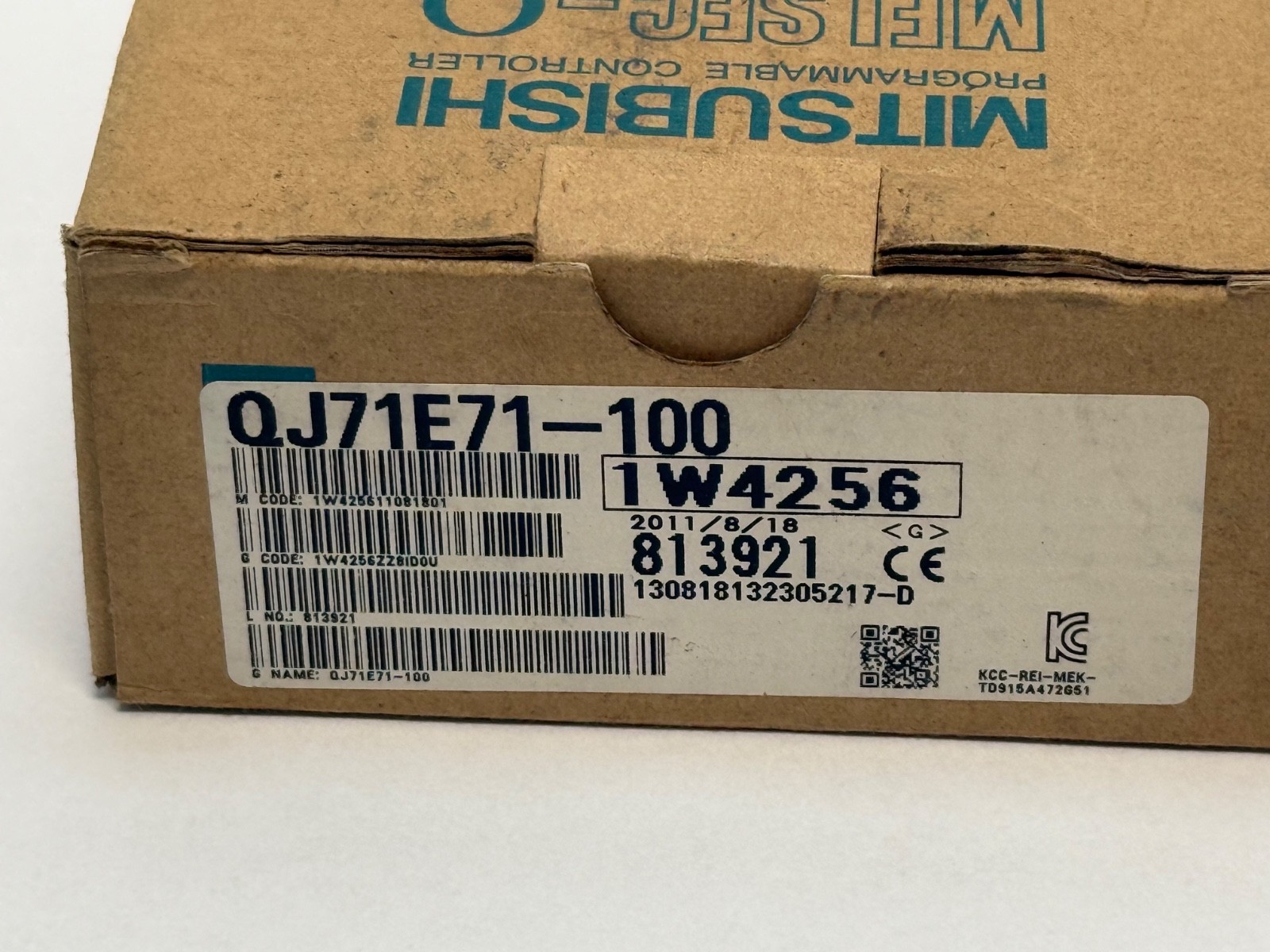

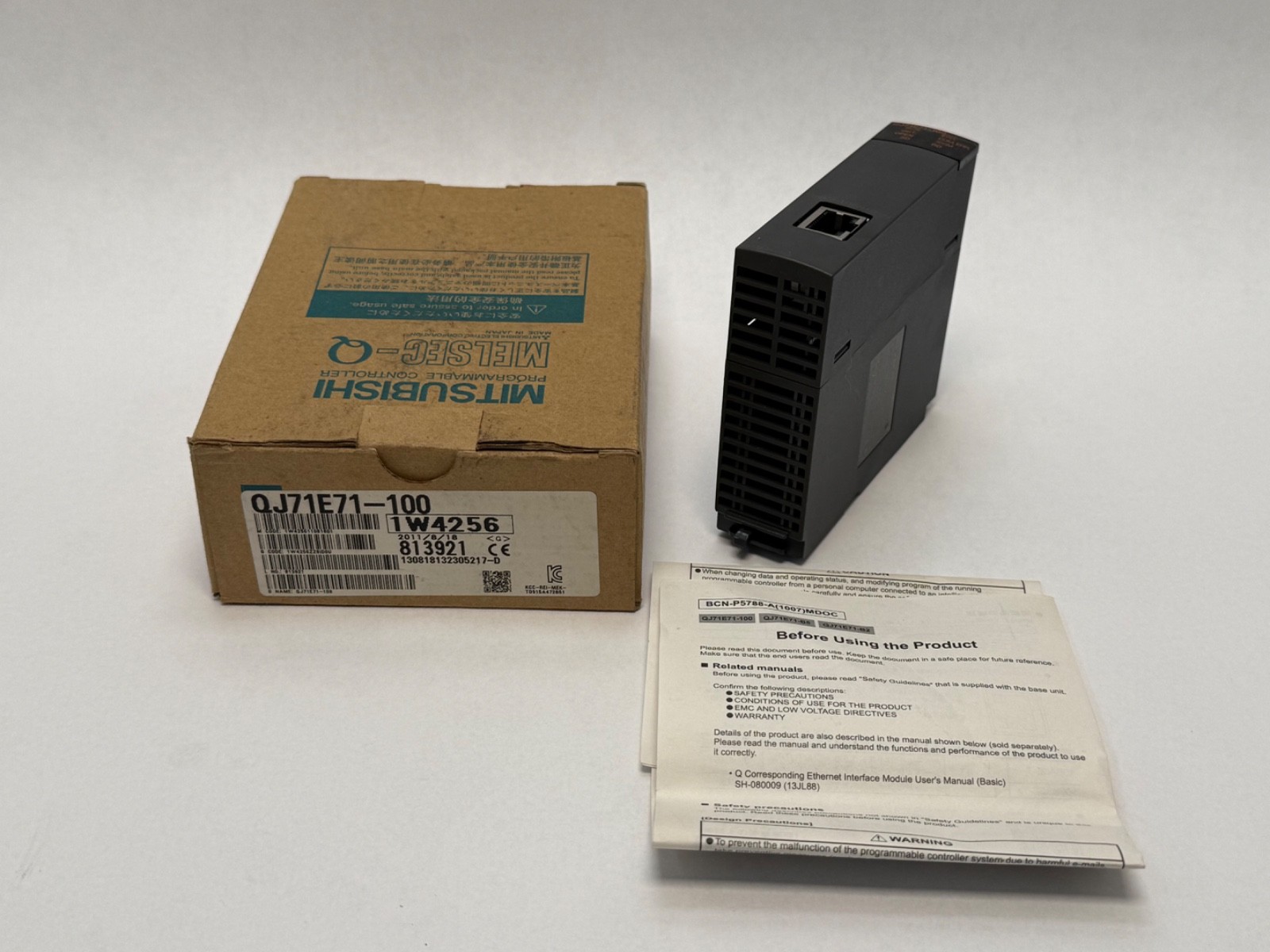

One Ethernet interface module.
Fits MELSEC-Q series PLC systems. Manufacturer Status: standard item. Mitsubishi Electric lists the QJ71E71 as its predecessor and the RJ71EN71 (MELSEC iQ-R) as its successor. Also written QJ71E71100 and QJ71E71 100.
