HeidenhainROD 426.001B-4000Incremental Rotary Encoder – 4000 Lines, TTL, 5 V DC, 6 mm Solid Shaft, Synchro Flange

Condition: New

Availability:

2 in stock

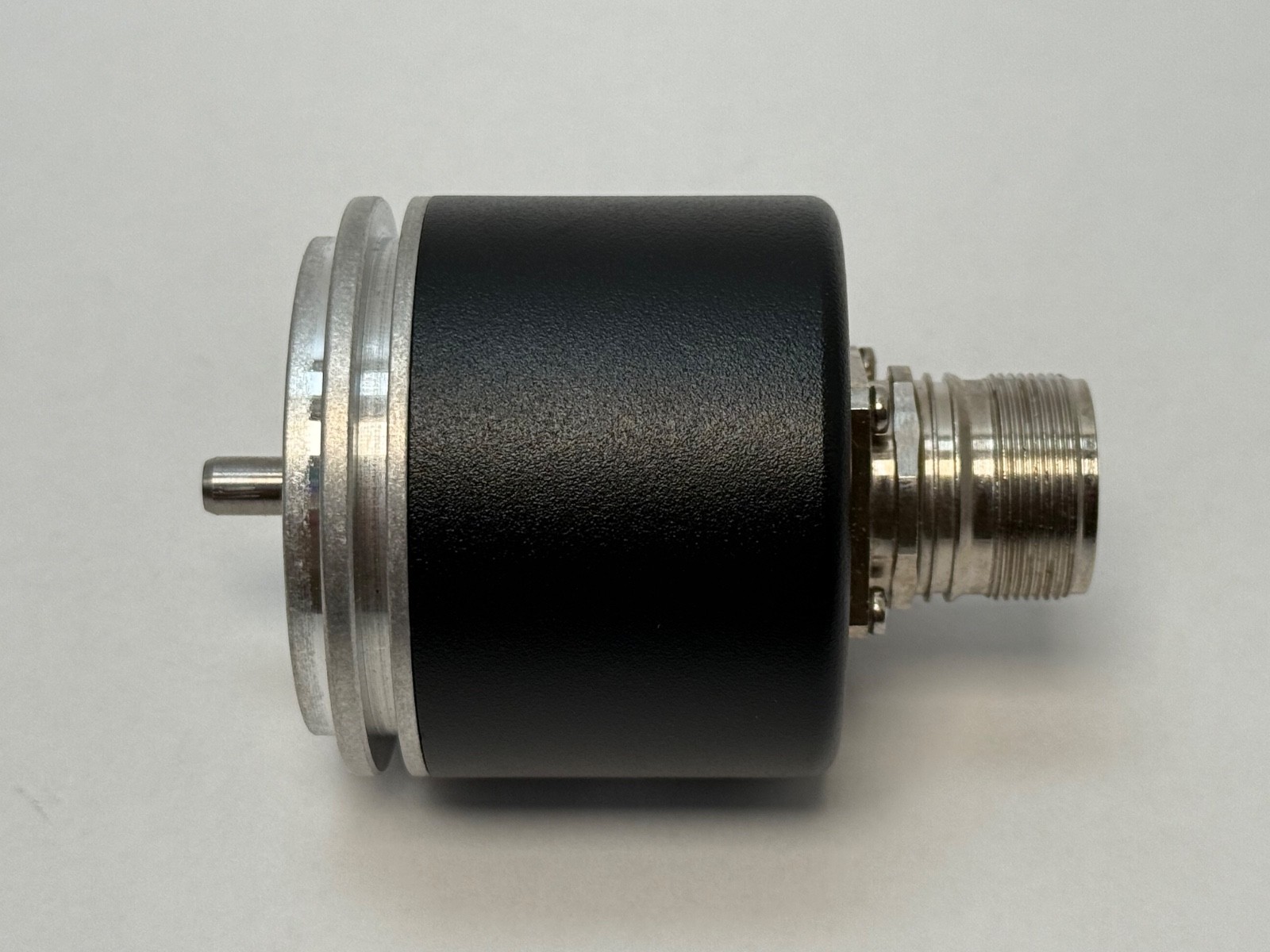

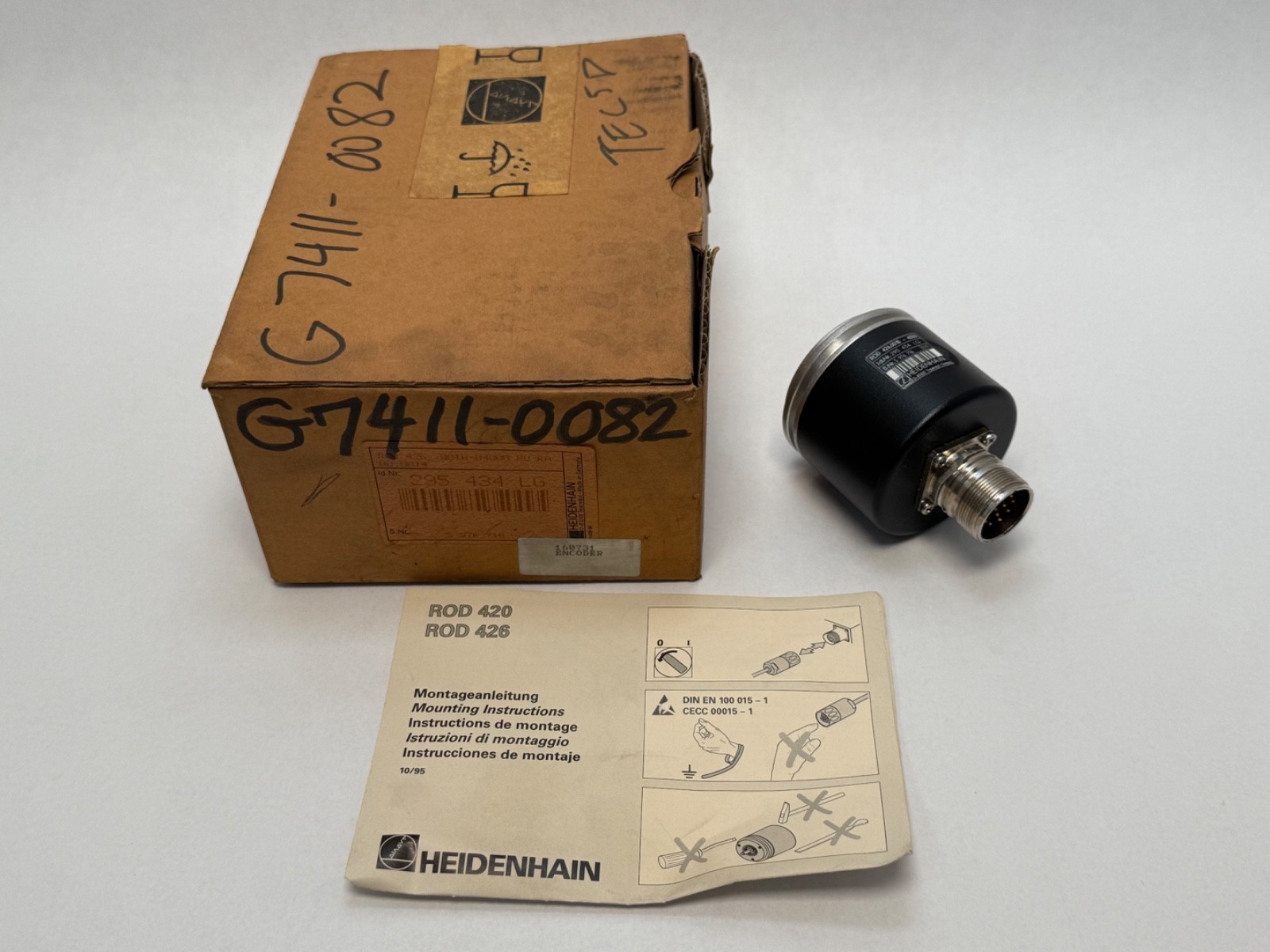

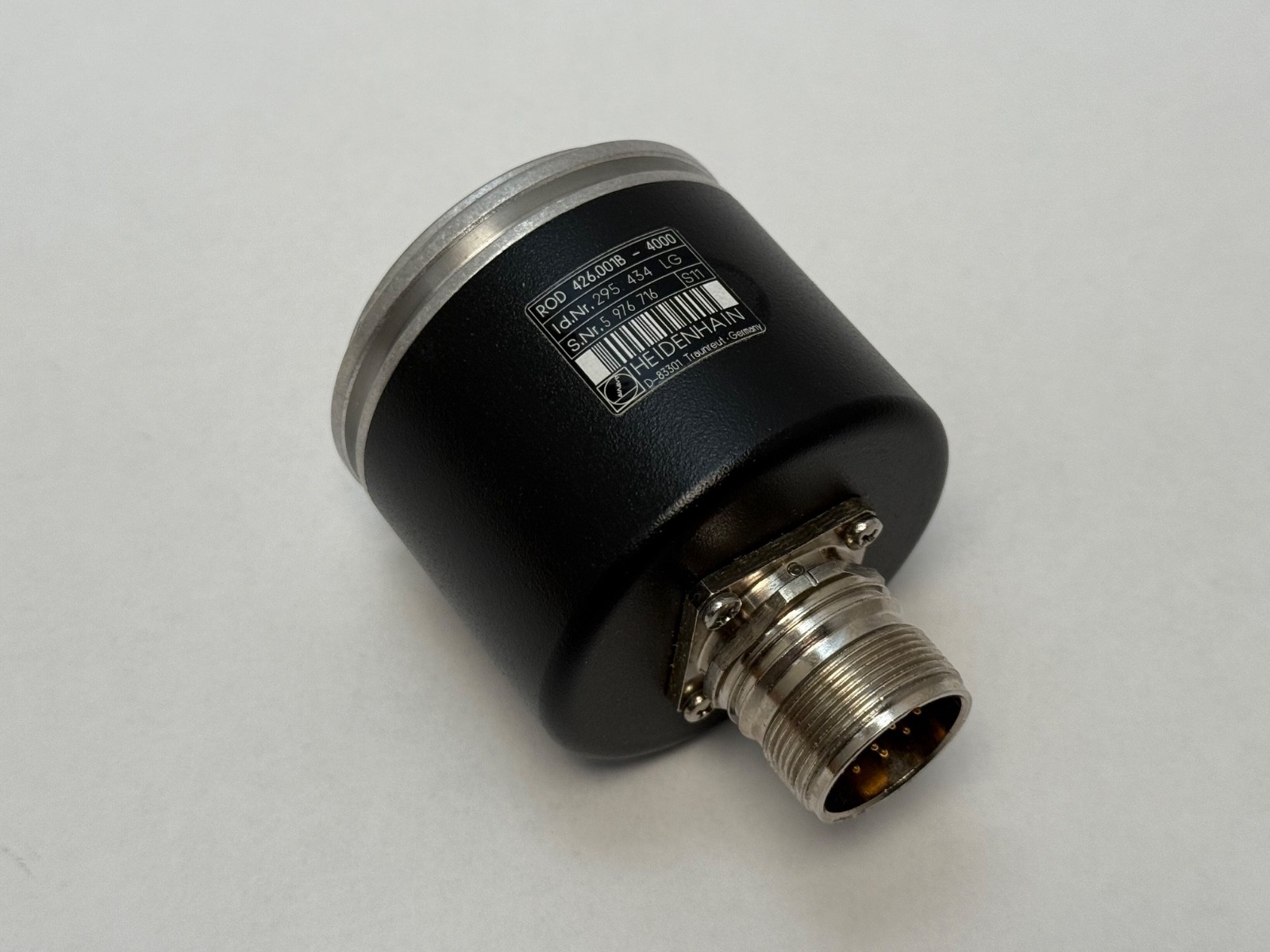

Heidenhain ROD 426.001B-4000 incremental rotary encoder, 4000 lines per revolution, TTL output, 5 V DC, 6 mm solid shaft, synchro flange, ID 295434-LG.

Same day shipment

List Price

$136.99

2 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

2 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandHeidenhain
MPNROD 426.001B-4000
ModelROD426.001B-4000

Technical Specifications

Base NumberROD 426
Industry Termsincremental encoder, rotary encoder, shaft encoder, TTL encoder, pulse generator, synchro flange encoder
Common MisspellingsHeidenhein ROD 426, Heidenhan ROD426, ROD 462, R0D 426
Mpn VariantsROD 426.001B-4000, ROD-426.001B-4000, ROD426.001B-4000, ROD 426 4000, 295434-LG, 295-434-LG, 295434LG
Additional AttributesLine Count: 4000; Output Signal: TTL (RS-422); Supply Voltage: 5 V DC +/-0.5 V; Shaft: 6 mm solid; Flange: Synchro; Reference Mark: One; Heidenhain ID: 295434-LG
SeriesROD 400
TypeIncremental Rotary Encoder

Cross-References

Cross Reference 1Heidenhain ROD 466 – HTL 10-30 V output, not TTL
Cross Reference 2Heidenhain ROD 436 – 1 Vpp output, not TTL
Seller Part Number: B-BB1#G9Z5ZO

Product Description

What this part is:

Heidenhain ROD 426.001B-4000 incremental rotary encoder, Heidenhain ID 295434-LG (marked 295-434-LG). Synchro-flange encoder with solid shaft and TTL square-wave output. Encoder Type: Incremental rotary encoder. Line Count: 4000. Unit Quantity: 1 Pc.

Decoding the designation:

ROD 426 — Heidenhain ROD 400 series incremental rotary encoder, synchro flange, solid shaft for a separate shaft coupling, TTL interface.

4000 — line count: 4000 signal periods per revolution.

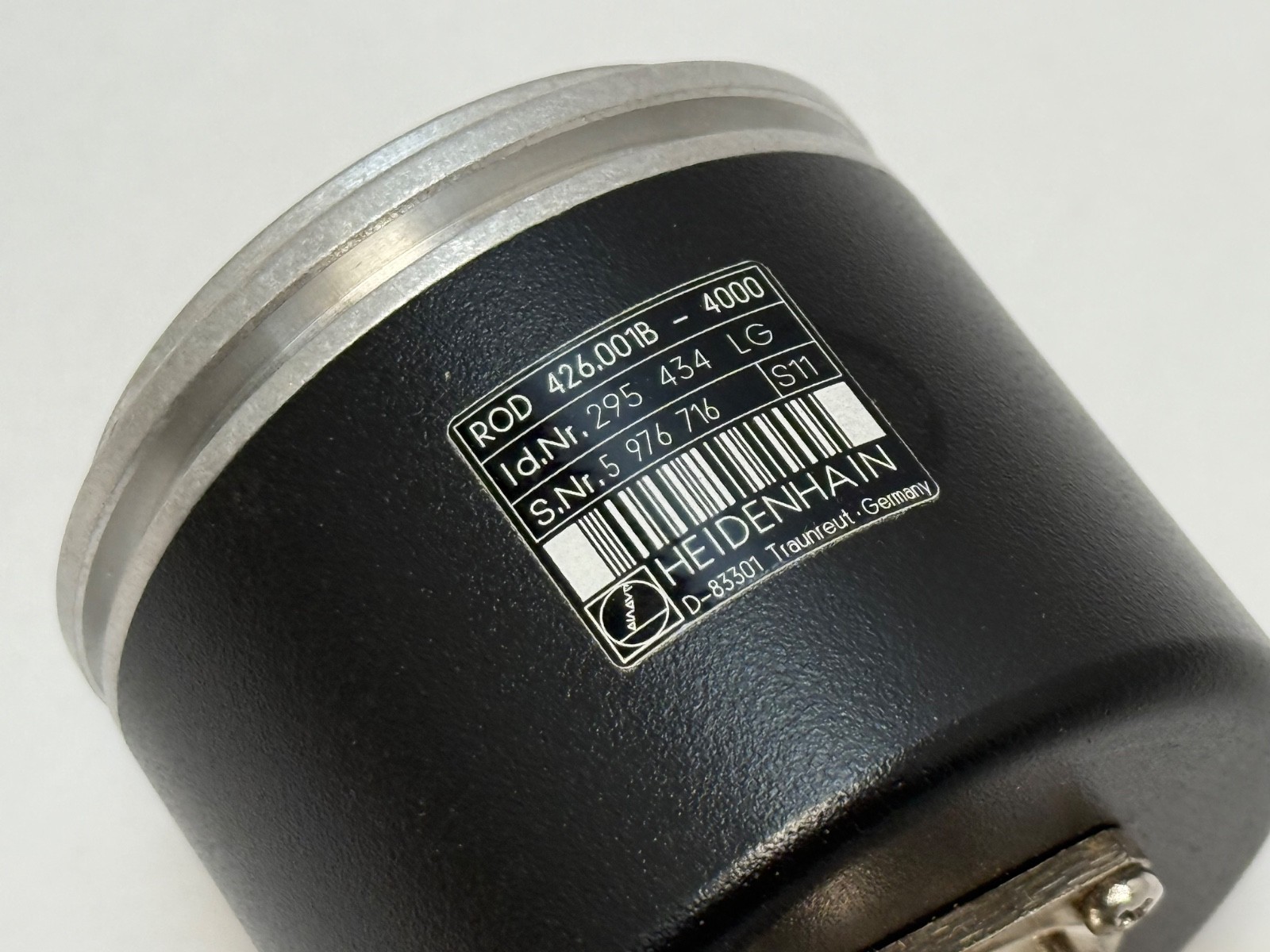

295434-LG — Heidenhain ID number identifying this exact version.

Specifications:

Encoder Type: Incremental rotary encoder.

Line Count: 4000.

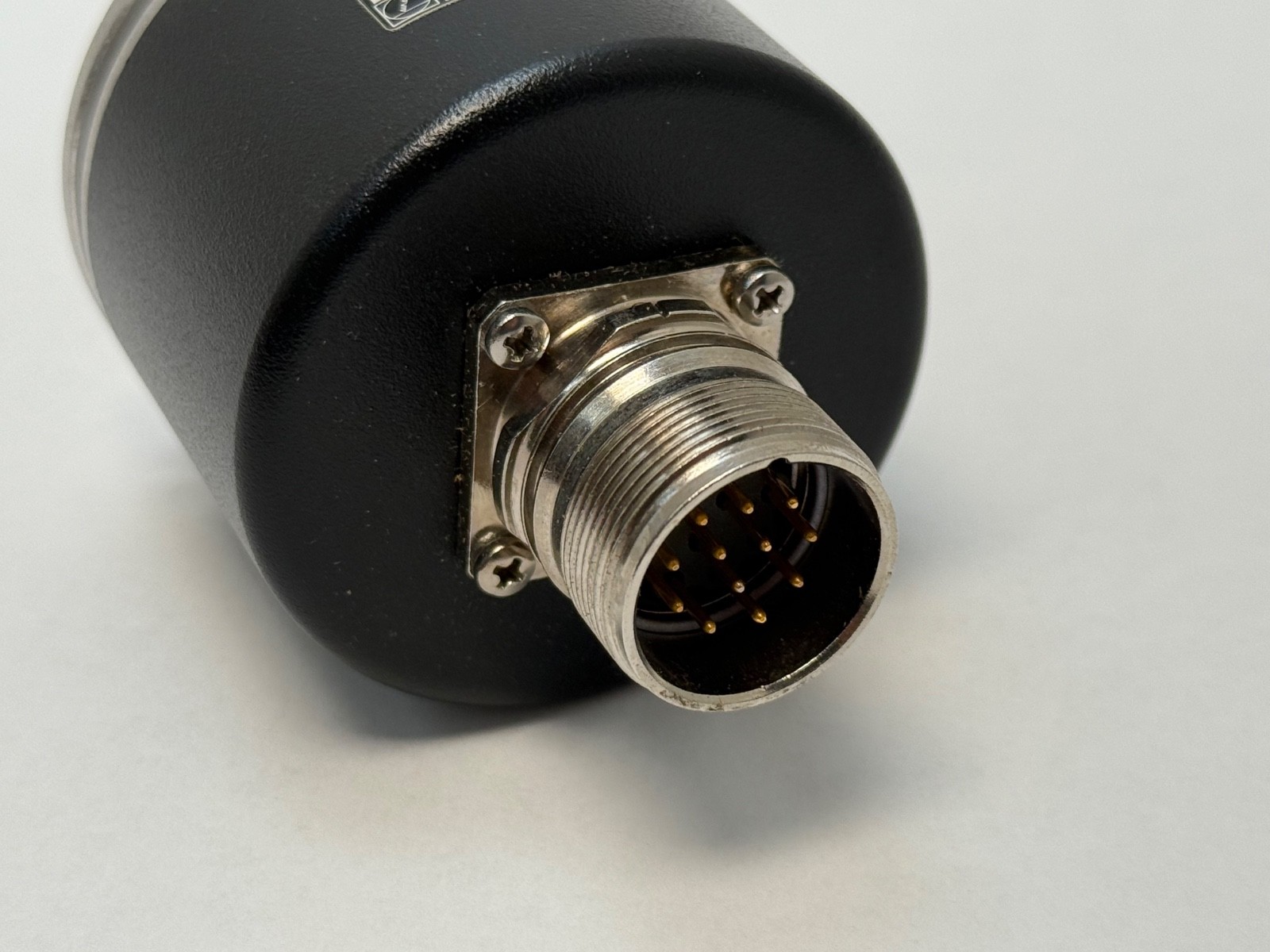

Output Signal: TTL square-wave, Ua1 and Ua2 with inverted signals, RS-422 differential line driver.

Reference Mark: One.

Supply Voltage: 5 V DC ±0.5 V.

Shaft: Solid shaft, 6 mm.

Flange: Synchro flange.

Series: ROD 400.

Country of Origin: Germany.

Dimensions and mounting:

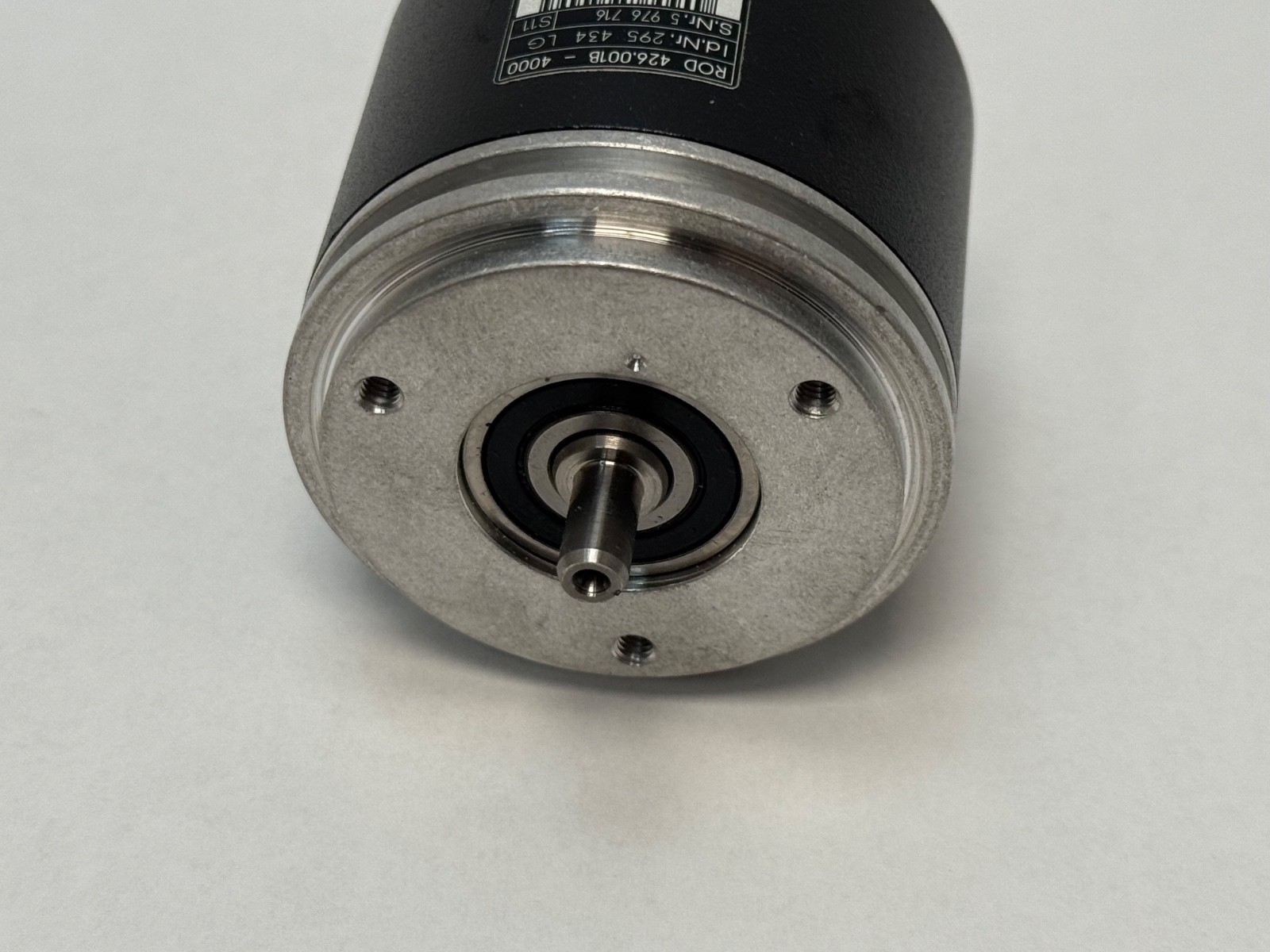

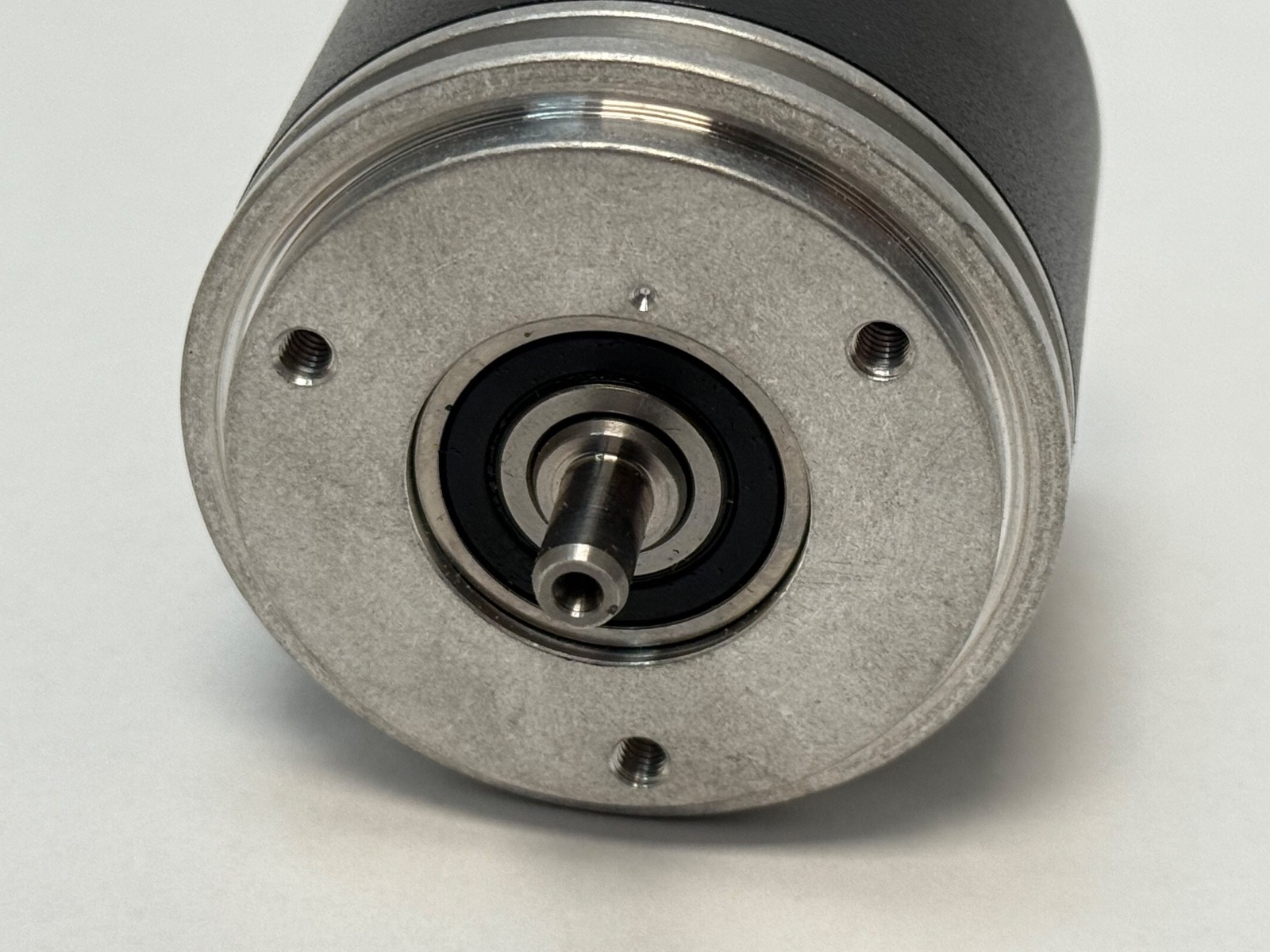

Synchro flange with a 6 mm solid shaft.

Compatibility and replacement:

Heidenhain ROD 466 — same housing, HTL (10–30 V) output instead of TTL. Heidenhain ROD 436 — same housing, 1 Vpp output instead of TTL. Heidenhain ID 295434-LG identifies this exact version.

Frequently asked questions:

What is Heidenhain ID 295434-LG?

The Heidenhain ID number of the ROD 426.001B-4000, marked 295-434-LG on the unit.

What output signal and supply voltage does the ROD 426.001B-4000 use?

TTL square-wave output (RS-422 differential line driver) on a 5 V DC ±0.5 V supply.

What shaft and flange does it have?

A 6 mm solid shaft with a synchro flange, 4000 lines and one reference mark.
