Solcon Solbrake 31 230-0-S DC injection motor brake, 31 A FLC, for three-phase squirrel-cage motors, braking time 2–10 s, current up to 4x FLC, IP20.
List Price
$152.05
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Solcon |
|---|---|
| MPN | SOLBRAKE-312300S |
| Model | Solbrake 31 230-0-S |
| Industry Terms | DC injection brake; electronic motor brake; solid-state motor brake; SMB; DC braking unit |
|---|---|
| Common Misspellings | Solbreak 31; Sol brake 31; Solcon Solbrak |
| Application Types | wood saws; centrifuges; machine tools; conveyor stopping; three-phase motor braking |
| Output Amperage | 31 A |
| Mpn Variants | Solbrake 31 230-0-S; SOLBRAKE-312300S; Solbrake 31; SMB 31; 312300S; 31 230-0-S |
| Compatible With Replaces | Allen West Easy Brake (per distributor) |
| Additional Attributes | FLC: 31 A; Supply: two phase line to line, 50/60 Hz; Duty cycle: 10% max; Braking current: 0–4 x FLC; Braking time: 2–10 s; Protection: IP20; Dimensions: 65 x 190 x 114 mm |
| Min Temp | -10 °C |
| Max Temp | 50 °C |
| Part Number | Solbrake 31 230-0-S |
The Solcon Solbrake 31 230-0-S is a solid-state electronic motor brake that stops three-phase squirrel-cage motors by injecting controlled DC current into the motor windings after the mains contactor opens. The DC current creates a stationary magnetic field that exerts braking torque on the rotor. Type: DC injection motor brake.
Solbrake 31 — Solbrake model with a Full Load Current (FLC) of 31 A, for motors with a nameplate FLA up to 31 A.
Full Load Current: 31 A. Supply Voltage: Two phase, line to line (L1, L2). Frequency: 50/60 Hz. Load: Three-phase, three-wire squirrel cage induction motor. Duty Cycle: 10% max (10 s operation, 90 s rest). Braking Current Adjustment: 0 to 4 times FLC. Braking Time: 2–10 s. Degree of Protection: IP20.

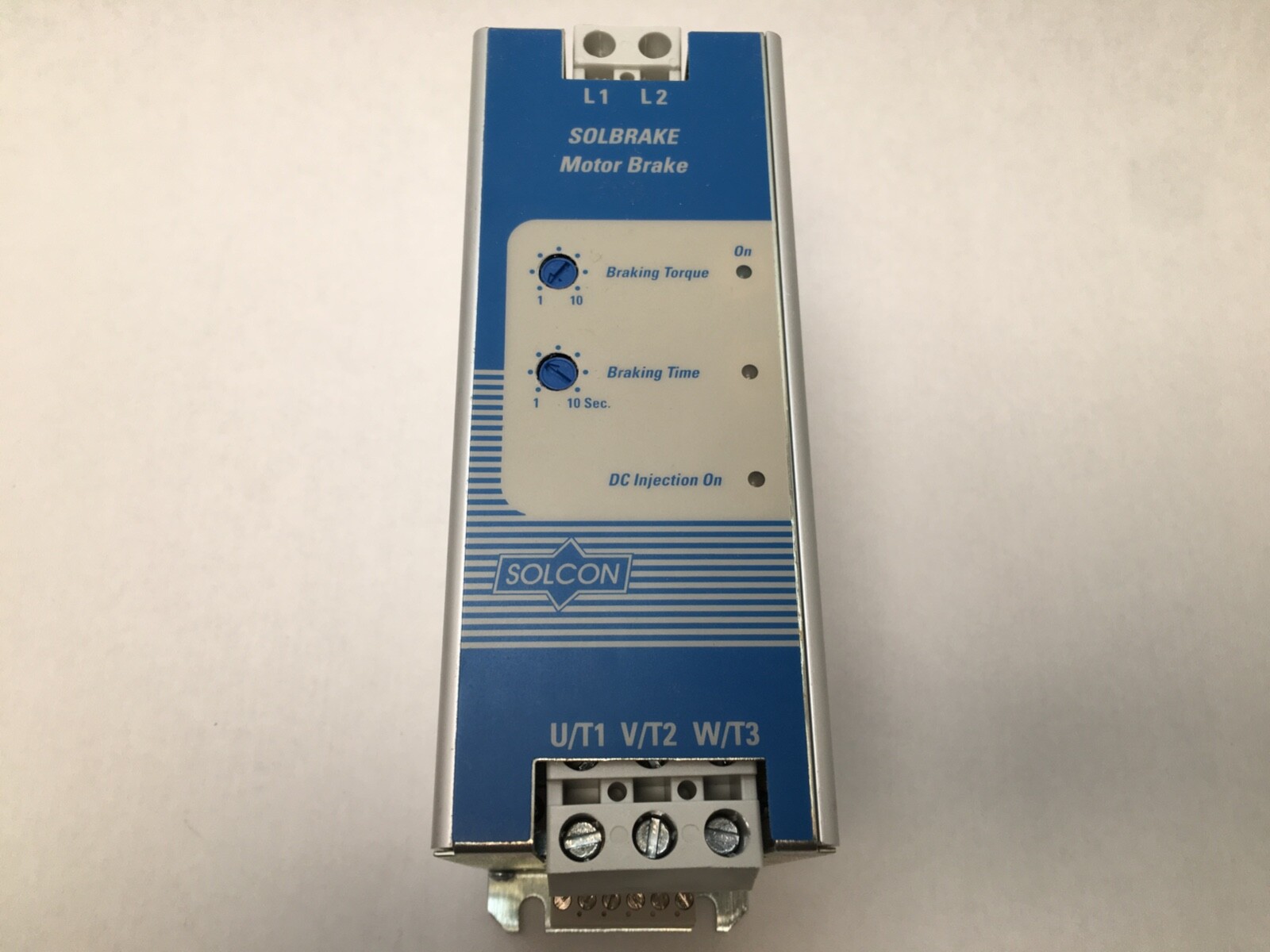

Operating Modes: Automatic (DC injection stops when the motor reaches a full stop) or Manual (DC injection for the set braking time), selected by internal DIP switch. Indications: Green LED power on; yellow LEDs for brake contactor closed and DC injection on. Compliance: IEC 947-4-2, class A equipment. Utilization Category: AC-53a or AC-53b.

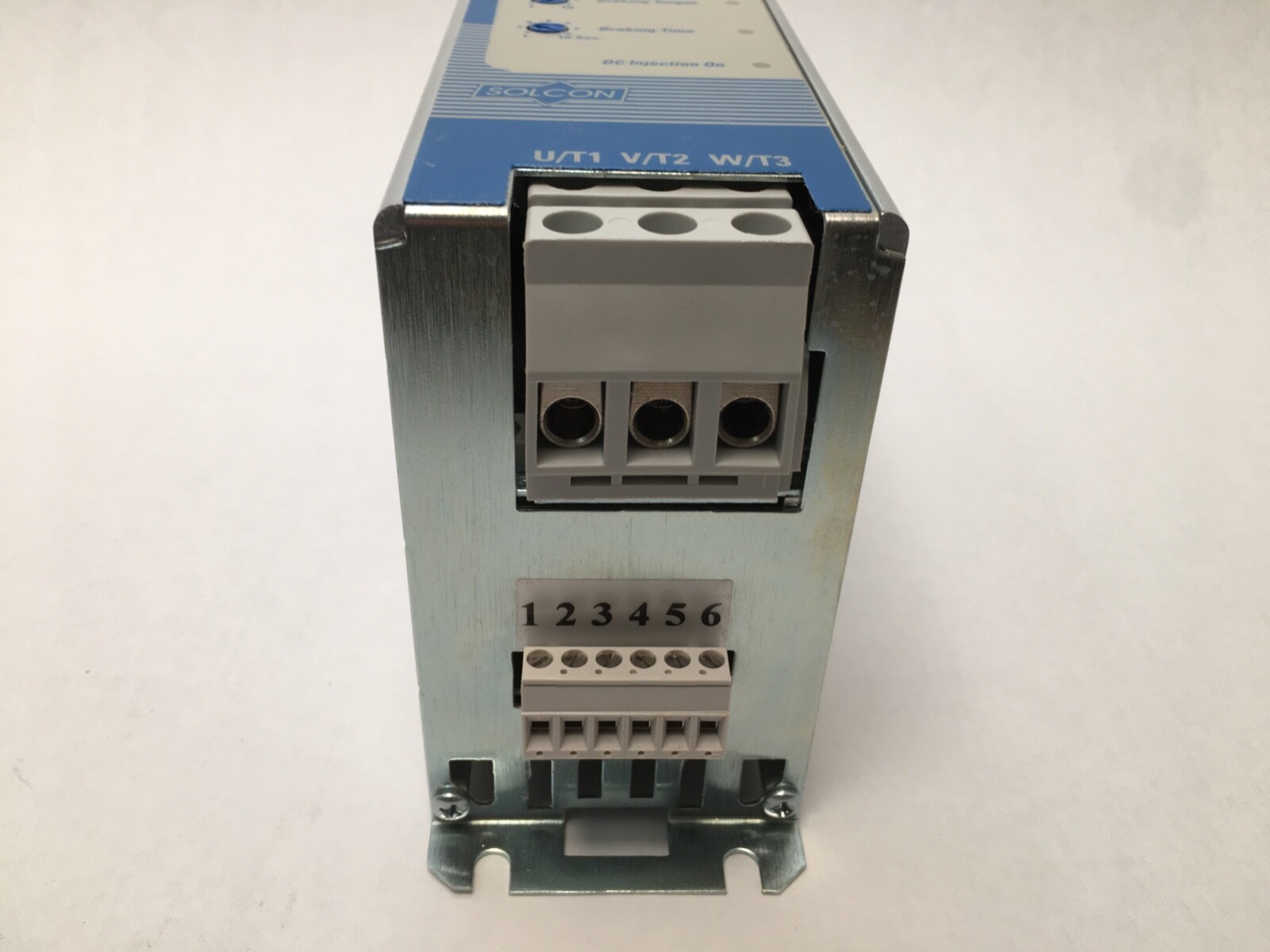

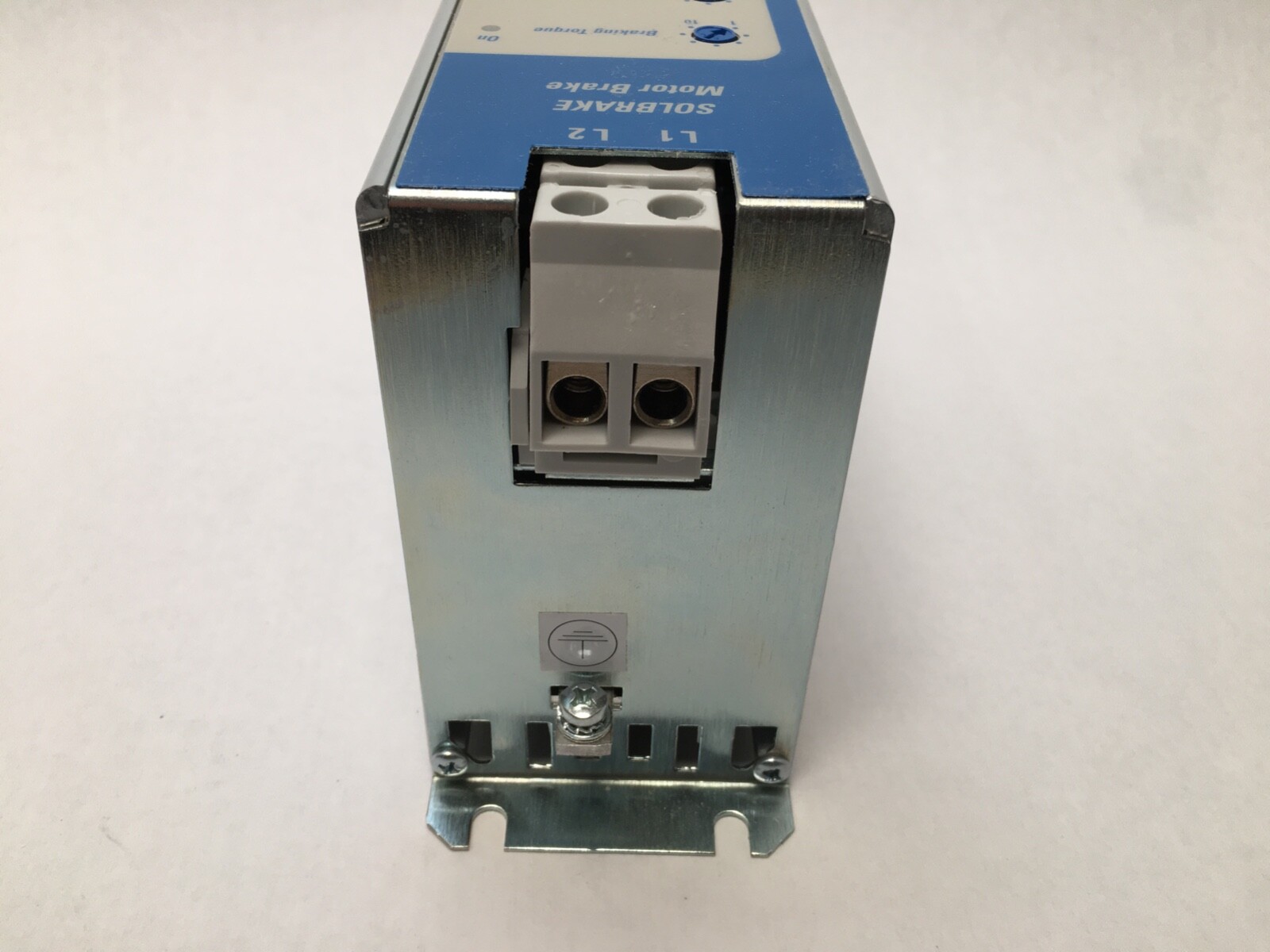

Dimensions (W x H x D): 65 mm x 190 mm x 114 mm. Power Terminals: L1, L2, U, V, W. Control Terminals: 1–6. Operating Temperature: –10 °C to +50 °C. Storage Temperature: –20 °C to +70 °C. Relative Humidity: 93% non-condensing. Mounting Orientation: Vertical.
Frequently asked questions
What is the Solcon Solbrake 31?
The Solcon Solbrake 31 230-0-S is a DC injection electronic motor brake rated at 31 A full load current. It brakes three-phase squirrel-cage induction motors without friction.
How long can it brake?
Braking time is adjustable from 2 to 10 seconds, with a maximum duty cycle of 10%. Braking current is adjustable up to four times FLC.
What does the Solbrake 31 replace?
The Solbrake 31 is listed by distributors as a replacement for the Allen West Easy Brake.
