SiemensKNX Shutter and Blind Actuator, 2 Channels, 230 V AC 6 A per Channel, DIN Rail N-System

Product Description

What this part is

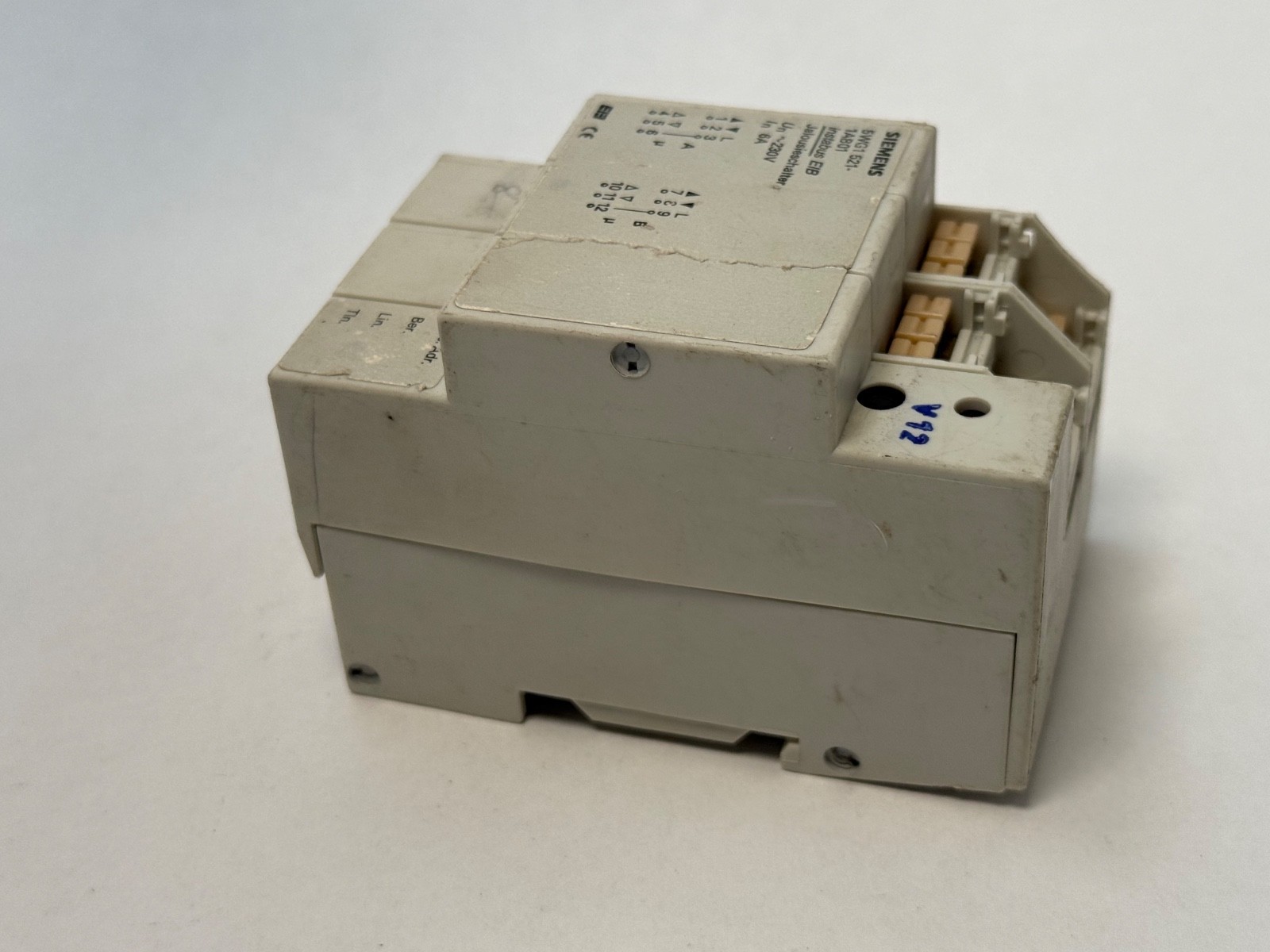

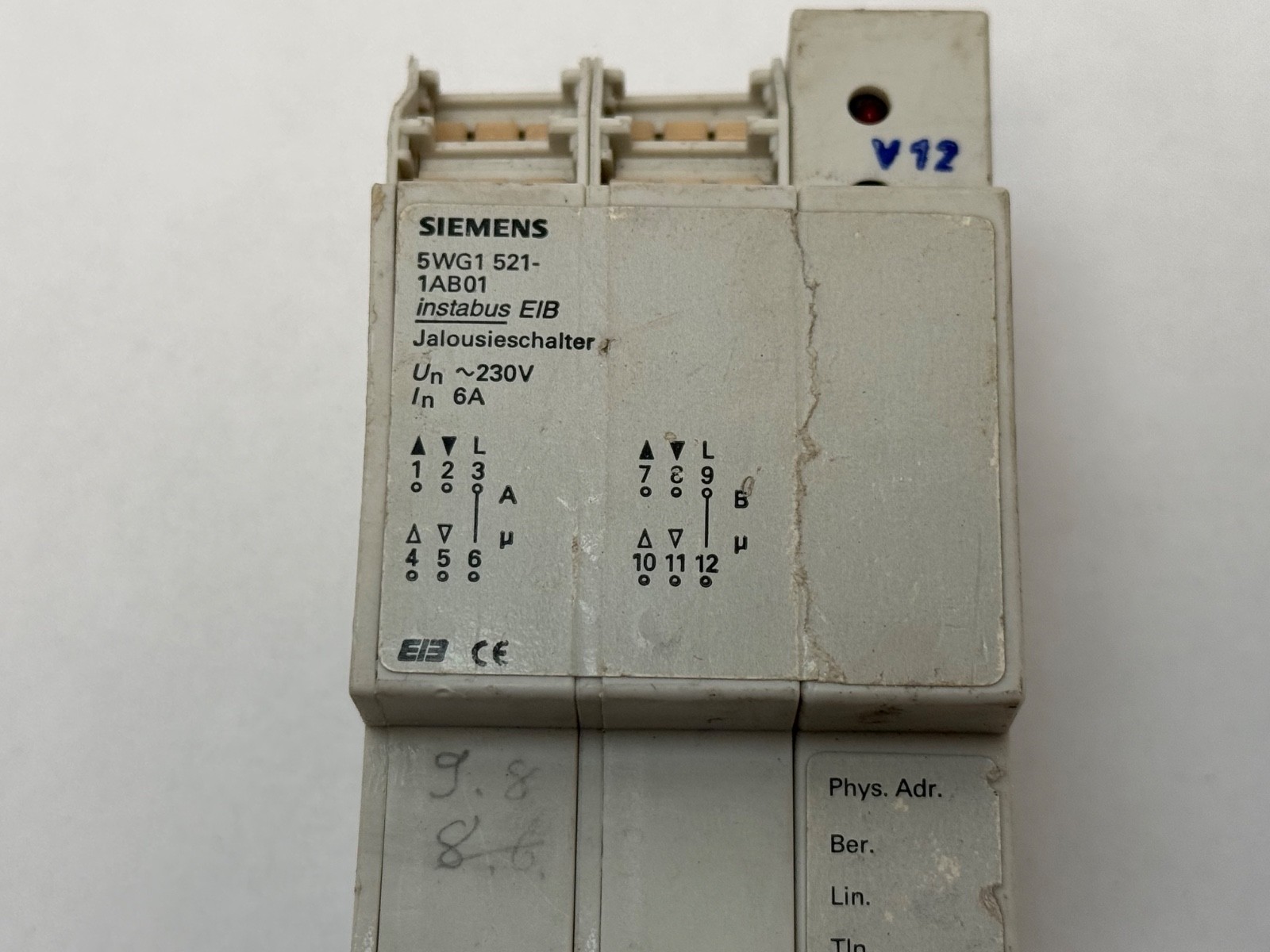

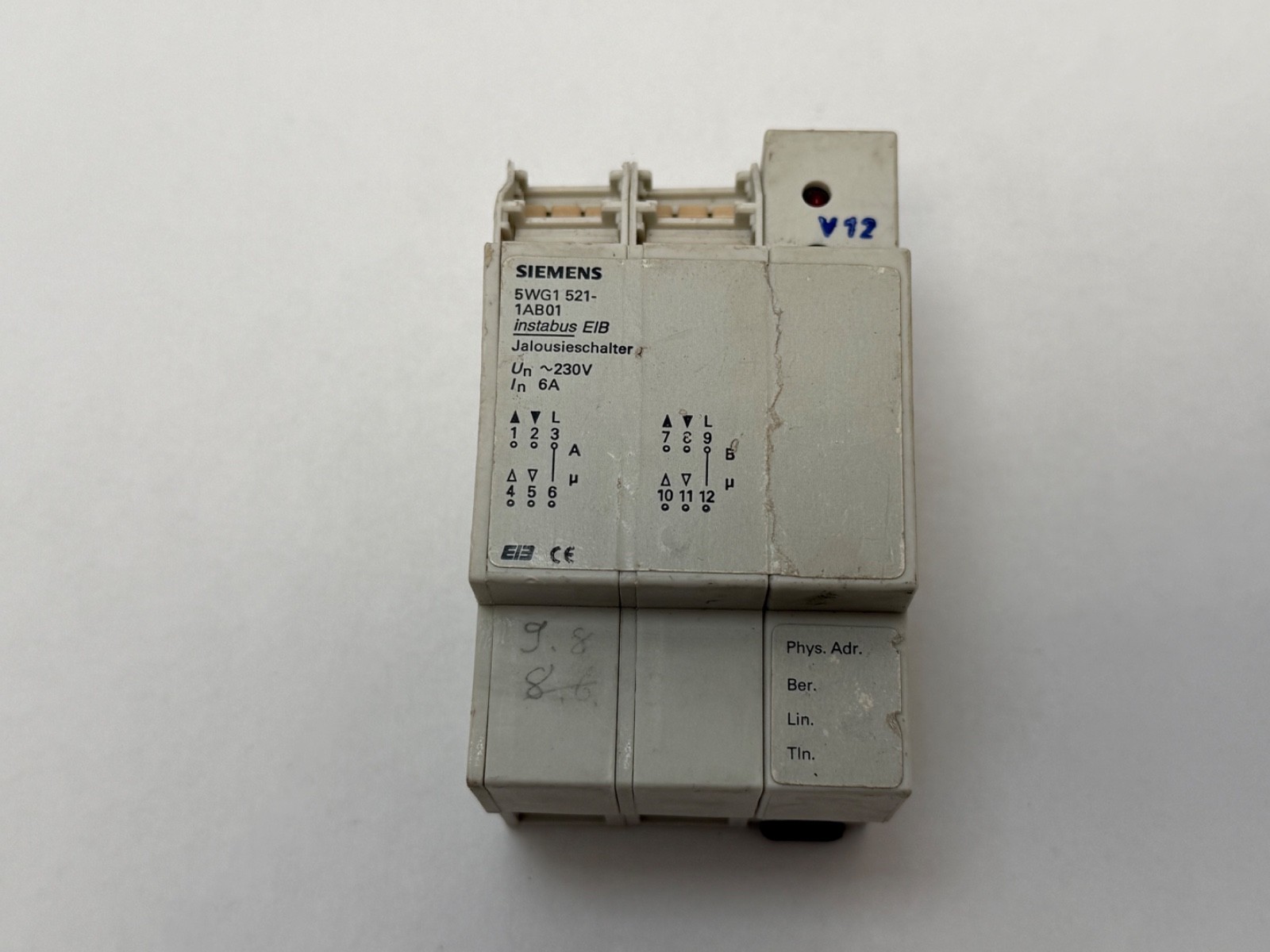

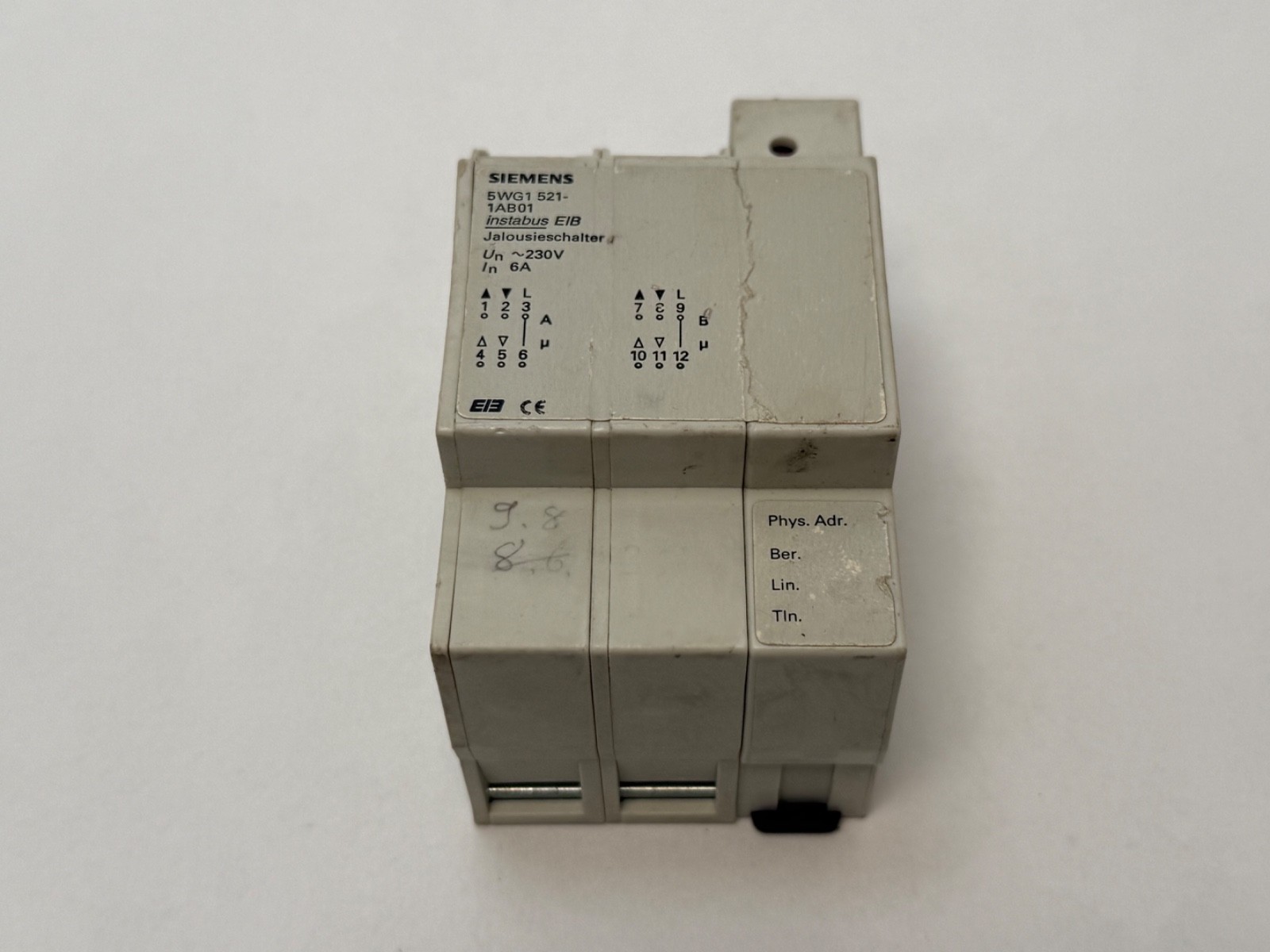

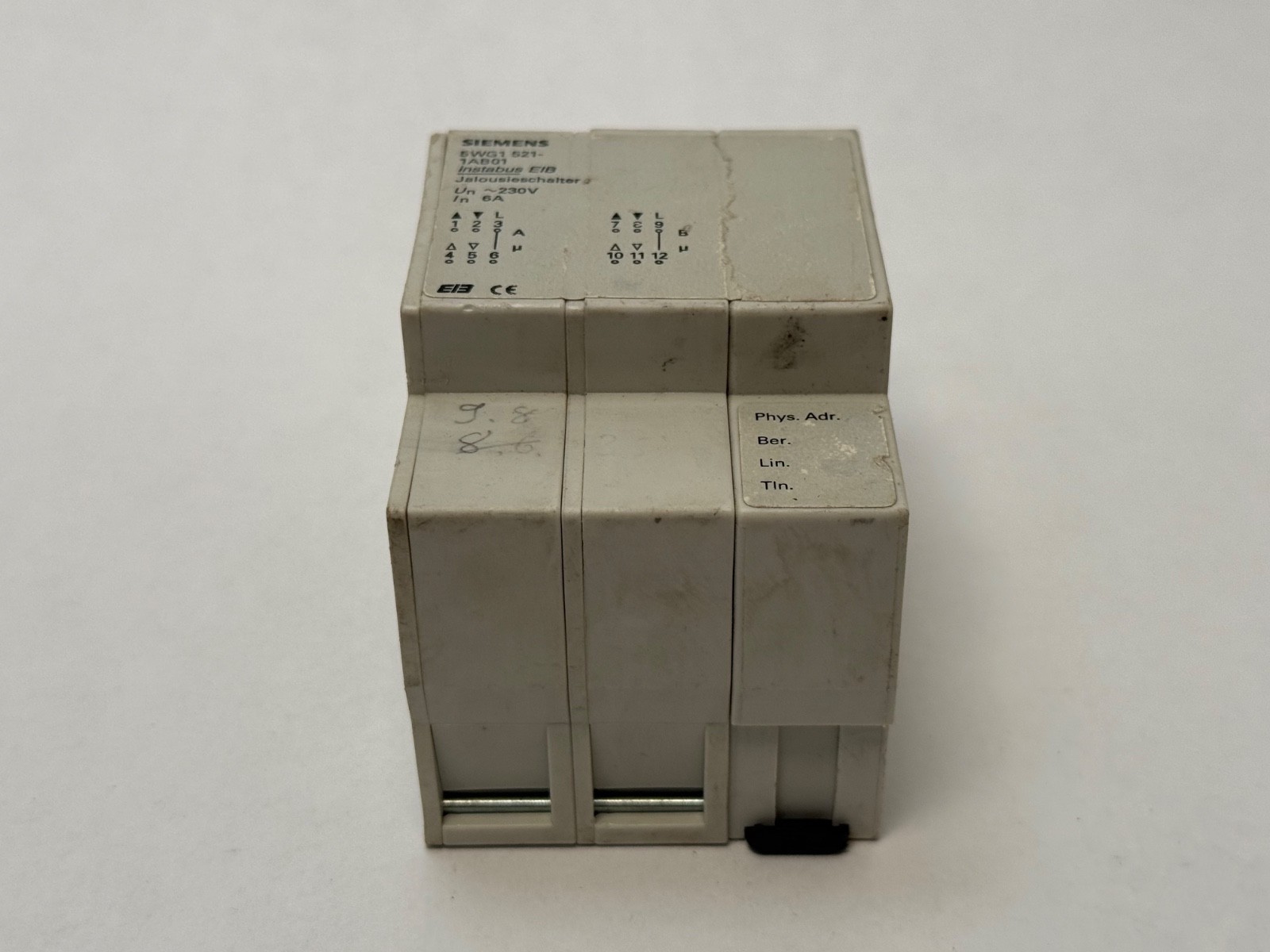

A Siemens 5WG1521-1AB01 shutter and blind actuator, catalogue designation N 521, from the Siemens GAMMA instabus range for KNX. It is a DIN-rail mounted N-system device with two output channels rated 230 V AC, 6 A each. Each channel drives one motorised blind or roller shutter, raising it, lowering it and setting slat position on command from the KNX bus.

Decoding the designation

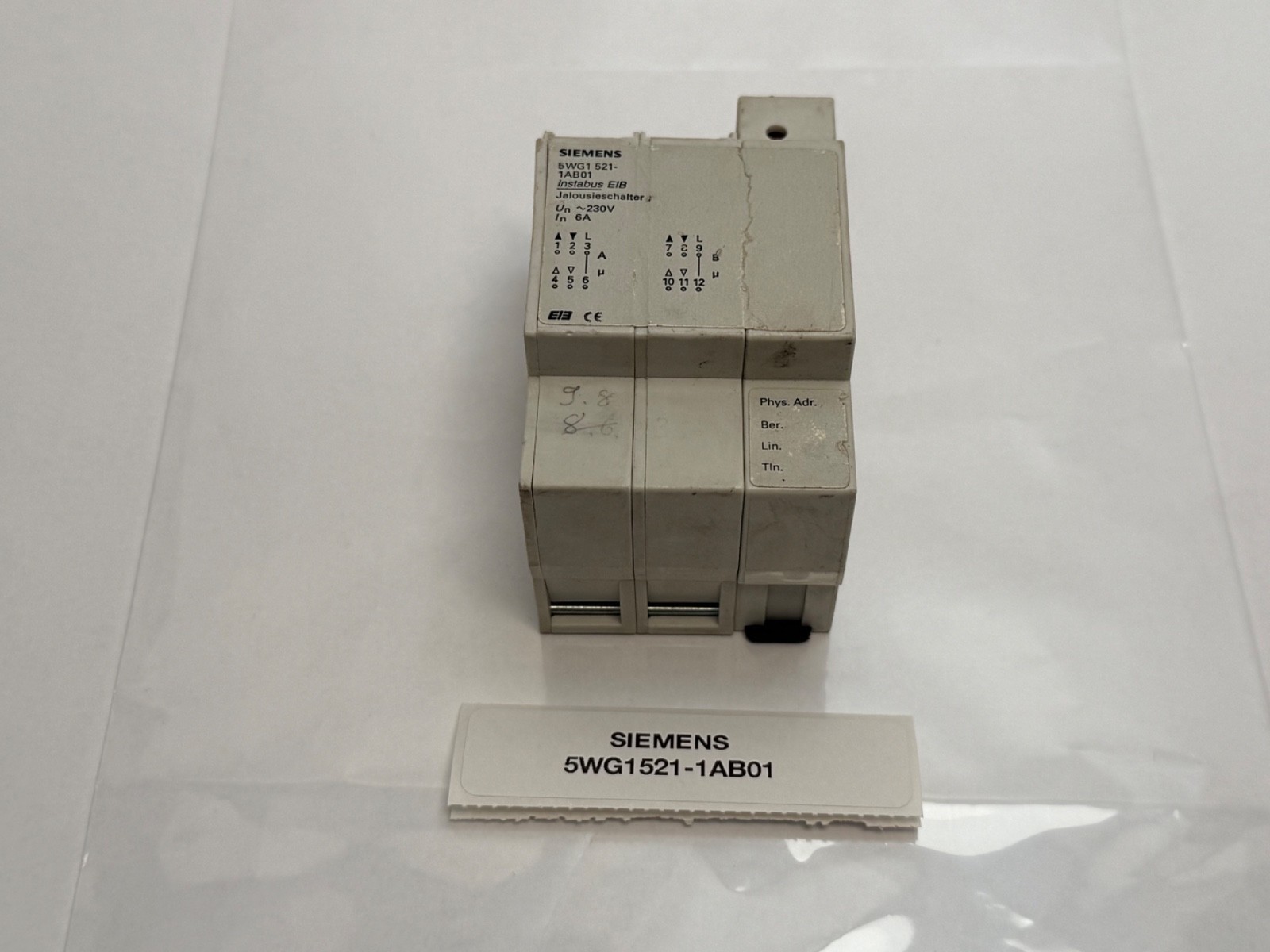

Siemens gives its KNX devices both an order number and a short catalogue name. Here 5WG1521-1AB01 is the order number and N 521 is the catalogue designation, where the N prefix marks the device as a DIN-rail N-system module for distribution board mounting rather than a flush or surface device. Both forms identify the same article.

What these specs mean in practice

A blind actuator differs from a plain switching actuator in how its contacts are arranged and interlocked. Each channel provides a pair of directional outputs, and the actuator enforces that only one direction is energised at a time. Applying both directions to a shutter motor at once is what damages it, so this interlock is the reason a blind drive gets a purpose-built actuator rather than two switching channels.

Two channels on one 4-module-wide device suits paired windows and small facades, where a single room or elevation is driven as a group. The 6 A rating per channel is sized for the small single-phase motors used in shutters and venetian blinds, and covers the inrush those motors draw on starting. Slat positioning works by timed short pulses, which is why the actuator, rather than the pushbutton, holds the travel and slat timing parameters.

Published specifications

Function: shutter and blind actuator for KNX
Catalogue designation: N 521
Output channels: 2, independent
Output rating: 230 V AC, 6 A per channel
Drives controlled: 2 motorised blind or shutter drives
Bus system: KNX / Siemens GAMMA instabus

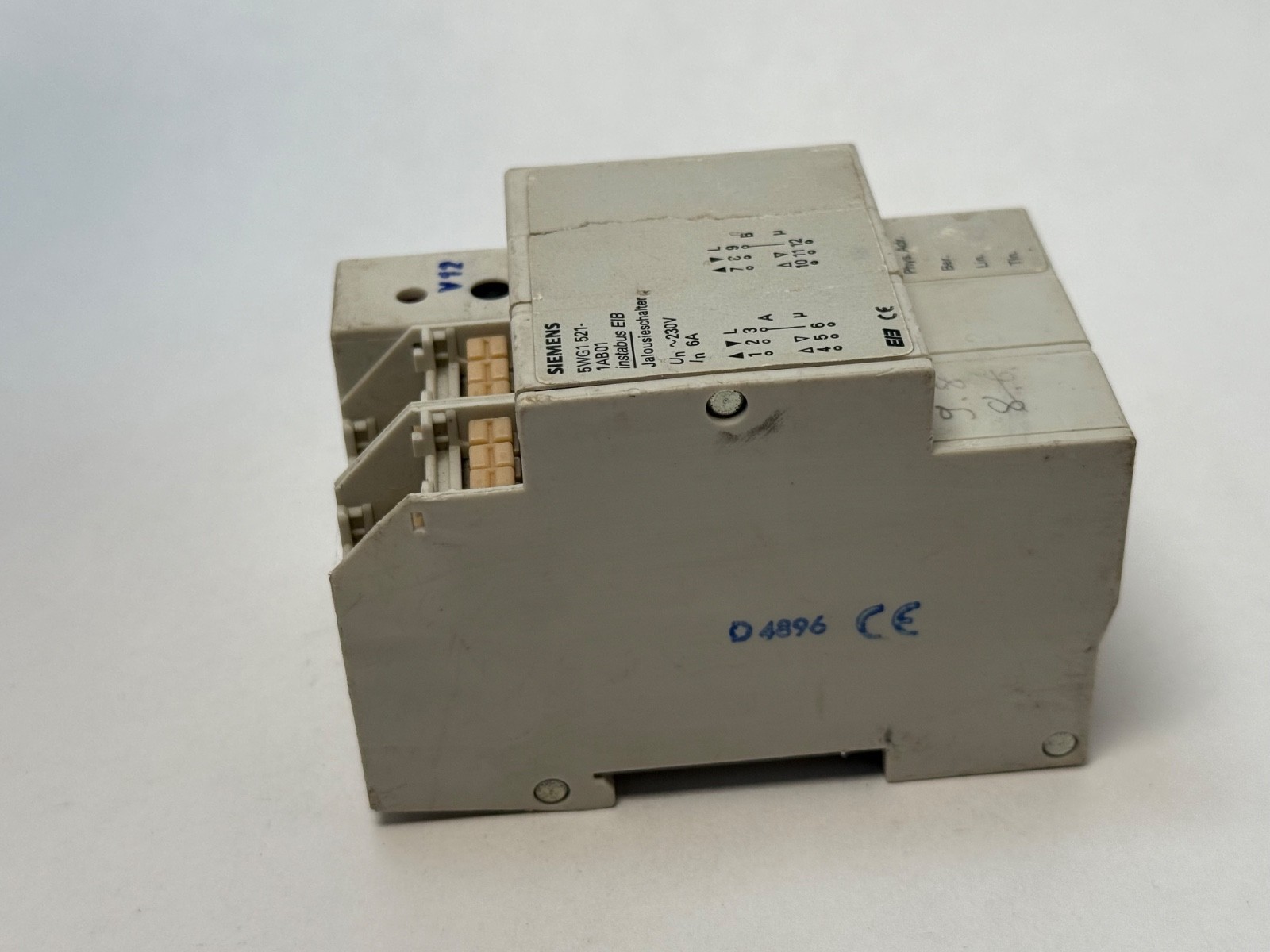

Mounting: DIN rail, N-system distribution board device
Order number: 5WG1 521-1AB01

Quantity and configuration

Sold as 1 Pc — one actuator module. The unit is supplied without a KNX bus coupling unit accessory, without a KNX power supply and without bus connection terminals.

Installation and setup notes

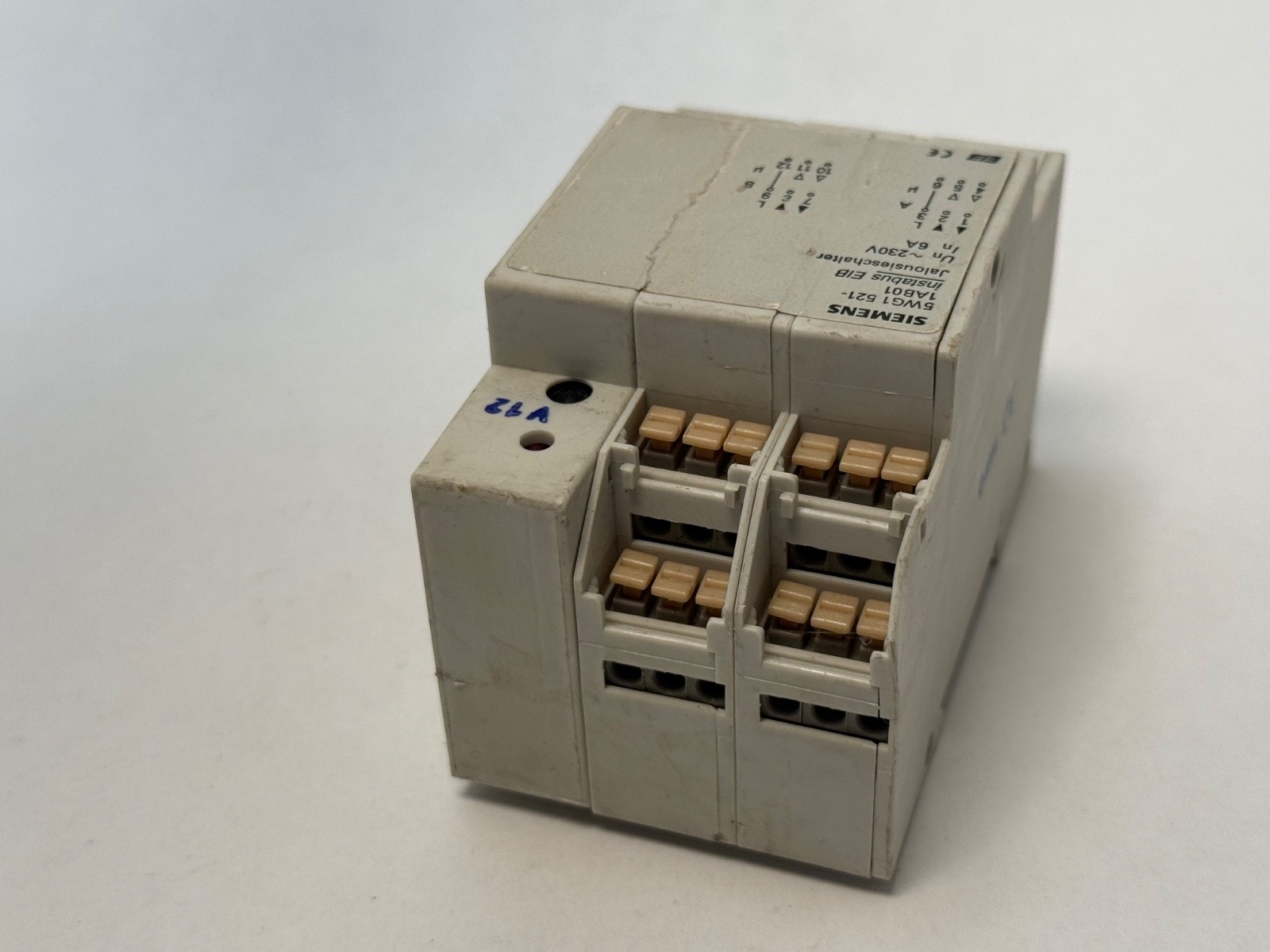

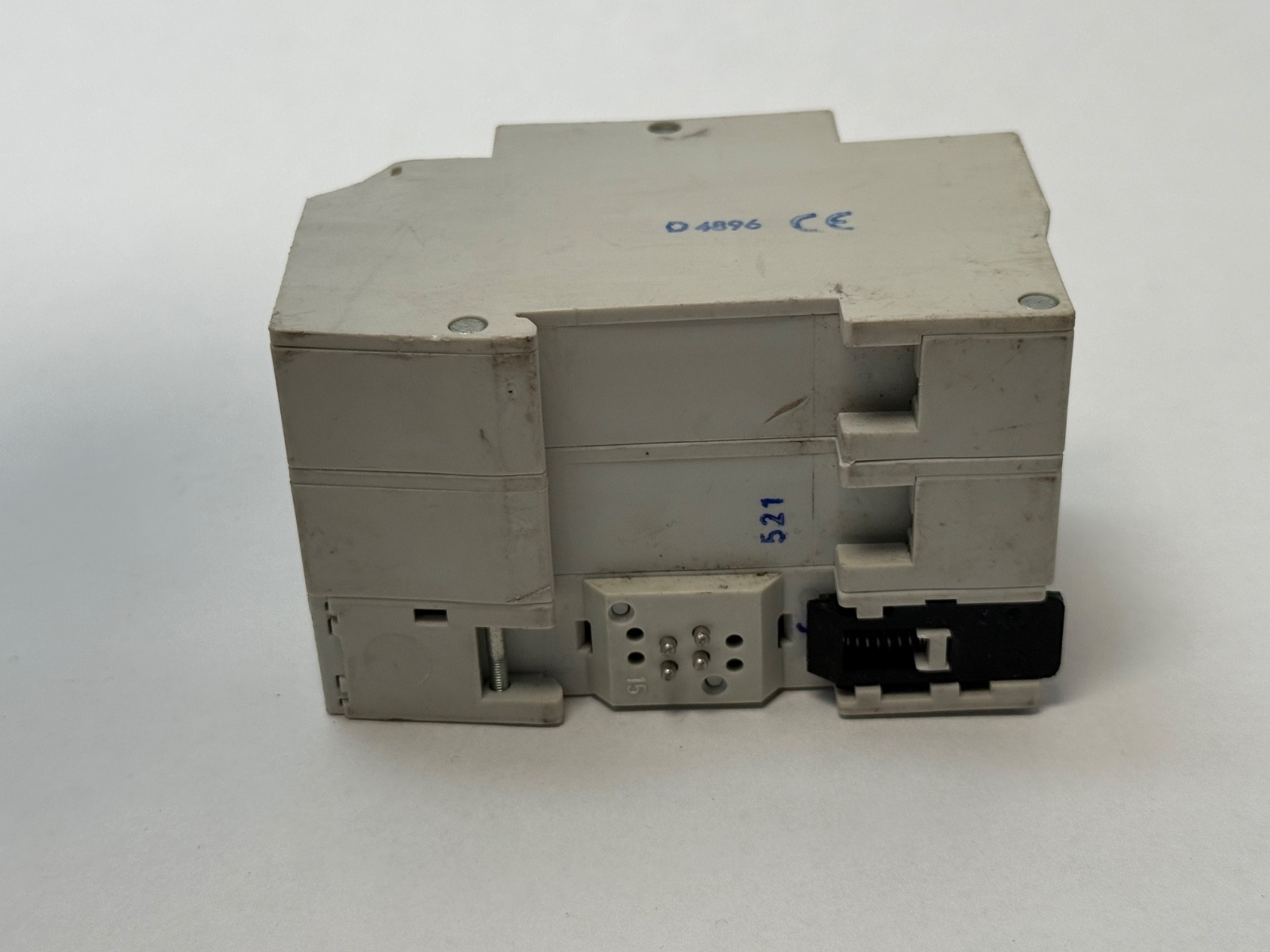

The device occupies DIN rail in a distribution board, takes the KNX bus on its bus terminal and the switched 230 V AC on screw terminals. Commissioning is done from ETS using the Siemens product database entry for N 521, where travel times, slat adjustment times and any safety or weather priority behaviour are set. Because travel timing lives in the actuator, replacing the module involves reloading the ETS parameters for the drives it serves.

Interchange guidance

The Siemens RL 521/23 (order number 5WG1521-4AB23) is the later shutter and blind actuator covering the same 2 x AC 230 V, 6 A duty, in a different housing series and with a different application program, so it is a related device, not a drop-in module. The 5WG1501-1AB01 (N 501-01) is a four-channel combination blind actuator with binary inputs — a larger and differently specified device. Only order number 5WG1 521-1AB01 or catalogue designation N 521 identifies this exact module.
