SiemensSIMODRIVE 610 / 210 Feed Drive Power Supply PCB, Board Ref 462 010.9060.12

Product Description

What this part is

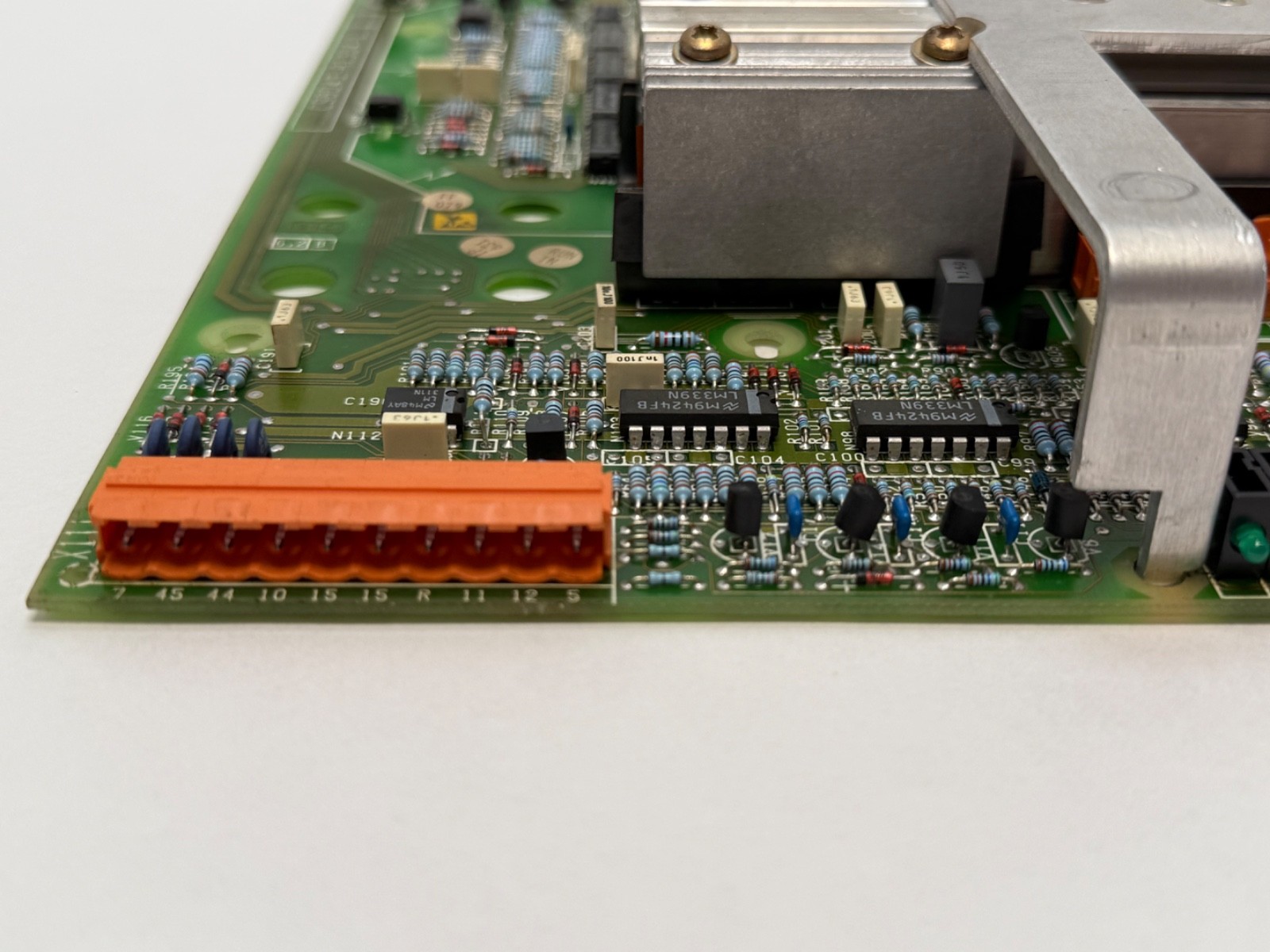

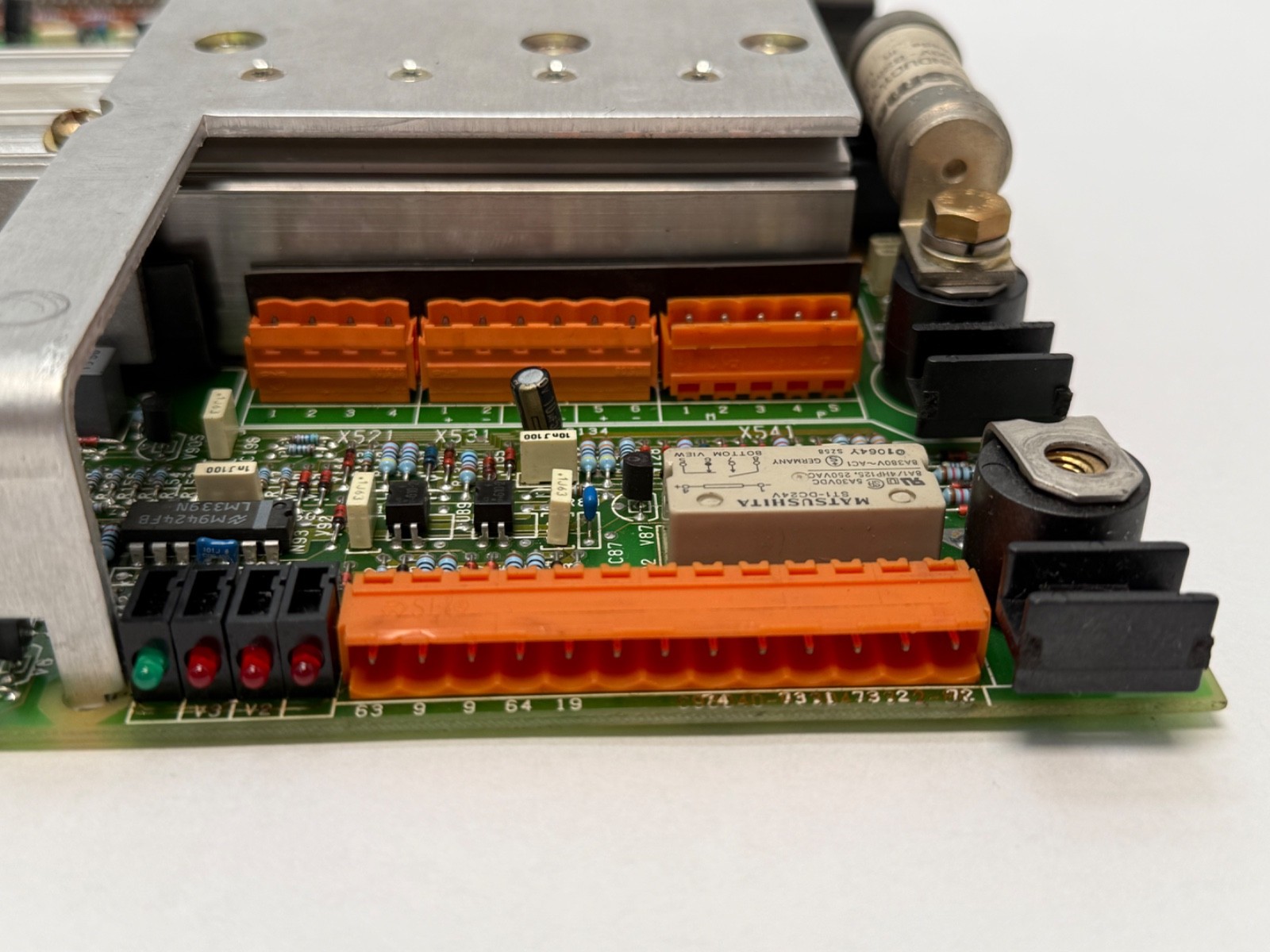

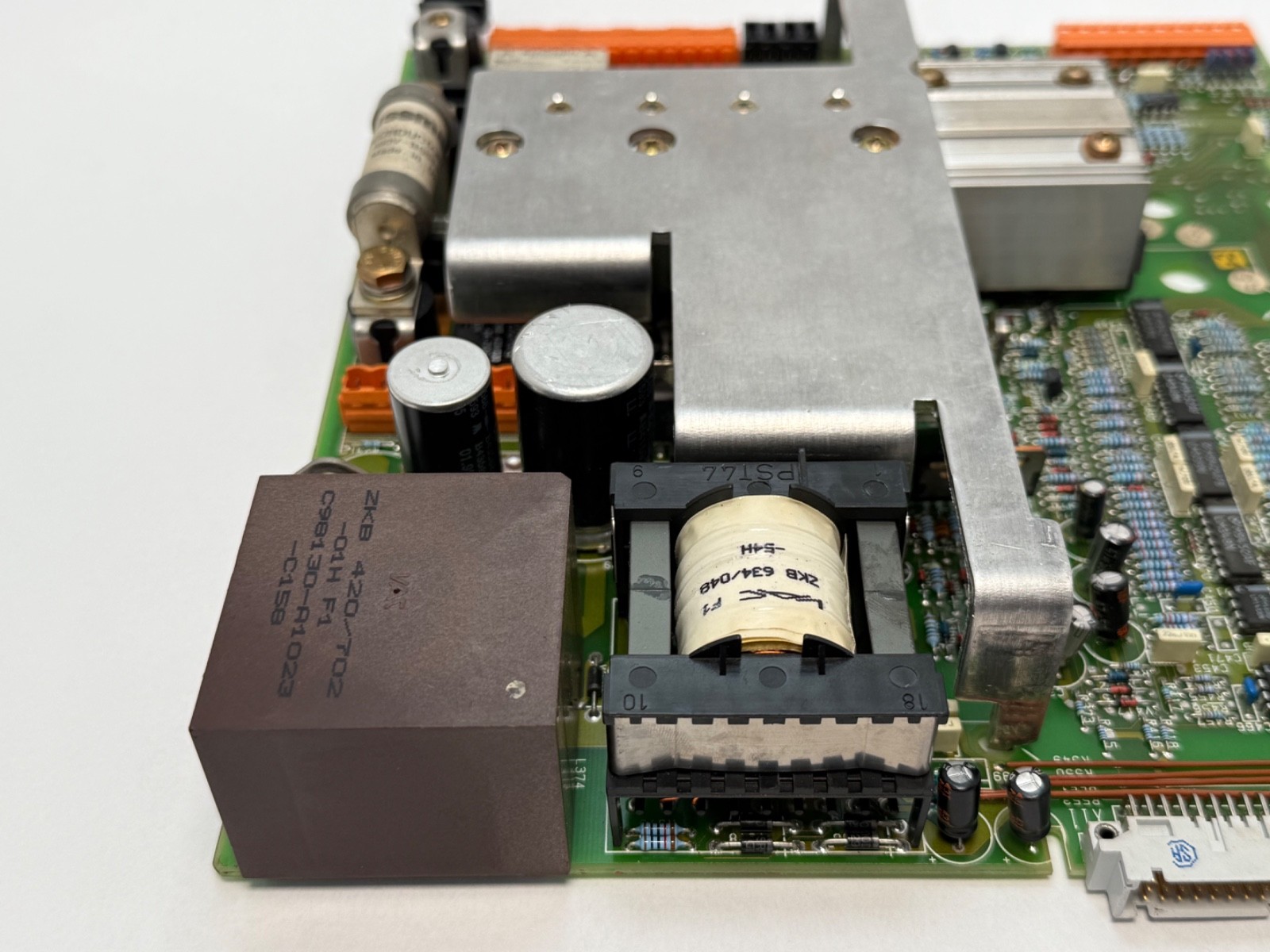

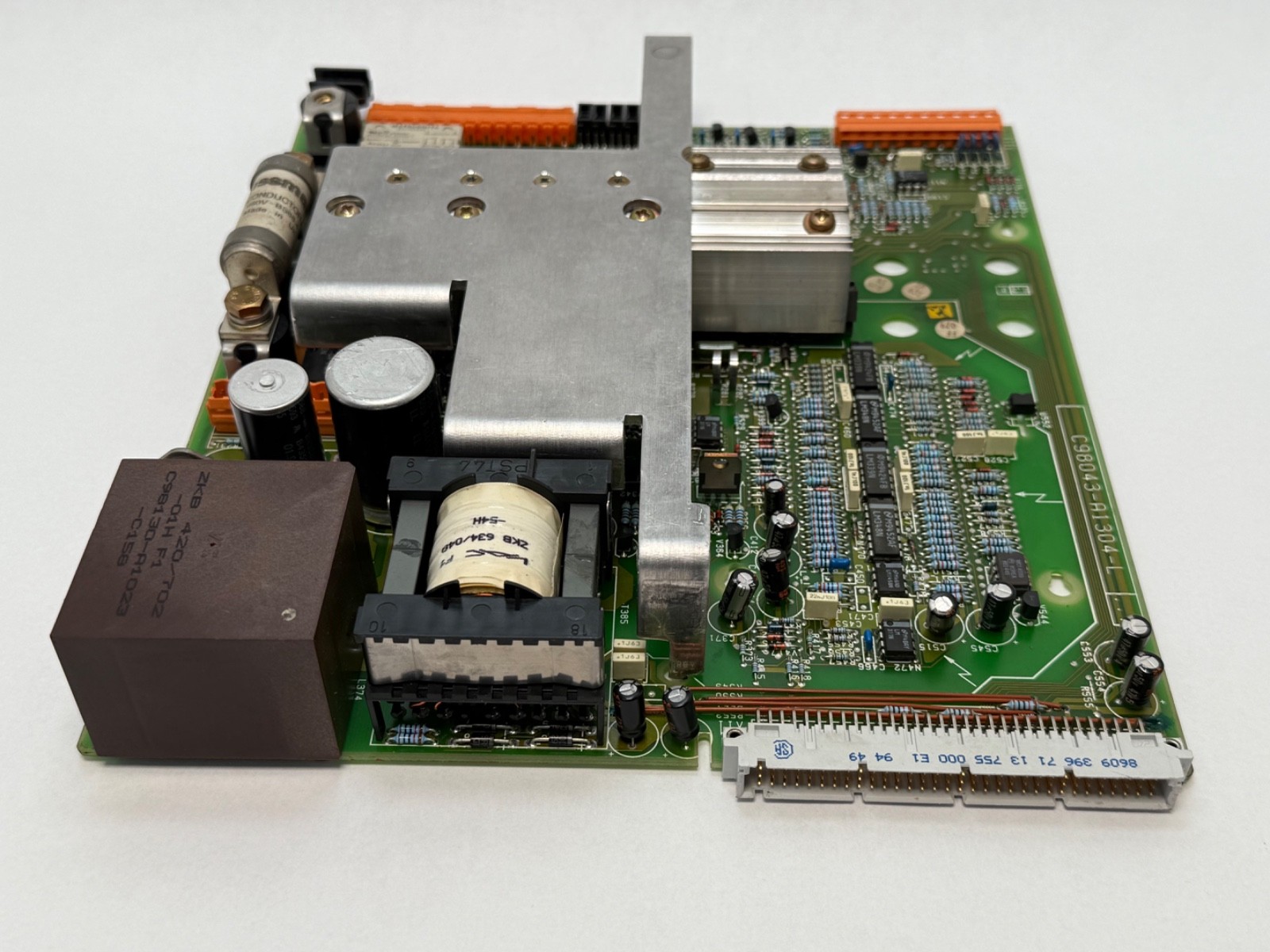

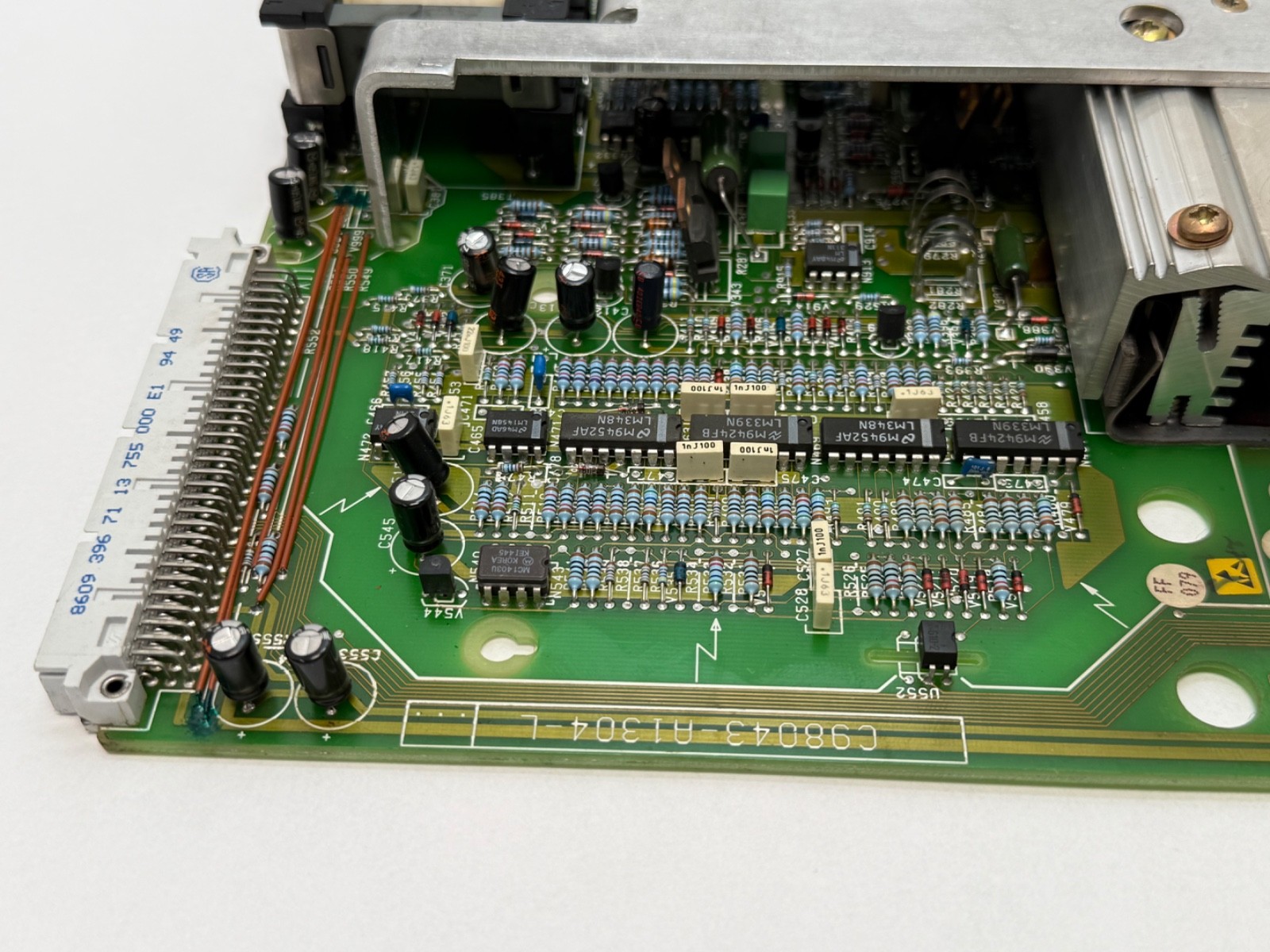

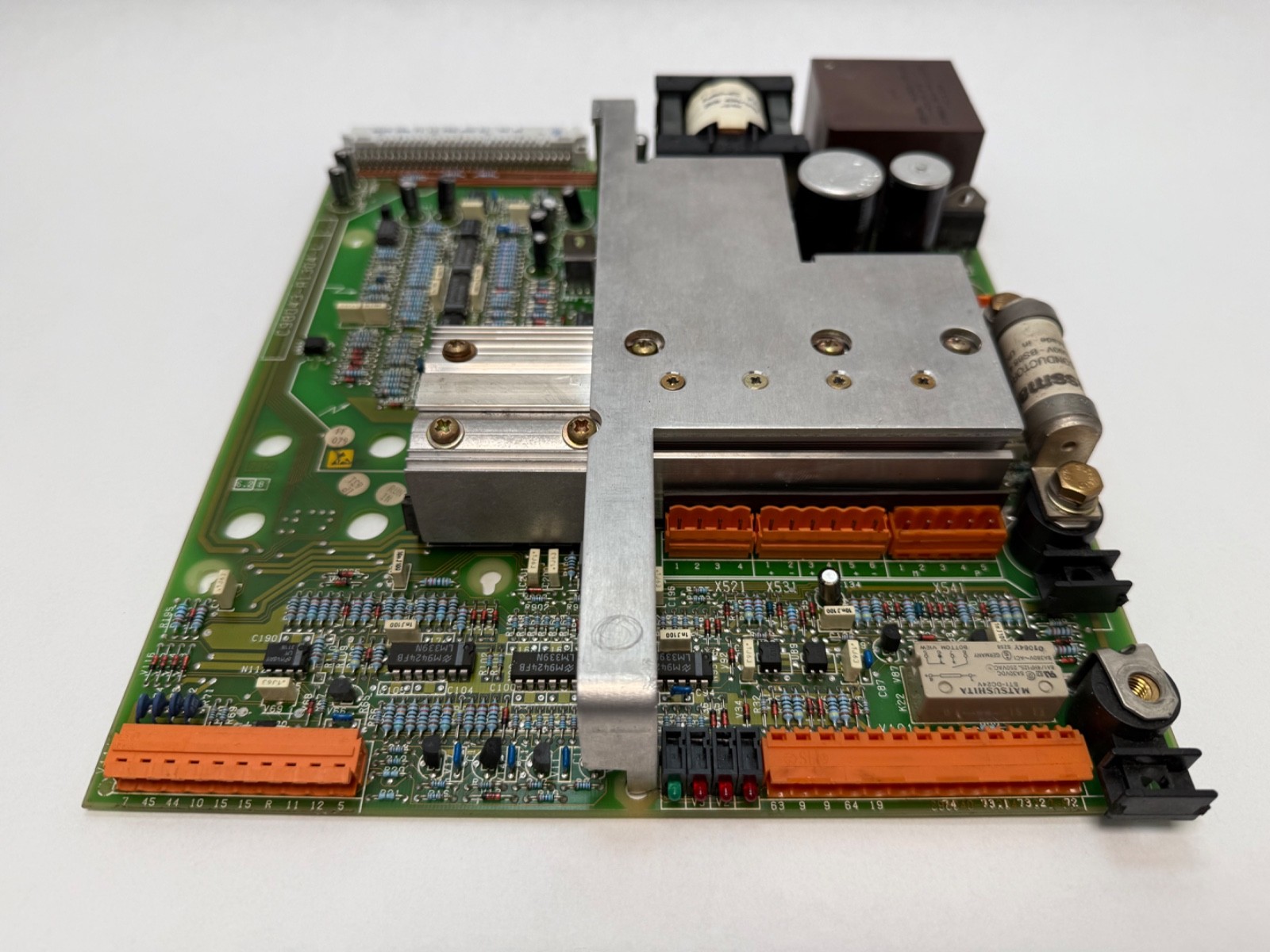

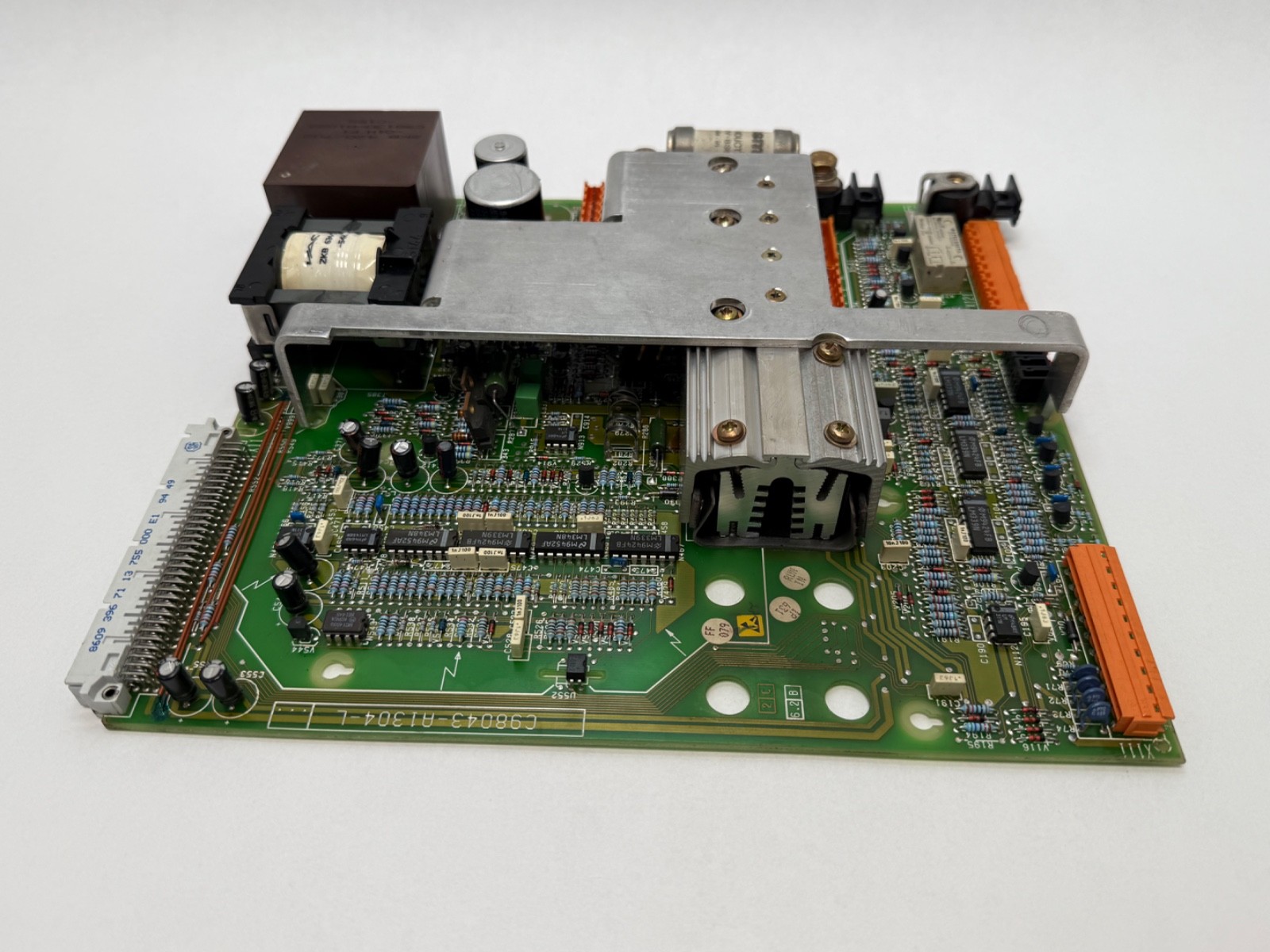

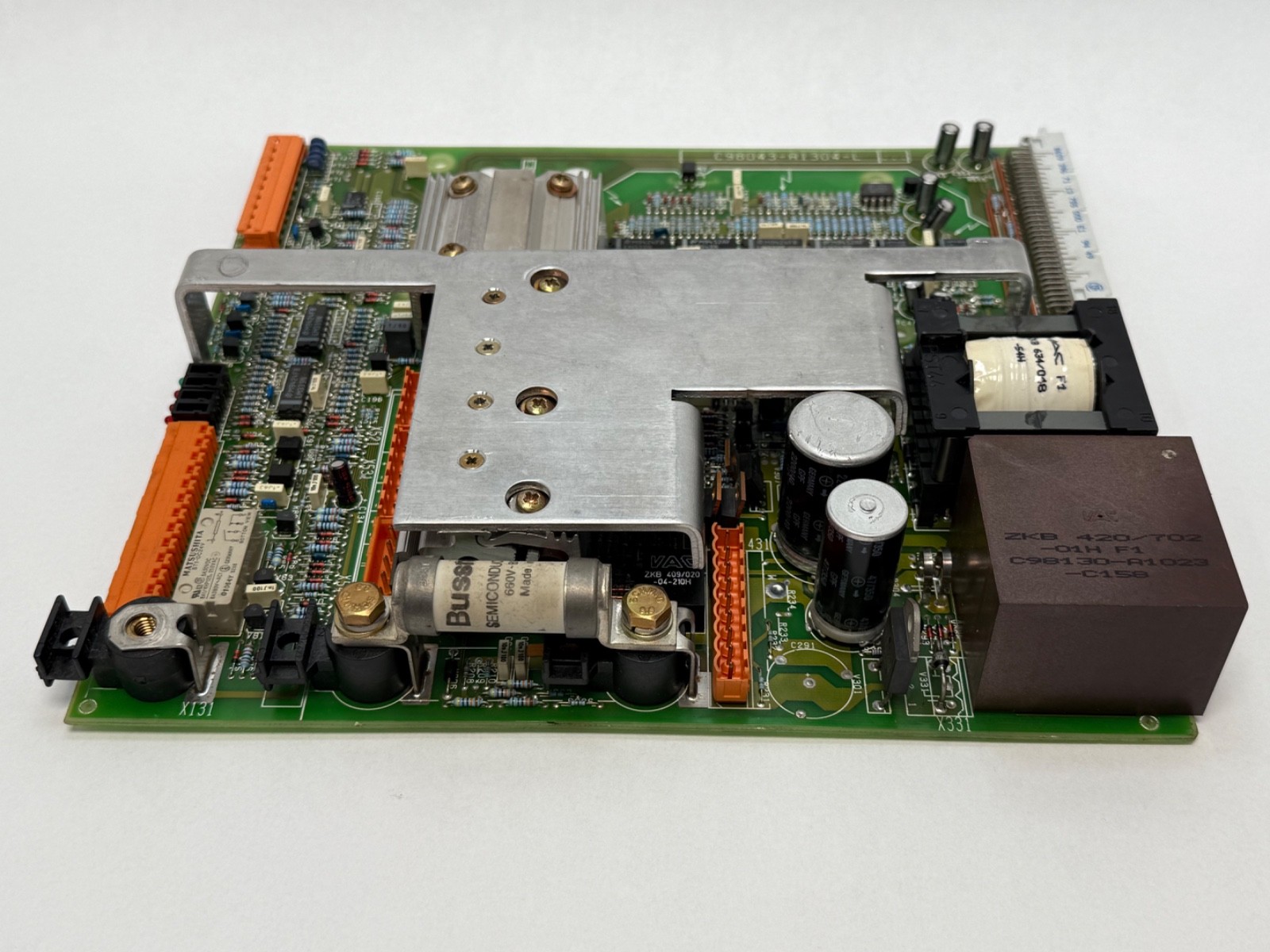

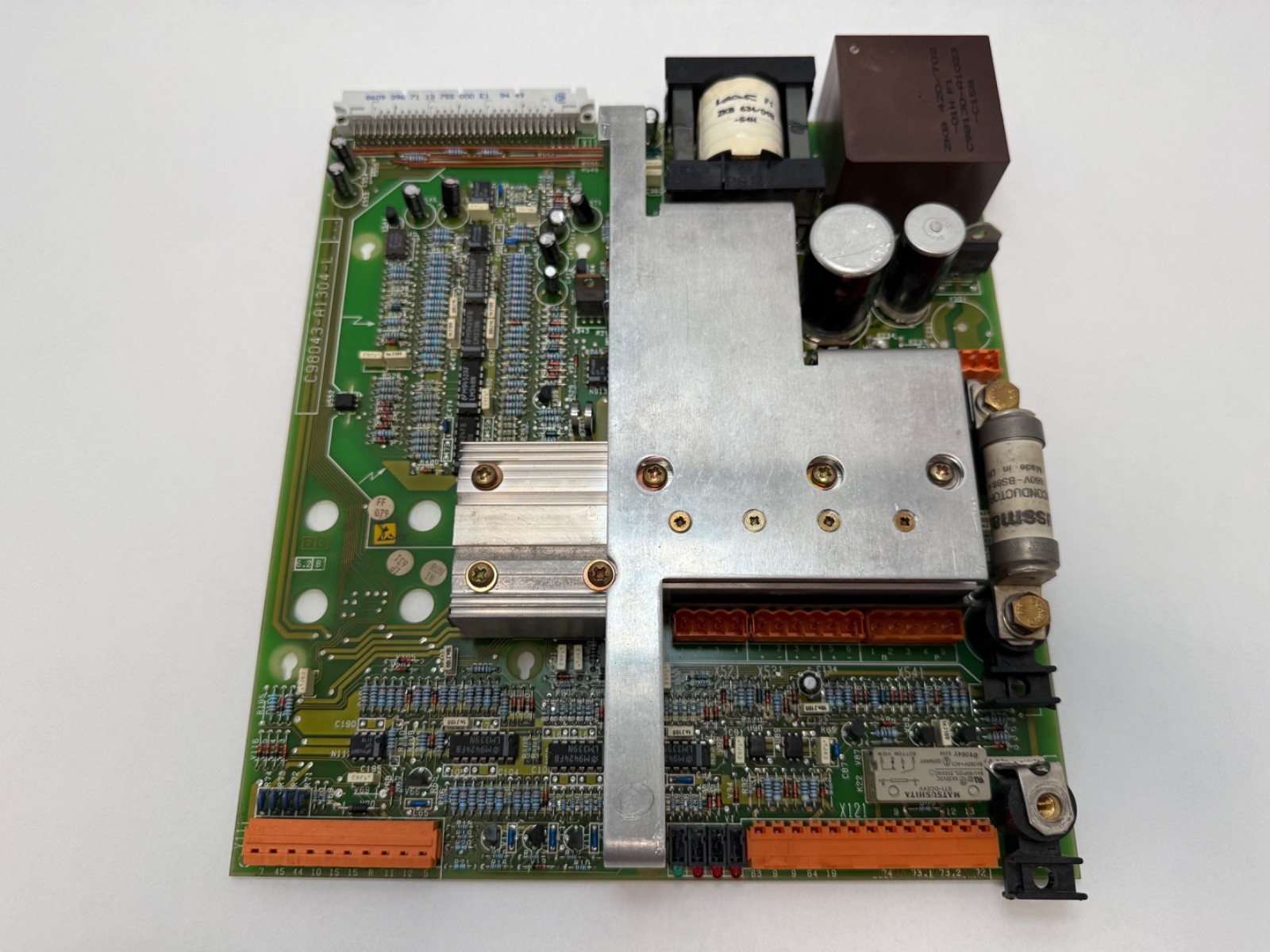

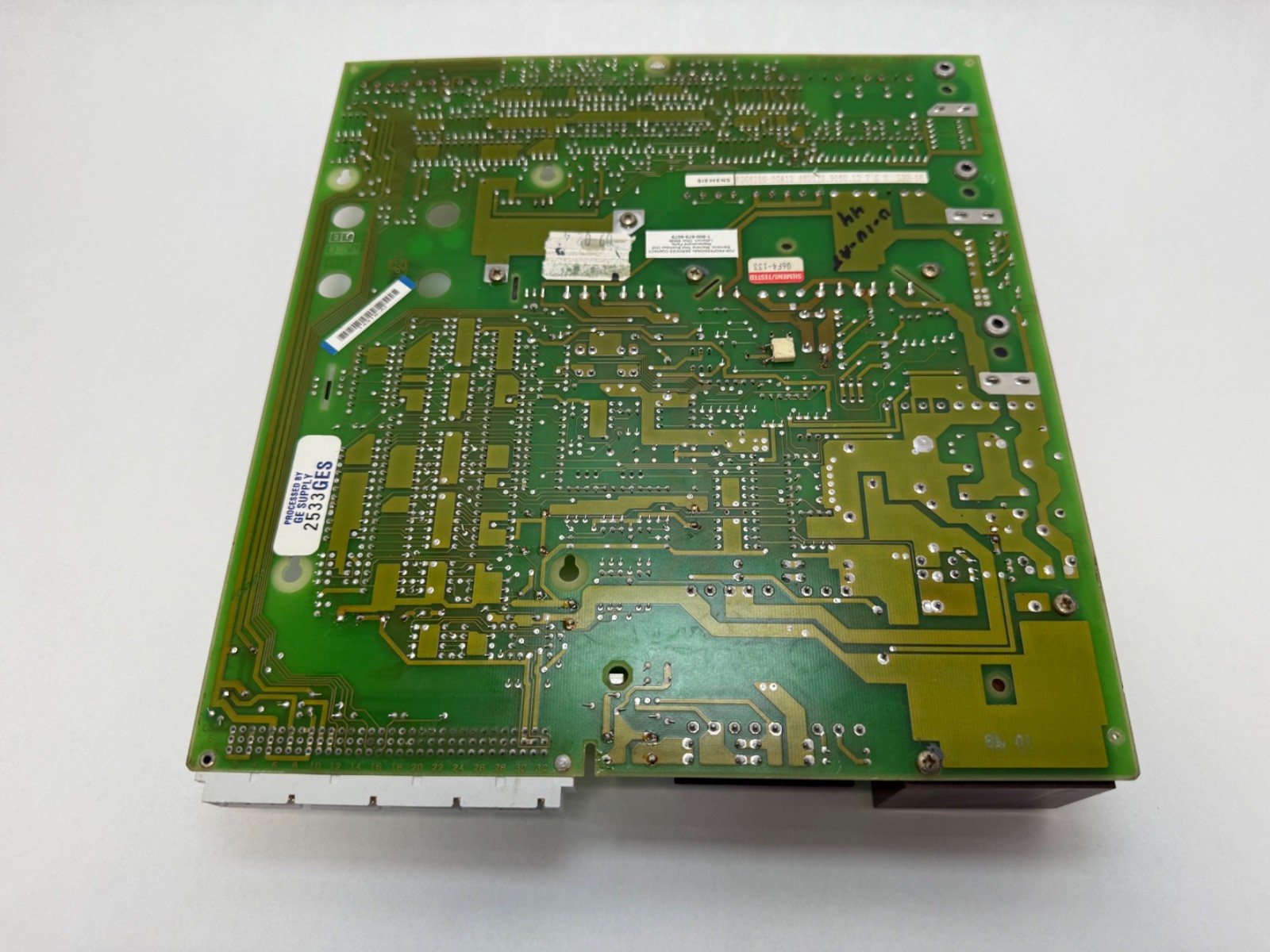

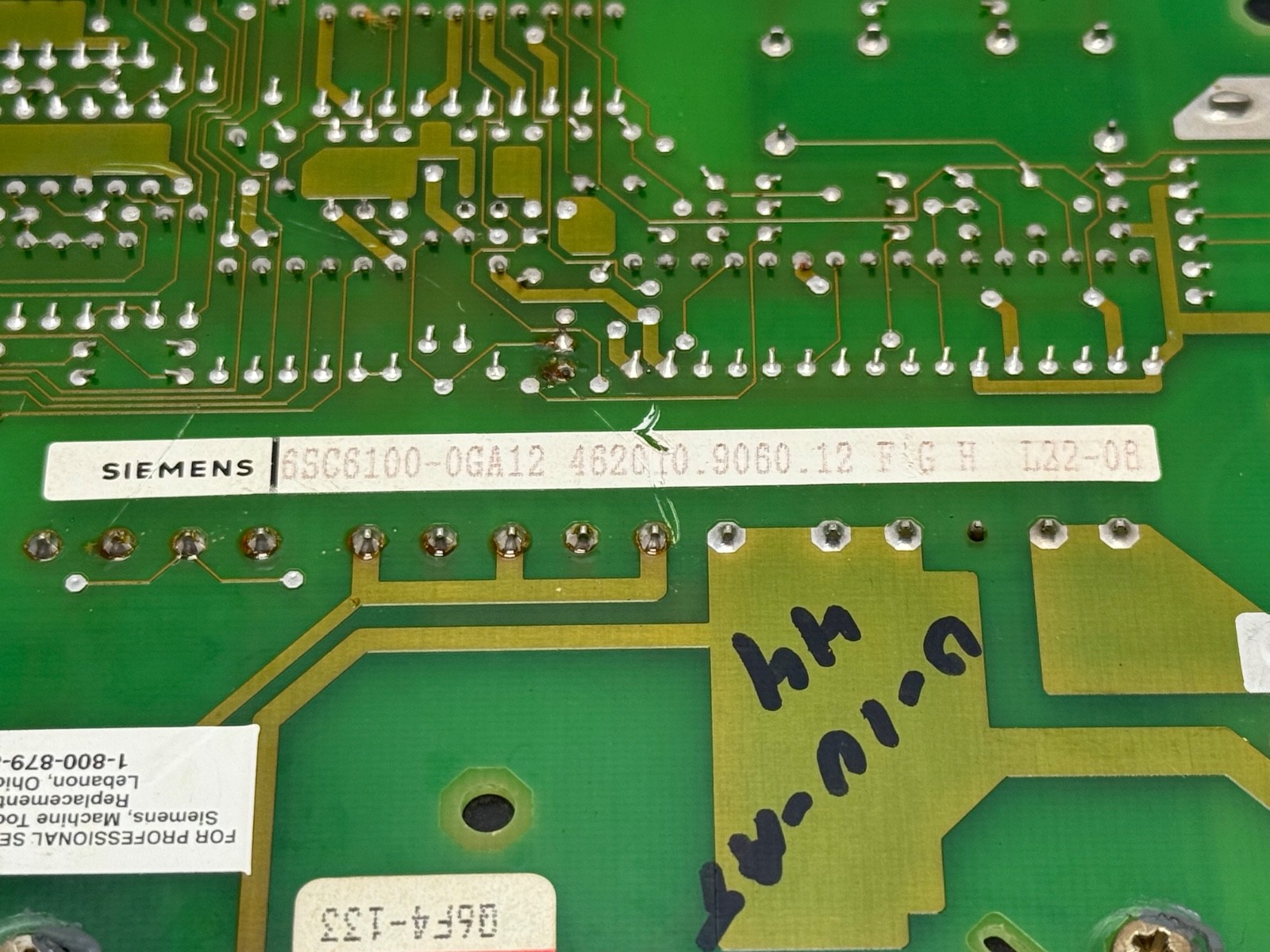

The power supply printed circuit board from a Siemens SIMODRIVE 610 / 210 feed drive, ordered as 6SC6100-0GA12. Its function is internal housekeeping power: it produces the low-voltage supply rails that the drive’s own regulator and control electronics run on. Siemens marks it with board reference 462 010.9060.12 and internal drawing number C98043-A1304-L. It is a plug-in PCB from inside a specific family of Siemens feed drives. It does not power a PLC rack, it has no field-wiring terminal block, and it functions only inside a SIMODRIVE 610 or 210 chassis.

Decoding the order code

6SC is the Siemens order-number group for the SIMODRIVE 6SC drive generations. The later and separate generation carries 6SN (SIMODRIVE 611), and boards do not cross between them. 6100 is the SIMODRIVE 610 / 210 feed drive family. 0GA identifies the power supply board function within that family; the neighbouring 0GC boards are different functions in the same numbering block, so 0GA and 0GC are not substitutes. 12 is the board version, matching the trailing .12 of the 462 010.9060.12 board reference. The .12 board and an earlier or later version of 462 010.9060 are not automatically interchangeable.

Feed drive versus main spindle drive

Siemens split these older SIMODRIVE cabinets by duty. The 610 and 210 designations are feed drive equipment, driving the axes. Main spindle drive equipment in the same era carried the SIMODRIVE 650 designation and its own set of boards. Both sit in similar-looking racks and both use 6SC61xx order numbers. The drive nameplate identifies which is which.

Published specifications

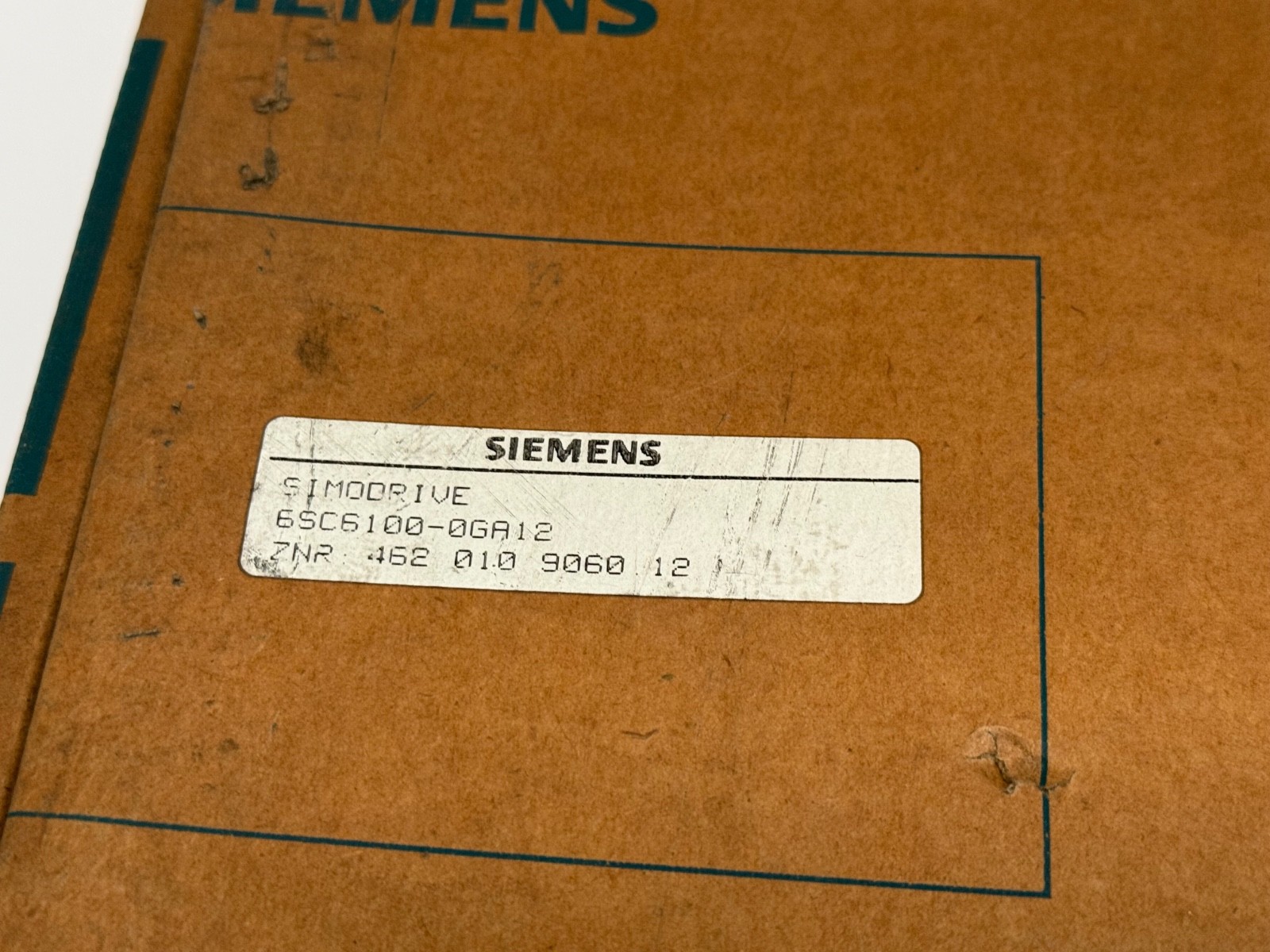

Function: power supply printed circuit board, drive internal control supply. Platform: Siemens SIMODRIVE 610 / 210 feed drive (FDD). Siemens order number: 6SC6100-0GA12. Board reference: 462 010.9060.12. Siemens internal drawing number: C98043-A1304-L. Form factor: plug-in printed circuit board, drive chassis. Country of manufacture: Germany.

Mounting data

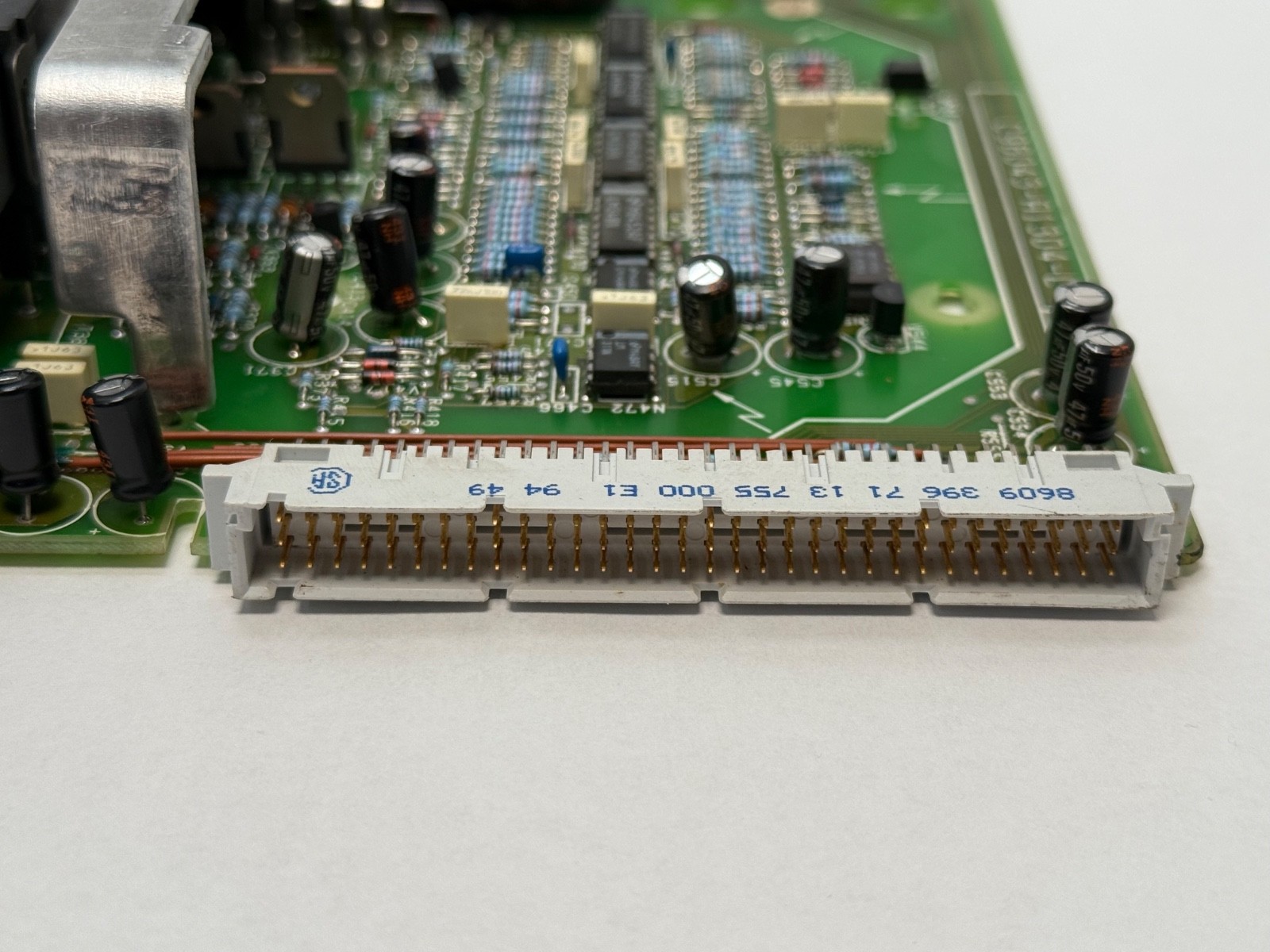

The board is a plug-in card in the drive chassis, connected by ribbon cables and plugs. SIMODRIVE cabinets of this generation retain a lethal DC link charge after switch-off. The board carries jumper or link settings that form part of the drive configuration.

Quantity and configuration

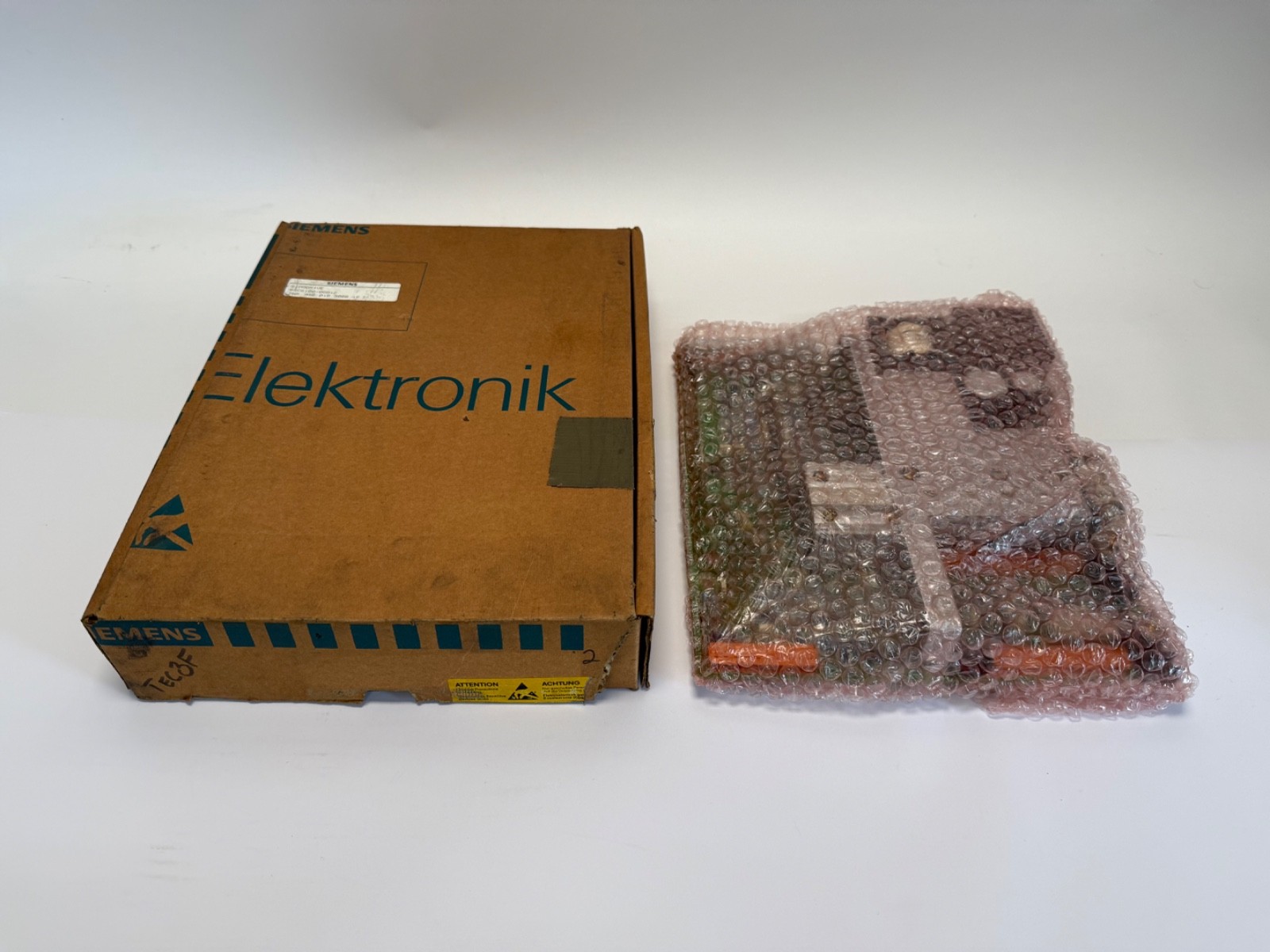

One printed circuit board. Not included: the drive chassis, rack, backplane, ribbon cables, other regulator or power boards, connector kits, fuses, cooling fan, and the drive documentation.

Interchange guidance

The complete number, version digits included, is the ordering reference. 6SC6100-0GA00 is the same board function at a different version and is a related item rather than a guaranteed drop-in. 6SC6100-0GC14 is a different board in the same numbering block serving SIMODRIVE 650 main spindle drive equipment, a different function on different equipment. The 6SN1118 and 6SN1123 boards belong to SIMODRIVE 611 and do not interchange with 6SC hardware. Also written 6SC61000GA12, 6SC6100 0GA12, 6SC 6100-0GA12, 462010.9060.12, 462 010.9060.12 and C98043-A1304-L.
