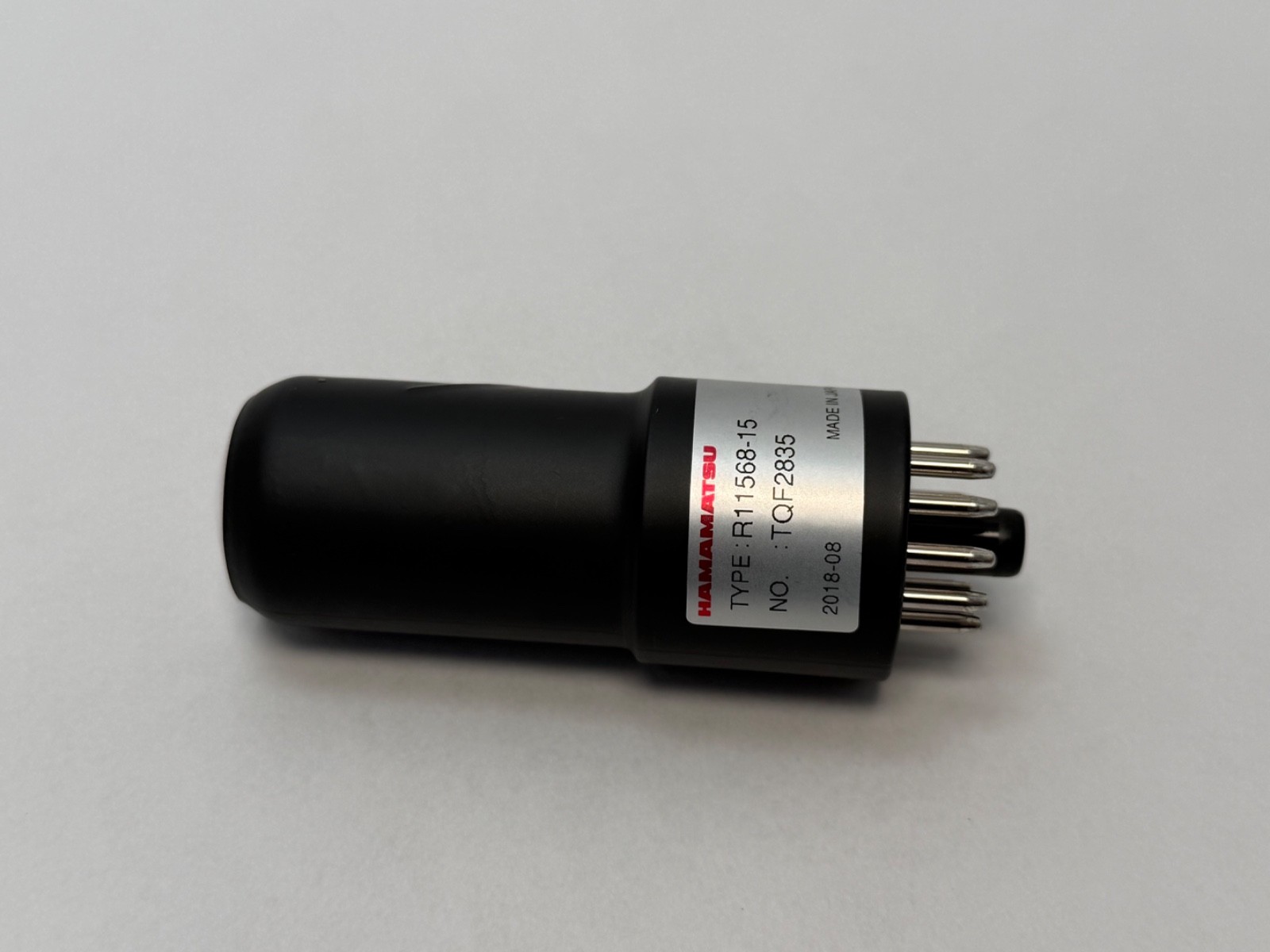

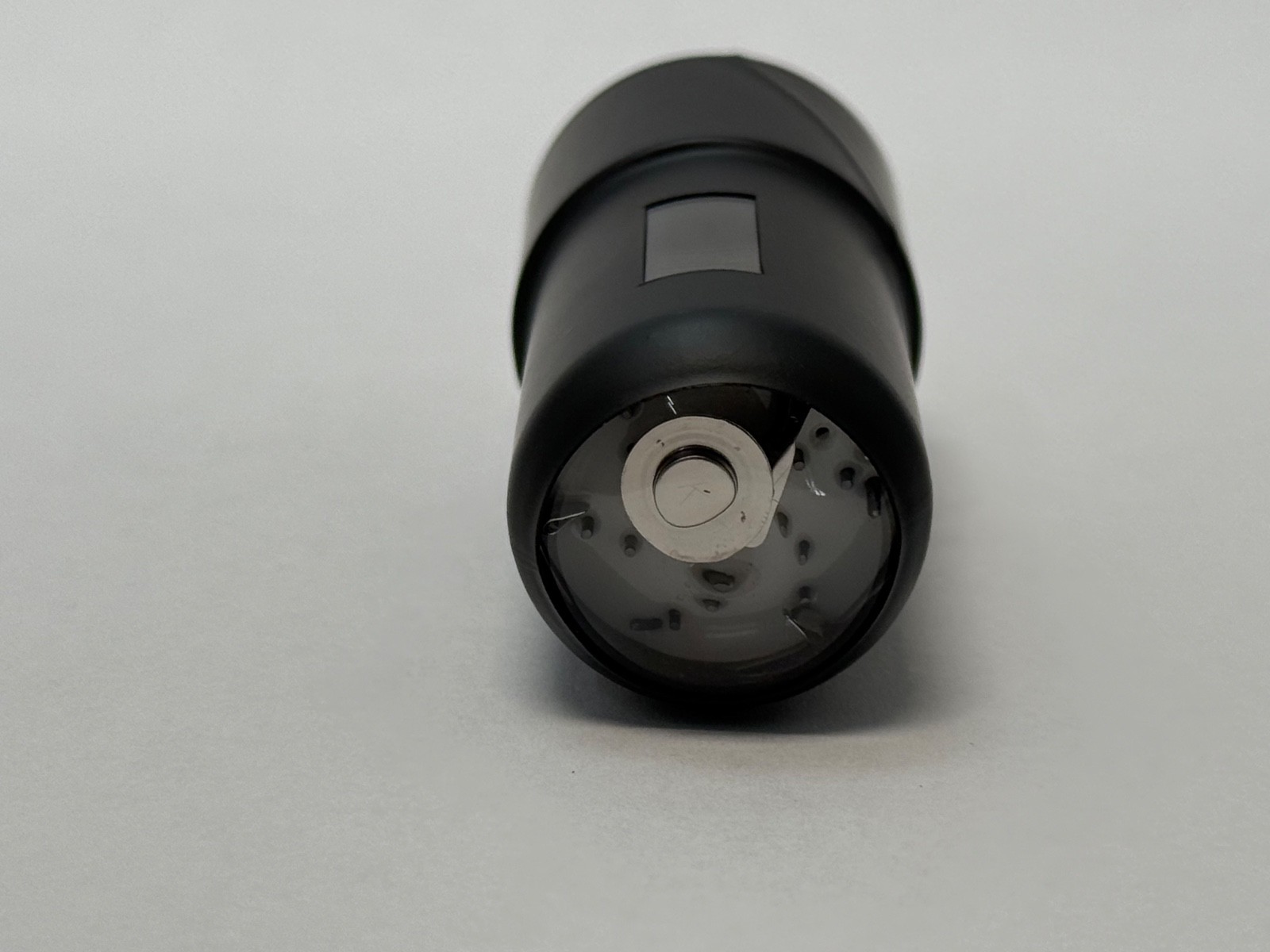

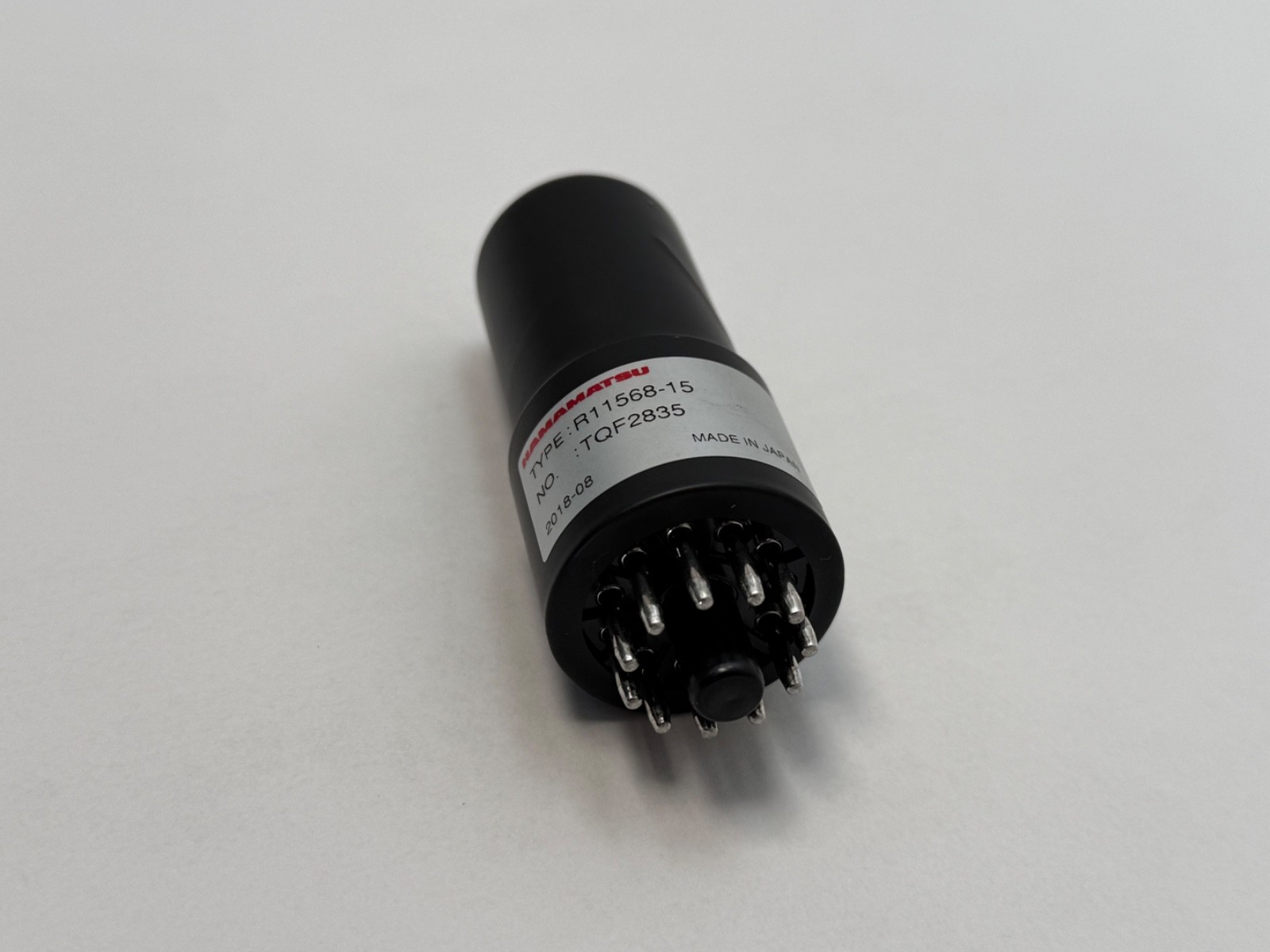

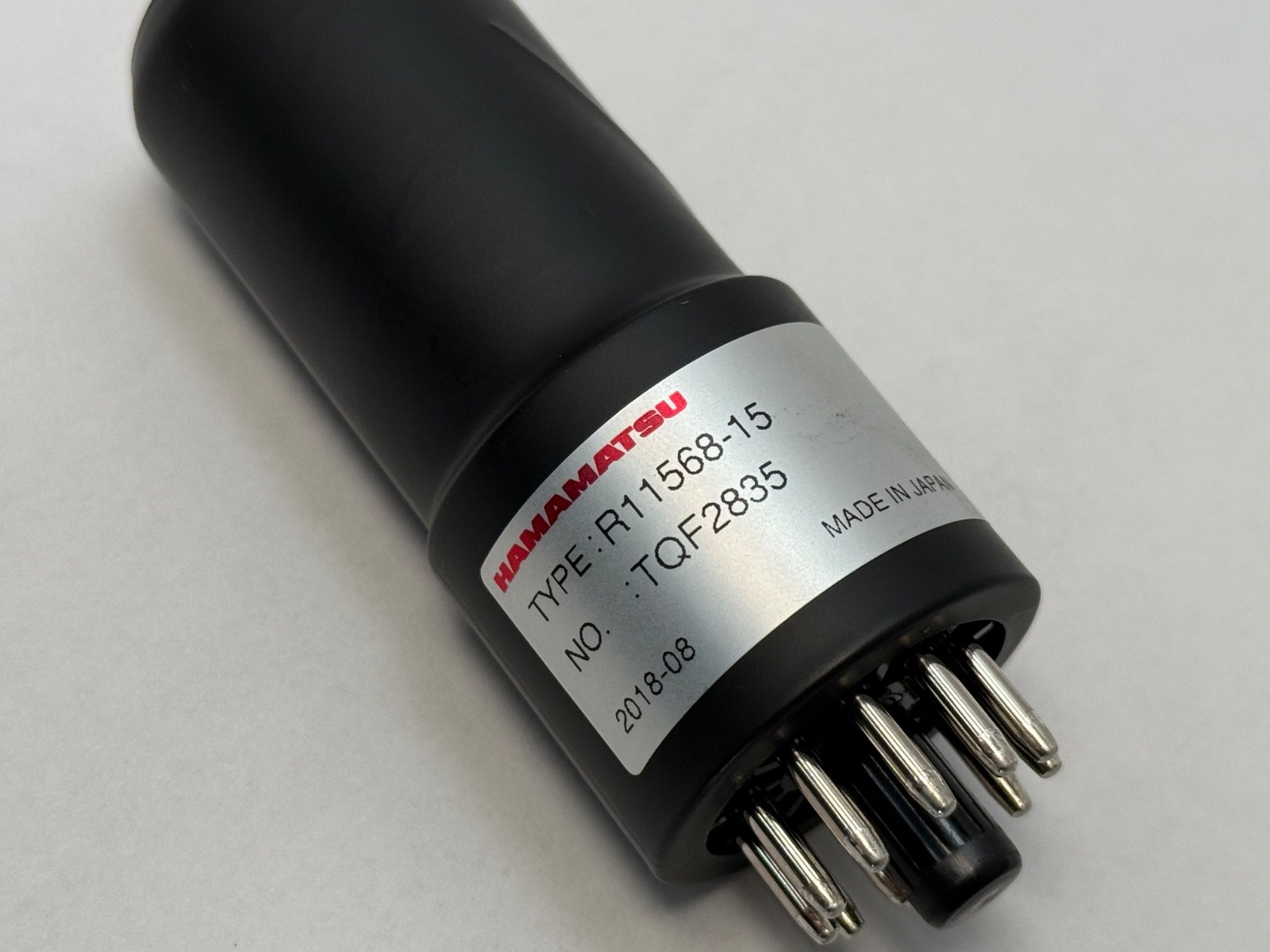

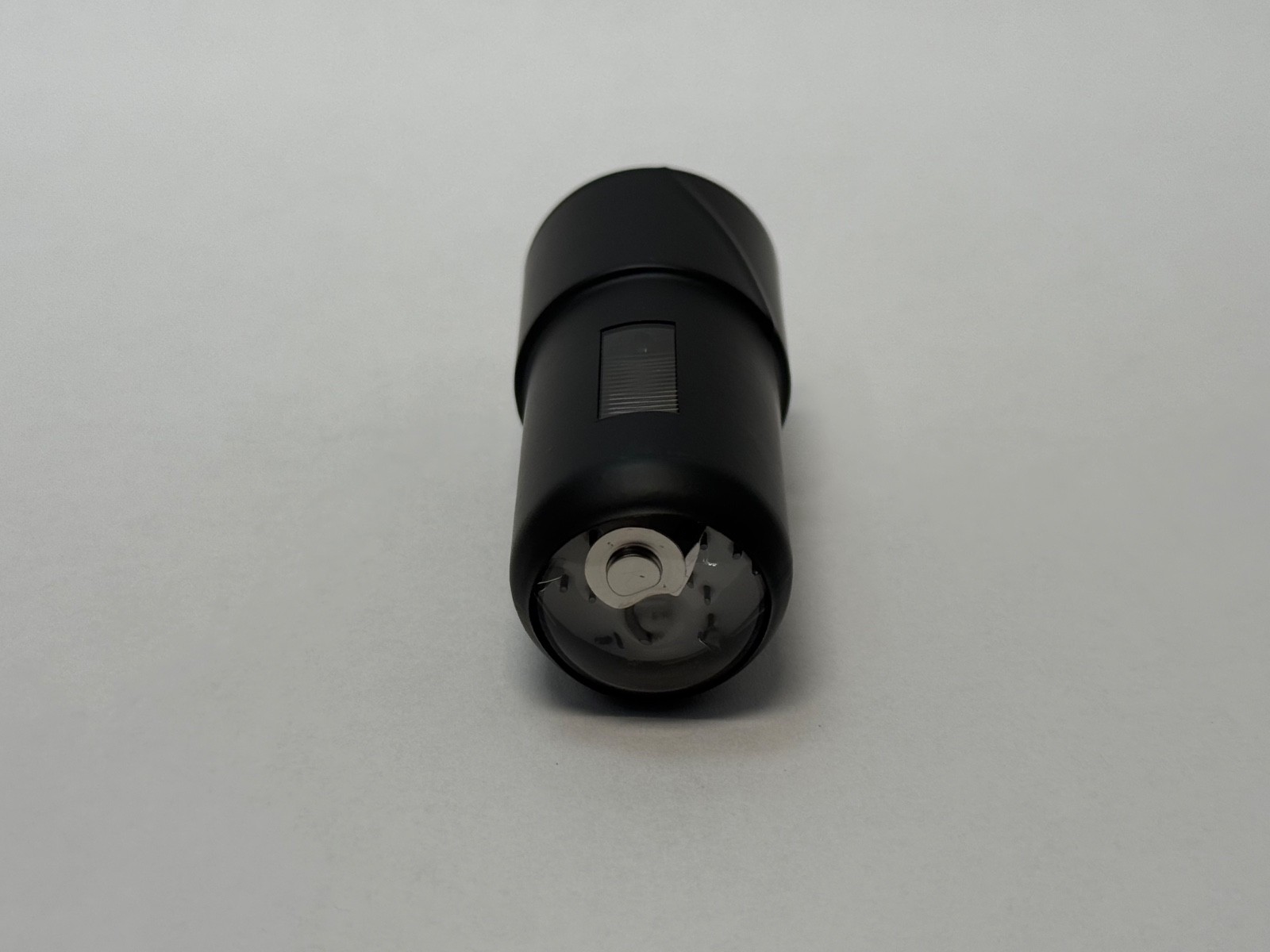

HamamatsuR11568-15Photomultiplier Tube — 28 mm Side-On, Bialkali, 185–650 nm, 9-Stage

Condition: New – Open box

Availability:

1 in stock

Hamamatsu R11568-15 photomultiplier tube, 28 mm side-on, bialkali cathode, 185 to 650 nm response, peak 400 nm. 9-stage, 11-pin base, UV glass window.

List Price

$484.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandHamamatsu
MPNR11568-15
ModelR1156815

Technical Specifications

TypePhotomultiplier Tube
Base NumberR11568
Industry Termsphotomultiplier tube, PMT, side-on PMT, photodetector
Common MisspellingsHamamatzu, Hammamatsu, R11586-15
Application TypesEmission spectroscopy, UV-visible photometry, low-light detection
Input Voltage1000 V (1250 V max)
Mpn VariantsR11568-15, R1156815, R11568 15
Compatible With ReplacesHamamatsu socket E678-11A; socket assembly E717-63
Additional AttributesR11568 base-part data: Photocathode: Bialkali, 8 x 24 mm; Spectral Response: 185-650 nm; Peak Wavelength: 400 nm; Window: UV glass; Dynode Stages: 9; Gain: 1.0 x 10^7 typ; Rise Time: 2.2 ns; Base: 11-pin B11-88; Operating Temperature: -30 to +50 C
Seller Part Number: AK2B5#NQD742

Product Description

What this part is:

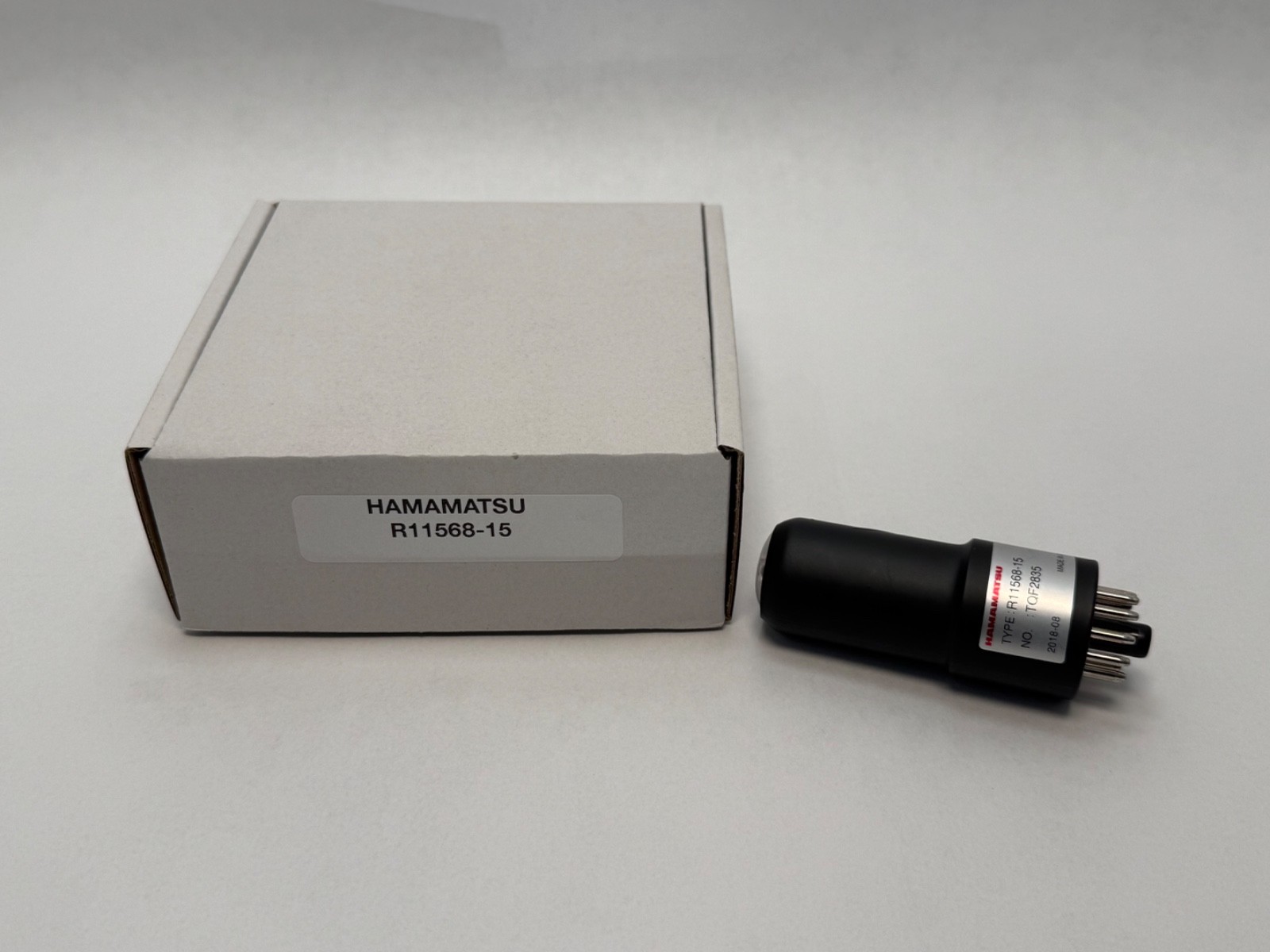

Hamamatsu R11568-15 photomultiplier tube (PMT), 28 mm side-on type with bialkali photocathode. Unit Quantity: 1 Pc. Condition: New, open box. Specifications below are Hamamatsu R11568 base-type data.

Decoding the designation:

R11568 — Hamamatsu 28 mm (1-1/8 in) diameter, 9-stage, side-on photomultiplier tube with bialkali photocathode.

Specifications:

Tube Size: 28 mm diameter.

Photocathode Material: Bialkali.

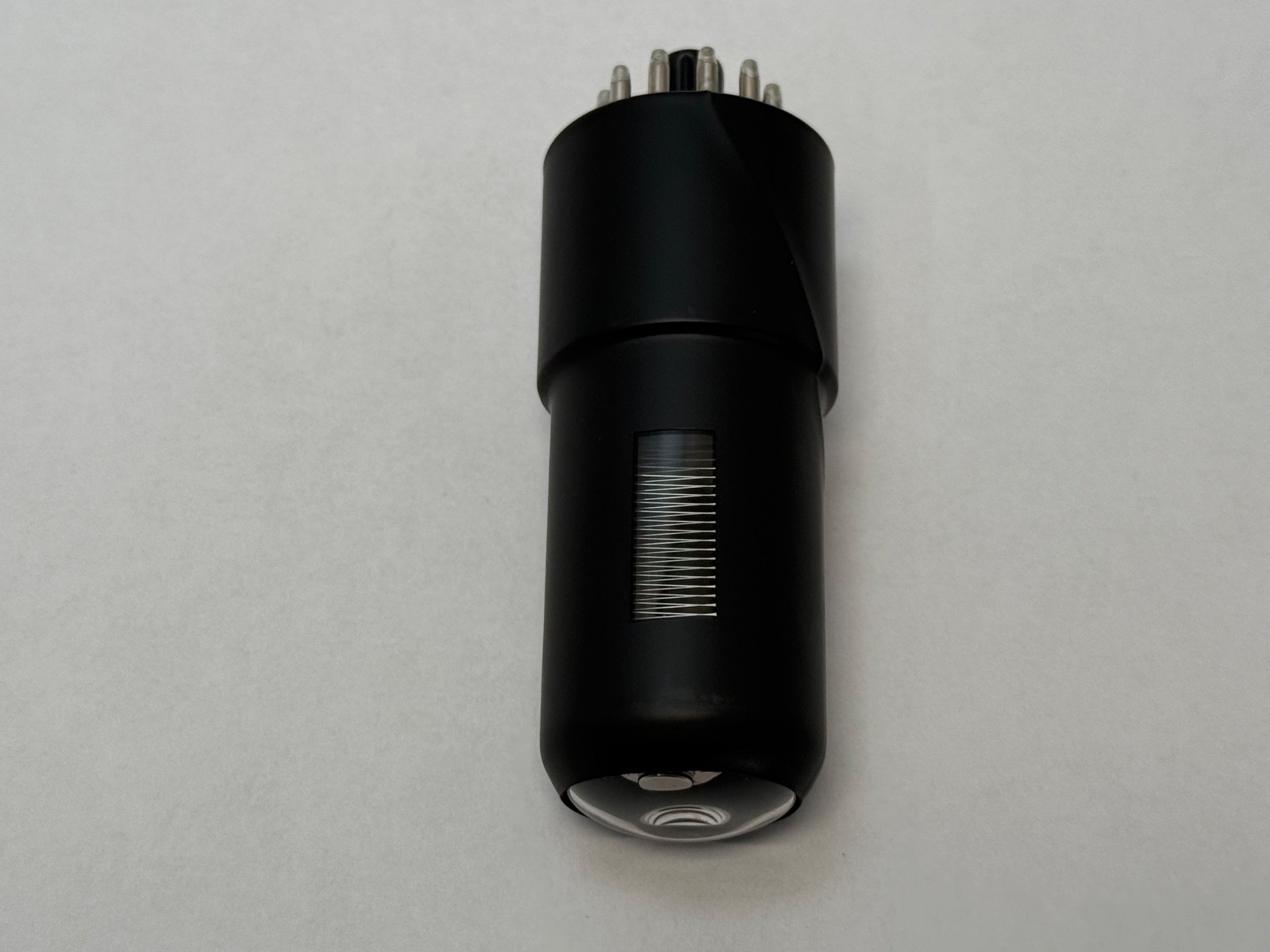

Photocathode Effective Area: 8 mm x 24 mm.

Spectral Response: 185 nm to 650 nm.

Peak Wavelength: 400 nm.

Window Material: UV glass.

Dynode Structure: Circular-cage, 9 stages.

Base: 11-pin, JEDEC B11-88.

Maximum Anode to Cathode Voltage: 1250 V.

Recommended Supply Voltage: 1000 V.

Maximum Average Anode Current: 0.1 mA.

Gain: 1.0 x 10^7 typical.

Anode Dark Current: 1 nA typical, 10 nA maximum.

Rise Time: 2.2 ns typical.

Transit Time: 22 ns typical.

Operating Ambient Temperature: -30 °C to +50 °C.

Dimensions and mounting:

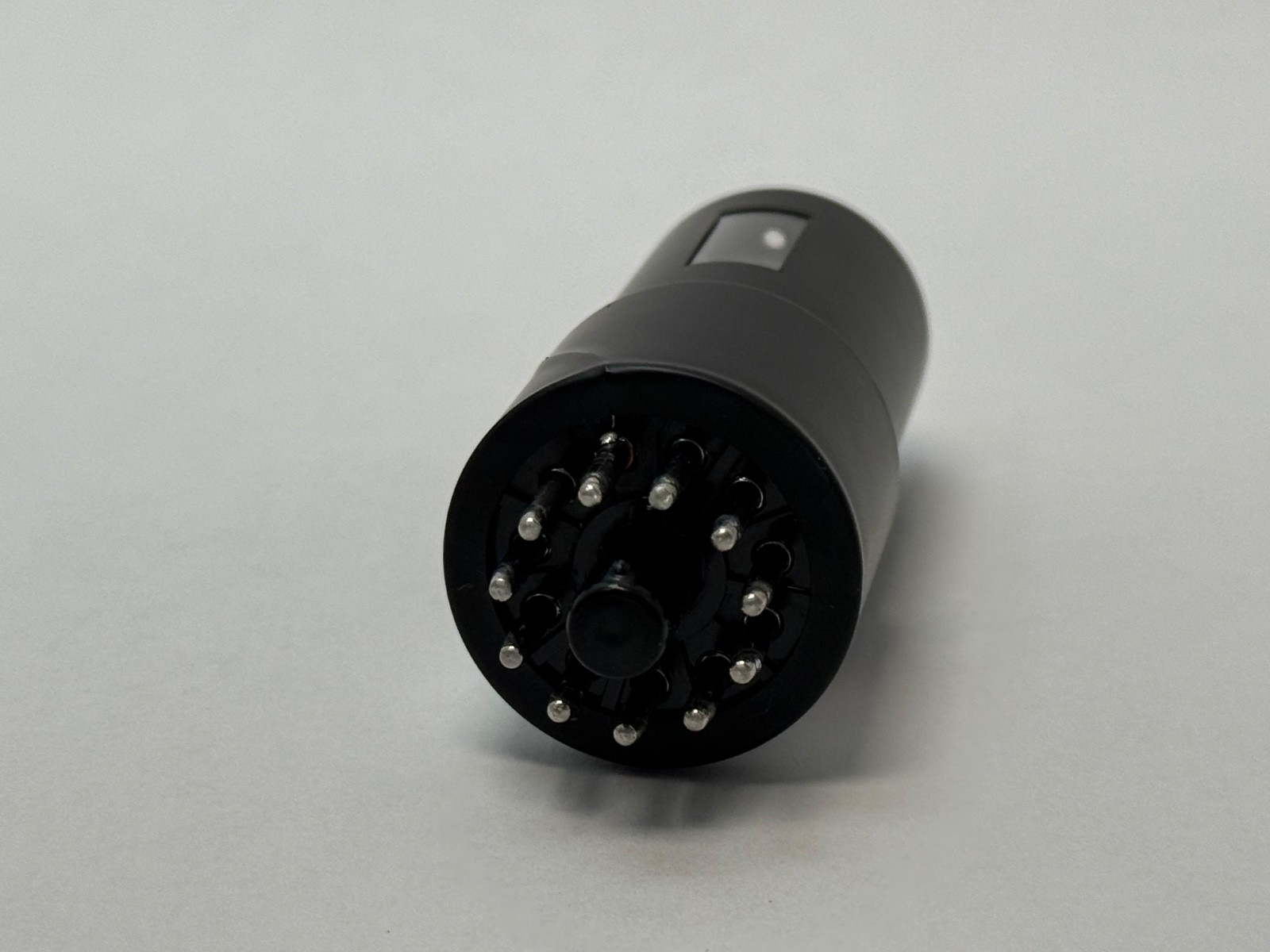

Base: 11-pin, JEDEC B11-88. Matching Hamamatsu socket: E678-11A; socket assembly: E717-63.

Compatibility and replacement:

Base type: Hamamatsu R11568. The same tube is written R11568-15, R1156815 and R11568 15. Matching socket: Hamamatsu E678-11A; socket assembly E717-63.

Frequently asked questions:

What type of tube is the Hamamatsu R11568-15?

A 28 mm side-on photomultiplier tube with a bialkali photocathode and 9 dynode stages.

What spectral response does it have?

185 nm to 650 nm, with peak sensitivity at 400 nm.

Which socket fits the R11568-15?

Hamamatsu E678-11A, or the E717-63 socket assembly, for the 11-pin base.
