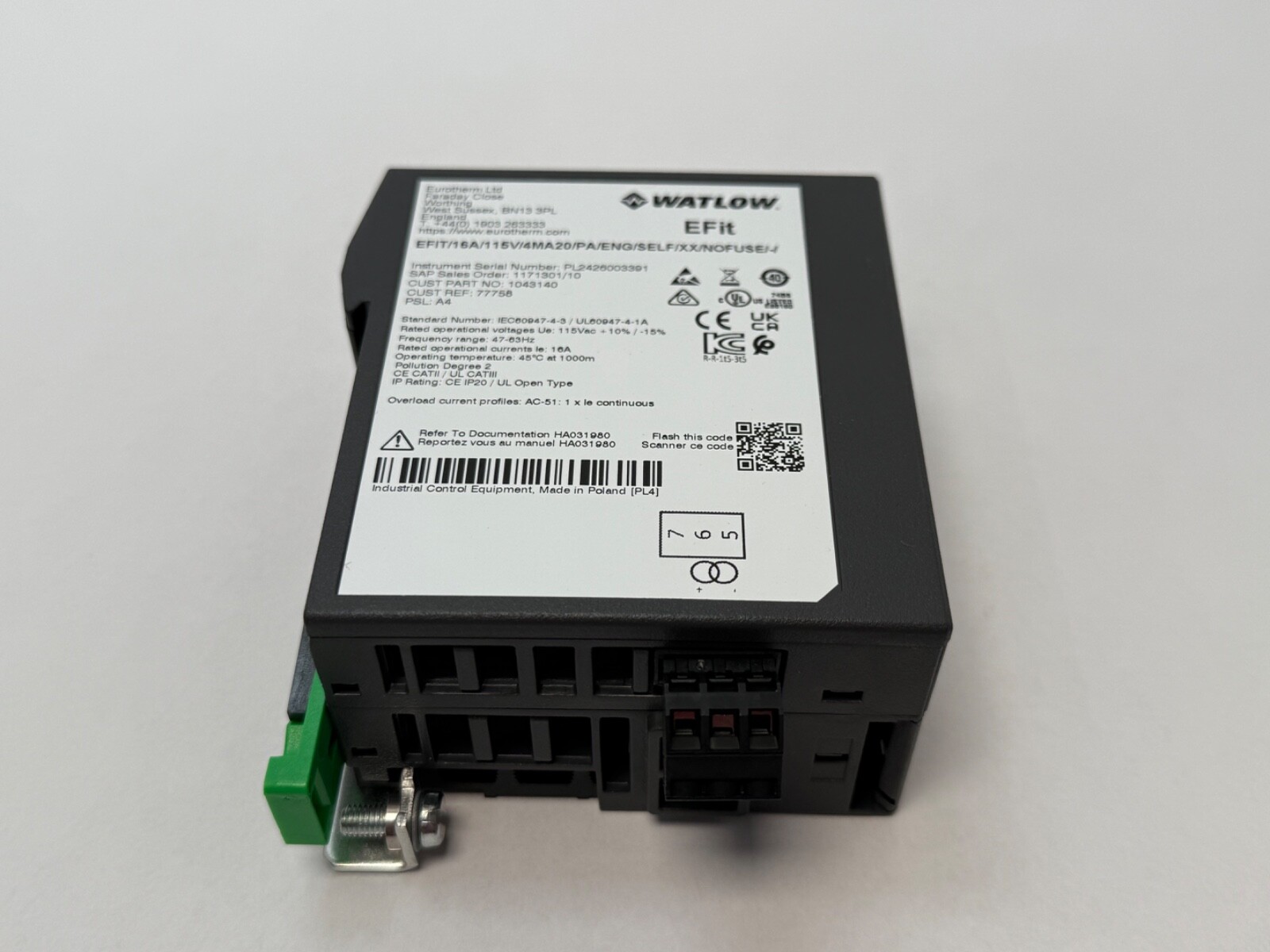

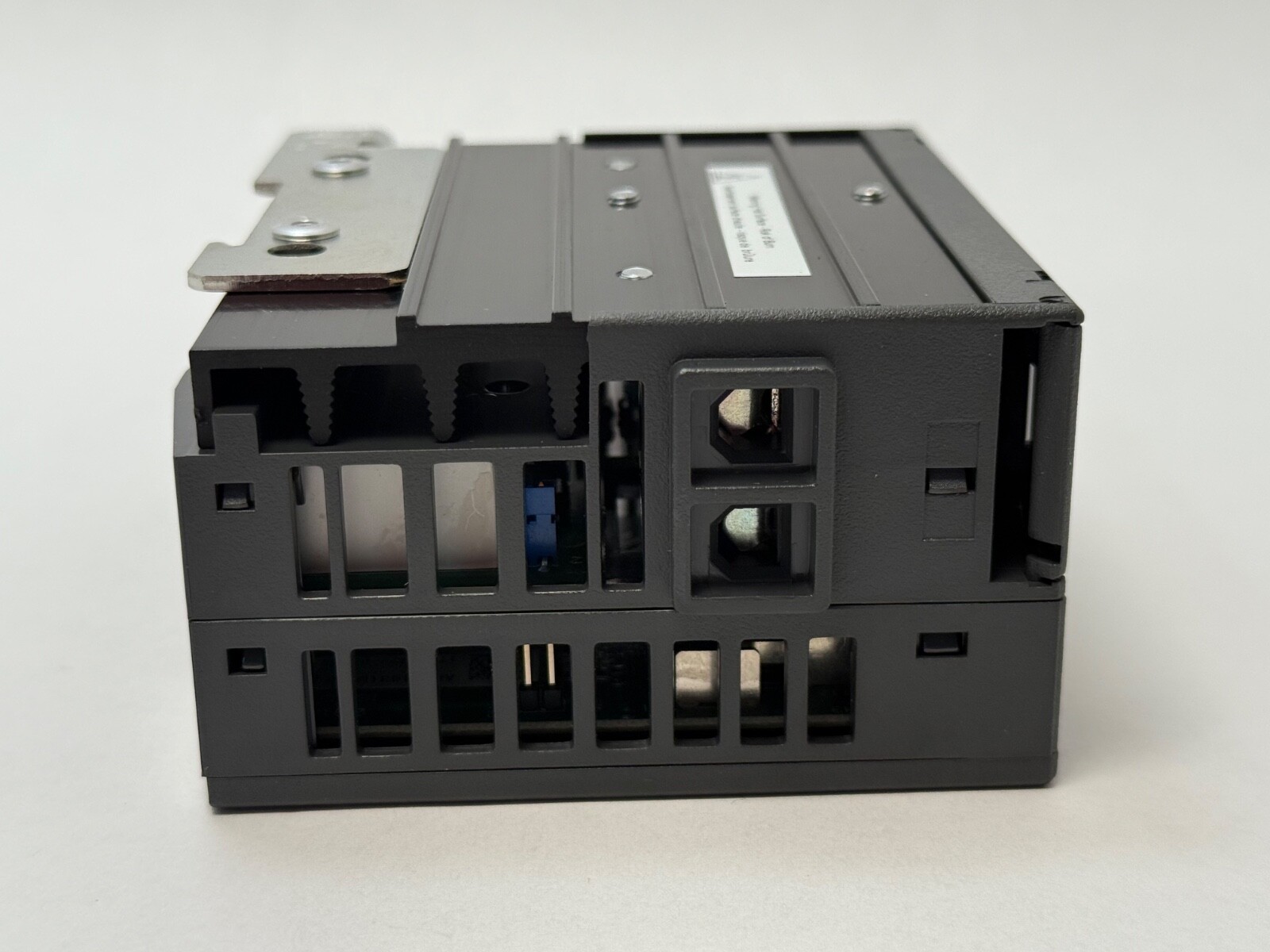

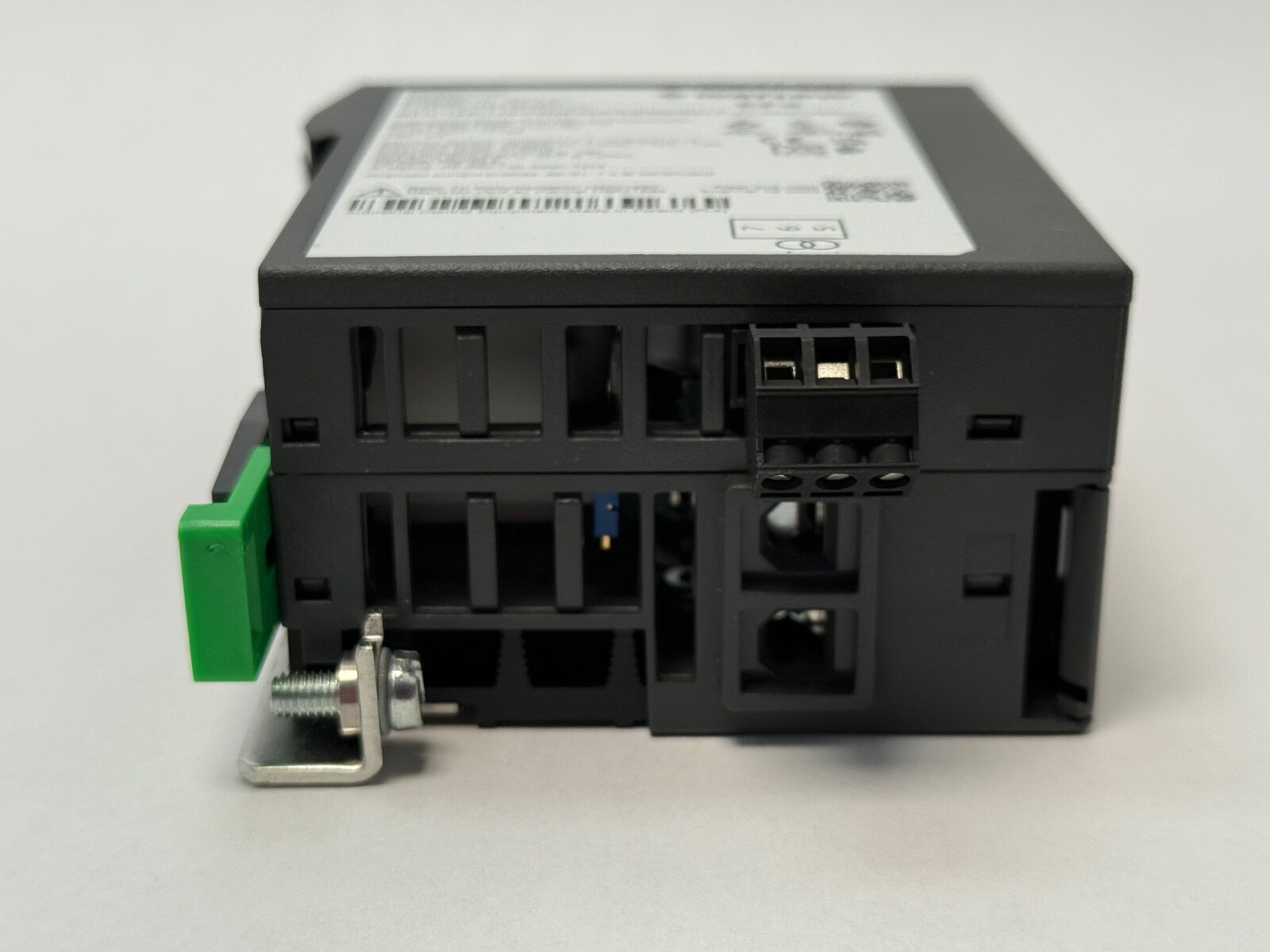

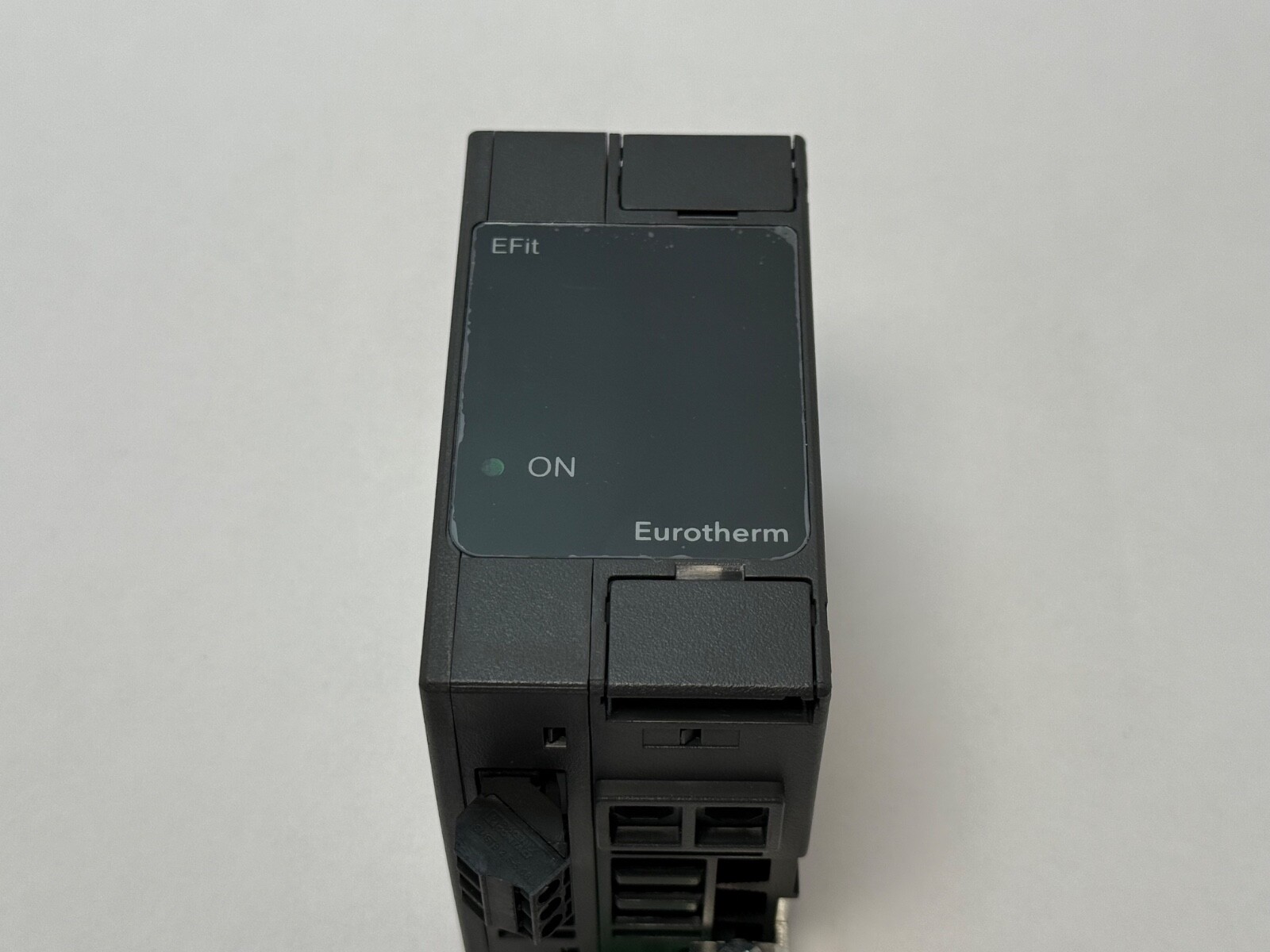

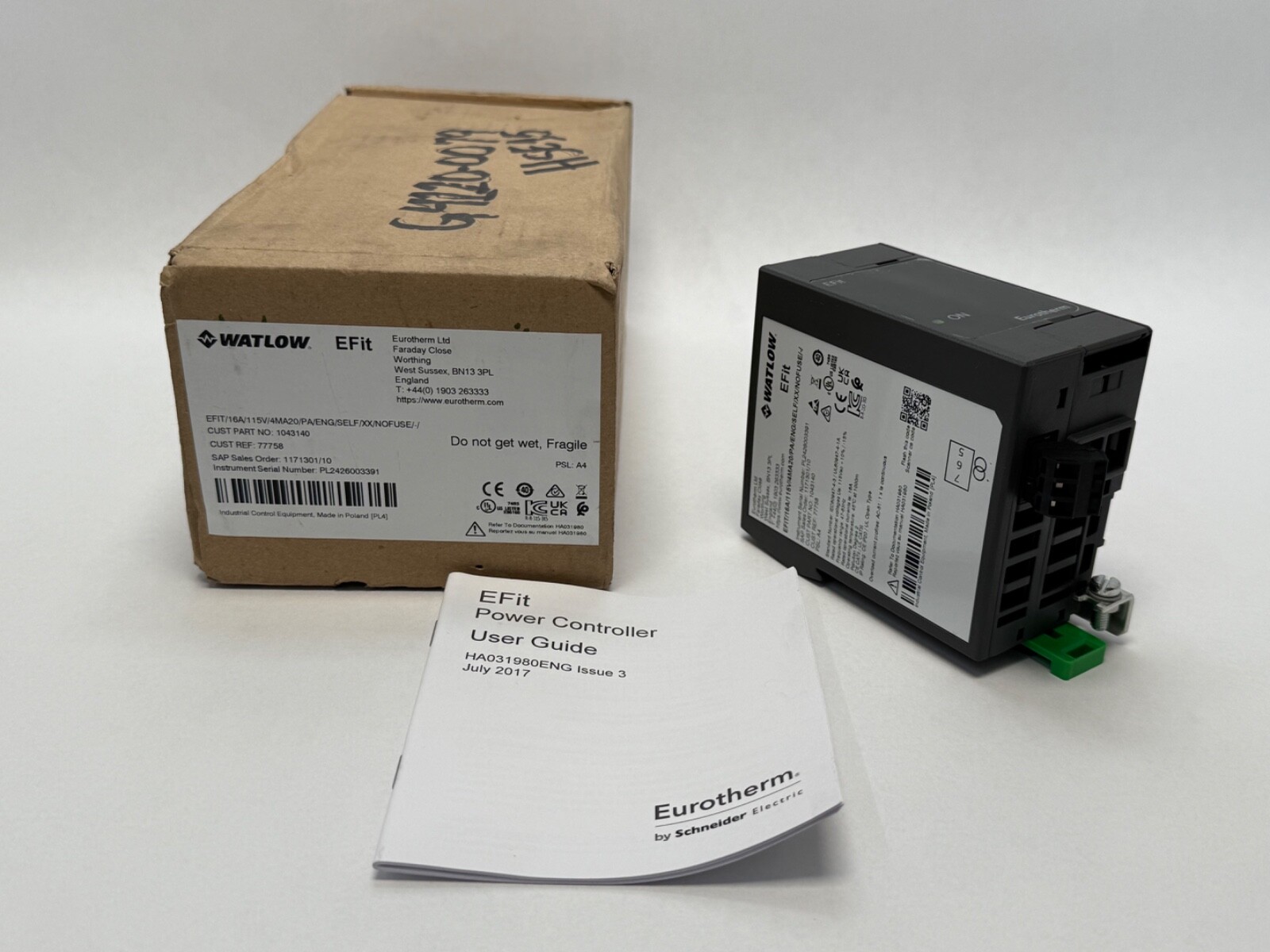

WatLowEFIT/16A/115V/4MA20/PA/ENG/SELF/XX/NOFUSESCR Power Controller — Single Phase, 16 A, 115 V, 4-20 mA Input, Phase Angle, Self-Powered, DIN Rail

Condition: New

Availability:

1 in stock

Watlow Eurotherm EFit single-phase SCR power controller, 16 A, 115 V, 4-20 mA input, phase angle firing, self-powered, no current limit, no fuse. DIN rail.

List Price

$276.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandWatLow
MPNEFIT/16A/115V/4MA20/PA/ENG/SELF/XX/NOFUSE
ModelEFIT/16A/115V/4MA20/PA/ENG/SELF/XX/NOFUSE

Technical Specifications

TypeSCR Power Controller
Base NumberEFIT/16A
Industry TermsSCR power controller, thyristor power controller, heater power controller, solid state power controller
Common MisspellingsEFFIT, E-FIT, WatLow EFit, Eurotherm E Fit
Application TypesResistive heating, infrared heating, transformer primary loads, heat treatment
Mpn VariantsEFIT/16A/115V/4MA20/PA/ENG/SELF/XX/NOFUSE, EFIT-16A-115V-4mA20-PA-ENG-SELF-XX-NOFUSE, EFIT 16A 115V 4MA20 PA ENG SELF XX NOFUSE, EFIT/16A/115V
Compatible With ReplacesEurotherm TE10A (form and fit replacement per Watlow)
Additional AttributesNominal current: 16 A; Nominal voltage: 115 V (+10%/-15%); Frequency: 47-63 Hz; Input: 4-20 mA (250 ohm); Firing: phase angle, no current limit; Electronics supply: self-powered; Fuse: none; Linearity: better than +/-2%; IP20; Operating temp 0-45 C without derating; Dimensions 115 x 52.5 x 92.5 mm; DIN rail; cUL, CE, RoHS
Item Weight0.55 kg (1.21 lb)

Cross-References

Cross Reference 1Eurotherm TE10A - form and fit replacement per Watlow
Seller Part Number: B-CD1#RWKCBS

Product Description

What this part is:

The EFIT/16A/115V/4MA20/PA/ENG/SELF/XX/NOFUSE is an EFit single-phase SCR (thyristor) power controller from Watlow (Eurotherm brand). It switches power to resistive and infrared heating loads under a 4-20 mA control signal, with built-in compensation for supply voltage fluctuation.

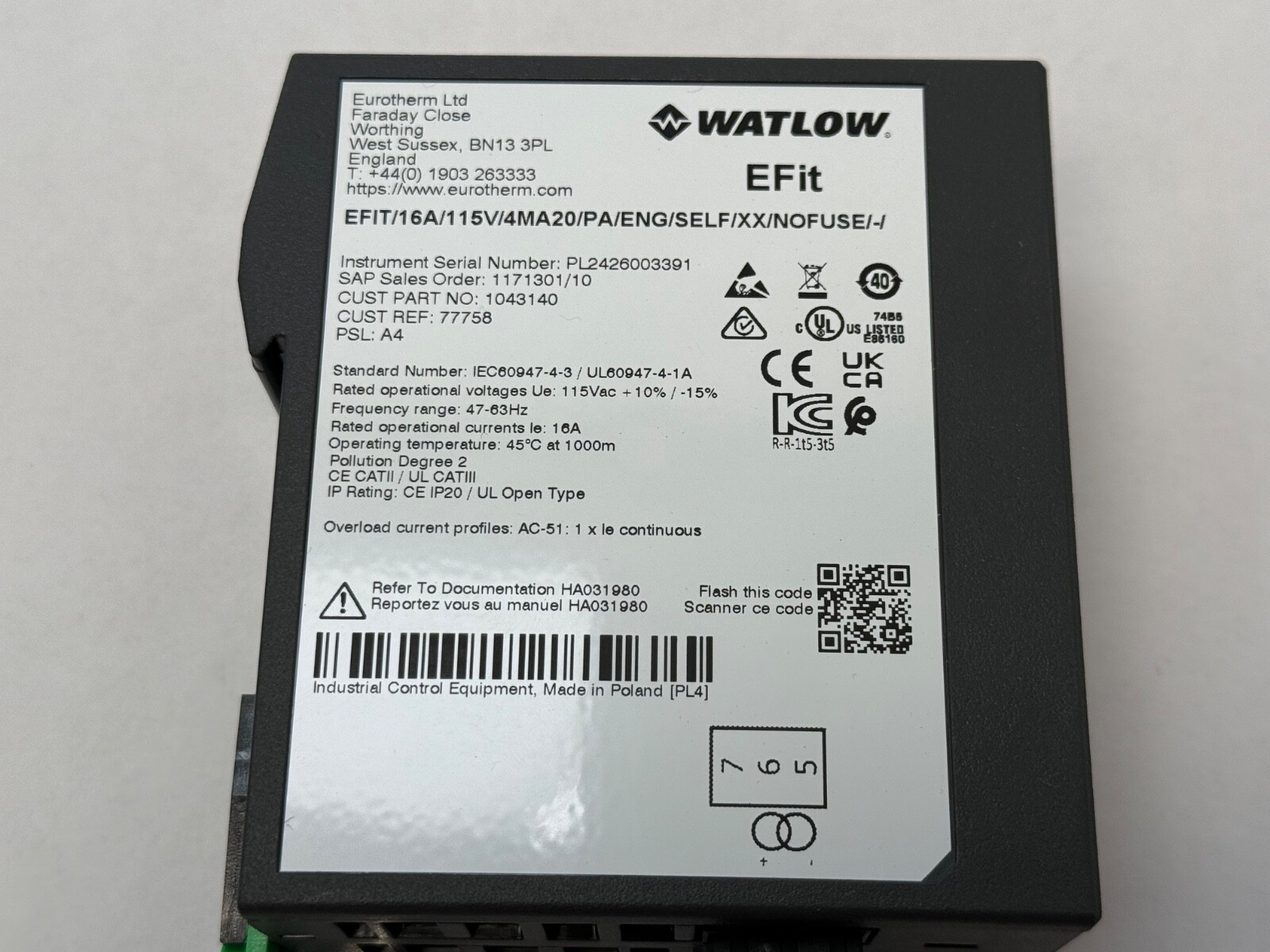

Decoding the designation:

EFIT — EFit basic SCR power controller.

16A — 16 A nominal current.

115V — 115 V nominal load voltage.

4MA20 — 4-20 mA analogue control input.

PA — phase angle firing mode.

ENG — English-language documentation.

SELF — self-powered electronics, no auxiliary supply needed.

XX — without current limit.

NOFUSE — supplied without fuse.

Specifications:

Nominal Current: 16 A. Nominal Voltage: 115 V (+10%/-15%). Frequency: 47 to 63 Hz. Control Input: 4-20 mA, 250 ohm burden. Firing Mode: Phase angle. Linearity: better than ±2% of full range. Load Types: AC51 pure resistive, AC56a transformer primary, AC55b short-wave infrared.

Protection: IP20 (CE), open type (UL). Operating Temperature: 0 to 45 °C without derating. Humidity: 5 to 95% RH non-condensing. Approvals: cUL (UL60947-4-1A, UL60947-1), CE (EN60947-4-3, EN60947-1), RoHS. Unit Quantity: 1 Pc.

Dimensions and mounting:

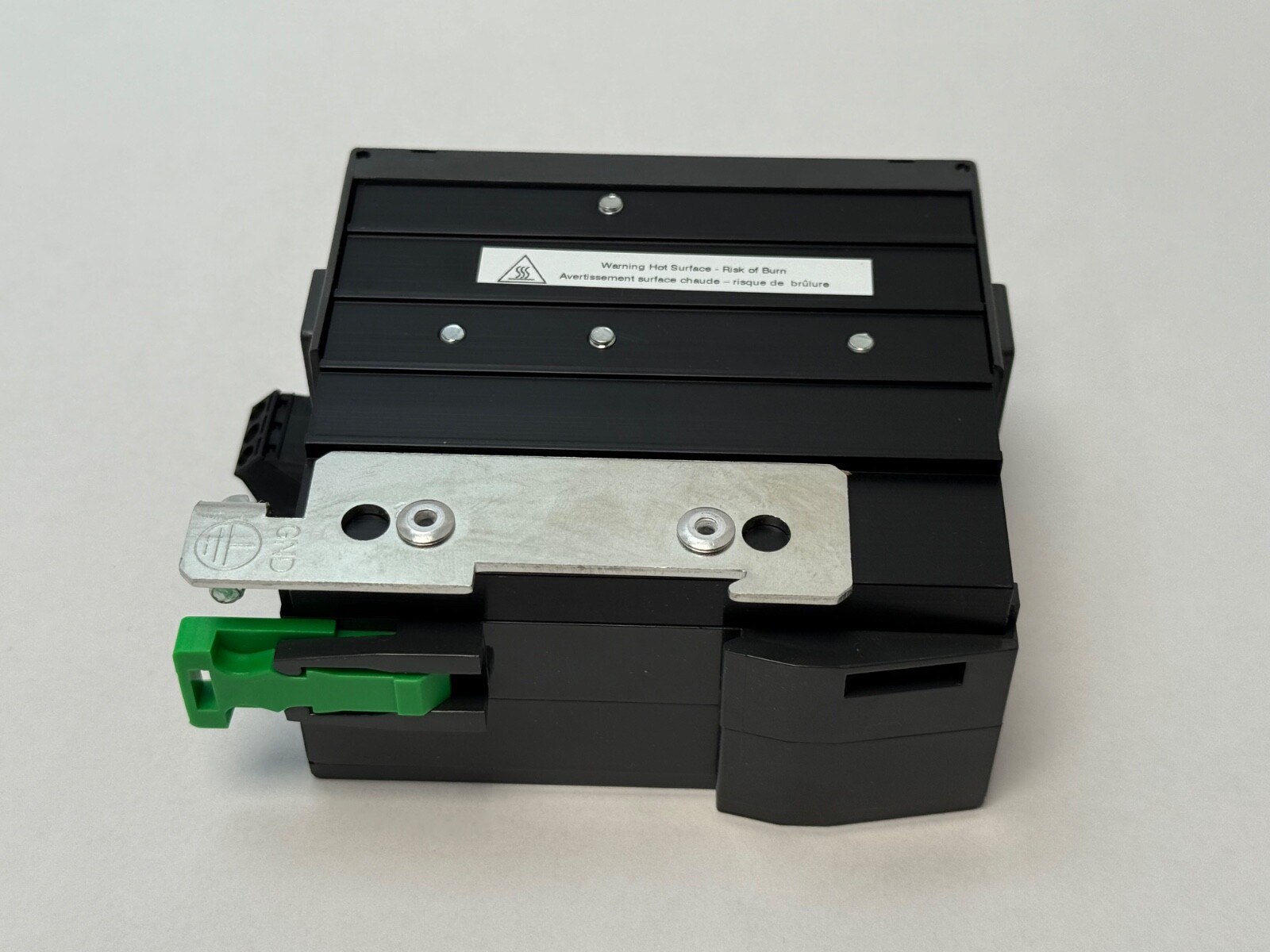

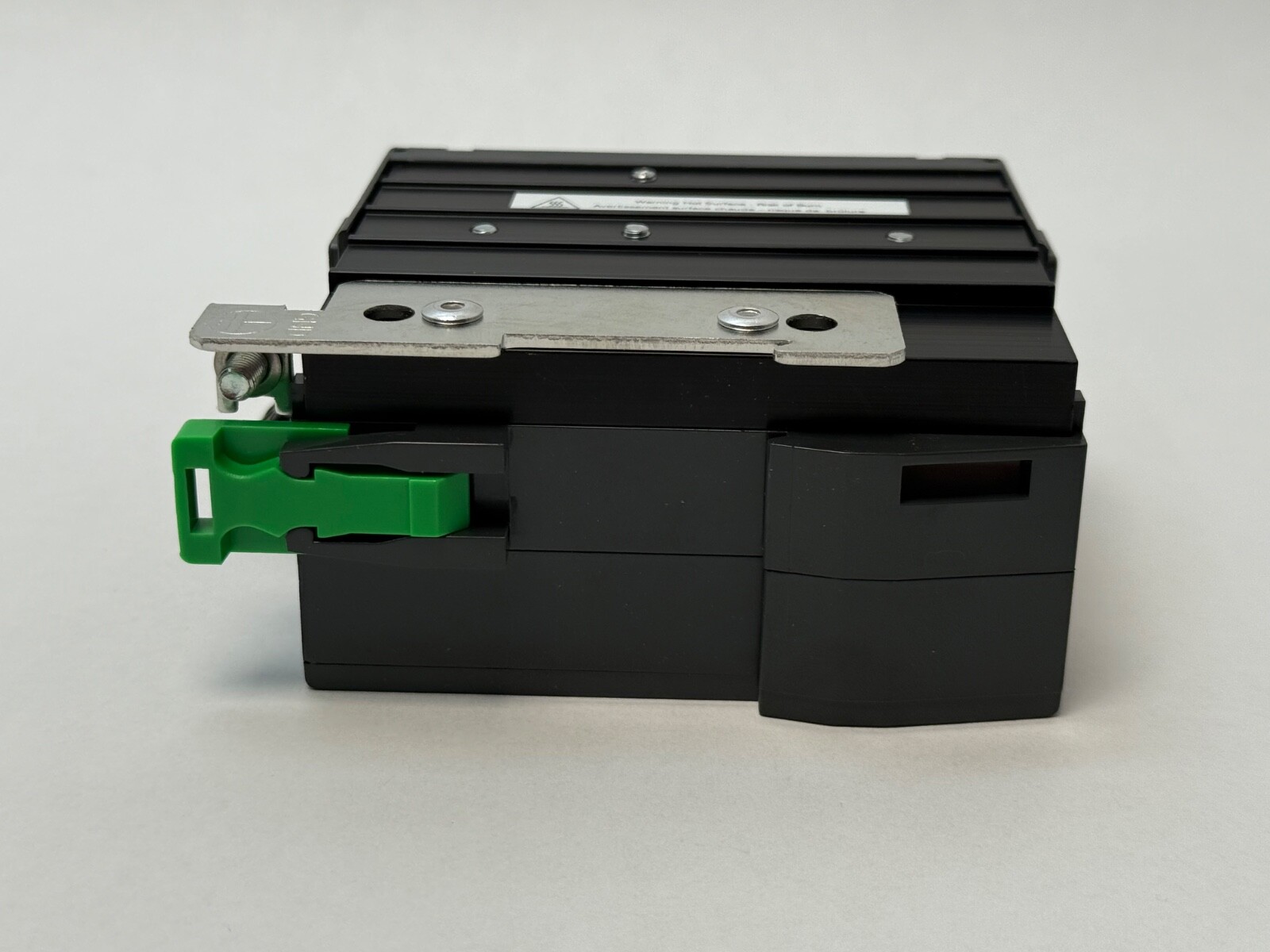

Height: 115 mm. Width: 52.5 mm. Depth: 92.5 mm. Item Weight: 0.55 kg (1.21 lb). Mounting: DIN rail. Power terminals: 1.5 to 16 mm² cable. Control terminals: plug-in, 0.5 to 2.5 mm² (24 to 12 AWG).

Compatibility and replacement:

Watlow lists the EFit as a form and fit drop-in replacement for the Eurotherm TE10A.

Frequently asked questions:

What control input does this EFit use?

A 4-20 mA analogue input with a 250 ohm burden, firing in phase angle mode.

What load types is it rated for?

AC51 pure resistive, AC56a transformer primary and AC55b short-wave infrared loads, at 16 A nominal current and 115 V nominal voltage.

What do XX and NOFUSE mean in the designation?

XX is the option without current limit; NOFUSE means the unit is supplied without a fuse.
