SaftronicsCIMR-G3U41P5Adjustable-Frequency AC Drive (VFD), 2 HP / 1.5 kW, 380-460 V 3-Phase In, 0-460 V 0-400 Hz 3-Phase Out, NEMA Type 1, Integral Keypad

Condition: Used
Condition Note: Made In USA

Availability:

1 in stock

Saftronics CIMR-G3U41P5 G3+ adjustable-frequency AC drive, 2 HP (1.5 kW), 380-460 V three-phase input, 0-400 Hz output, NEMA Type 1, integral keypad.

Same day shipment

List Price

$233.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSaftronics
MPNCIMR-G3U41P5
ModelCIMRG3U41P5

Technical Specifications

SeriesSaftronics G3+ / Yaskawa Varispeed 616G3
Base NumberCIMR-G3U
Industry TermsVFD; variable frequency drive; adjustable frequency drive; AC drive; inverter; motor speed control; 400V class drive; 460V drive; 2 HP VFD
Common MisspellingsSafetronics; Saftronic; Saftronics G3 plus; CIMR G3U 41P5; Yaskawa 616 G3; Varispeed 616G3
Application TypesFan and blower speed control; pumps; conveyors; machine-tool auxiliary drives
Number Of Phases3-Phase
Input Voltage380-460 V
Rated Load2 HP
Controller PlatformYaskawa Varispeed 616G3 (sold in North America as Saftronics G3+)
Housing StyleNEMA Type 1 wall/panel mount with integral keypad and display; three conduit knockouts in the base
Mpn VariantsCIMR-G3U41P5; CIMR G3U41P5; CIMRG3U41P5; CIMR-G3U-41P5; G3U41P5; 41P51E
Manufacturer StatusObsolete - 616G3 / G3+ platform discontinued
Compatible With ReplacesSaftronics G3+ / Yaskawa 616G3, 400 V class, 1.5 kW

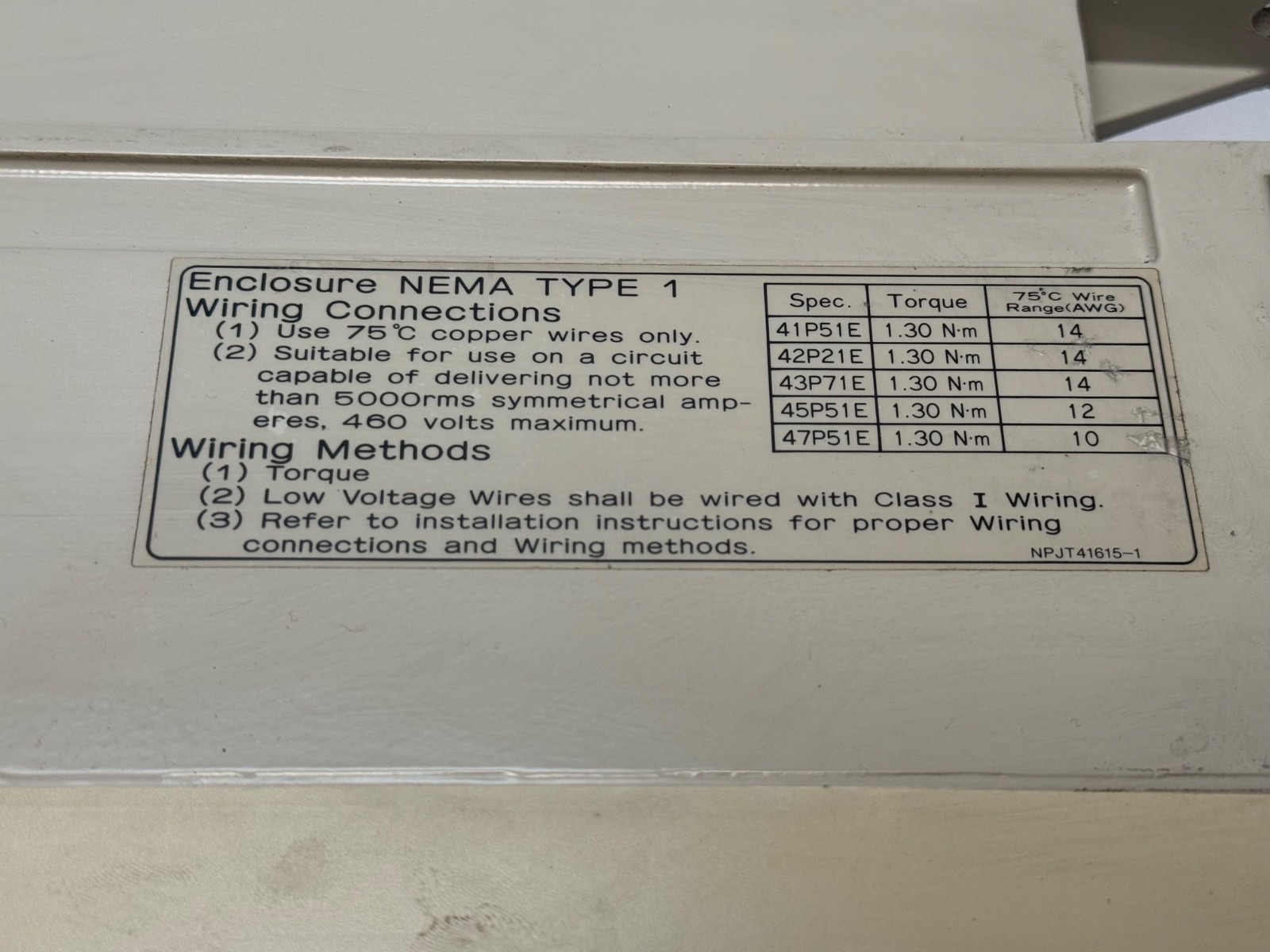

Additional AttributesOutput frequency 0-400 Hz; output voltage 0-460 V max; SCCR 5 kA at 460 V; field wiring 75 C copper only; terminal torque 1.30 N.m, 14 AWG
Nominal Rated Input Voltage380-460 V AC, 3-phase, 50/60 Hz, 6.0 A (nameplate)
Part NumberCIMR-G3U41P5
Mounting TypePanel / wall mount via integral top and bottom brackets

Cross-References

Cross Reference 1Yaskawa CIMR-G3A41P5 - same 1.5 kW 400 V 616G3 class
Cross Reference 5Same-family 400 V class frames listed on the nameplate torque table: 41P5E, 42P2E, 43P7E, 45P5E, 47P5E
Seller Part Number: FB4#RWU8ZL

Product Description

What this part is:

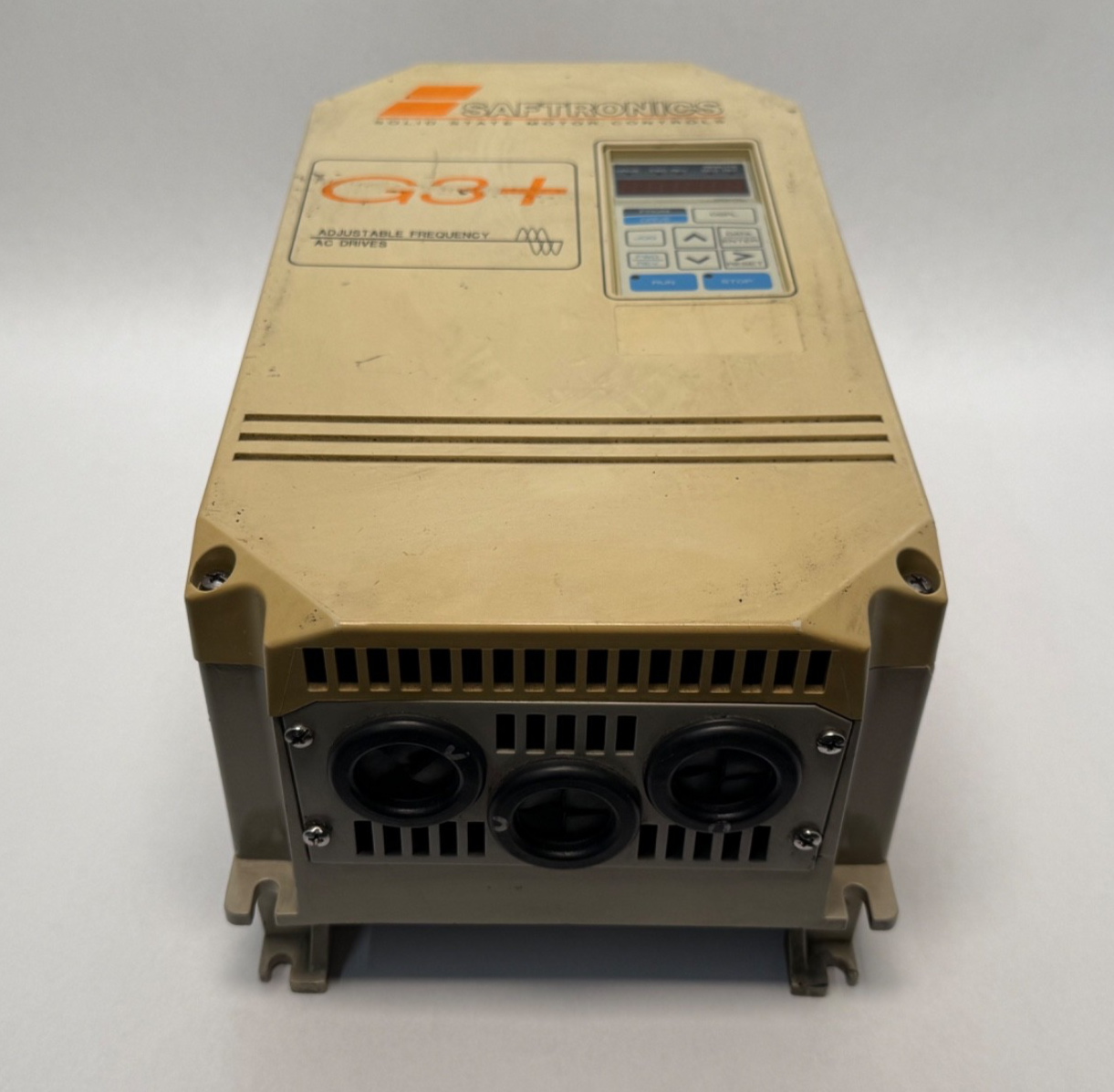

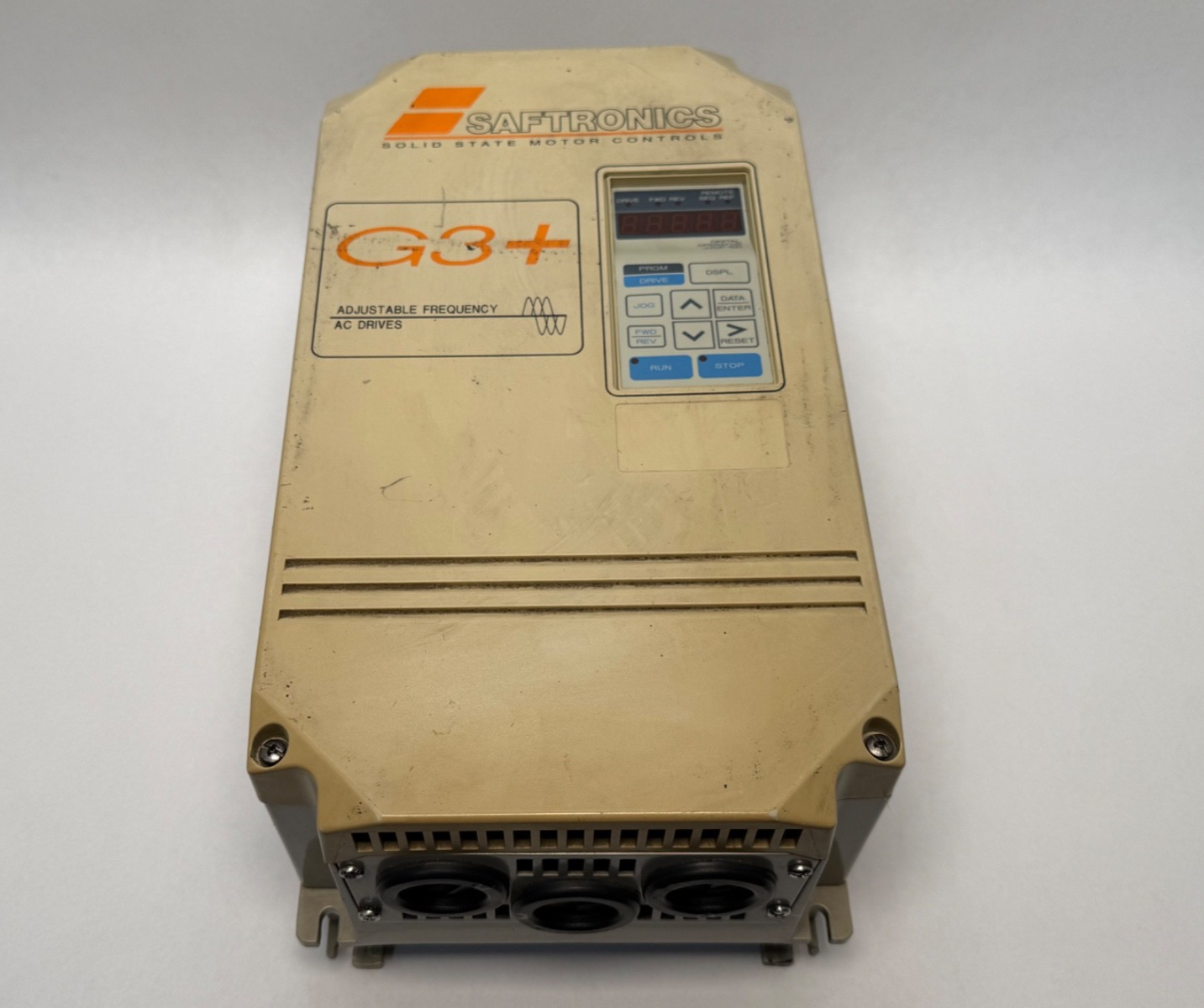

Saftronics CIMR-G3U41P5 (spec code 41P51E) is a G3+ adjustable-frequency AC drive (VFD) built on the Yaskawa Varispeed 616G3 platform, rated 2.0 HP (1.5 kW) at 380-460 V three-phase input. NEMA Type 1 enclosure with integral keypad and display. Used. Unit Quantity: 1 Pc, drive only.

Decoding the designation:

CIMR — Yaskawa inverter prefix.

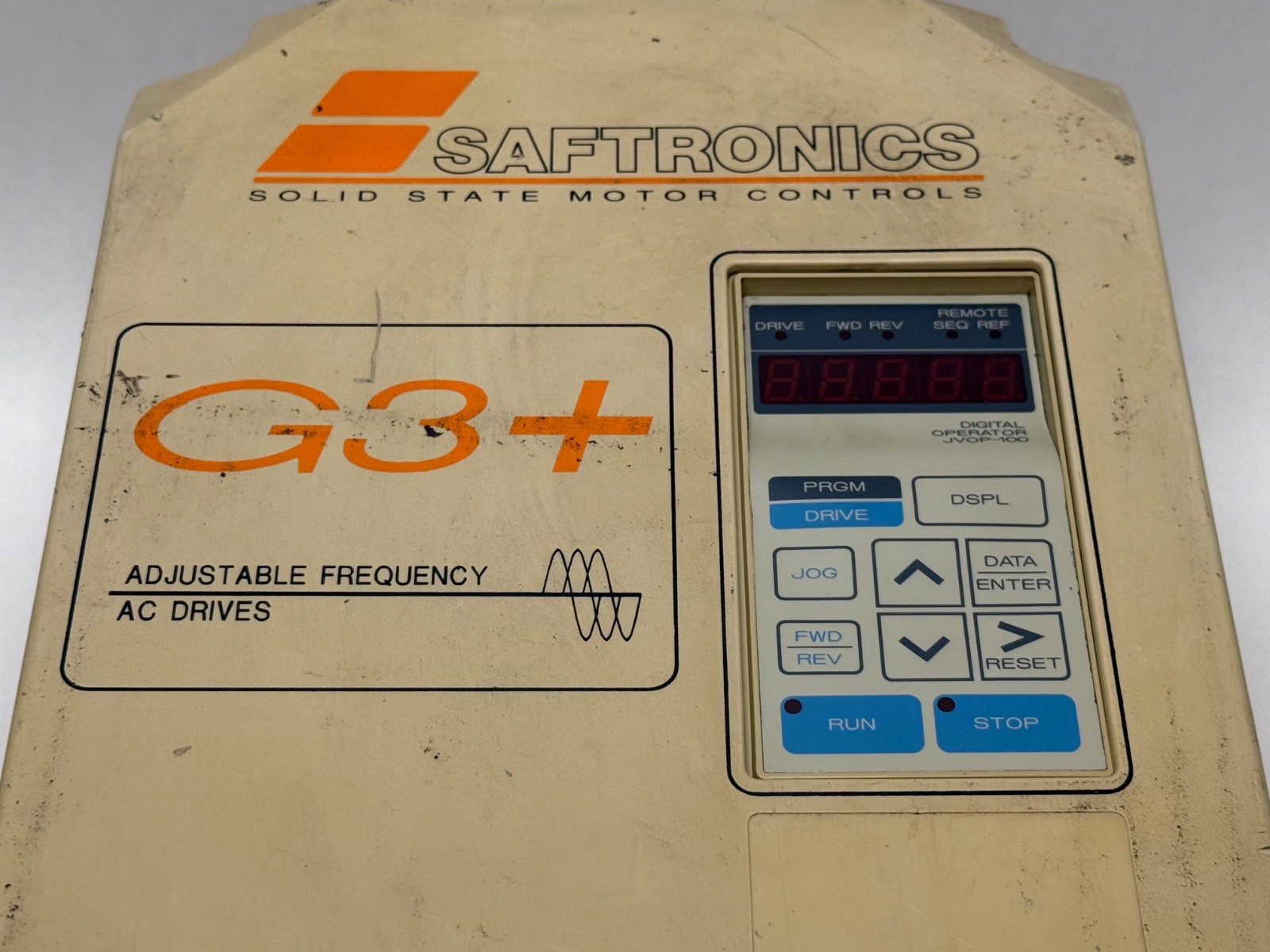

G3 — Varispeed 616G3 platform, sold in the United States by Saftronics as the G3+ Adjustable Frequency AC Drive; the front cover carries the G3+ badge.

U — North American build.

4 — 400 V class.

1P5 — 1.5 kW rating.

Specifications:

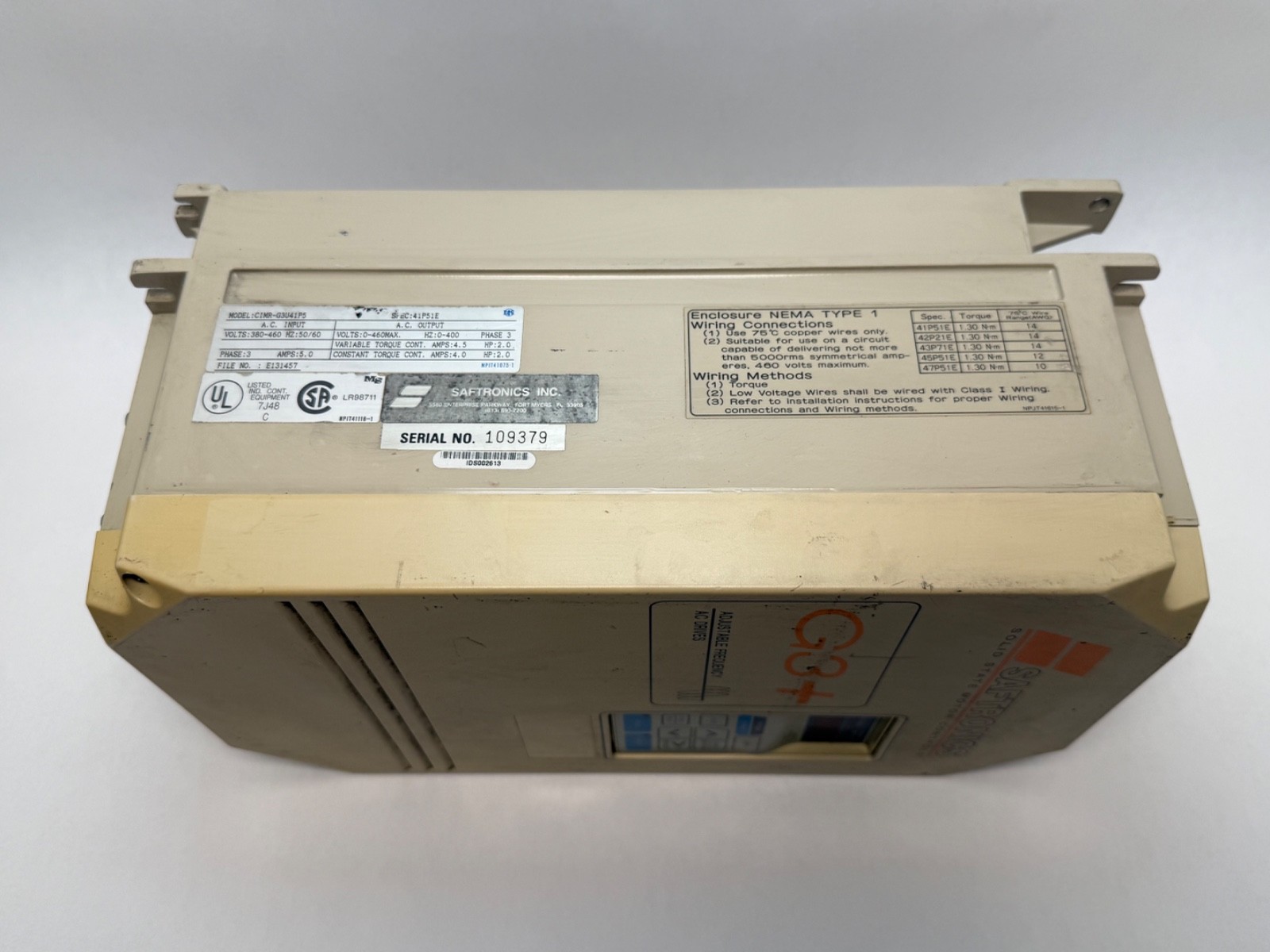

Model: CIMR-G3U41P5. Input: 380-460 V AC, 50/60 Hz, 3 phase, 6.0 A. Output: 0-460 V maximum, 0-400 Hz, 3 phase. Rated Output: 2.0 HP continuous at variable torque and 2.0 HP continuous at constant torque. Enclosure: NEMA Type 1, indoor. Short-Circuit Current Rating: 5 kA at 460 V maximum (5,000 rms symmetrical amperes). Field Wiring: 75 C copper conductors only; power-terminal torque 1.30 N.m; 14 AWG for this frame size. Approvals: UL Listed Industrial Control Equipment, file E131457; CSA LR56711. Serial No.: 109379.

Dimensions and mounting:

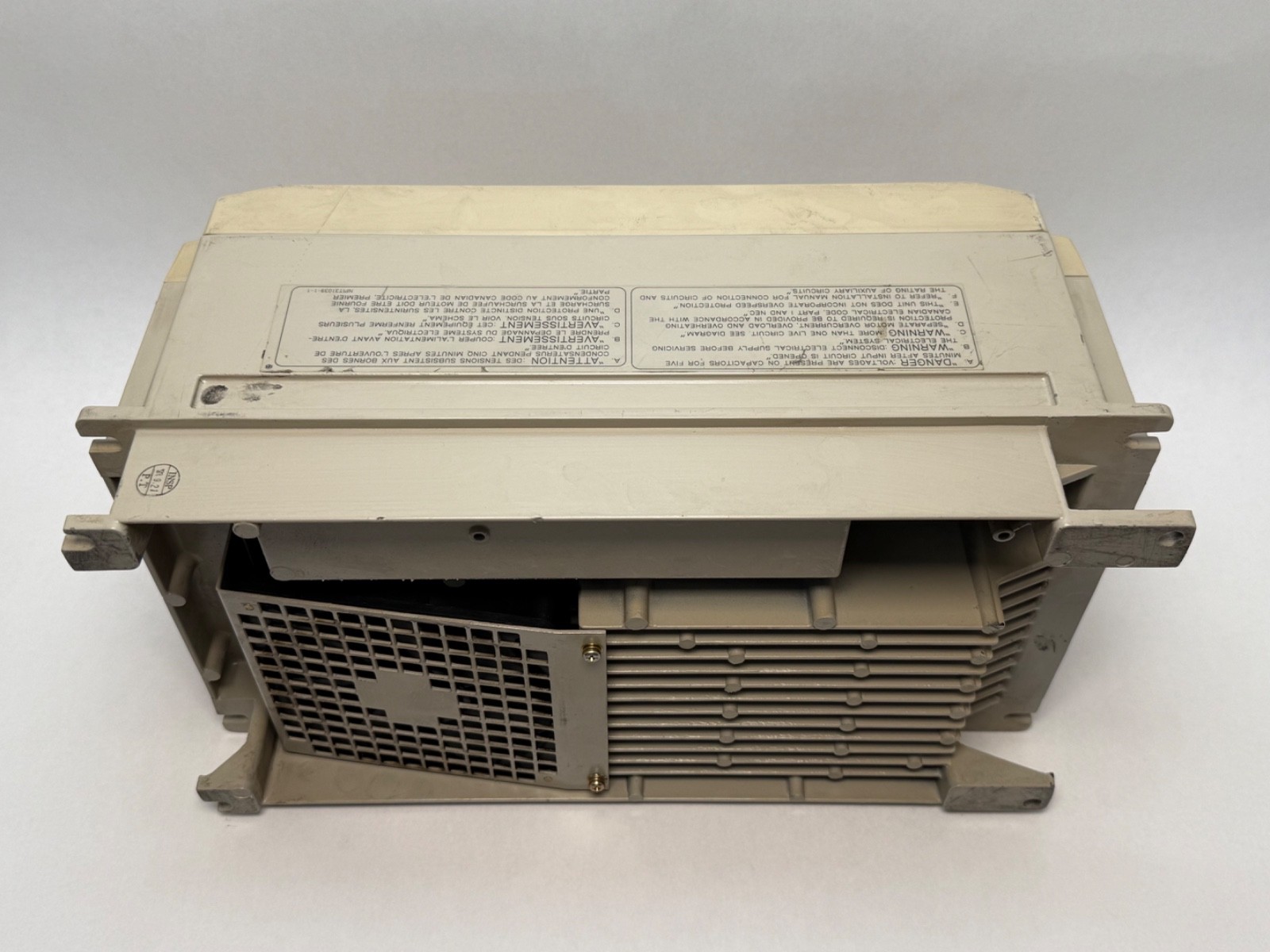

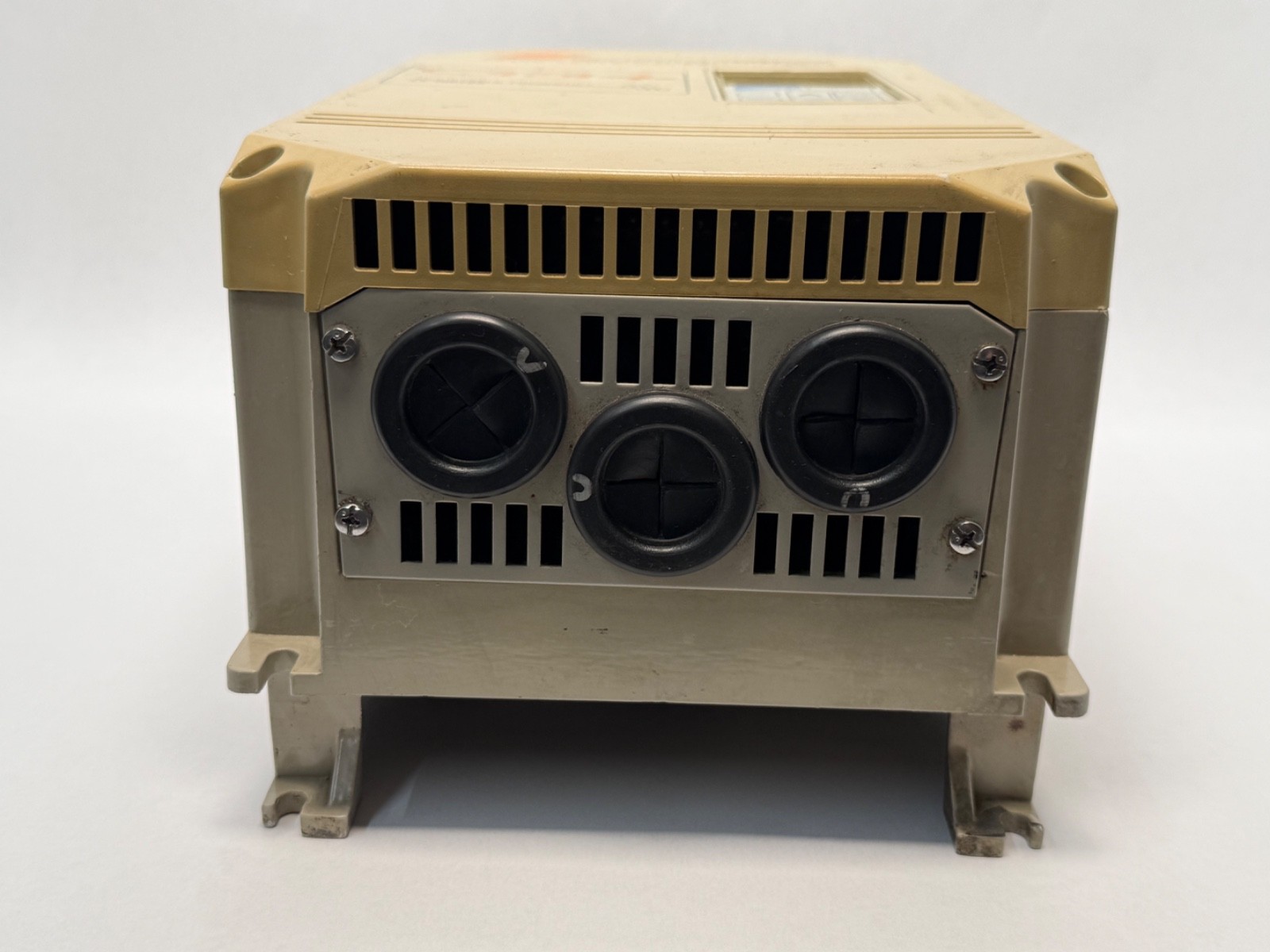

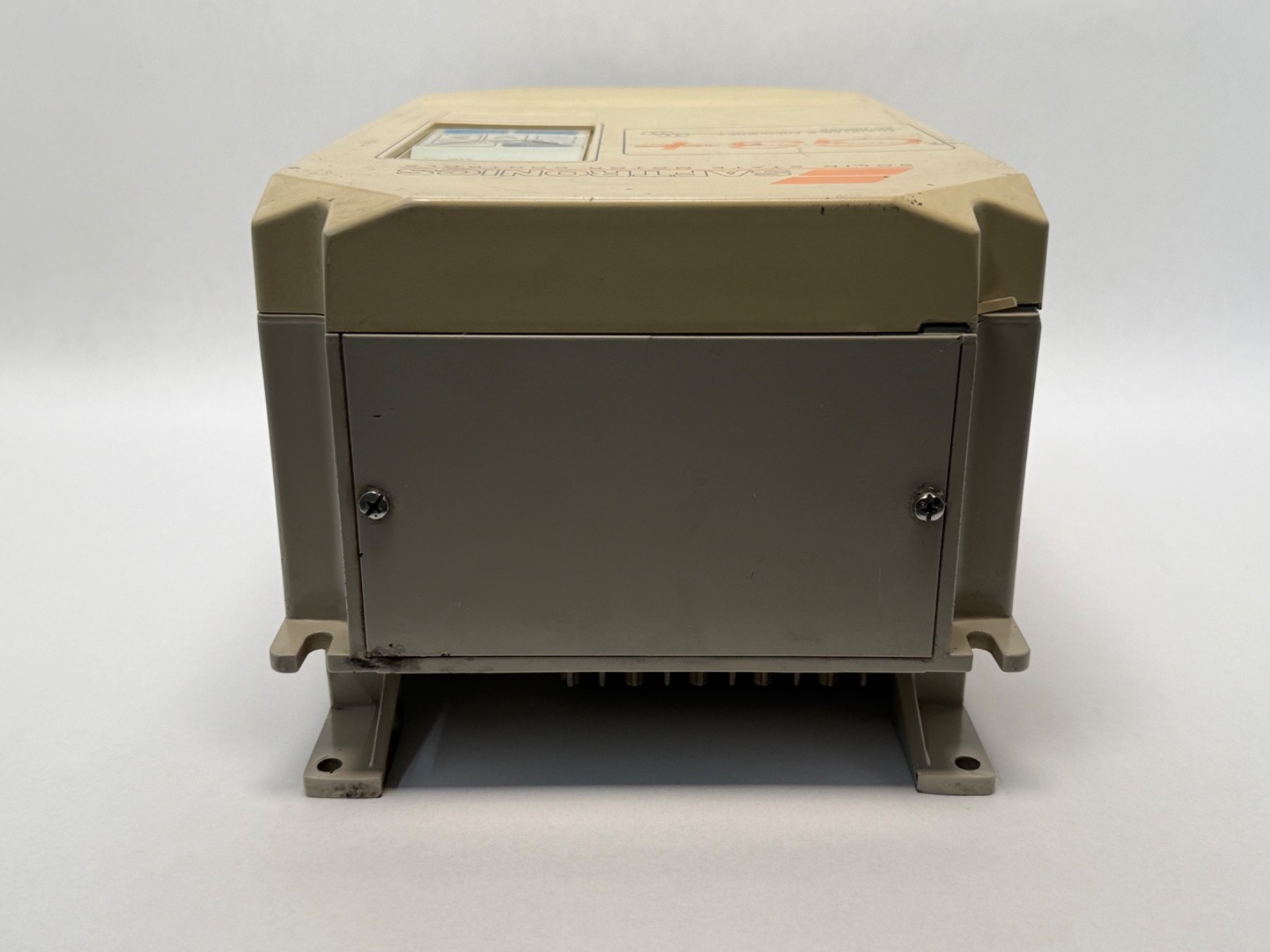

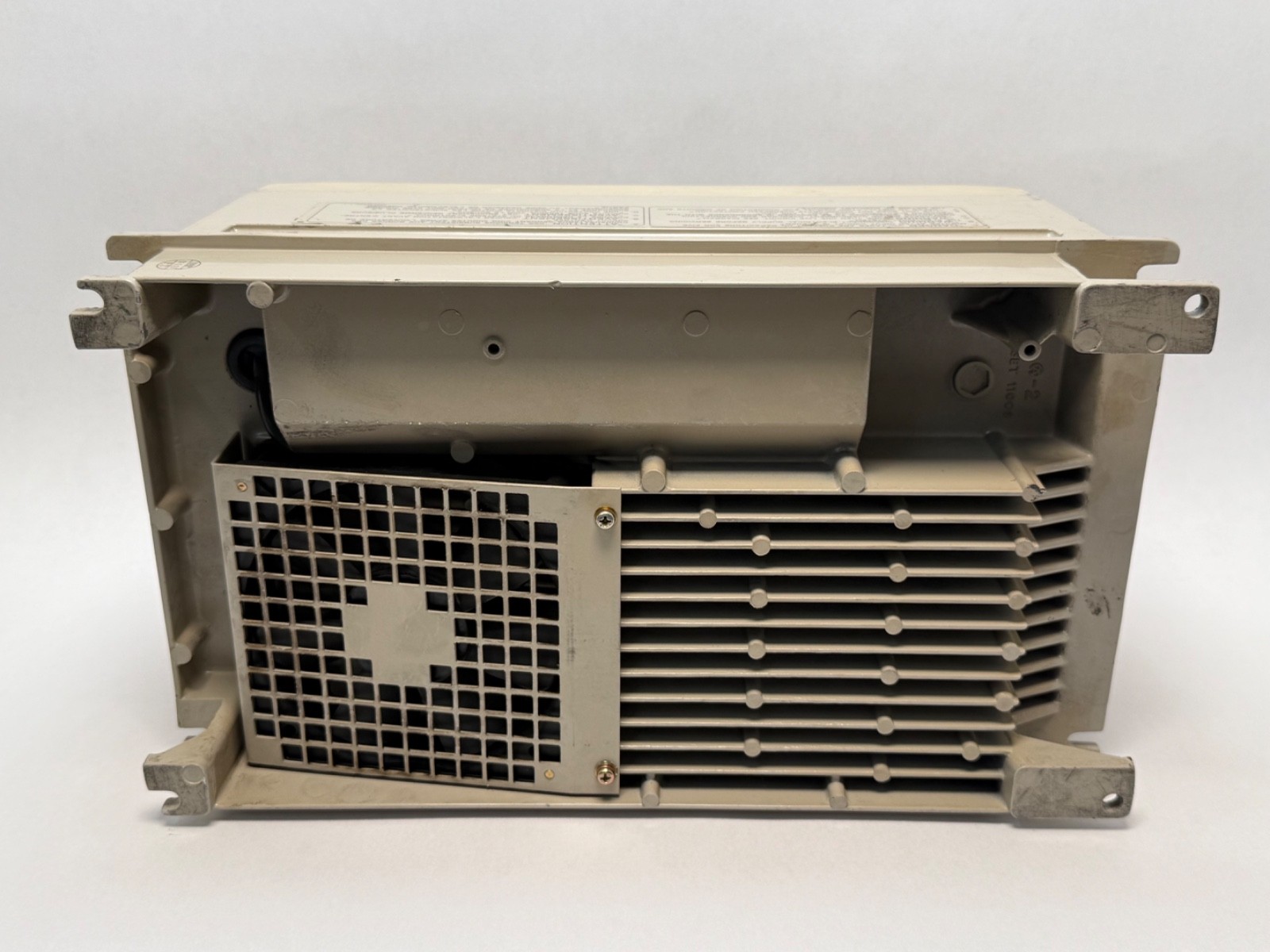

Mounts on two integral top-and-bottom brackets, with three conduit knockouts in the base.

Compatibility and replacement:

Cross-reference: Yaskawa CIMR-G3A41P5 (616G3, same 1.5 kW 400 V class). Related numbers: Saftronics/Yaskawa CIMR-G3U42P2 (2.2 kW / 3 HP), CIMR-G3U43P7, CIMR-G3U45P5 and CIMR-G3U47P5; the nameplate torque table lists frames 41P5E, 42P2E, 43P7E, 45P5E and 47P5E. Manufacturer status: the 616G3 / G3+ platform is discontinued.

Frequently asked questions:

What is the rating of the Saftronics CIMR-G3U41P5?

2.0 HP (1.5 kW) continuous at variable torque and at constant torque, 380-460 V three-phase input, 6.0 A.

What output does it provide?

Three-phase output, 0-460 V maximum, 0-400 Hz.

What enclosure and approvals does it have?

NEMA Type 1 enclosure; UL Listed Industrial Control Equipment (file E131457) and CSA LR56711.
