Cutler-HammerS801T30N3SReduced-Voltage Solid-State Soft Starter – 304 A, 3-Phase, 200-600 V AC, 150 HP at 480 V, Internal Bypass, Selectable Class 5/10/20/30 Overload, 24 V DC Control

Condition: Used

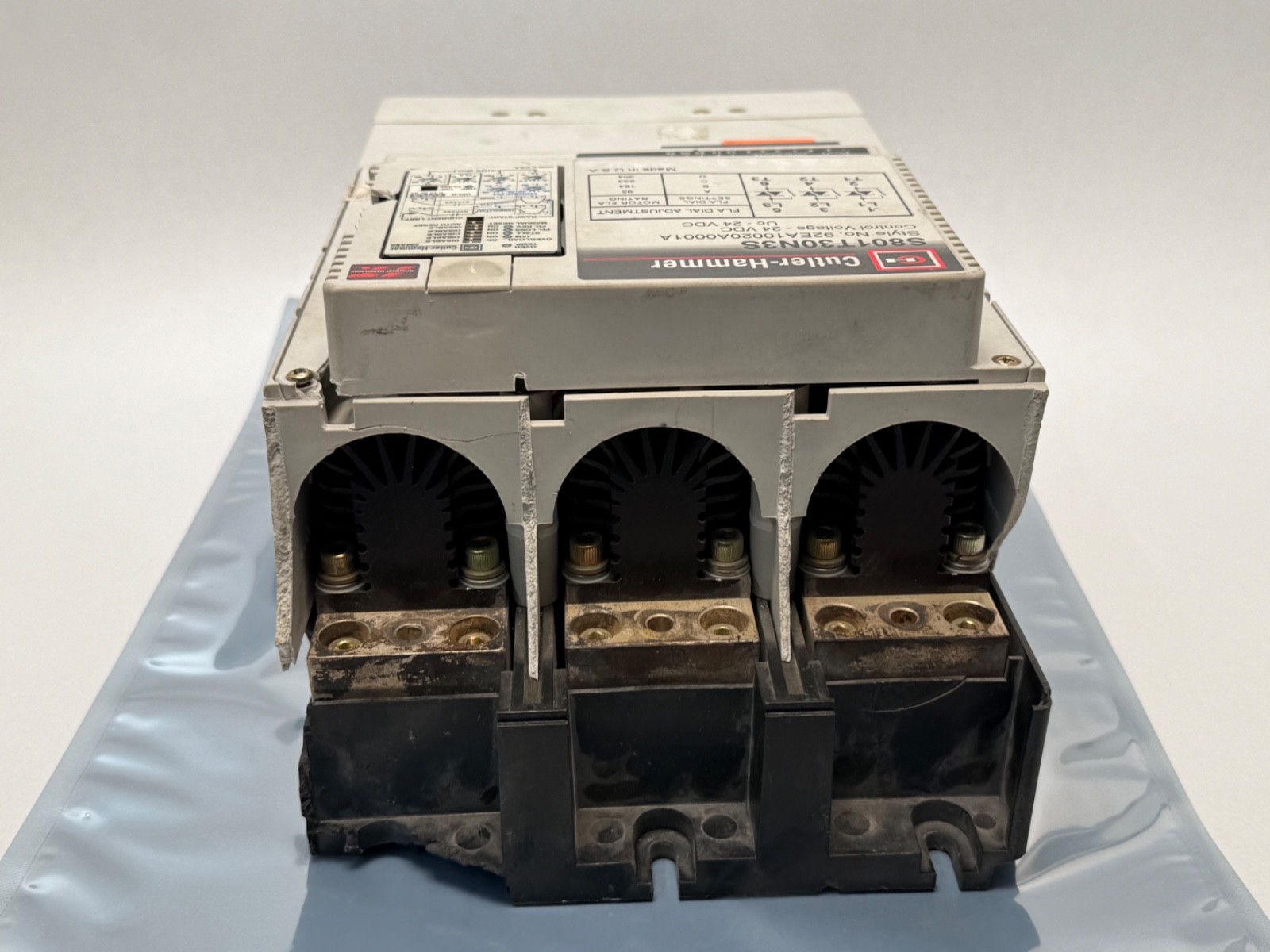

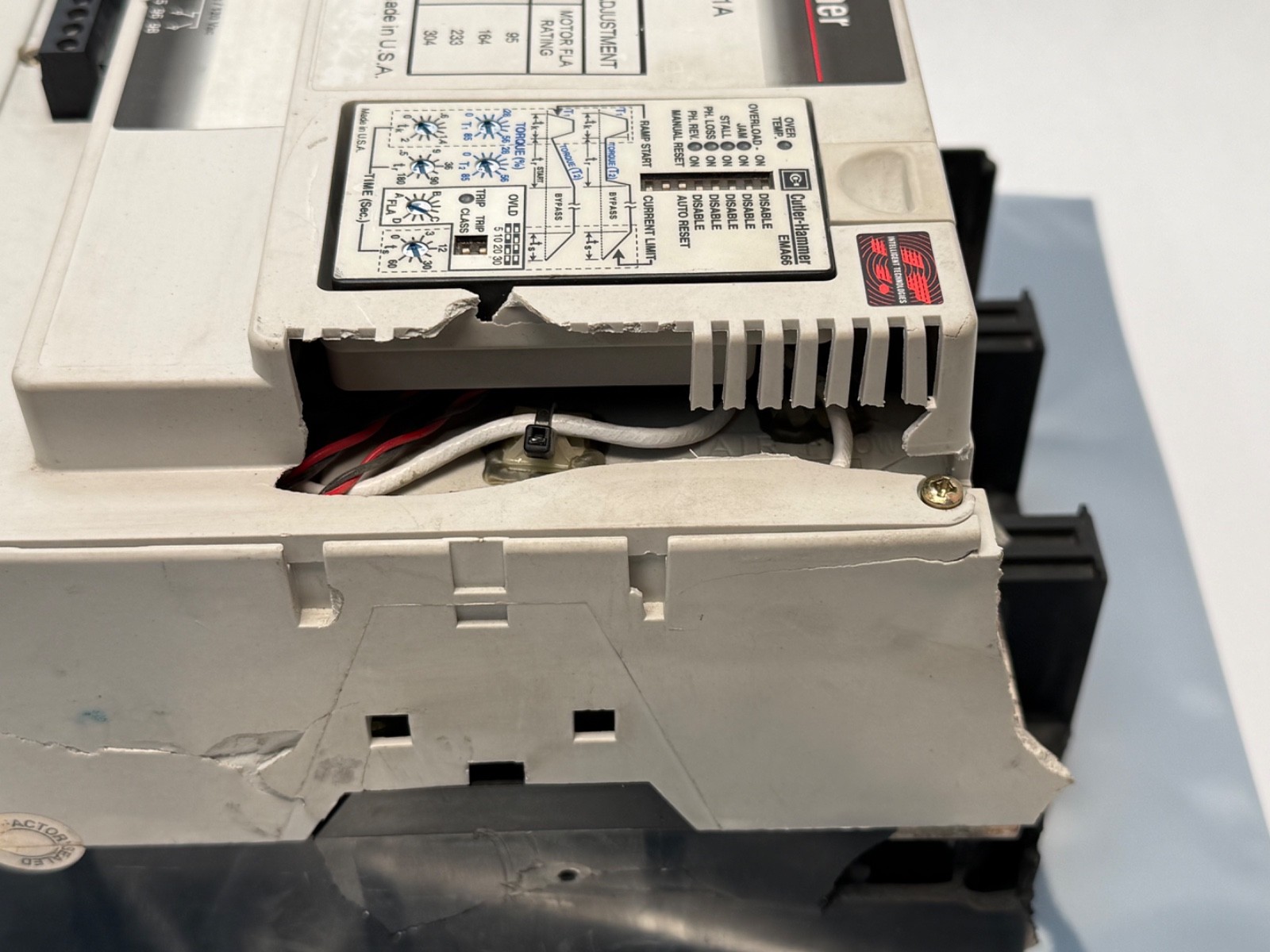

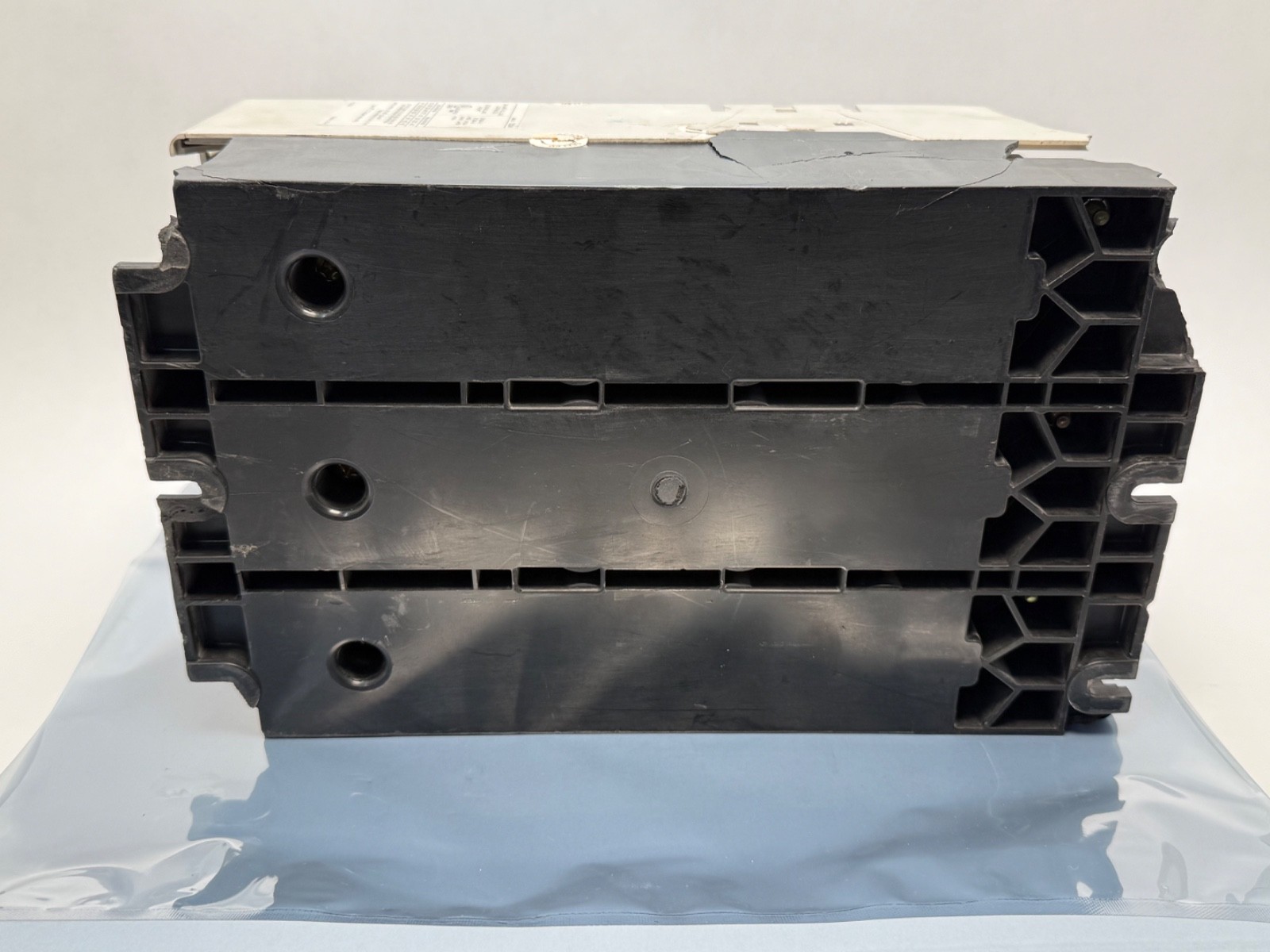

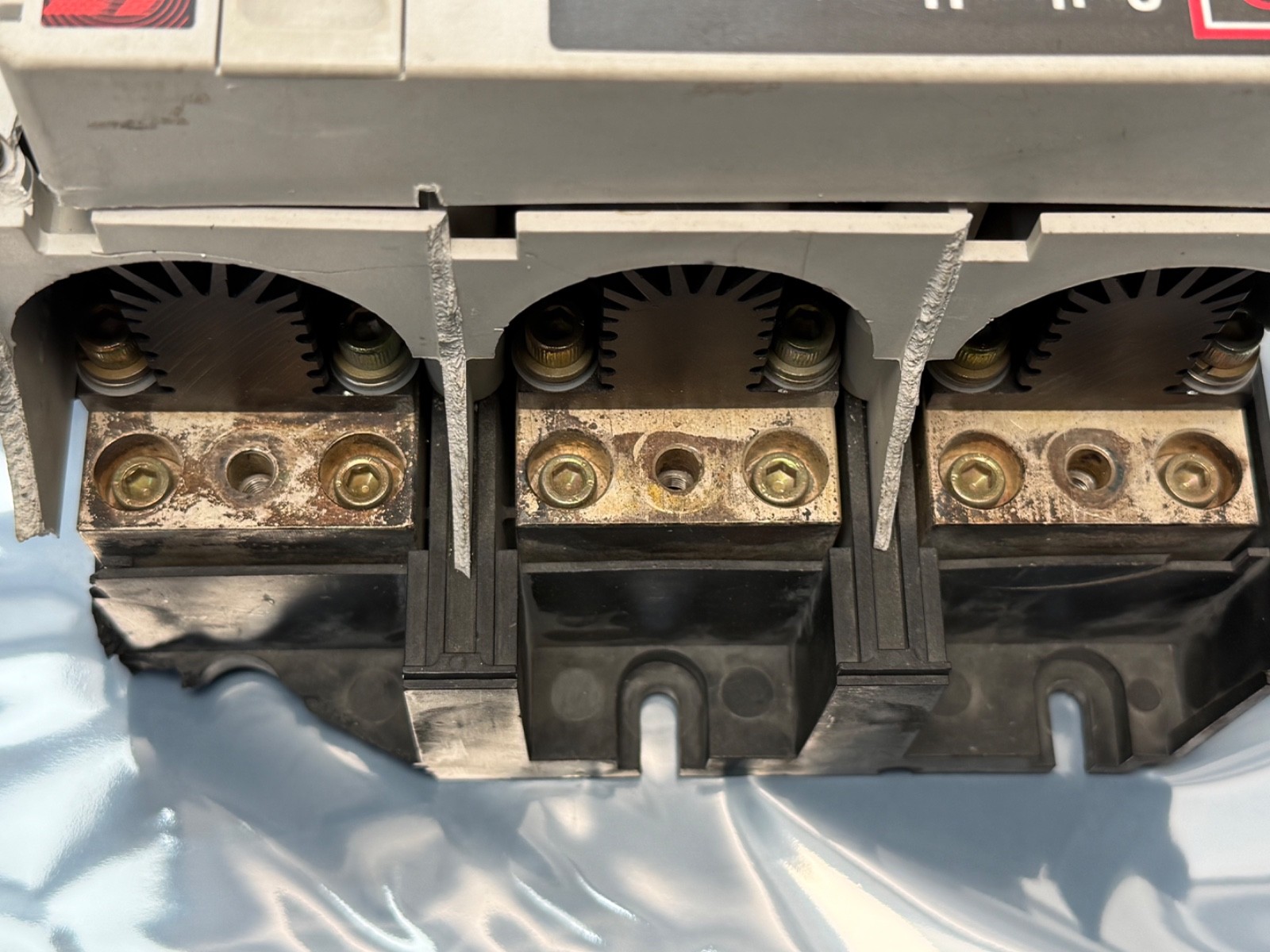

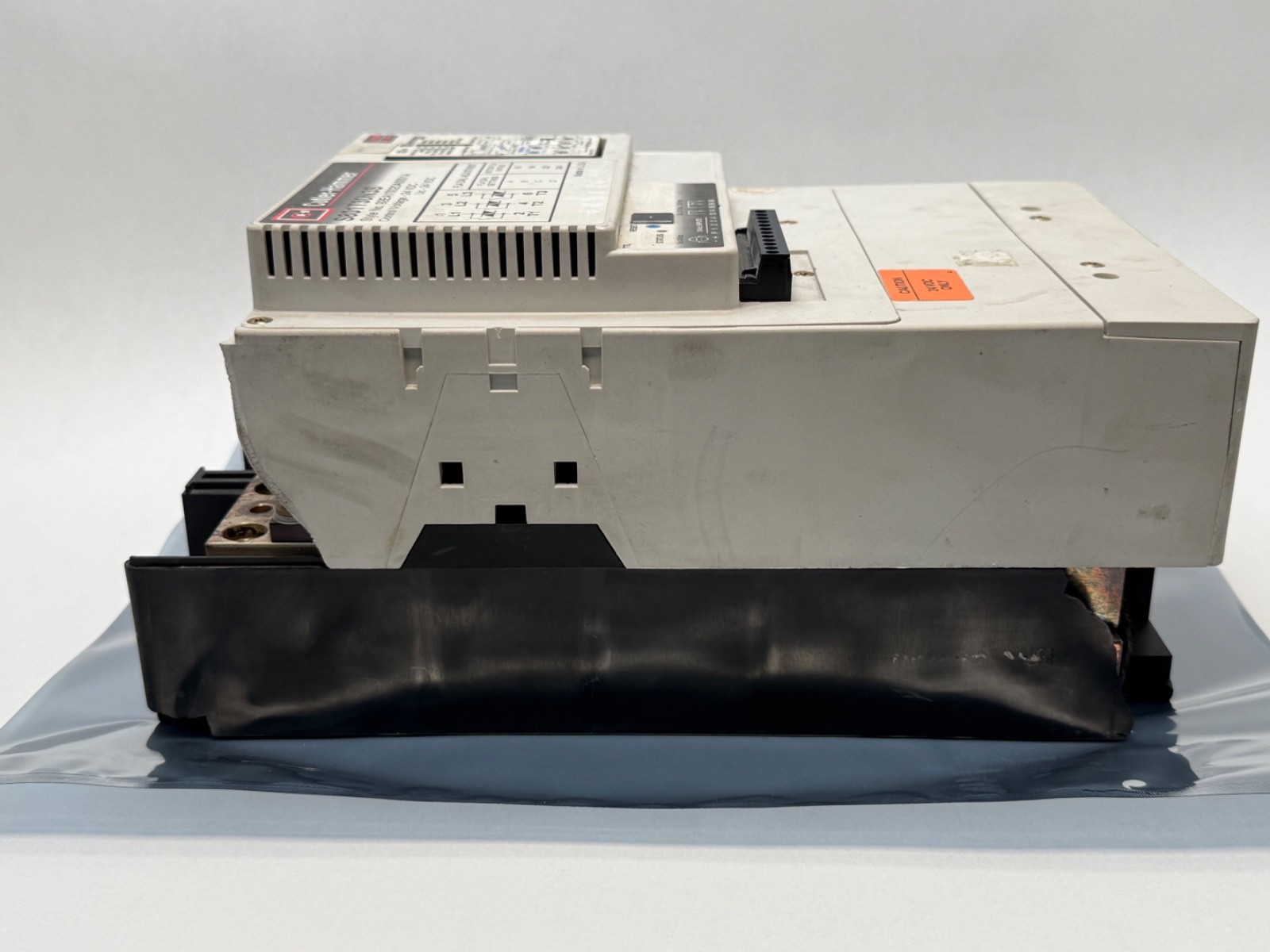

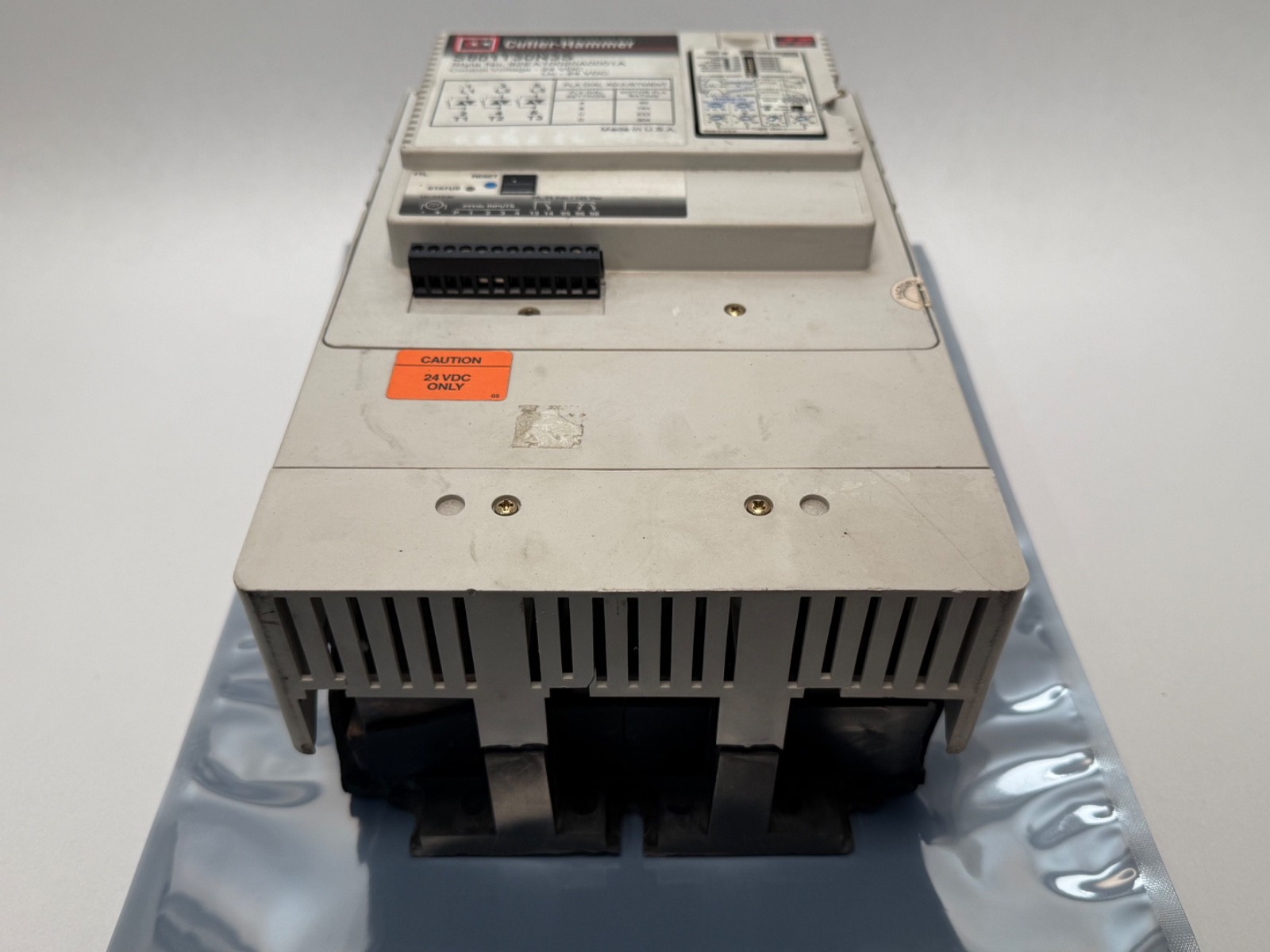

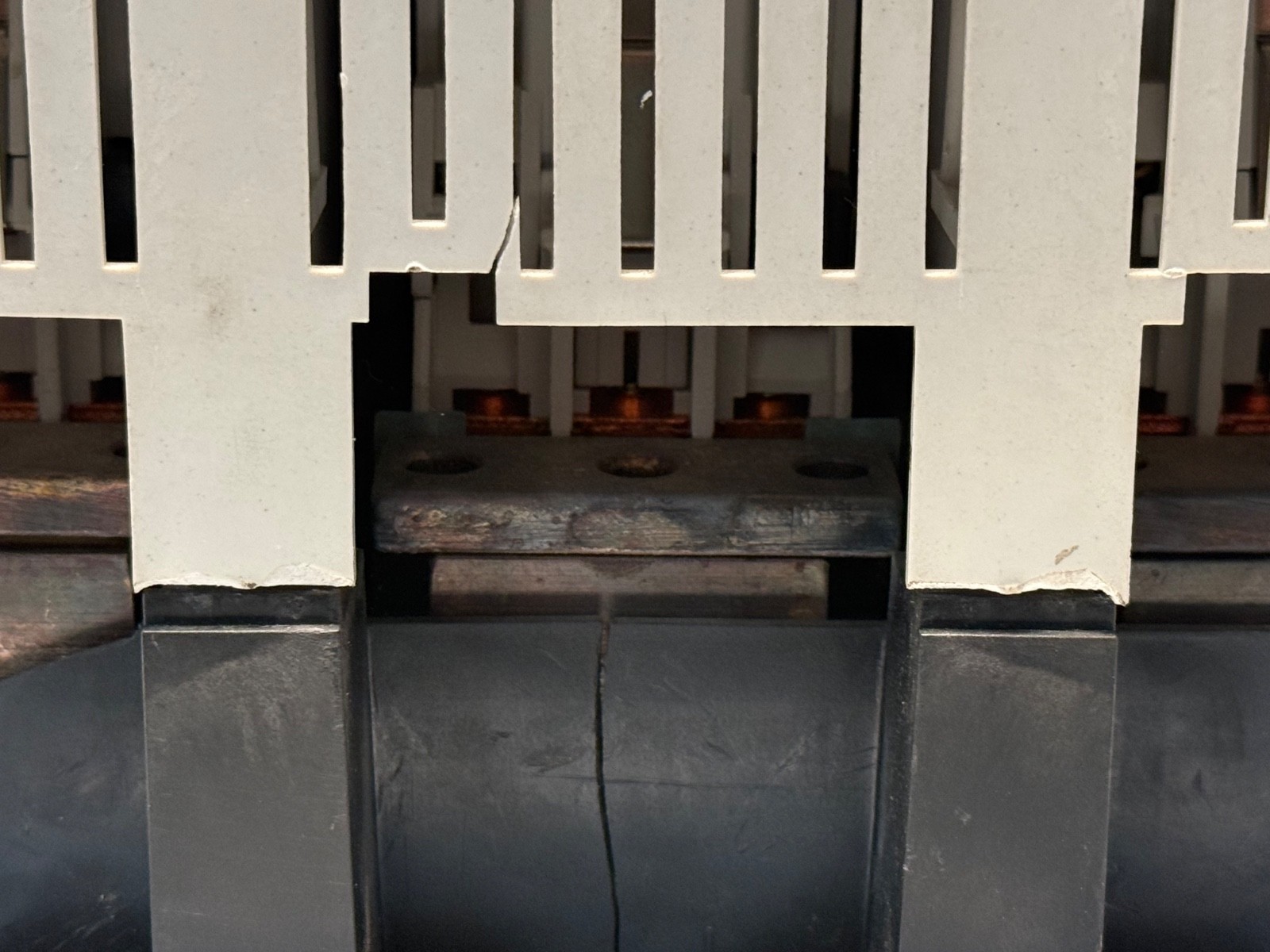

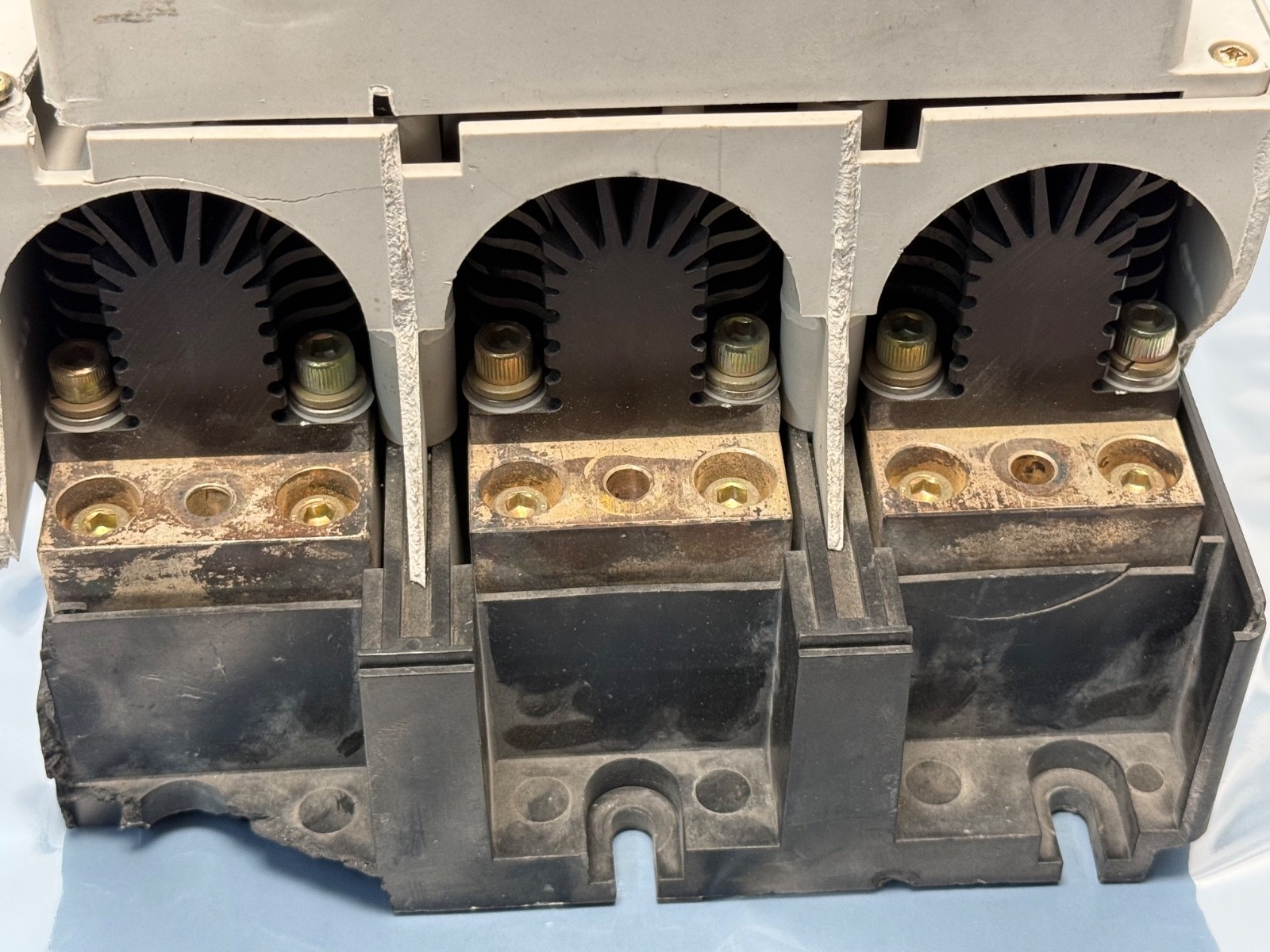

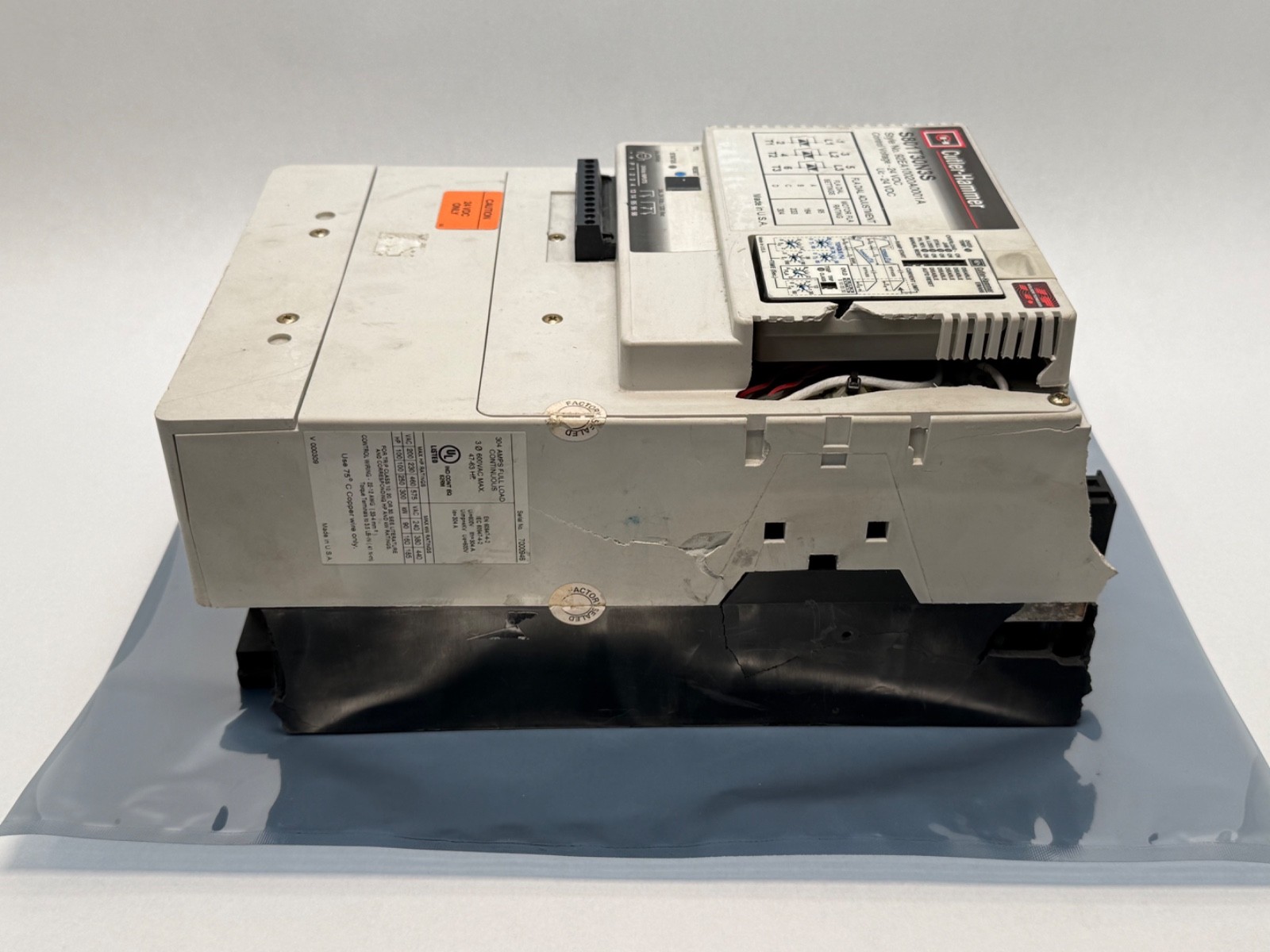

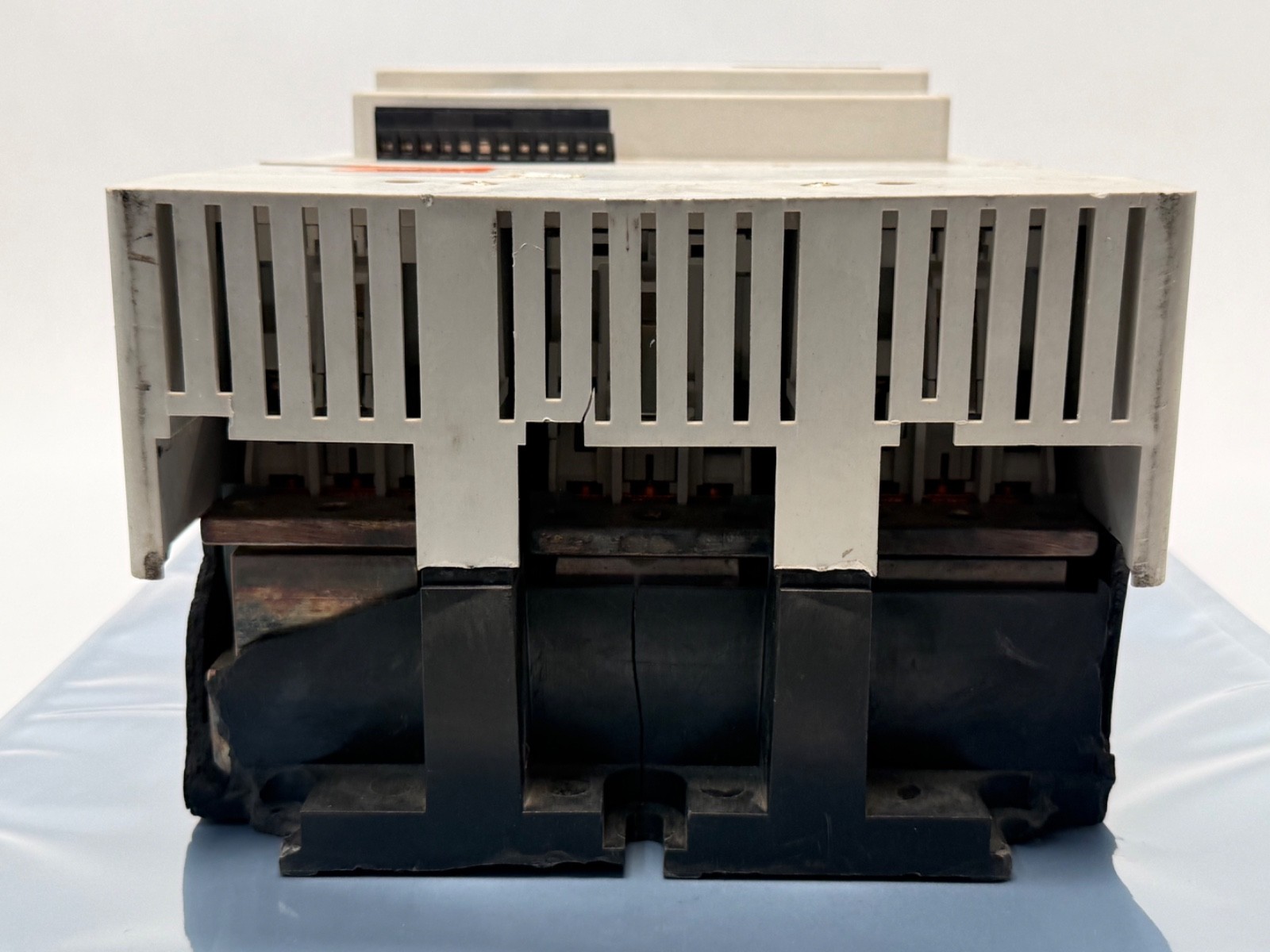

Condition Note: Made In USA, Plastics Damaged In Shipping, See Pictures

Availability:

1 in stock

Eaton Cutler-Hammer S801T30N3S solid-state soft starter, size T, 304 A max FLA, 200-600 V AC three-phase, 24 V DC control, open chassis, internal bypass. Used.

Same day shipment

List Price

$799.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandCutler-Hammer
MPNS801T30N3S
GTIN786685558844
ModelS801 T30N3S

Technical Specifications

TypeSoft Starter
Base NumberS801
Industry Termssoft starter; reduced voltage solid state starter; RVSS; SCR motor starter; solid state starter with bypass; soft start soft stop controller; current limit starter; 150 HP soft starter
Common MisspellingsS801T30N35; S801TS0N3S; S8O1T30N3S; Cutler Hamer; Cutler-Hamner; Culter-Hammer; S801-T3ON3S
Connector StyleBolted lug power terminals; screw-terminal control block
Output Amperage304 A max FLA; dial A 95 A, B 164 A, C 233 A, D 304 A
Housing StyleOpen type (non-combination), no NEMA / enclosure rating
Mpn VariantsS801T30N3S; S801-T30N3S; S801+T30N3S; S801 T30N3S; S801T30N3S-CH; 92EA10020A0001A; 786685558844
Manufacturer StatusCurrent catalogue number: Eaton S801+T30N3S
Compatible With Replaces3-phase induction motors to 304 A FLA, 200-600 V AC
Nominal Rated Input Voltage200-600 V AC, 3-phase, 47-63 Hz
Number Of Rows3 poles, 6 SCRs (full three-phase control)
Part NumberS801T30N3S
Mounting TypeOpen chassis, panel mount

Cross-References

Cross Reference 1Eaton S801+T30N3S - current catalogue number
Seller Part Number: BD6#W7O0TR

Product Description

What this part is:

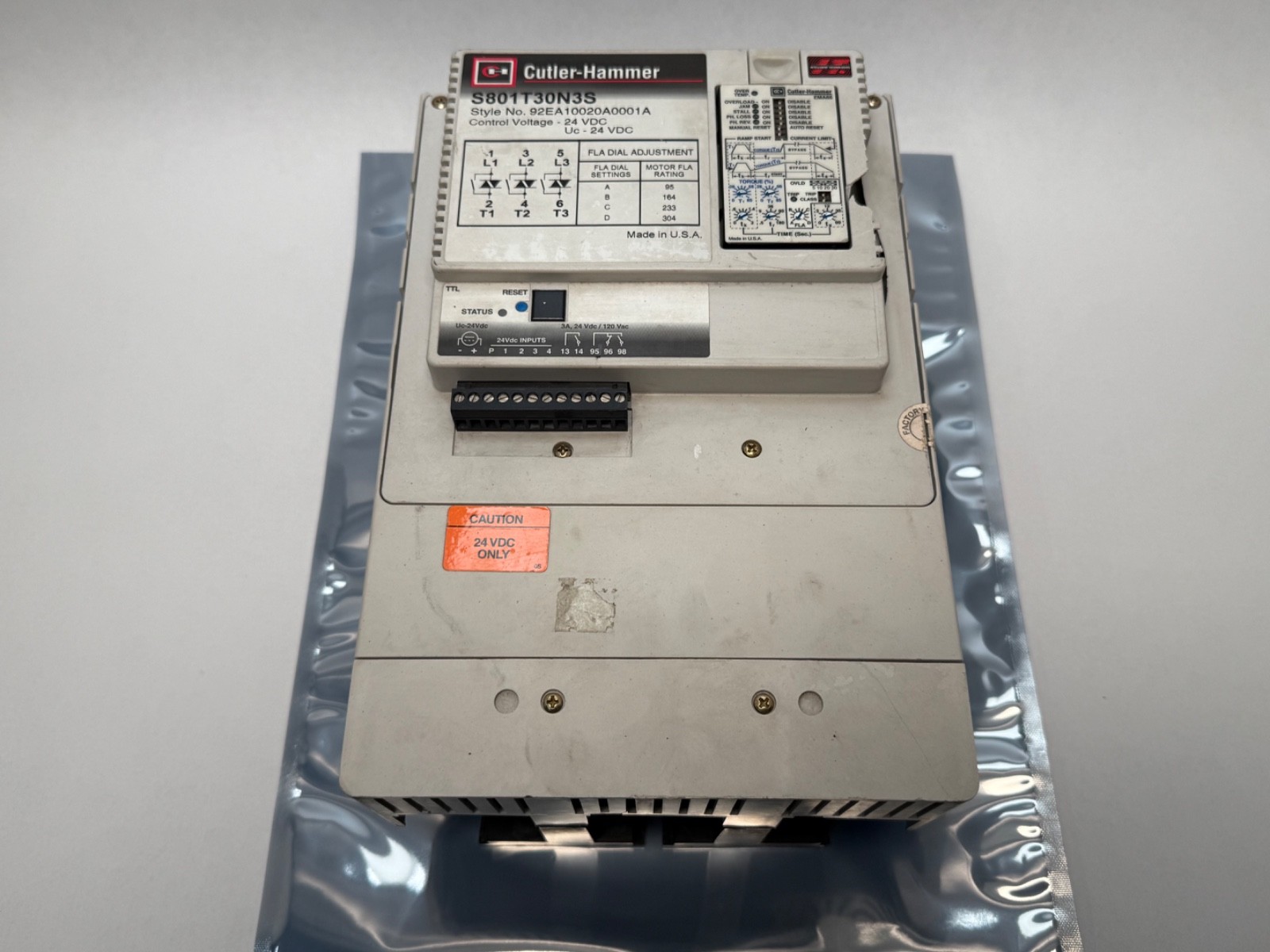

Cutler-Hammer (Eaton) S801T30N3S open-type reduced-voltage solid-state soft starter, size T frame, Intelligent Technologies (IT.) generation. 304 A maximum motor FLA on a 200-600 V AC three-phase supply with 24 V DC control. Condition: used, plastics damaged in shipping. Supplied as the starter with its control terminal block, front label, DIP protection selectors and adjustment dials. Unit Quantity: 1 Pc.

Decoding the designation:

S801 — Eaton / Cutler-Hammer S801 open (non-combination) reduced-voltage solid-state soft starter.

T — size T frame, the large chassis in the range.

30 — amp code for the T frame: 304 A maximum motor FLA (13 = 130 A, 18 = 180 A, 24 = 240 A, 30 = 304 A).

N3S — control-power and construction suffix; the nameplate shows 24 V DC control voltage, three-pole three-phase switching and standard open-chassis construction.

Specifications:

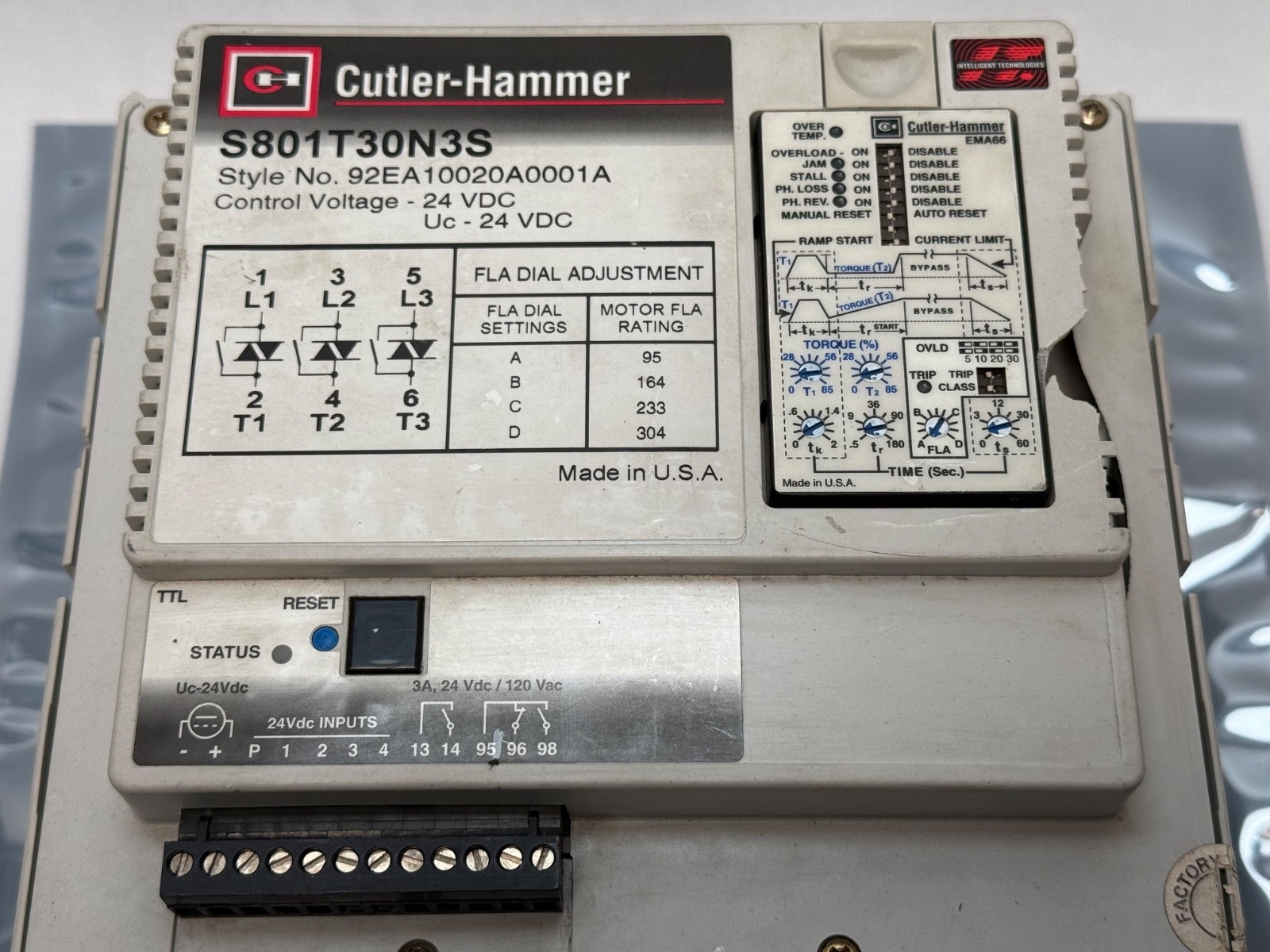

Maximum Motor FLA: 304 A. Supply Voltage: 200-600 V AC, three-phase, 47-63 Hz. Nominal Load Voltages: 208 / 240 / 380 / 480 / 575 V AC. Horsepower: 60 HP at 200/208 V, 75 HP at 230/240 V, 150 HP at 460/480 V, 200 HP at 575/600 V. Rated Insulation Voltage (Ui): 660 V AC. Control Voltage: 24 V DC. Poles: 3, in-line connection, six SCRs. Internal Run Bypass Contactor: Yes, 10 million operations mechanical life. FLA Dial: A = 95 A, B = 164 A, C = 233 A, D = 304 A, with fine adjustment 30-100 % of the selected step. Overload: 450 % for 30 seconds, trip class selectable 5 / 10 / 20 / 30. Relay Contact Rating: 3 A at 24 V DC / 120 V AC. Ambient Temperature: -30 to +50 °C. Enclosure: open chassis. Approvals: c-UL-us, CSA, CE. Nameplate Style Number: 92EA10020A0001A.

Start modes: kick start, voltage-ramp start, current-limit start, soft stop. Front-label adjustments: initial torque 0-85 %, ramp time T1/T2 0.5-180 s, kick time 0-2 s, soft stop 0-60 s. Protection, switchable on the front DIP bank: over temperature, overload, jam, stall, phase loss, phase reversal, with manual or auto reset selection. Also: shorted-SCR detection, phase imbalance, under- and overvoltage, undercurrent and internal diagnostics.

Dimensions and mounting:

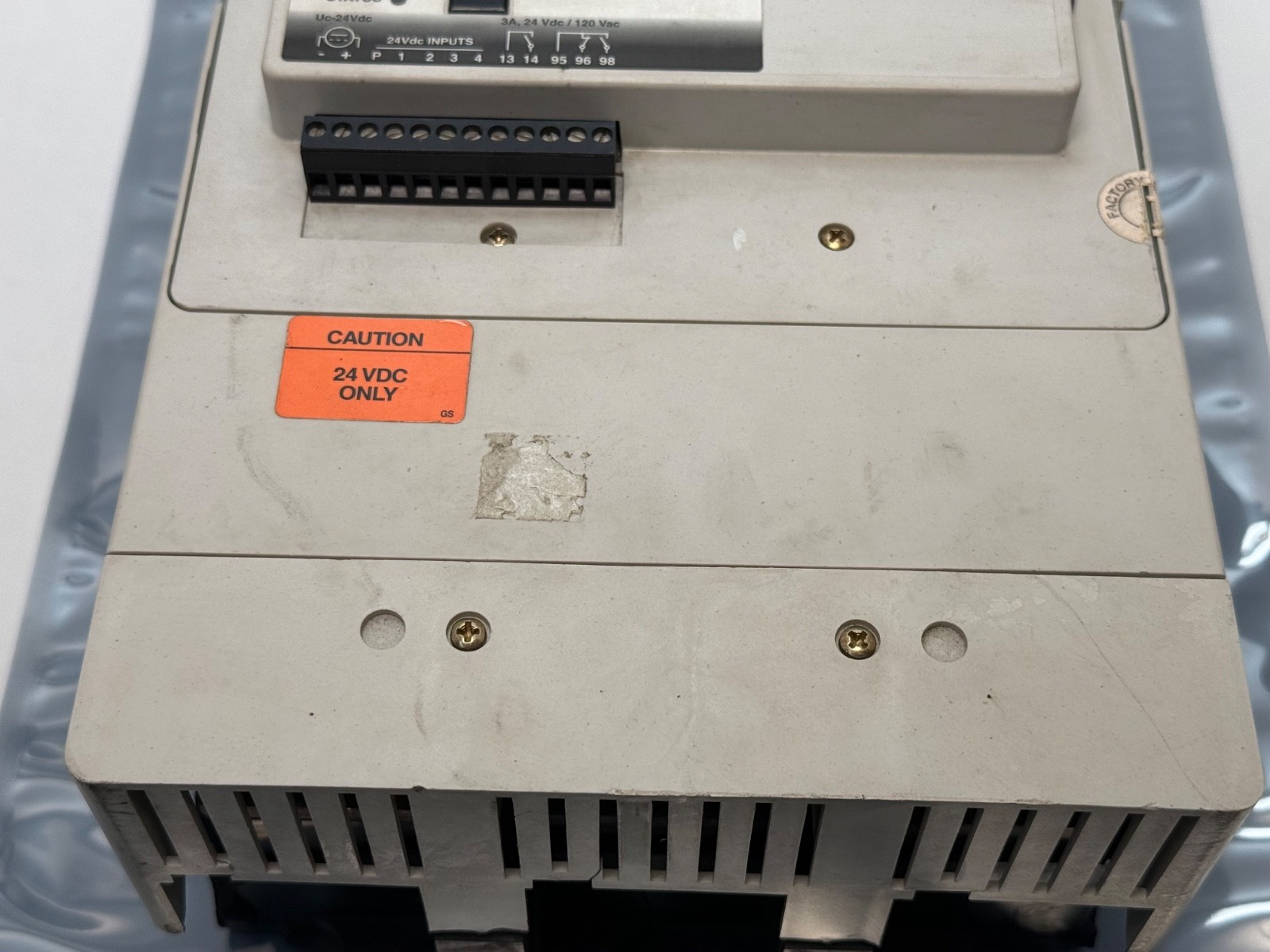

Dimensions: 19 x 14.5 x 12.5 in. Weight: 45 lb. Open-chassis panel mount. Power terminals: 1/L1, 3/L2, 5/L3 in and 2/T1, 4/T2, 6/T3 out; line and load lug kits mount on either side. Control: pluggable screw terminal block with 24 V DC inputs for start, stop, jog, overload disable and fault reset; normally-open bypass indication contact and form-C fault relay (terminals 13/14 and 95/96/98); status LED, local reset pushbutton and TTL port. The S801 has no built-in communication protocol; Modbus, DeviceNet, PROFIBUS and Ethernet connect through separate Eaton S811+/S801+ communication modules.

Compatibility and replacement:

Eaton’s current catalogue number for this part is S801+T30N3S. Documentation: Eaton S801+ user manual MN03900002E. MPN variants: S801T30N3S, S801-T30N3S, S801+T30N3S, S801 T30N3S.

Frequently asked questions:

What is the Cutler-Hammer S801T30N3S?

It is an open-type reduced-voltage solid-state soft starter in the size T frame, rated 304 A maximum motor FLA on 200-600 V AC three-phase, with 24 V DC control.

What are the FLA dial settings?

FLA Dial: A = 95 A, B = 164 A, C = 233 A, D = 304 A, with fine adjustment 30-100 % of the selected step.

What is the current Eaton number for the S801T30N3S?

Eaton’s current catalogue number is S801+T30N3S.
