Allen Bradley20AE022A0AYNNNC0Adjustable Frequency AC Drive, 600 V Three-Phase, 22 A, 20 Hp / 15 kW, Sensorless Vector, IP20

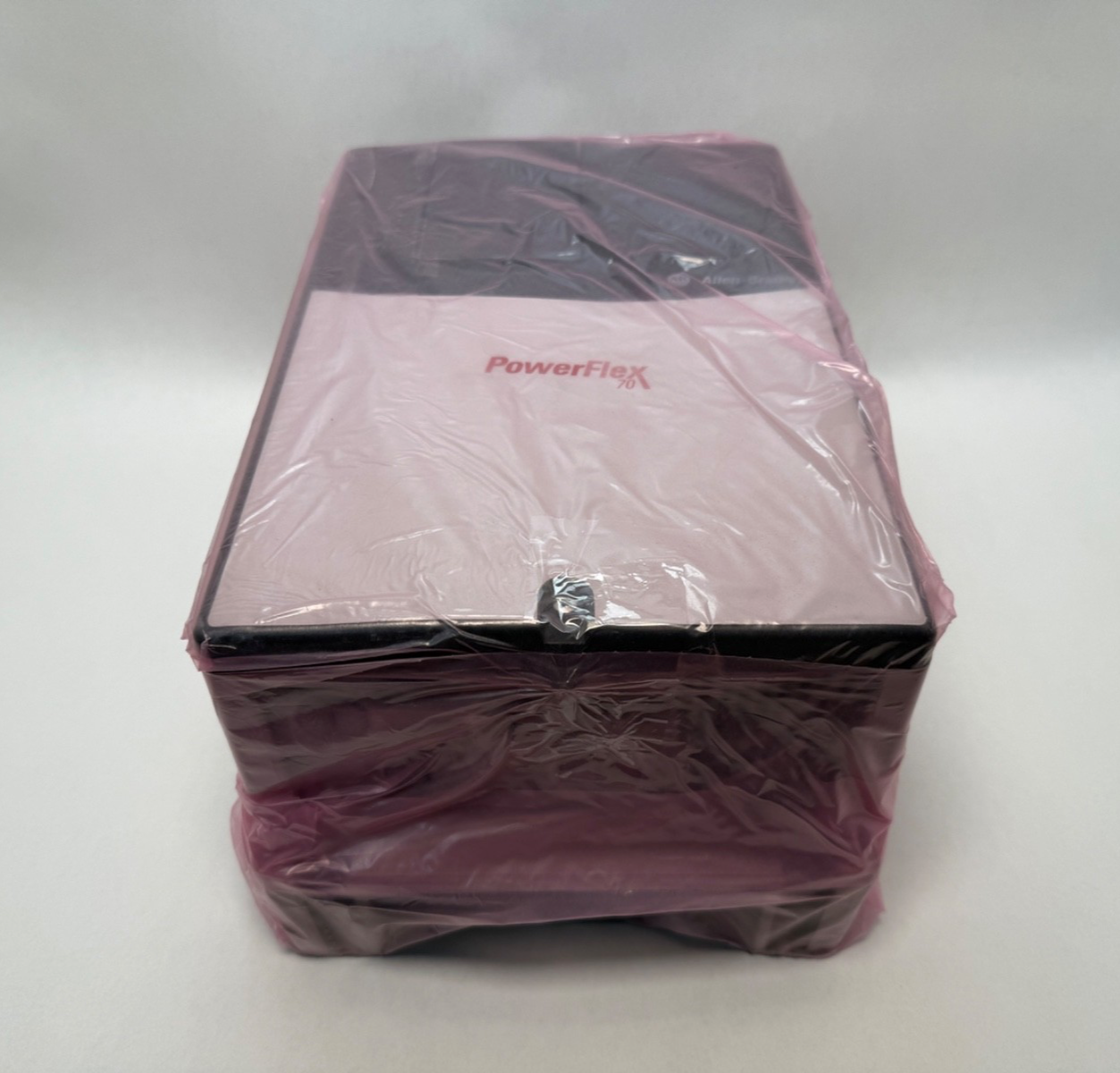

Condition: New – Open box
Condition Note: New Old Stock

Availability:

1 in stock

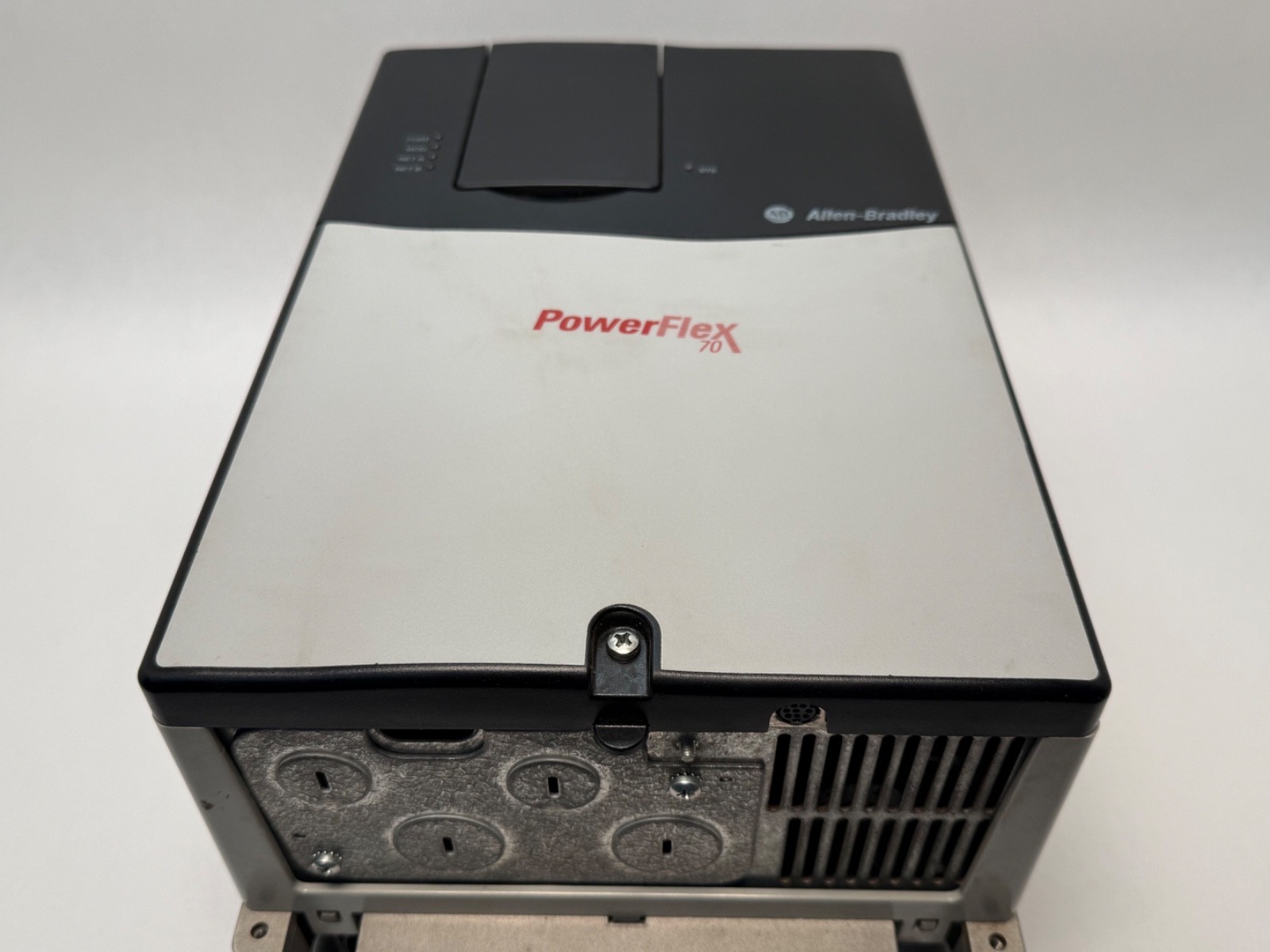

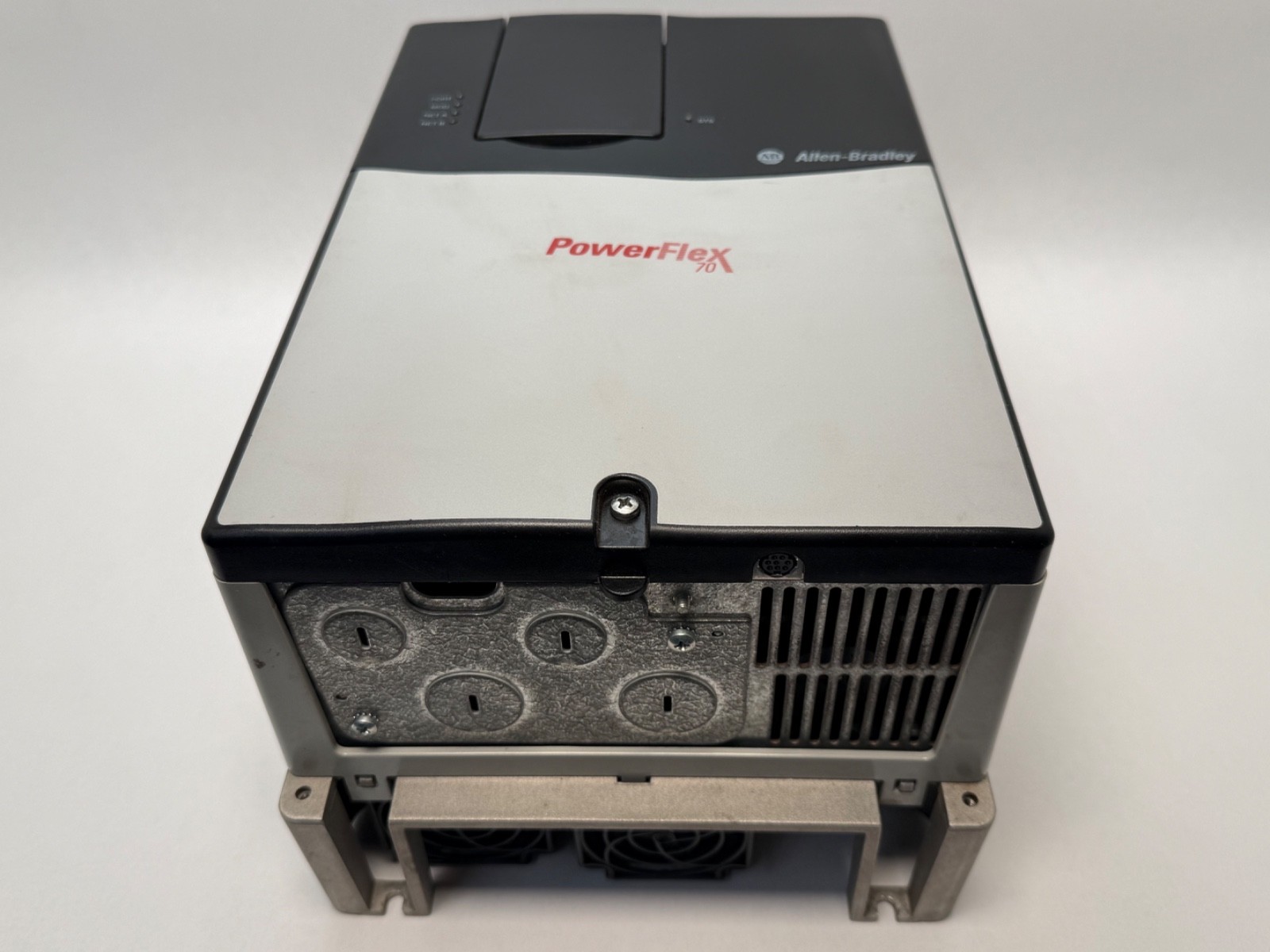

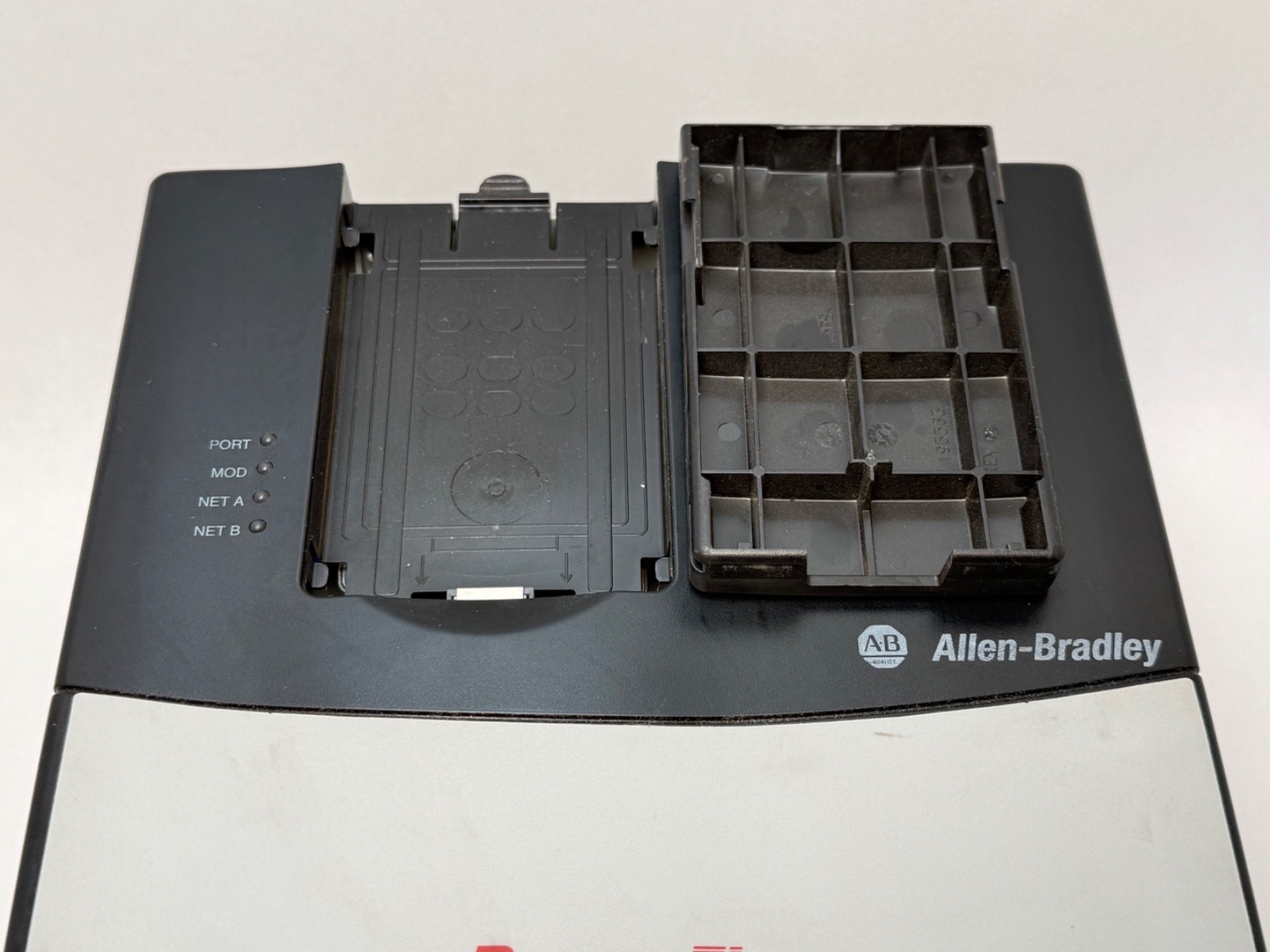

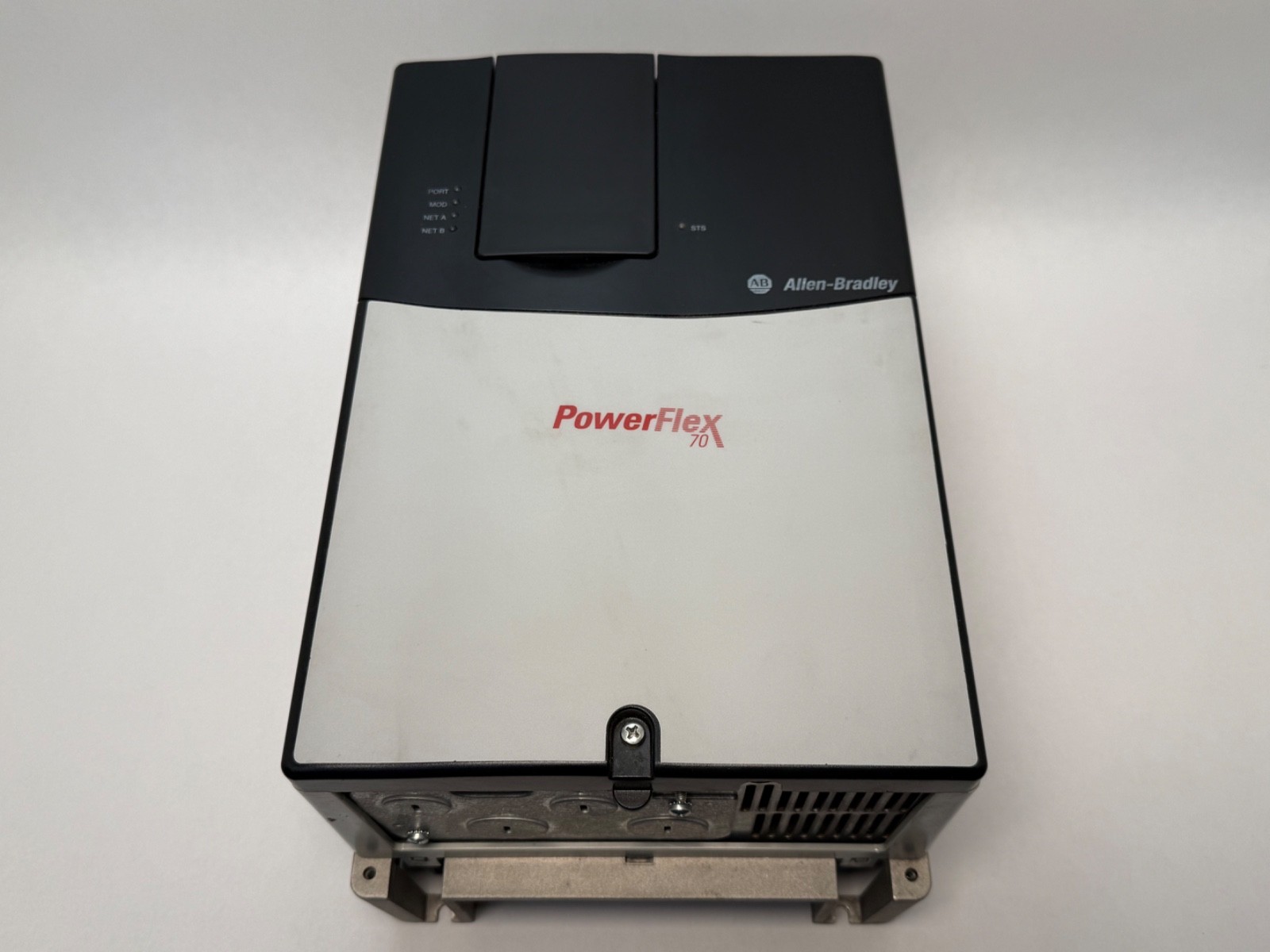

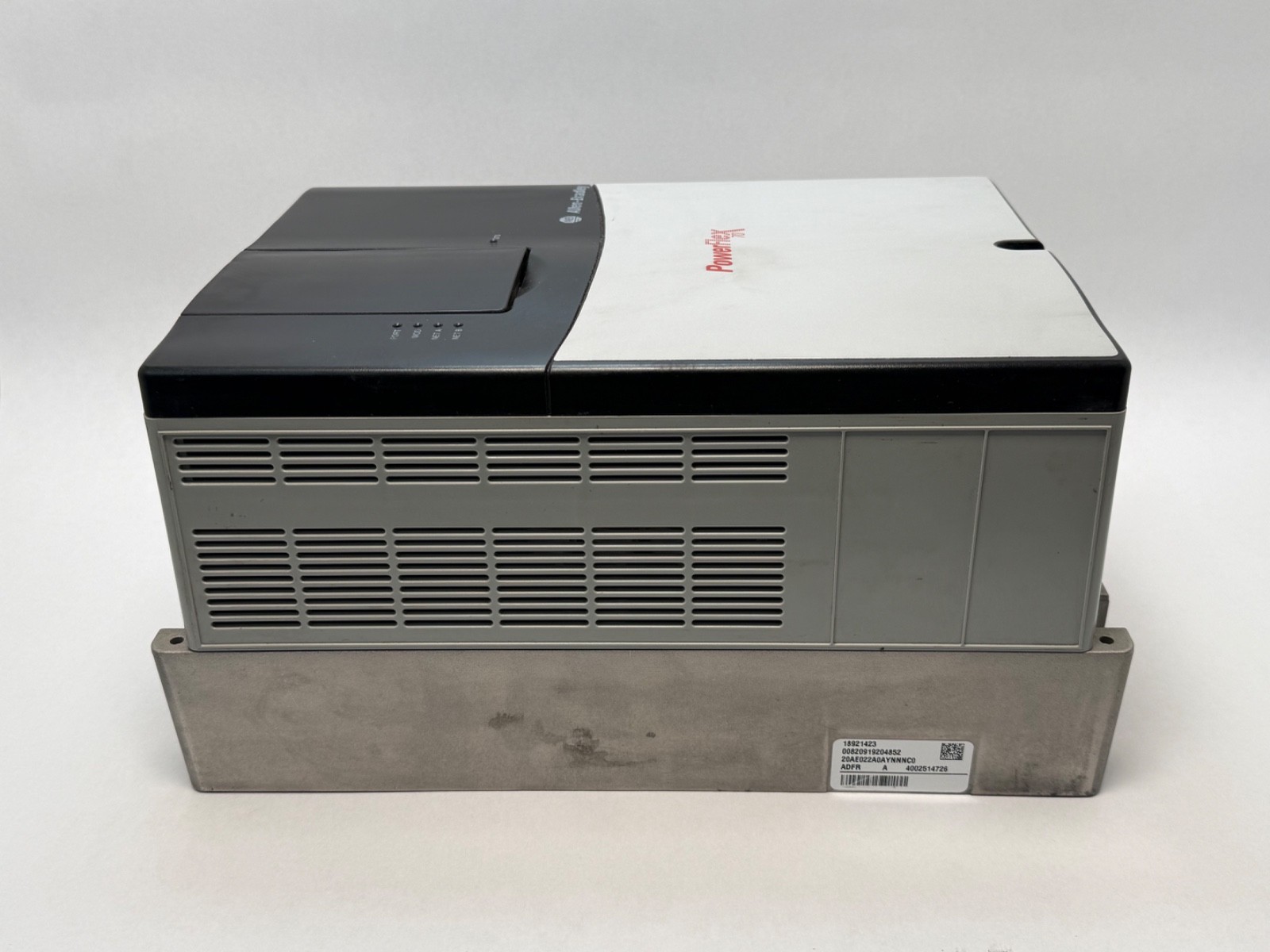

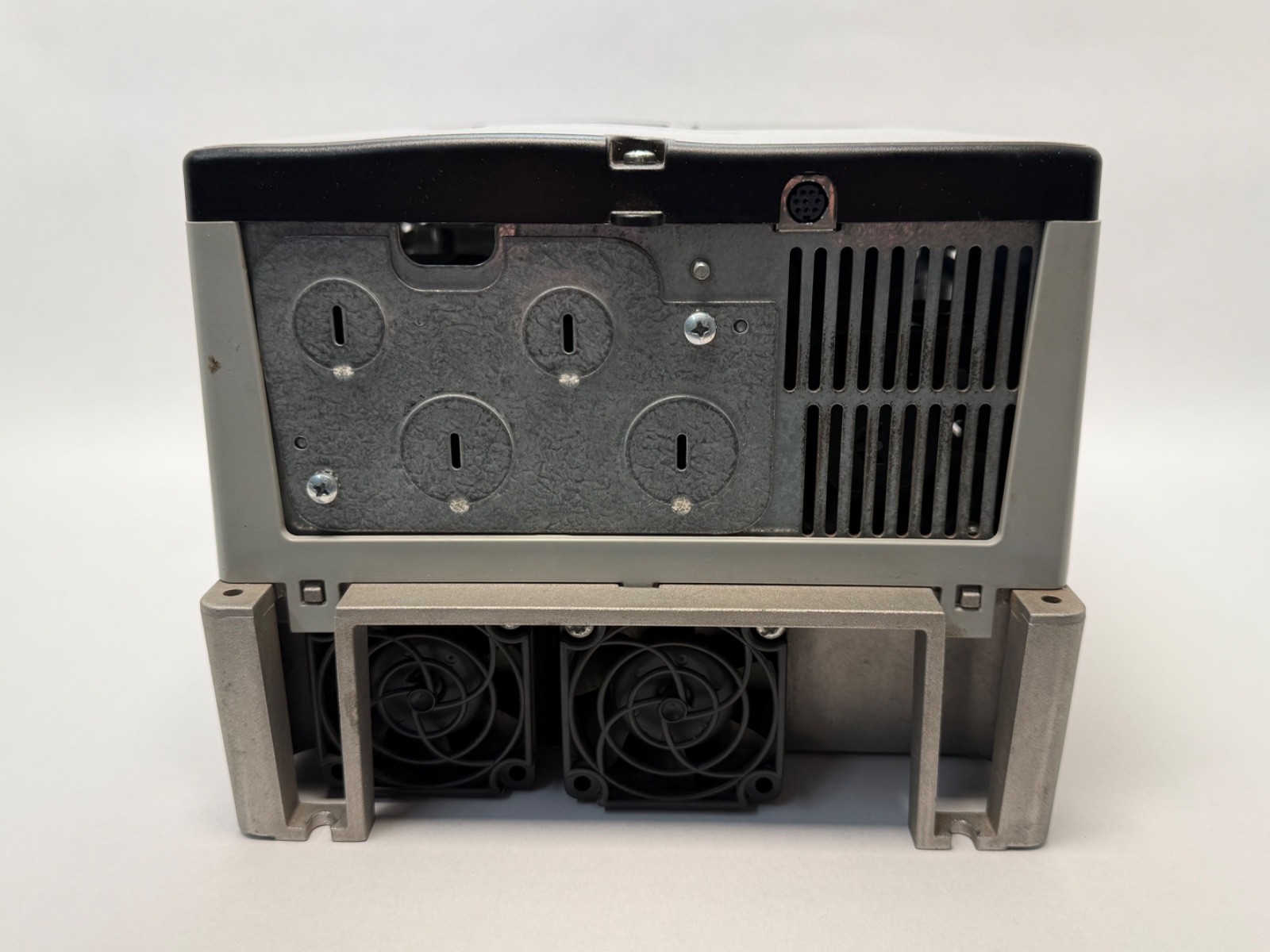

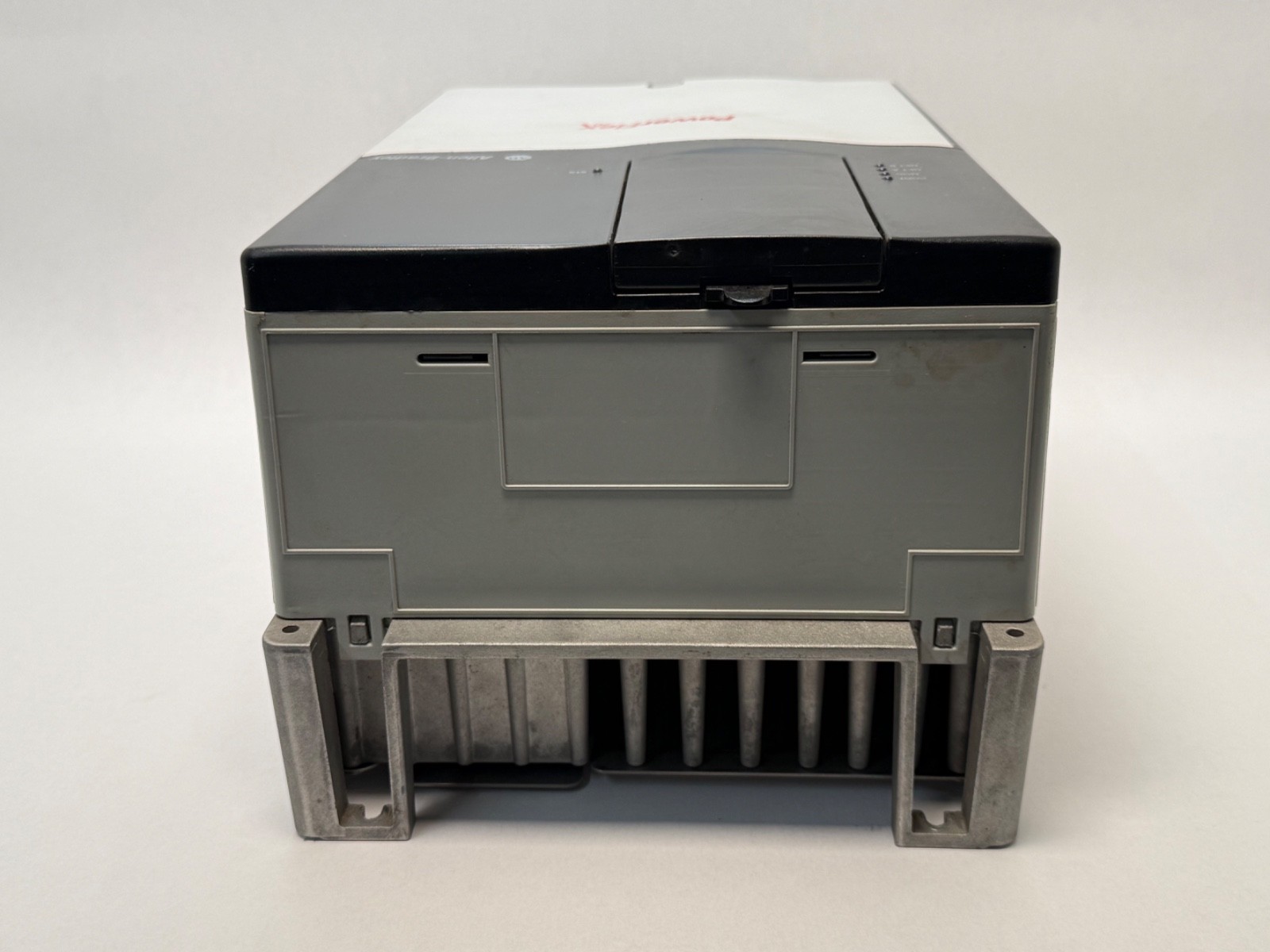

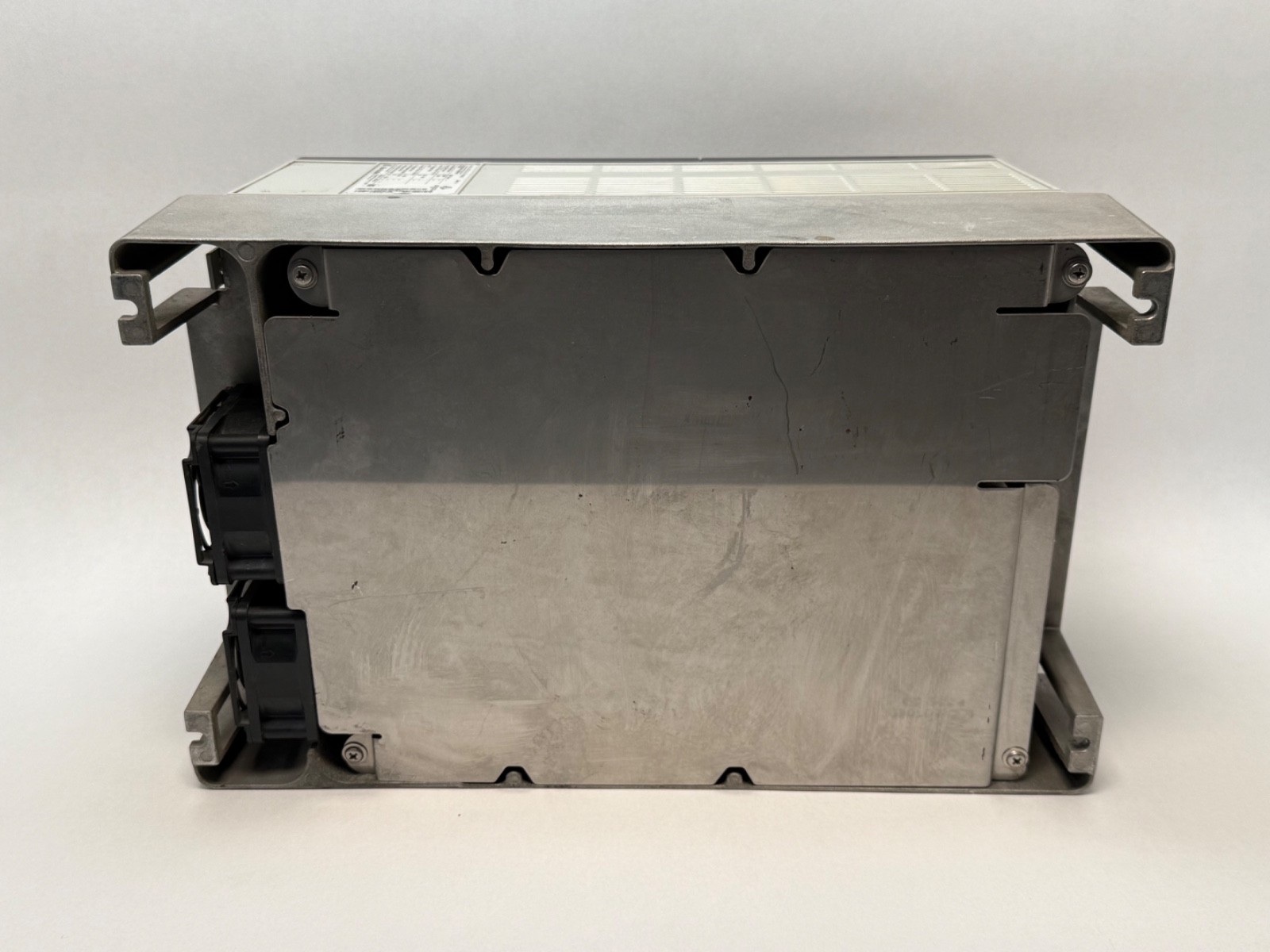

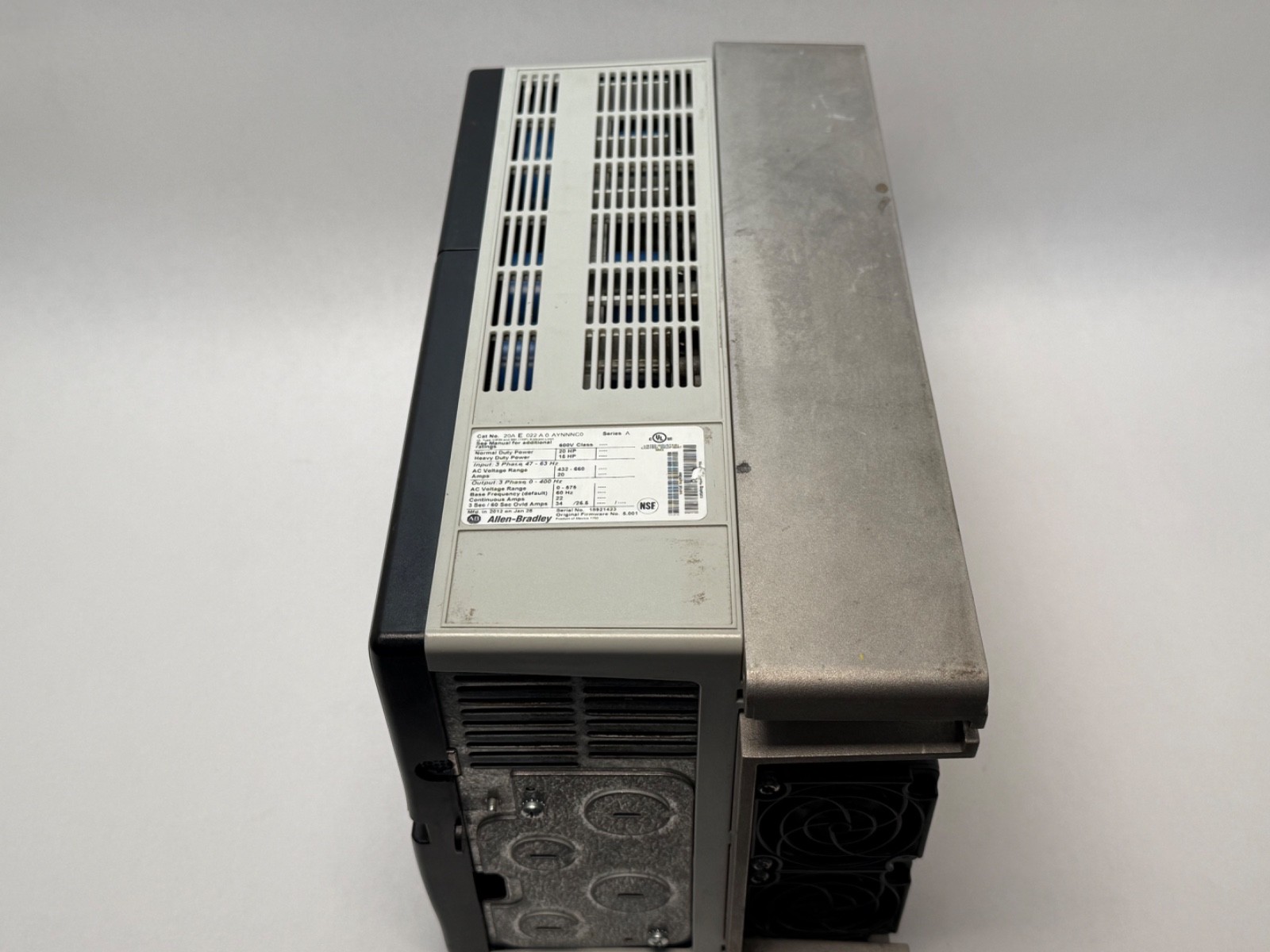

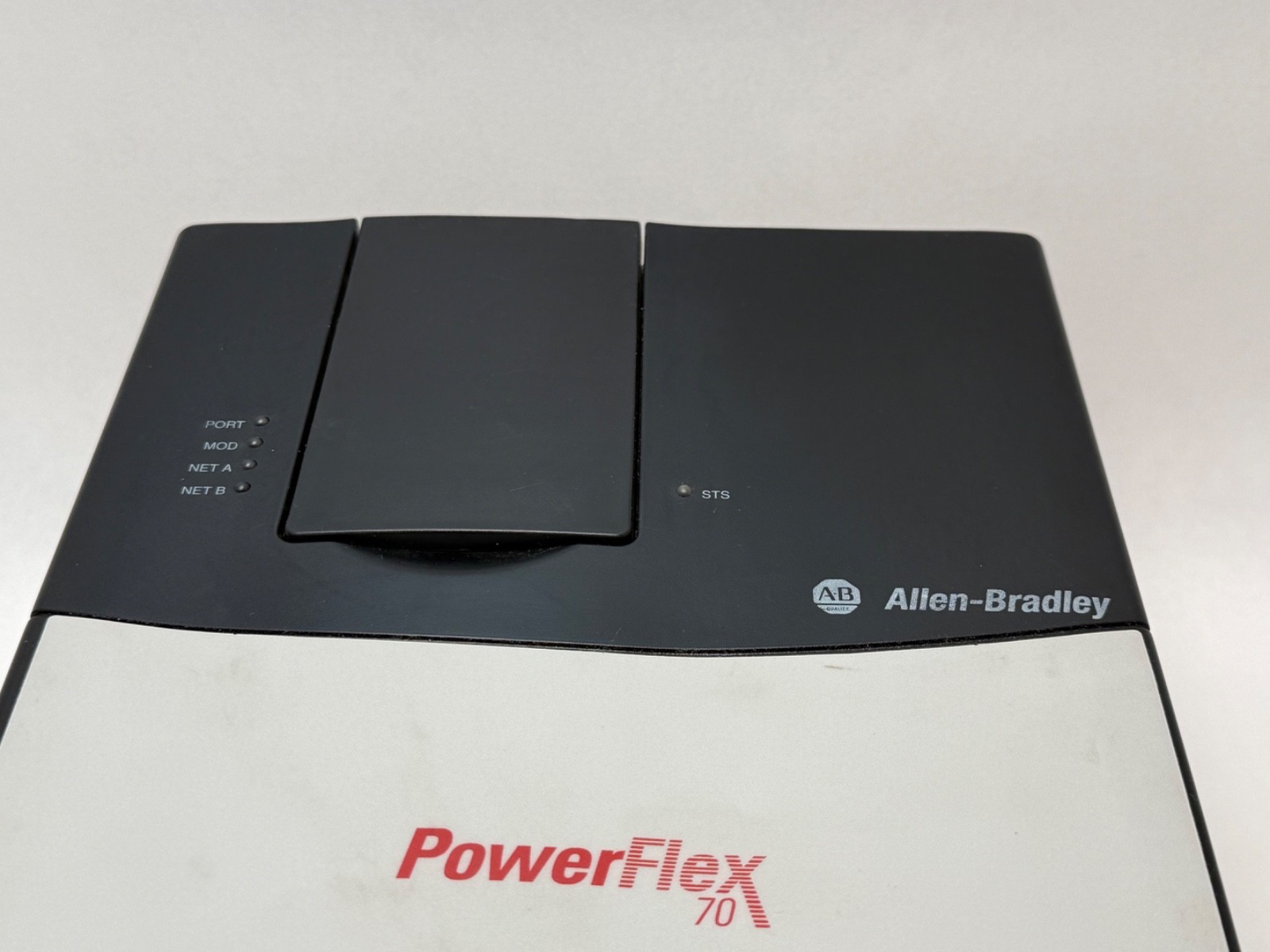

PowerFlex 70 adjustable frequency AC drive, 600 V three-phase, 22 A continuous, 20 Hp / 15 kW. Sensorless vector control, internal brake IGBT, IP20.

Same day shipment

List Price

$1,760.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandAllen Bradley

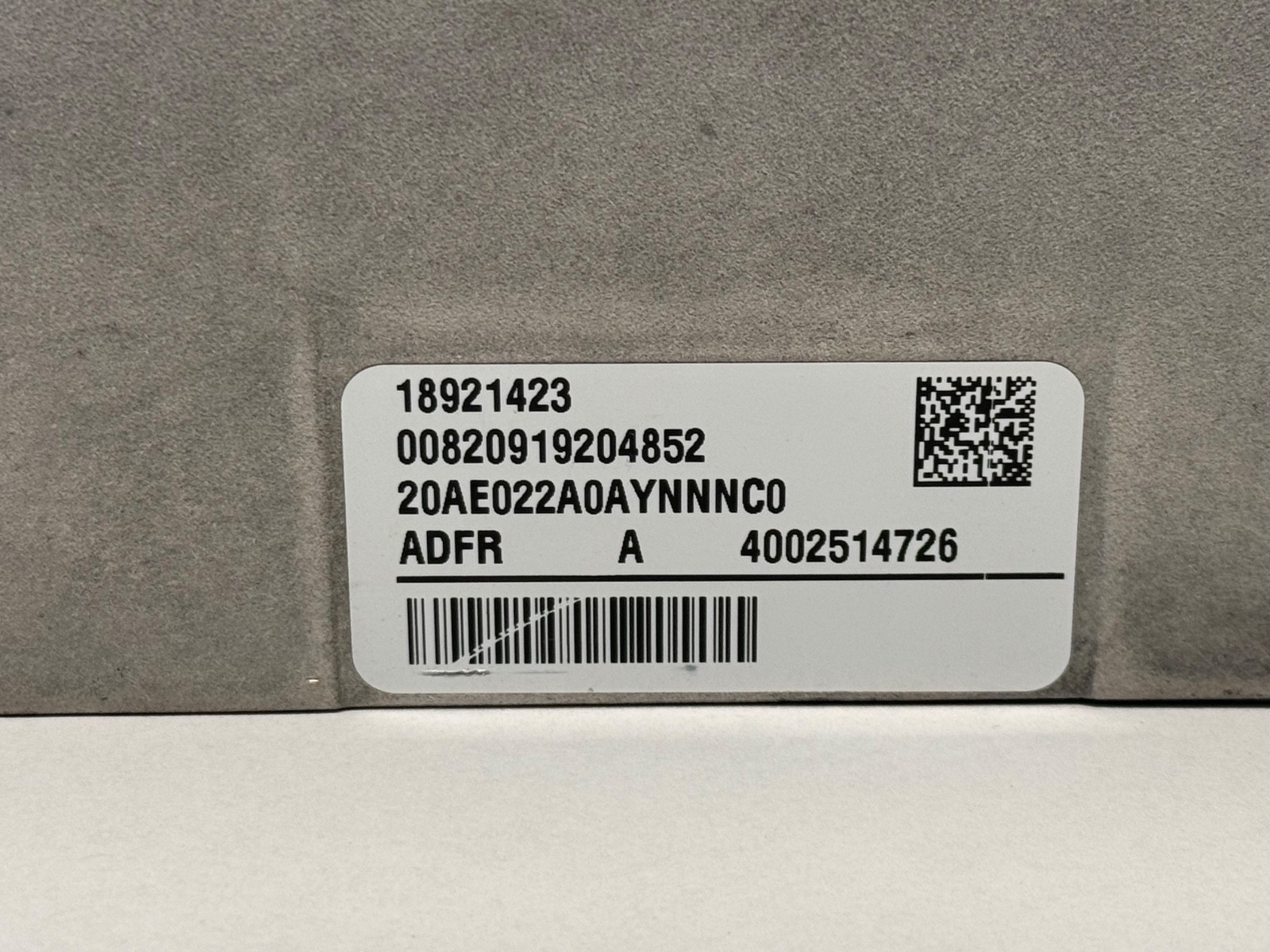

MPN20AE022A0AYNNNC0
GTIN820919204852
Model20A E 022 A 0 AYNNNC0

Technical Specifications

Base Number20A
Industry TermsVFD, variable frequency drive, adjustable speed drive, AC inverter drive, motor speed controller, PowerFlex 70
Common Misspellings20AE022A0AYNNNCO, 20AE022AOAYNNNC0, Power Flex 70, Powerflex70, Allan Bradley PowerFlex
Application TypesConveyor and material handling drives, pump and fan speed control, mixer and extruder drives, 600 V plant motor control, constant and variable torque loads
Power Rating20 Hp, 15 kW
Number Of Phases3-Phase
Output Amperage22 A continuous
Mpn Variants20A-E-022-A-0-AYNNNC0, 20AE022A0AYNNNC0, 20AE 022 A0AYNNNC0
Manufacturer StatusDiscontinued
SeriesA
Nominal Rated Input Voltage600 V AC three-phase, 432 to 660 V AC
Part Number20AE022A0AYNNNC0
Mounting TypePanel mount
Product TypeAdjustable frequency AC drive (VFD)
Frame SizeD
Seller Part Number: EFBIN#KWUTM4

Product Description

What this part is:

Allen-Bradley PowerFlex 70 adjustable frequency AC drive, catalog number 20AE022A0AYNNNC0, Series A. Product Type: variable frequency drive. Input Voltage: 600 V AC three-phase, 432 to 660 V AC range. Continuous Output Current: 22 A. Power Rating: 20 Hp, 15 kW. Frame Size: D. Enclosure Rating: IP20, panel mount. Control Modes: V/Hz and sensorless vector. GTIN: 820919204852. Unit Quantity: 1 Pc.

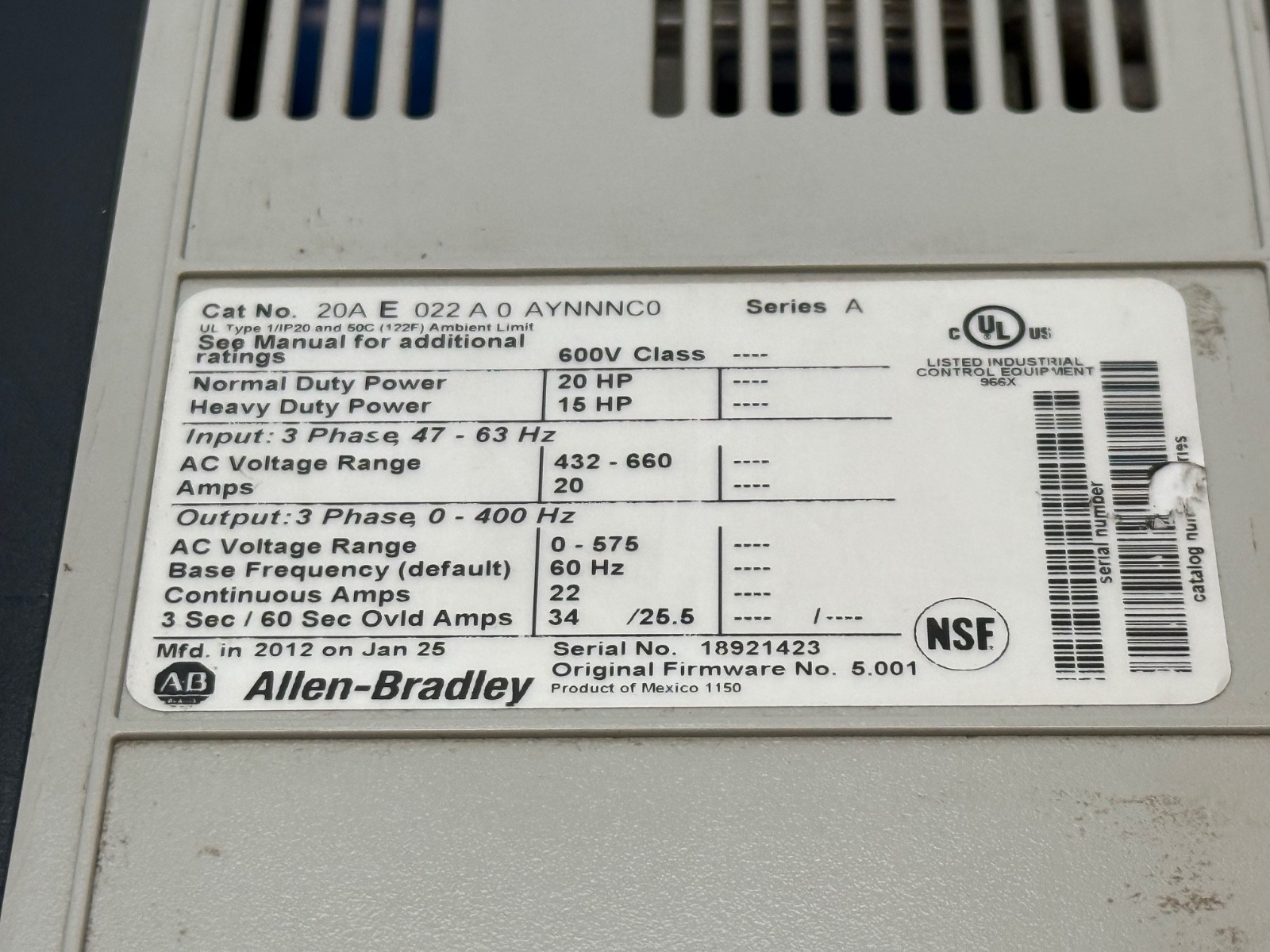

Decoding the designation:

20A — Bulletin 20A, the PowerFlex 70 drive family.

E — the 600 V AC three-phase input voltage class.

022 — 22 A continuous output current, the 20 Hp rating at 600 V.

SER A — the first series of the drive hardware.

Specifications:

Input Voltage: 600 V AC three-phase, 432 to 660 V AC. Phase: three-phase. Continuous Output Current: 22 A. Overload Current: 25.5 A for 1 minute, 34 A for 3 seconds. Power Rating: 20 Hp, 15 kW. Control Modes: V/Hz and sensorless vector. Braking: internal brake IGBT for dynamic braking. Enclosure Rating: IP20. Manufacturer Status: discontinued.

Dimensions and mounting:

Frame Size: D. Mounting Type: panel mount, inside an enclosure.

Compatibility and replacement:

Part Number: 20AE022A0AYNNNC0. Also written 20A-E-022-A-0-AYNNNC0 and 20AE 022 A0AYNNNC0.

Frequently asked questions:

What are the voltage and current ratings of the 20AE022A0AYNNNC0?

600 V AC three-phase input, 432 to 660 V AC range, with 22 A continuous output current for 20 Hp, 15 kW.

What overload current does it provide?

25.5 A for 1 minute and 34 A for 3 seconds.

What control modes and braking does the PowerFlex 70 offer?

V/Hz and sensorless vector control, with an internal brake IGBT for dynamic braking.
