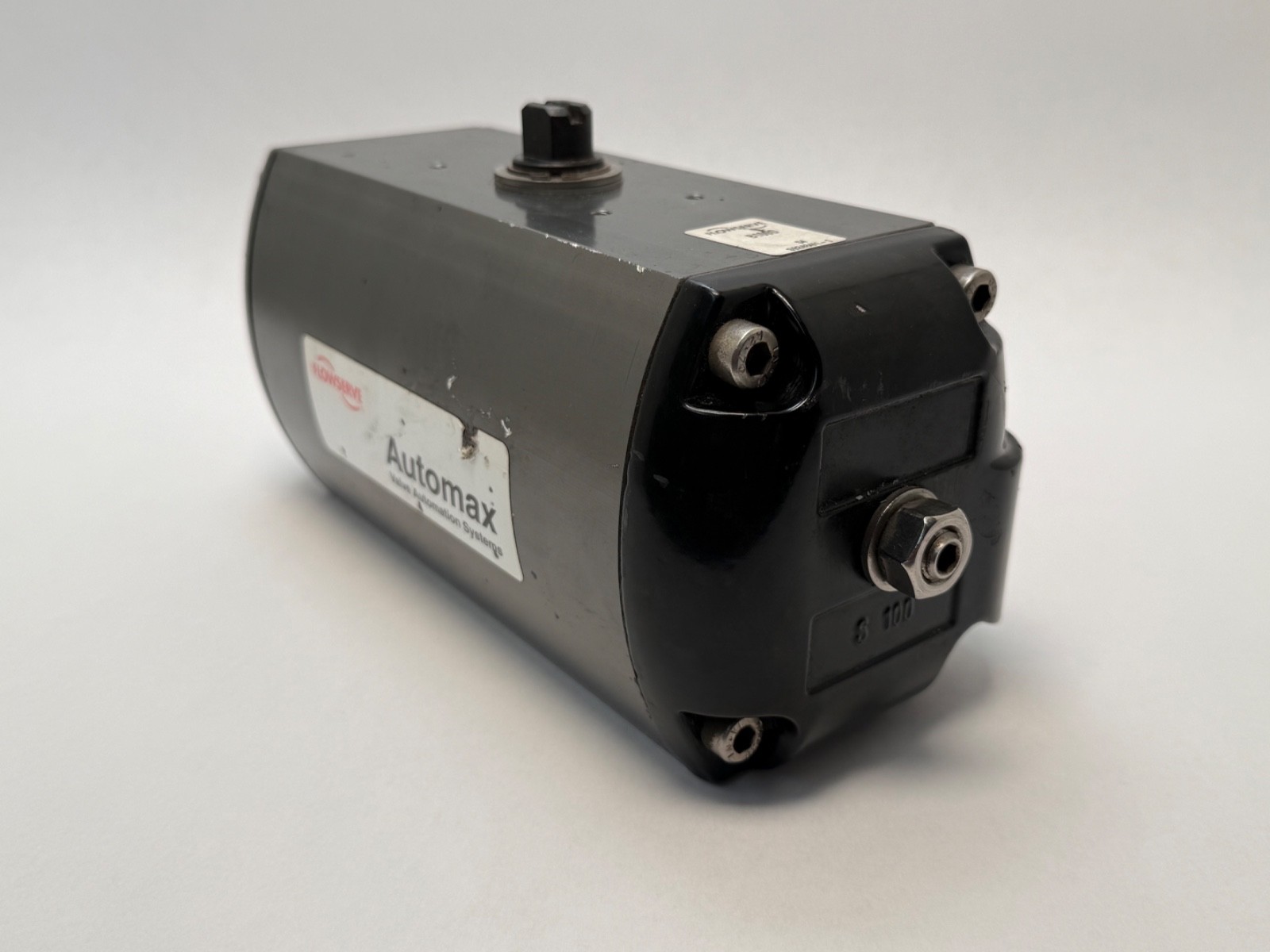

Flowserve Automax B100D double-acting pneumatic rack and pinion actuator, Supernova family, Buna seals, 150 PSI. ISO 5211 star-drive valve mount and NAMUR accessory interface.
List Price
$424.11
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Flowserve |
|---|---|
| MPN | B100D |
| Model | B100D |
| Condition | New – Open box |
|---|---|
| Base Number | B100 |
| Industry Terms | quarter-turn actuator, rack and pinion actuator, pneumatic valve actuator, double acting actuator |
| Common Misspellings | Flowserv, Automaxx, B1OOD |
| Application Types | Ball valve, butterfly valve and plug valve automation |
| Mpn Variants | B100D, B-100-D, B100 D, Automax B100D |
| Additional Attributes | Actuation: Double acting; Seal Material: Buna; Maximum Pressure: 150 PSI; Travel: 100°; Valve Mounting: ISO 5211 star drive; Accessory Mounting: NAMUR |

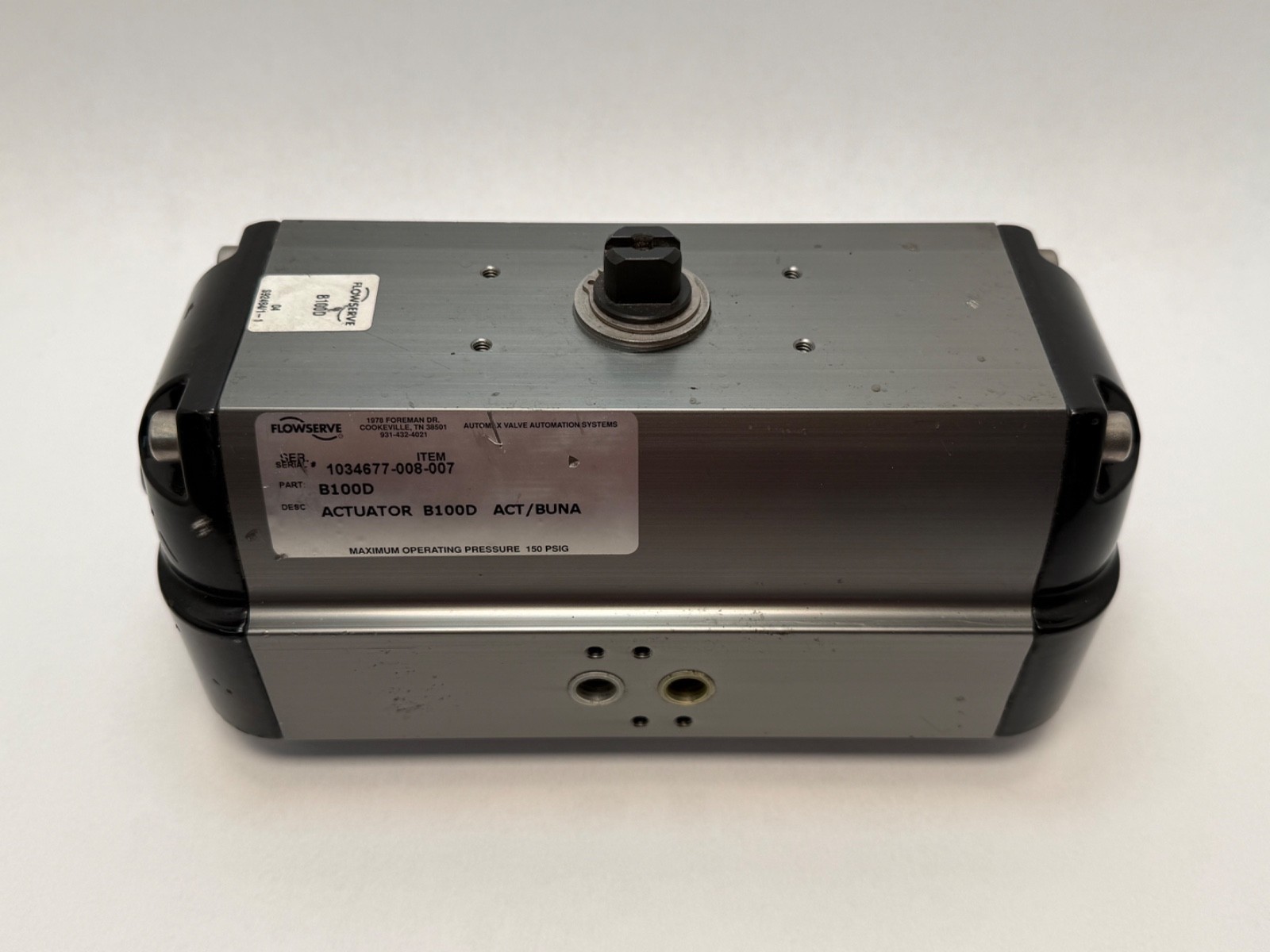

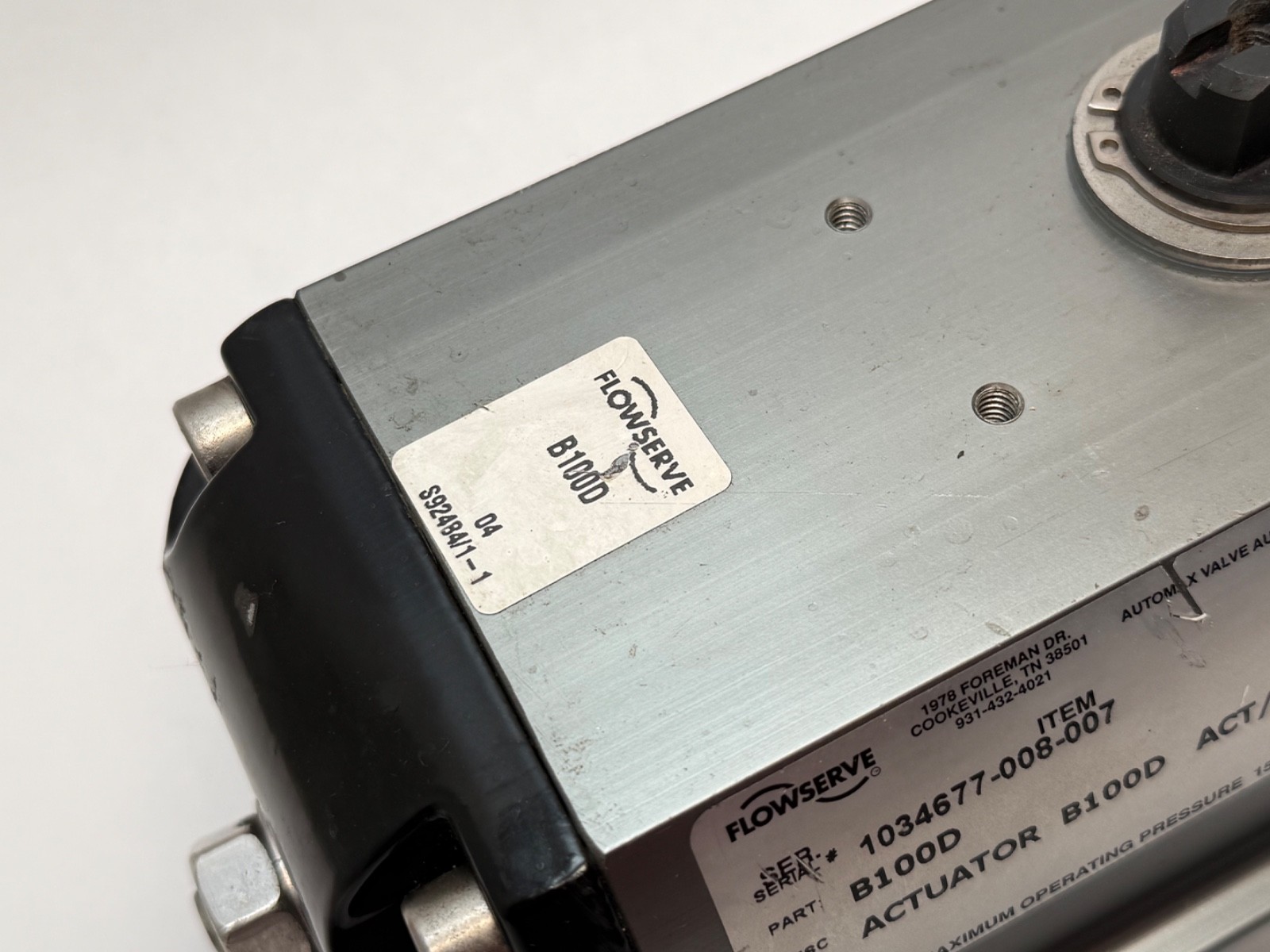

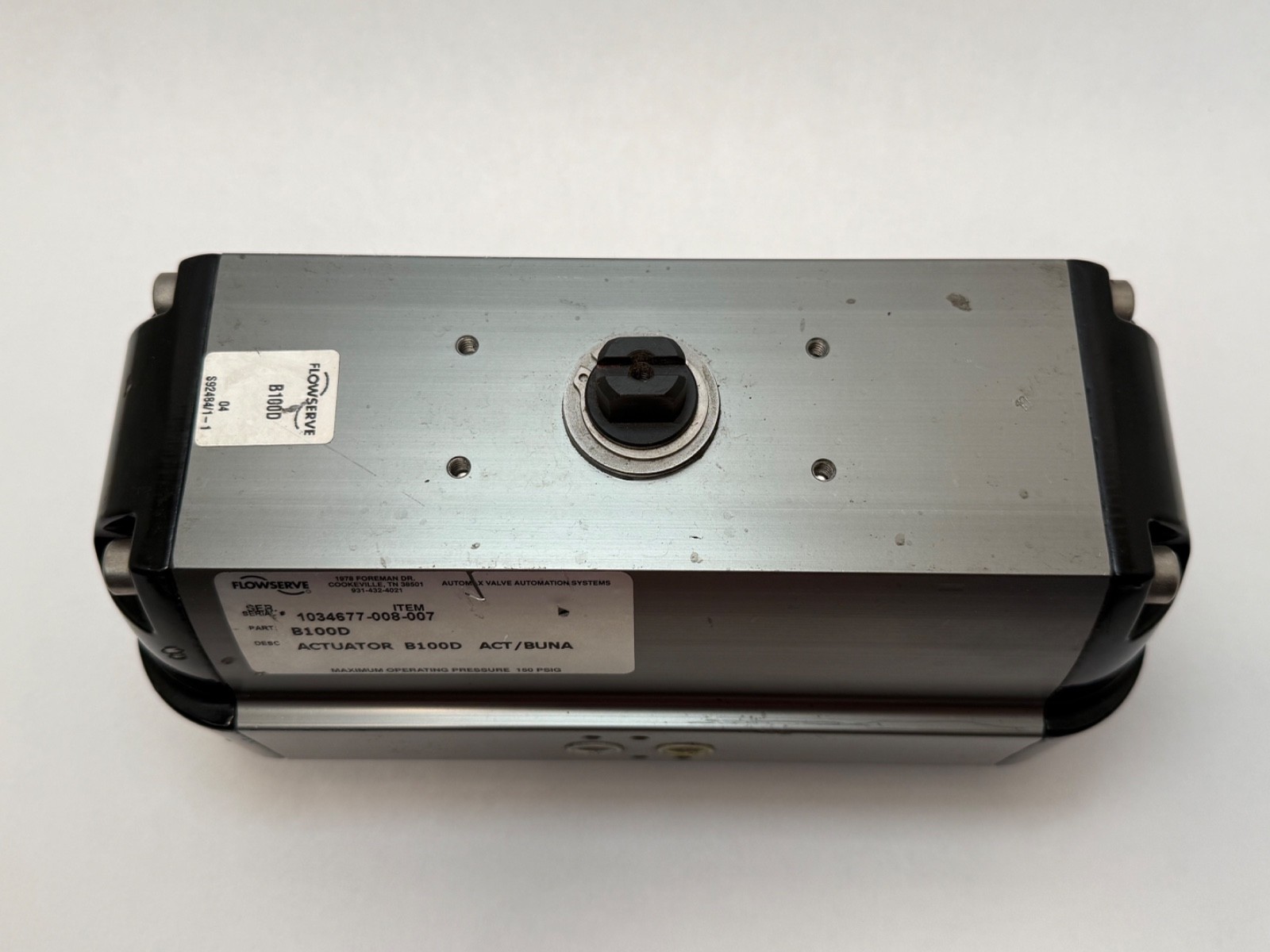

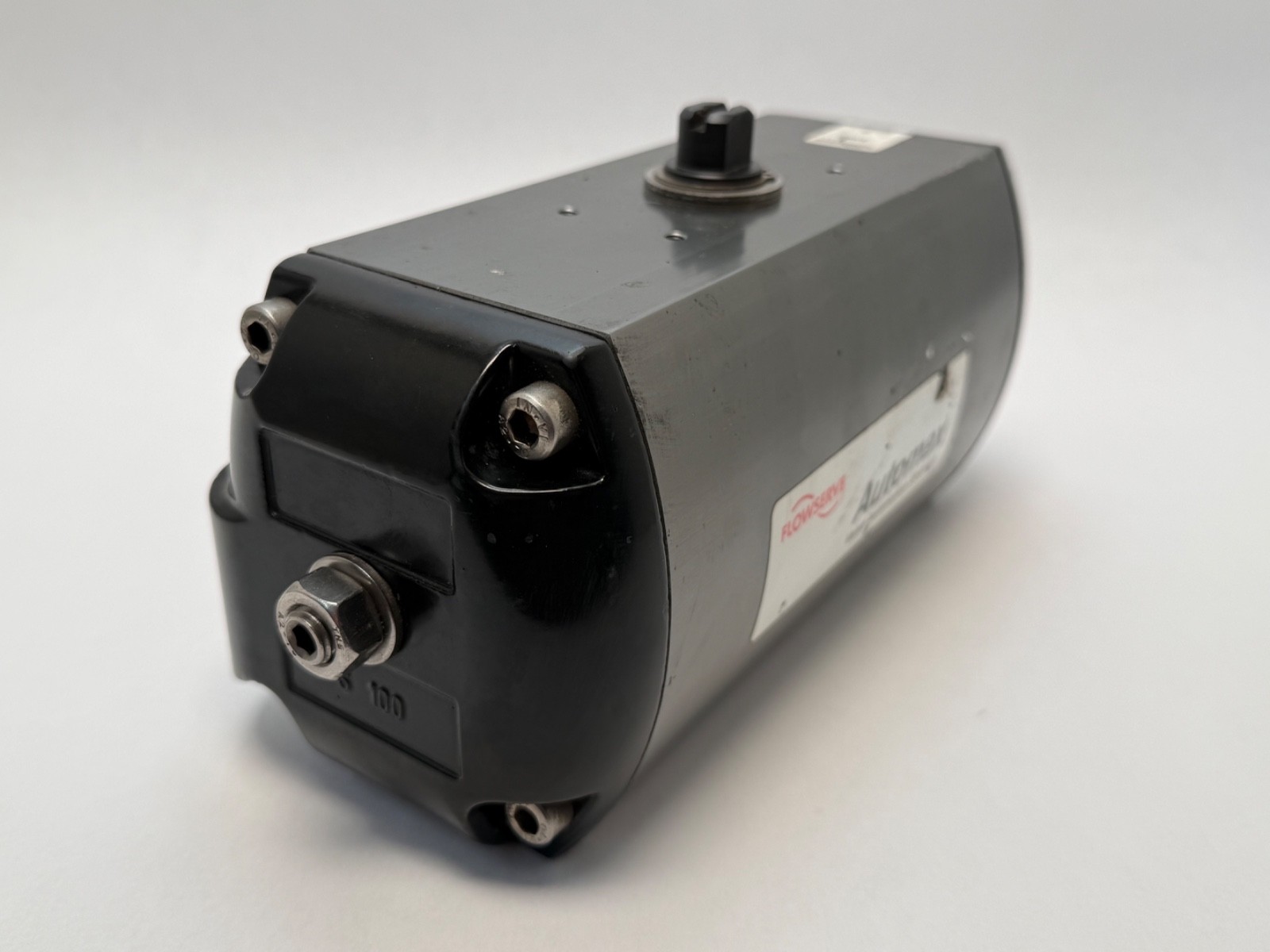

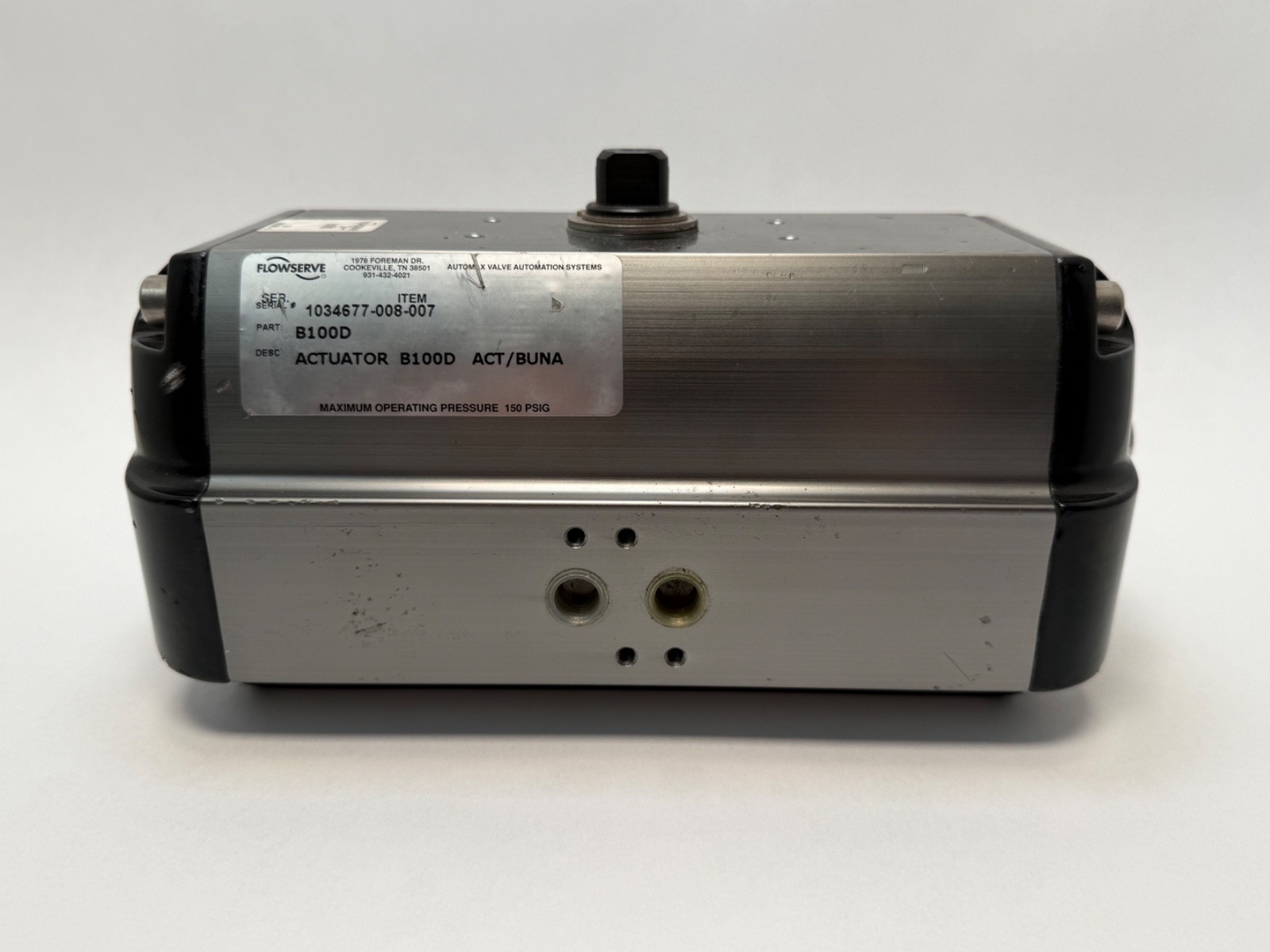

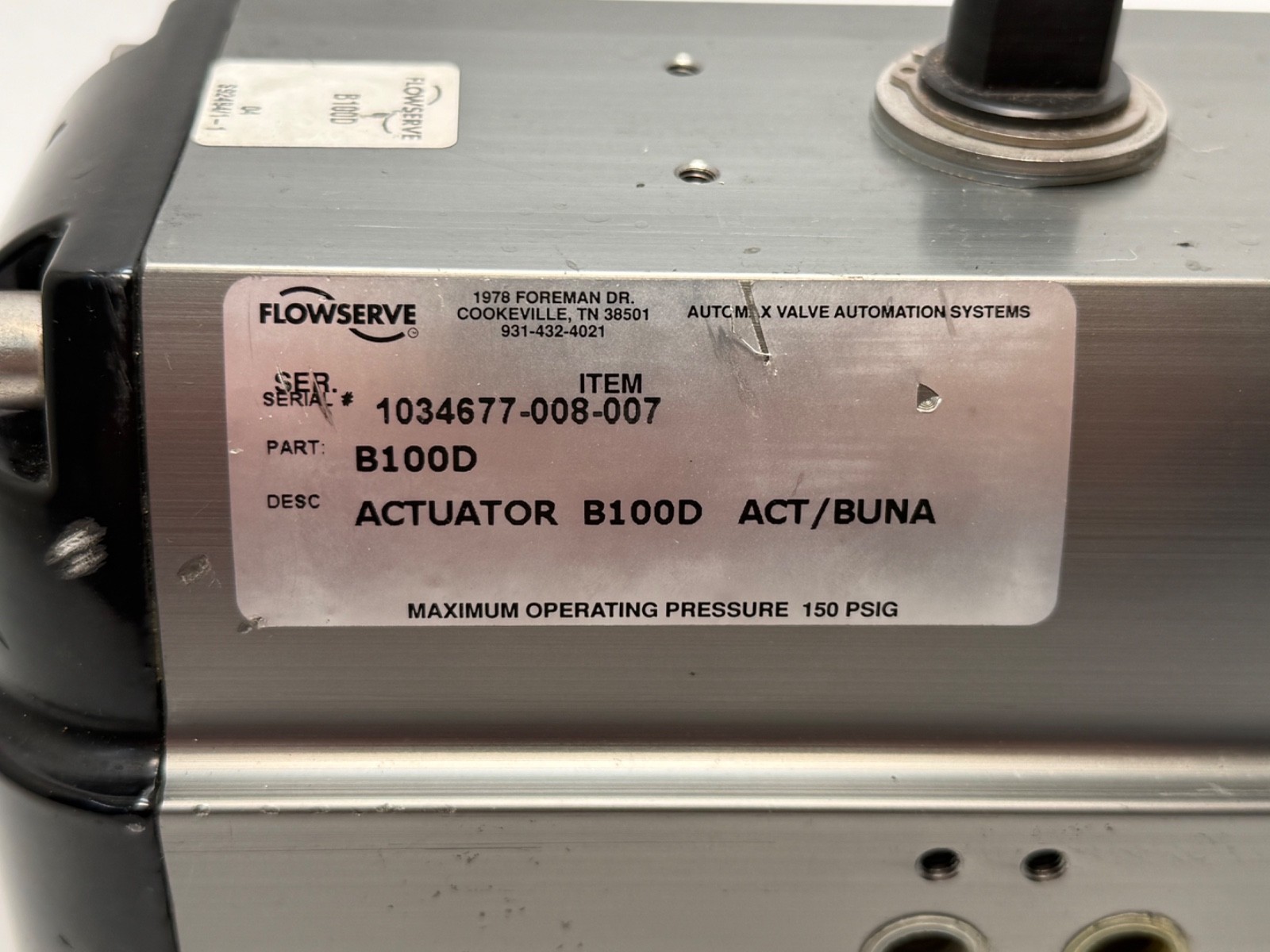

The Flowserve Automax B100D is a double-acting pneumatic rack and pinion actuator from the Automax Supernova family. It turns quarter-turn valves such as ball, butterfly and plug valves. Brand: Flowserve (Automax). MPN: B100D. Actuation: Double acting. Seal Material: Buna (nitrile). Maximum Pressure: 150 PSI.
B100 — Automax B-series Supernova actuator, size 100.
D — double acting. Air drives the pinion in both directions; there are no return springs.
Travel: 100° with adjustable limit stops in both directions of stroke. A double-acting actuator delivers constant torque across the full stroke. Buna seals suit clean, dry instrument air at standard temperatures.

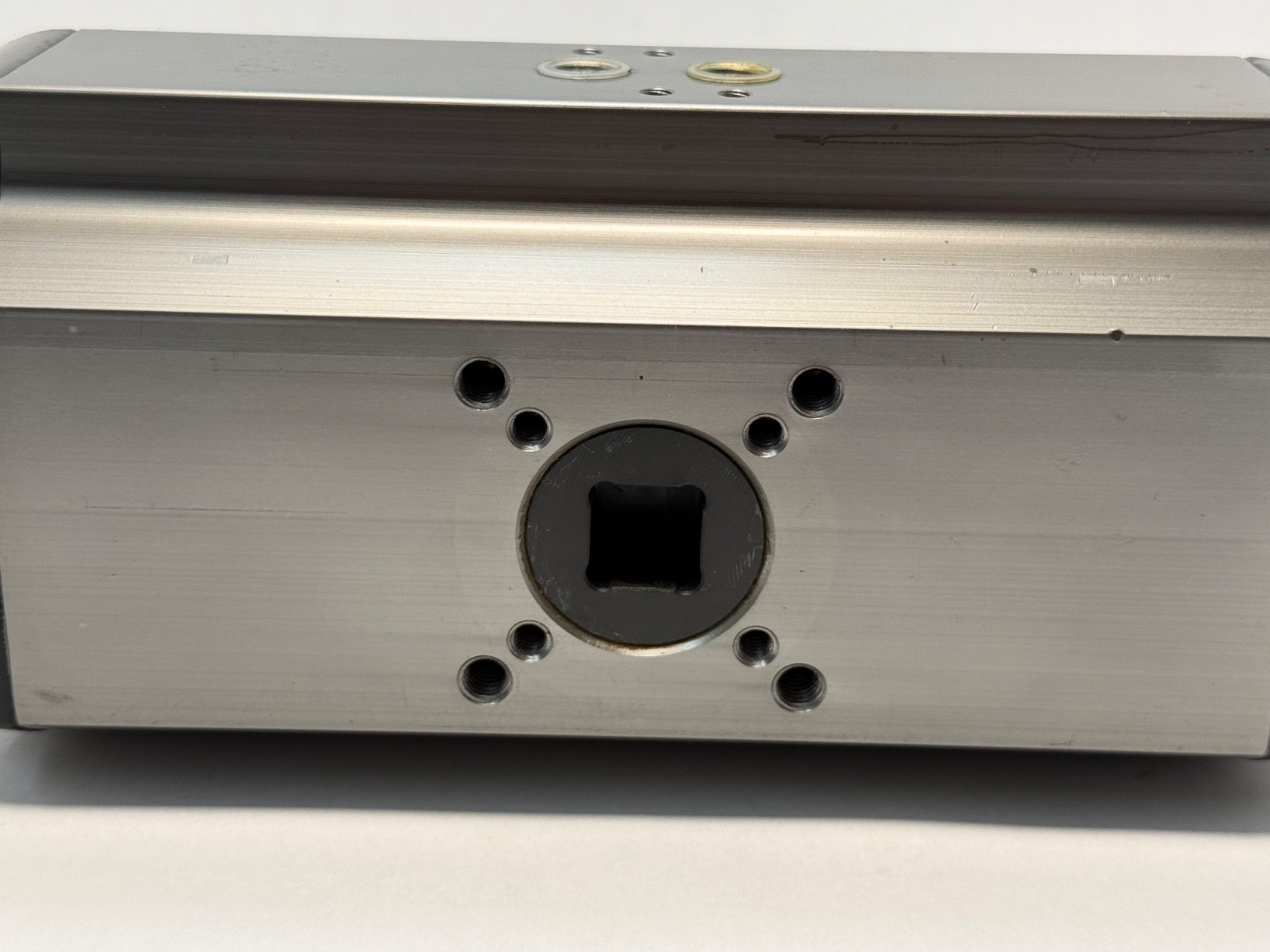

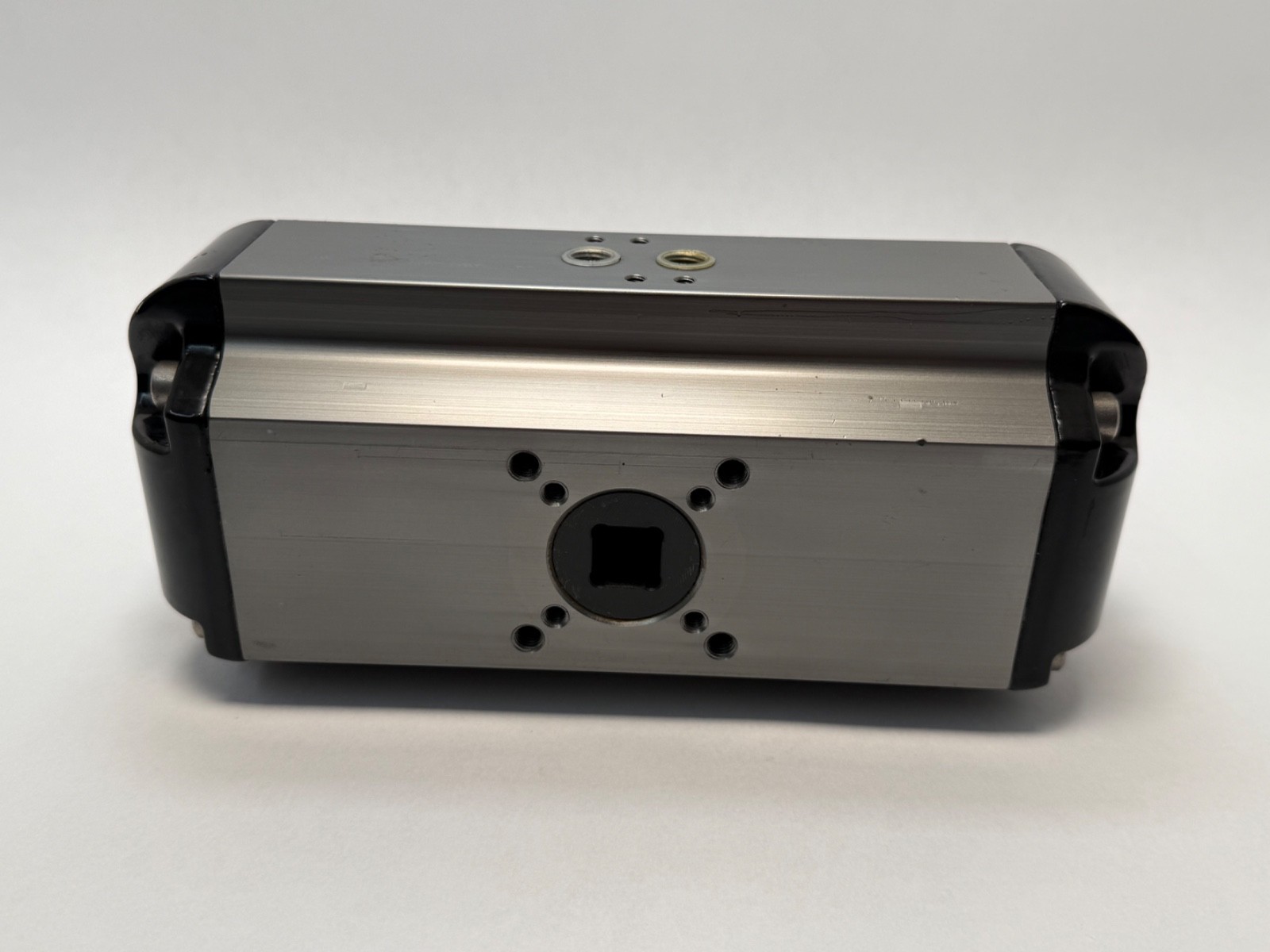

Valve Mounting: ISO 5211 platform with star drive. Accessory Mounting: NAMUR interface for solenoid valves, limit switches and positioners.
One actuator. Condition: new old stock, open box.
