Availability:
1 in stock

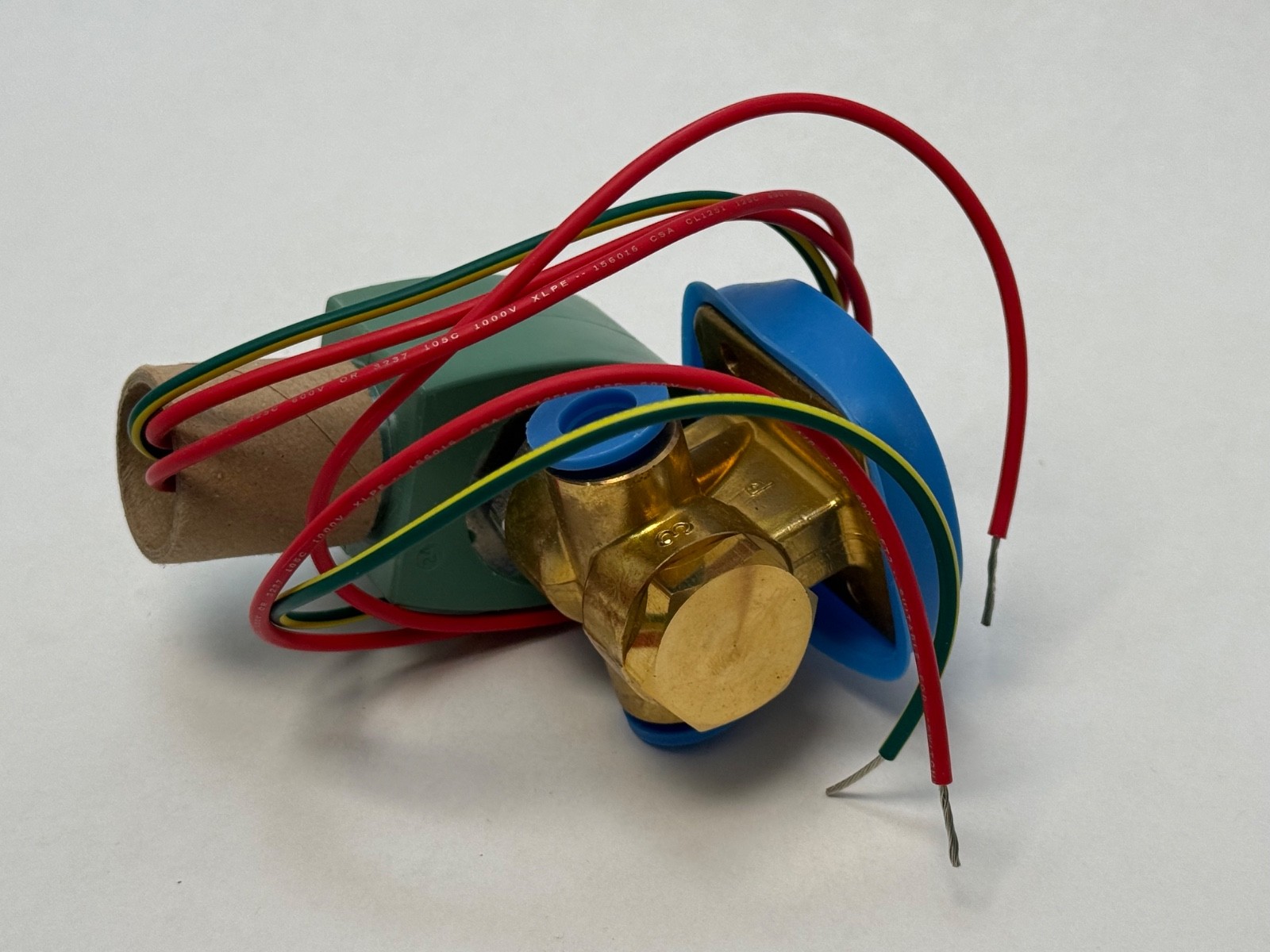

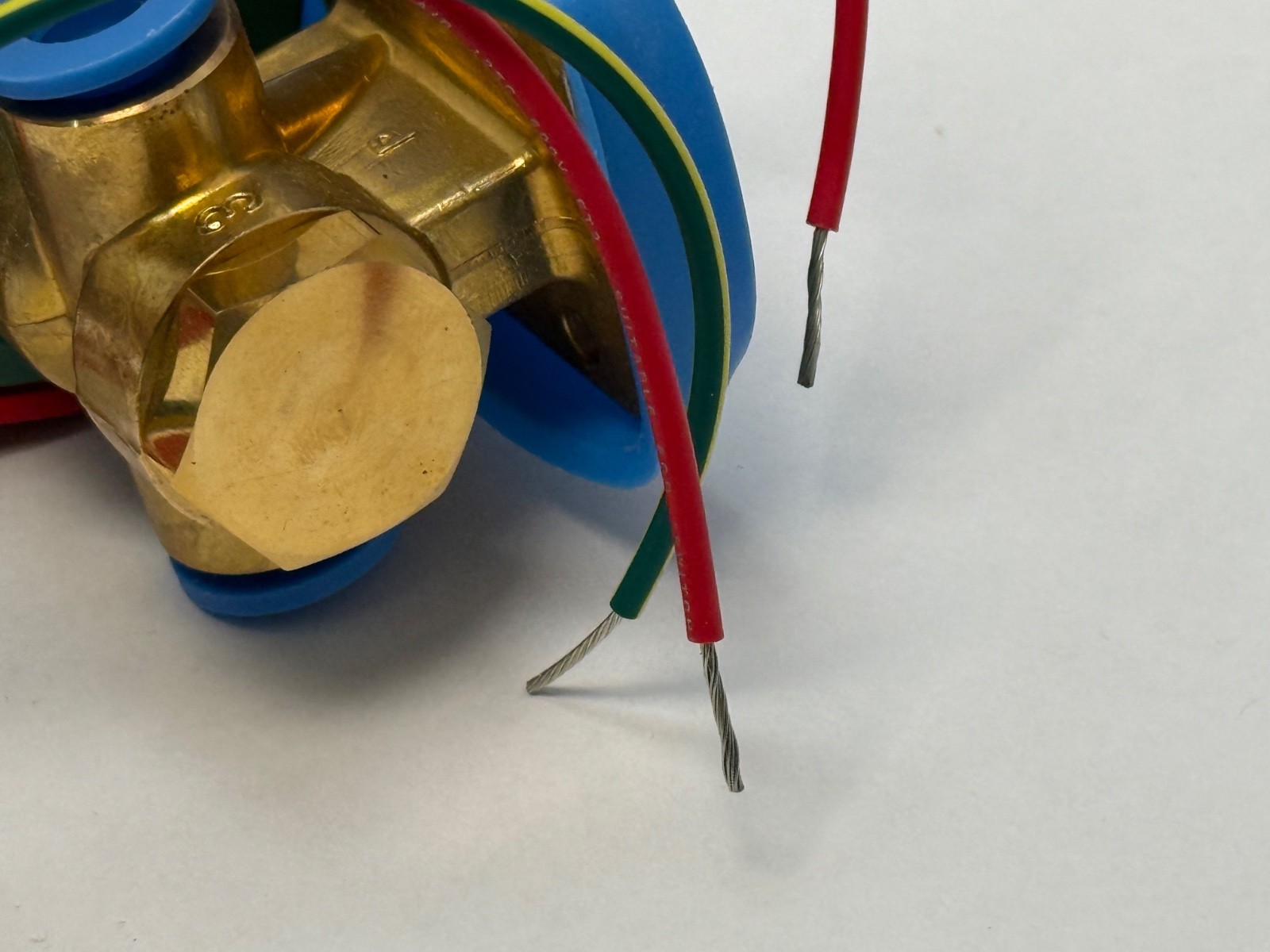

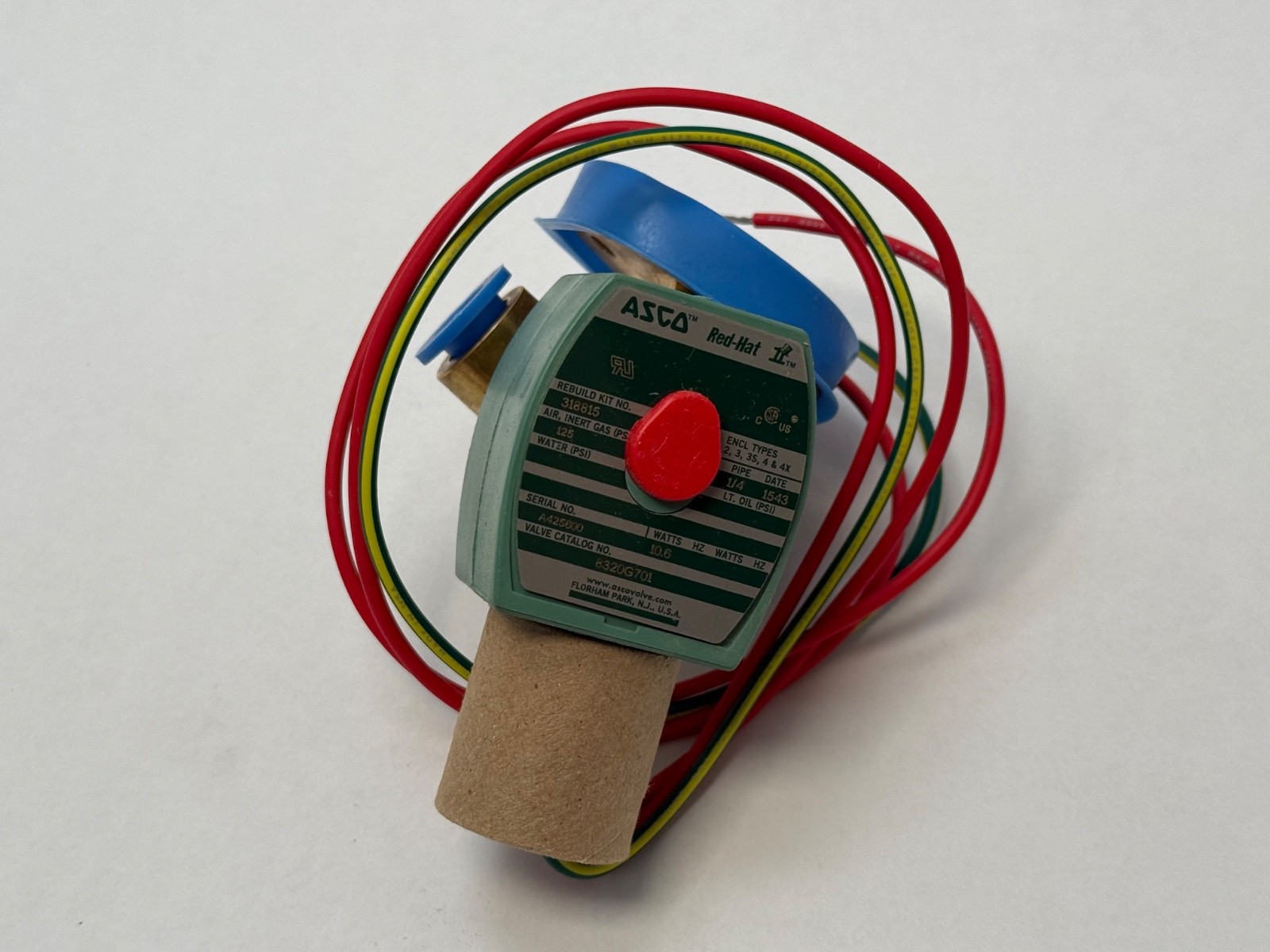

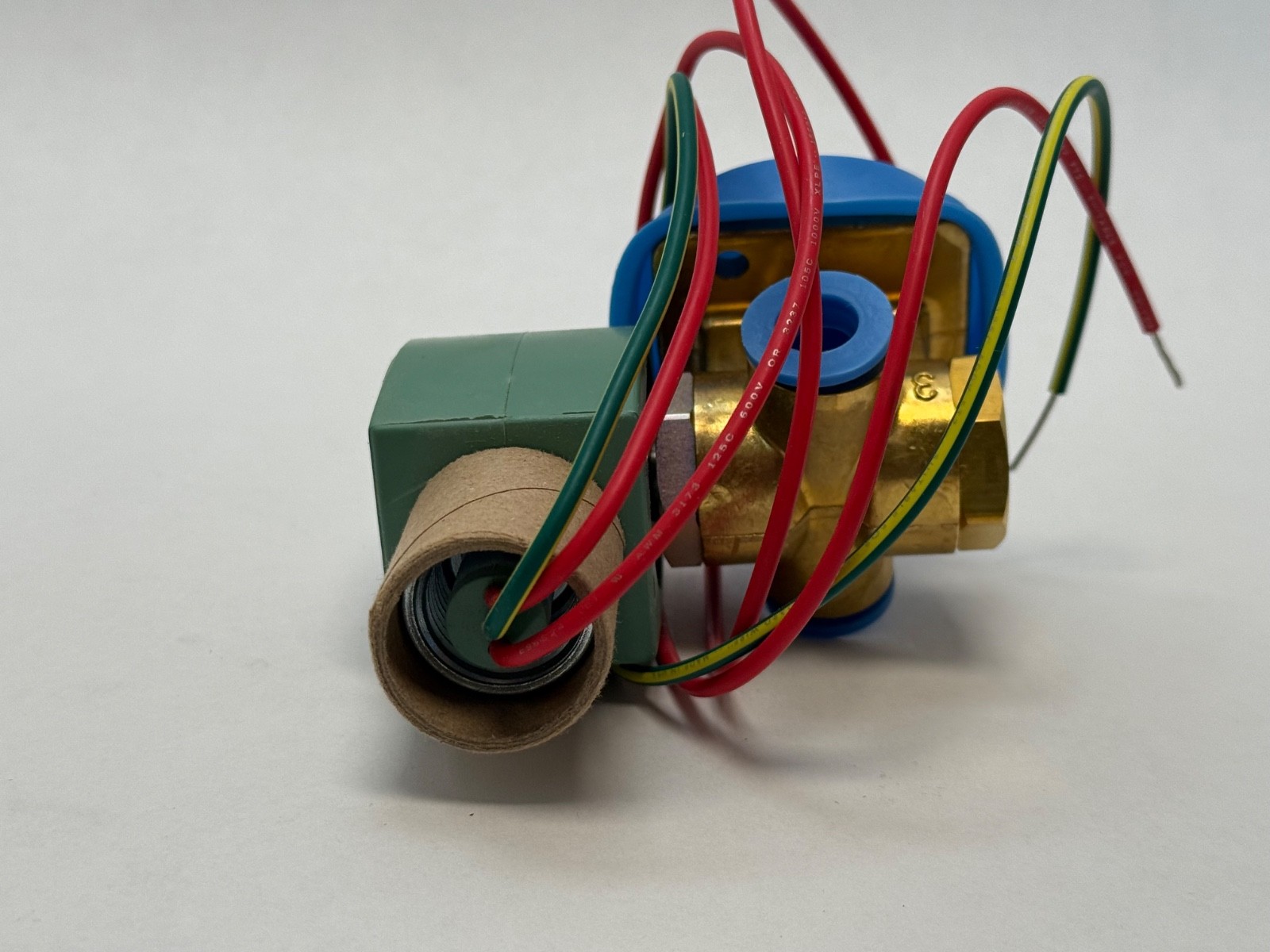

ASCO 8320G701 3-way normally closed direct-acting solenoid valve, 1/4 in NPT, 1/16 in orifice, Cv 0.09, brass body, NBR seat, 120V AC coil, 6.1 W.
List Price
$96.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | ASCO |
|---|---|
| MPN | 8320G701 |
| Model | 8320G701 120/60 |
| Valve Operation | Solenoid |
|---|---|
| Base Number | 8320 |
| Industry Terms | 3-way solenoid valve, 3/2 NC solenoid valve, Red Hat valve, general service solenoid valve, direct acting solenoid valve |
| Common Misspellings | 8320G-701, 8320 G701, ASCO 832OG701, Redhat |
| Application Types | Compressed air control, inert gas control, pneumatic pilot control |
| Coil Voltage | 120V AC |
| Voltage | 120V AC |
| Mpn Variants | 8320G701, 8320G701 120/60, 8320G701AC120/60D, 8320G701AC120/60,110/50D, 8320-G701 |
| Compatible With Replaces | ASCO 8320G701AC120/60D |
| Additional Attributes | Function: 3/2 normally closed. All three ports in the body. Lead length 18 in. |
| Body Material | Brass |
| Series | 8320 (Red Hat 320 Series) |
| Type | Solenoid Valve |
| Current Type | AC |
| Item Weight | 0.73 kg (1.61 lb) |
| Port Size | 1/4 in |
ASCO 8320G701 3-way solenoid valve from the ASCO 320 series (Red Hat) of general-service solenoid valves. Valve Function: 3-way, 3/2 normally closed. Actuation: solenoid, direct acting. Coil Voltage: 120V AC, 60 Hz. All three pipe connections are in the valve body. Unit Quantity: 1 valve.
Brand: ASCO. MPN: 8320G701. Series: 8320. Number Of Ways: 3. Normal Position: Normally closed. Port Size: 1/4 in. Thread Type: NPT. Orifice Size: 1/16 in. Flow Coefficient: Cv 0.09 (Kv 0.07). Body Material: Brass. Seating Elastomer: NBR. Media: Air, inert gas. Current Type: AC. Voltage: 120V AC. Watt Rating: 6.1 W. Holding Current: 16 VA. Coil Class: FT. Fluid Temperature: 32 to 180 °F. Item Weight: 1.61 lb.

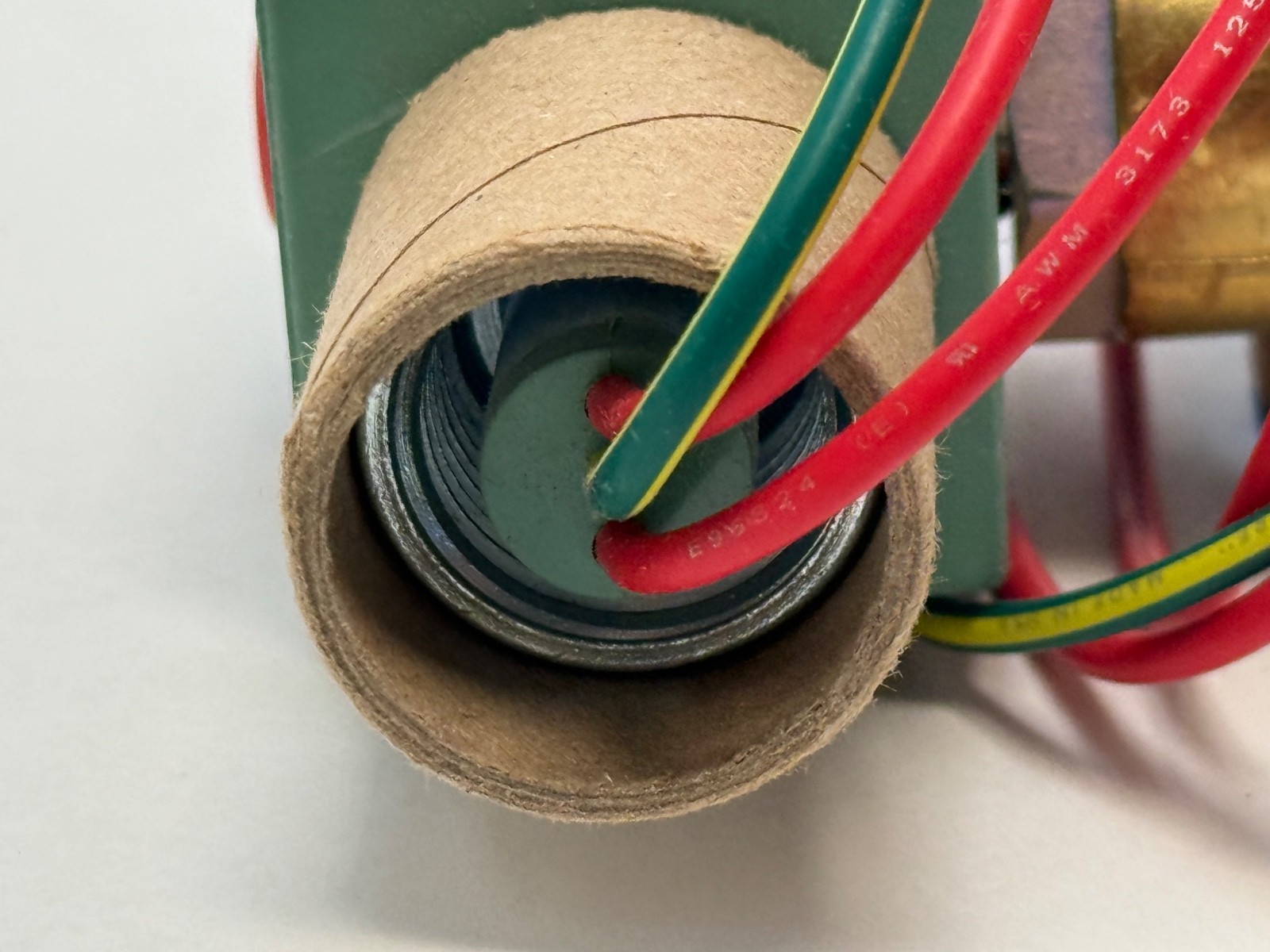

Connections: three 1/4 in NPT ports in the brass body. Mounting Direction: Any. Lead Length: 18 in.
Compatible With / Replaces: ASCO 8320G701AC120/60D. MPN Variants: 8320G701, 8320G701 120/60, 8320G701AC120/60D, 8320G701AC120/60,110/50D, 8320-G701. The 8320G701 body is also built with other coil voltages, for example 8320G701AC208/60D.
3-way, 3/2 normally closed, direct acting solenoid operation.
1/4 in NPT ports with a 1/16 in orifice, Cv 0.09.
Air and inert gas.
