FestoMS6N-LFR-3/8-D7-E-R-VFilter Regulator 527667 3/8 NPT 40 Micron Auto Drain

Condition: New

Availability:

4 in stock

Festo MS6N-LFR-3/8-D7-E-R-V filter regulator with 3/8 NPT ports and 40 micron filtration; 7.4 to 176 psi range, automatic drain, plastic bowl, built-in gauge.

List Price

$80.74

4 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

4 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFesto
MPNMS6N-LFR-3/8-D7-E-R-V
ModelMS6N-LFR-3/8-D7-ERV

Technical Specifications

Maximum Pressure176 psi
SeriesMS6
TypeFilter Regulator
Bowl Drain FunctionAutomatic
Bowl MaterialPlastic
Festo Part Number527667
Filter Rating40 Micron
GaugeBuilt In
Port Diameter3/8 in NPT
Regulation Range7.4-176 psi
Industry Termsfilter regulator; FRL unit; air preparation unit; compressed air filter regulator; pneumatic filter regulator; 3/8 NPT filter regulator
Common MisspellingsFesto MS6N-LFR, Festo MS6N LFR 3/8 D7 E R V, Festo MS6-LFR-3/8-D7-E-R-V, Festo 52766, Festo MS6N-LRF-3/8
Application TypesCompressed air preparation; pneumatic machinery; factory air lines; automation equipment
Mpn VariantsMS6N-LFR-3/8-D7-E-R-V, MS6N-LFR-3/8-D7-ERV, MS6NLFR38D7ERV, 527667
Additional AttributesPlastic bowl with guard; built-in gauge; fully automatic drain; MS6N NPT version
Item Weight0.79 kg (1.75 lb)
Seller Part Number: DB2#F44DCY

Product Description

What this part is:

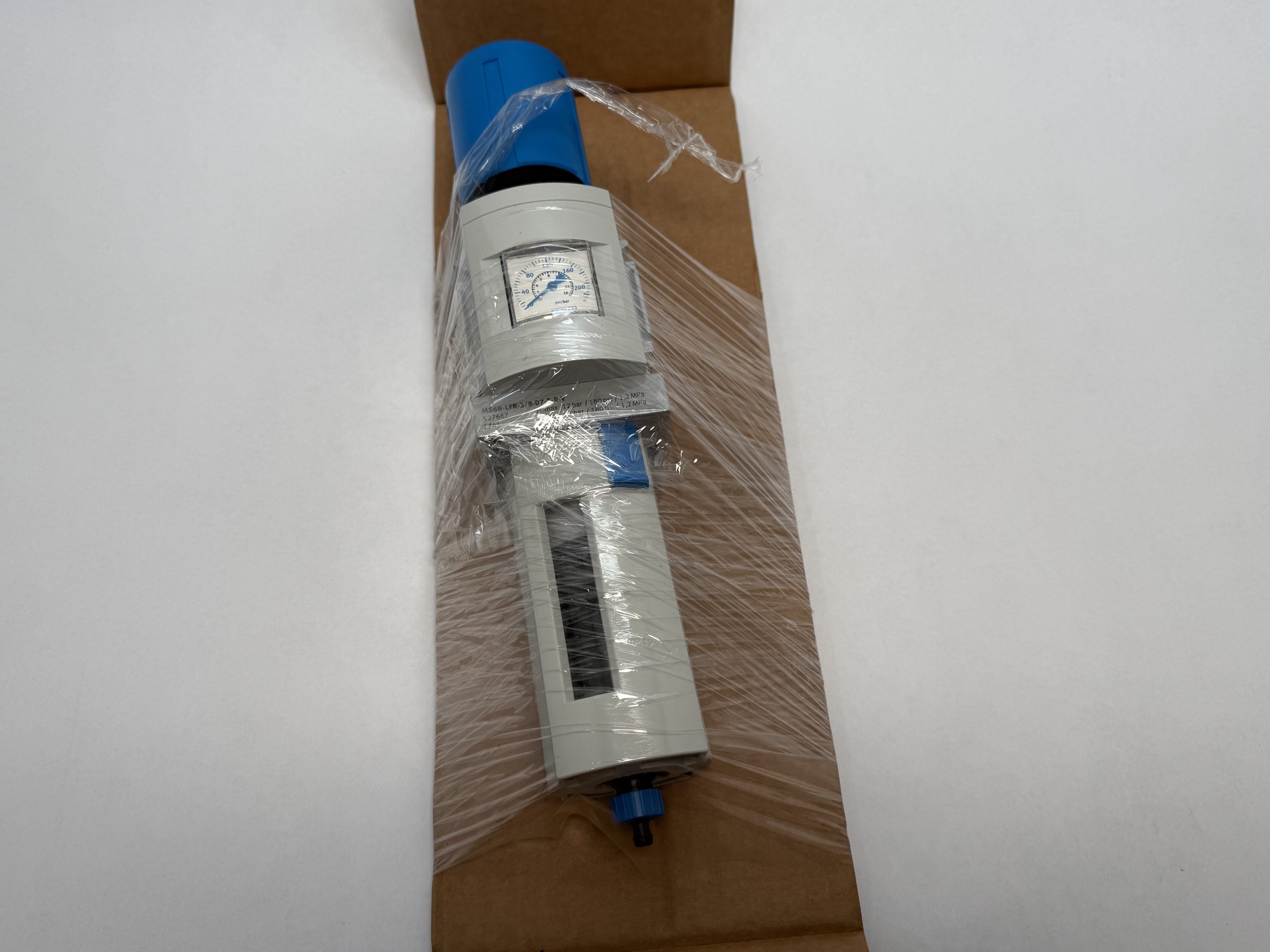

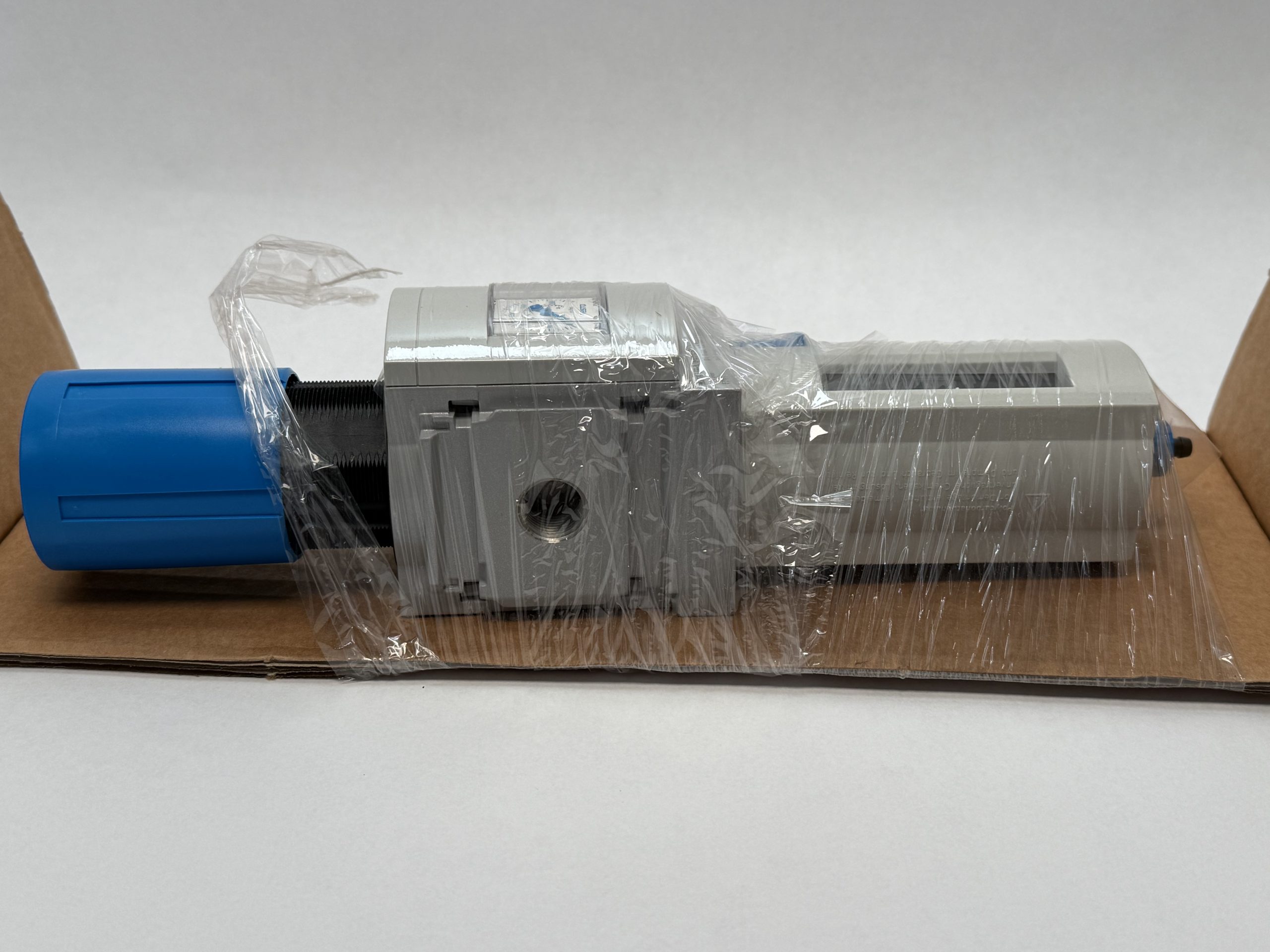

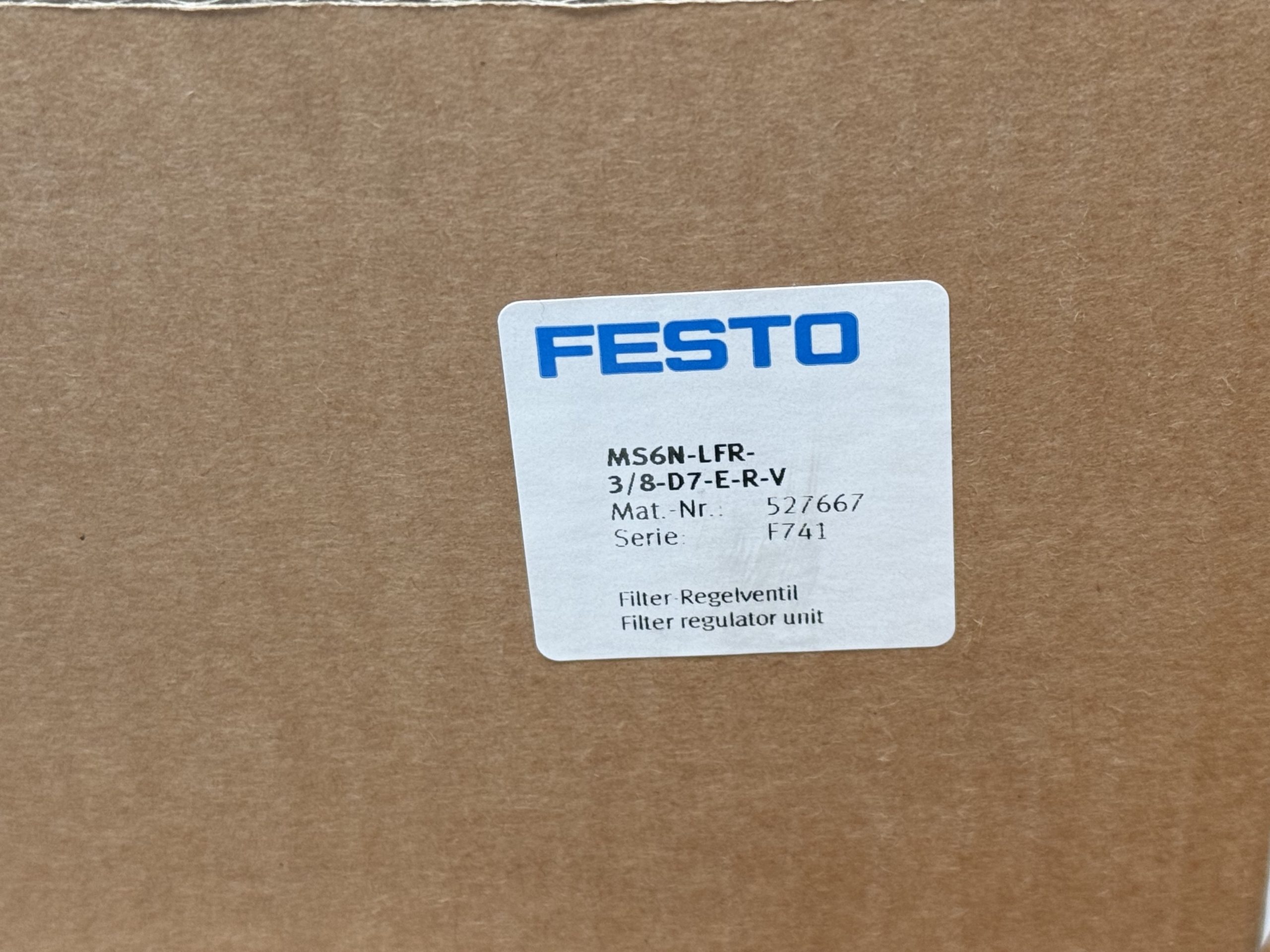

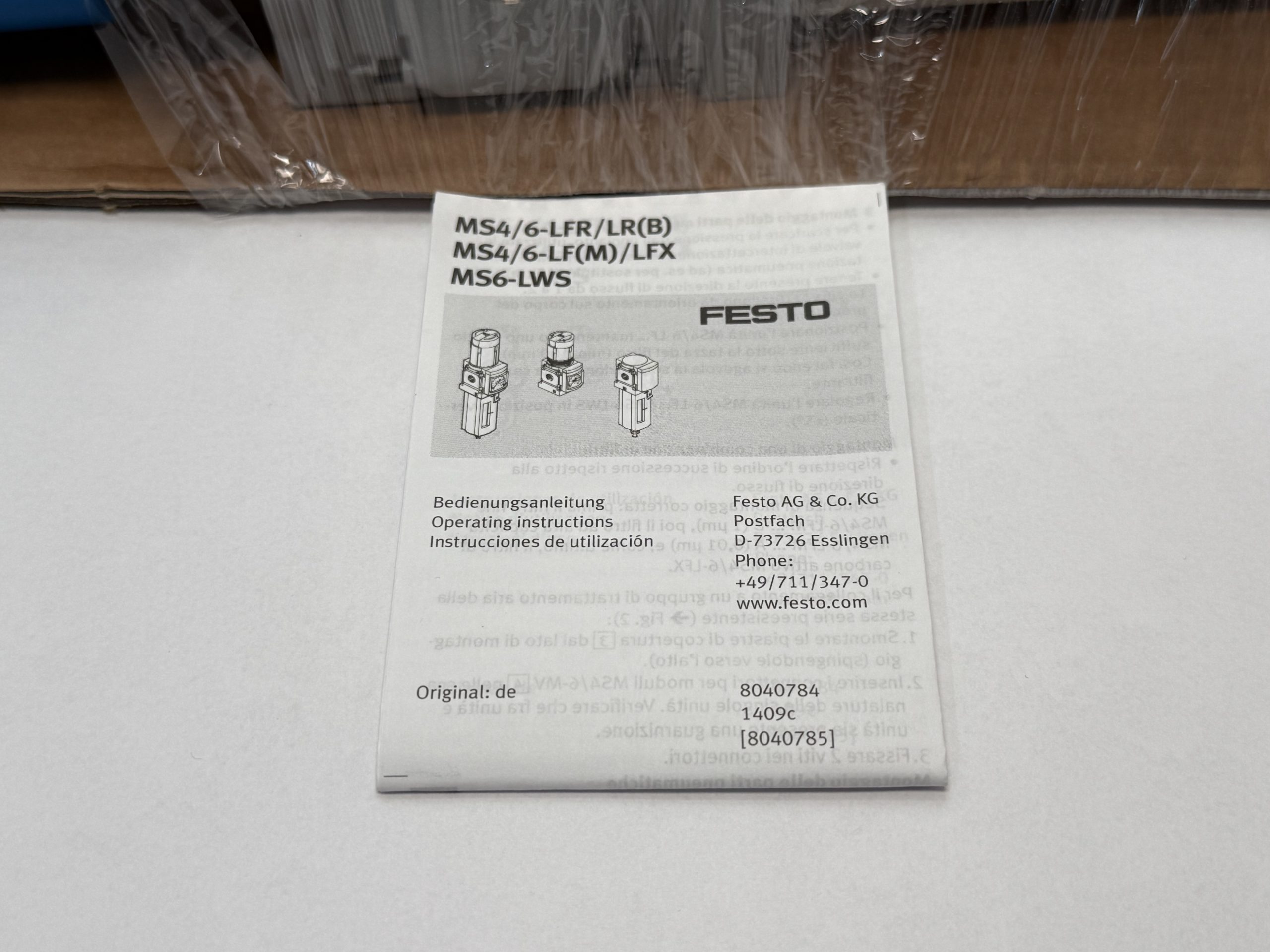

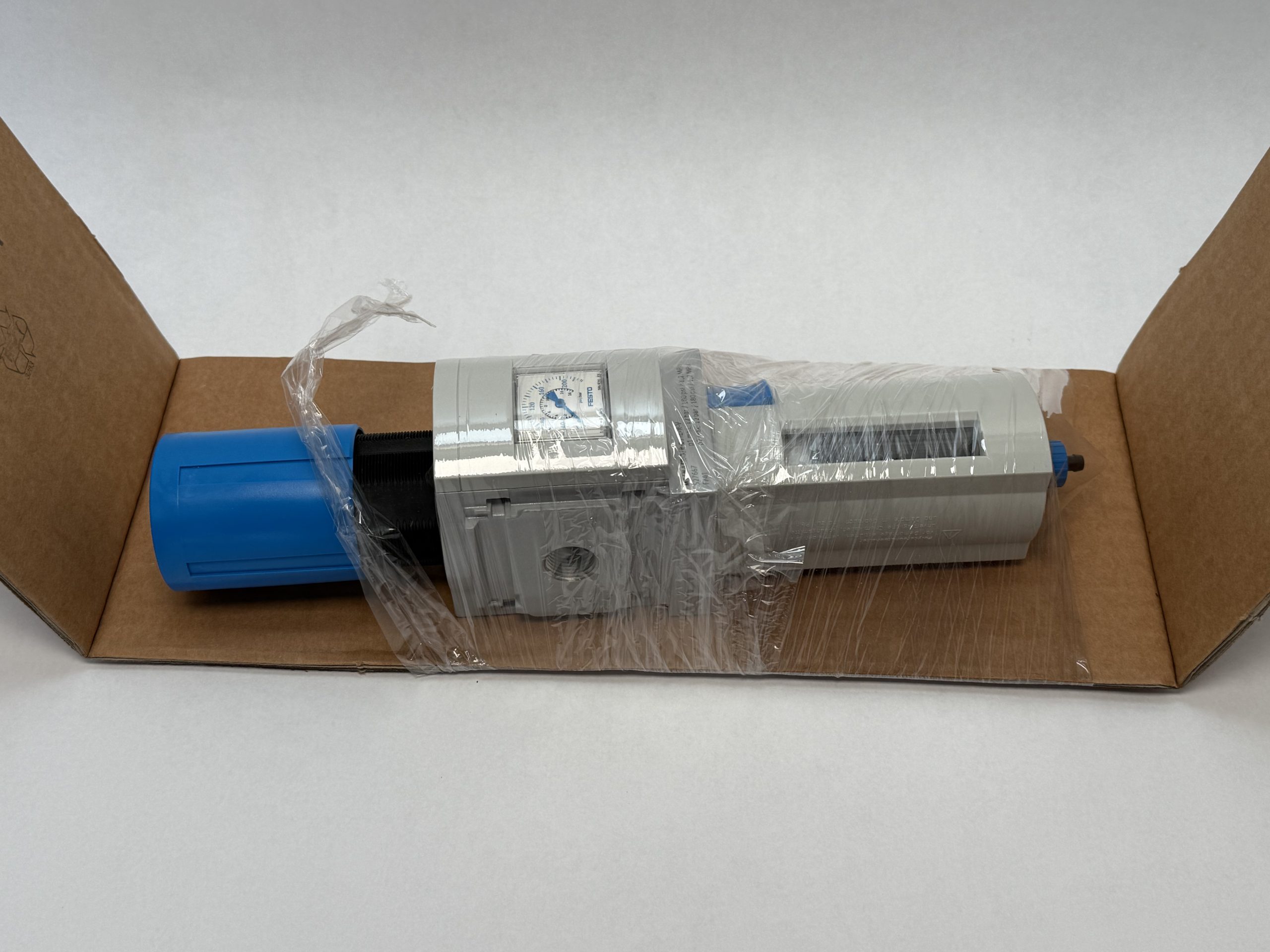

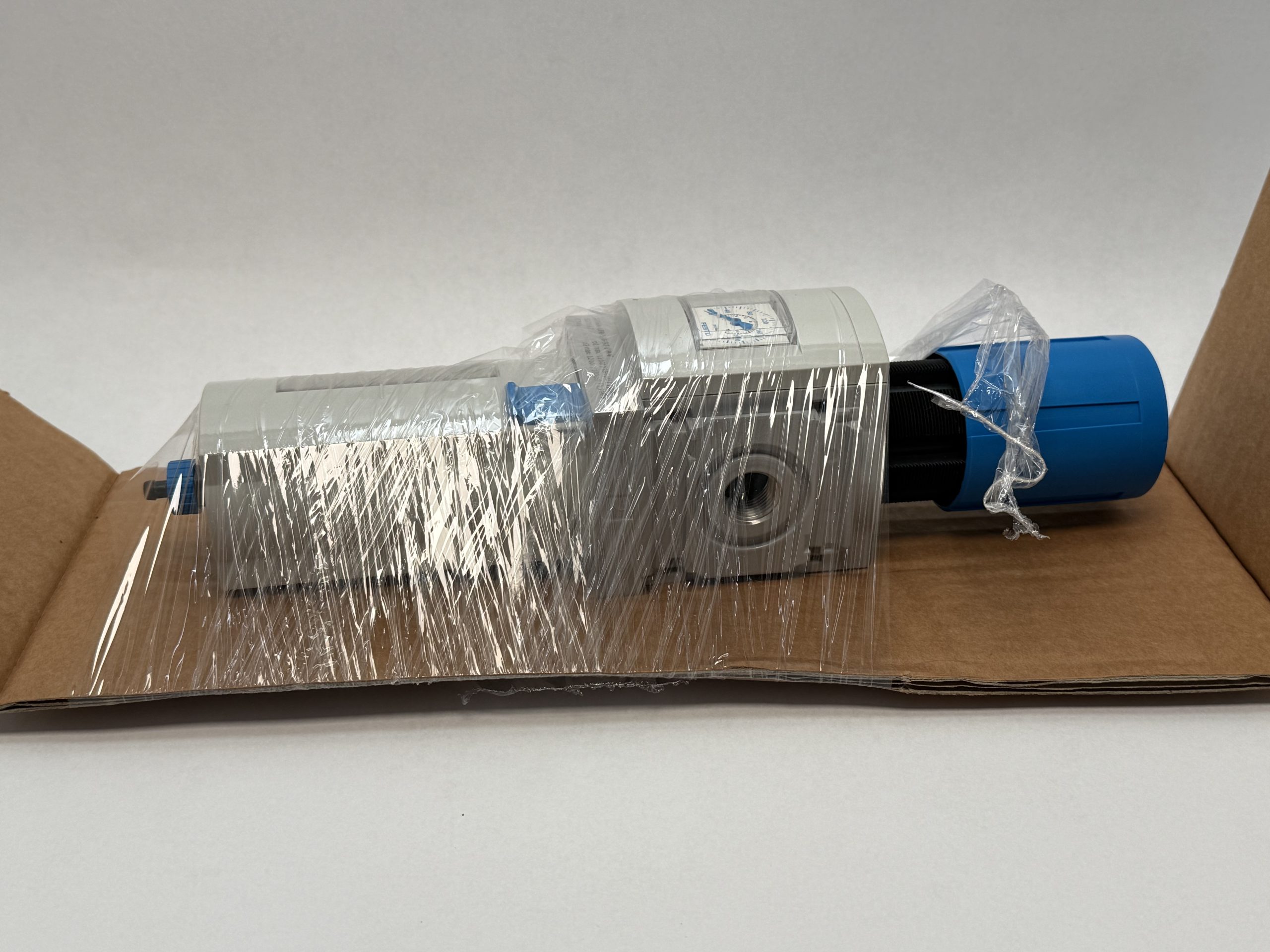

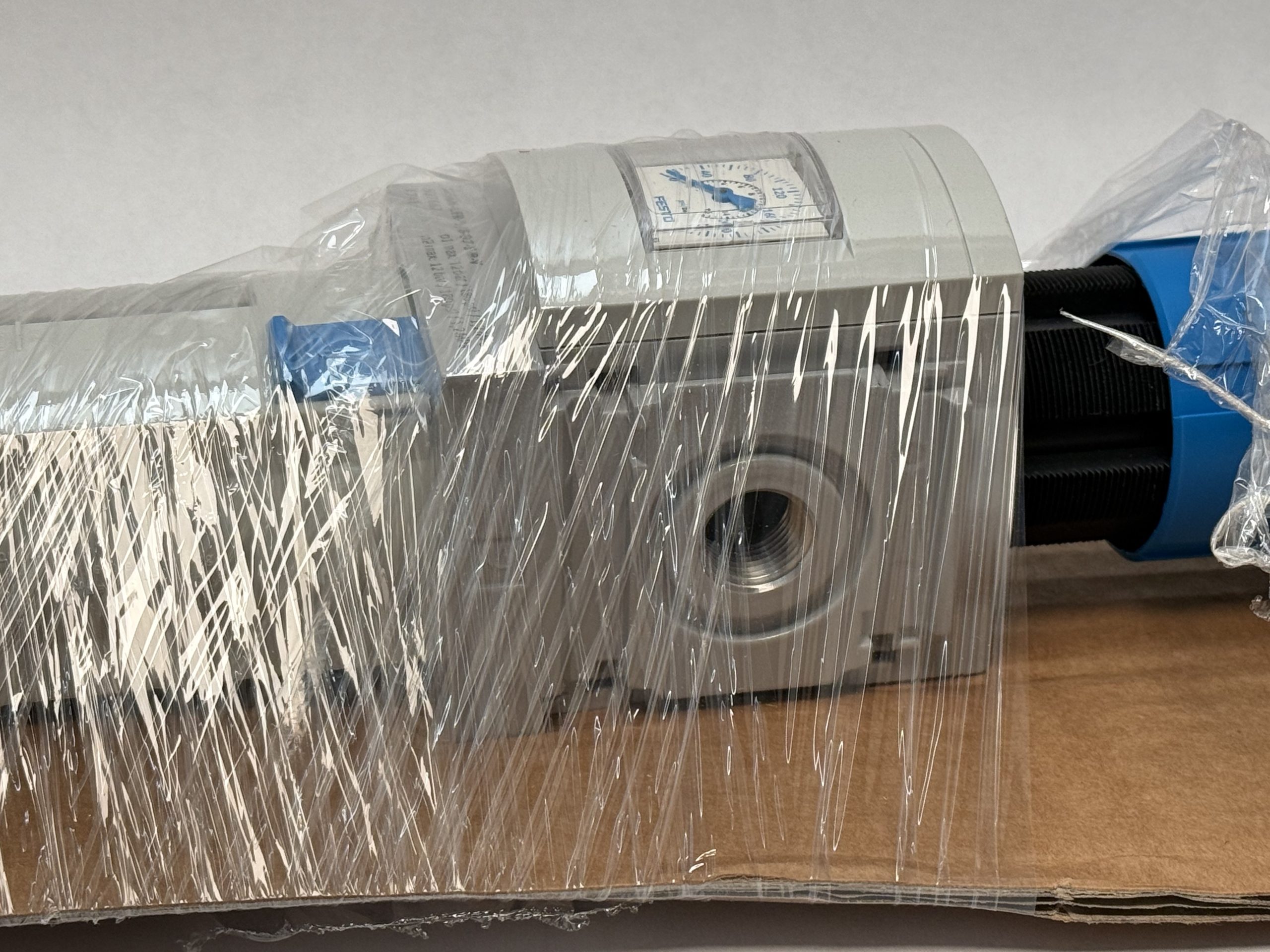

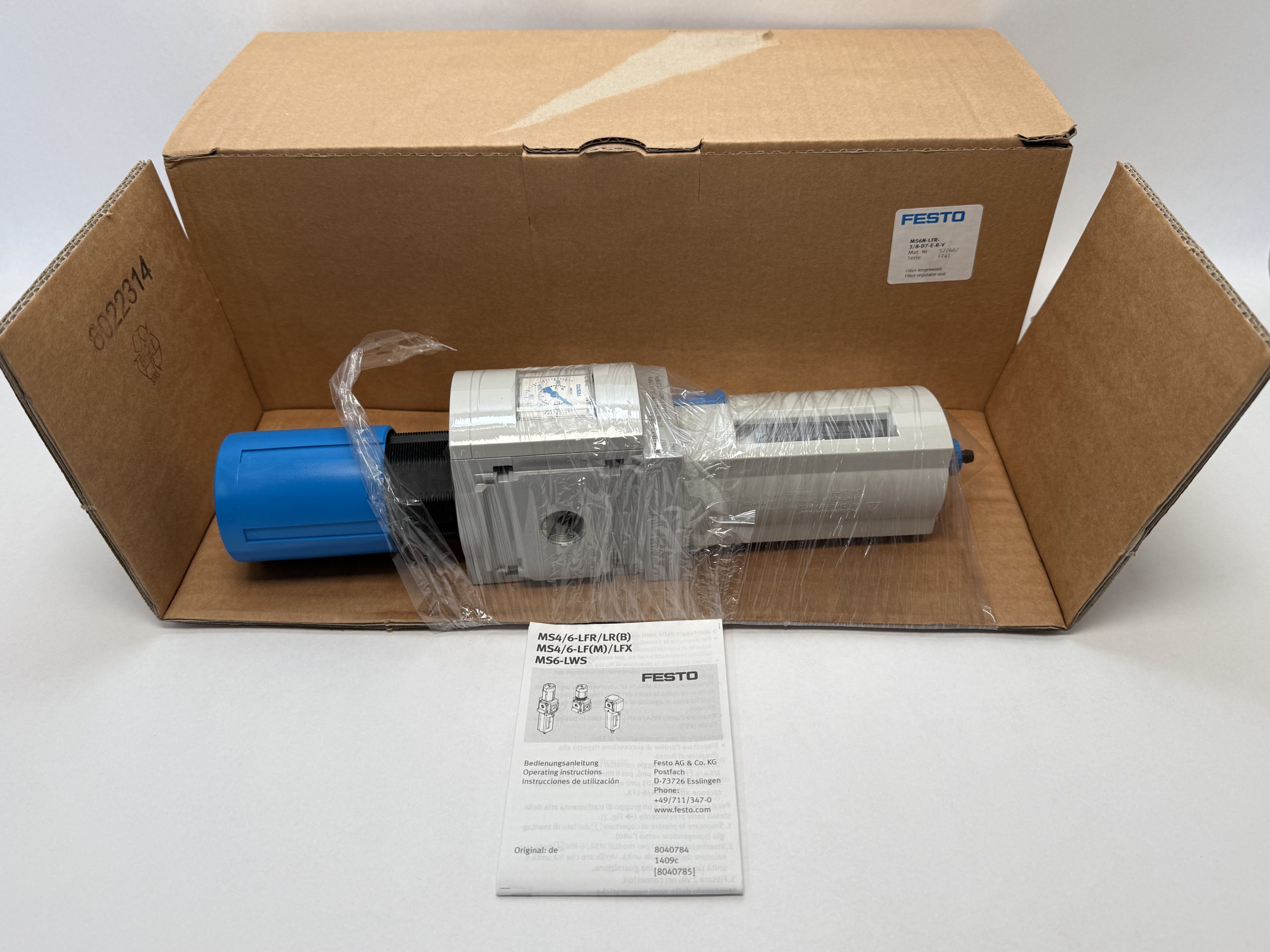

Festo MS6N-LFR-3/8-D7-E-R-V filter regulator, Festo part number 527667, from the MS series compressed air preparation line. It filters and regulates in one unit with 3/8 NPT ports, a 40 micron filter element, a 7.4 to 176 psi regulation range, a fully automatic condensate drain, a plastic bowl with plastic bowl guard and a pressure gauge built into the regulator body. Condition: new in the original Festo box, shrink-wrapped, with the Festo operating instructions. Unit Quantity: 1 Pc.

Decoding the designation:

MS6N — MS series, size 6, NPT threads.

LFR — filter regulator.

3/8 — 3/8 NPT ports.

D7 — pressure regulation range 7.4 to 176 psi.

E — 40 µm filtration grade.

R — plastic bowl with plastic bowl guard.

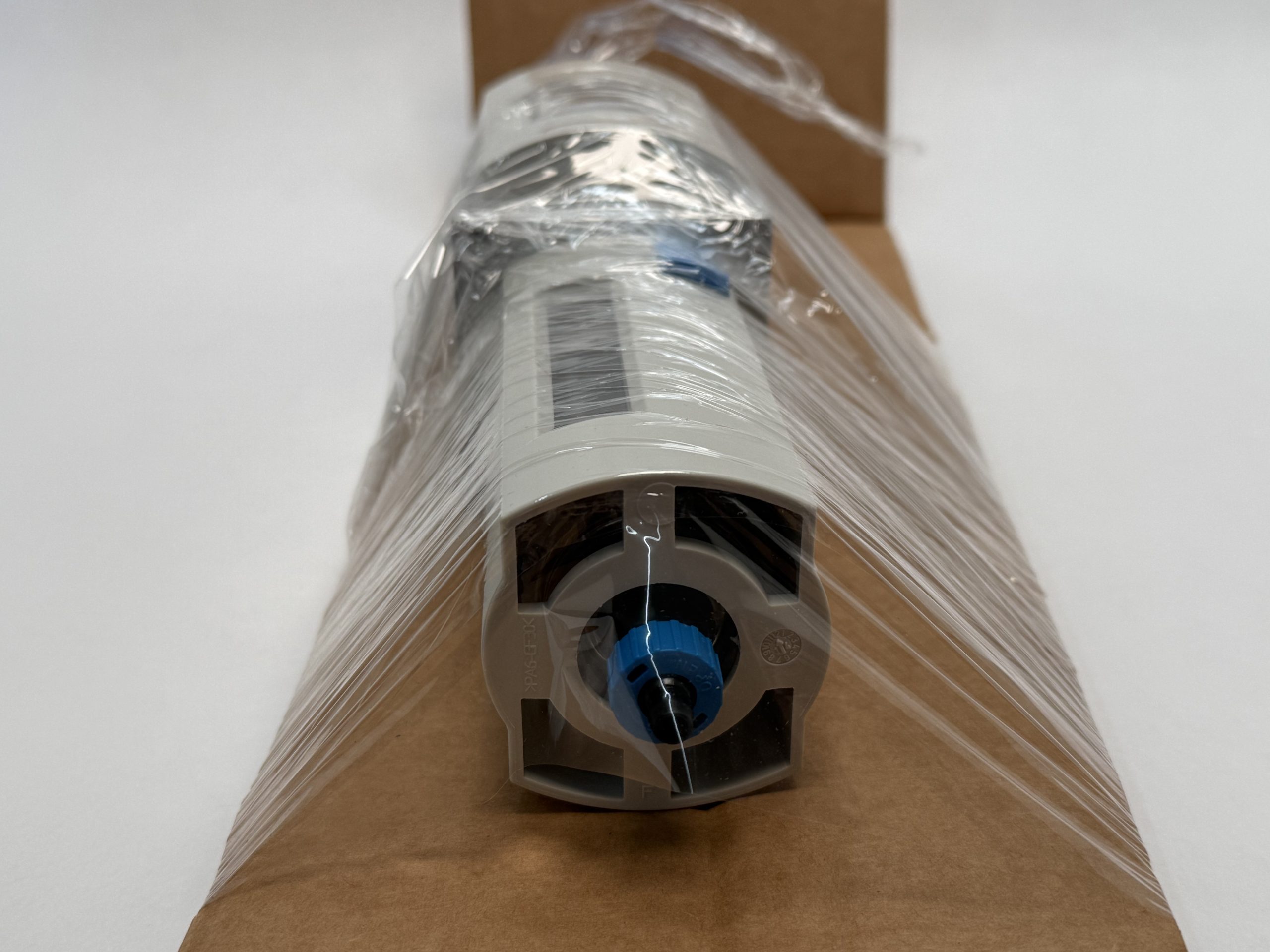

V — fully automatic condensate drain.

Specifications:

Brand: Festo. Manufacturer Part Number: MS6N-LFR-3/8-D7-E-R-V. Festo Part Number: 527667. Type: Filter regulator, MS series. Port Size: 3/8 in NPT. Filtration Grade: 40 µm. Regulation Range: 7.4 to 176 psi. Maximum Input Pressure: 12 bar (1.2 MPa), marked on unit. Standard Nominal Flow: 141.2 scfm (Festo catalog, 3/8 NPT, 40 µm). Condensate Drain: Fully automatic. Bowl: Plastic with plastic bowl guard. Gauge: Built in. Operating Temperature: 41 to 140 °F. Country of Origin: Germany. Unit Quantity: 1 Pc.

Dimensions and mounting:

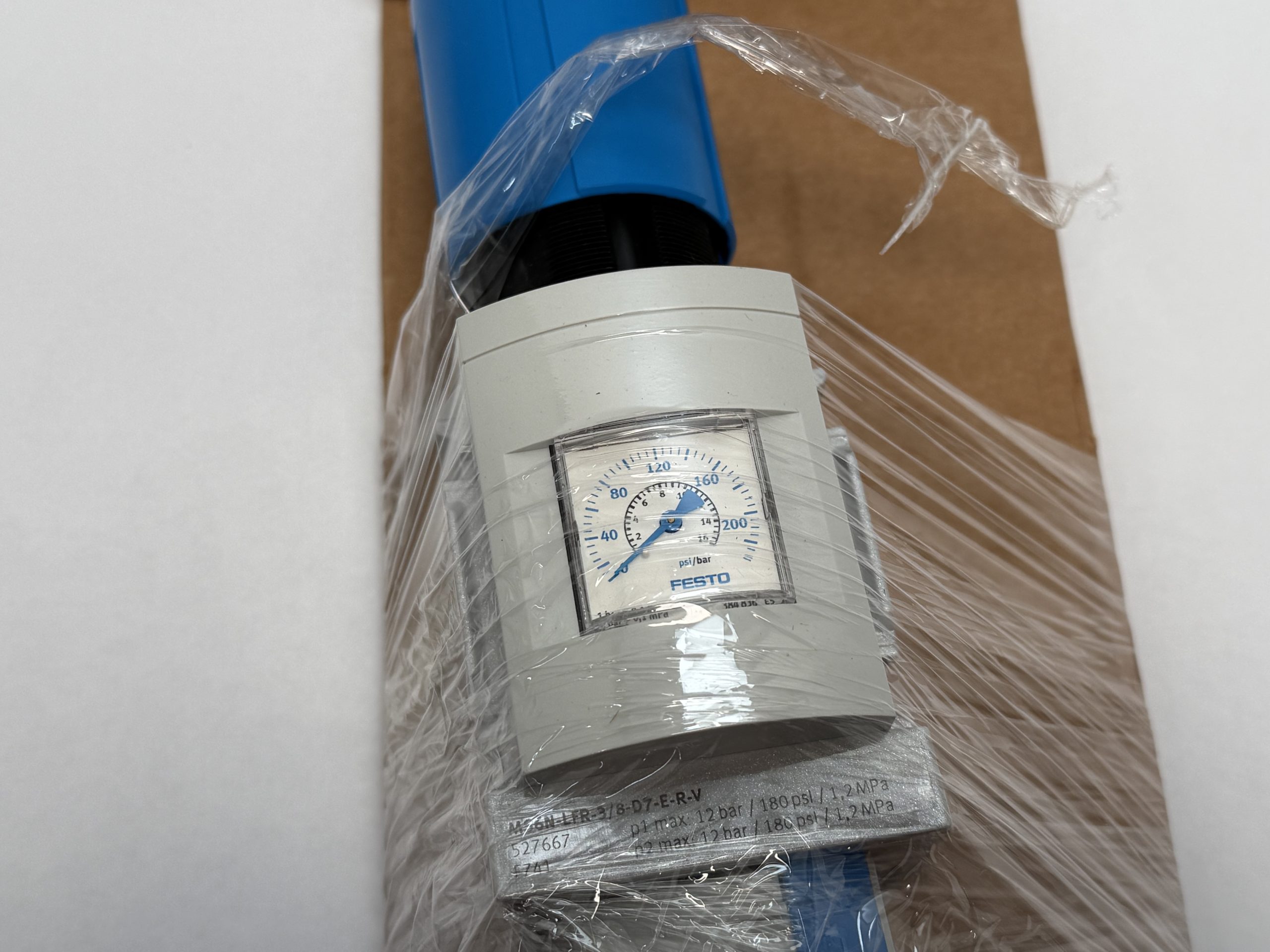

Port Size: 3/8 in NPT. Weight: 1.75 lb (Festo catalog). The pressure gauge is built into the regulator body.

Compatibility and replacement:

Festo part number 527667. Also sold and searched as MS6N-LFR-3/8-D7-ERV and MS6NLFR38D7ERV.

Frequently asked questions:

What are the port size and filtration grade?

The ports are 3/8 NPT and the filter element is 40 µm.

What is the regulation range?

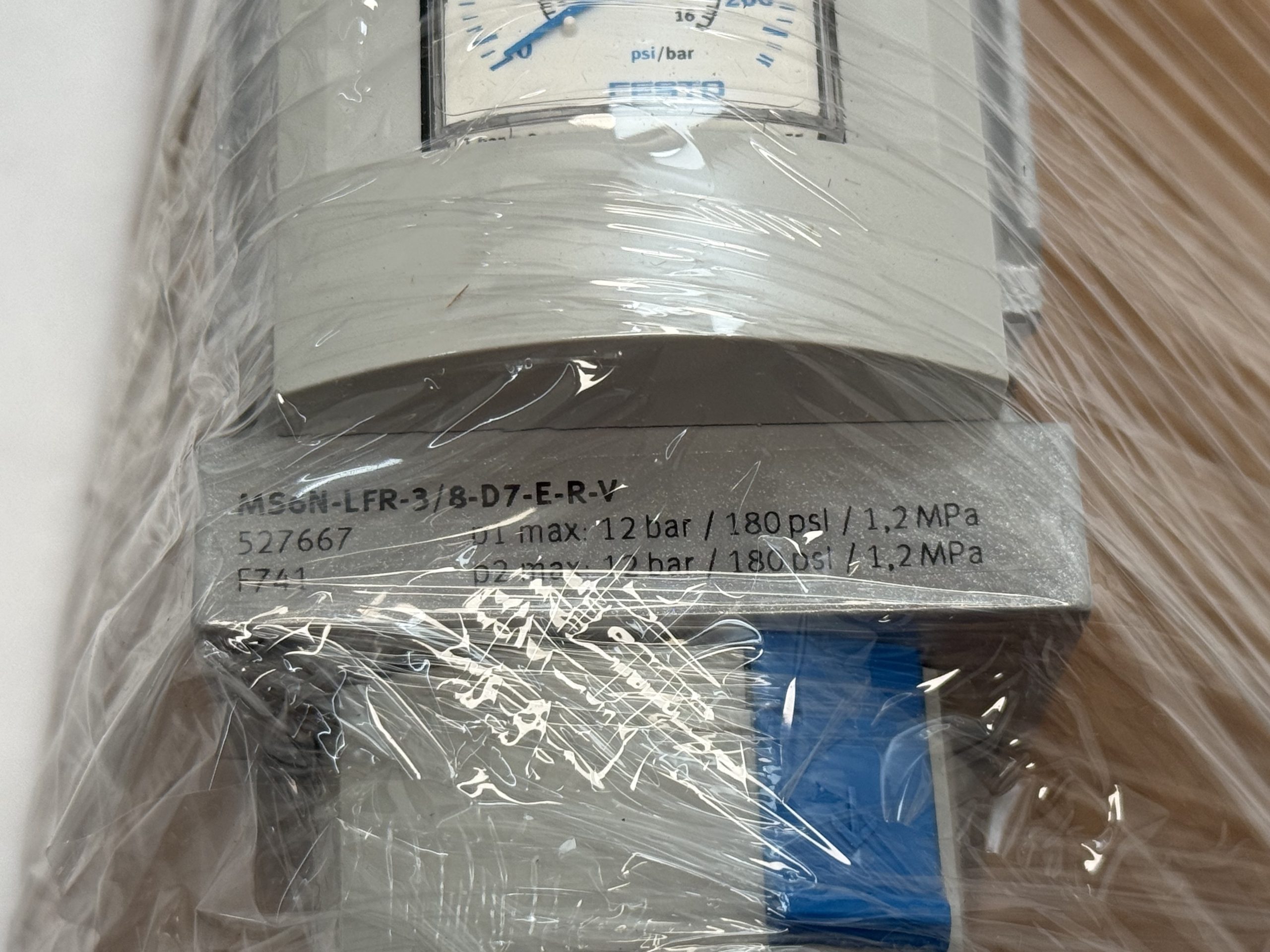

The regulation range is 7.4 to 176 psi, with a maximum input pressure of 12 bar (1.2 MPa) marked on the unit.

What drain and bowl does it have?

The condensate drain is fully automatic, and the bowl is plastic with a plastic bowl guard.
