Clevis mounting MP2, Series CM1, for 50 mm piston ISO 15552 cylinders, 12 mm pivot pin, corrosion-resistant anodized aluminum. Aventics / Bosch 3682905590.
List Price
$49.99

2 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Bosch |
|---|---|
| MPN | 3682905590 |
| Model | 3682905590 MP2 |
| ID | 50 mm |
| Mpn Variants | 3682905590, 3 682 905 590 |
|---|---|
| Additional Attributes | CB H14 32 mm; CD H9 12 mm; E max 65 mm; FL 27 mm +/-0.2; L min 15 mm; MR 12 mm; UB h14 60 mm; VB 65 mm; TG 46.5 mm +/-0.2; screws stainless steel; bearing plastic |
| Material | Forged aluminum, anodized |
| Series | CM1 |
| Type | Clevis Mounting MP2 |
| Item Weight | 0.232 kg |
| Industry Terms | clevis mounting; rear clevis; cylinder clevis; ISO 15552 clevis; pivot mount |
| Common Misspellings | Bosch 3682905590 MP2; Aventics 368 2905 590; Bosch Rexroth 3682905590 |
| Application Types | pneumatic cylinder mounting; ISO 15552 profile cylinders; automation machinery |

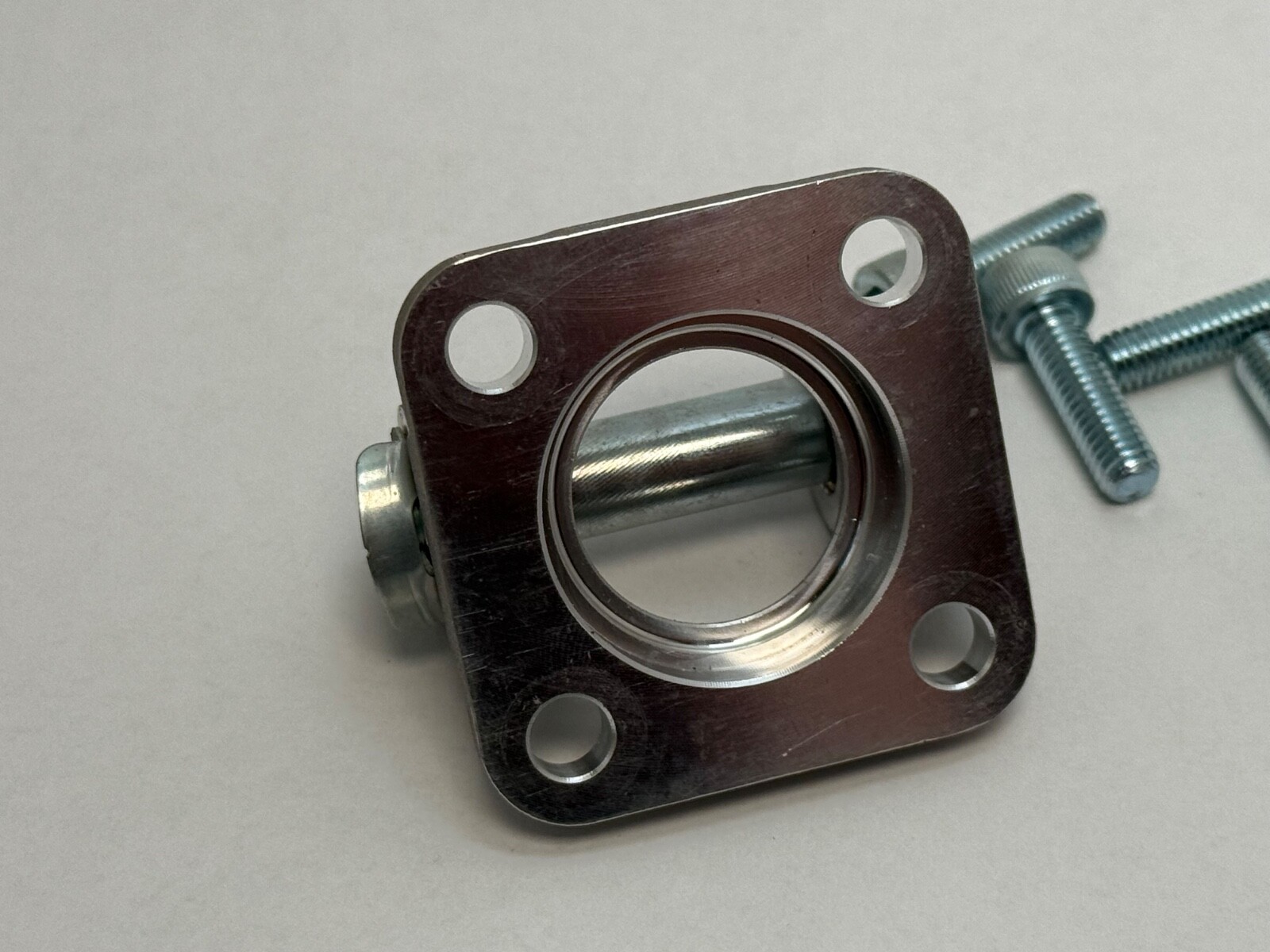

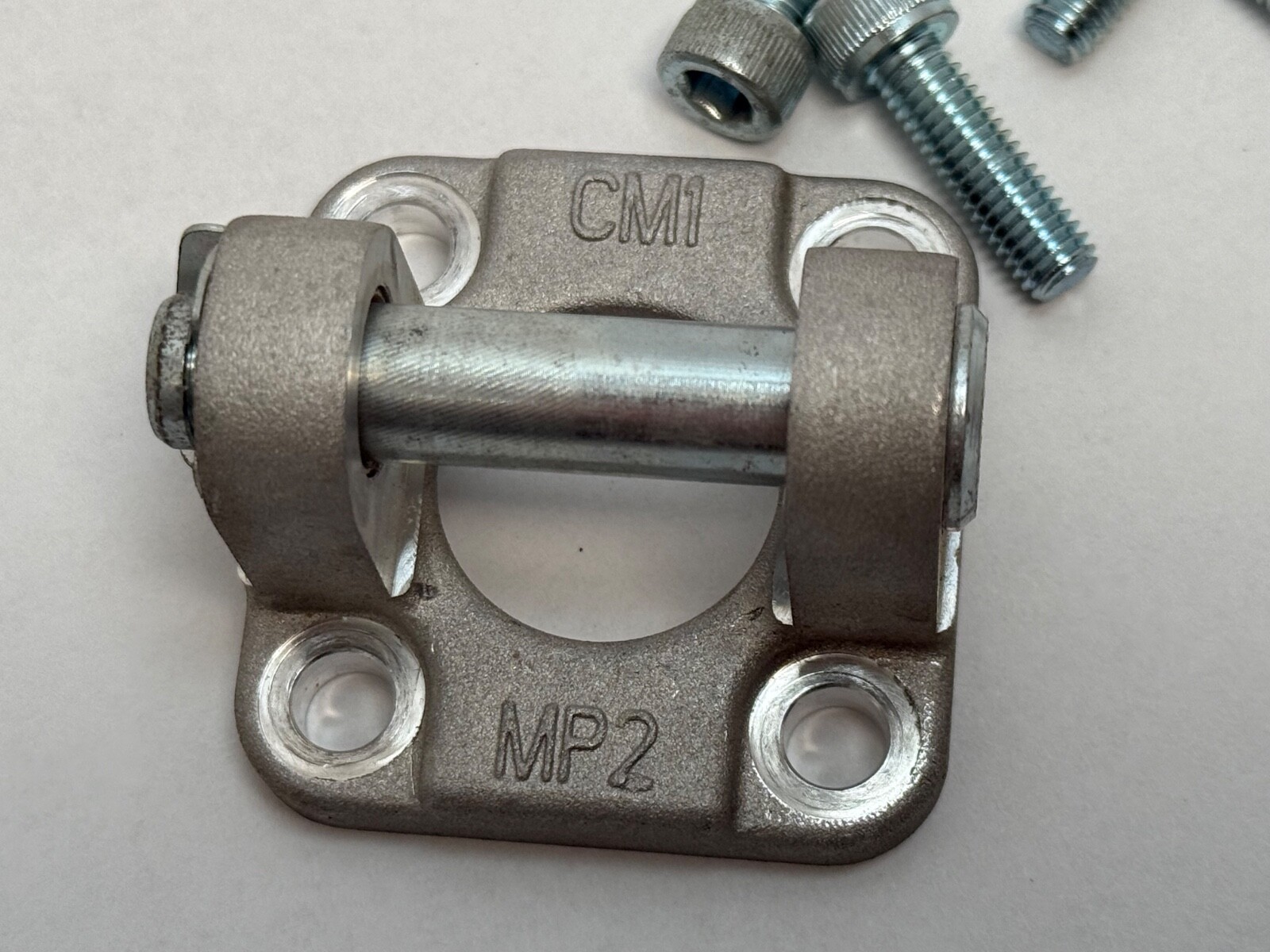

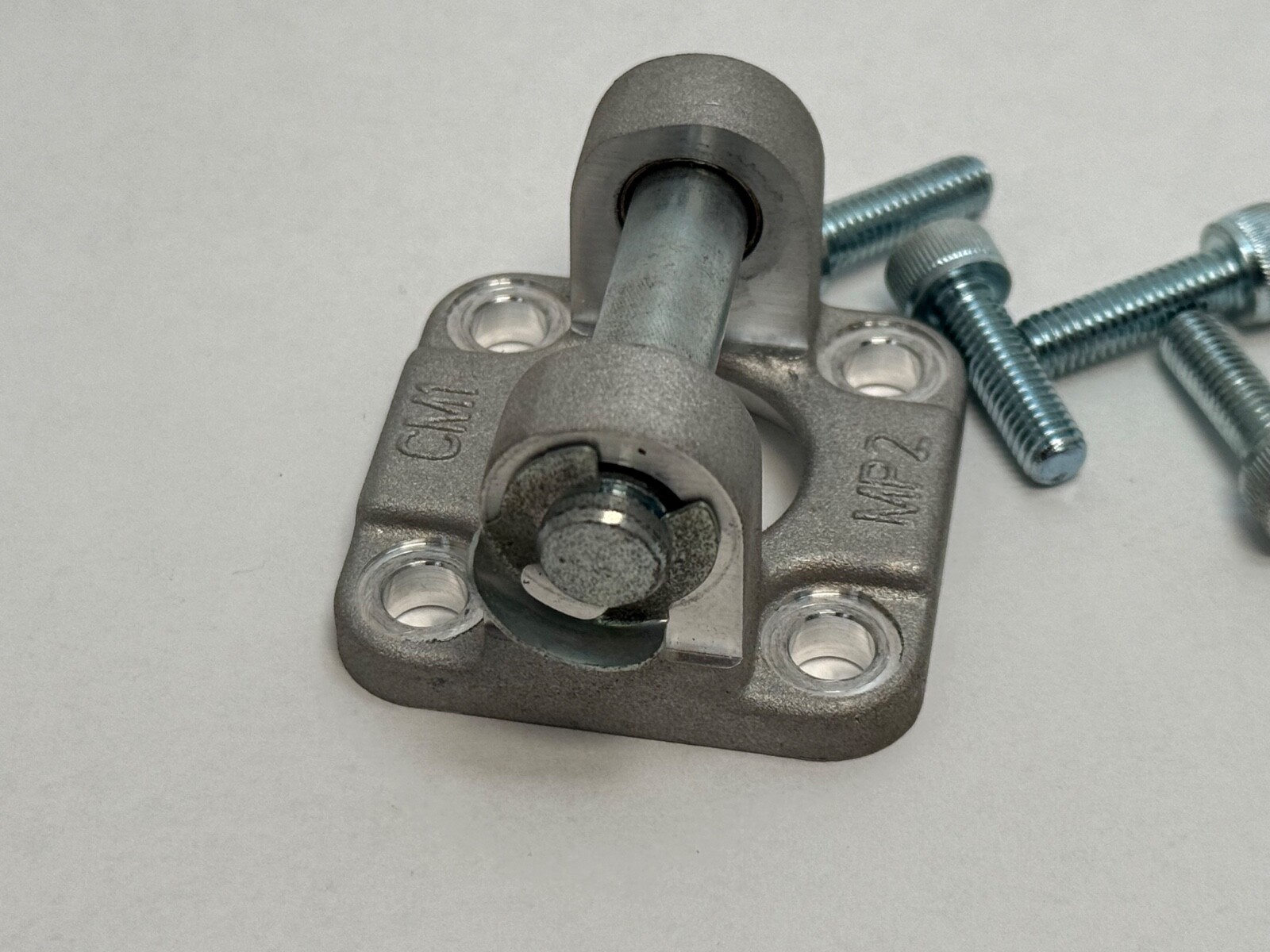

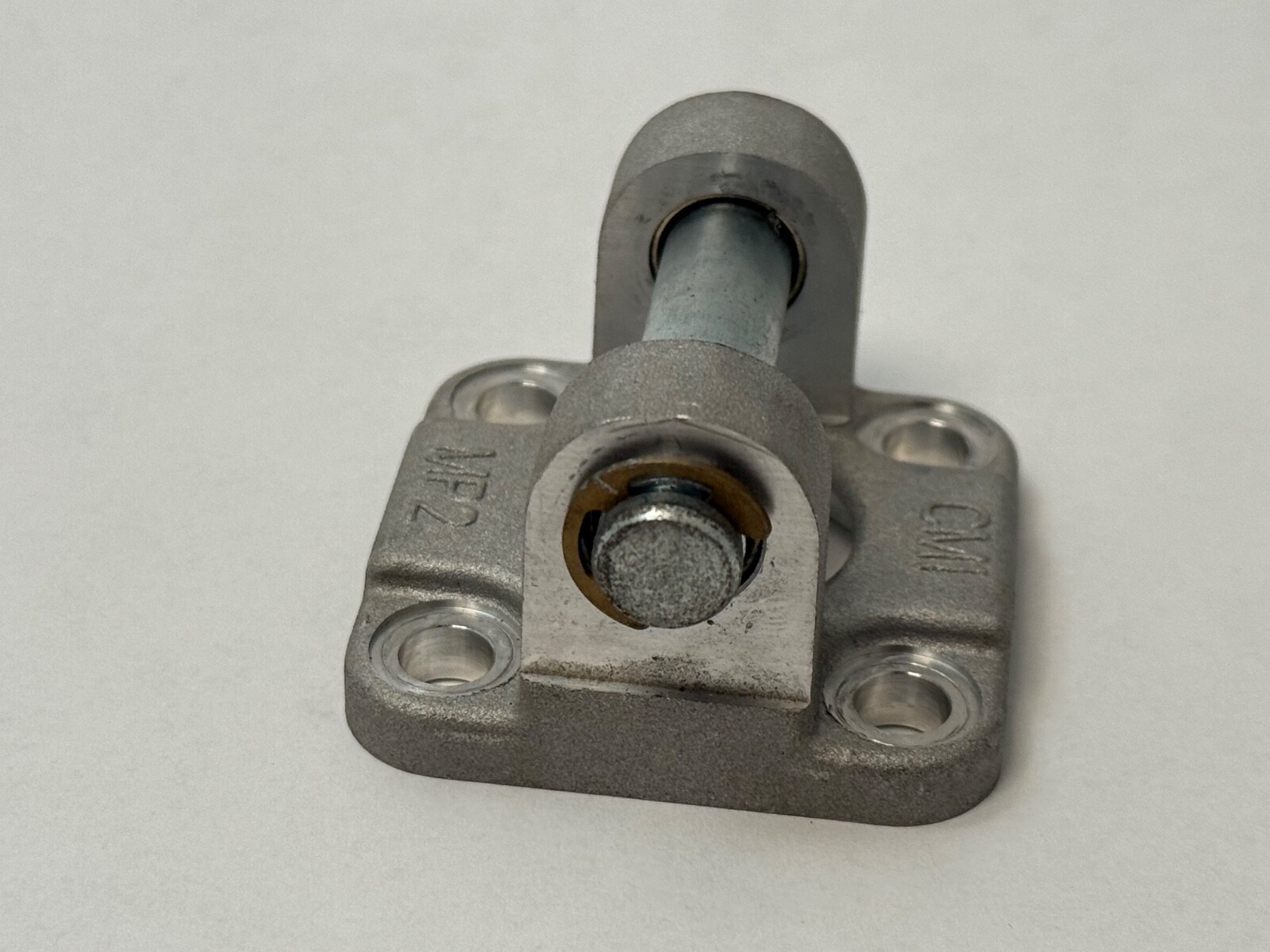

Aventics (Bosch Rexroth pneumatics) 3682905590 clevis mounting MP2, Series CM1, corrosion-resistant version. A detachable rear clevis for ISO 15552 pneumatic cylinders with a 50 mm piston. Supplied with pivot pin and mounting screws.
Product Type: Clevis mounting MP2. Series: CM1. Standard: ISO 15552. Piston Diameter: 50 mm. Swivel Bearing Diameter: 12 mm. Housing Material: Forged aluminum, anodized. Screws: Stainless steel. Bearing: Plastic. Item Weight: 0.232 kg. Scope of Delivery: Clevis mounting with pivot pins and mounting screws.
CB H14: 32 mm. CD H9: 12 mm. E max: 65 mm. FL: 27 mm ±0.2. L min: 15 mm. MR: 12 mm. UB h14: 60 mm. VB: 65 mm. TG: 46.5 mm ±0.2.
Fits Aventics ISO 15552 cylinders of 50 mm piston diameter. Other sizes in the same corrosion-resistant MP2 line: 3682903590 (32 mm), 3682904590 (40 mm), 3682906590 (63 mm), 3682908590 (80 mm), 3682910590 (100 mm).
CAD model and data sheet: available from Emerson Aventics (emerson.com/aventics).
ISO 15552 cylinders with a 50 mm piston diameter.

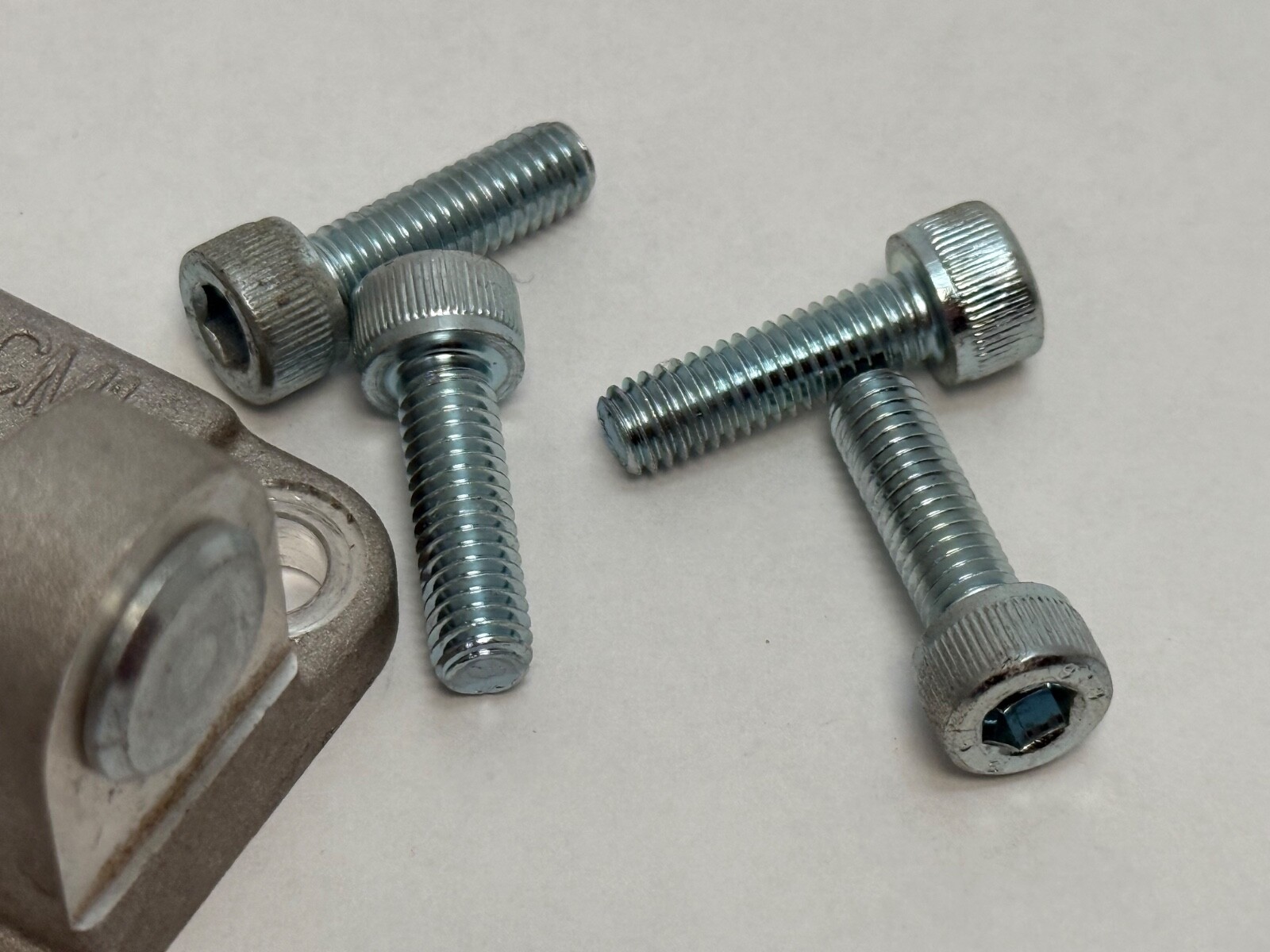

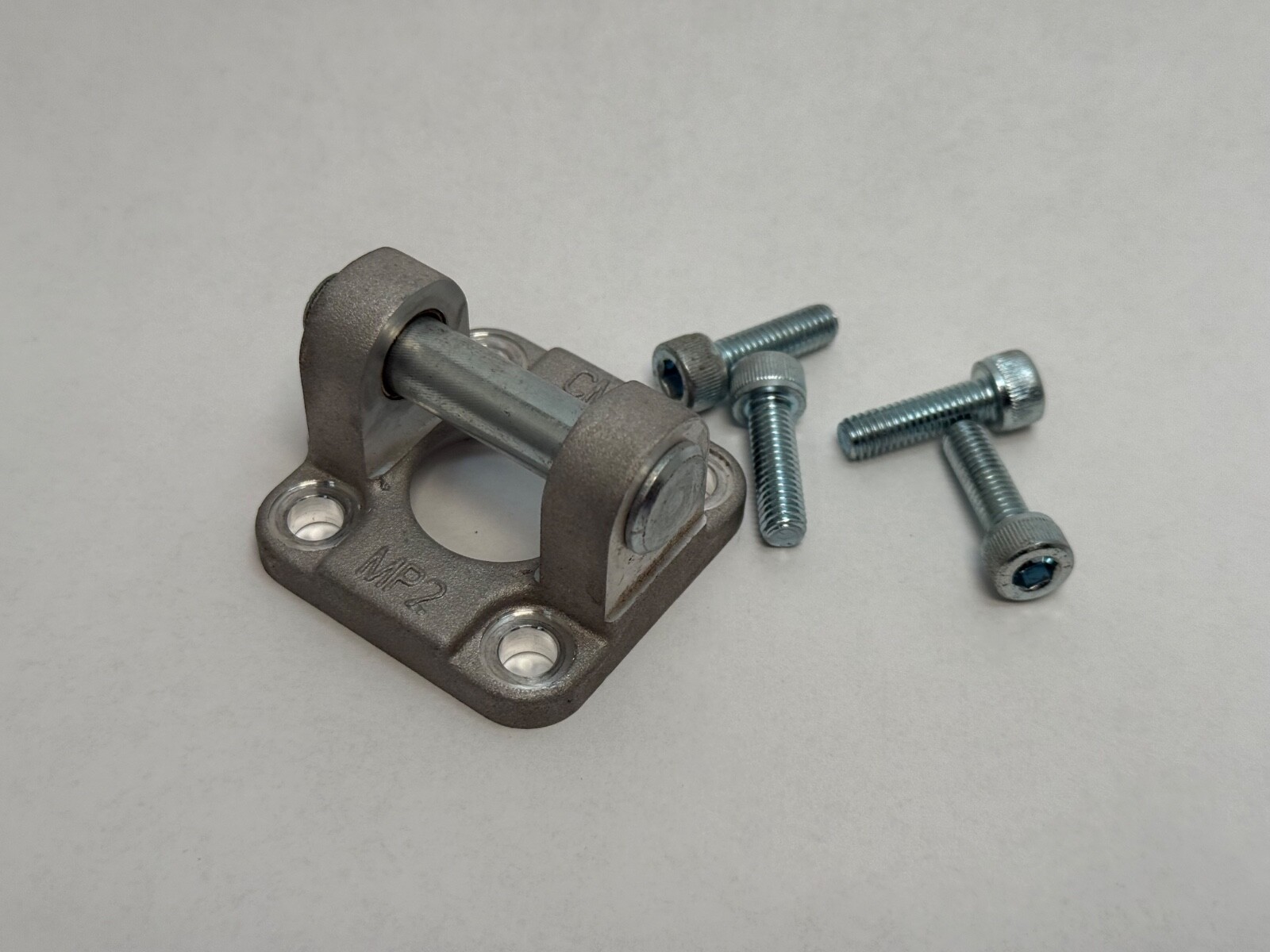

The clevis mounting with pivot pins and mounting screws.
Forged anodized aluminum with stainless steel screws and a plastic bearing.
