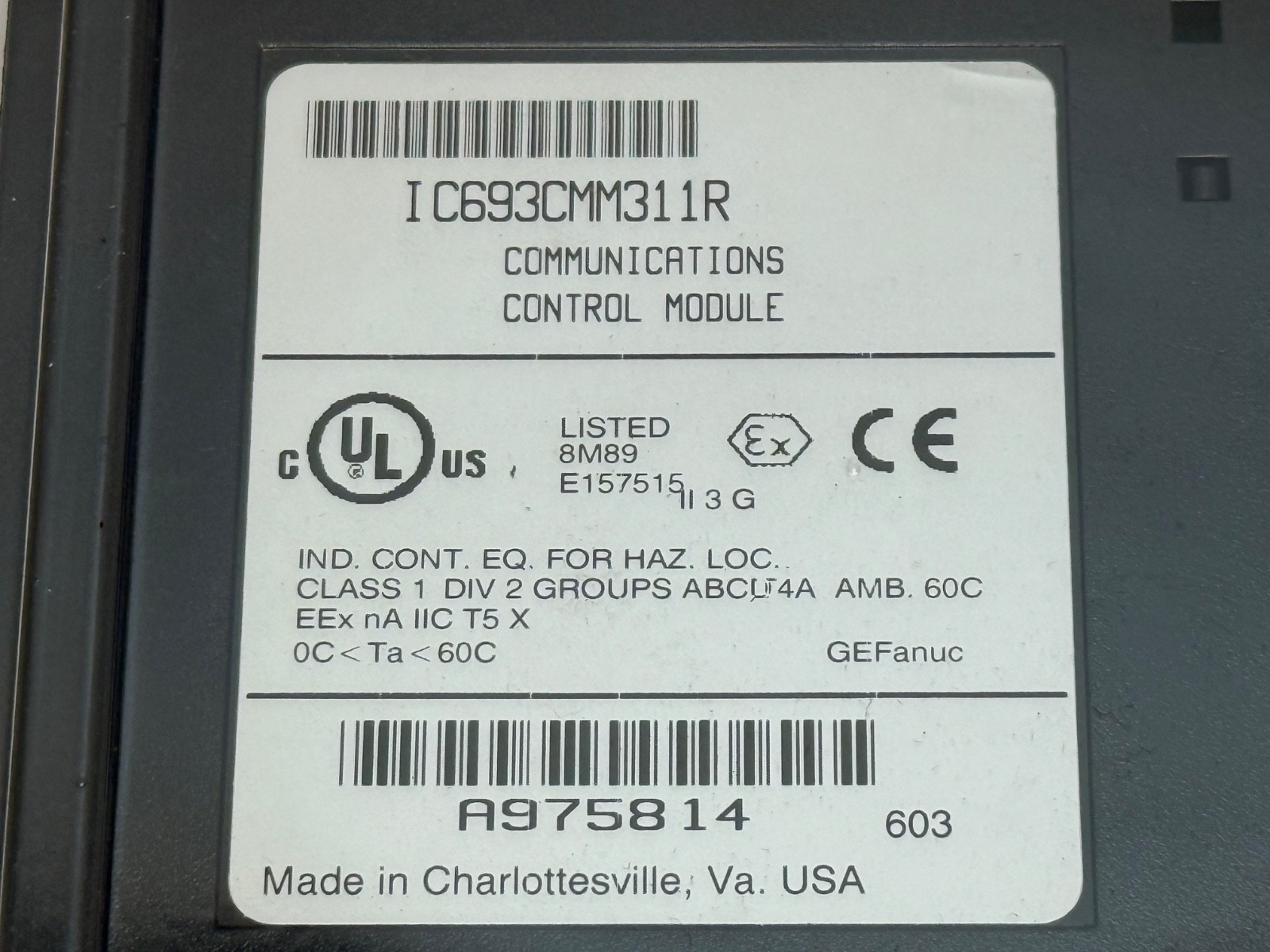

GE-FanucIC693CMM311RCommunications Coprocessor Module, Two Serial Ports, RS-232/422/485, SNP CCM Modbus RTU, Series 90-30

Product Description

What this part is:

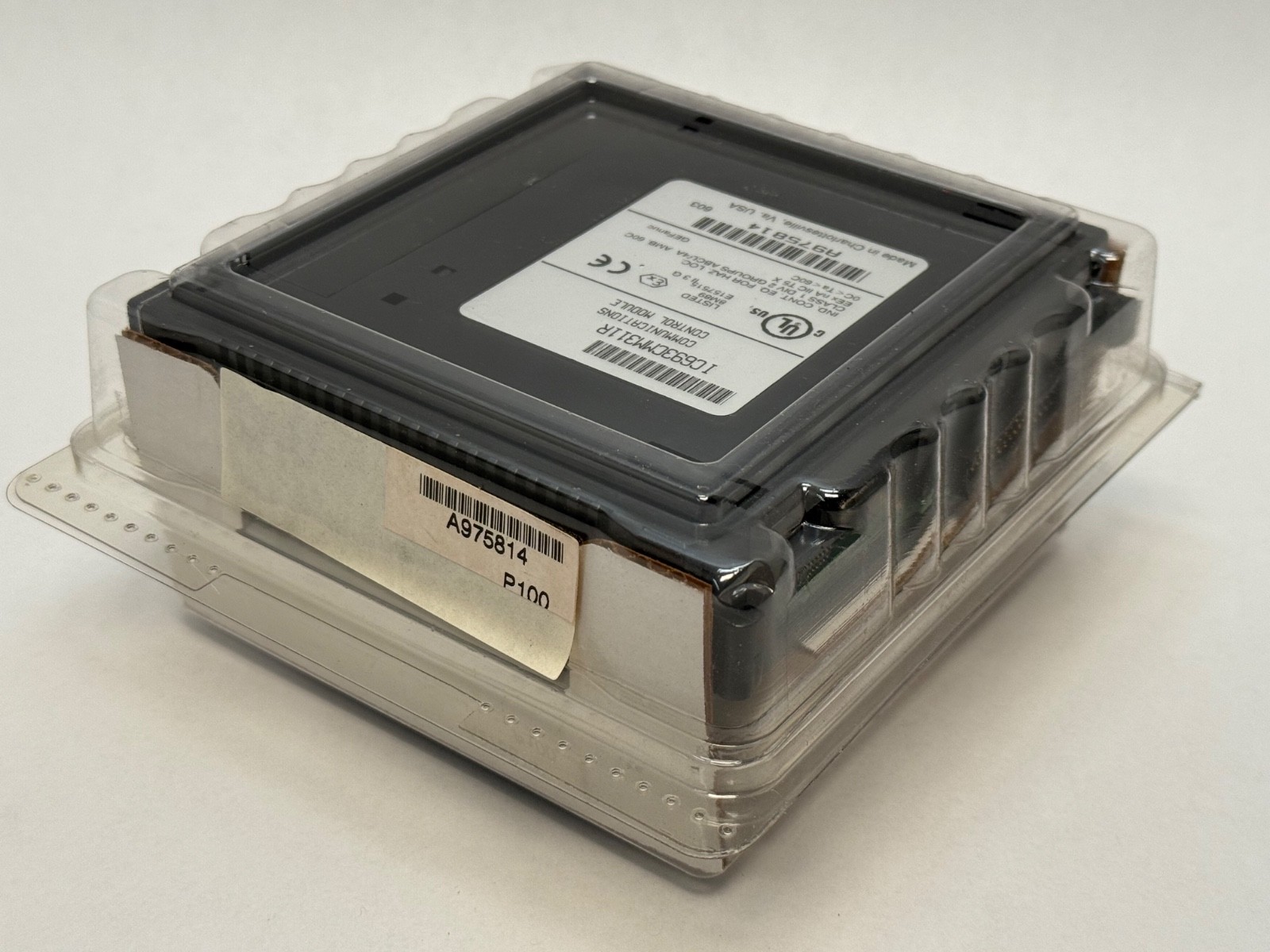

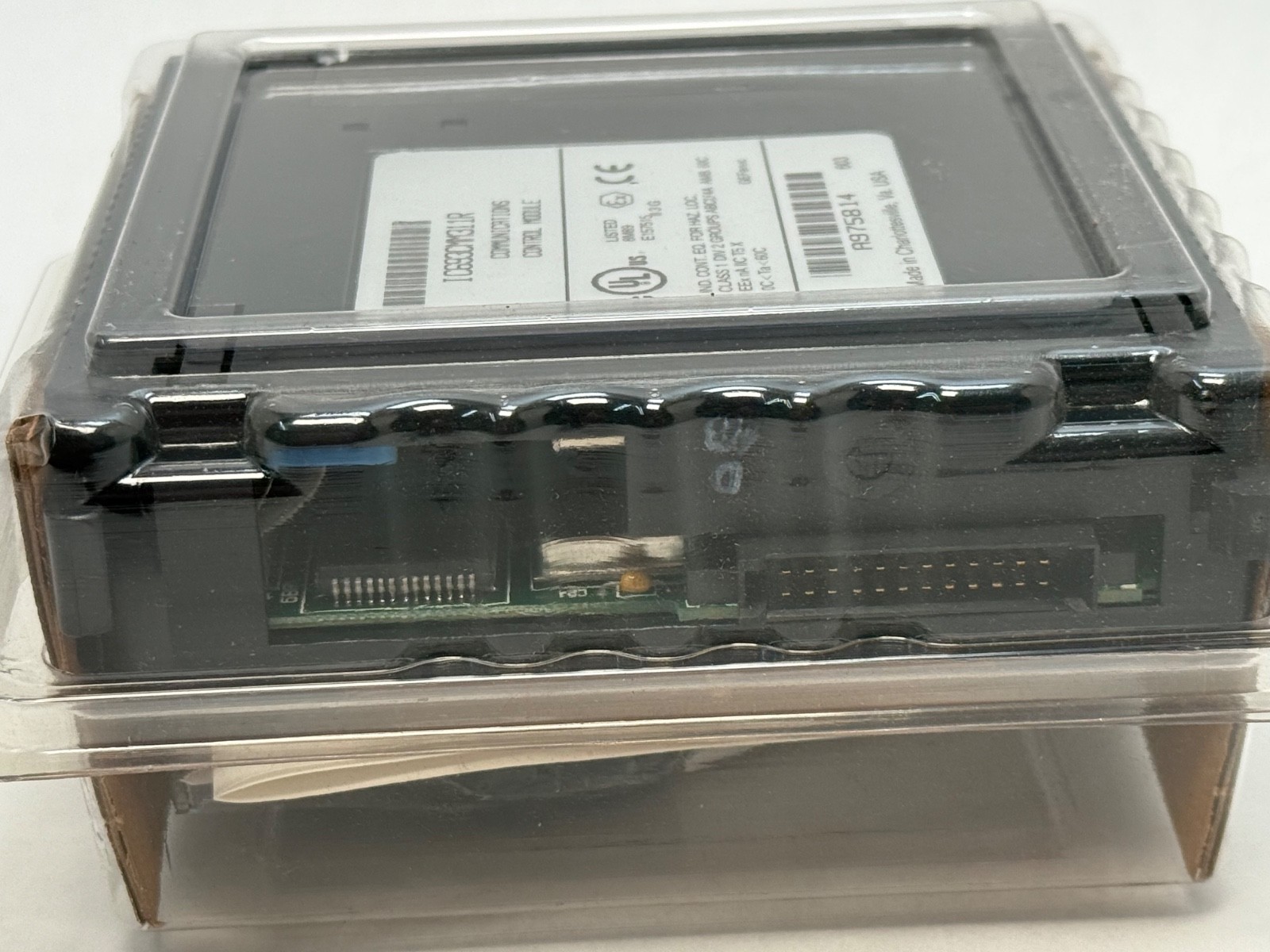

GE Fanuc IC693CMM311R communications coprocessor module for the Series 90-30 programmable controller. Serial communications coprocessor with two serial ports on a single 25-pin connector. Unit Quantity: 1 Pc.

Decoding the designation:

IC693 — GE Fanuc Series 90-30 module family.

CMM — communications module group within that family.

311 — two-port communications coprocessor running SNP, CCM and Modbus RTU.

Specifications:

Product Type: Serial communications coprocessor module. Serial Ports: 2, on a single 25-pin connector. Port 1: RS-232. Port 2: RS-232, RS-422 or RS-485. Connector: single 25-pin D-shell carrying both ports. Protocols: SNP, CCM, Modbus RTU (master and slave). Backplane Load Current: 400 mA at 5 V DC. Manufacturer Status: discontinued.

Dimensions and mounting:

Mounting Type: Series 90-30 baseplate slot. Controller Platform: GE Fanuc Series 90-30, modular CPUs.

Compatibility and replacement:

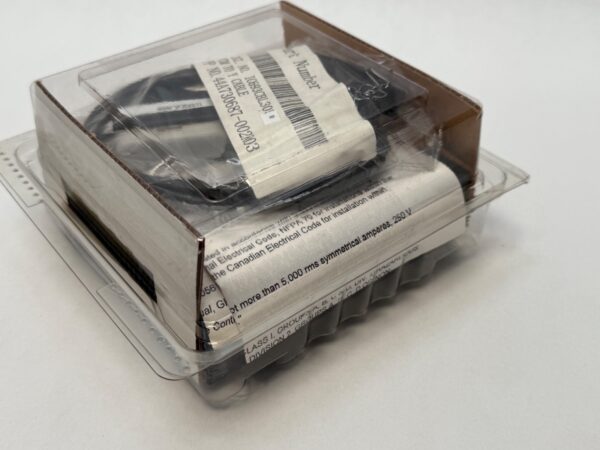

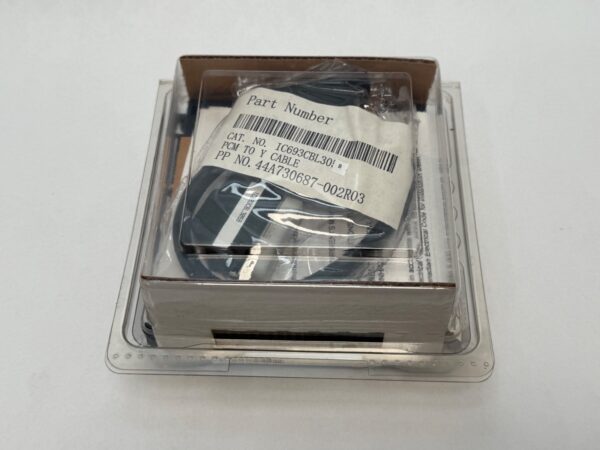

Mating cable: IC693CBL305 Wye cable, which brings both serial ports out of the 25-pin connector. MPN variants: IC693CMM311, IC693CMM311N, IC693CMM311S, IC693CMM311J, IC693CMM311K.

Frequently asked questions:

What serial standards does the IC693CMM311 support?

Port 1 is RS-232; port 2 is RS-232, RS-422 or RS-485.

Which protocols does the IC693CMM311 run?

SNP, CCM and Modbus RTU, in both master and slave roles.

What is the backplane load current of the IC693CMM311?

400 mA at 5 V DC.
