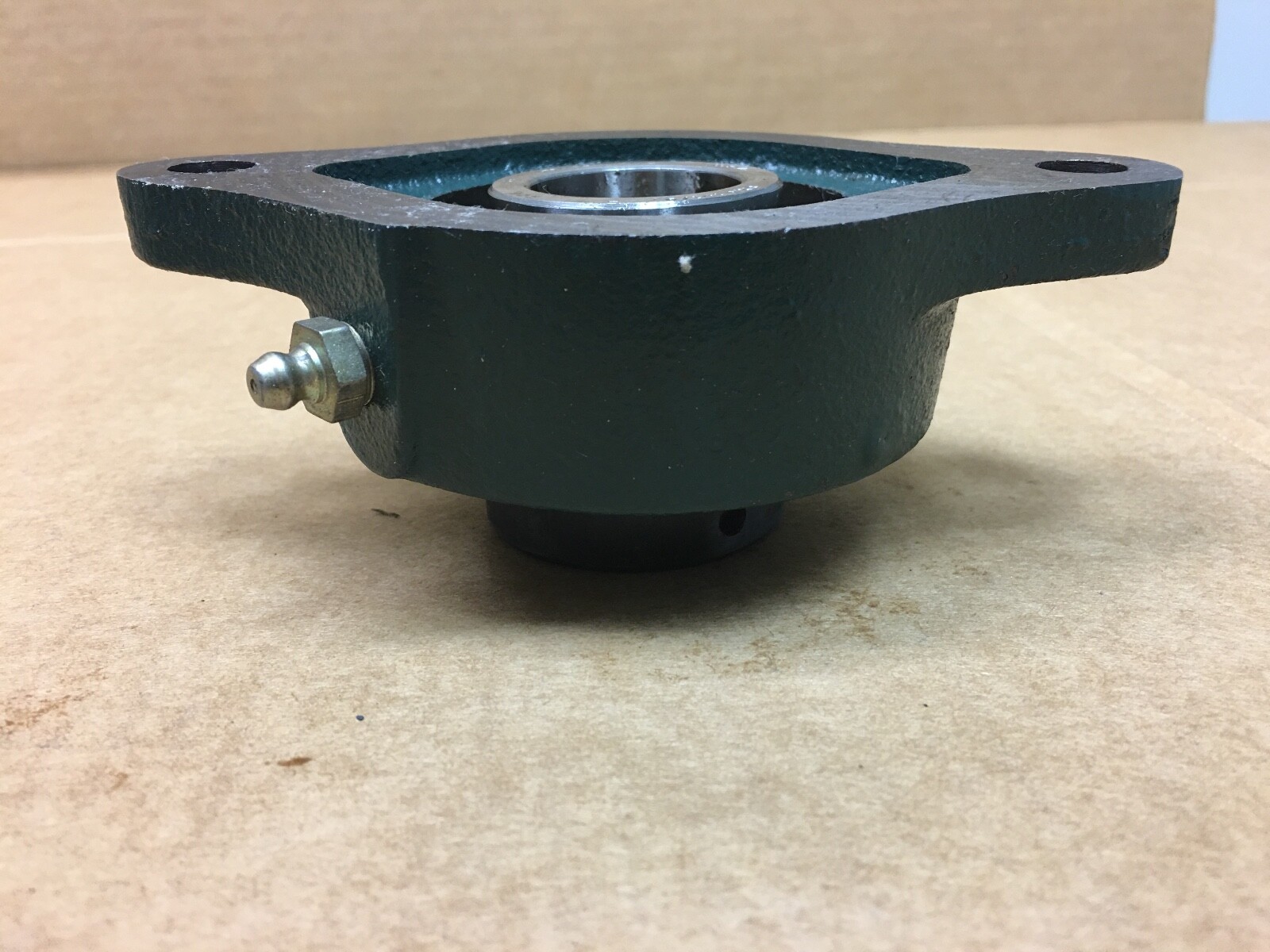

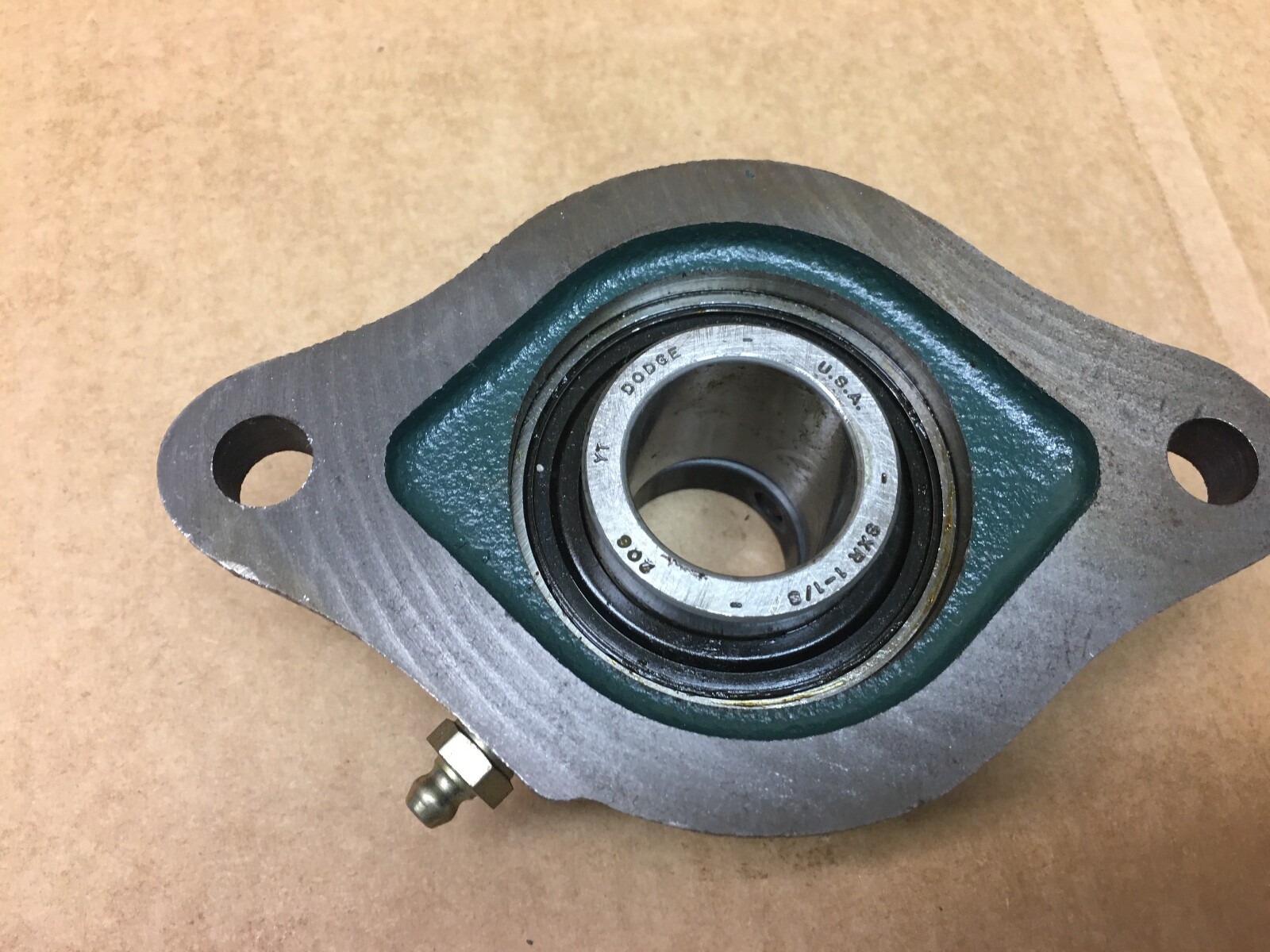

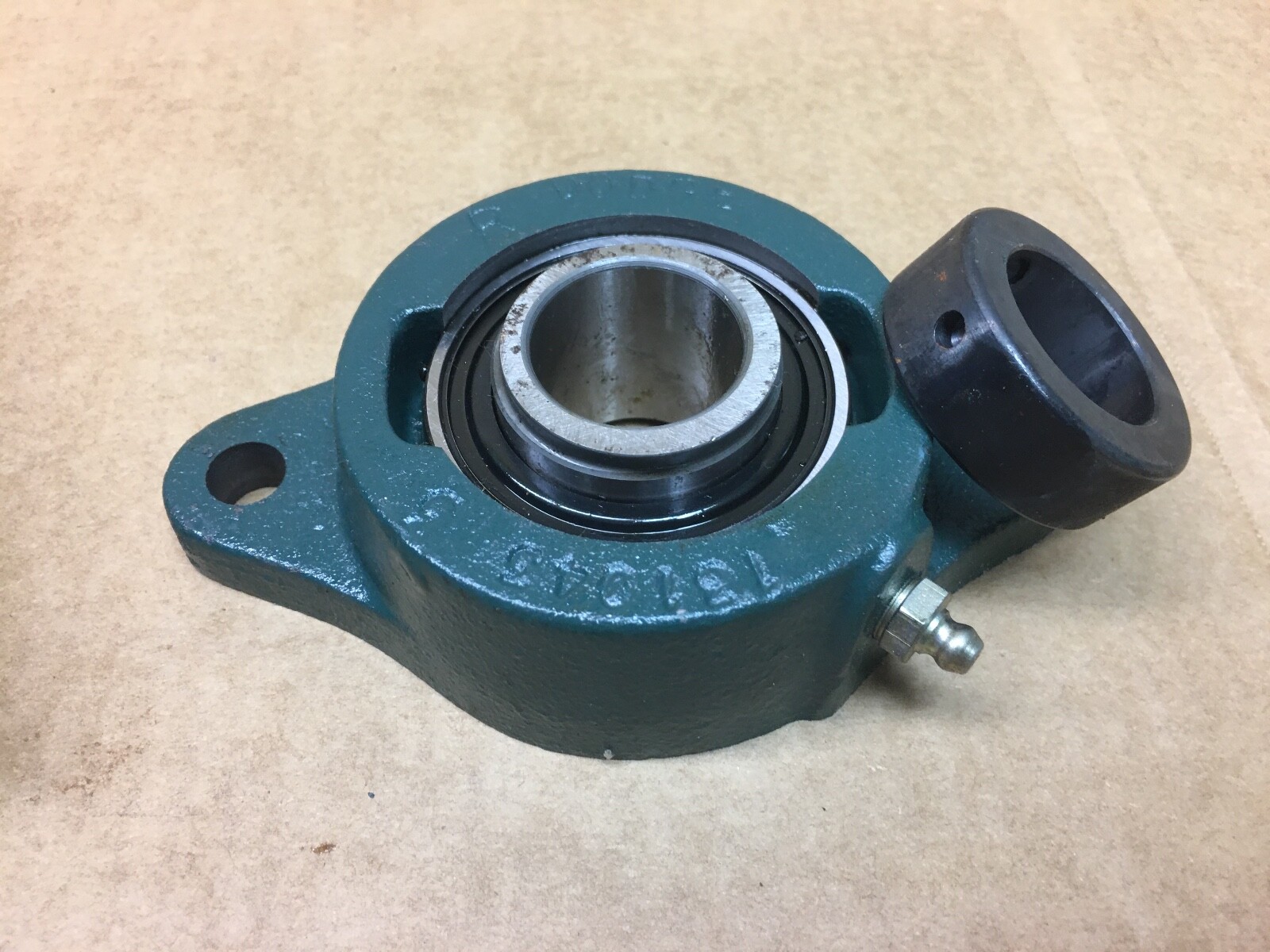

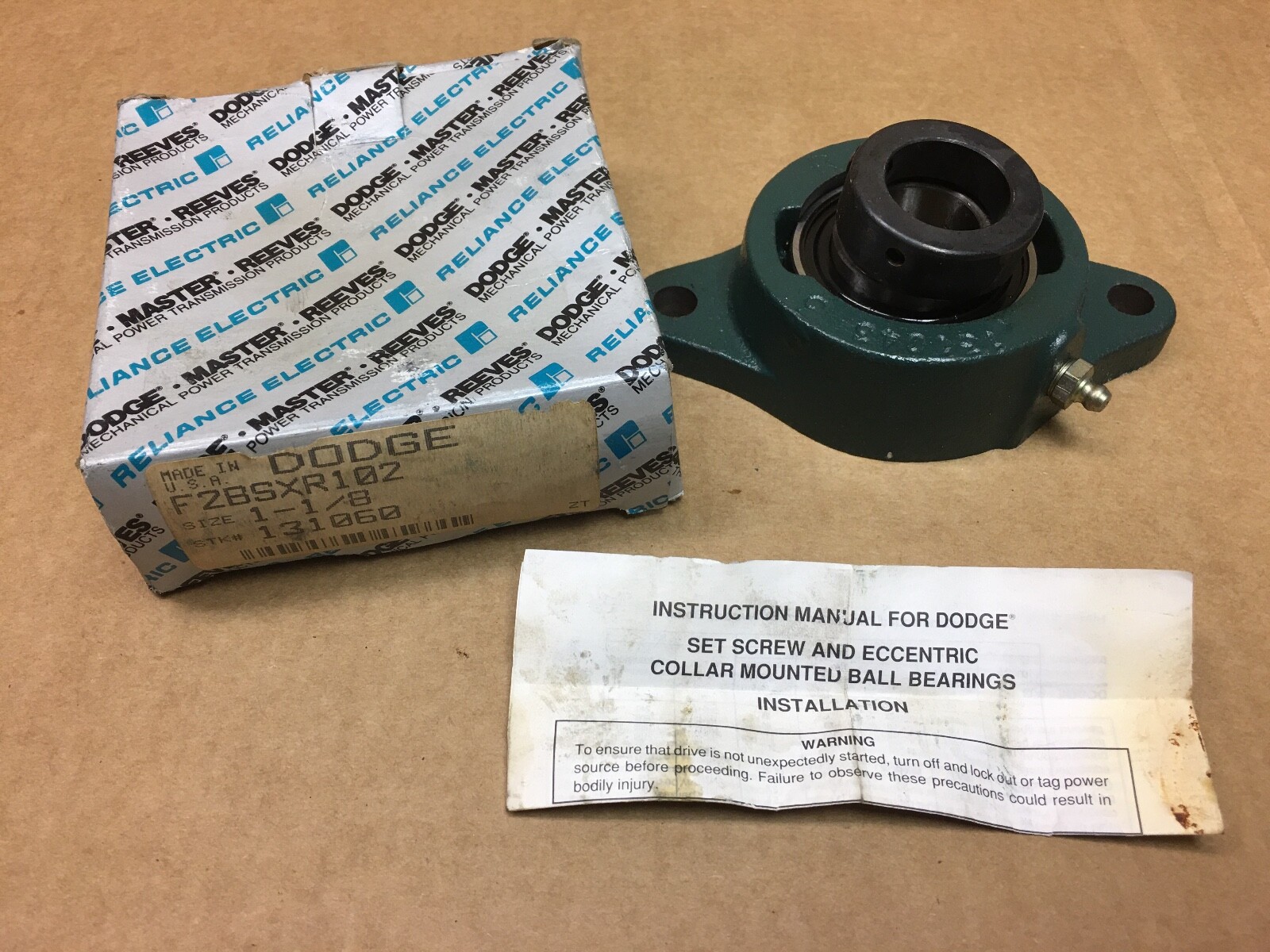

Dodge F2B-SXR-102 two-bolt flange ball bearing unit, 1-1/8 in bore, eccentric locking collar, solid cast iron housing, non-expansion, stock 131060.
List Price
$40.90
7 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F2B-SXR-102 |
| Model | F2B-SXR-102 |
| ID | 1.1250 in (28.575 mm) |
| Material | Cast Iron |
|---|---|
| Series | 206 Series |
| Type | Two-Bolt Flange Mounted Ball Bearing |
| Lubricant | Grease (Unirex N2) |
| Bolt Center To Center | 4.5900 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 4.5900 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Mpn Variants | F2B-SXR-102, F2BSXR102, F2B SXR 102, 131060 |
| Dynamic Load Rating | 19,430 N (4,368 lbf) |
| Static Load Rating | 11,290 N (2,538 lbf) |
| Rolling Elements | Ball |
| Bearing Type | Two-Bolt Flange Mounted Ball Bearing |
| Item Weight | 1.18 kg (2.6 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,500 rpm |
| Duty Type | Light Duty |
| Locking Device | Eccentric Collar |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion (fixed) |
| Maximum Permissible Misalignment | 1.5° |
Dodge F2B-SXR-102 two-bolt flange mounted ball bearing unit with an eccentric locking collar, SXR series, for a 1-1/8 in shaft. Dodge Part Number: 131060. Bore Diameter: 1.1250 in (28.58 mm). Housing Type: two-bolt flange, solid cast iron. Locking Device: eccentric collar. Expansion Type: non-expansion (fixed). Insert: 206 series ball bearing. Unit Quantity: 1 Pc, flange housing with insert and collar.
F2B — Dodge two-bolt flange housing.
SXR — Dodge SXR ball bearing insert with eccentric locking collar.
102 — shaft size 1-2/16 in = 1-1/8 in.
131060 — Dodge part number.
Bore Diameter: 1.1250 in (28.58 mm).
Dynamic Load Rating: 19,430 N (4,368 lbf).
Static Load Rating: 11,290 N (2,538 lbf).
Limiting Speed: 4,500 rpm.
Seal Type: single-lip contact.
Lubricant: grease, Unirex N2, relubricable.
Housing Material: cast iron.
Locking Device: eccentric collar.
Expansion Type: non-expansion (fixed).
Maximum Permissible Misalignment: 1.5°.
Item Weight: 1.18 kg (2.6 lb).
Country of Origin: United States.
Bolt Center To Center: 4.5900 in. Bolt Diameter: 0.4375 in. Number Of Bolt Holes: 2. Length Through Bore: 1.7700 in. Insert outer ring: spherical.
1-1/8 in (1.1250 in, 28.58 mm) bore.
131060 is the Dodge part number of the F2B-SXR-102 two-bolt flange unit.
An eccentric locking collar; Dynamic Load Rating 19,430 N (4,368 lbf) and Static Load Rating 11,290 N (2,538 lbf).
