NTN KR35 stud-type cam follower, 35 mm crowned outer ring, 16 mm stud with M16 x 1.5 thread, needle rollers, slot drive. Dynamic 12,200 N, static 17,900 N.
List Price
$48.16
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | KR35 |
| Model | KR-35 |
| OD | 35 mm |
| Width | 18 mm |
| Stud Diameter | 16 mm |
|---|---|
| Mpn Variants | KR35, KR 35, KR-35 |
| Additional Attributes | Track Load Rating: 3,200 N; Stud Length: 32.5 mm; Thread Length: 17 mm; Roller-Side Width: 19.5 mm; Flange Diameter: 27 mm; Grease Nipple: NIP-B6; Outside Diameter Tolerance: 0/-0.050 mm; Stud Diameter Tolerance: 0/-0.018 mm |
| Overall Length | 52 mm |
| Min Temp | -40 °C |
| Dynamic Load Rating | 12,200 N |
| Static Load Rating | 17,900 N |
| Rolling Elements | Needle Roller |
| Max Temp | 120 °C |
| Bearing Type | Cam Follower |
| Item Weight | 0.170 kg (0.37 lb) |
| Cage Material | Pressed steel |
| Limiting Speed | 8,000 rpm grease; 11,000 rpm oil |
| Relubrication Feature | Grease nipple NIP-B6 |
| Thread Size | M16 x 1.5 |
| Closure Type | Open |
| Cross Reference 1 | INA KR35 |
|---|---|
| Cross Reference 2 | SKF KR 35 |
| Cross Reference 3 | IKO CF16R |

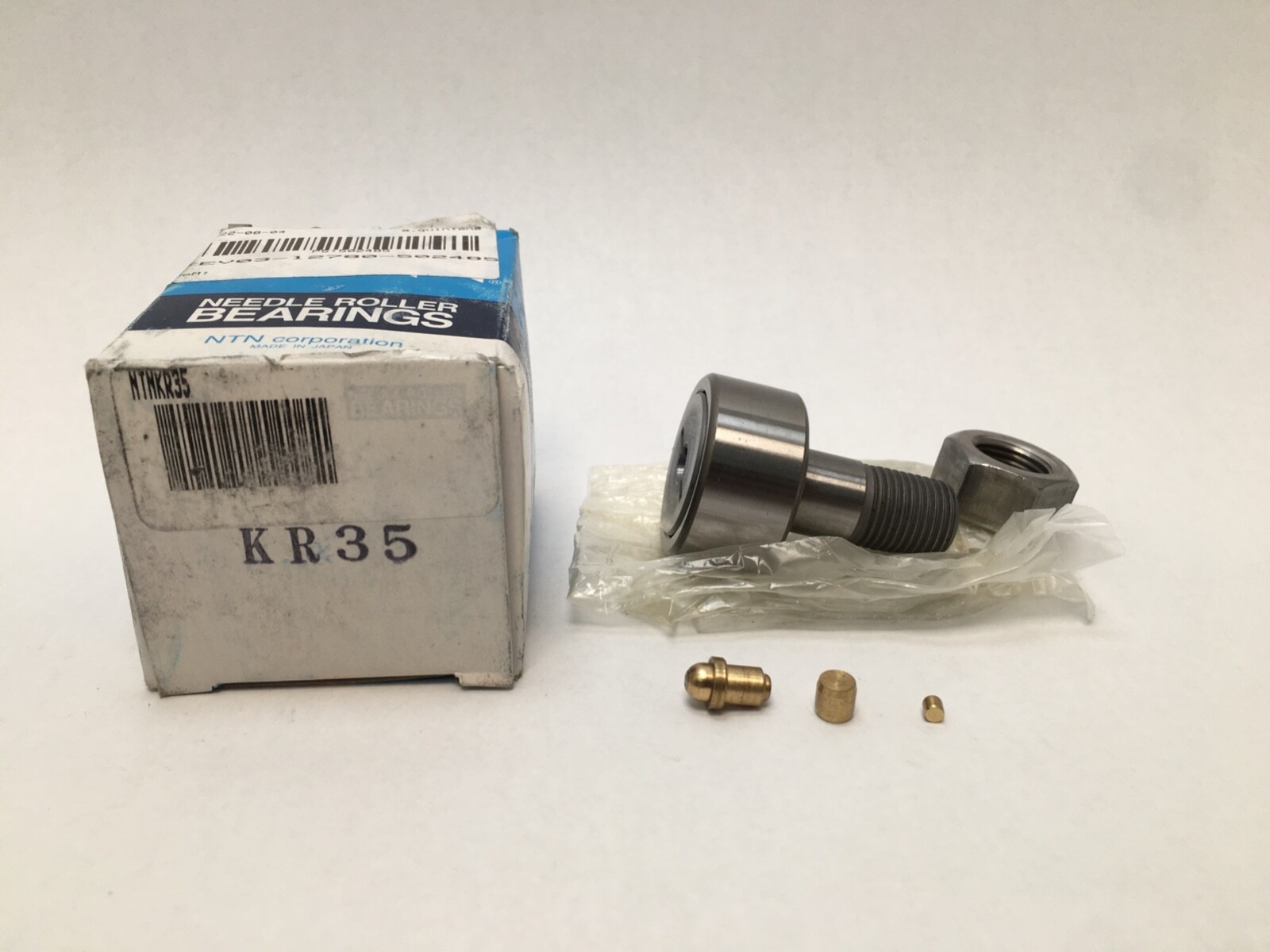

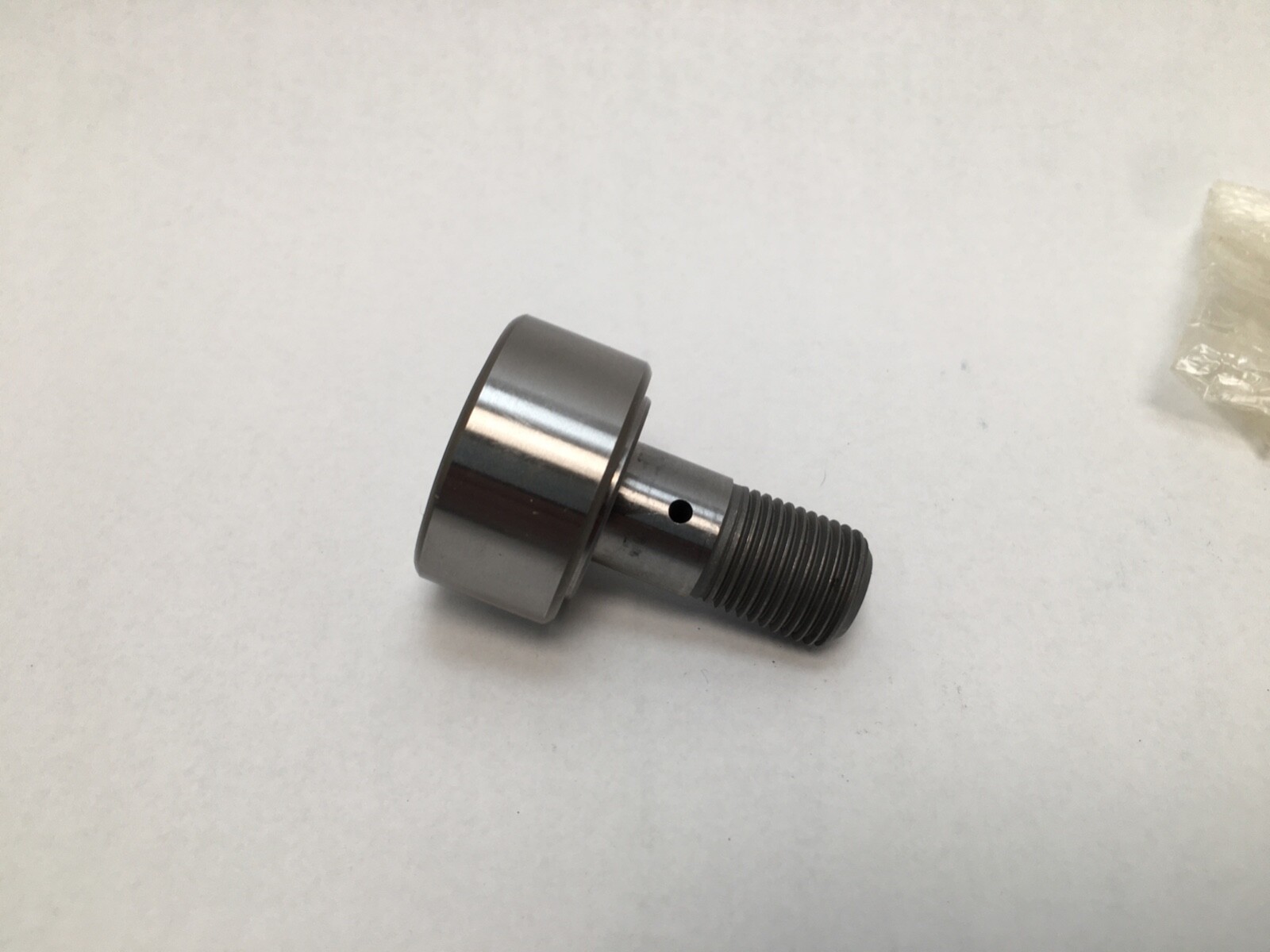

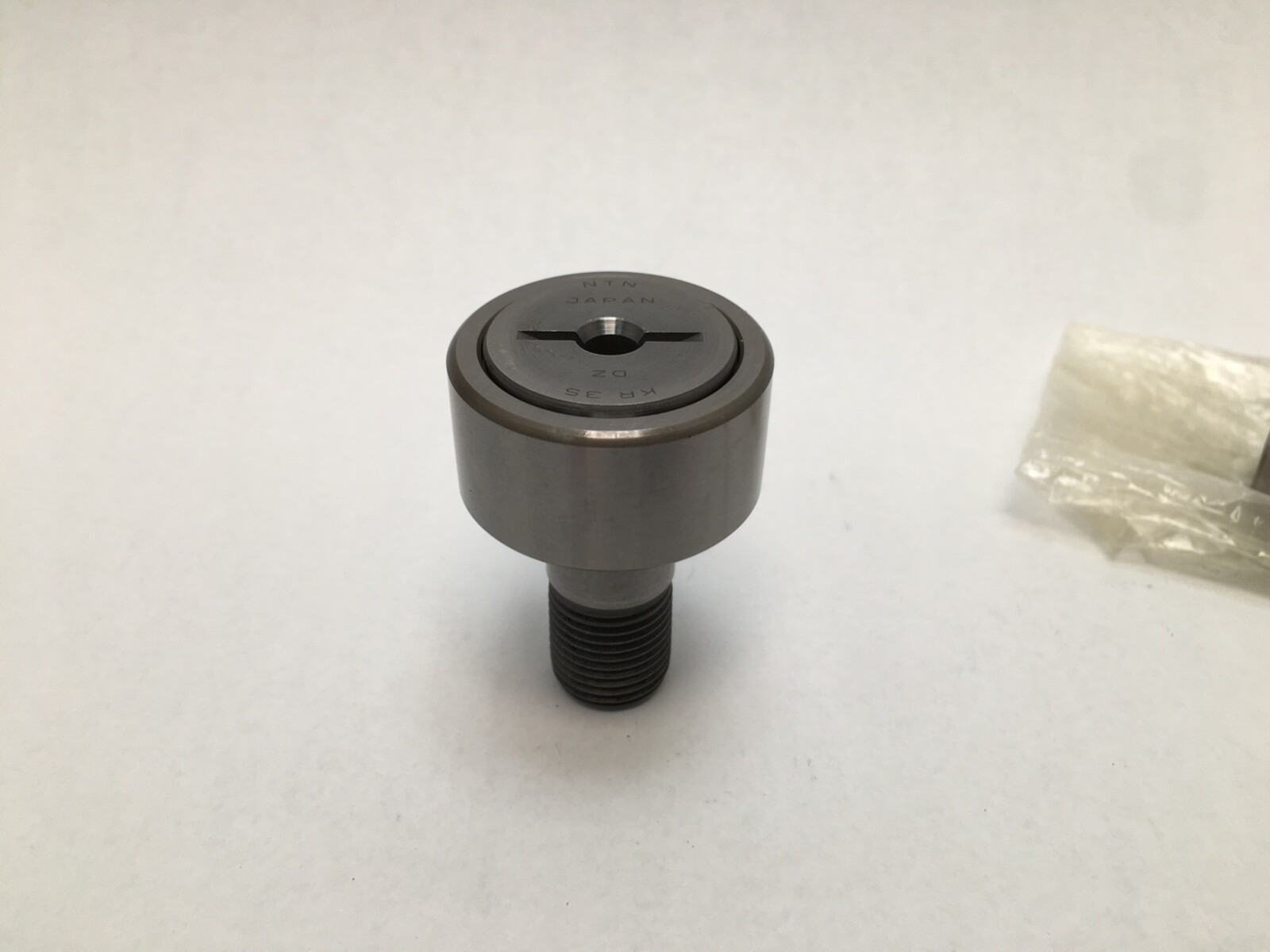

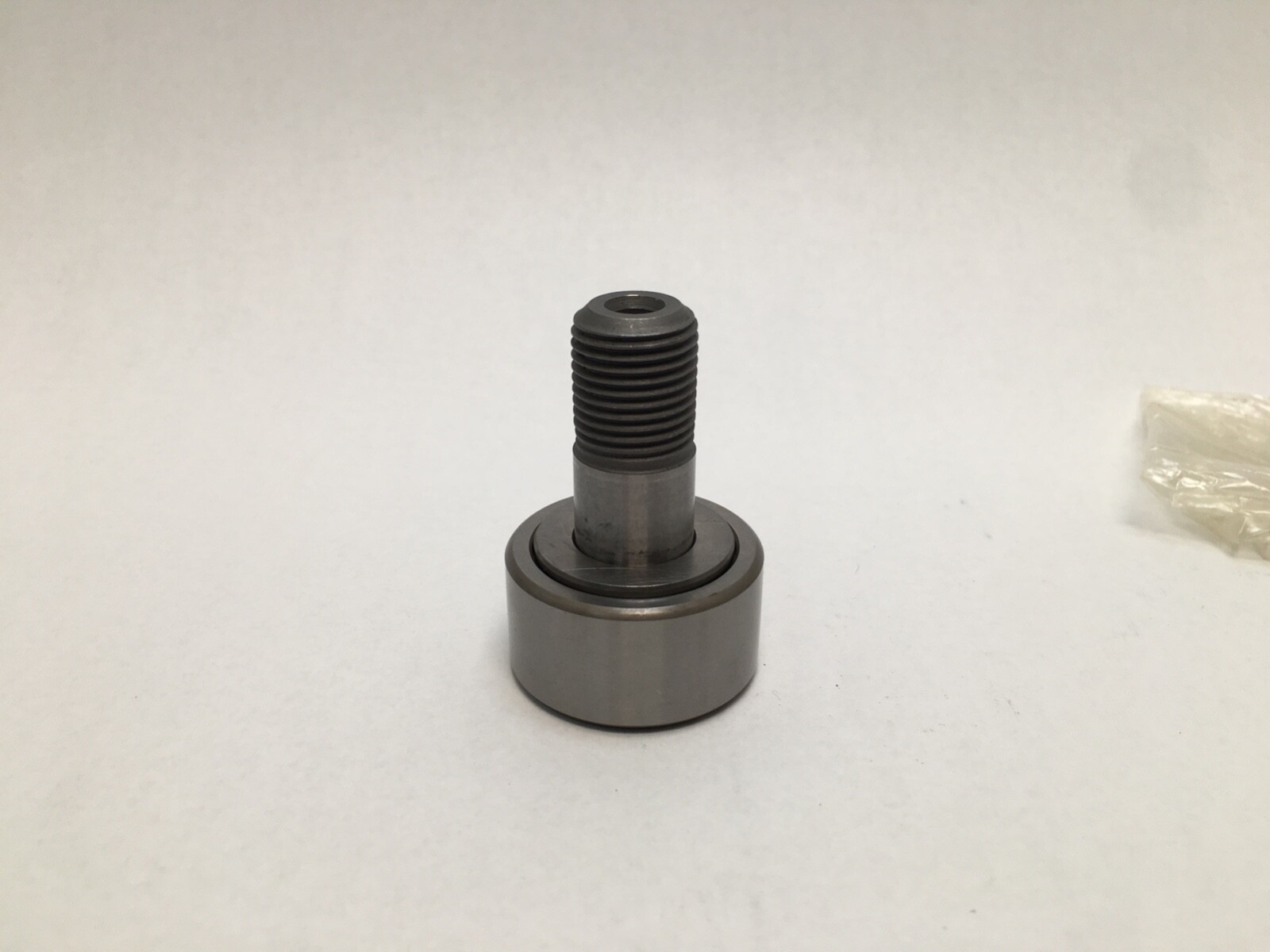

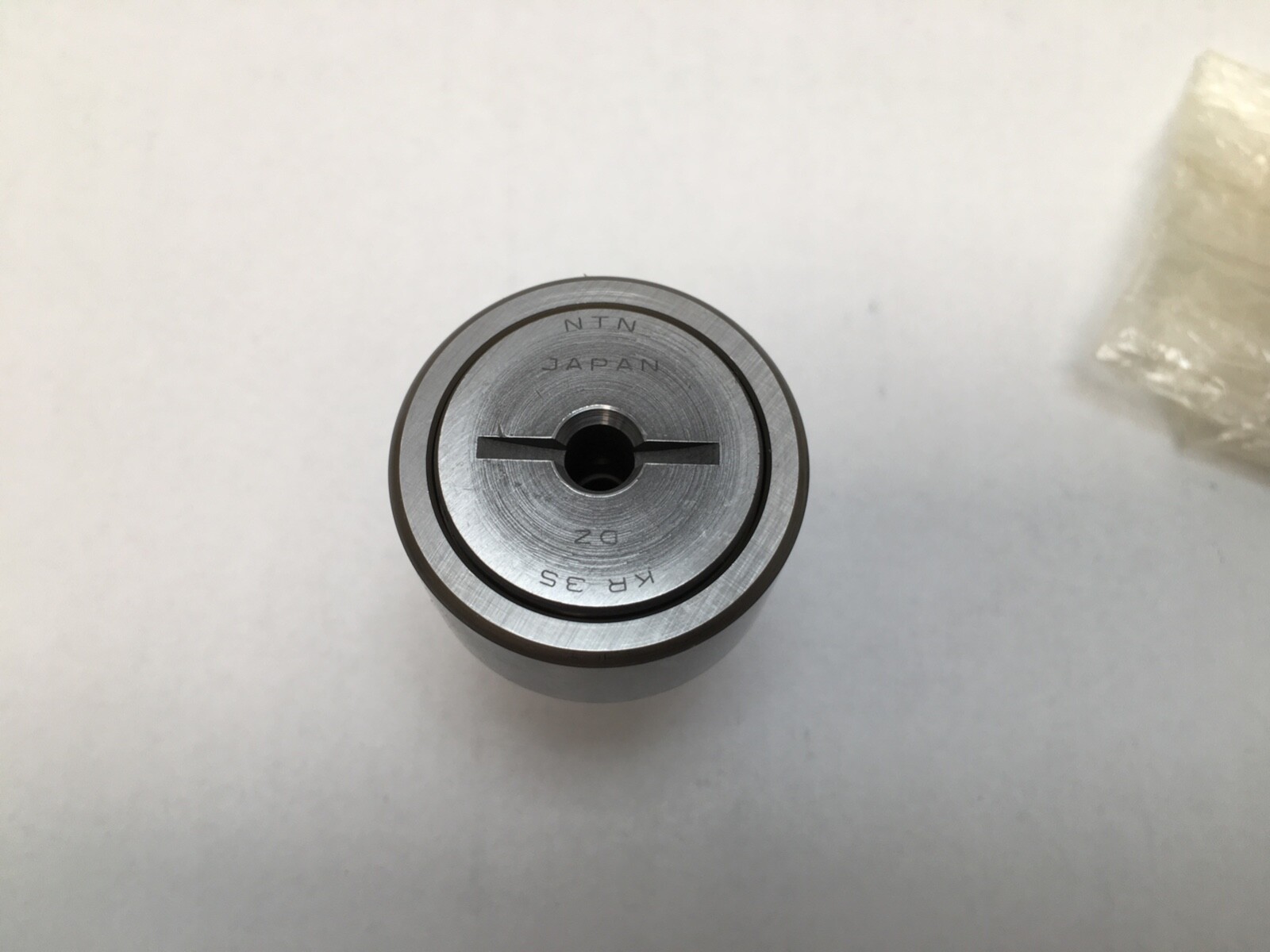

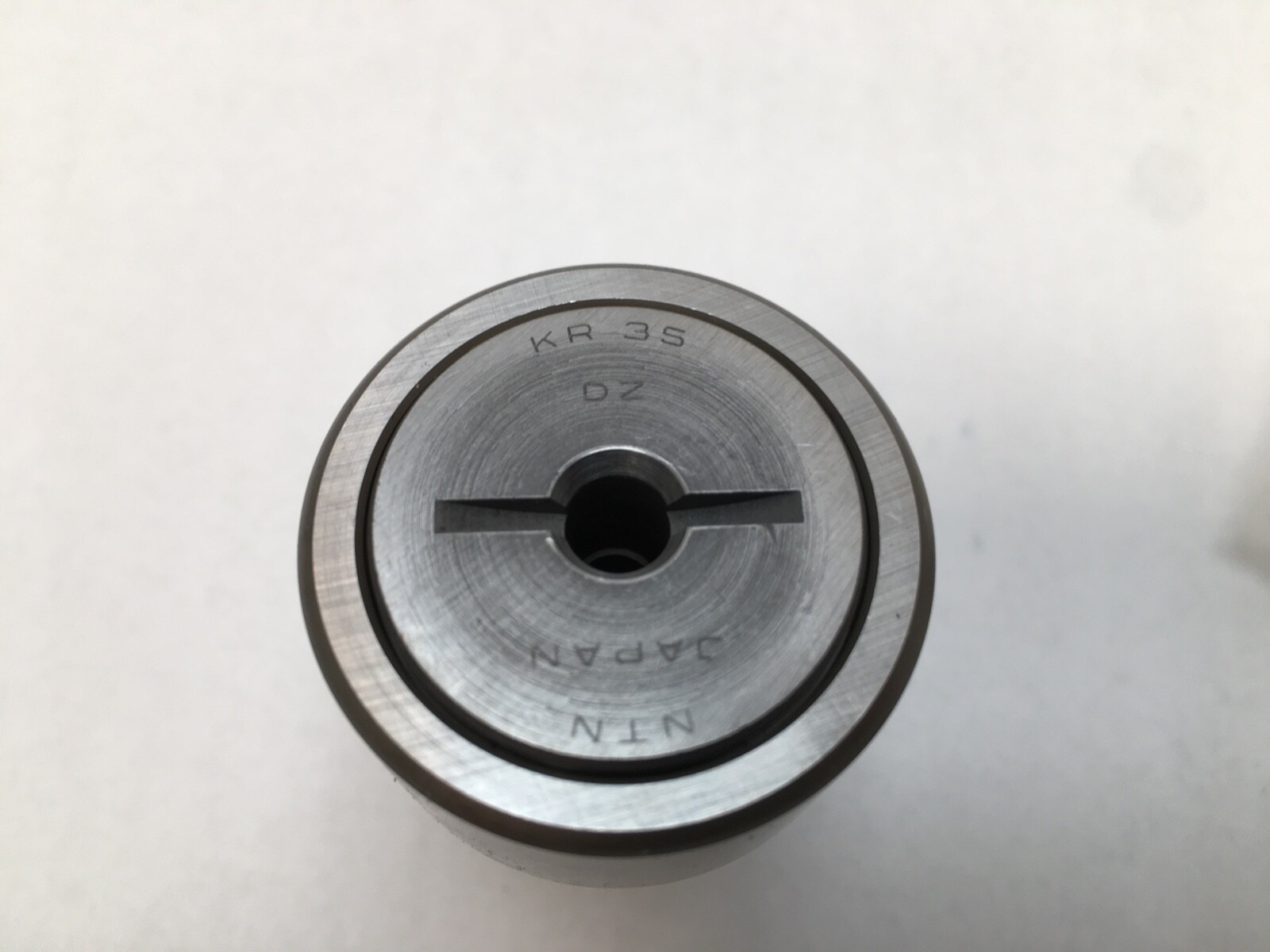

NTN KR35 is a stud-type cam follower (track roller) with a crowned outer ring running on caged needle rollers, and a threaded stud with a screwdriver slot. Unit Quantity: 1 Pc.
KR — NTN stud-type cam follower with a spherical (crowned) outer ring outside diameter.
35 — outer ring outside diameter, 35 mm.
Outside Diameter: 35 mm. Outer Ring Width: 18 mm. Stud Diameter: 16 mm. Stud Thread: M16 x 1.5. Overall Length: 52 mm. Dynamic Load Rating: 12,200 N. Static Load Rating: 17,900 N. Track Load Rating: 3,200 N. Limiting Speed: 8,000 rpm grease; 11,000 rpm oil. Rolling Elements: Needle Roller. Cage Material: Pressed steel. Closure Type: Open. Drive Type: Slot. Operating Temperature Range: -40 to 120 °C. Item Weight: 0.170 kg (0.37 lb).

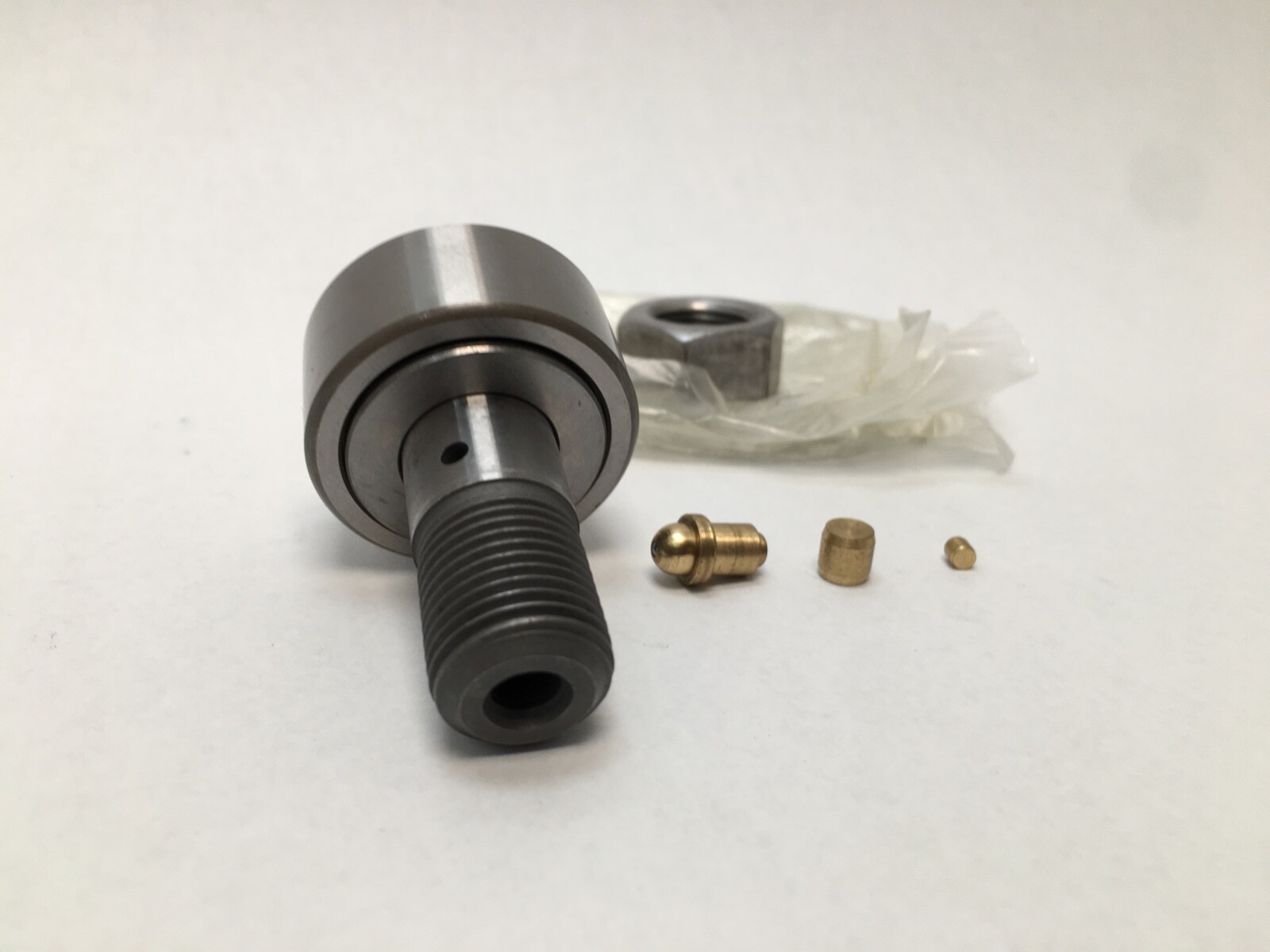

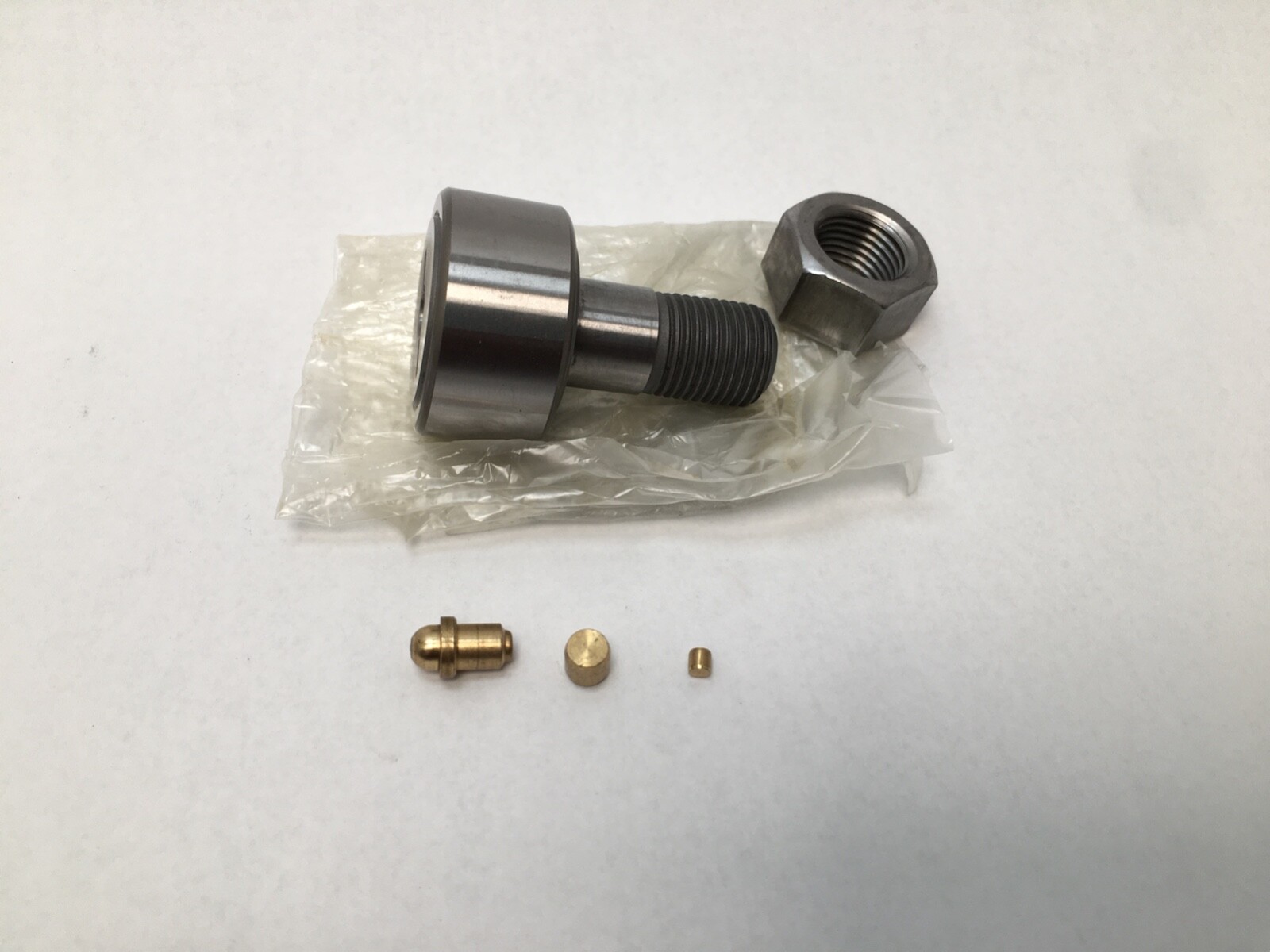

Outside diameter tolerance: 0/-0.050 mm. Stud diameter tolerance: 0/-0.018 mm. Stud length B2: 32.5 mm. Thread length G1: 17 mm. Roller-side width B: 19.5 mm. Flange diameter e: 27 mm. Grease nipple: NIP-B6.
Metric stud-type cam followers with a 35 mm crowned outer ring and a 16 mm, M16 x 1.5 stud: INA KR35, SKF KR 35, IKO CF16R. Manufacturer part number variants: KR35, KR 35, KR-35.
Outside Diameter: 35 mm. Outer Ring Width: 18 mm. Stud Diameter: 16 mm with an M16 x 1.5 thread. Overall Length: 52 mm.
Dynamic Load Rating: 12,200 N. Static Load Rating: 17,900 N. Track Load Rating: 3,200 N.
Limiting Speed: 8,000 rpm grease; 11,000 rpm oil. Operating Temperature Range: -40 to 120 °C.
