Murtfeldt281000003Spann-Box Size 0 Chain Tensioner Semi-Circular 08B-1 10B-1

Condition: New – Open box

Availability:

7 in stock

Categories: ,

Murtfeldt Spann-Box size 0 spring-loaded chain tensioner, 281000003, semi-circular profile for DIN 8187 08B-1 / 10B-1 chain, light spring force, 40 mm travel.

List Price

$50.99

7 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

7 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMurtfeldt
MPN281000003
ModelSpann-Box Size 0

Technical Specifications

Industry Termschain tensioner; spring loaded chain tensioner; Spann-Box; Kettenspanner; simplex chain tensioner; semi-circular chain tensioner
Common MisspellingsMurtfeld 281000003; Murtfeldt Spannbox; Murtfelt Spann-Box; 28100003
Application TypesRoller chain drives; conveyors; light-duty chain tensioning
Mpn Variants281000003; 2-81-000003; Spann-Box Size 0 281000003
Ansi Chain SizeDIN 8187 08B-1 / 10B-1
Tensioner TypeSpring Loaded
Seller Part Number: AI4B5#2N0SJQ

Product Description

What this part is:

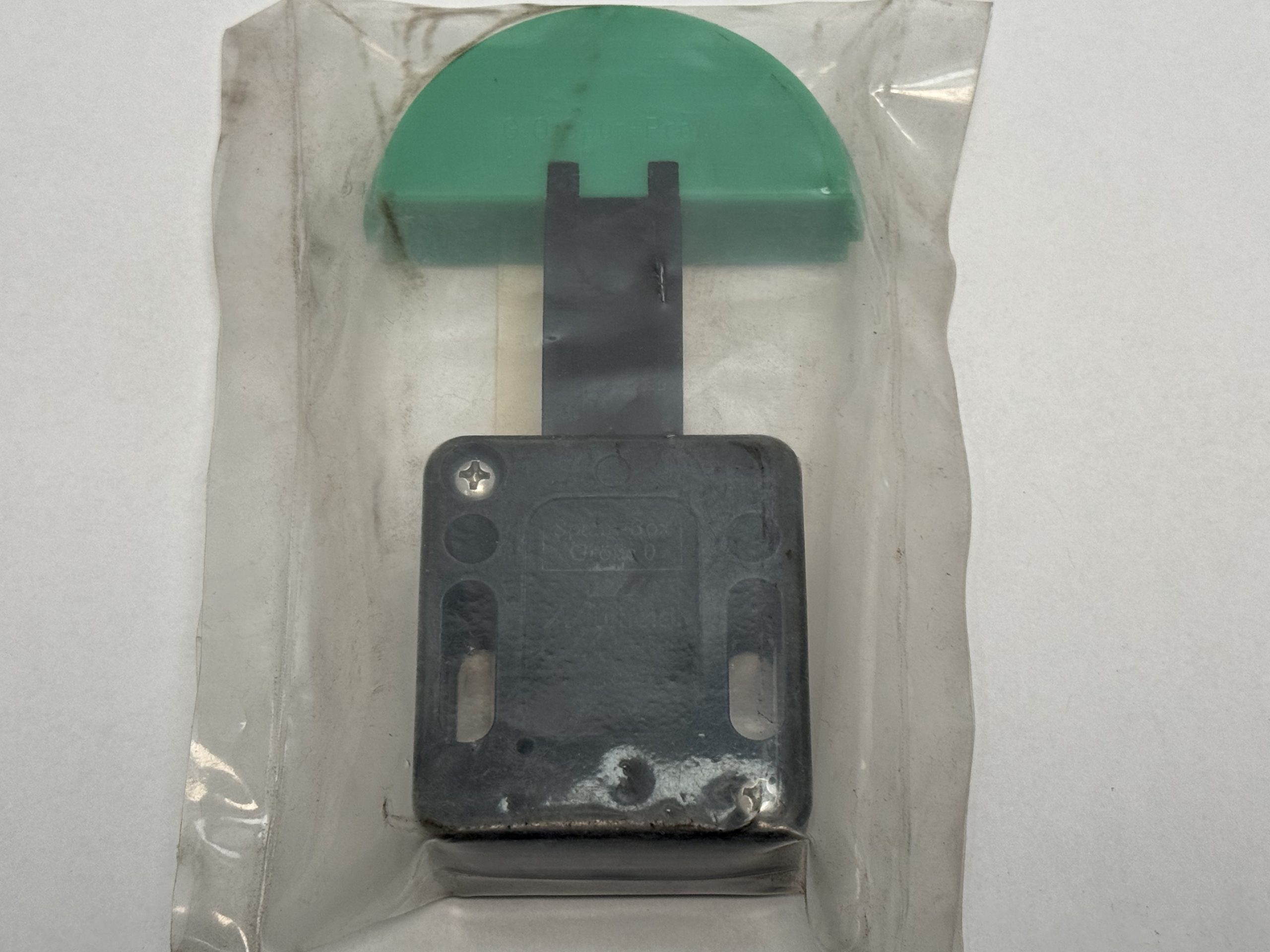

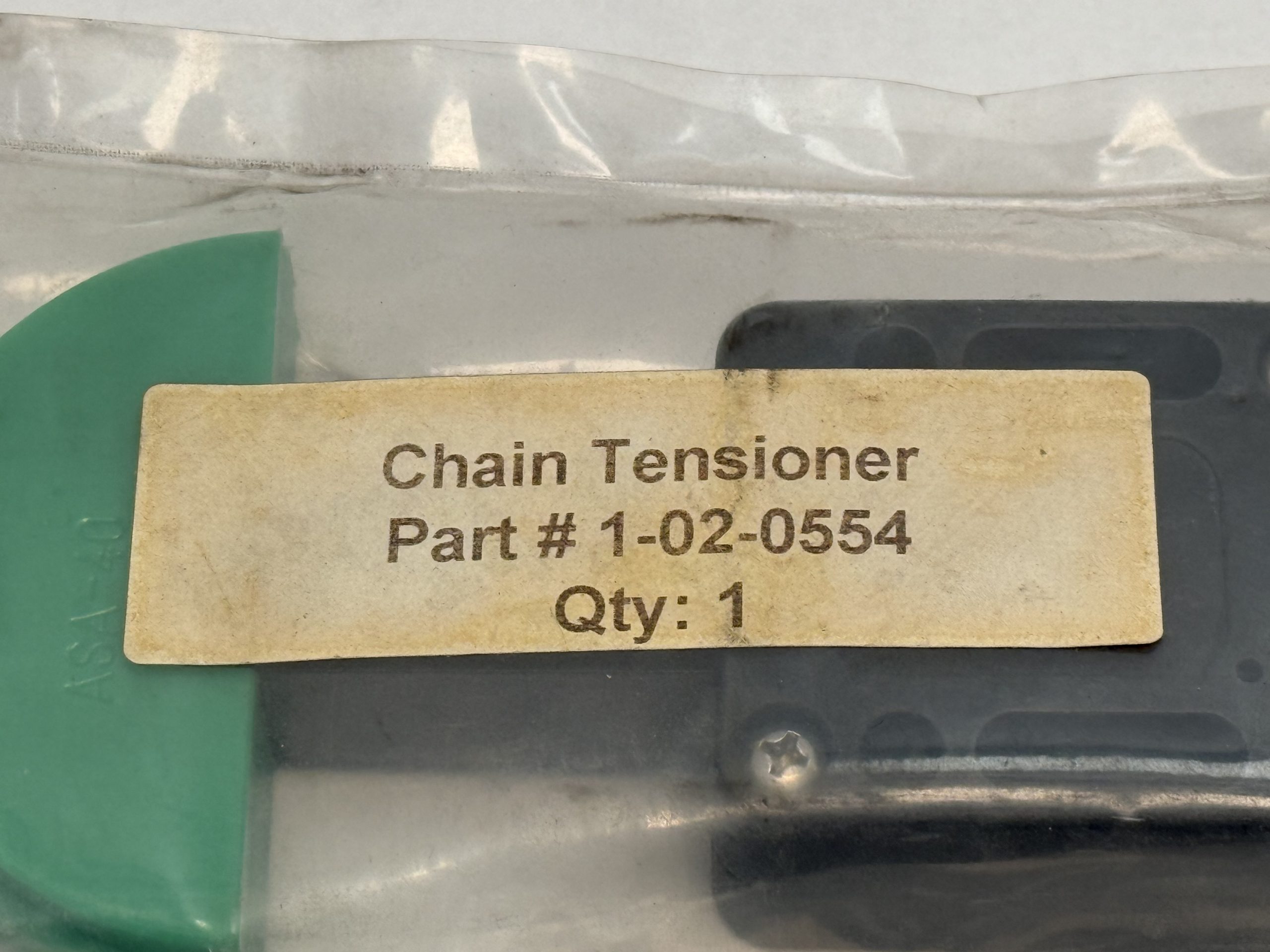

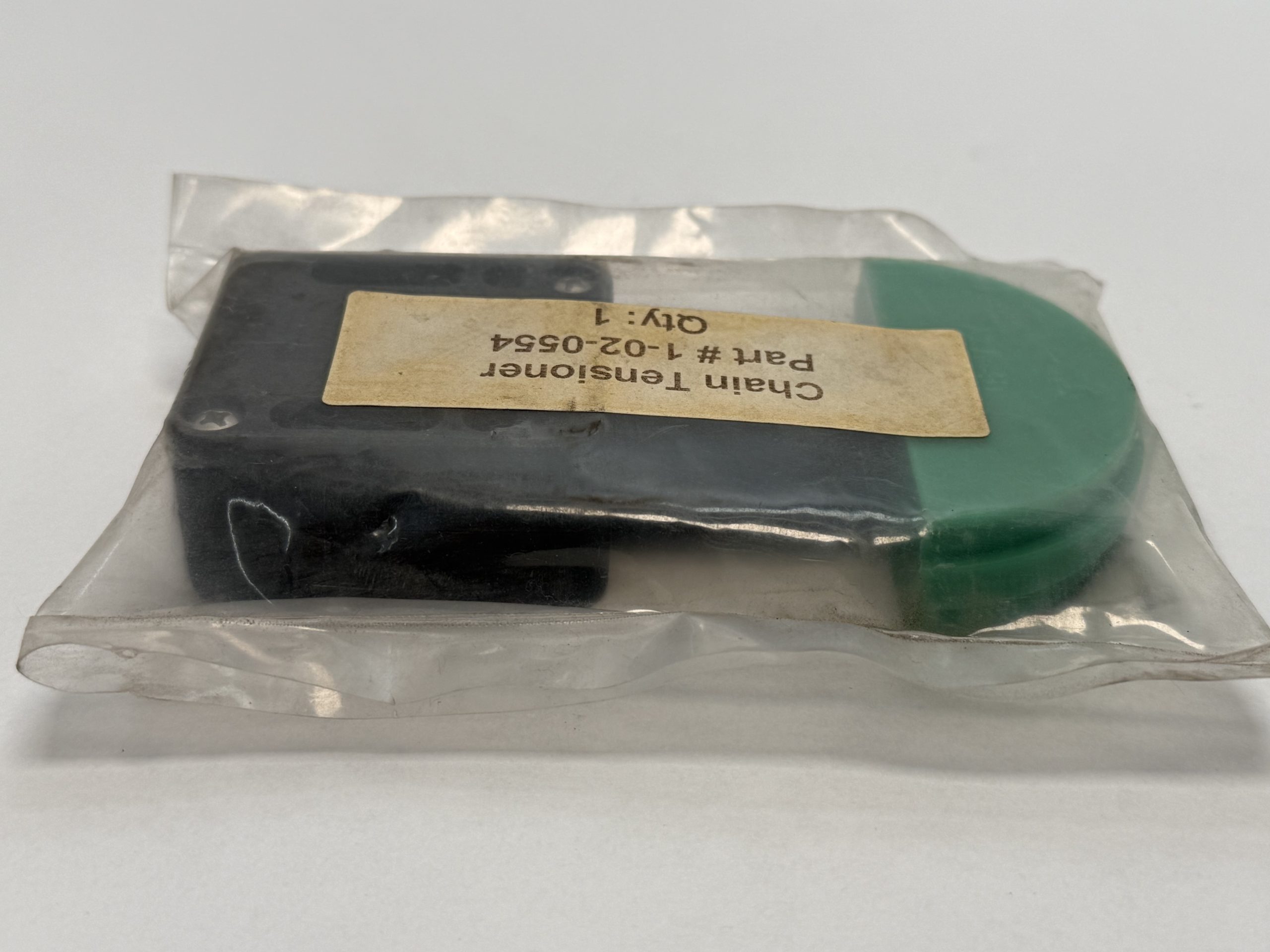

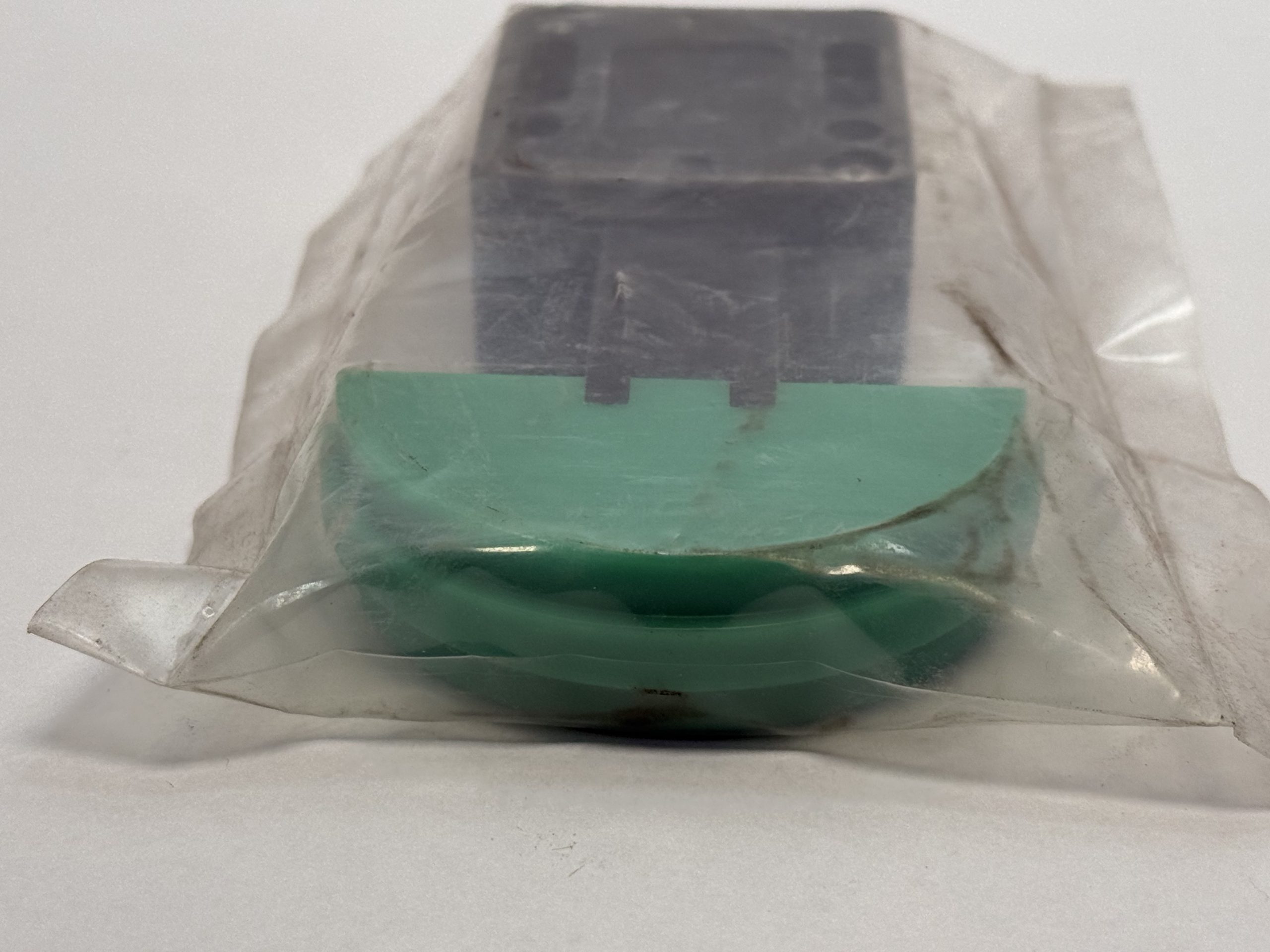

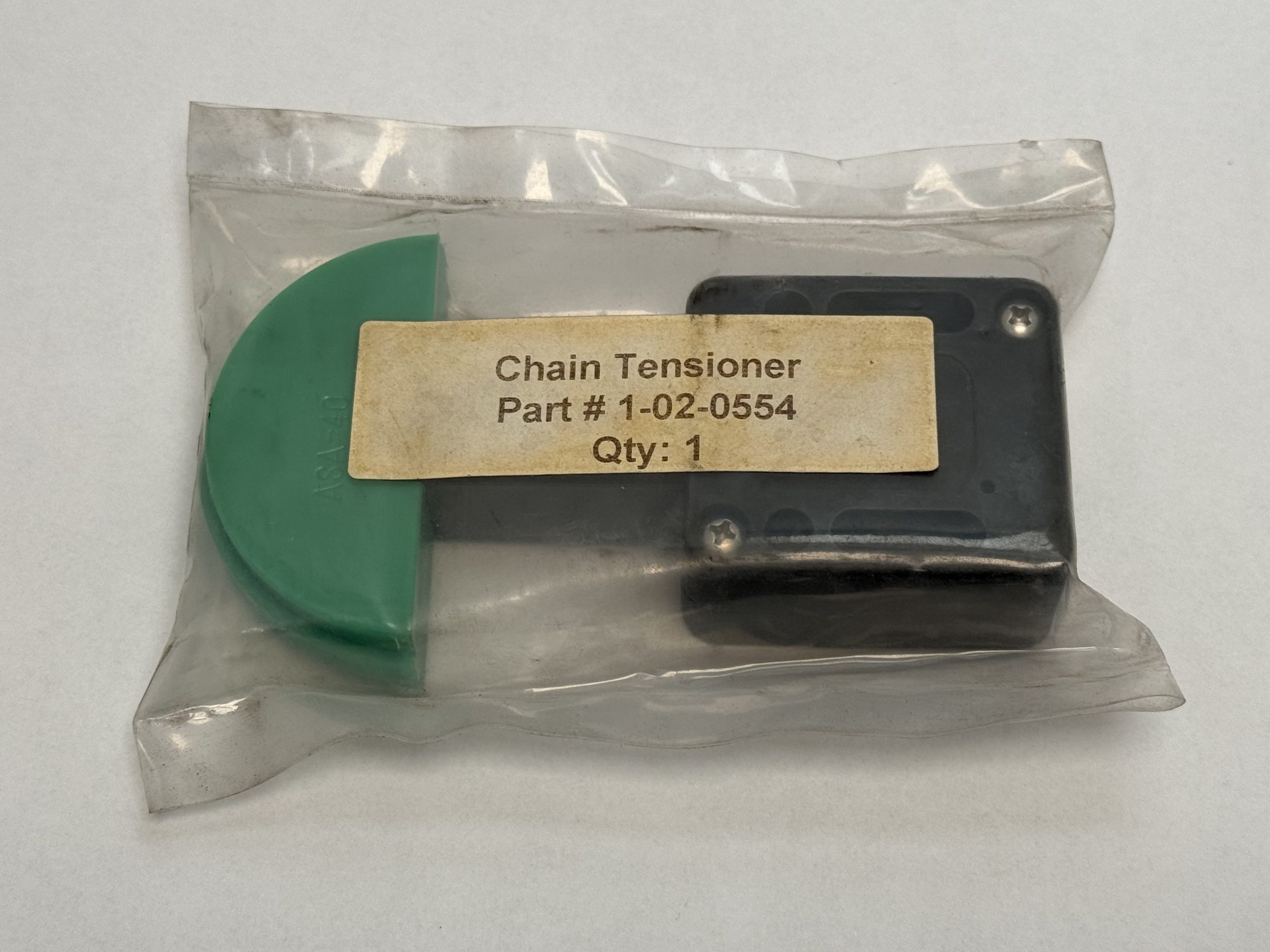

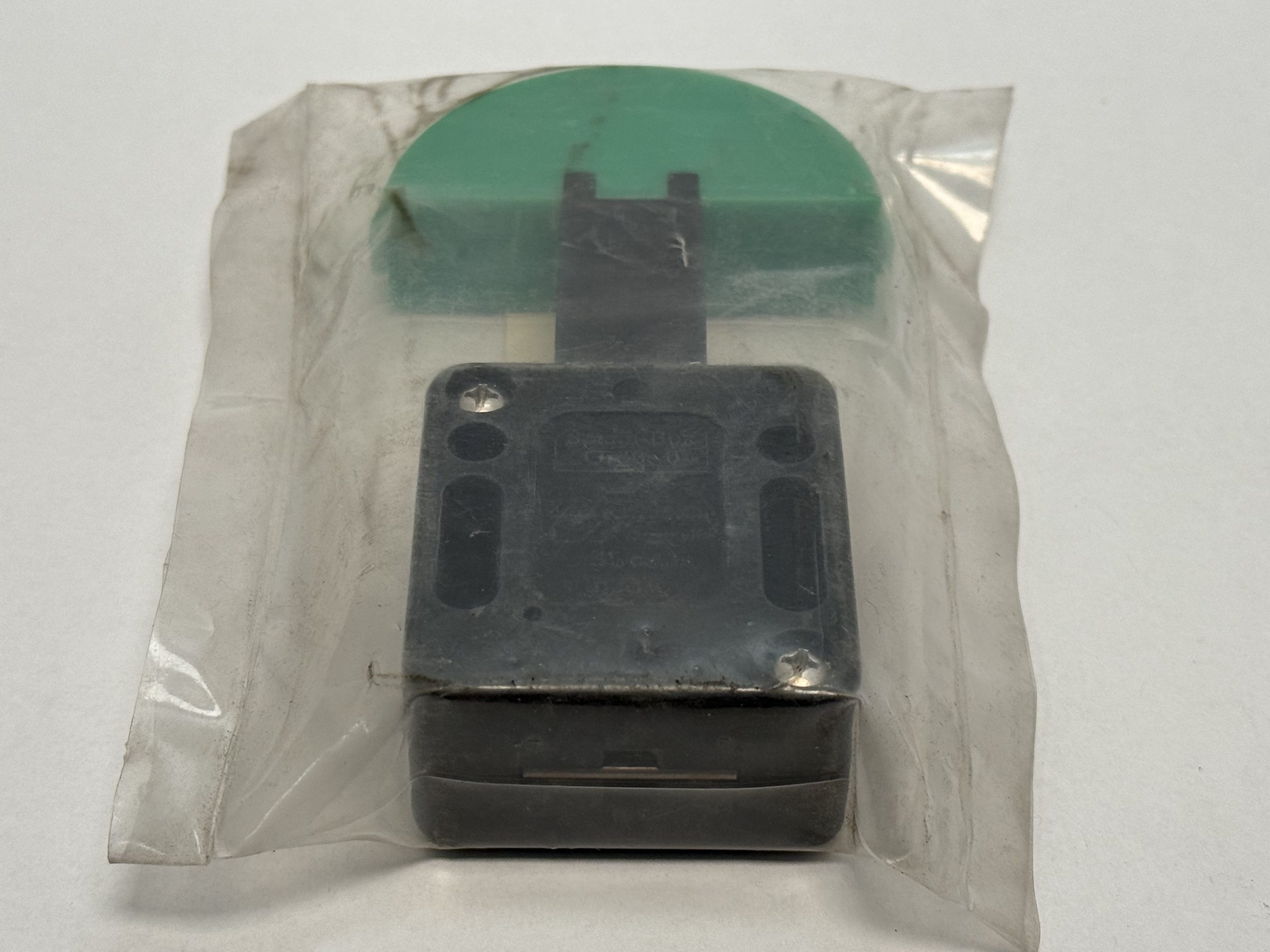

One Murtfeldt Spann-Box size 0 spring-loaded chain tensioner with the semi-circular profile, Murtfeldt product number 281000003, for DIN 8187 08B-1 / 10B-1 chain. Supplied in a bag labeled Chain Tensioner Part # 1-02-0554, Qty: 1. The housing and profile carry no visible Murtfeldt markings.

Decoding the designation:

281000003 — Murtfeldt product number for the Spann-Box size 0, semi-circular profile, for DIN 8187 chain 08B-1 / 10B-1, light spring force.

1-02-0554 — part number on the bag label.

Specifications:

Type: Spring-loaded chain tensioner (Spann-Box).

Size: 0.

Profile: Semi-circular.

Chain: DIN 8187 08B-1 / 10B-1, simplex.

Spring Force: Light.

Tensioning Distance: 40 mm.

Adjustment Range: 25 mm.

Housing Material: Plastic.

Unit Quantity: 1 Pc.

Country of Origin: Germany.

Dimensions and mounting:

Tensioning Distance: 40 mm. Adjustment Range: 25 mm. Profile: semi-circular.

Compatibility and replacement:

For DIN 8187 simplex chain 08B-1 and 10B-1. Bag label part number: 1-02-0554.

Frequently asked questions:

What is the Murtfeldt 281000003?

A Spann-Box size 0 spring-loaded chain tensioner with a semi-circular profile and light spring force.

Which chain does it suit?

DIN 8187 simplex chain 08B-1 and 10B-1.

What are the tensioning distance and adjustment range?

Tensioning distance 40 mm; adjustment range 25 mm.
