Availability:
1 in stock

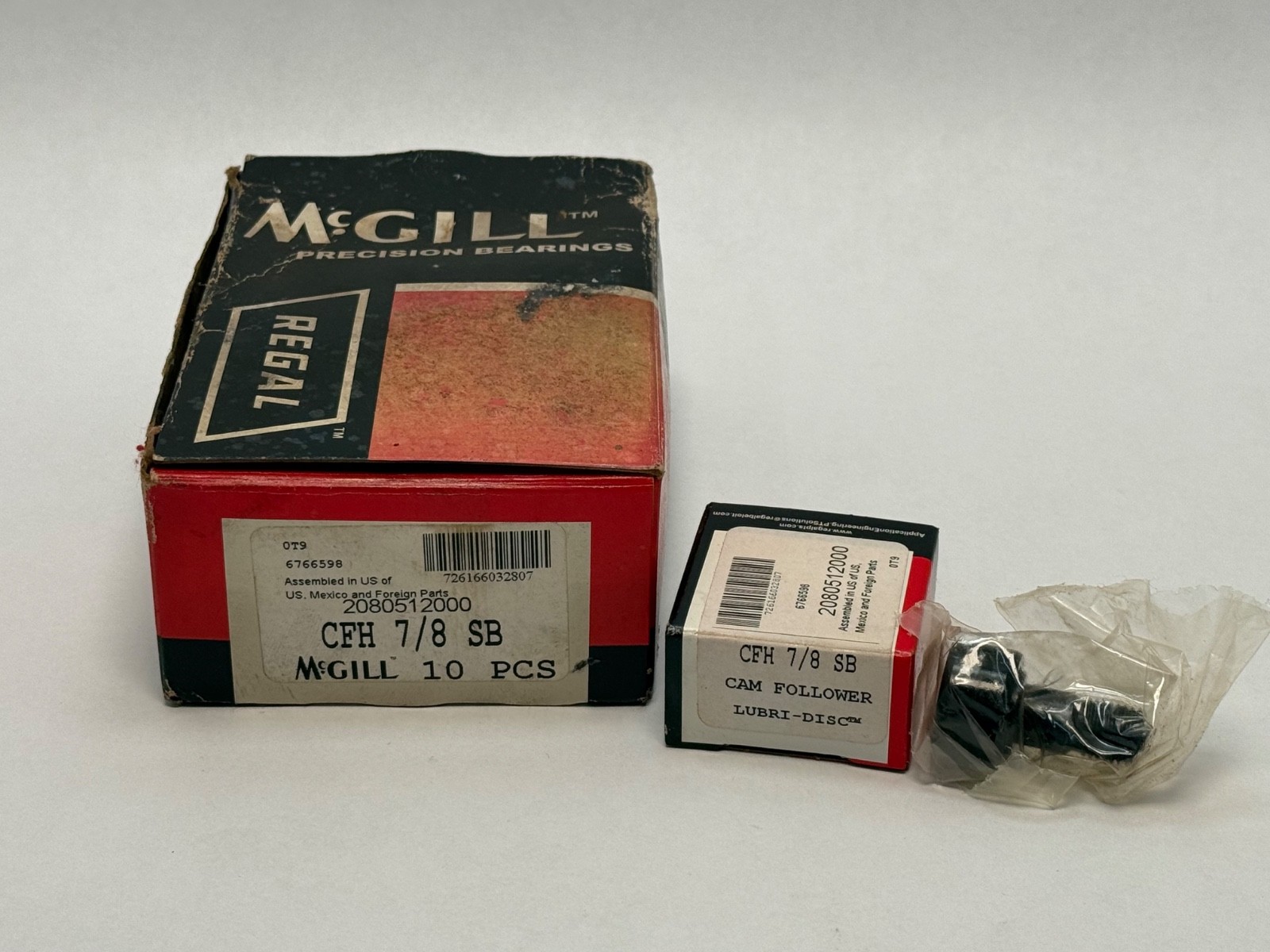

Heavy stud cam follower, 7/8 in cylindrical roller, 1/2 in wide, 7/16-20 stud, LUBRI-DISC sealed, hex drive, 1,660 lbf dynamic. Ten-piece set, black oxide.
List Price
$84.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | McGill |
|---|---|
| MPN | CFH-7/8-SB |
| GTIN | 726166032807 |
| Model | CFH7/8SB |
| OD | 0.8750 in (22.225 mm) |
| Roller Diameter | 0.8750 in (22.225 mm) |
|---|---|
| Stud Length | 0.8750 in (22.225 mm) |
| Roller Width | 0.5000 in (12.700 mm) |
| Relubrication | Yes |
| Cage Type | Full complement |
| Dynamic Load Rating | 7,384 N (1,660 lbf) |
| Static Load Rating | 9,341 N (2,100 lbf) |
| Relubrication Feature | Yes |
| Bearing Material | Bearing steel, black oxide finish |
| Base Number | CFH 7/8 |
| Industry Terms | cam follower, track roller, stud type track roller, heavy stud cam follower, CAMROL, needle track roller |
| Common Misspellings | MacGill CFH 7/8 SB, Mcgil CFH7/8SB, CFH 7/8SB |
| Application Types | Cam mechanisms, linear motion guides, packaging machinery, material handling, indexing equipment |
| Roller Shape | Cylindrical |
| Stud Diameter | 0.4375 in (11.113 mm) |
| Mpn Variants | CFH 7/8 SB, CFH-7/8-SB, CFH7/8SB, CFH78SB, 2080512000 |
| Series | Inch CAMROL (CFH heavy stud) |
| Rolling Elements | Needle Roller |
| Bearing Type | Cam Follower |
| Cross Reference 1 | RBC H28LW |
|---|---|
| Cross Reference 2 | Torrington CRHSB-14 |
| Cross Reference 3 | IKO CRH 14 VBUU |
| Cross Reference 4 | McGill CCFH 7/8 SB (related, crowned OD) |

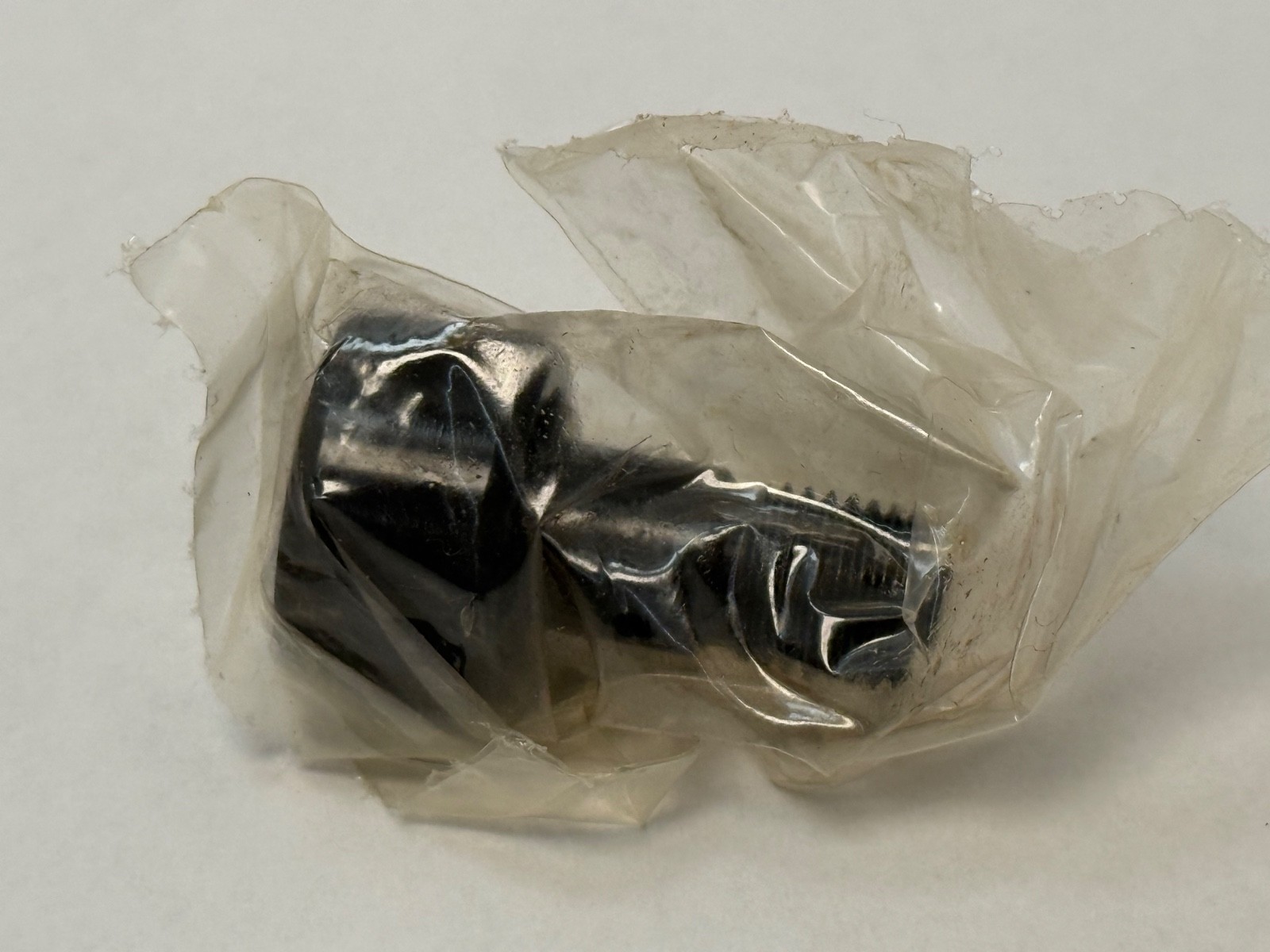

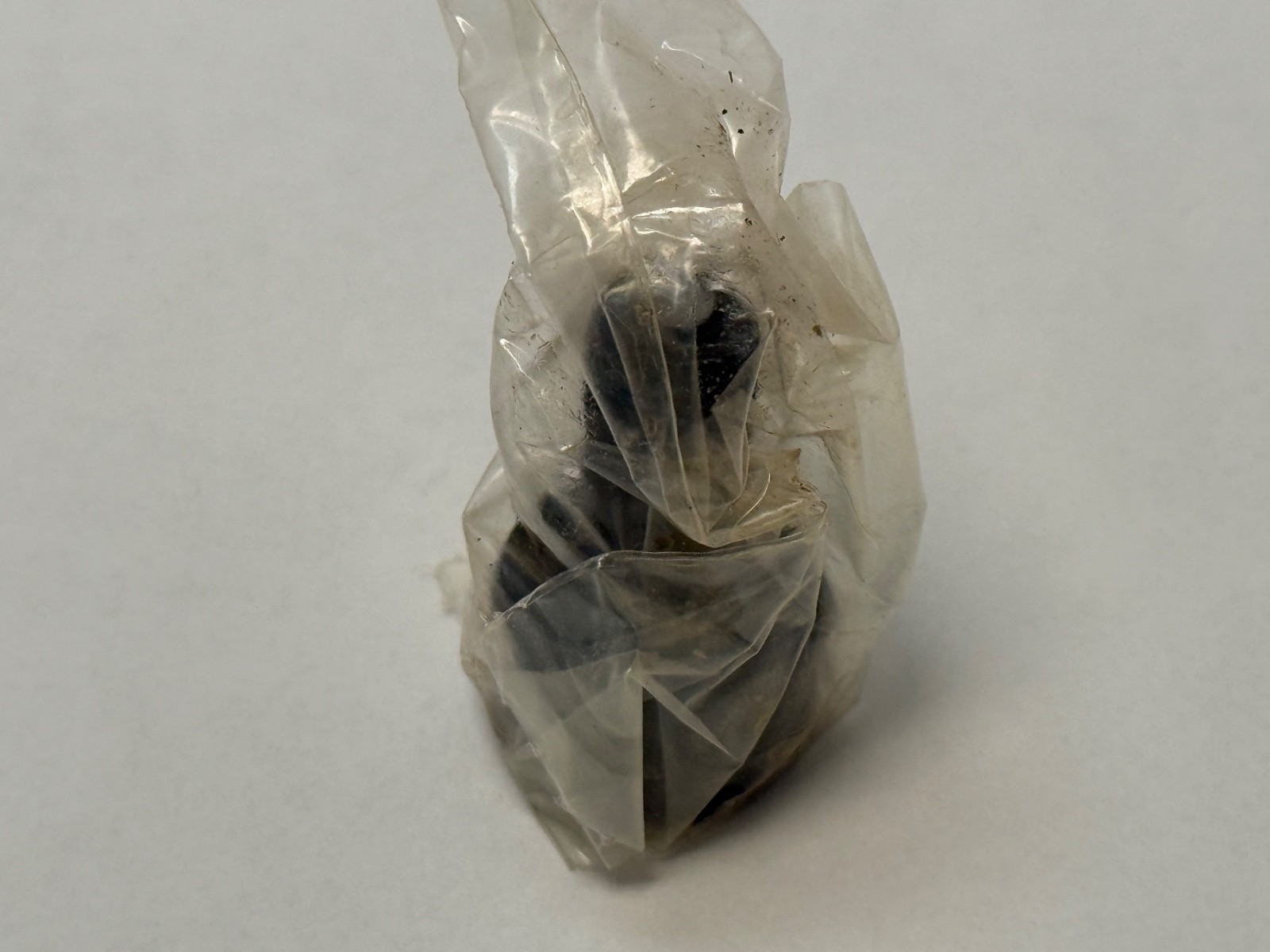

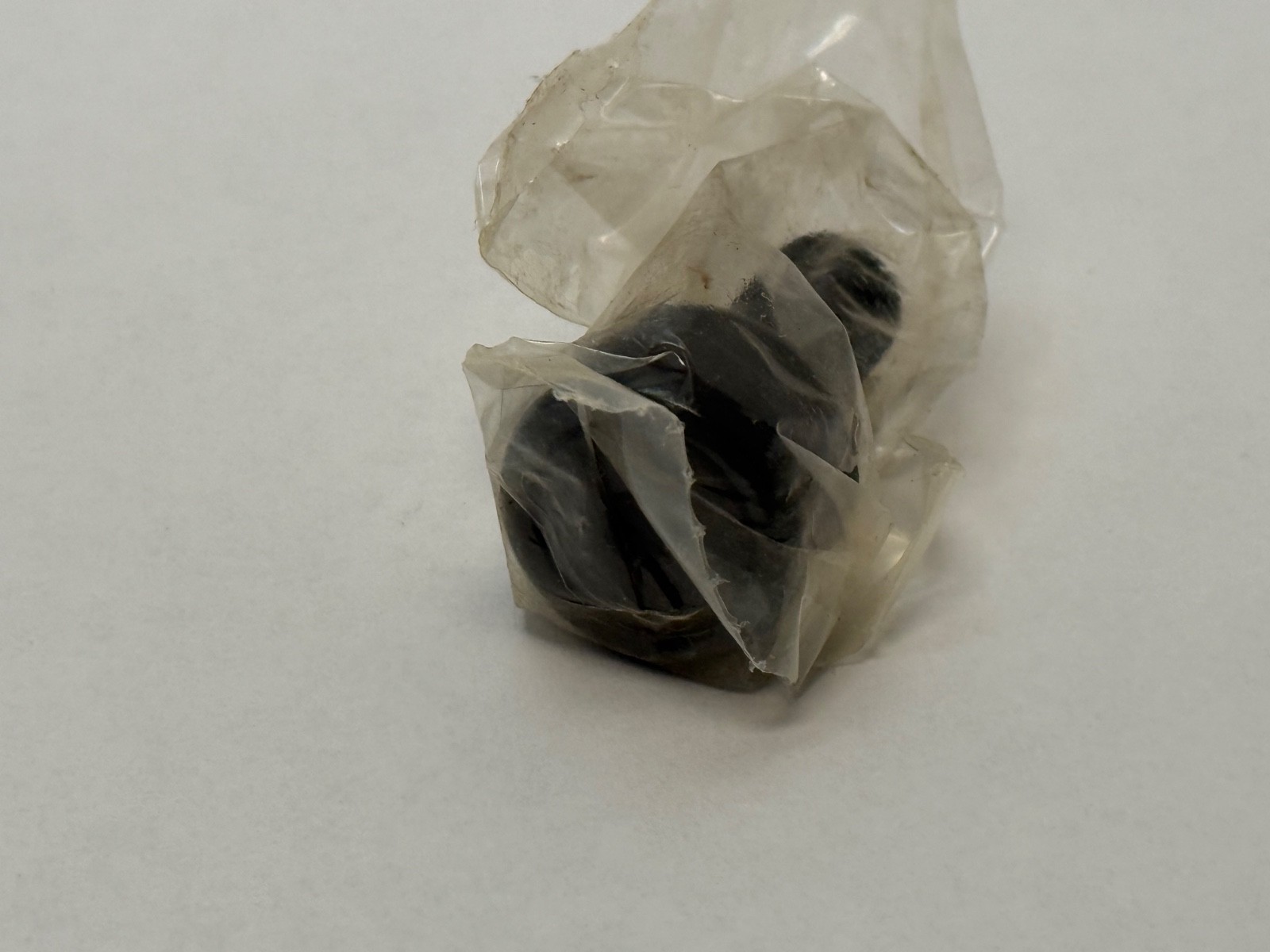

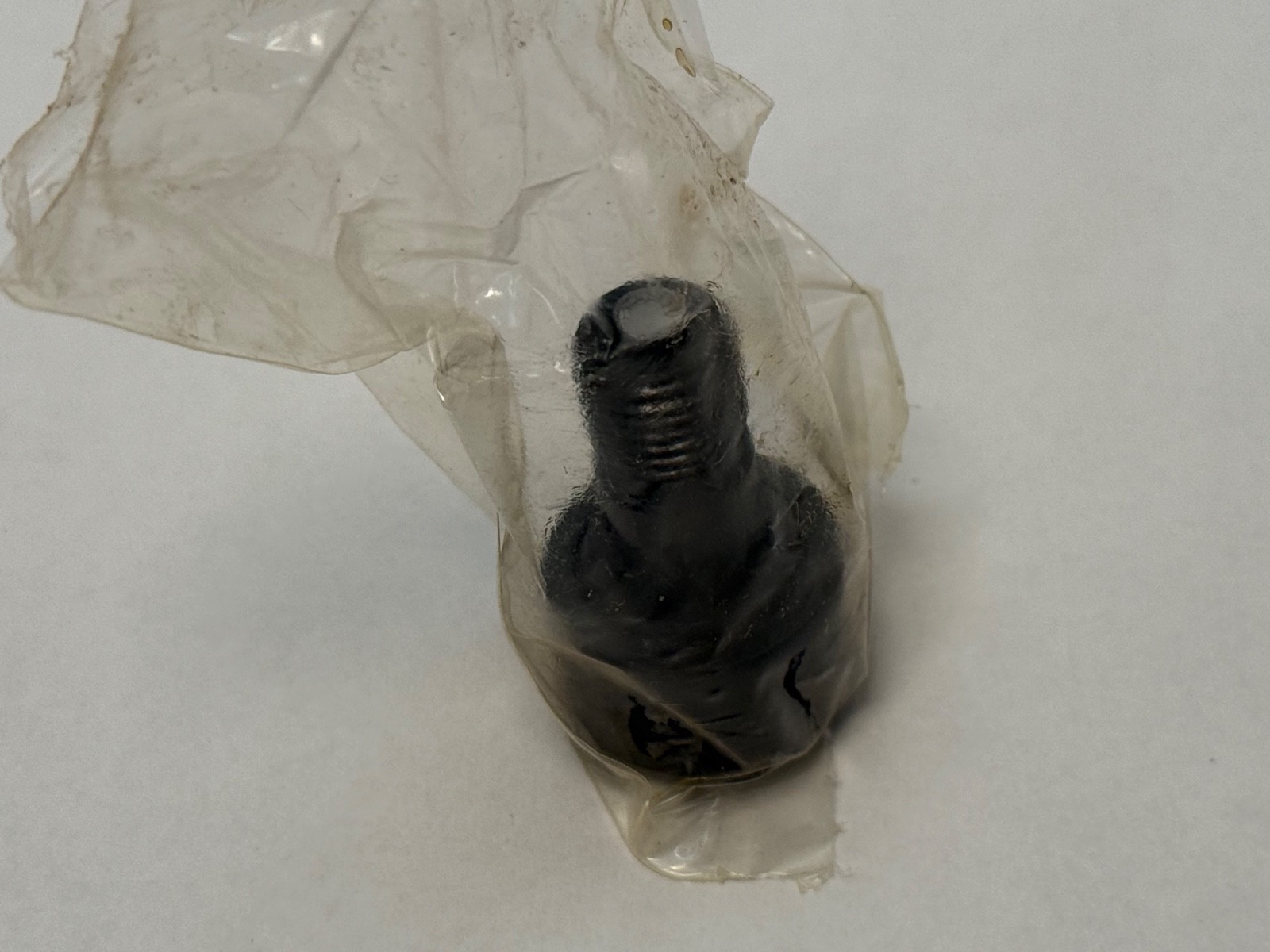

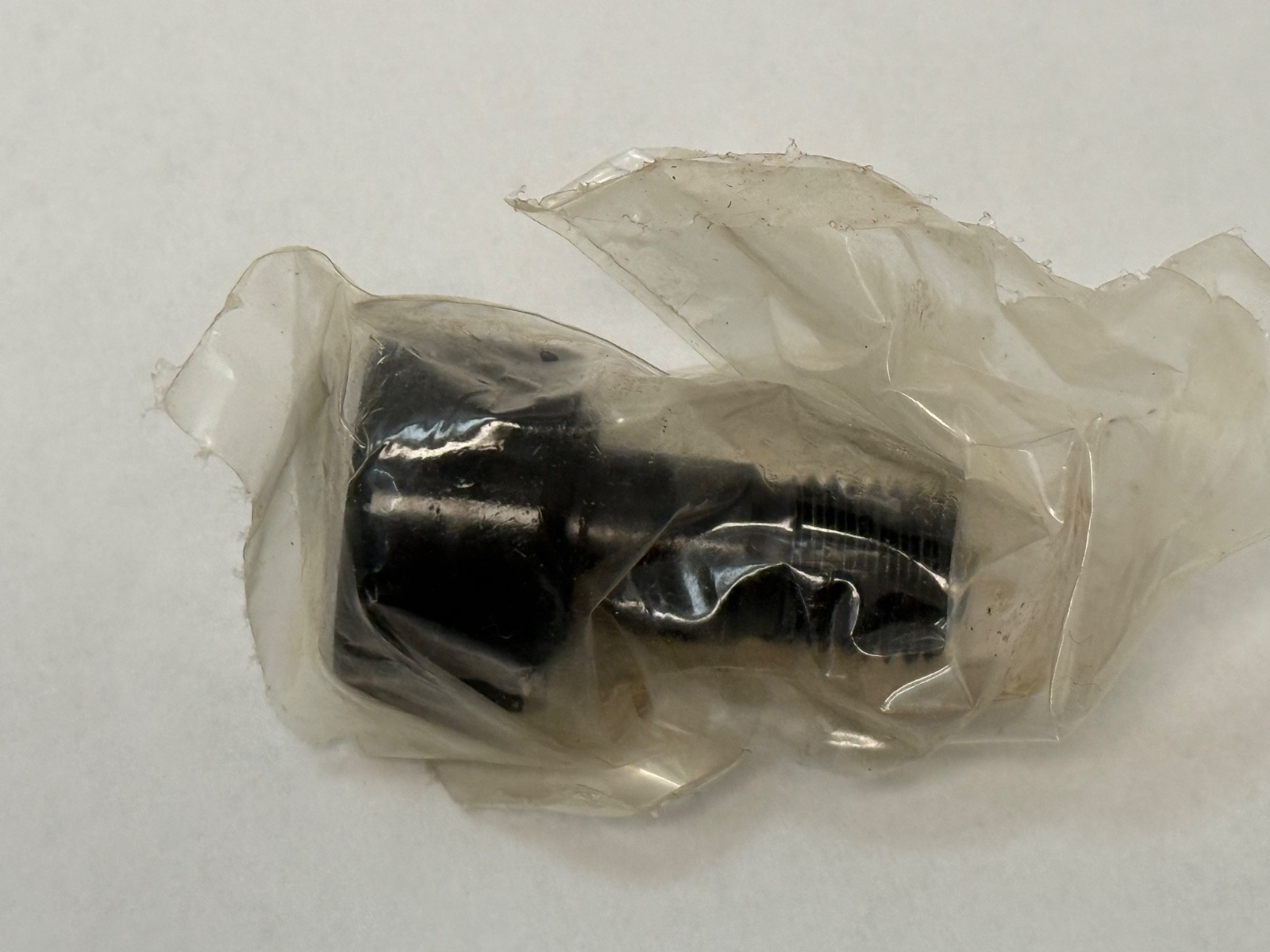

McGill CFH 7/8 SB is a heavy stud CAMROL® cam follower with a cylindrical outside diameter, LUBRI-DISC® seals and a hex hole drive. McGill Part Number: 2080512000. Roller Diameter: 0.8750 in (22.225 mm). Roller Width: 0.5000 in (12.700 mm). Stud Diameter: 0.4375 in (11.113 mm). Stud Length: 0.8750 in (22.225 mm). Stud Type: Heavy stud.
CF — McGill CAMROL® stud-type cam follower.
H — heavy stud configuration, a larger stud diameter for the roller size.
7/8 — roller outside diameter, 7/8 in.
S — LUBRI-DISC® seals.
B — hex hole drive in the stud head.
Dynamic Load Rating: 7,384 N (1,660 lbf). Static Load Rating: 9,341 N (2,100 lbf). Rolling Elements: Needle Roller, full complement. The full-complement needle construction gives high radial load capacity and resistance to shock loading. Outside Diameter Profile: Cylindrical. Bearing Material: Bearing steel, black oxide finish. Closure Type: Sealed, LUBRI-DISC®. Relubrication: Yes.
Thread Size: 7/16-20. Minimum Thread Length: 0.38 in. Clamping Torque: 250 in-lbf. Lubrication Hole Location: Stud side. Oil Hole Diameter: 0.094 in. Oil Hole Center: 0.25 in. Lubrication Fitting Size: 3/16 in. Adjustment: None, concentric stud.

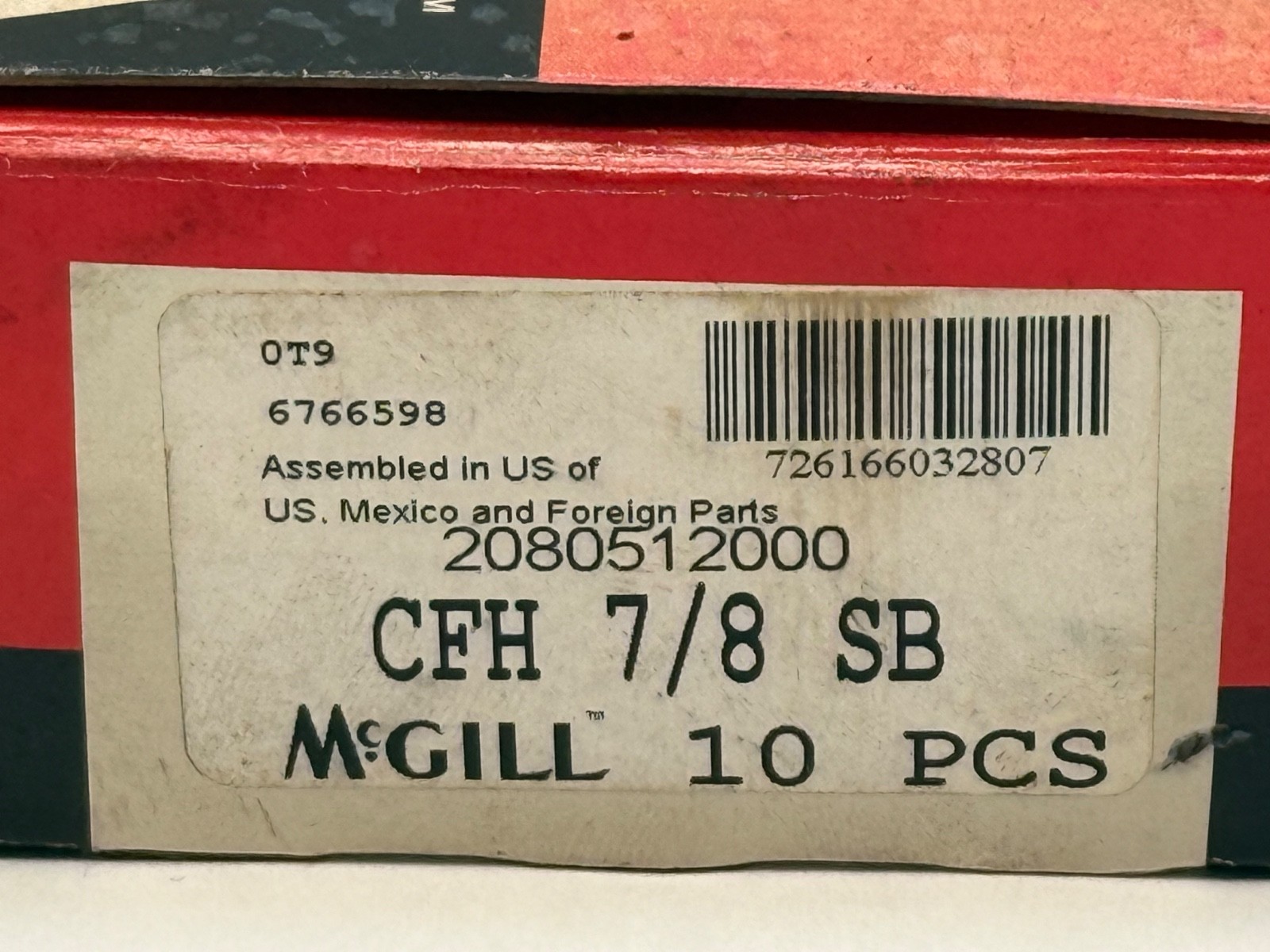

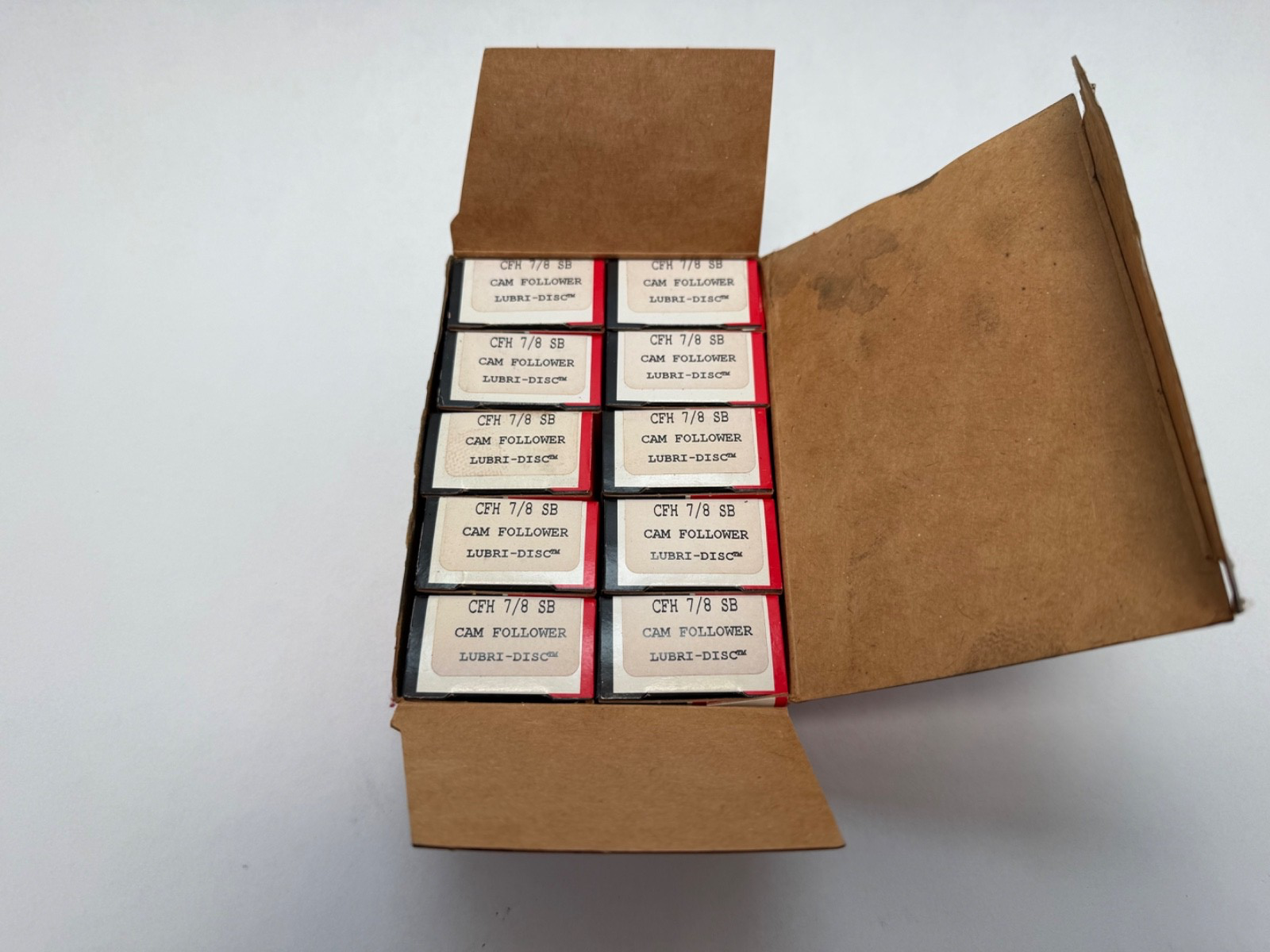

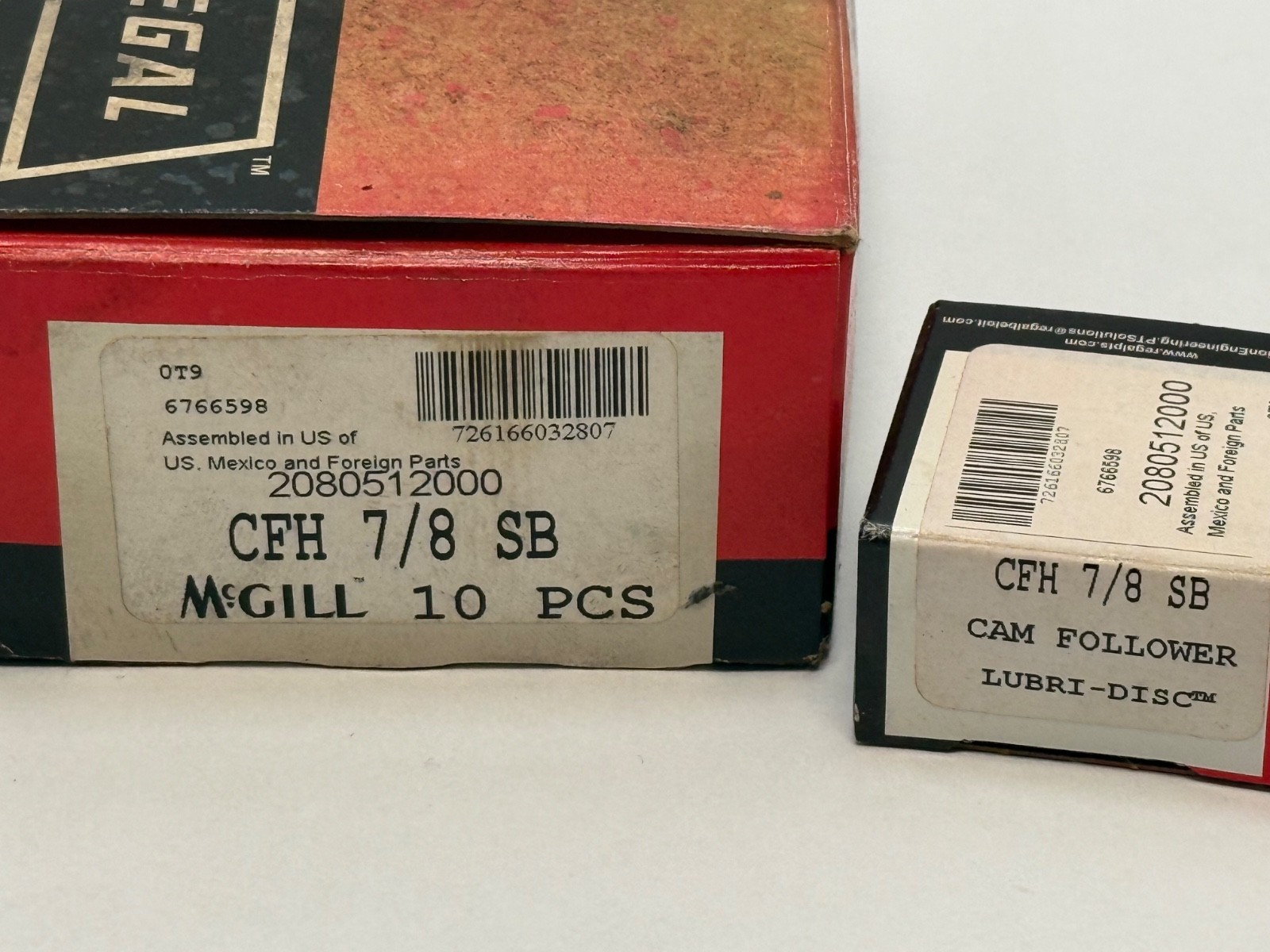

Ten cam followers per listing. Unit Quantity: 10 Pcs.
Direct interchanges: RBC H28LW, Torrington CRHSB-14 and IKO CRH 14 VBUU — heavy stud, sealed, hex drive, 7/8 in cylindrical roller. McGill CCFH 7/8 SB is the crowned-OD version of the same envelope. GTIN: 726166032807.
