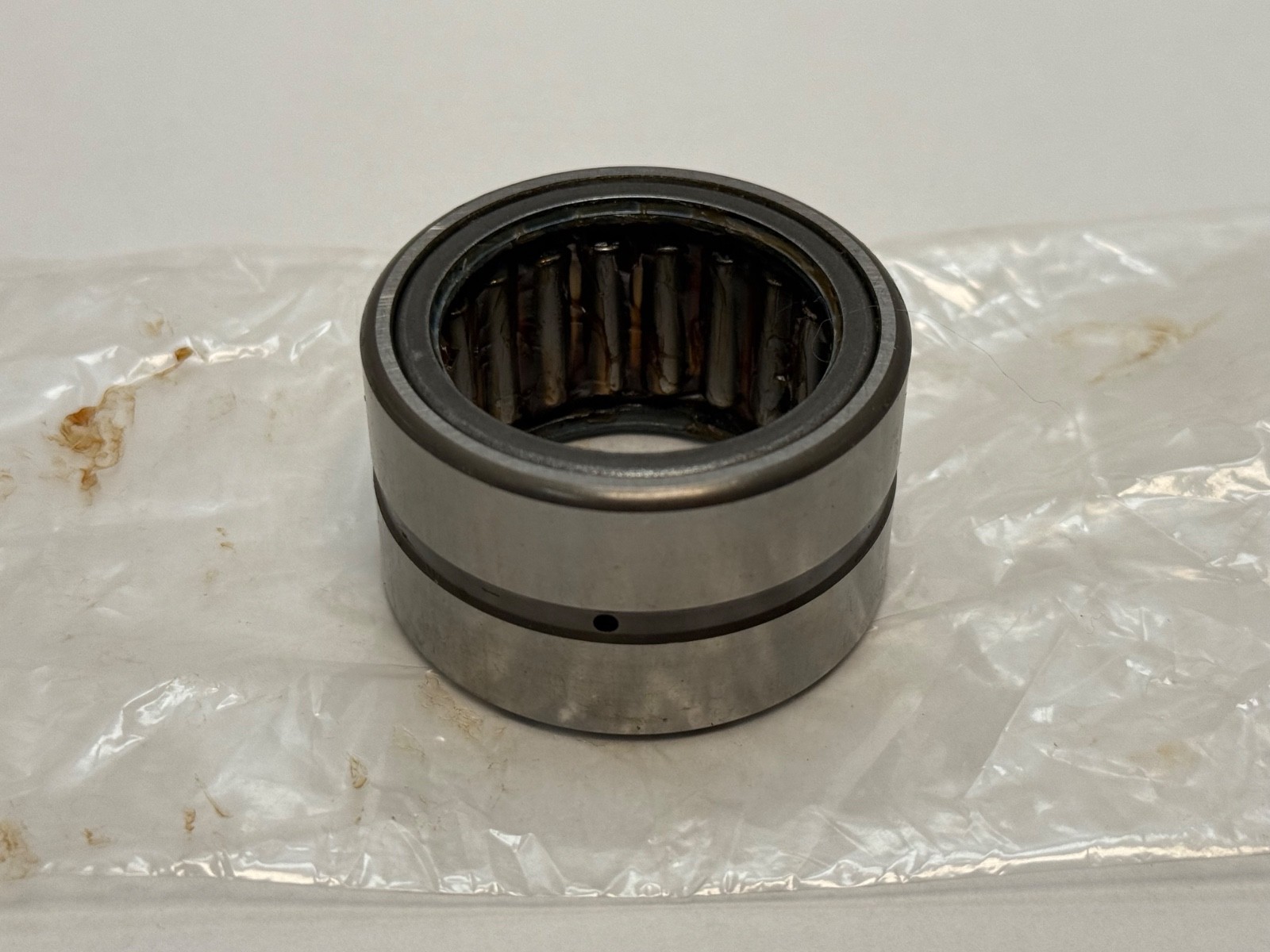

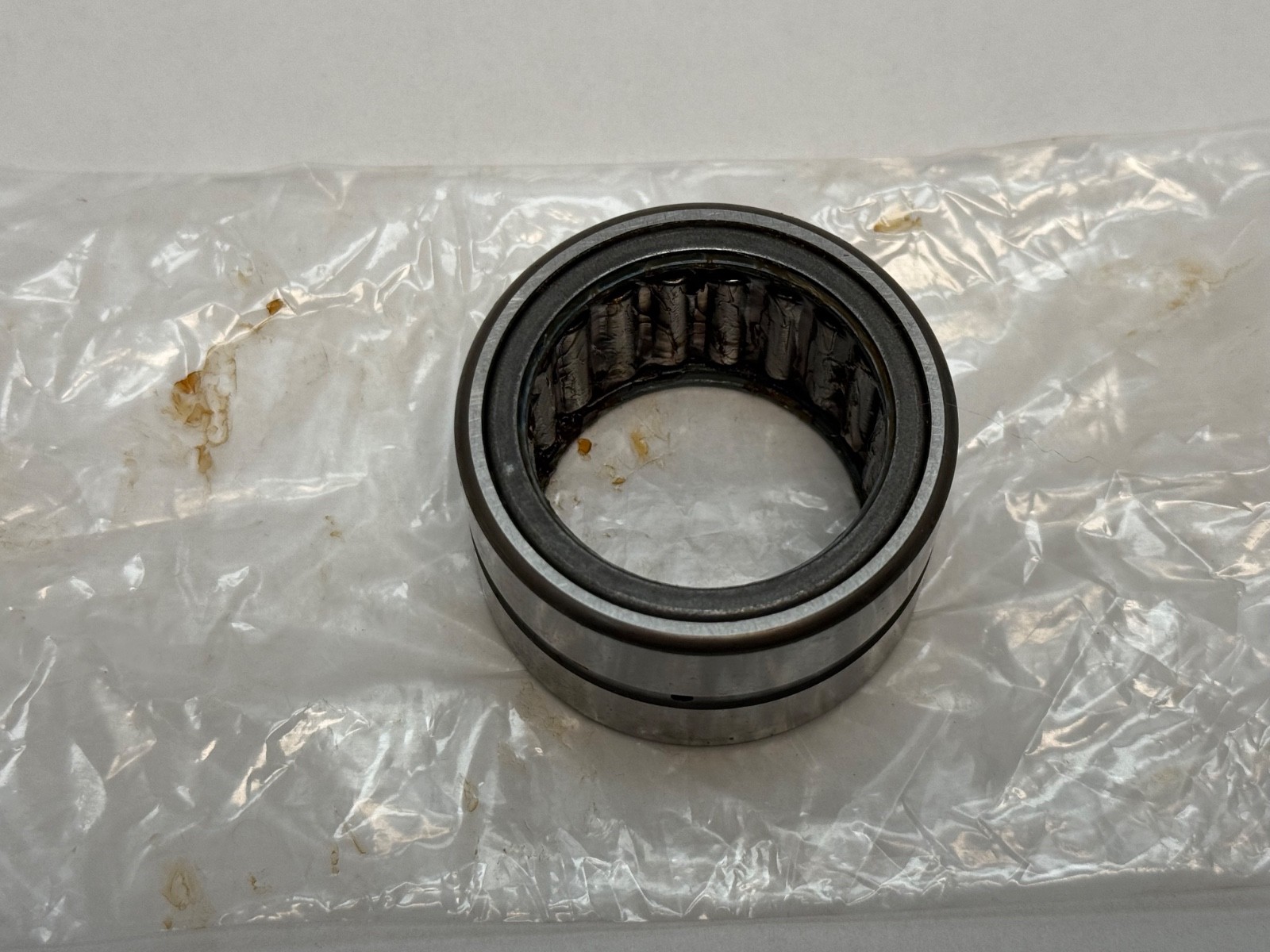

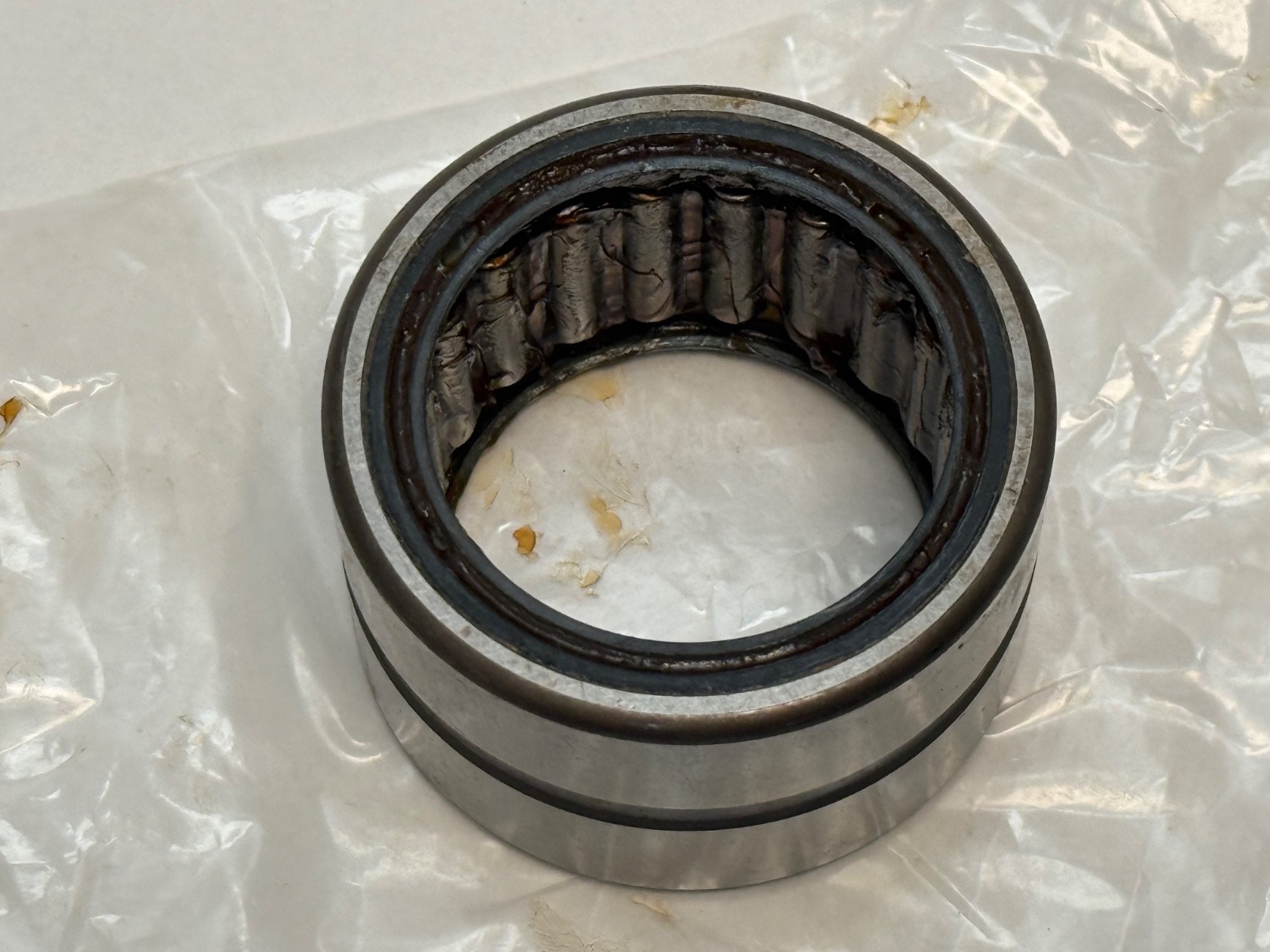

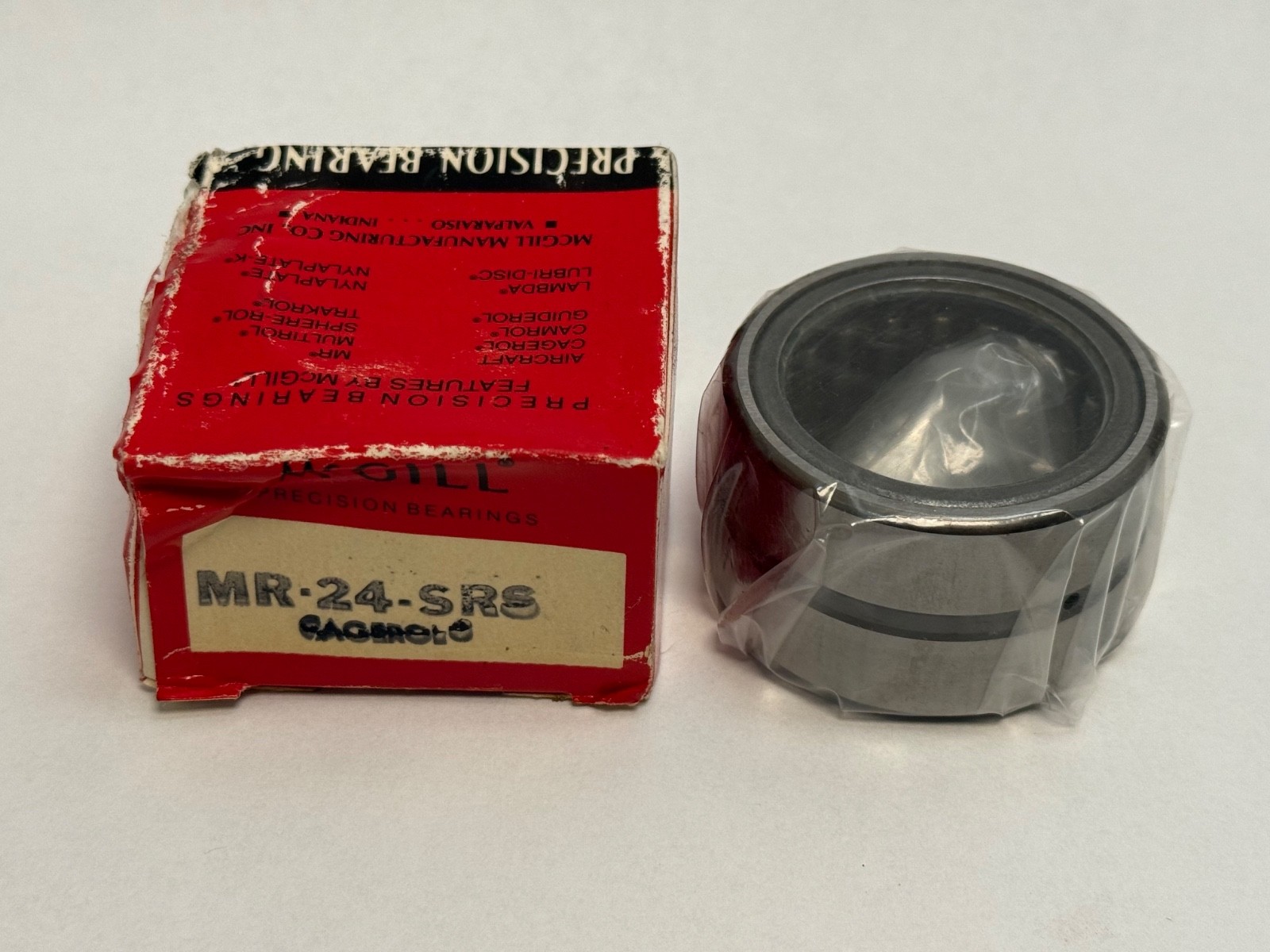

Sealed caged needle roller bearing, 1-1/2 in shaft x 2-1/16 in OD x 1-1/4 in wide, 10,300 lbf dynamic. Machined outer race, lube groove, mates MI 19 inner.
List Price
$25.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | McGill |
|---|---|
| Model | MR-24-SRS |
| Bearing Type | Needle Roller Bearing, Rubber lip, one lip turned in, one lip turned out |
| ID | 1.5000 in (38.100 mm) |
| OD | 2.0625 in (52.388 mm) |
| Condition Note | Made In USA |
|---|---|
| Condition | New – Open box |

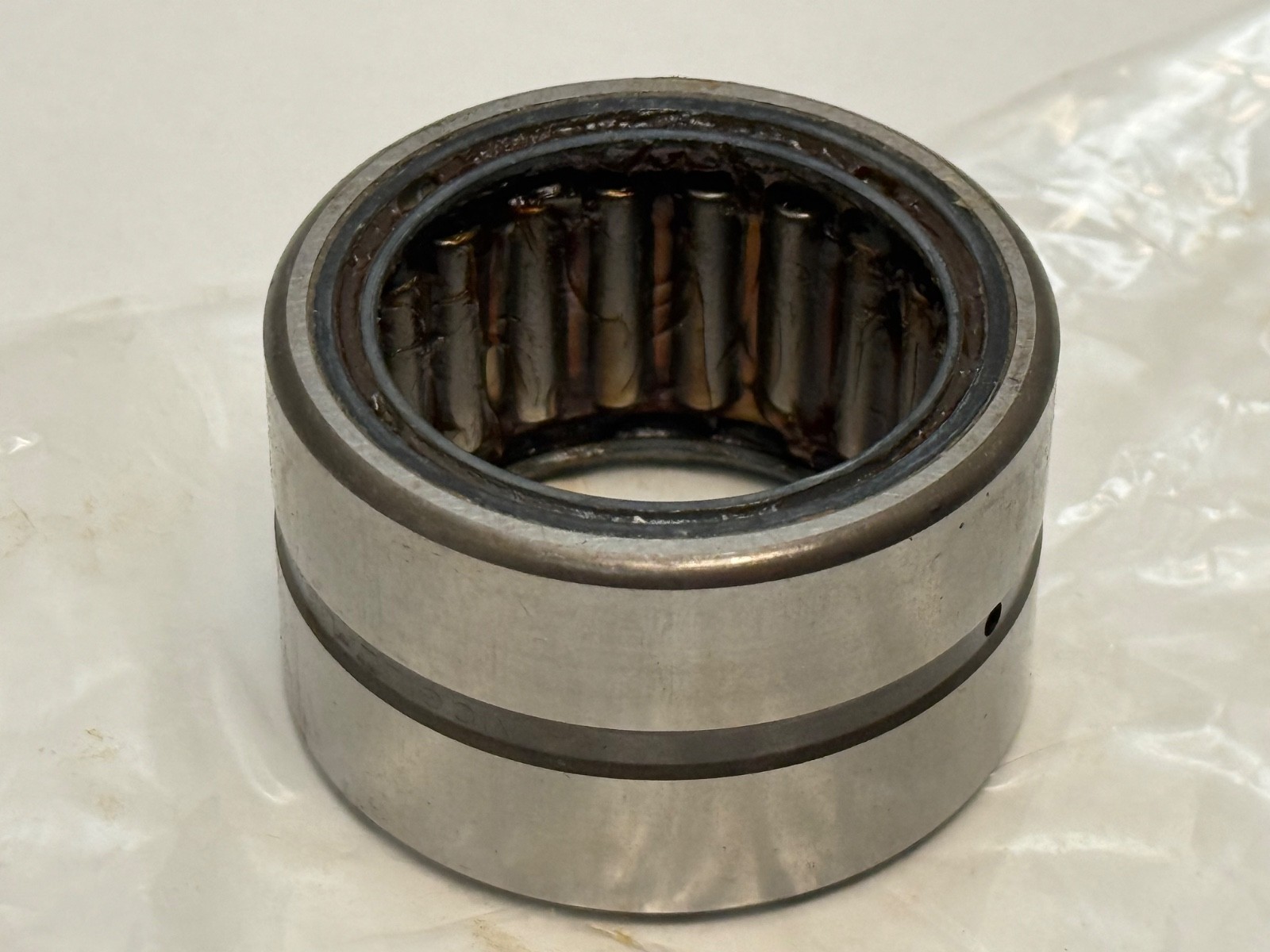

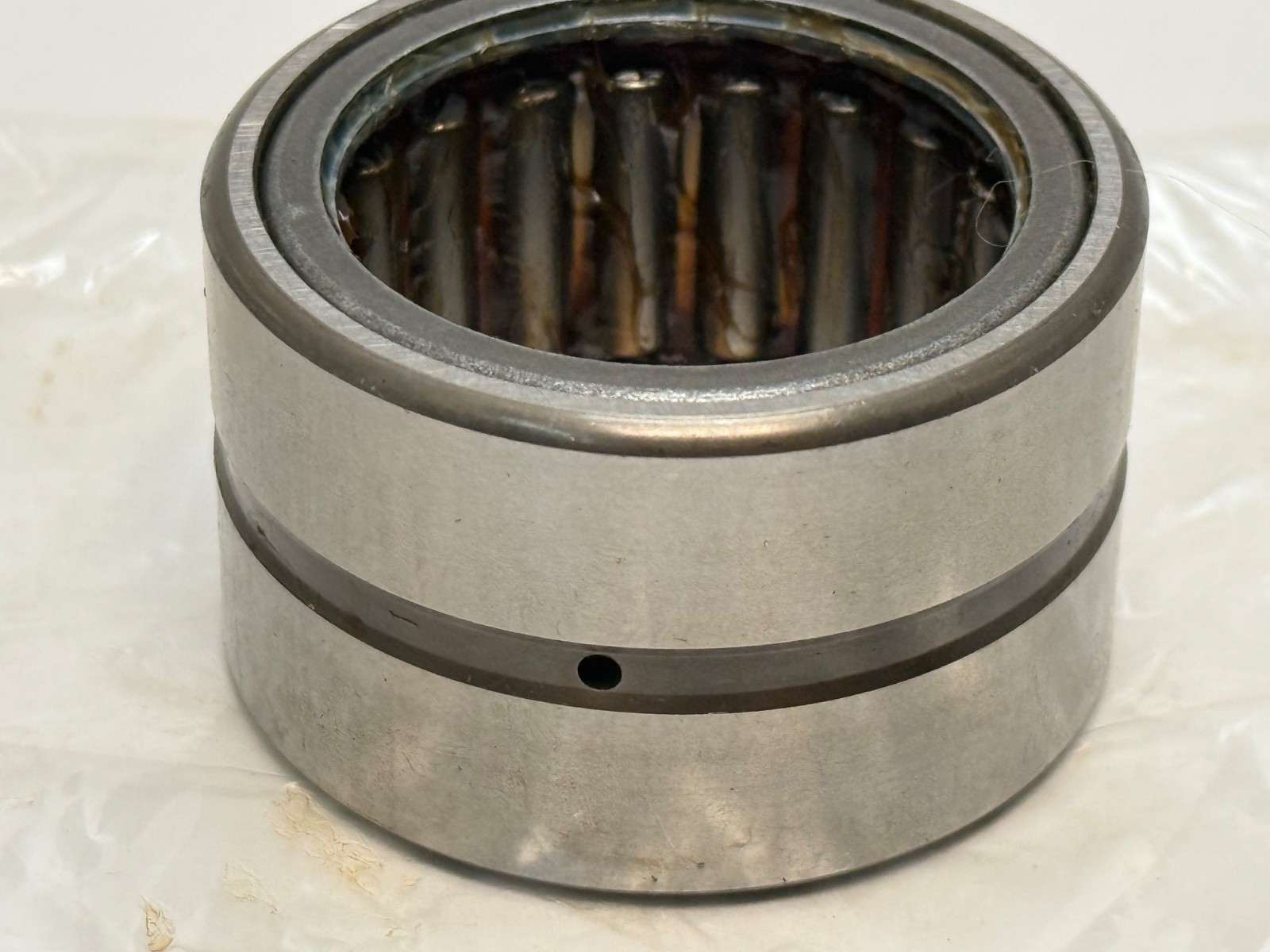

| Relubrication | Annular groove and radial hole in outer race |

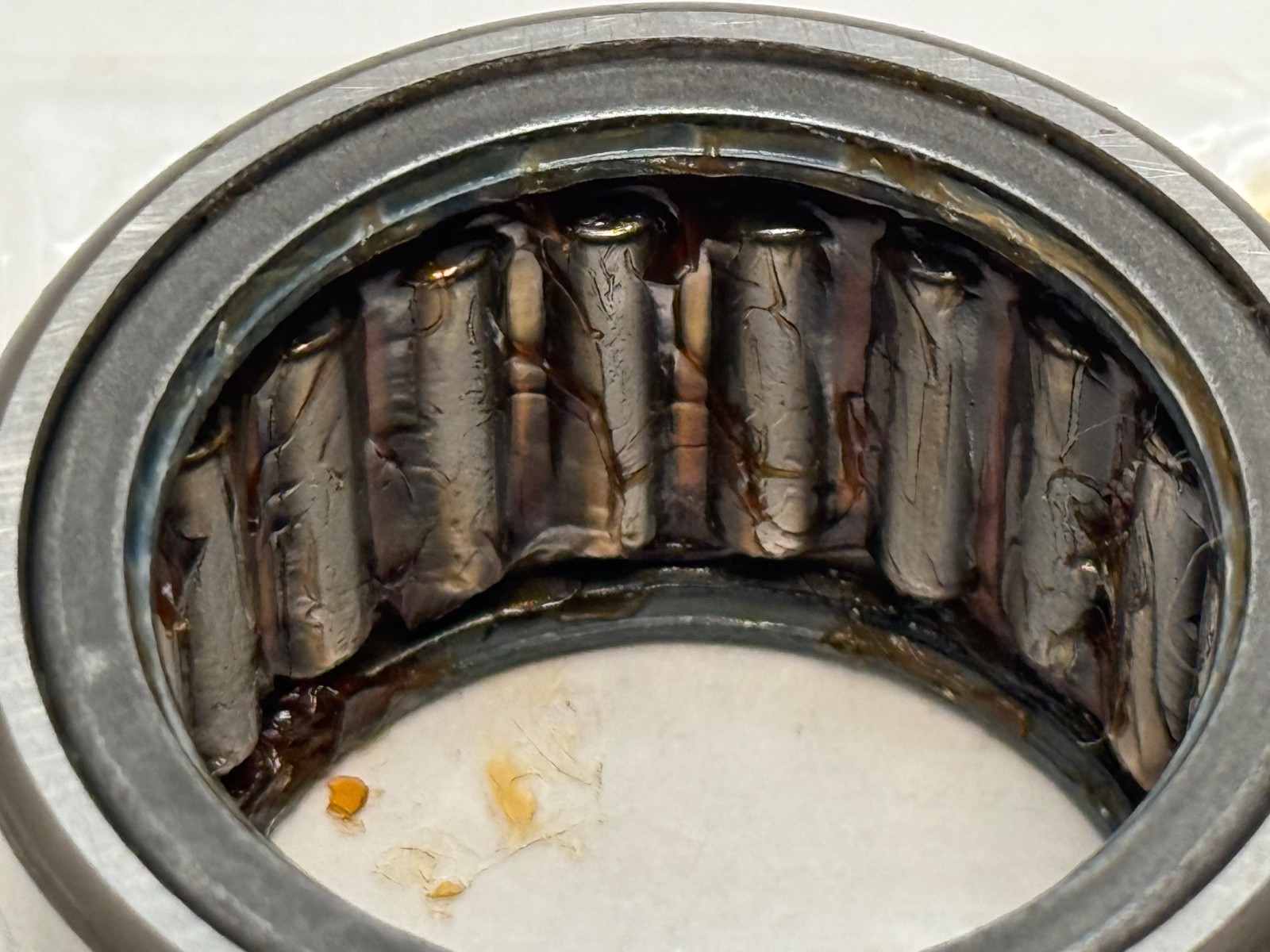

| Cage Type | Cage-guided precision needles |
| Dynamic Load Rating | 45,814 N (10,300 lbf) |
| Static Load Rating | 68,944 N (15,500 lbf) |
| Item Weight | 0.21 kg (0.47 lb) |
| Cage Material | Steel |
| Limiting Speed | 2,500 rpm oil |
| Relubrication Feature | Yes |
| Bearing Material | Bearing quality steel |
| Base Number | MR 24 |
| Industry Terms | needle roller bearing, machined race needle bearing, CAGEROL, heavy duty needle bearing, caged needle bearing, outer race |
| Common Misspellings | MacGill MR24SRS, Mcgil MR 24 SRS, MR24-SRS |
| Application Types | Gearboxes, transmissions, oscillating linkages, pivots, idler shafts |
| Overall Width | 1.250 in (31.750 mm) |
| Shaft Diameter | 1.5000 in (38.100 mm) |
| Mpn Variants | MR 24 SRS, MR-24-SRS, MR24SRS, MR 24SRS, MR24 |
| Series | CAGEROL MR |
| Rolling Elements | Needle Roller |
| Number Of Rows | 1 |
| Inner Ring | McGill MI 19 |
| Cross Reference 1 | McGill MR 24 / MS 51961-22 (related, unsealed) |
|---|
McGill MR 24 SRS is a CAGEROL® machined-race needle roller bearing, outer race and caged needle complement, sealed both sides. Shaft Diameter: 1.5000 in (38.100 mm). Outside Diameter: 2.0625 in (52.388 mm). Overall Width: 1.250 in (31.750 mm). The needles run directly on a hardened, ground shaft, or on a McGill MI 19 inner ring.
MR — McGill CAGEROL® machined-race radial needle bearing.
24 — shaft diameter in sixteenths of an inch: 24/16 = 1-1/2 in.
SRS — double rubber lip seal, one lip turned in and one lip turned out.
Dynamic Load Rating: 45,814 N (10,300 lbf). Static Load Rating: 68,944 N (15,500 lbf). Limiting Speed: 2,500 rpm in oil. Rolling Elements: Needle Roller, cage-guided precision needles. Cage Material: Steel. Closure Type: Contact seals both sides, rubber lip. Bearing Material: Bearing quality steel. Relubrication: Annular lubrication groove and radial lubrication hole in the outer race. Item Weight: 0.21 kg (0.47 lb).
Housing Bore Diameter: 2.0621–2.0632 in (52.398–52.426 mm). Inner Ring: McGill MI 19.
One bearing per listing, outer race with caged needles. Unit Quantity: 1 Pc.
McGill MR 24 (MS 51961-22) is the unsealed version of the same envelope. McGill MR 24 SS, S, RS and RSS share the envelope, ratings and speed with other seal-lip arrangements.
