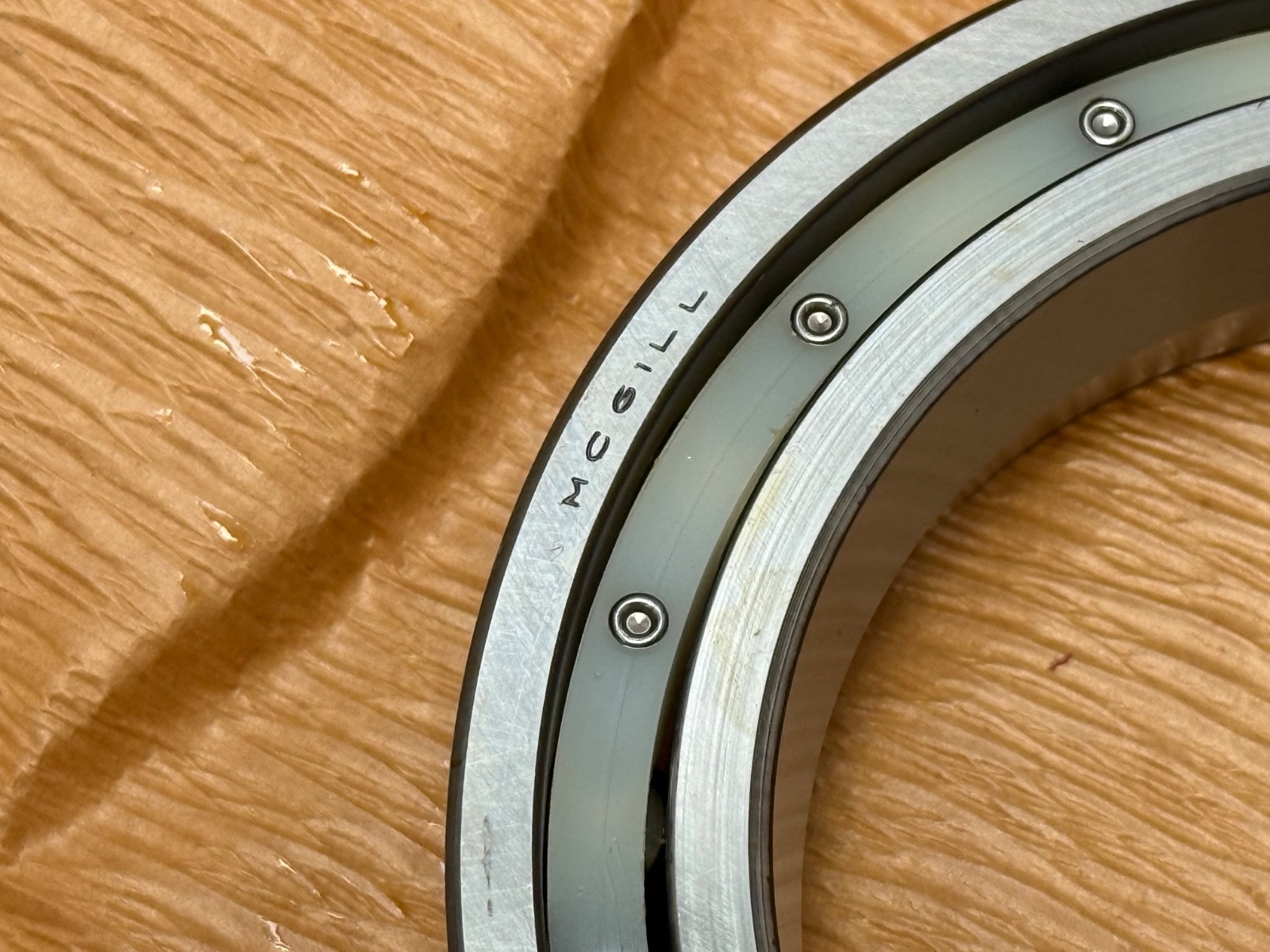

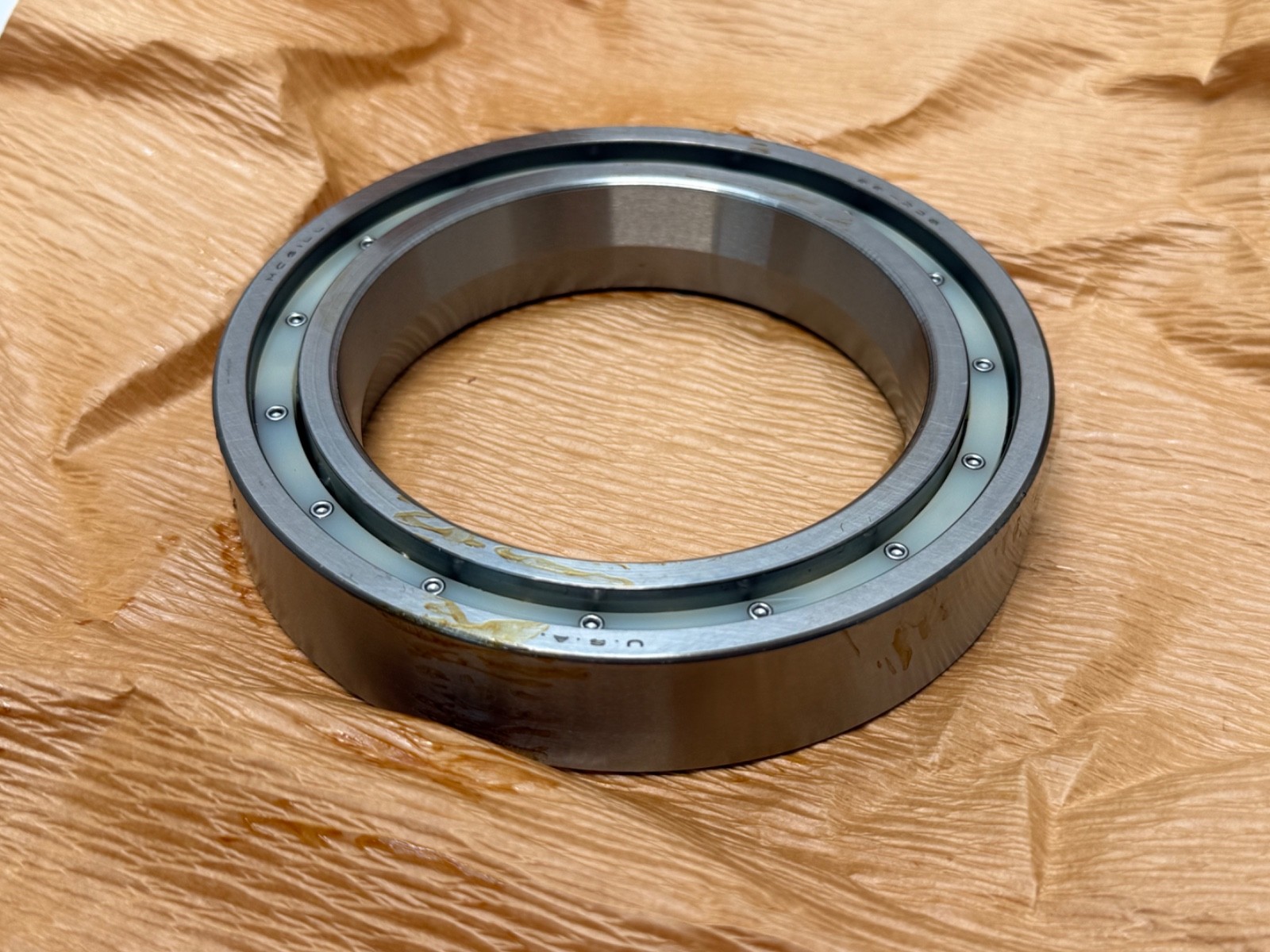

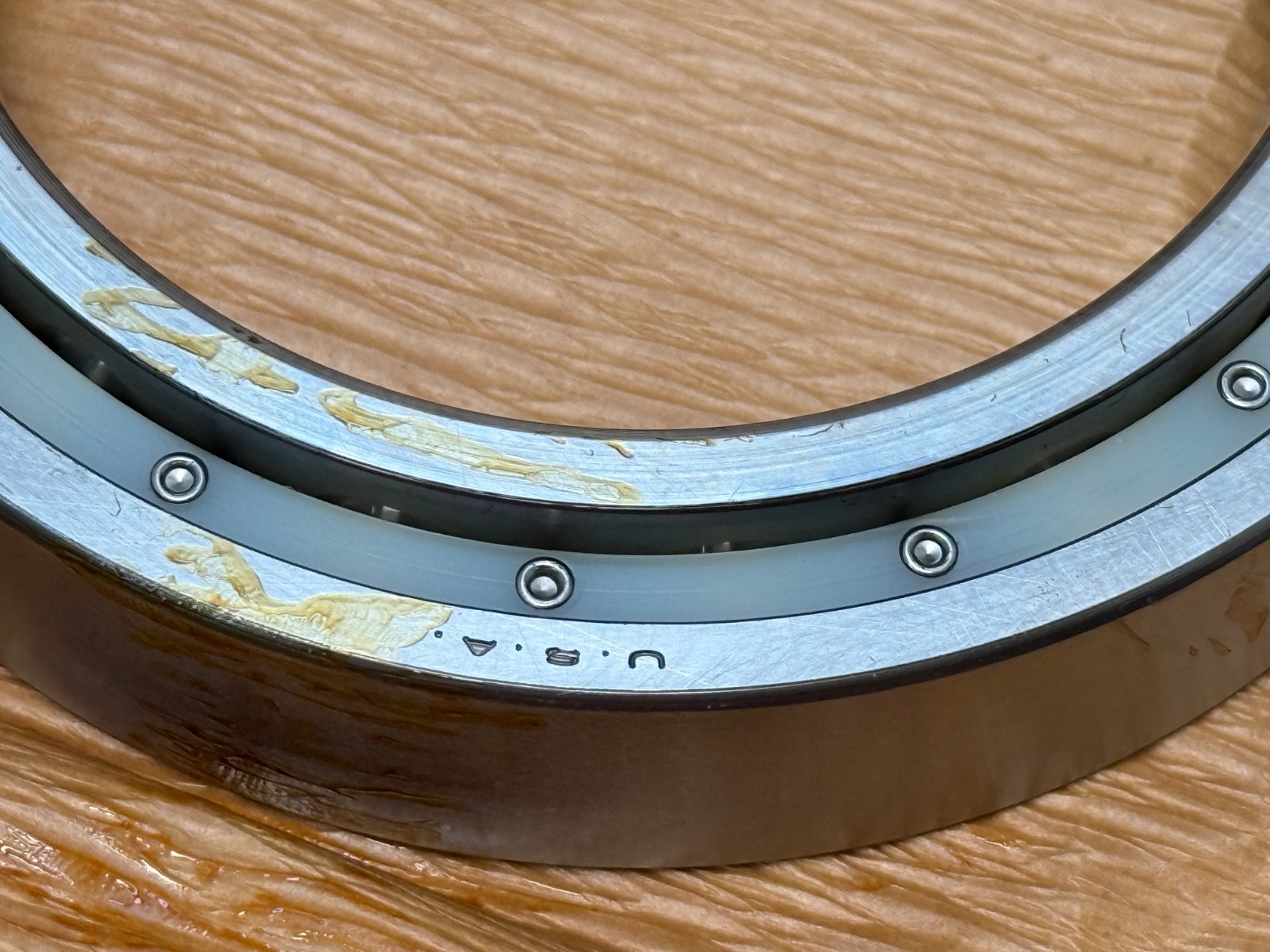

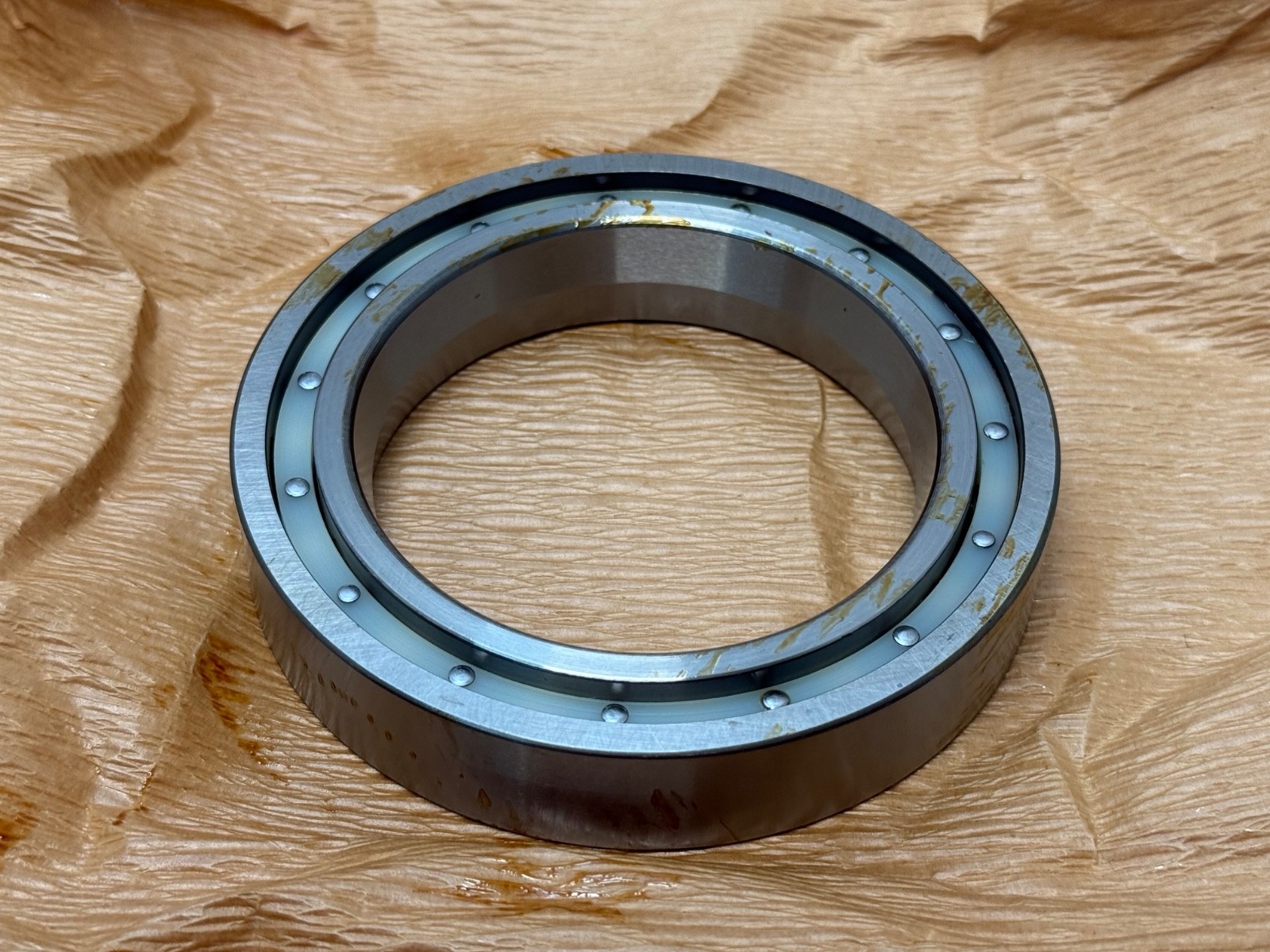

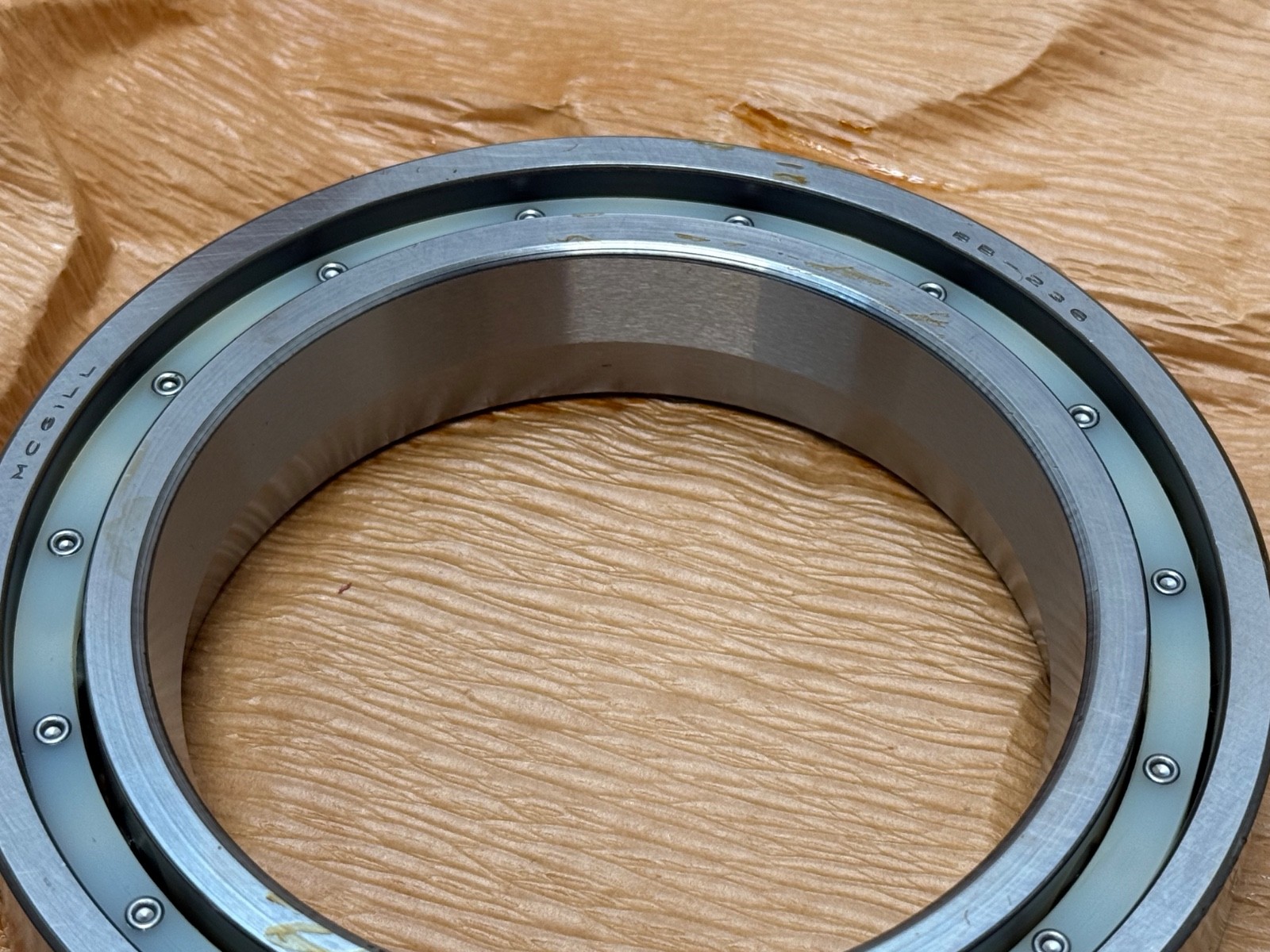

Annular ball bearing, 3.375 in bore x 5.000 in OD x 0.937 in wide, 52100 steel rings, machined phenolic retainer, radial load. NSN 3110-00-735-3150.
List Price
$84.96
28 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | McGill |
|---|---|
| MPN | BB-236 |
| Model | 3110-00-735-3150 |
| Bearing Type | Ball Bearing |
| ID | 3.3750-3.3800 in (85.725-85.852 mm) |
| OD | 4.9992-5.0000 in (126.980-127.000 mm) |
| Width | 0.9320-0.9370 in (23.673-23.800 mm) |
| Industry Terms | annular ball bearing, radial ball bearing, military bearing, NSN bearing, special ball bearing, deep groove ball bearing |
|---|---|
| Common Misspellings | MacGill BB236, Mcgil BB-236, BB 263 |
| Application Types | Military vehicle and equipment maintenance, hydraulic pumps, industrial repair |
| Overall Width | 0.9320-0.9370 in (23.673-23.800 mm) |
| Mpn Variants | BB 236, BB-236, BB236, 3110-00-735-3150, 3110007353150, 7353150 |
| Cage Type | Machined |
| Rolling Elements | Ball |
| Cage Material | Phenolic, cotton-fabric laminate |
| Number Of Rows | 1 |
| Internal Clearance | CN |
| Bearing Material | 52100 steel rings, steel balls |
| Cross Reference 1 | Oilgear 303210 |
|---|---|
| Cross Reference 2 | US Army TACOM 7353150 |
| Cross Reference 3 | NSN 3110-00-735-3150 |

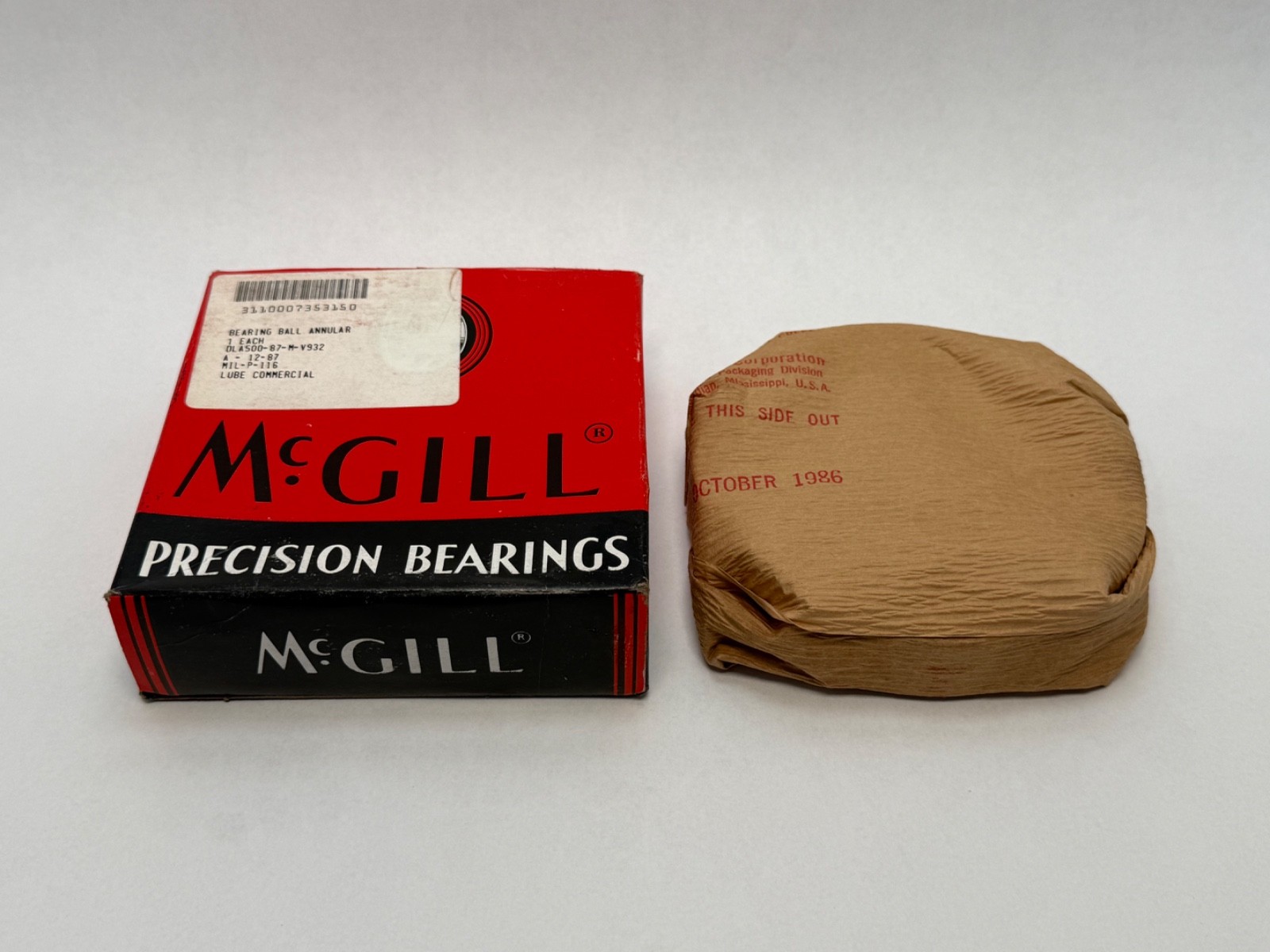

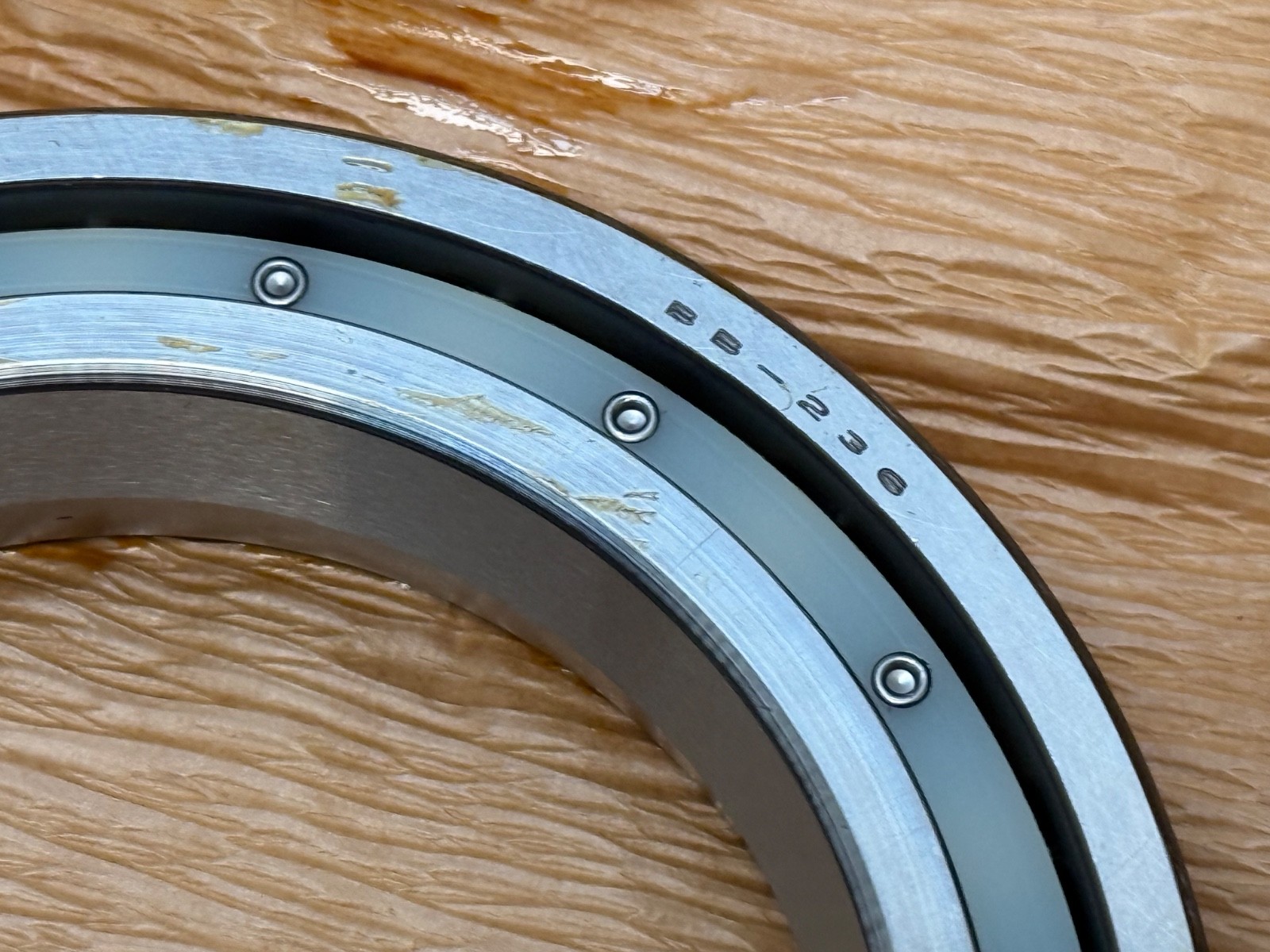

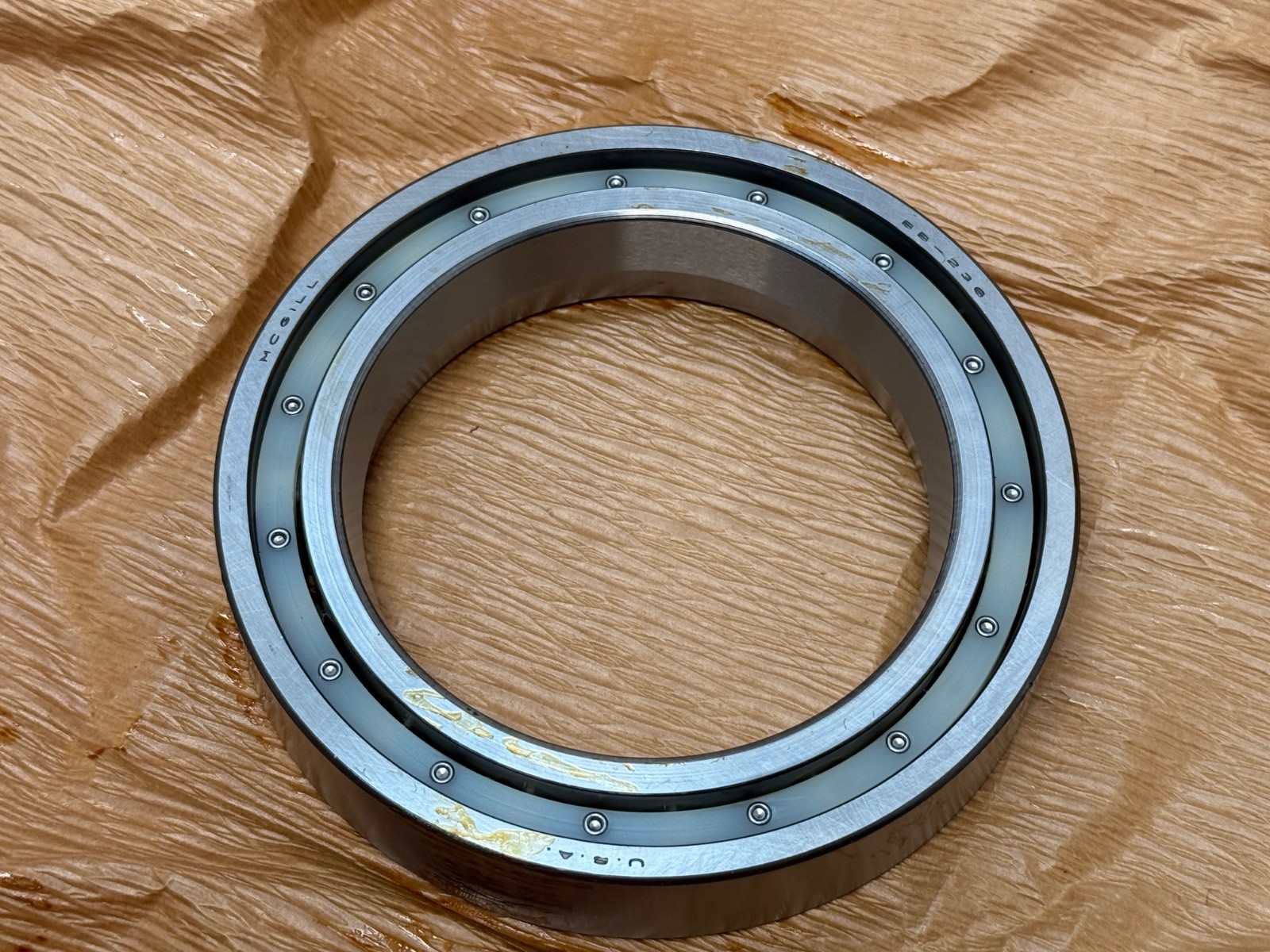

McGill BB-236 is a special-series single-row annular ball bearing for radial load, catalogued under NSN 3110-00-735-3150. Unit Quantity: 1 Pc.
BB — McGill special ball bearing series.
236 — McGill item number within the BB series.

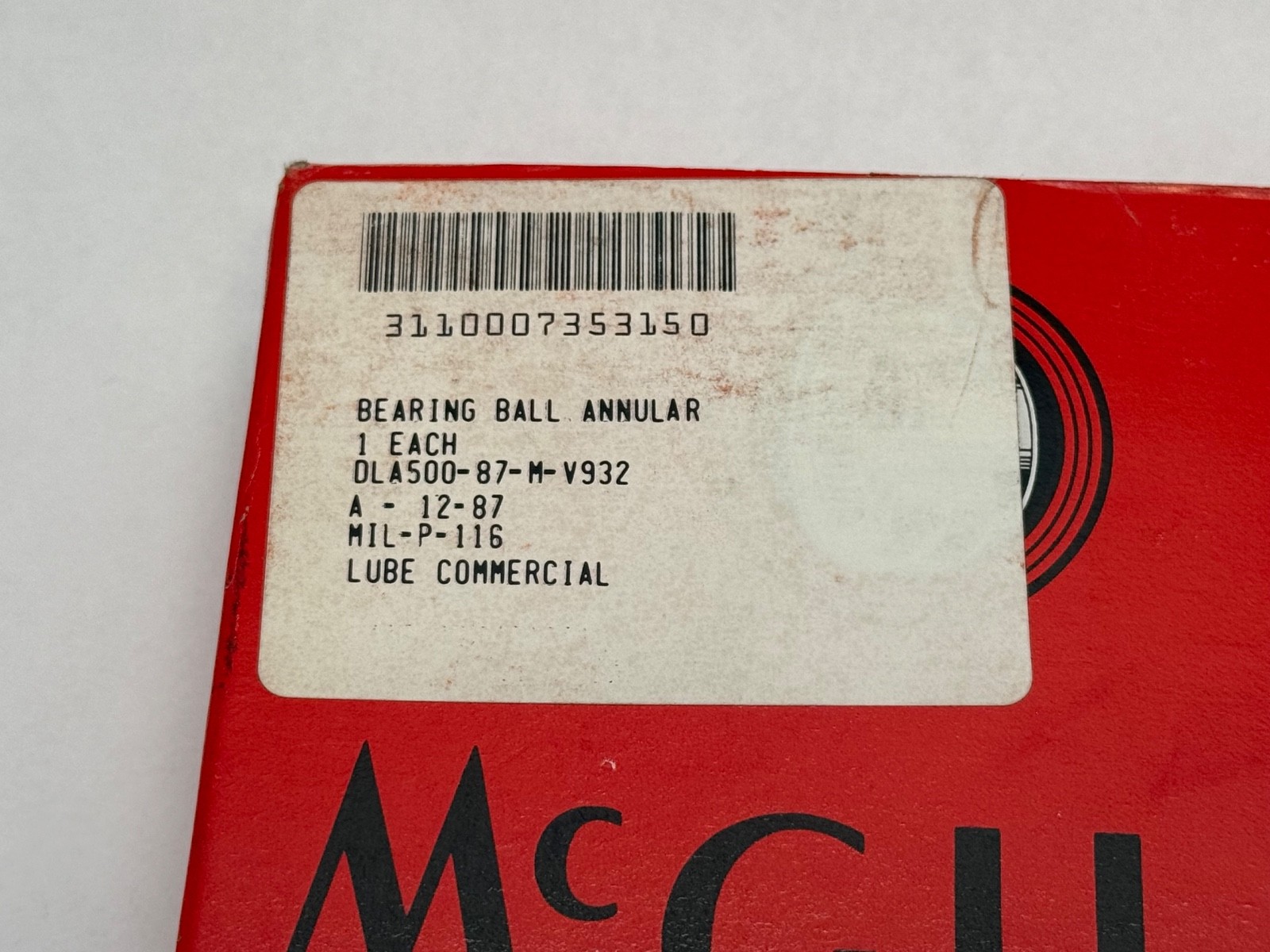

3110-00-735-3150 — National Stock Number, FSC 3110 (unmounted antifriction bearings).
Rolling Elements: Ball. Number Of Rows: 1. Load Direction: Radial. Bearing Material: 52100 steel rings, steel balls. Cage Material: Phenolic, cotton-fabric laminate. Cage Type: Machined. Surface Finish: Ground. Internal Clearance: CN.
Bore Diameter: 3.3750–3.3800 in (85.725–85.852 mm). Outside Diameter: 4.9992–5.0000 in (126.980–127.000 mm). Overall Width: 0.9320–0.9370 in (23.673–23.800 mm).
Cross-references: Oilgear 303210; US Army TACOM 7353150; NSN 3110-00-735-3150. The same NSN is carried under all three numbers.
Bore 3.3750–3.3800 in, outside diameter 4.9992–5.0000 in, width 0.9320–0.9370 in.
NSN 3110-00-735-3150, also listed under Oilgear 303210 and US Army TACOM 7353150.

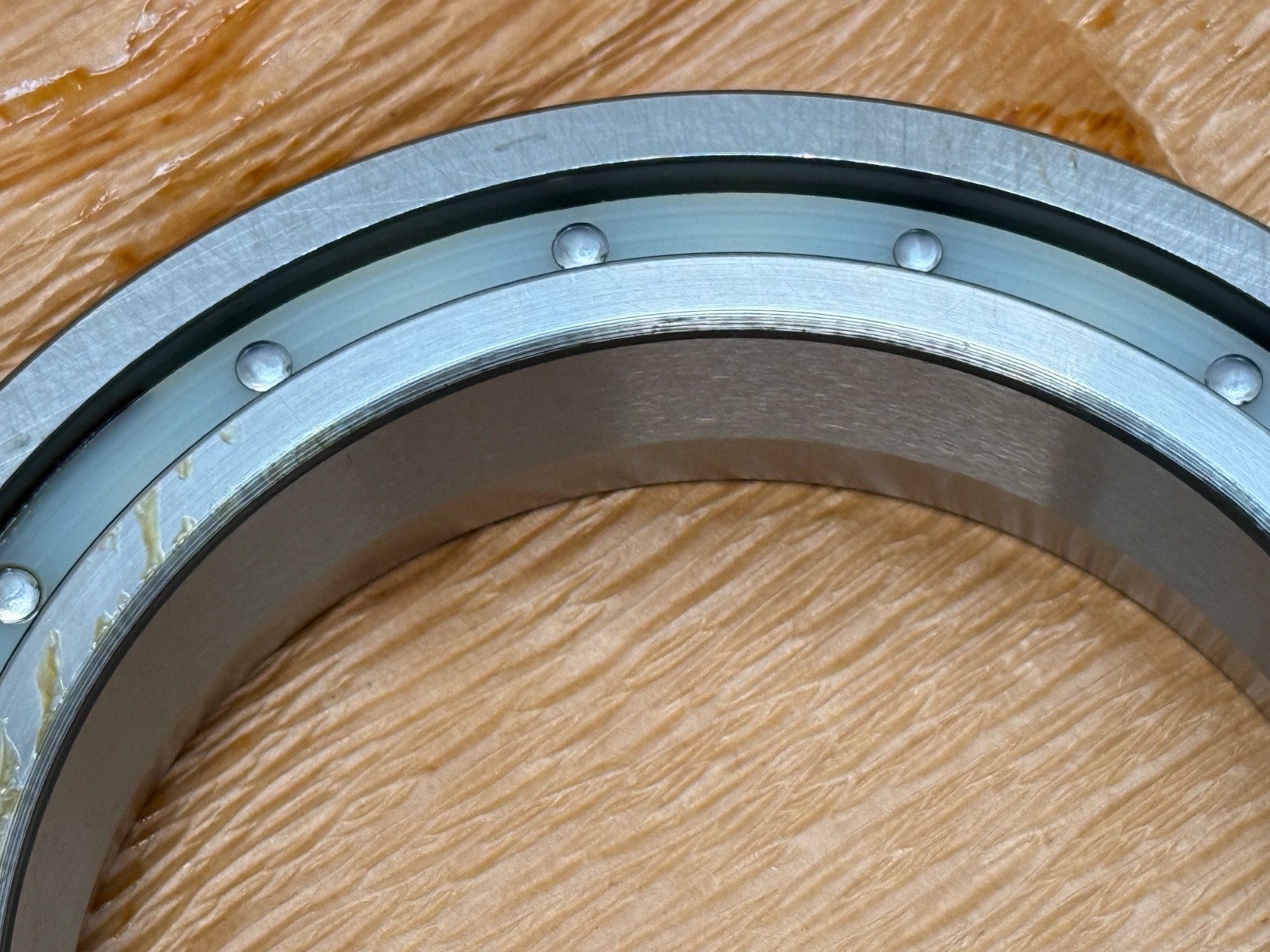

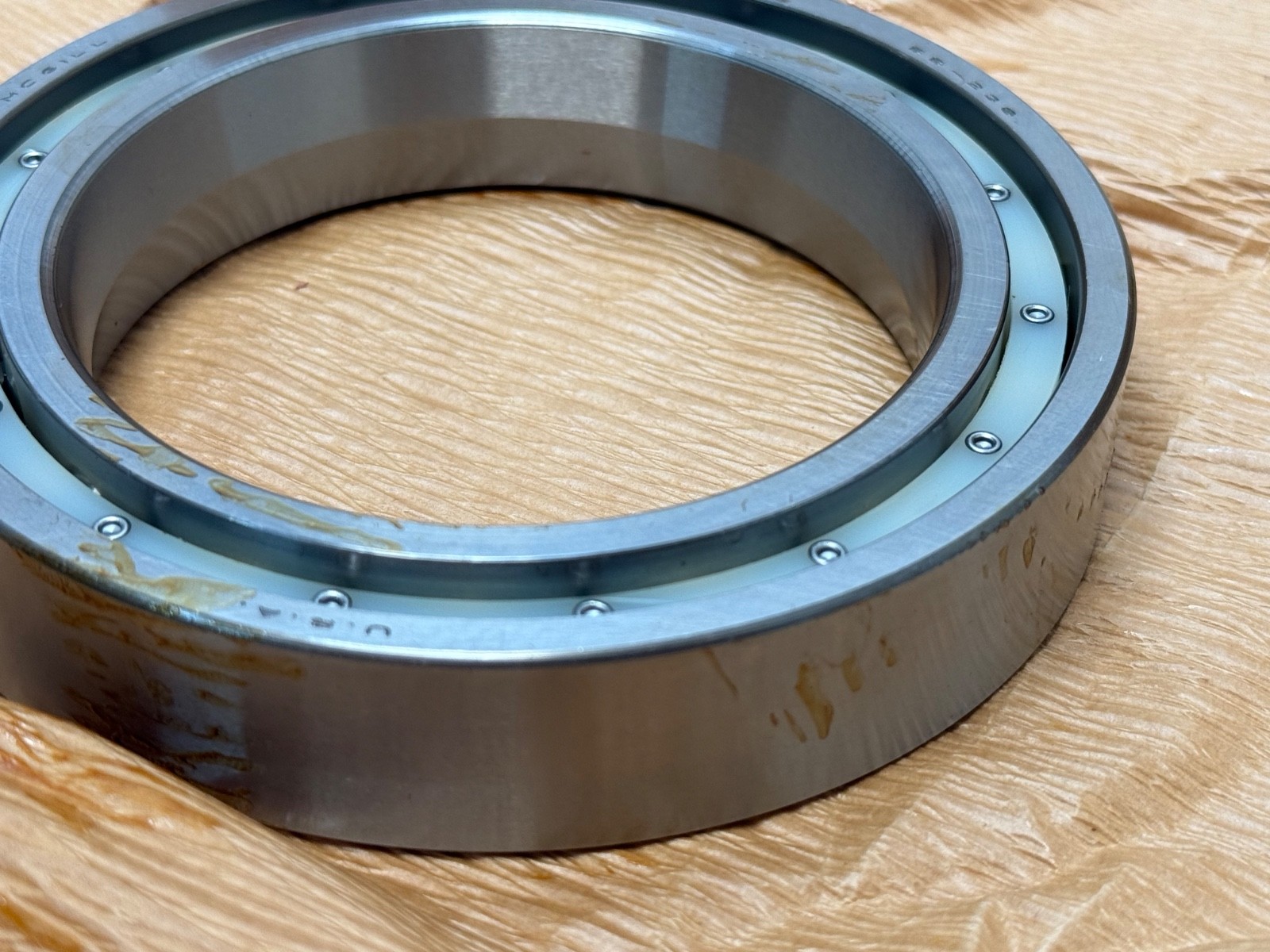

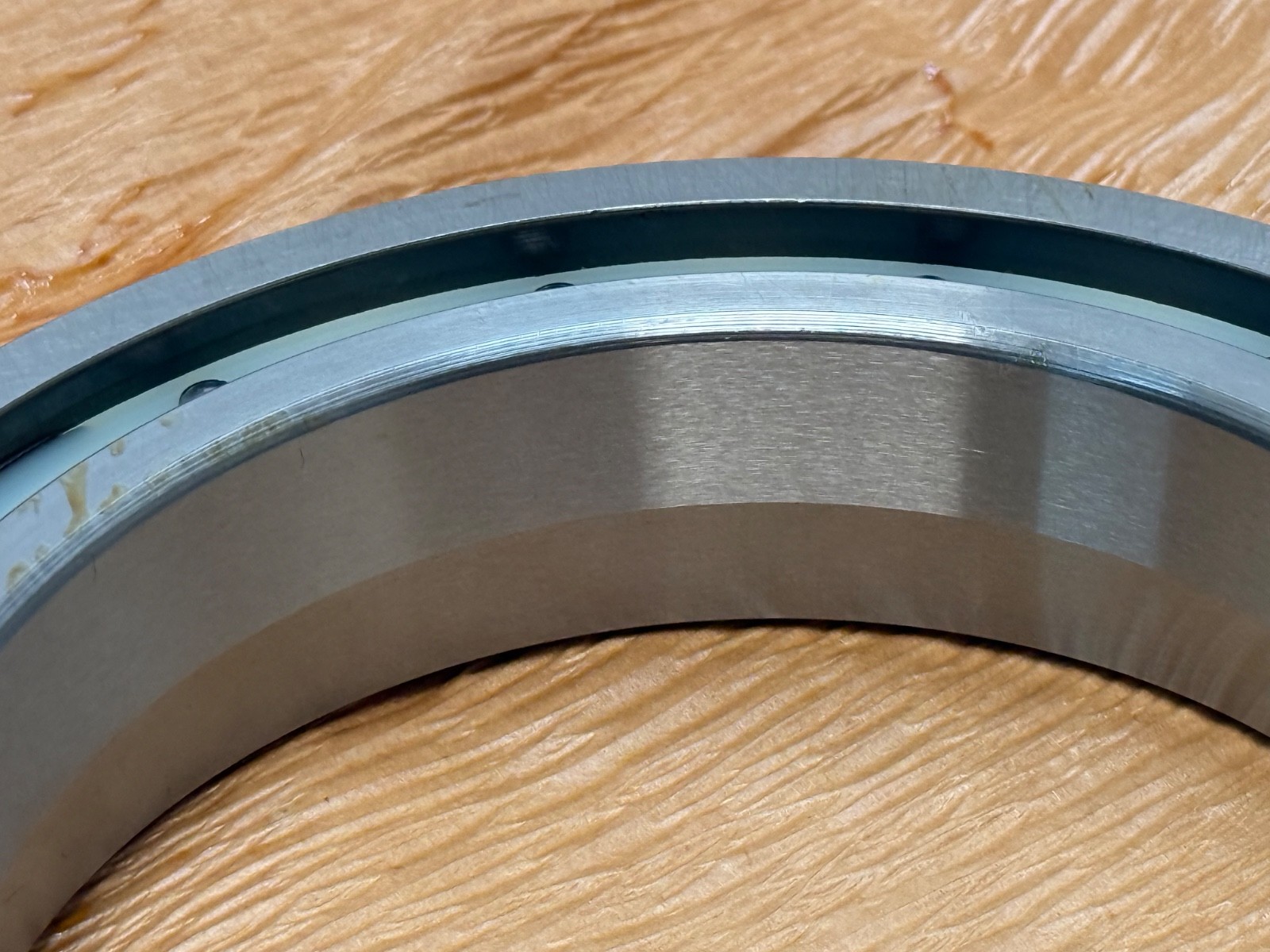

A machined phenolic (cotton-fabric laminate) retainer with 52100 steel rings and steel balls.
