Availability:
1 in stock

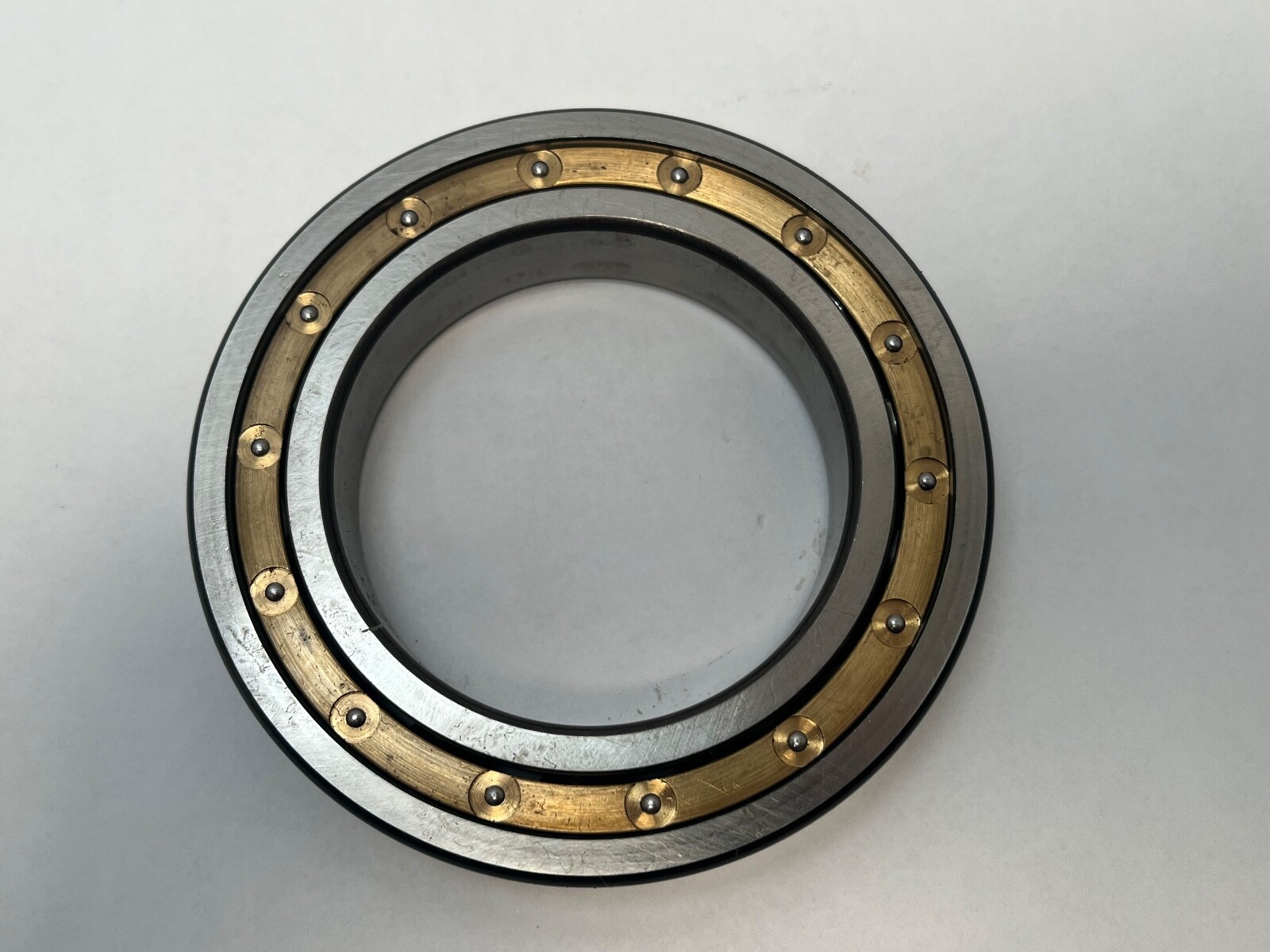

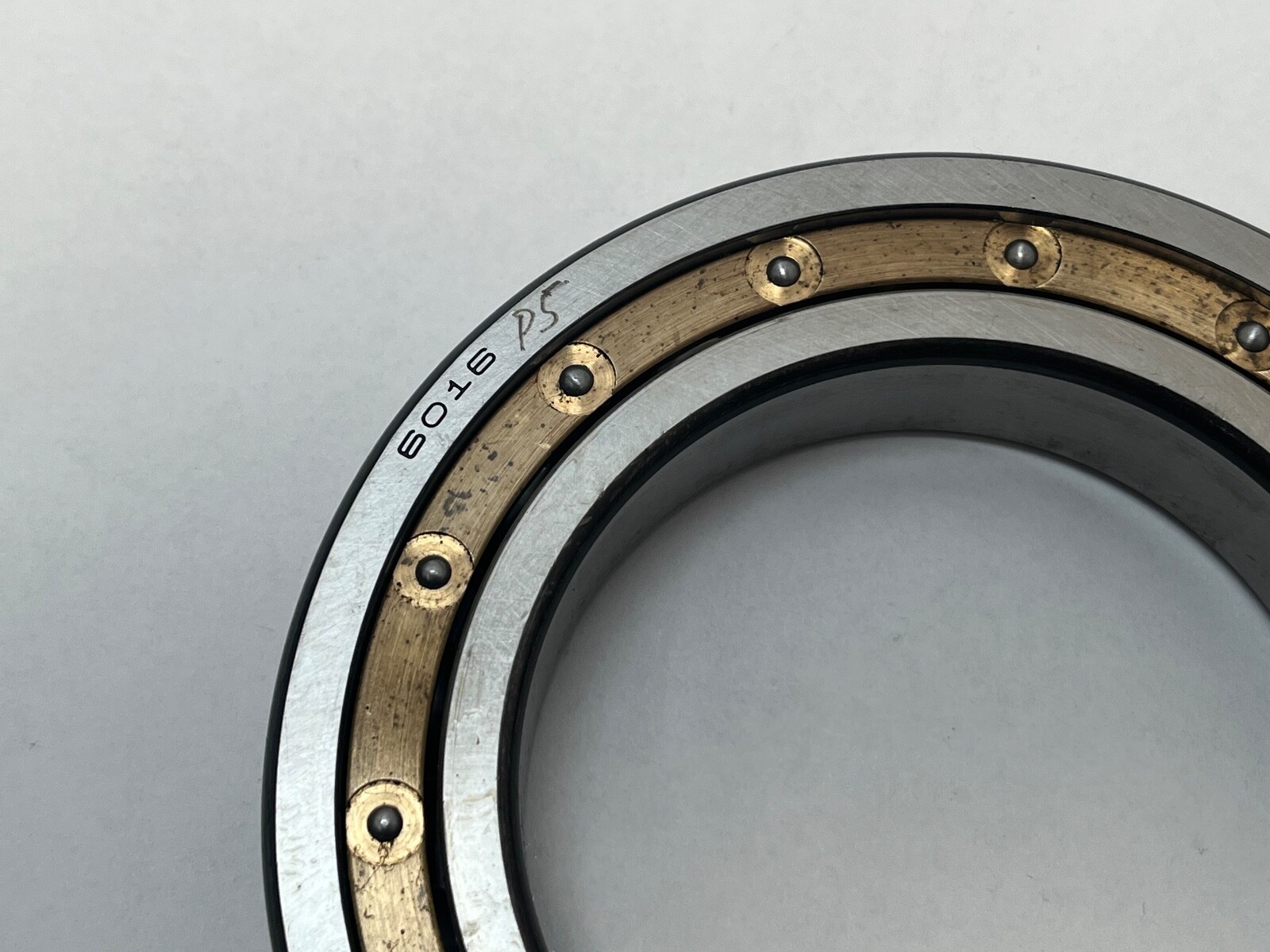

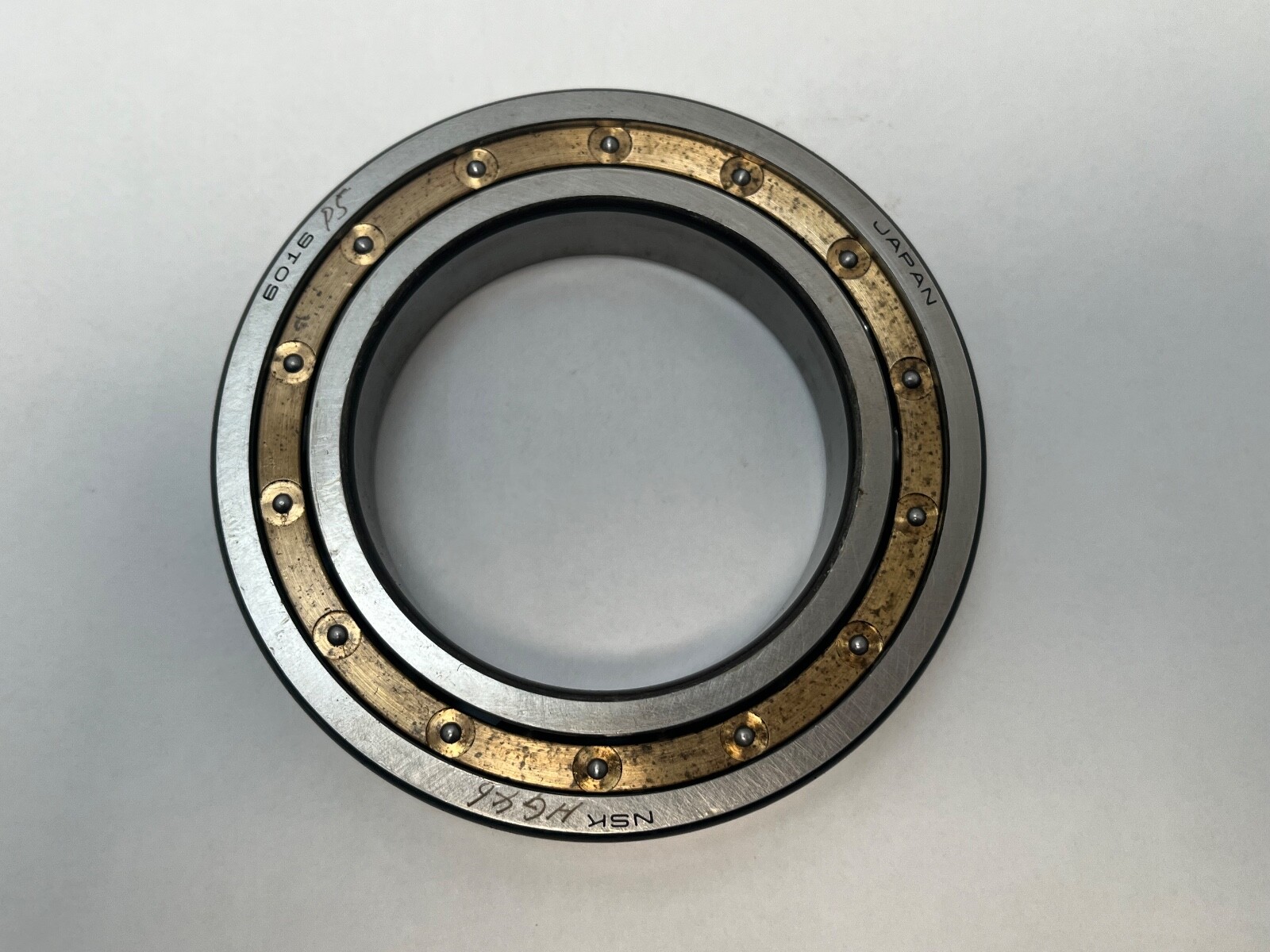

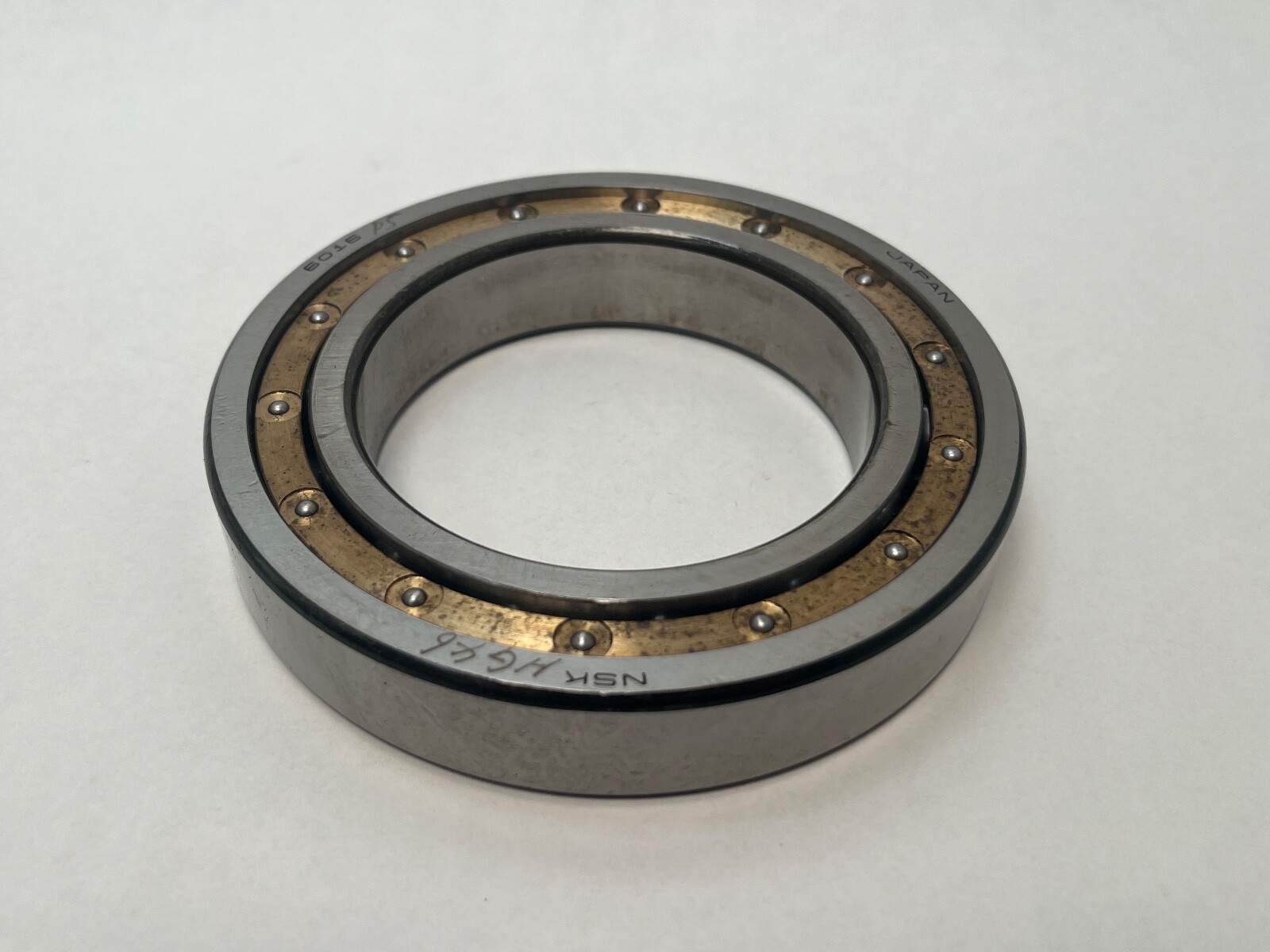

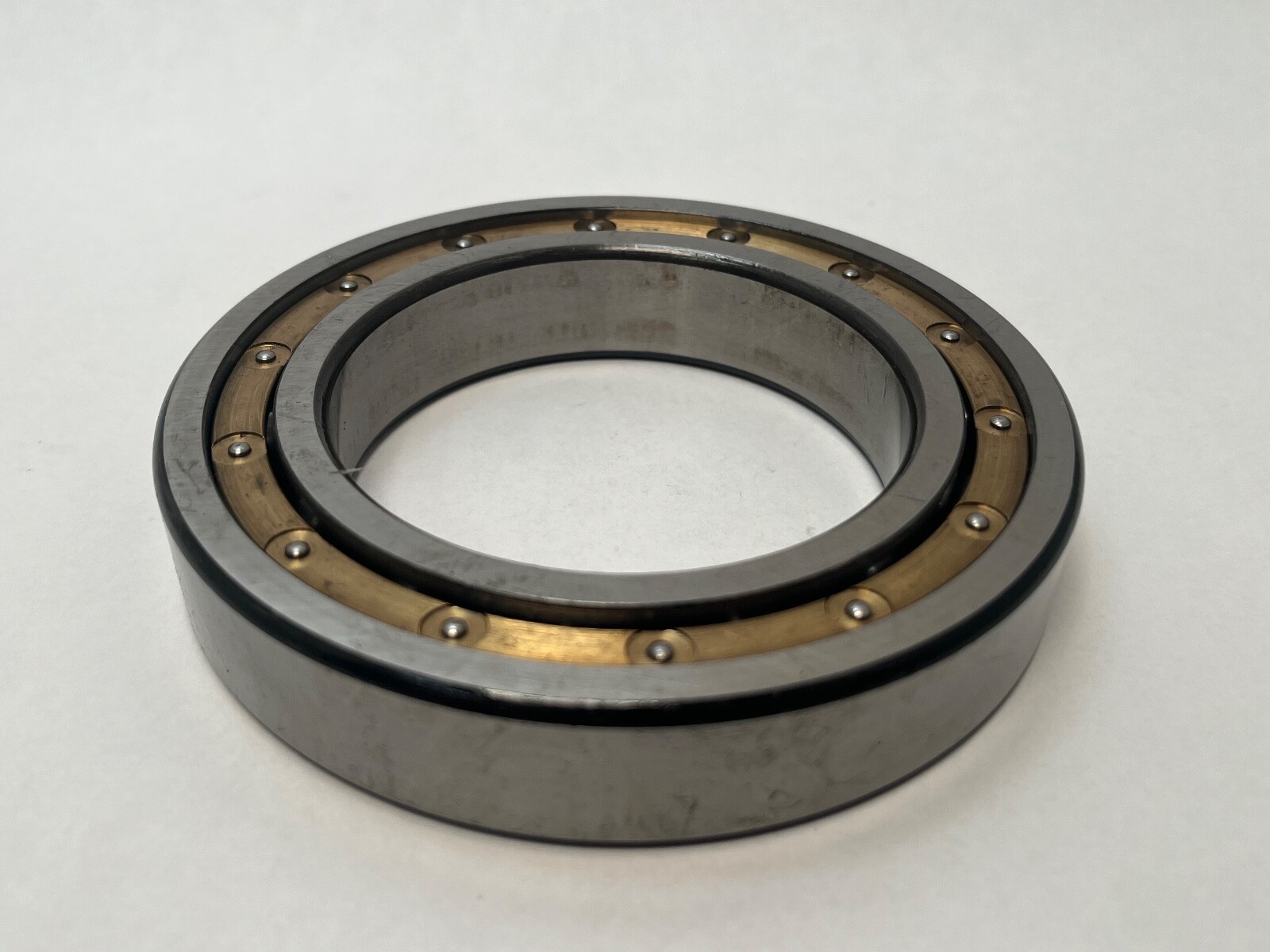

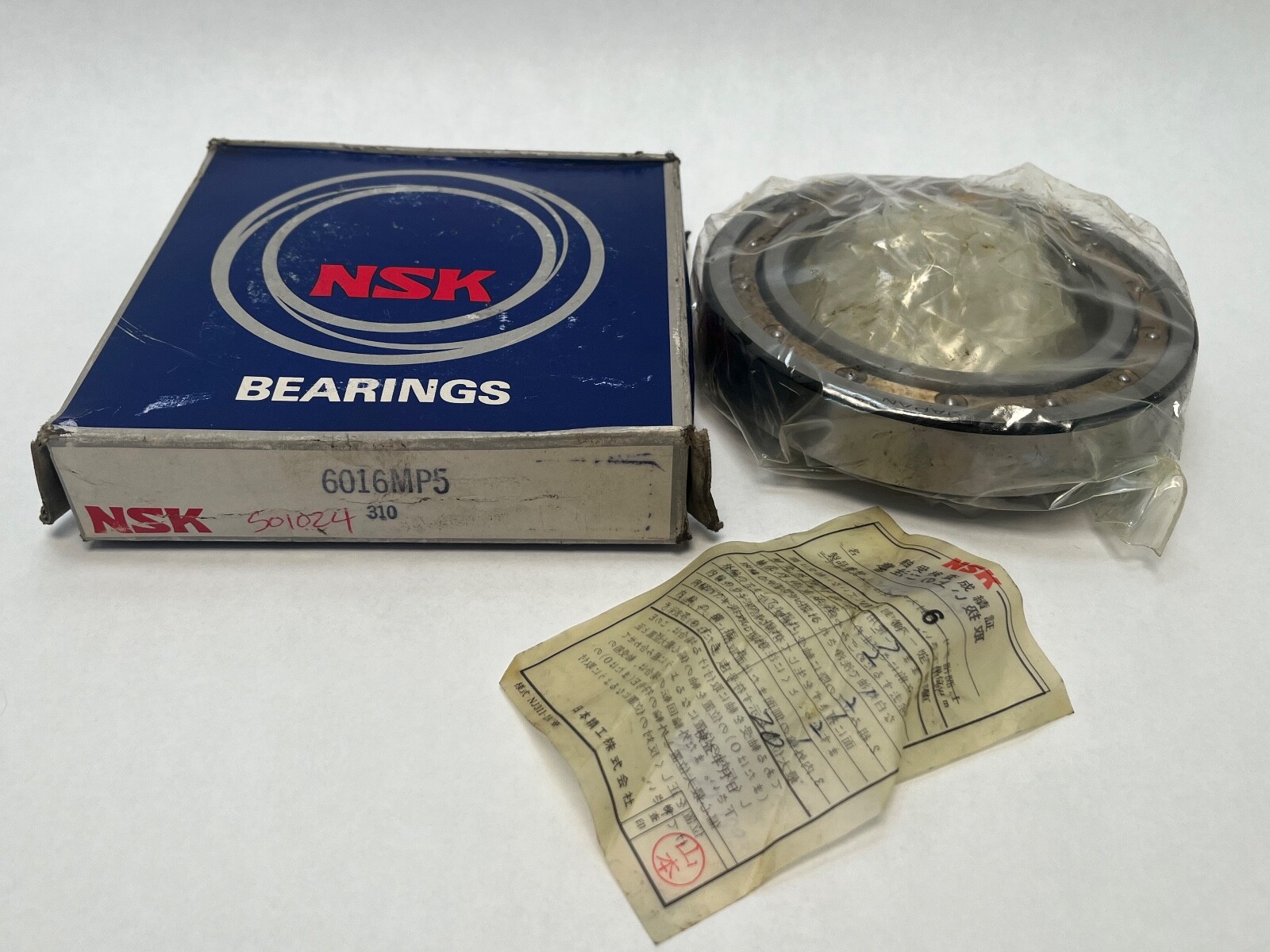

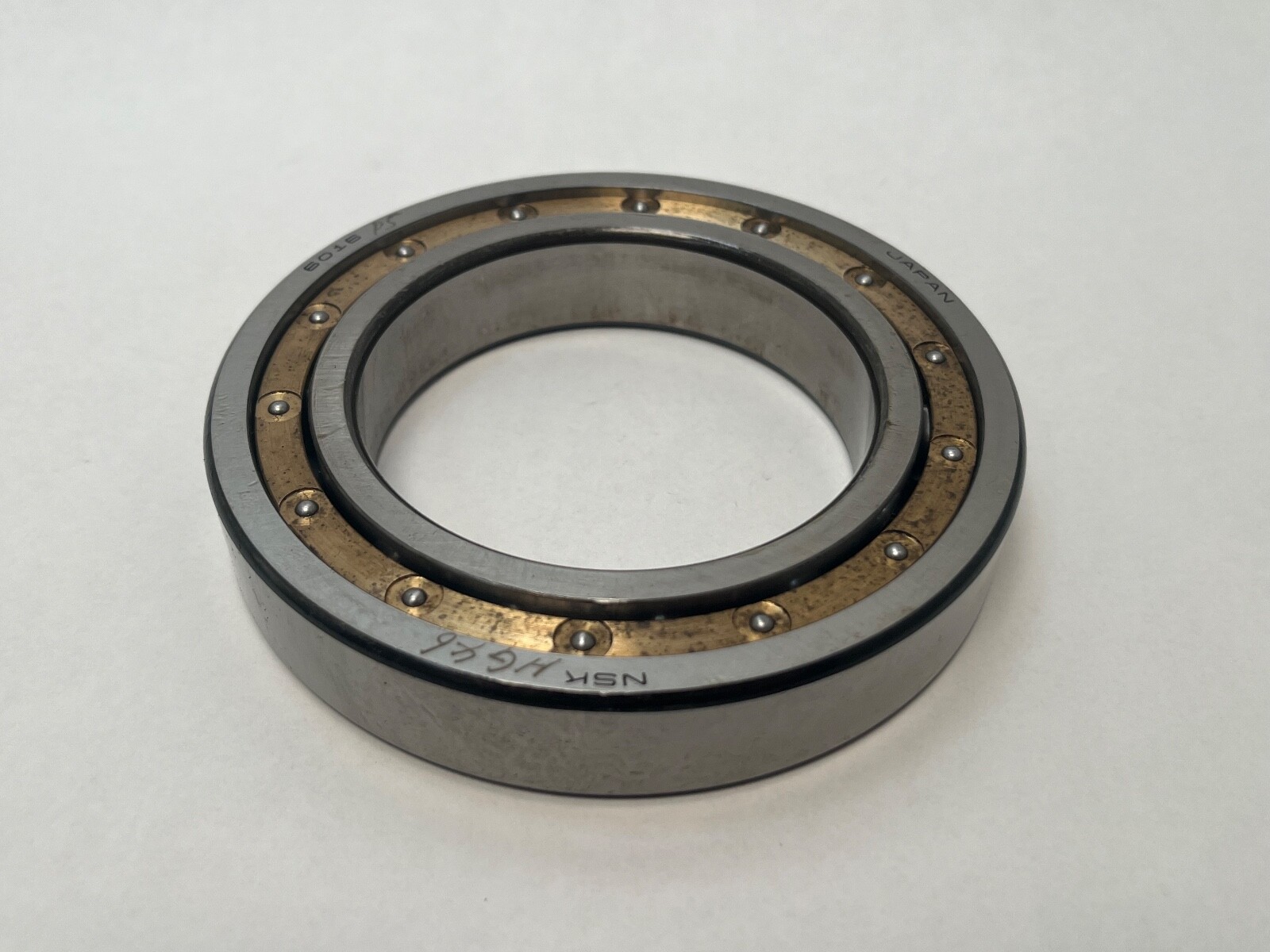

Deep groove ball bearing, 80 x 125 x 22 mm, machined brass cage, ABEC 5 / P5 precision. NSK 6016 M P5, 52,500 N dynamic rating, open on both sides.
List Price
$76.47
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6016MP5 |
| Model | 6016 M P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 6016 |
| Industry Terms | deep groove ball bearing; radial ball bearing; single row ball bearing; brass cage bearing; precision ball bearing; open ball bearing |
| Common Misspellings | 6016 MP 5; 60 16 M P5; 6016PM5; 6016-MP5; 6016m p5 bearing |
| Application Types | machine tool spindles; electric motors; pumps; gearboxes; fans and blowers; high temperature drives |
| Total Width | 22 mm |
| Overall Width | 22 mm |
| Mpn Variants | 6016MP5; 6016-M-P5; 6016 M P5; 6016M; 6016 P5; 6016 |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | 14 balls of 13.494 mm diameter. Bearing chamfer r min 1.1 mm. da min 86.5 mm; da max 91 mm; Da max 118.5 mm; ra max 1 mm. ISO 60 light dimension series. |
| Cage Type | Machined |
| Dynamic Load Rating | 52,500 N |
| Static Load Rating | 40,000 N |
| Series | 60 |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 6,300 rpm grease; 7,100 rpm oil |
| Internal Clearance | CN |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 6016 M |
|---|---|
| Cross Reference 2 | FAG 6016-M |
| Cross Reference 3 | NTN 6016 |
| Cross Reference 4 | Koyo 6016 |
| Cross Reference 5 | NACHI 6016 |
| Cross Reference 6 | NSK 6016 (related, pressed steel cage execution, same envelope) |
NSK 6016 M P5 single-row deep groove ball bearing, open on both sides, with a machined brass cage. Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Rolling Elements: Ball. Number Of Rows: 1. Precision Class: ABEC 5 / P5. Closure Type: Open.
6016 — ISO deep groove ball size in the 60 light dimension series, 80 mm bore, 125 mm outside diameter, 22 mm width.
M — machined brass cage.
P5 — ISO class 5 precision, equivalent to ABEC 5.
Dynamic Load Rating: 52,500 N (11,802 lbf). Static Load Rating: 40,000 N (8,993 lbf). Limiting Speed: 6,300 rpm grease; 7,100 rpm oil. Cage Material: Machined brass. Internal Clearance: CN. Lubricant: grease or oil. Ball complement: 14 balls of 13.494 mm diameter. Bearing chamfer r min: 1.1 mm. A machined brass cage tolerates higher temperature and shock loading than a pressed steel cage, and the P5 grade holds bore, outside diameter and running accuracy to class 5 limits.
Shaft abutment diameter da: 86.5 mm minimum, 91 mm maximum. Housing abutment diameter Da max: 118.5 mm. Maximum abutment fillet radius ra: 1 mm.
Unit Quantity: 1 Pc. Number Of Rows: 1.
The 6016 envelope is shared by SKF 6016 M, FAG 6016-M, NTN 6016, Koyo 6016 and NACHI 6016. The P5 grade and the machined brass cage are execution variants on that envelope.
