Double-row spherical roller bearing, 85 mm tapered 1:12 bore, 150 mm OD, 36 mm wide. Open, polyamide cage, W33 lubrication groove and feed holes.
List Price
$117.62
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22217ESK.TVPB |
| Model | 22217 ES K TVPB W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 36 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Bore | Taper Bore |
| Base Number | 22217 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, tapered bore spherical roller, adapter sleeve mount bearing, W33 relubricatable bearing |
| Common Misspellings | 22217 ESK TVPB W-33, 22217ESKTVBP W33, FAG 22217 ES K TPVB, sperical roller bearing, spherical rollar bearing |
| Application Types | Conveyor pulleys, fans and blowers, crushers, mill and gearbox shafts, vibrating screens |
| Bore Shaft Size | 85 mm (1:12 tapered bore) |
| Mpn Variants | 22217ESKTVPBW33, 22217ESK.TVPB, 22217-ES-K-TVPB-W33, 22217 ES K TVPB W33, 22217EK, 22217E, 22217 |
| Compatible With Replaces | ISO 22217 K W33 tapered-bore double-row spherical roller envelope, 85 x 150 x 36 mm |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 (K) |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.80 |
| Part Number | 22217-ES-K-TVPB-W33 |
| Cross Reference 1 | Timken 22217EKJW33 - steel cage |
|---|

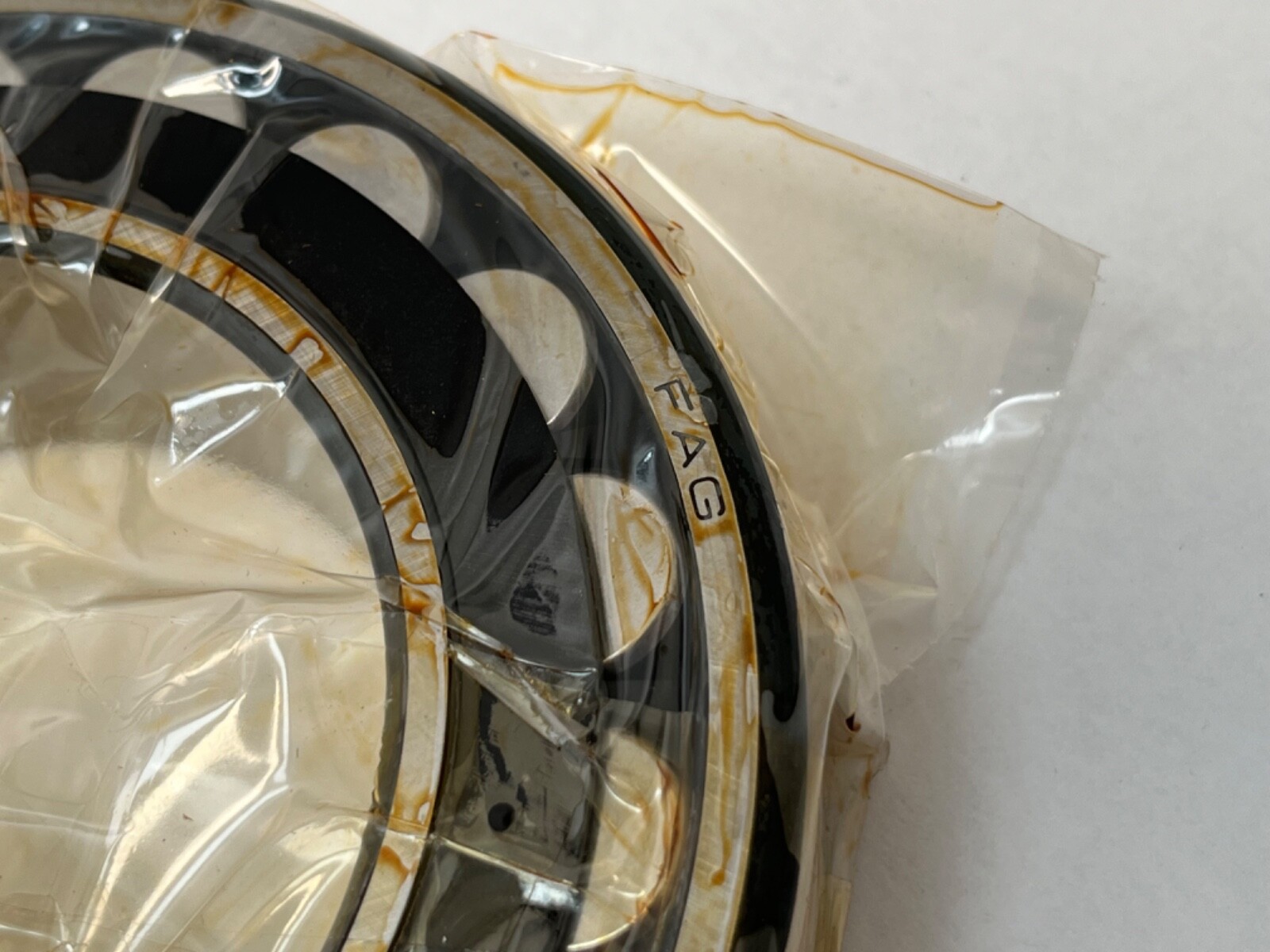

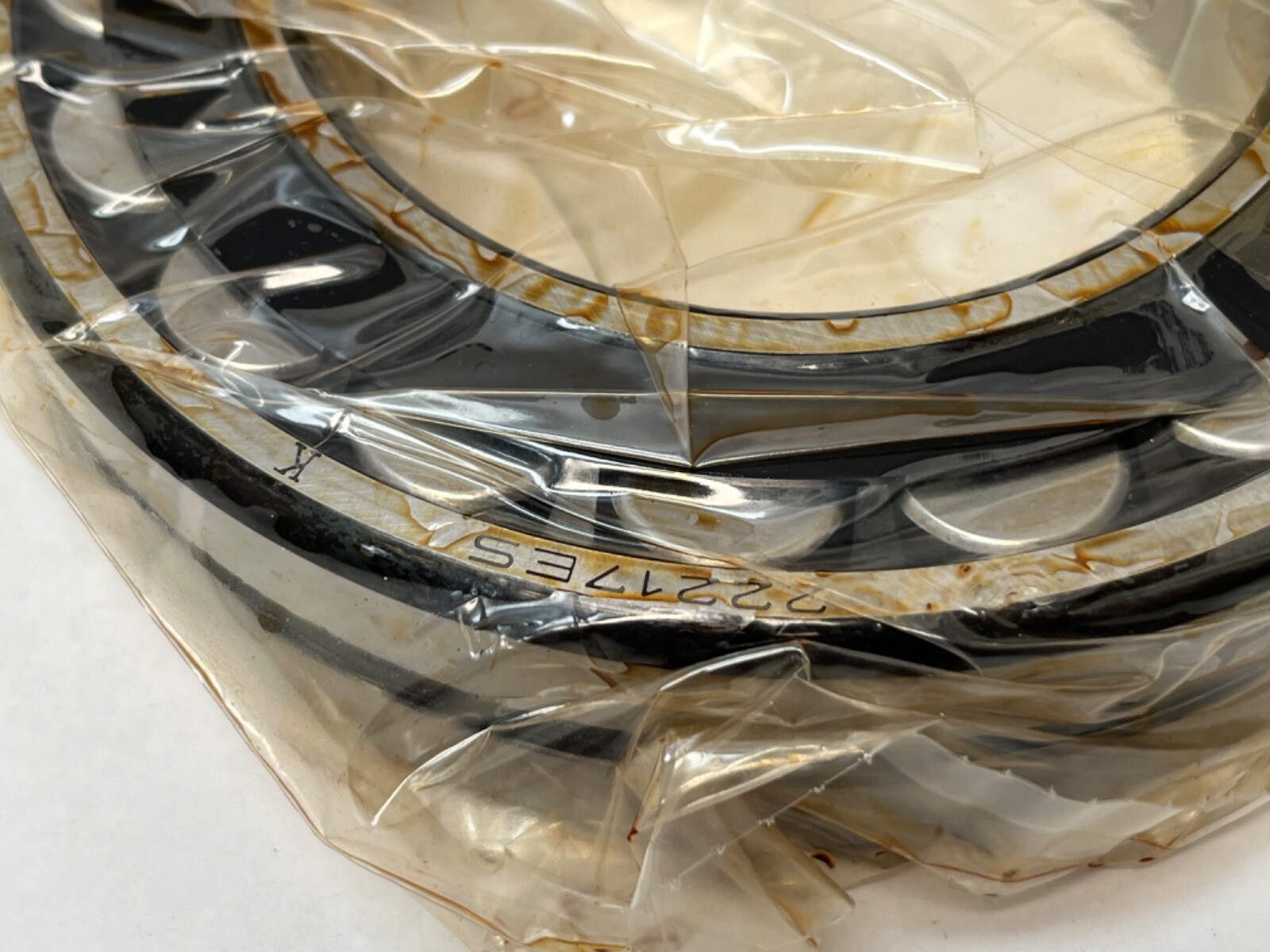

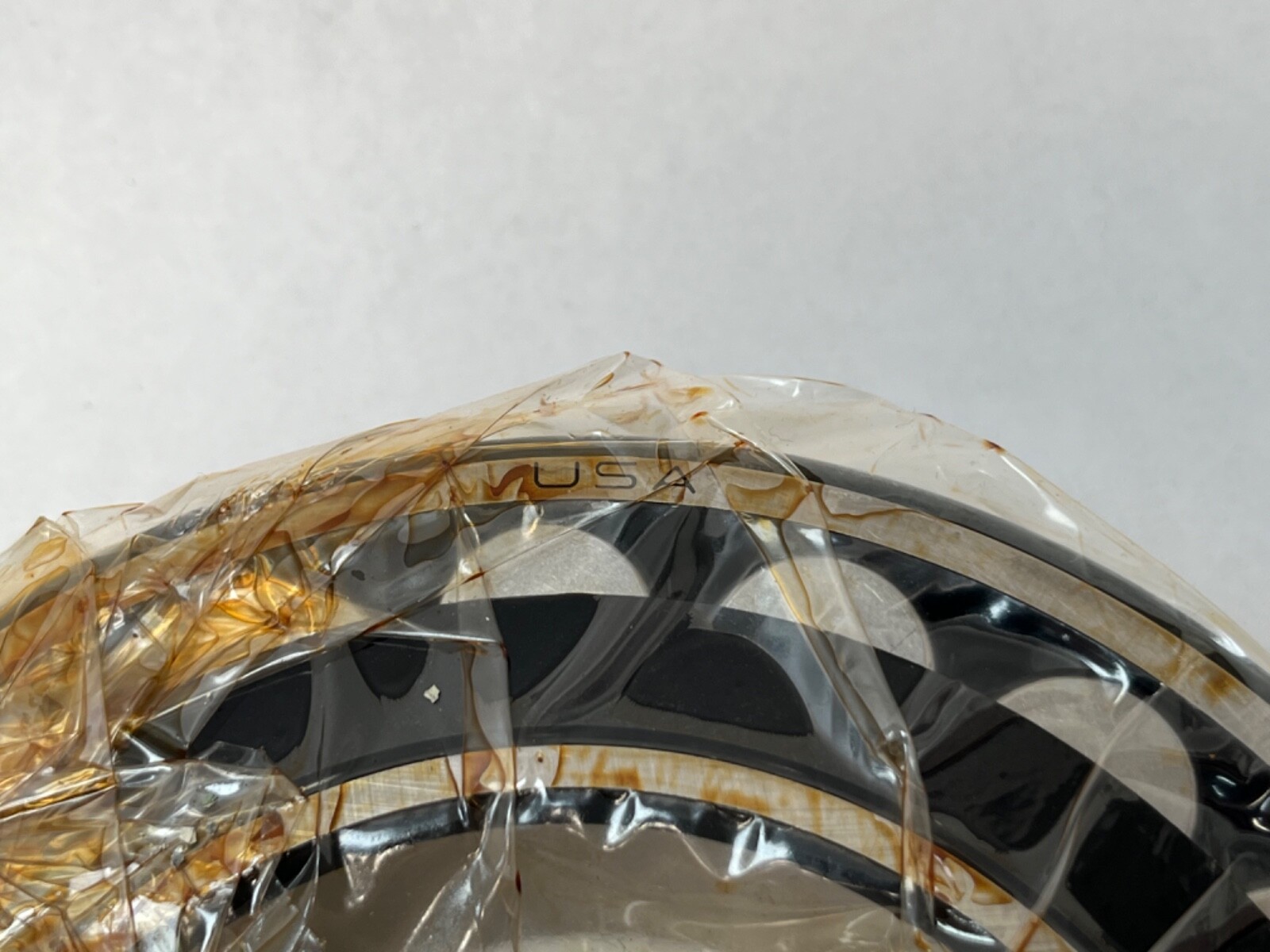

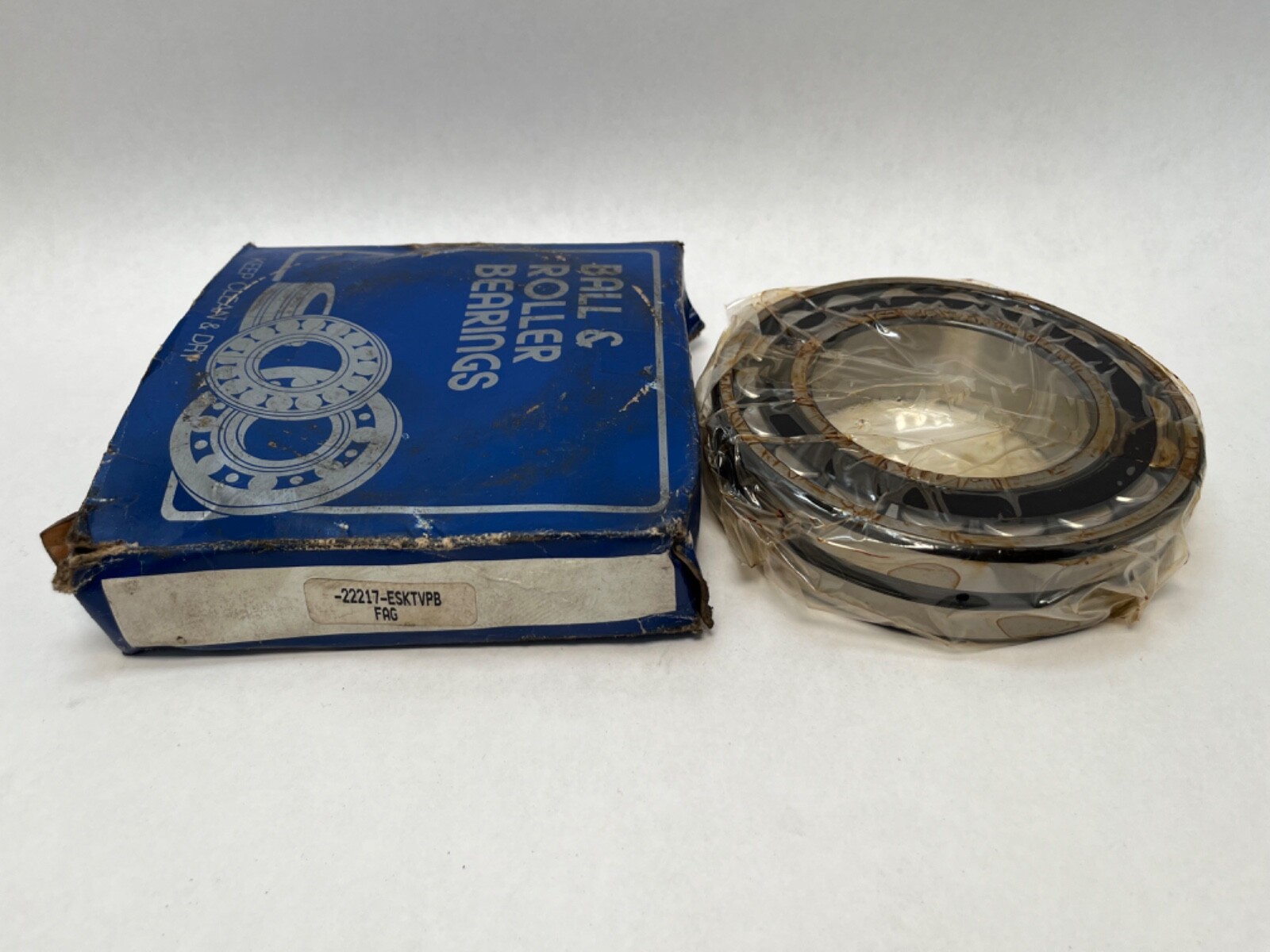

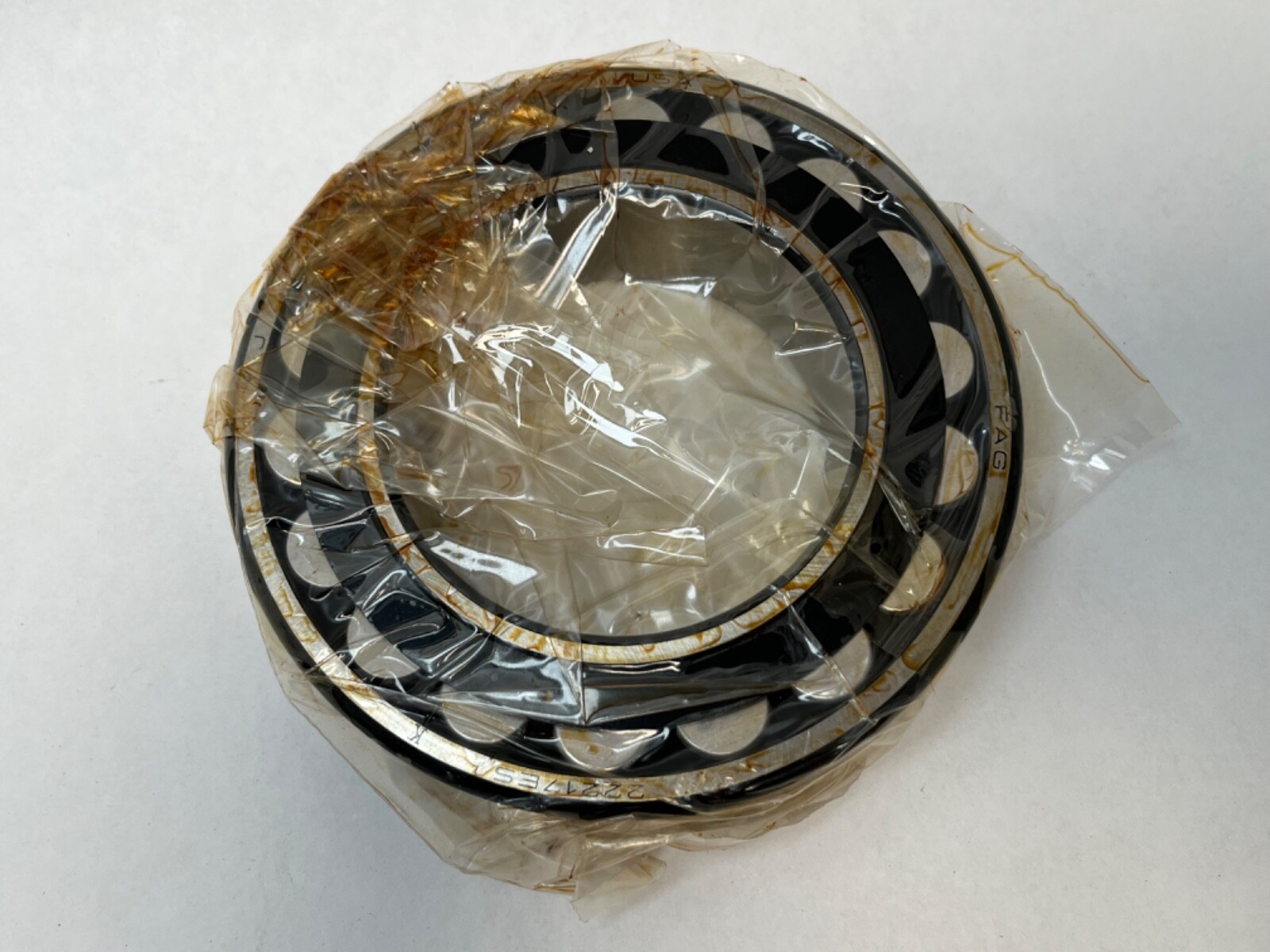

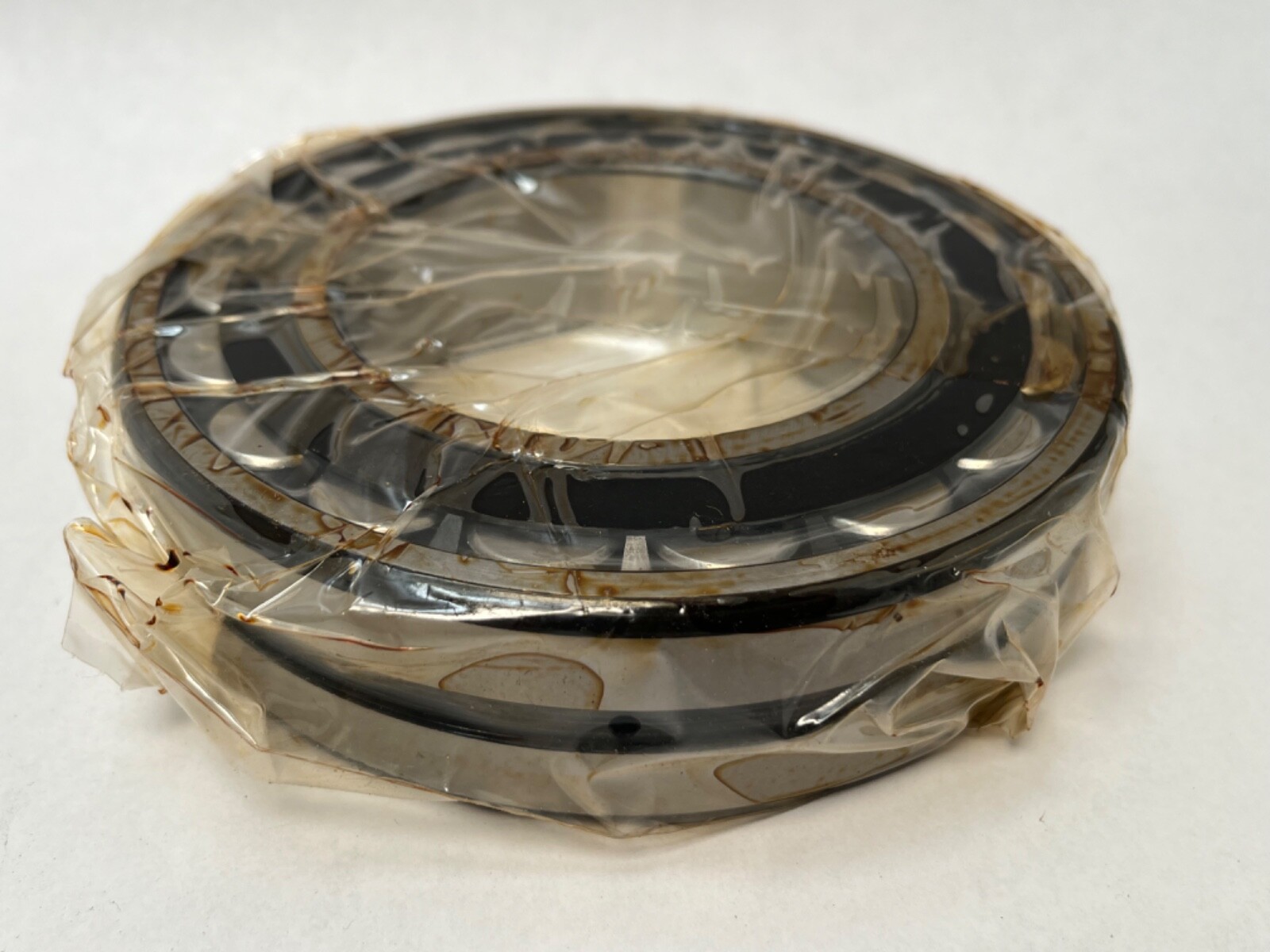

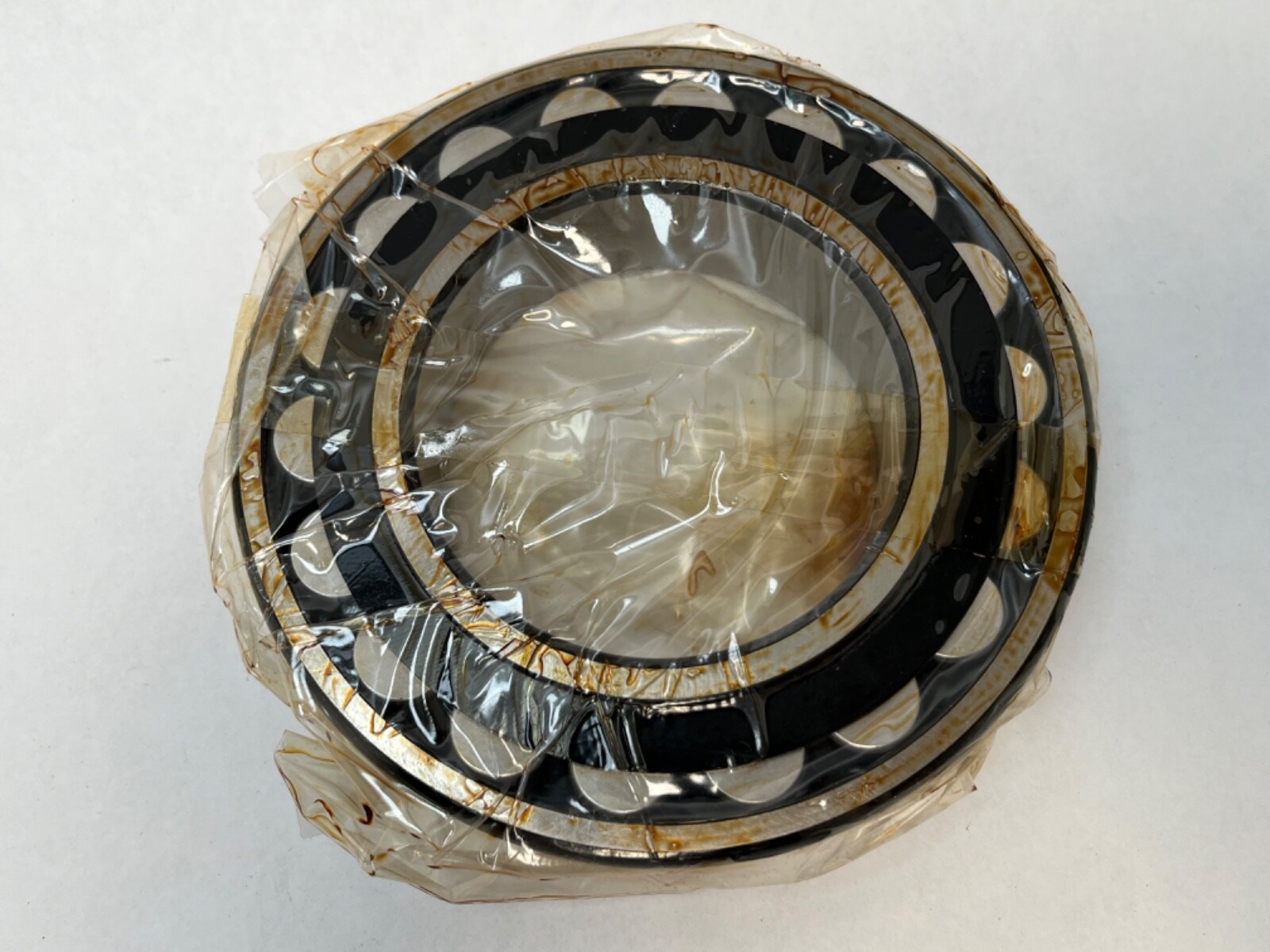

FAG 22217-ES-K-TVPB-W33 double-row spherical roller bearing, 85 mm bore on a 1:12 taper, 150 mm outside diameter, 36 mm width, open on both faces. Two rows of barrel-profile rollers on a common spherical outer raceway, held in a glass-fibre reinforced polyamide cage, with an annular lubrication groove and radial feed holes in the outer ring (W33). One complete bearing.
22217 — ISO base number: 222 dimension series, bore code 17 = 85 mm.
E — reinforced internal design.
S — FAG lubrication provision: an annular groove in the outer ring with radial feed holes, written W33 in ISO form.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 36 mm. Bore Type: Tapered 1:12 (K). Number Of Rows: 2. Rolling Elements: Spherical Roller. Closure Type: Open. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN. Series: 22200. Base Number: 22217. Lubricant: grease or oil, fed through the outer-ring groove and feed holes. Harmonization Code: 8482.30.00.80. Unit Quantity: 1 Pc.
The 1:12 bore seats on a tapered shaft journal or on an adapter or withdrawal sleeve. Adapter Sleeve: H2317, cylindrical shaft seat 75 mm, with KM 17 locknut and MB 17 lockwasher.
Timken 22217EKJW33 is the same-envelope tapered-bore execution with the same lubrication provision, with a steel cage. A straight-bore 22217 E or NSK 22217EAE4 has the same 85 x 150 x 36 mm envelope with a cylindrical bore.
Bore Diameter: 85 mm, tapered 1:12. Outside Diameter: 150 mm. Overall Width: 36 mm.
W33 is the annular lubrication groove with radial feed holes in the outer ring.
Adapter Sleeve: H2317, cylindrical shaft seat 75 mm, with KM 17 locknut and MB 17 lockwasher.
