INAKR47-PP-XStud Type Track Roller – 47 mm Outer Ring, 24 mm Running Width, M20x1.5 Stud, Sealed Both Sides

Condition: New

Availability:

1 in stock

Categories: ,

INA KR47-PP-X stud type track roller, 47 mm outer ring, 24 mm wide, M20x1.5 threaded stud, sealed both sides. 15,400 N dynamic rating, 2,400 rpm grease.

List Price

$42.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandINA
MPNKR47-PP-X
ModelKR47PP-X
OD47 mm

Technical Specifications

SeriesKR
LubricantGrease
Stud Diameter20 mm
Stud Length66 mm
Roller Diameter47 mm
Roller Width24 mm
MaterialBearing Steel
Base NumberKR47
Total Width66 mm
Overall Width66 mm
Retaining FeatureNeedle
Locking MethodM20x1.5 threaded stud with nut
RelubricationLubrication hole in stud, drive-fit nipple NIPA2X7,5
Mpn VariantsKR 47 PP; KR47PP; KR-47-PP; KR47PP-X; KR47-PP-X; KR47PPX; KR-47-PP-X
Additional AttributesThread M20x1.5, 21 mm long; stud fit diameter 20 mm; effective stud length 40.5 mm; width of flats 10 mm; tightening torque nut 120 Nm (88.5 ft-lb); lubrication hole diameter 4 mm at 9 mm from datum; drive-fit lubrication nipple NIPA2X7,5; maximum width of thrust washer 25.6 mm; stop diameter of thrust washer 36.5 mm; protrusion outer ring to thrust washer 0.8 mm; minimum chamfer dimension 1 mm; fatigue load limit 3,450 N
Dynamic Load Rating15,400 N
Static Load Rating26,000 N
Rolling ElementsNeedle Roller
Bearing TypeStud Type Track Roller, Plastic axial plain washers both sides
Item Weight0.371 kg (0.82 lb)
Limiting Speed2,400 rpm grease
Number Of Rows1
Bore TypeStraight
Harmonization Code8482.4
Bearing MaterialChrome steel
Closure TypePlastic axial plain washers both sides
Seller Part Number: B-AN2B5#UQFIU0

Product Description

What this part is:

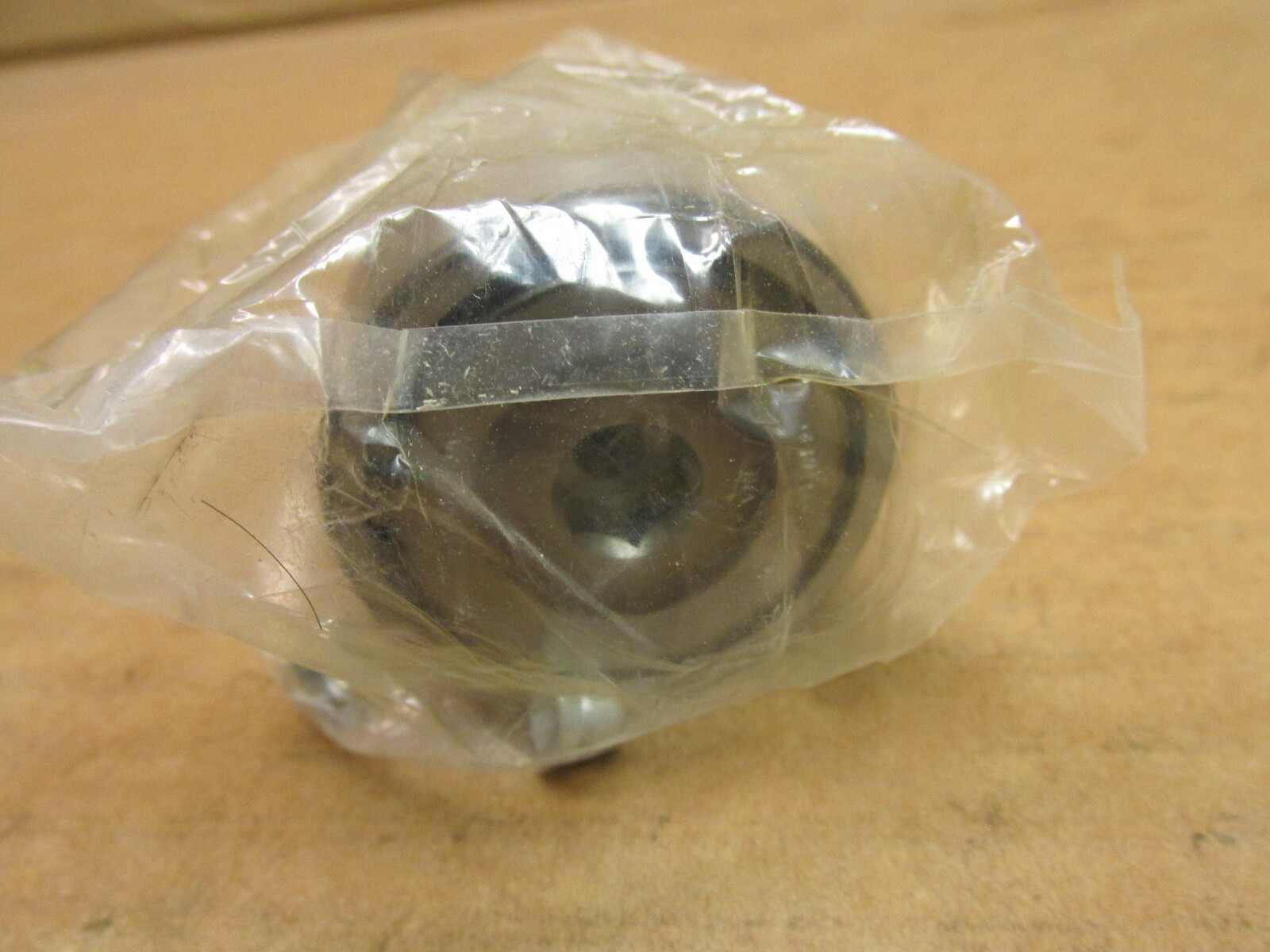

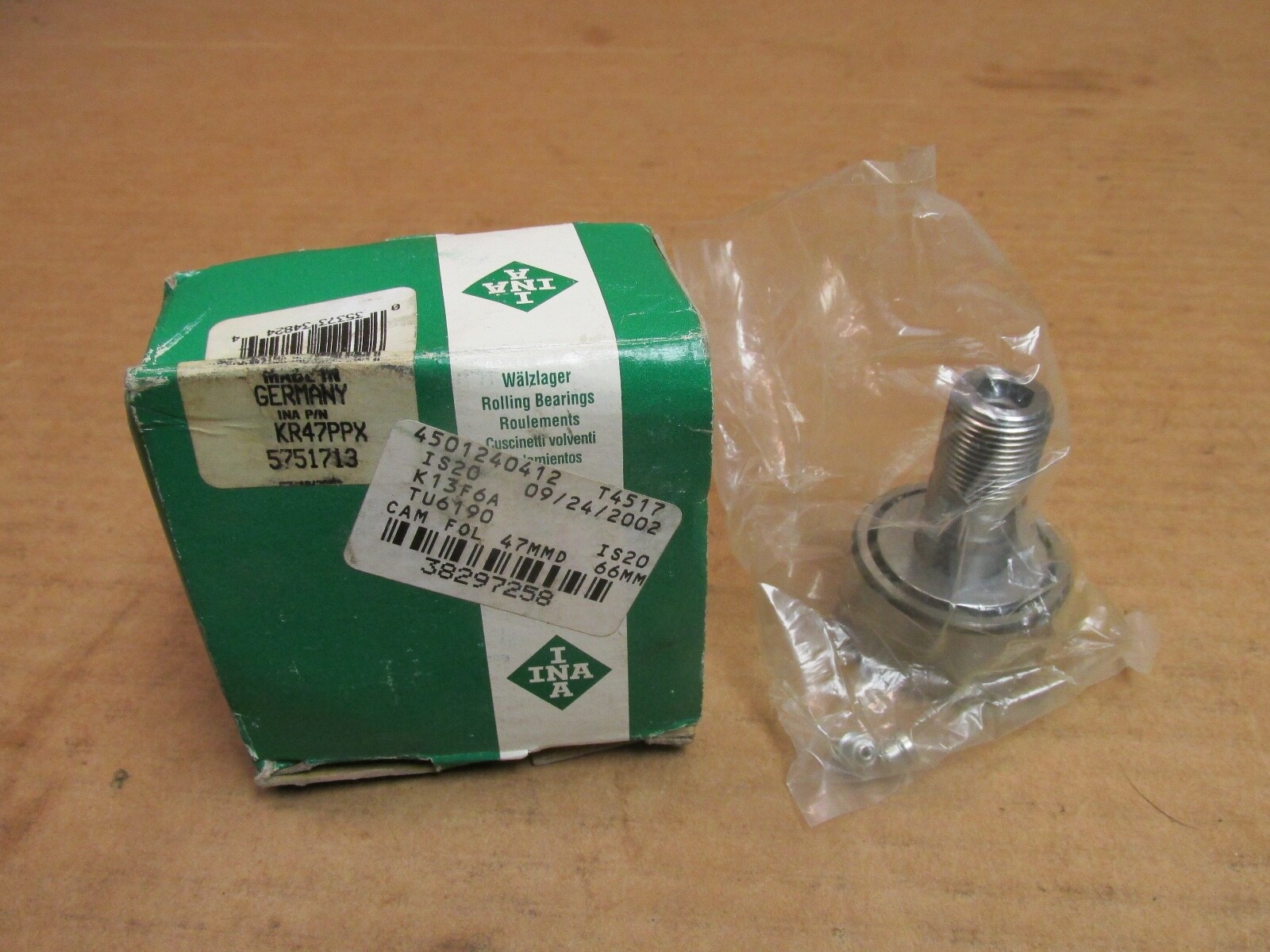

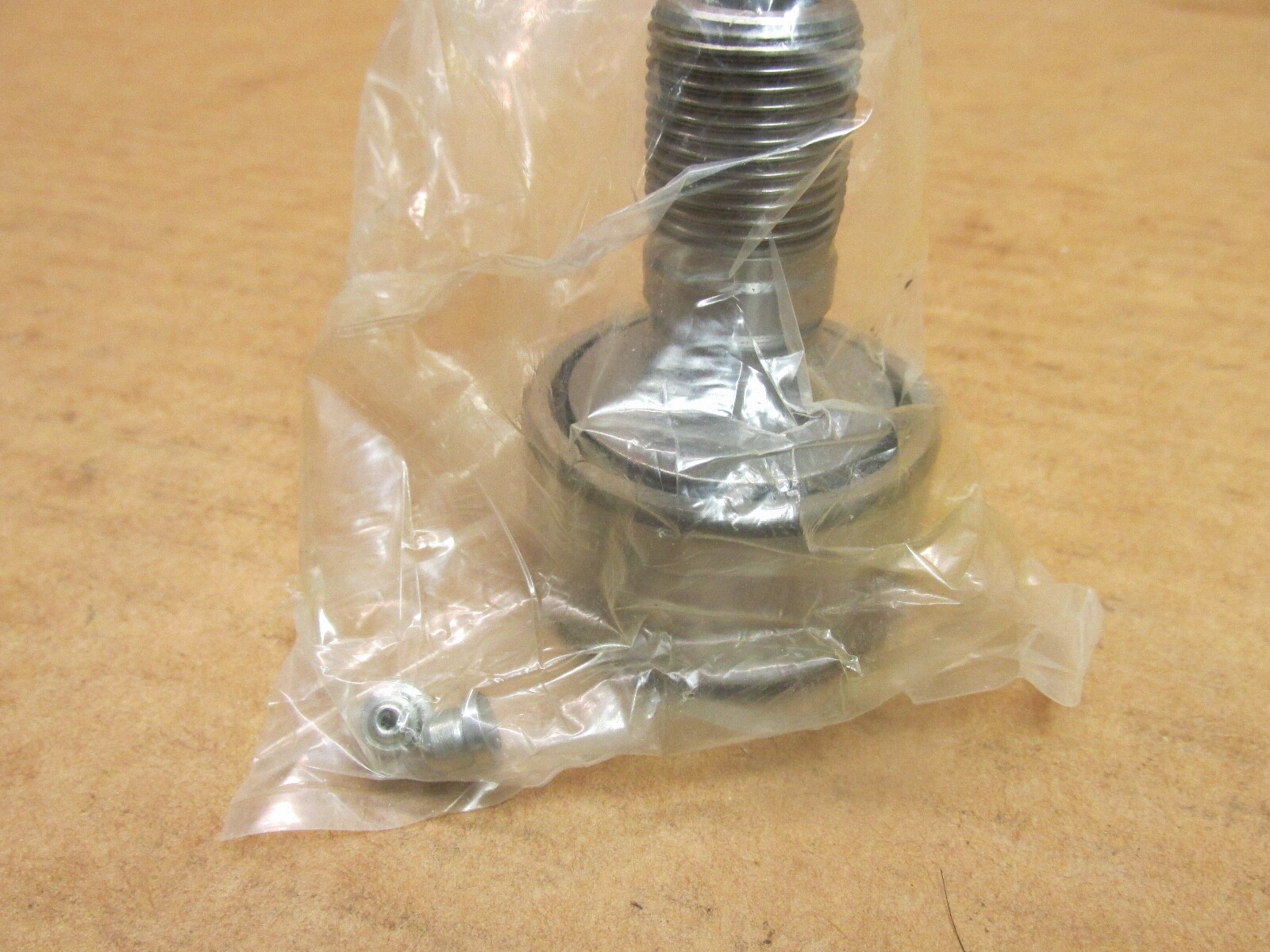

INA KR47-PP-X stud type track roller, also called a cam follower. A solid steel stud with a threaded shank carries a thick-walled outer ring running on a needle roller and cage assembly. Complete unit with plastic axial plain washers sealing both sides. Sold as 1 Pc.

Decoding the designation:

KR — stud type track roller with a solid roller stud and a fixing thread.

47 — outside diameter of the running outer ring in millimetres.

PP — three-stage sealing by plastic axial plain washers on both sides; the washers also provide axial guidance of the outer ring.

Specifications:

Bearing Type: Stud type track roller. Rolling Elements: Needle roller. Number Of Rows: 1. Dynamic Load Rating: 15,400 N. Static Load Rating: 26,000 N. Fatigue Load Limit: 3,450 N. Limiting Speed: 2,400 rpm on permanent grease lubrication. Closure Type: Plastic axial plain washers both sides. Lubricant: Grease. Item Weight: 0.371 kg (0.82 lb). Series: KR. Base Number: KR47. Unit Quantity: 1 Pc.

Dimensions and mounting:

Outside Diameter: 47 mm. Overall Width: 66 mm over the stud. Outer ring width: 24 mm. Stud fit diameter: 20 mm. Thread: M20x1.5, 21 mm long. Effective stud length: 40.5 mm. Width of flats: 10 mm. Lubrication hole: 4 mm diameter, 9 mm from the datum face, for a drive-fit NIPA2X7,5 nipple. Maximum width of the thrust washer: 25.6 mm. Stop diameter of the thrust washer: 36.5 mm. Protrusion of the outer ring past the thrust washer: 0.8 mm. Minimum chamfer dimension: 1 mm.

Compatibility and replacement:

Also written KR 47 PP, KR47PP, KR-47-PP, KR47PP-X, KR47-PP-X and KR47PPX. Ratings and dimensions are the Schaeffler KR47 size data.

Frequently asked questions:

What size is the INA KR47-PP-X?

47 mm outer ring diameter, 24 mm outer ring width, 66 mm overall width, M20x1.5 stud with a 20 mm stud fit diameter.

What are the load ratings of the INA KR47-PP-X?

Dynamic Load Rating: 15,400 N. Static Load Rating: 26,000 N.

How is the INA KR47-PP-X sealed and lubricated?

Plastic axial plain washers seal both sides; the stud has a 4 mm lubrication hole for a drive-fit NIPA2X7,5 nipple. Lubricant: grease.
