Single-direction thrust ball bearing, 70 mm bore x 105 mm OD x 27 mm high, P5 / ABEC 5 tolerance, 66,000 N axial dynamic rating, pressed steel cage.
List Price
$49.69
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 51214.P5 |
| Model | 51214 P5 |
| ID | 70 mm |
| OD | 105 mm |
| Width | 27 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Lubricant | Grease |
| Series | 51200 |
| Rolling Elements | Ball |
| Mpn Variants | 51214.P5, 51214-P5, 51214P5, 51214 |
| Precision Class | ABEC 5 / P5 |
| Dynamic Load Rating | 66,000 N |
| Static Load Rating | 159,000 N |
| Precision Rating | ABEC 5 / P5 |
| Bearing Type | Thrust Ball Bearing, Open |
| Item Weight | 0.772 kg (1.70 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.80.00 |
| Cross Reference 1 | SKF 51214 - normal tolerance, not P5 |
|---|---|
| Cross Reference 2 | NSK 51214 - normal tolerance, not P5 |
| Cross Reference 3 | NTN 51214 - normal tolerance, not P5 |
| Cross Reference 4 | Koyo 51214 - normal tolerance, not P5 |
| Cross Reference 5 | Timken 51214 - normal tolerance, not P5 |

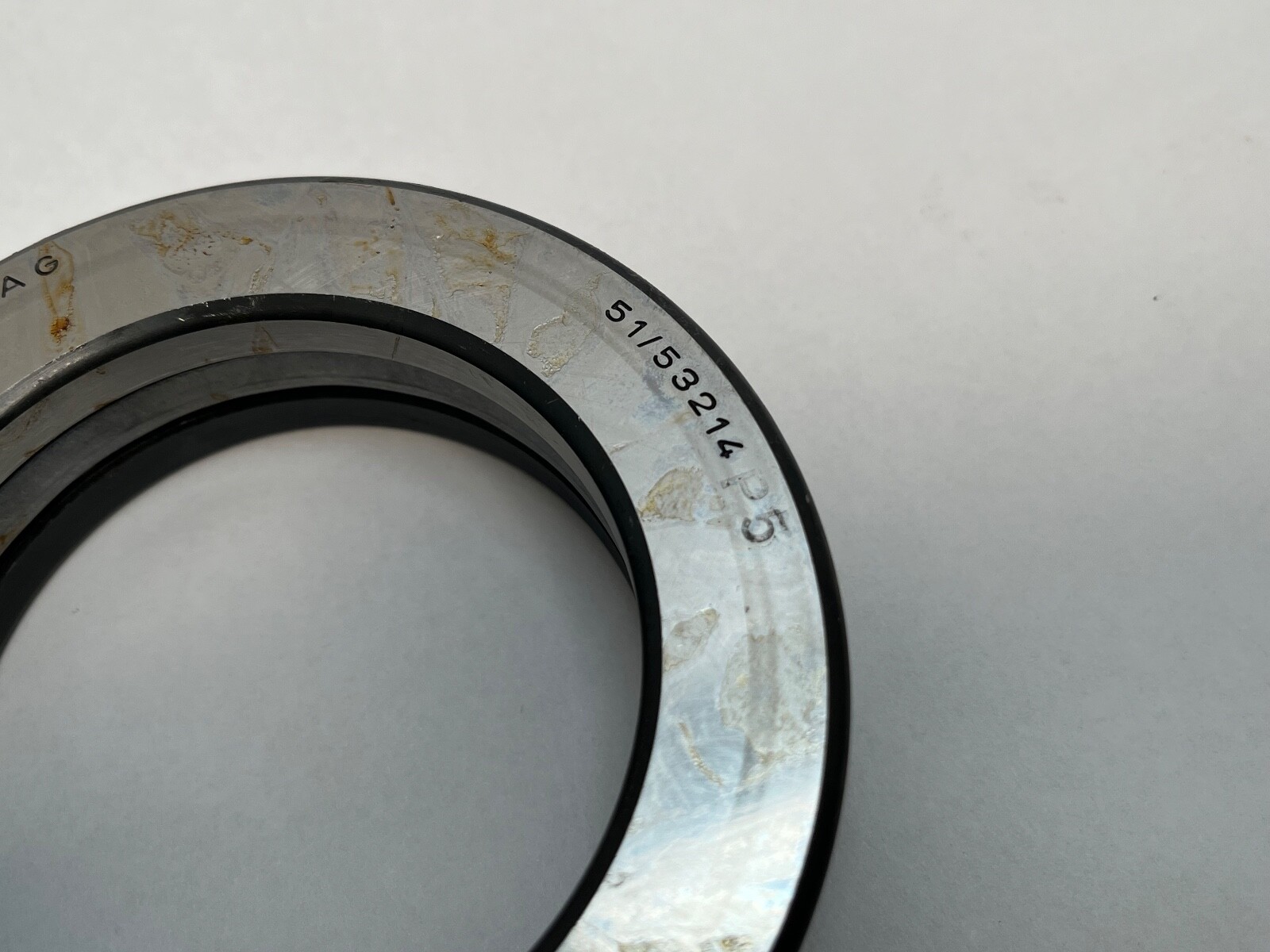

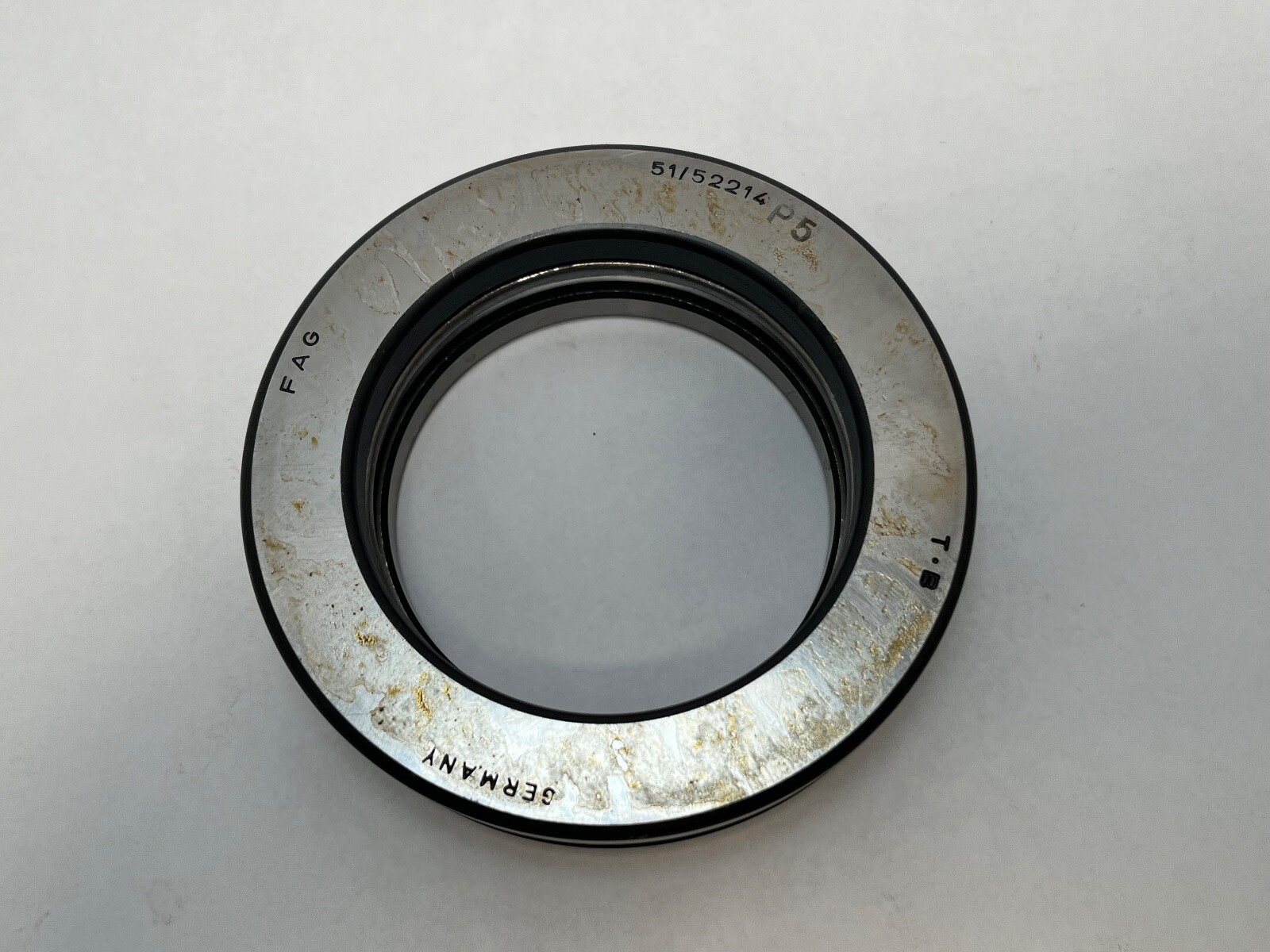

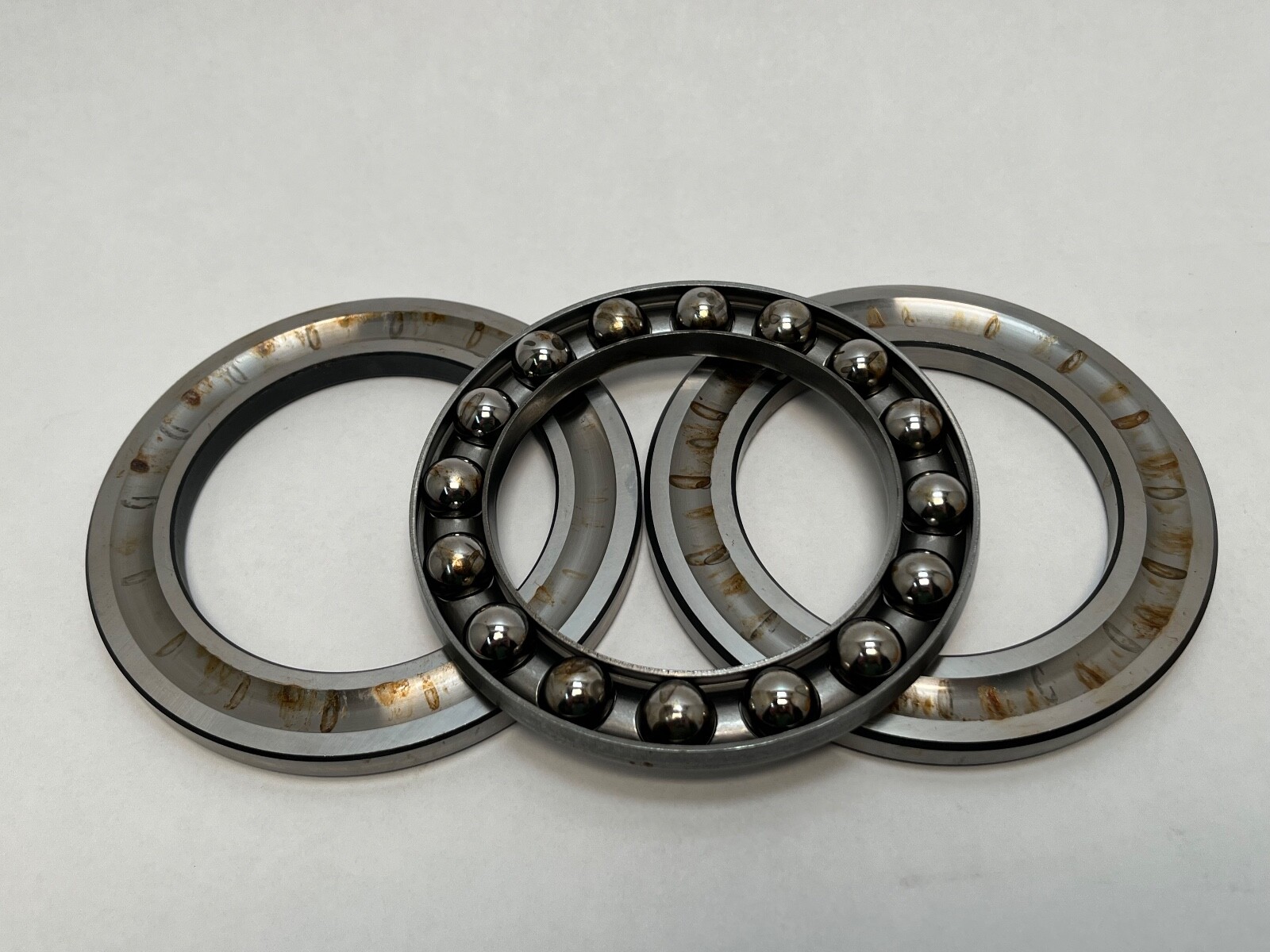

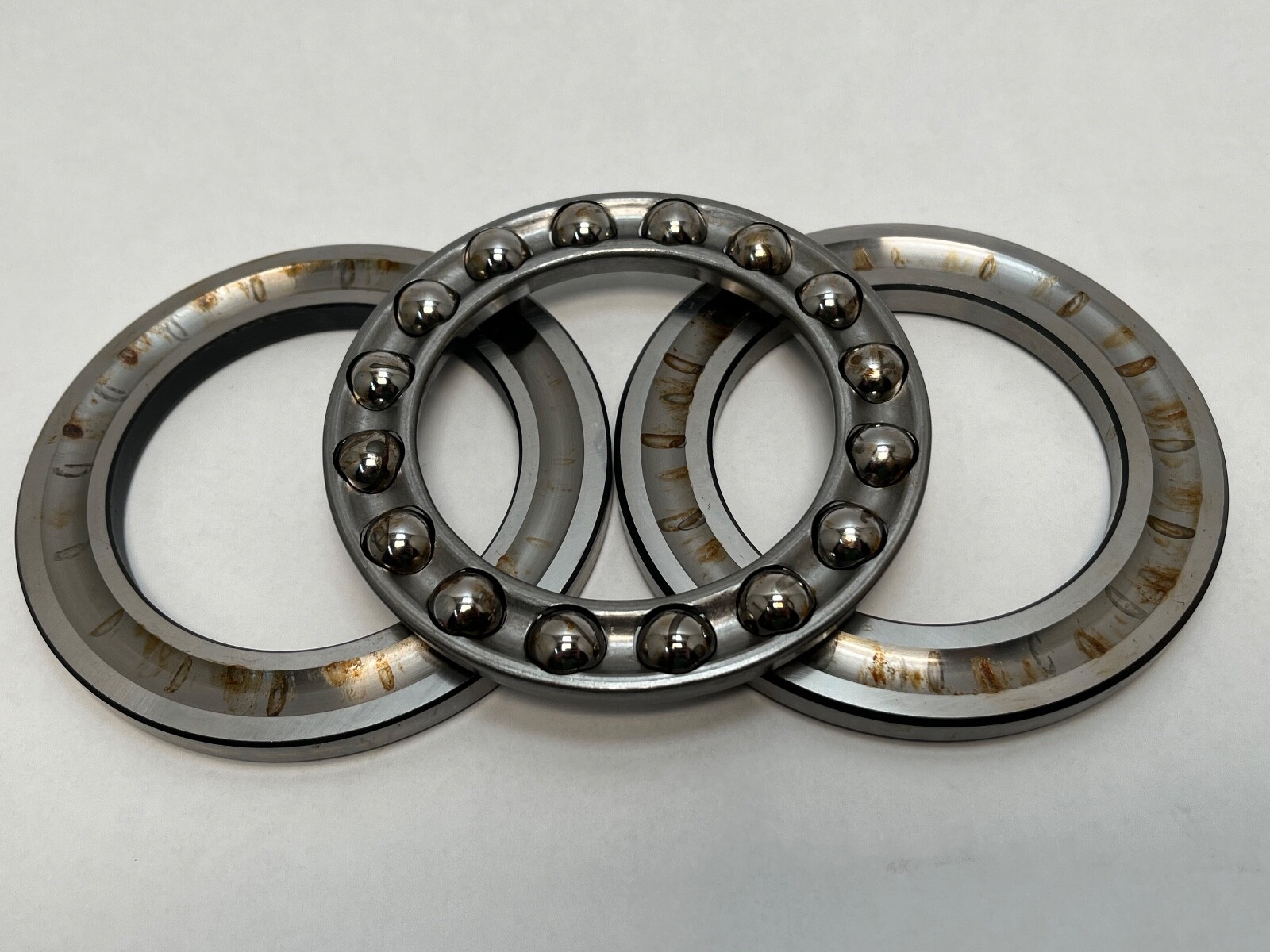

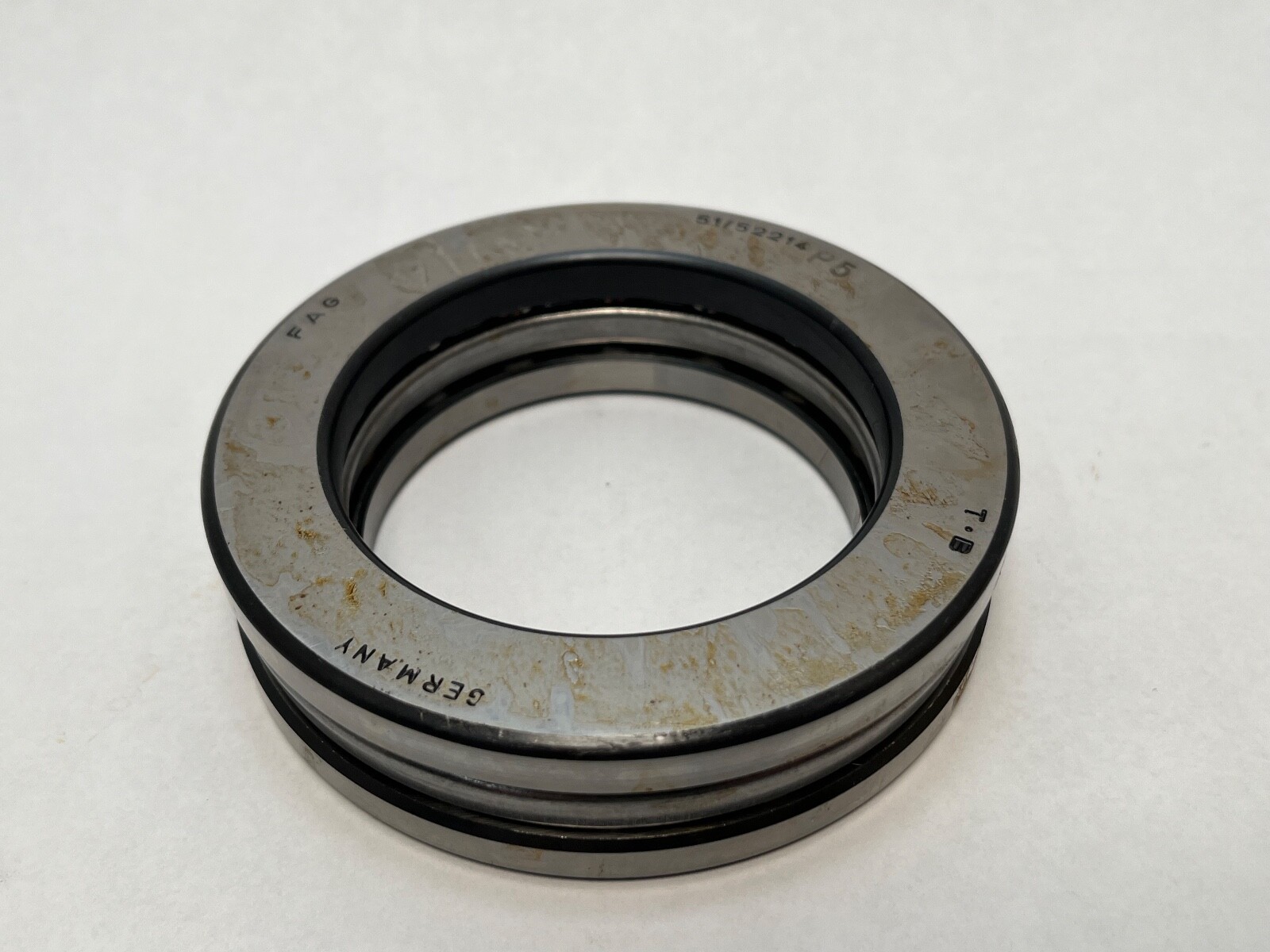

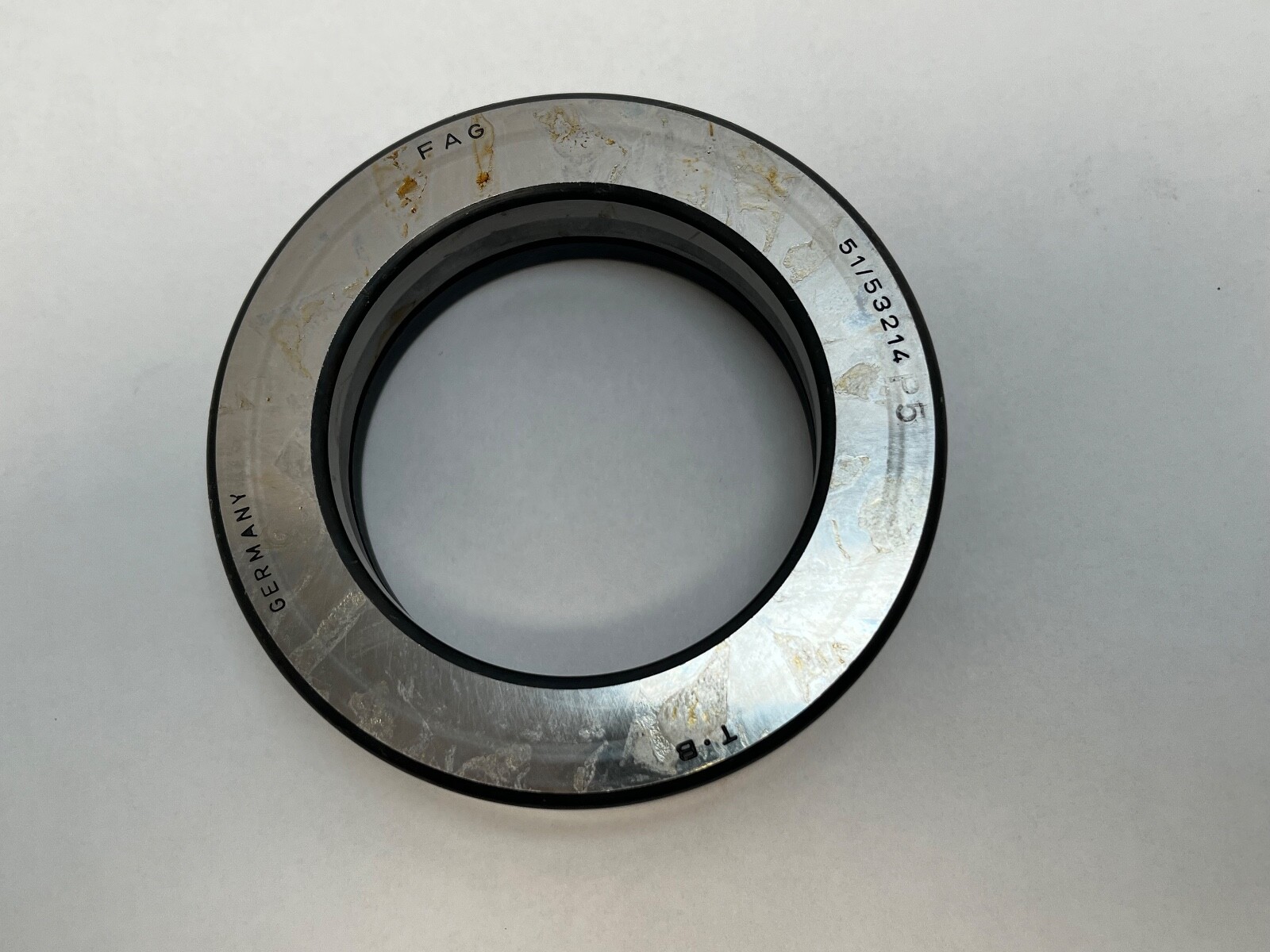

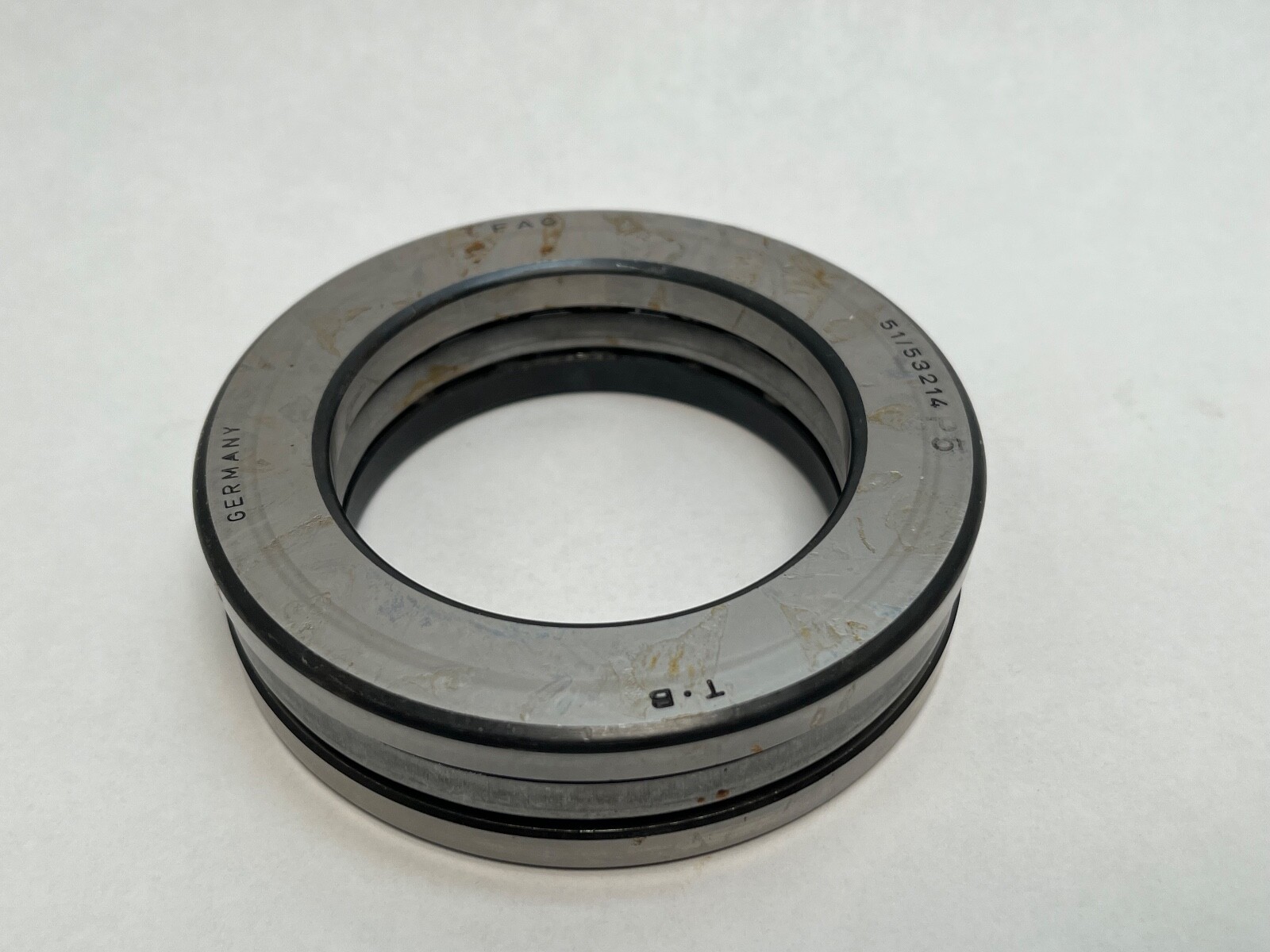

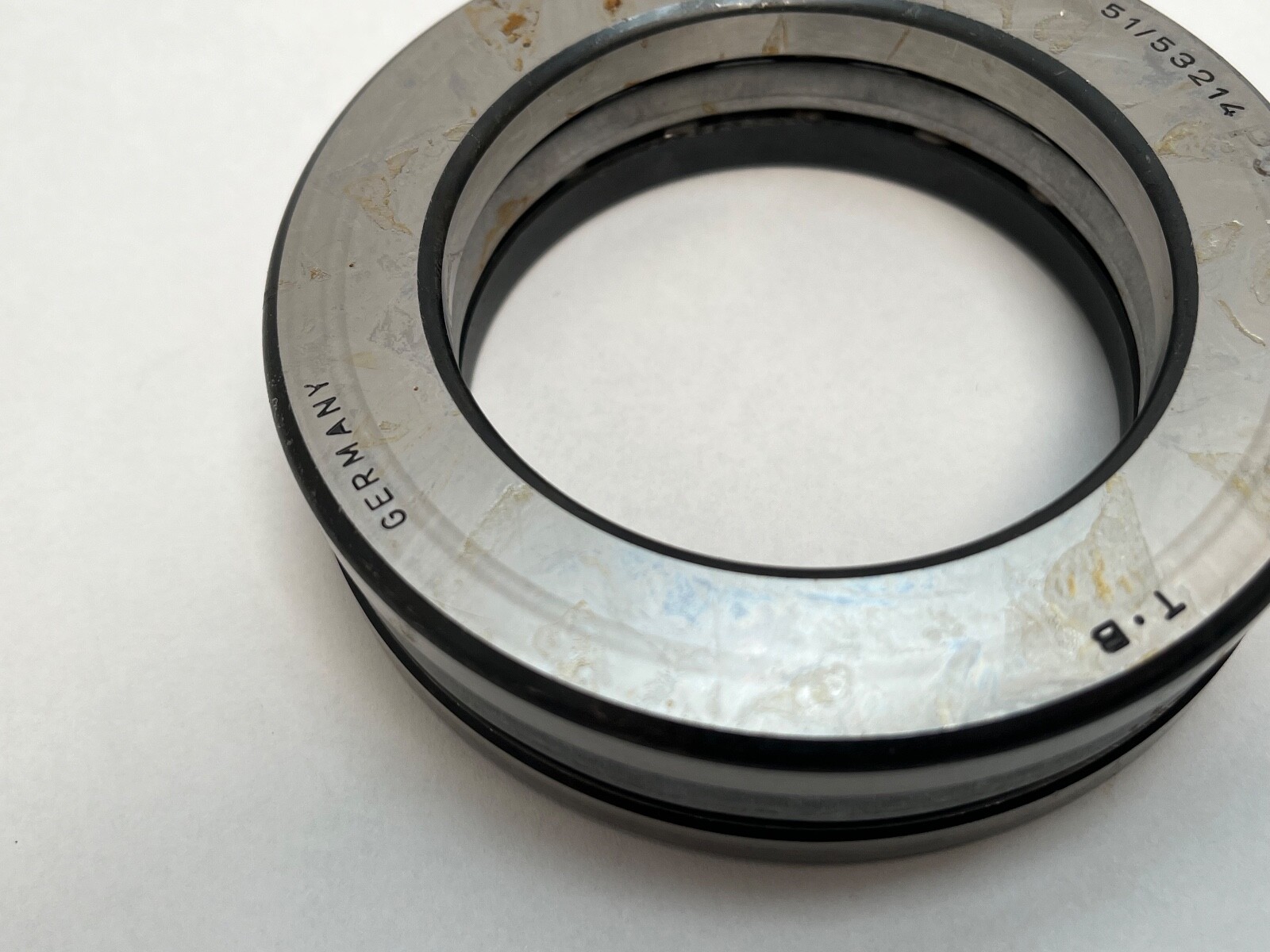

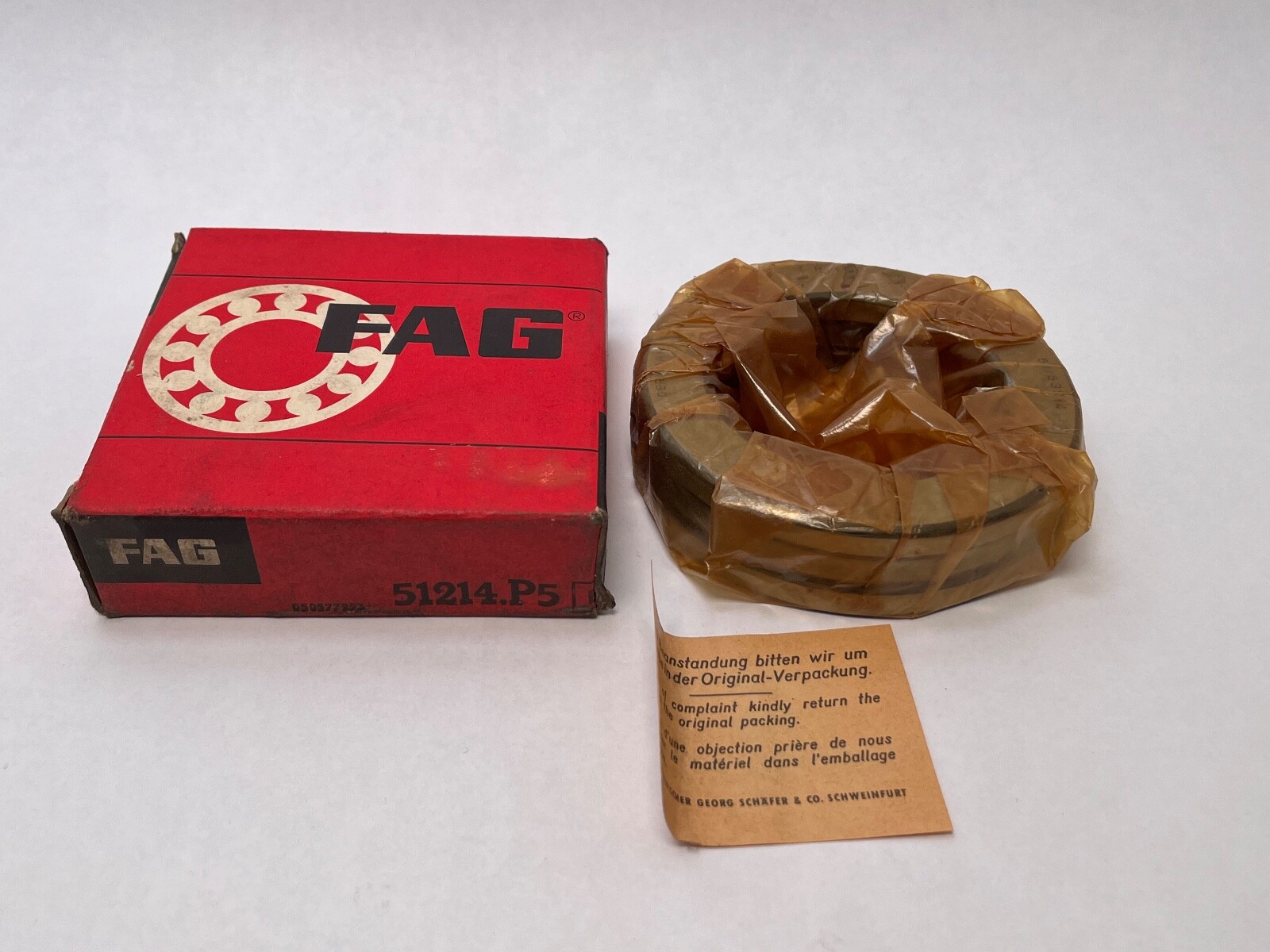

FAG 51214-P5 single-direction axial deep groove ball bearing, complete three-piece set: shaft washer, housing washer and ball-and-cage assembly. Unit Quantity: 1 Pc.
512 — single-direction thrust ball bearing, 12 dimension series.
14 — bore code, 14 x 5 = 70 mm bore.
P5 — ISO tolerance class P5, equivalent to ABEC 5.
Bearing Type: Thrust Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Precision Class: ABEC 5 / P5. Cage Material: Pressed steel. Dynamic Load Rating: 66,000 N axial. Static Load Rating: 159,000 N axial. Fatigue Load Limit: 7,200 N axial. Item Weight: 0.772 kg (1.70 lb). Load Direction: axial, one direction only.
Bore Diameter: 70 mm. Outside Diameter: 105 mm. Height: 27 mm. Housing Washer Bore: 72 mm. Minimum Shaft Shoulder Diameter: 91 mm. Maximum Housing Shoulder Diameter: 84 mm. Maximum Fillet Radius: 1 mm. Minimum Chamfer: 1 mm. Minimum Load Factor A: 0.16.
SKF 51214, NSK 51214, NTN 51214, Koyo 51214 and Timken 51214 share the 70 x 105 x 27 mm single-direction envelope and are normal tolerance, not P5.
Dynamic Load Rating: 66,000 N axial. Static Load Rating: 159,000 N axial.
70 mm bore, 105 mm outside diameter, 27 mm height.
P5, equivalent to ABEC 5.
