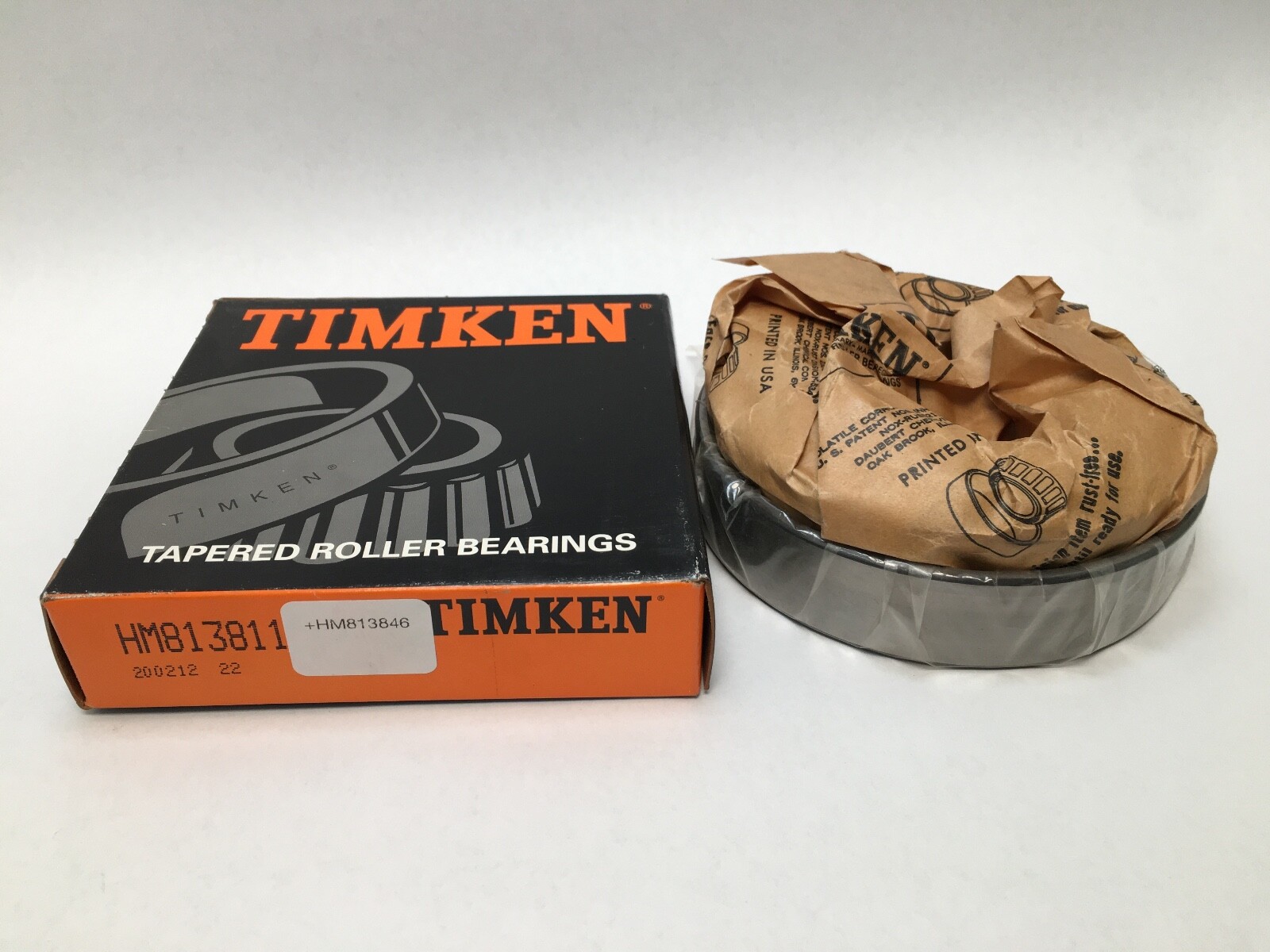

Timken HM813846/HM813811 tapered roller bearing cone and cup set, 2.75 in (69.85 mm) bore, 5 in (127 mm) OD, 1.4375 in width, 229,000 N C1 rating.
List Price
$168.22
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | HM813846/HM813811 |
| GTIN | 013992335579 |
| Model | HM-813846 HM-813811 |
| Bearing Type | Tapered Roller Bearing |
| ID | 2.7500 in (69.850 mm) |
| OD | 5.0000 in (127.000 mm) |
| Series | HM813800 |
|---|---|
| Mpn Variants | HM813846/HM813811, HM-813846 HM-813811, HM813846, HM813811 |
| Dynamic Load Rating | 229,000 N |
| Static Load Rating | 256,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.9 kg (4.2 lb) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | HM813811 |
| Cup Width | 1.0625 in (26.988 mm) |
| Cup Backface To Clear Radius | 0.13 in |
| Cone Part Number | HM813846 |
| Cone Width | 1.4375 in (36.513 mm) |
| Cone Backface To Clear Radius | 0.14 in |
| Effective Center Location | -0.15 in (-3.8 mm) |
| Cross Reference 1 | SKF HM 813846/HM 813811 |
|---|---|
| Cross Reference 2 | NTN 4T-HM813846/HM813811 |
| Cross Reference 3 | Koyo HM813846/HM813811 |
| Cross Reference 4 | Bower HM813846/HM813811 |

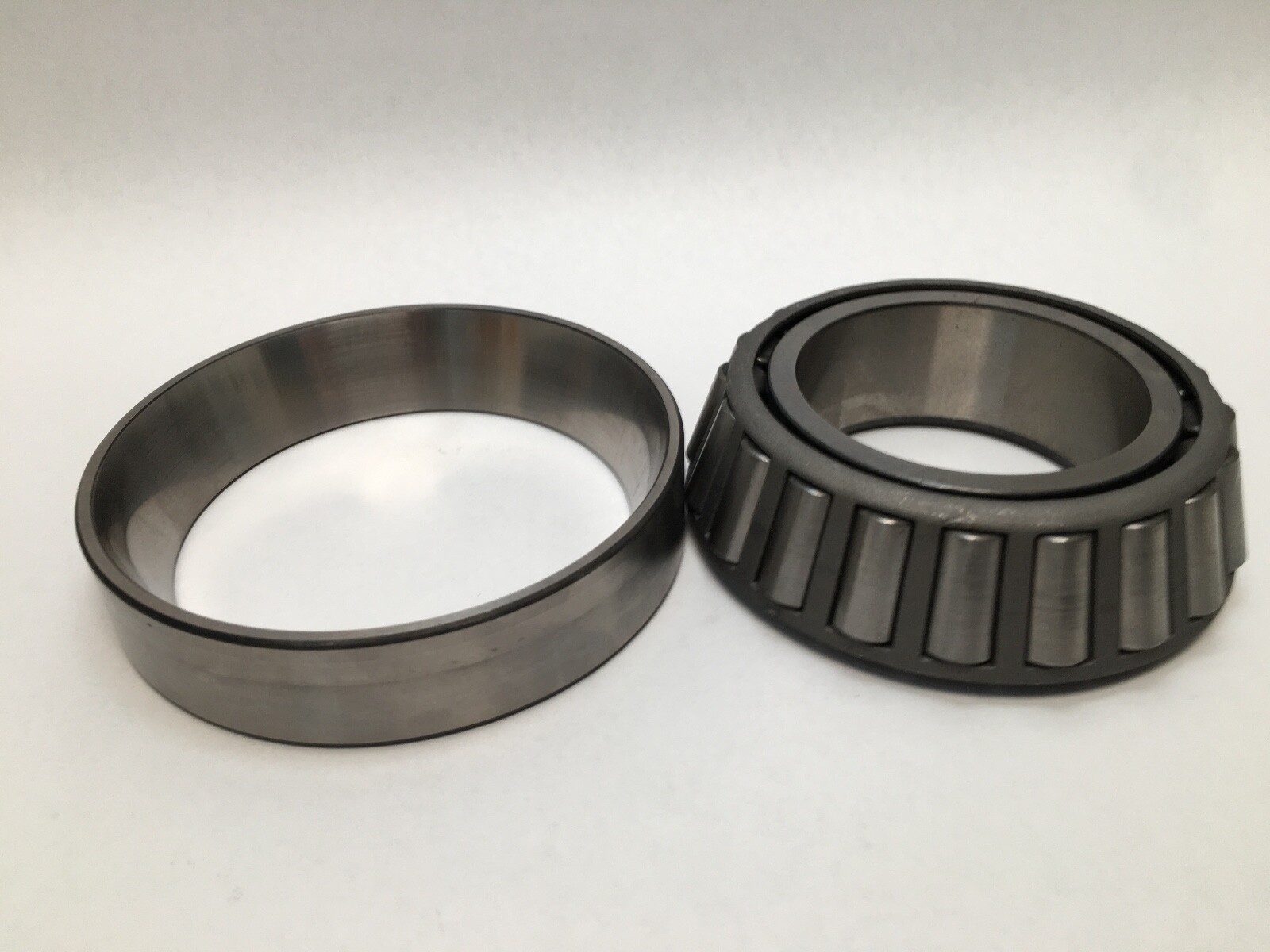

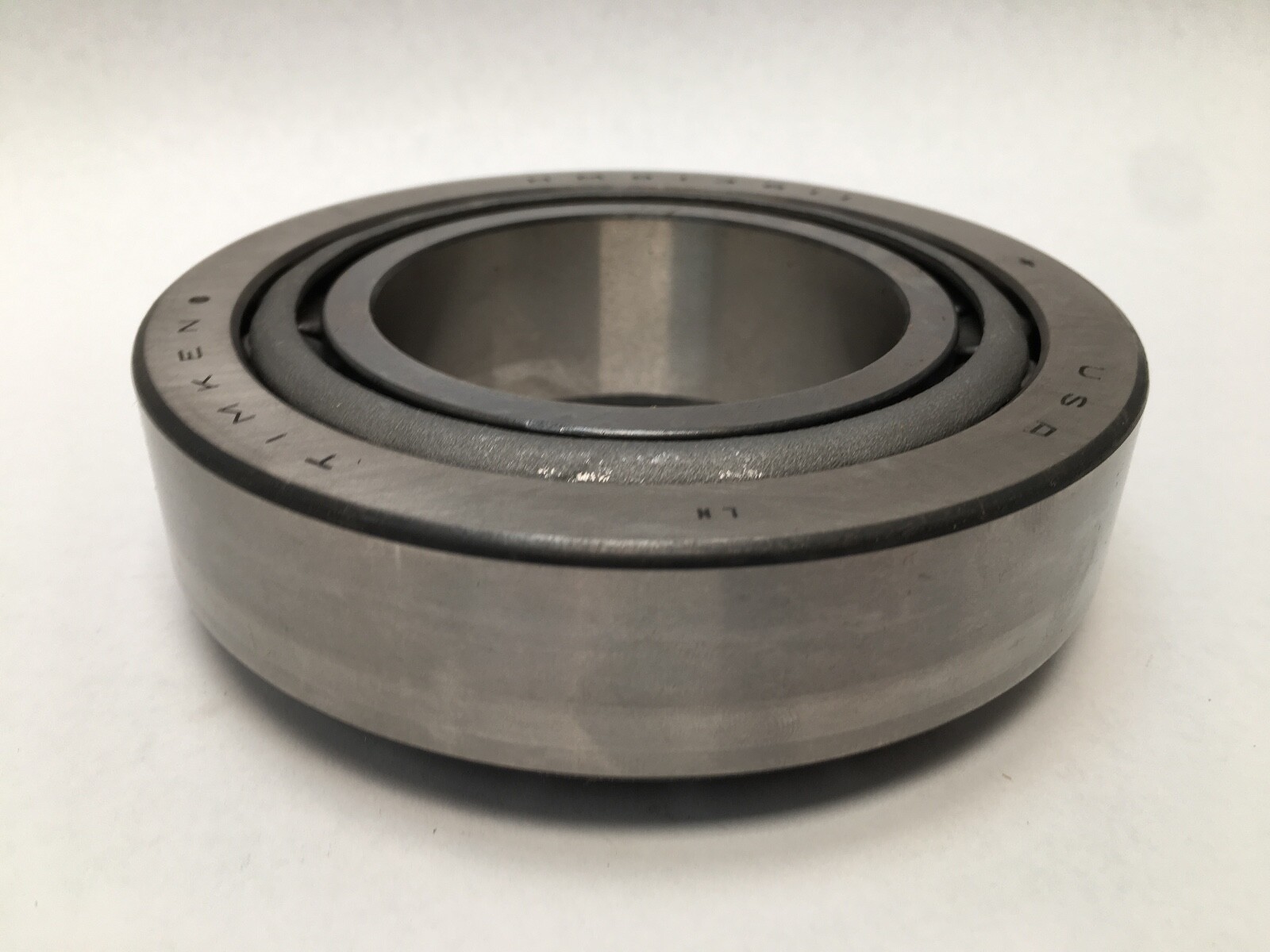

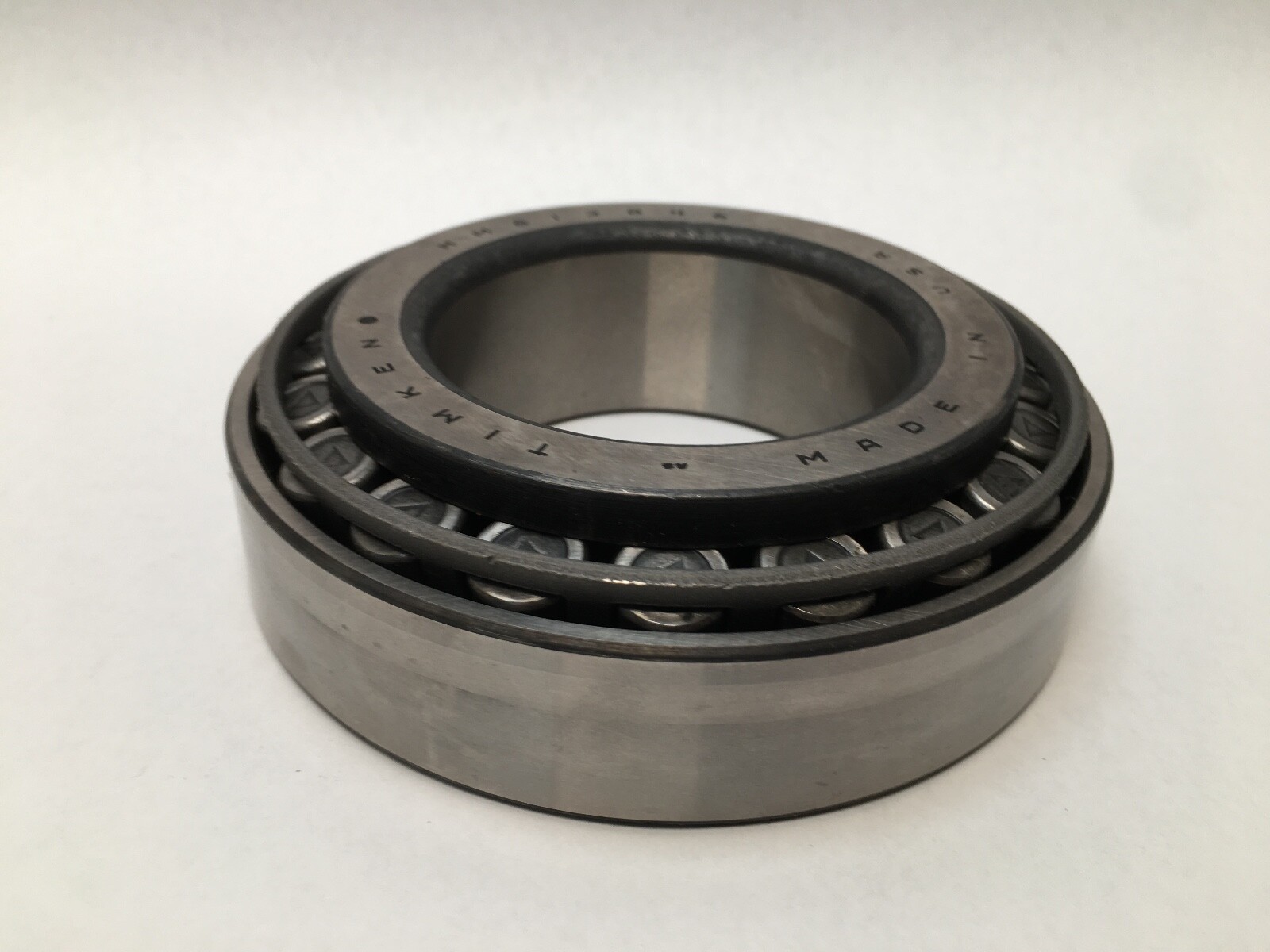

Timken HM813846/HM813811 is a single-row tapered roller bearing assembly: one HM813846 cone and one HM813811 cup. Unit Quantity: 2 Pcs, one cone and one cup forming one complete single-row bearing. GTIN: 0013992335579.

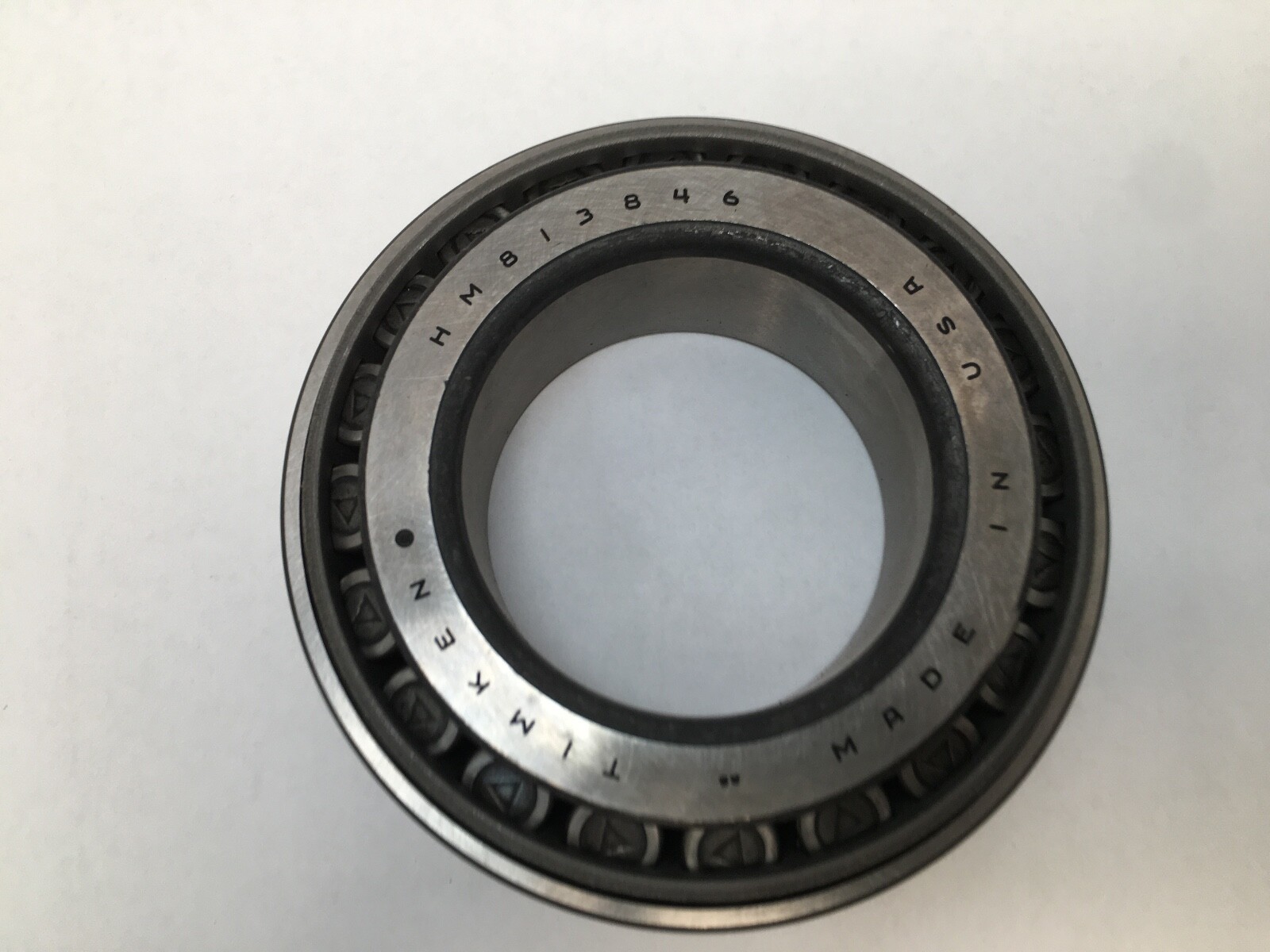

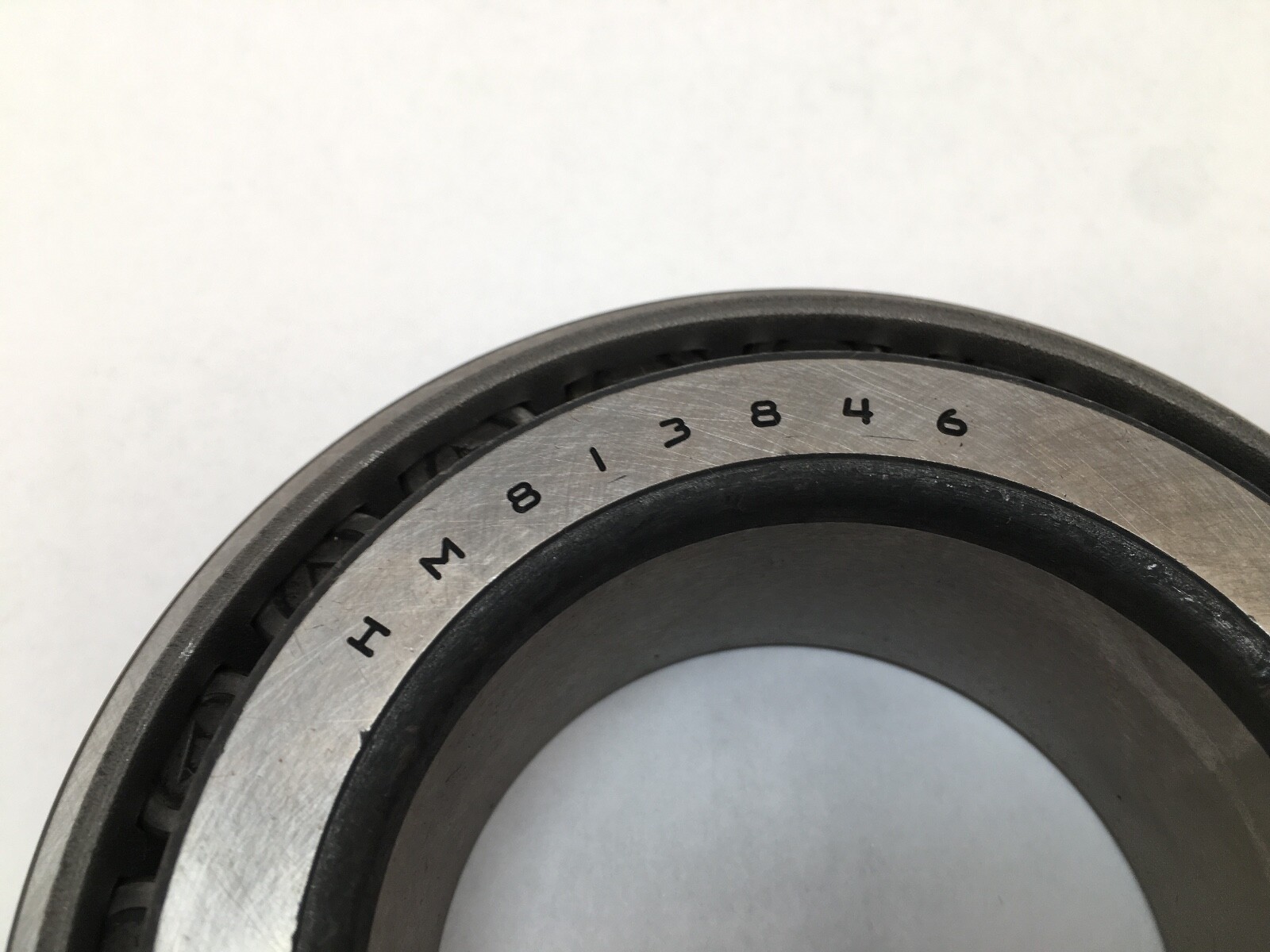

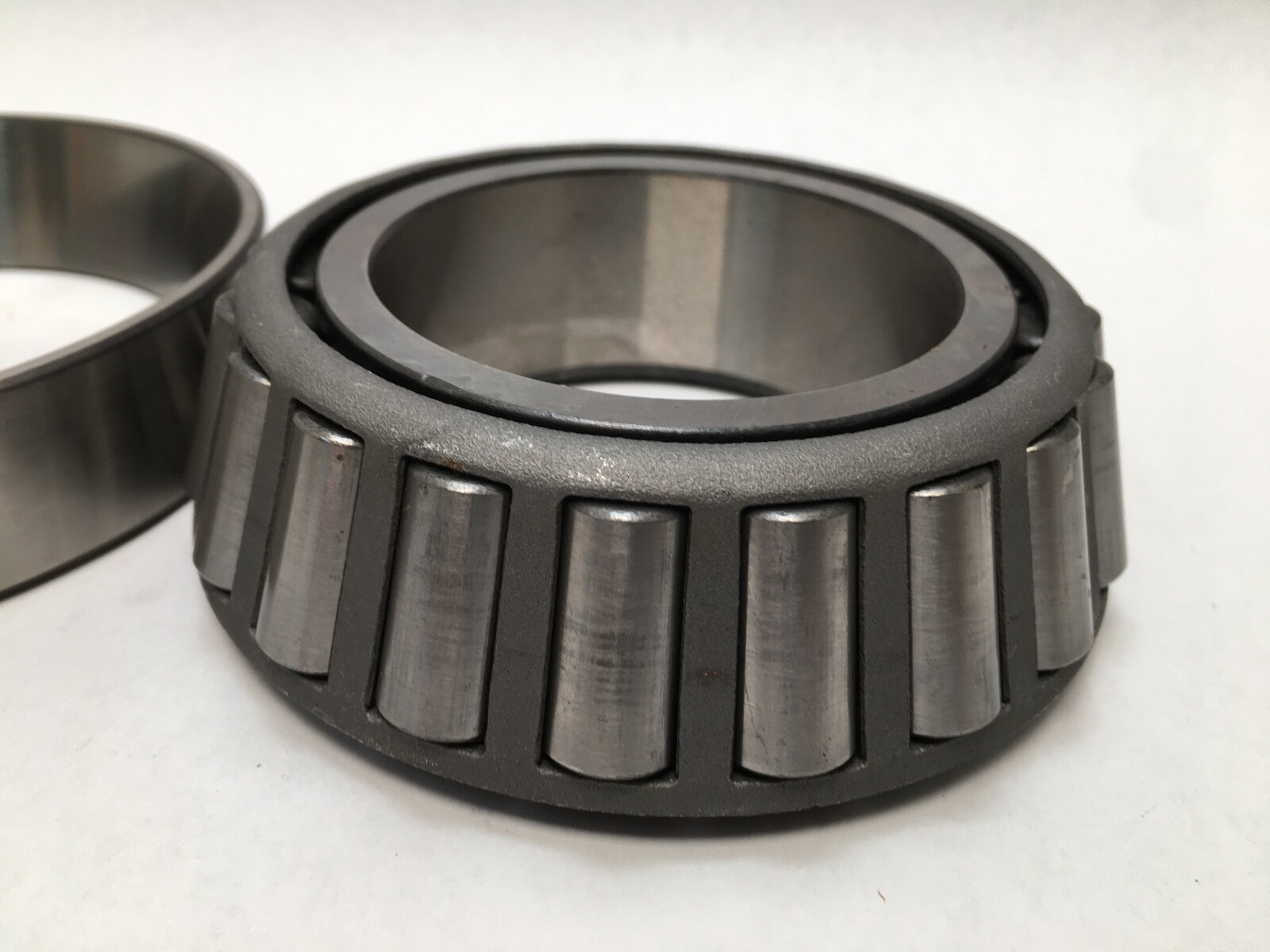

HM813846 — Timken inch-series cone in the HM813800 series. HM marks the heavy-medium section.

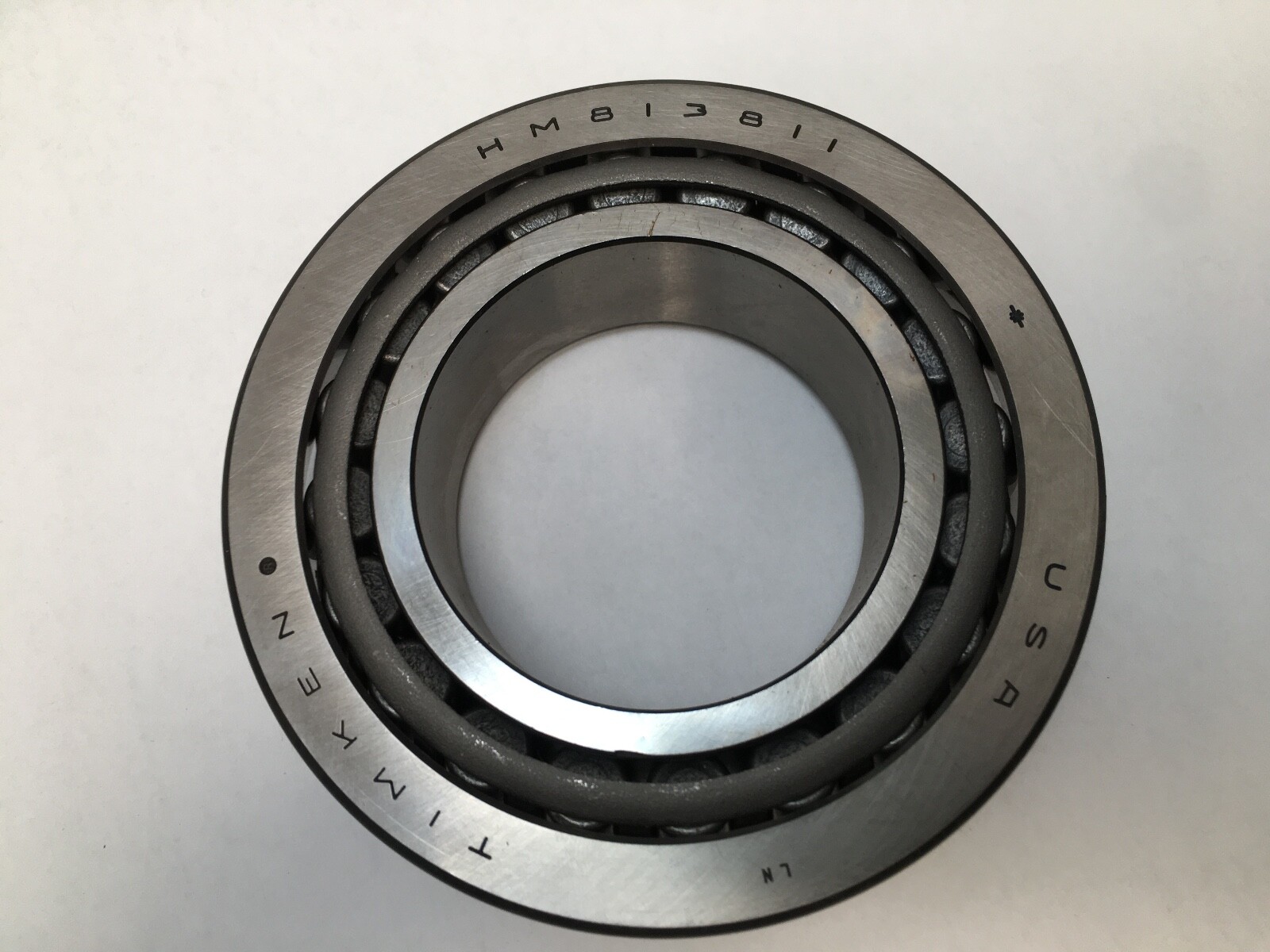

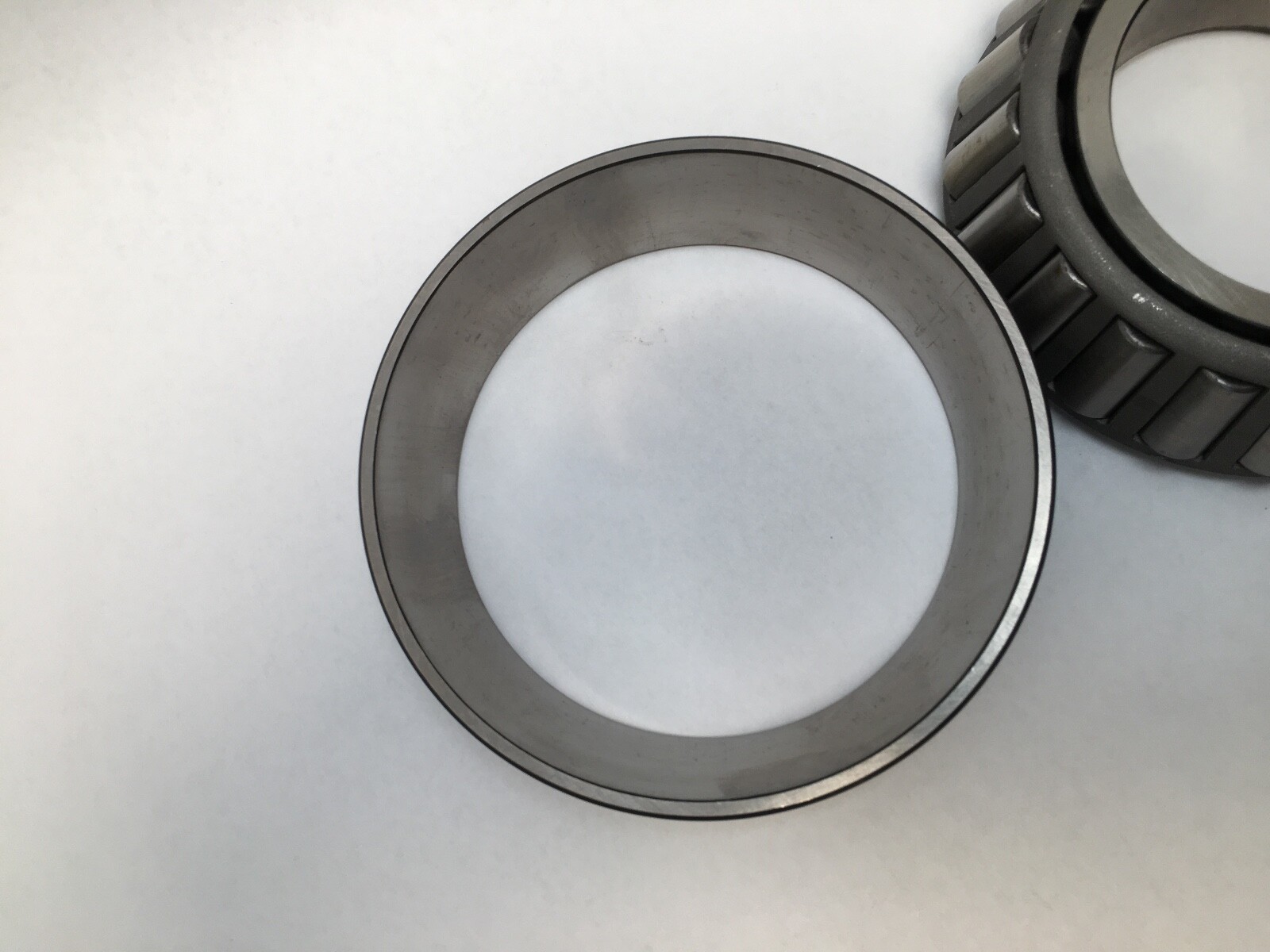

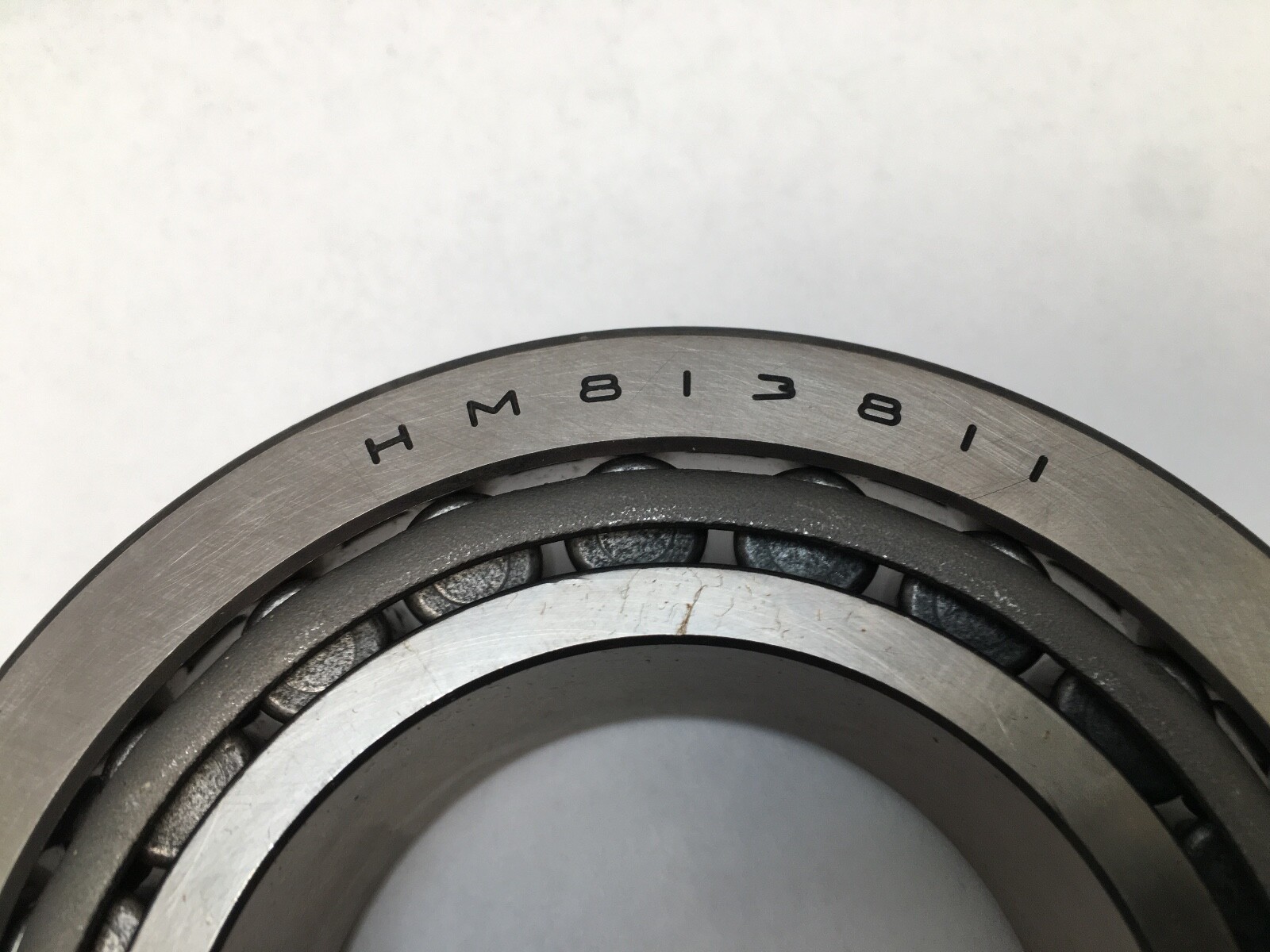

HM813811 — the matching single cup for that cone.
Bore Diameter: 2.7500 in (69.850 mm). Outside Diameter: 5.0000 in (127.000 mm). Overall Width: 1.4375 in (36.513 mm). Cone Width: 1.4375 in (36.513 mm). Cup Width: 1.0625 in (26.988 mm). Item Weight: 1.9 kg (4.2 lb). Rolling Elements: Tapered Roller. Number Of Rows: 1. Series: HM813800. Dynamic Load Rating: 229,000 N (51,500 lbf), Timken C1 at 1 million revolutions. Dynamic Radial Rating C90: 59,400 N (13,400 lbf) at 90 million revolutions. Dynamic Axial Rating Ca90: 51,100 N (11,500 lbf). Static Load Rating: 256,000 N (57,600 lbf). e Factor: 0.5. K Factor: 1.16. Y Factor: 1.2.
Effective Center Location: -0.15 in (-3.8 mm). Max Shaft Fillet Radius: 0.140 in (3.600 mm). Max Housing Fillet Radius: 0.06 in (1.52 mm). Shaft Backing Shoulder Diameter, Frontface (da): 3.23 in (82 mm). Shaft Backing Shoulder Diameter, Backface (db): 3.50 in (89 mm). Housing Backing Shoulder Diameter, Frontface (Da): 4.80 in (121.90 mm). Housing Backing Shoulder Diameter, Backface (Db): 4.45 in (113.03 mm). Cone Backface Clear Radius: 0.14 in. Cup Backface Clear Radius: 0.13 in.
Cross-references: SKF HM 813846/HM 813811, NTN 4T-HM813846/HM813811, Koyo HM813846/HM813811, Bower HM813846/HM813811. MPN variants: HM813846/HM813811, HM-813846 HM-813811, HM813846, HM813811.
One HM813846 cone and one HM813811 cup: 2 pieces forming one complete single-row tapered roller bearing.
Bore Diameter: 2.7500 in (69.850 mm). Outside Diameter: 5.0000 in (127.000 mm). Overall Width: 1.4375 in (36.513 mm).
Dynamic Load Rating: 229,000 N (51,500 lbf), Timken C1 at 1 million revolutions.
