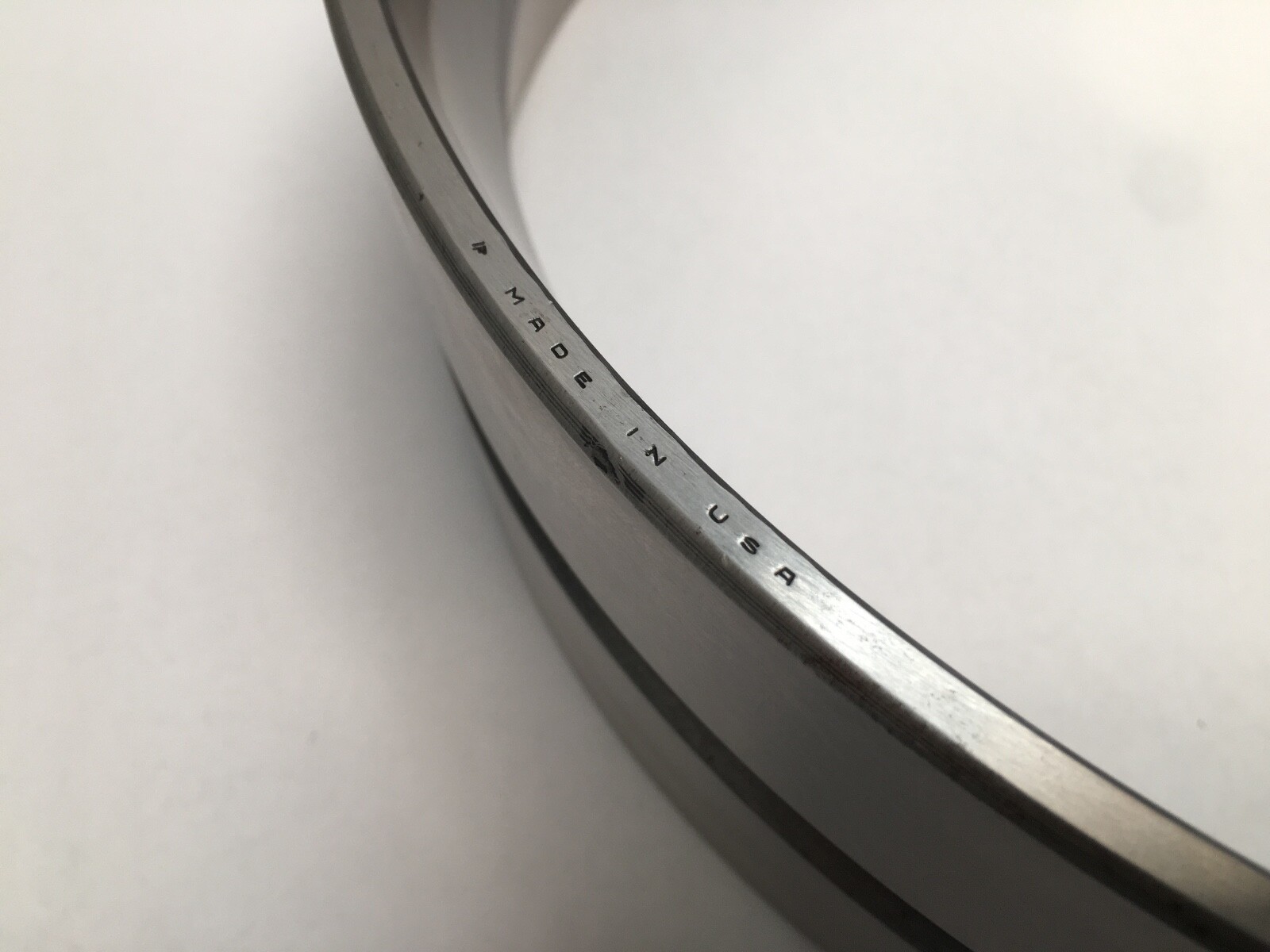

TimkenLM451310DDouble Tapered Roller Bearing Cup — 14 in Outside Diameter, 4-1/8 in Width, Two Raceways, Open, Case-Carburized Steel

Product Description

What this part is

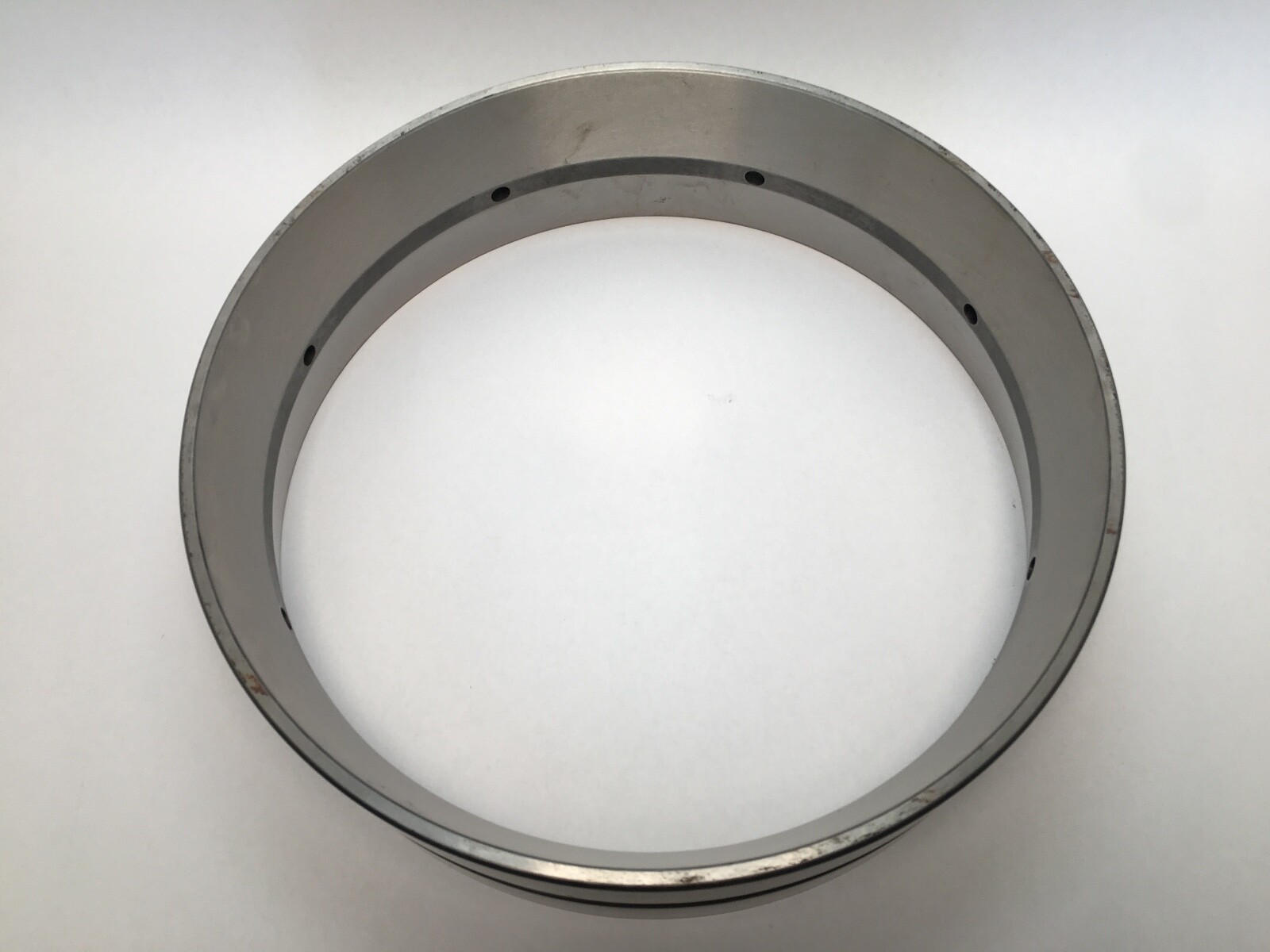

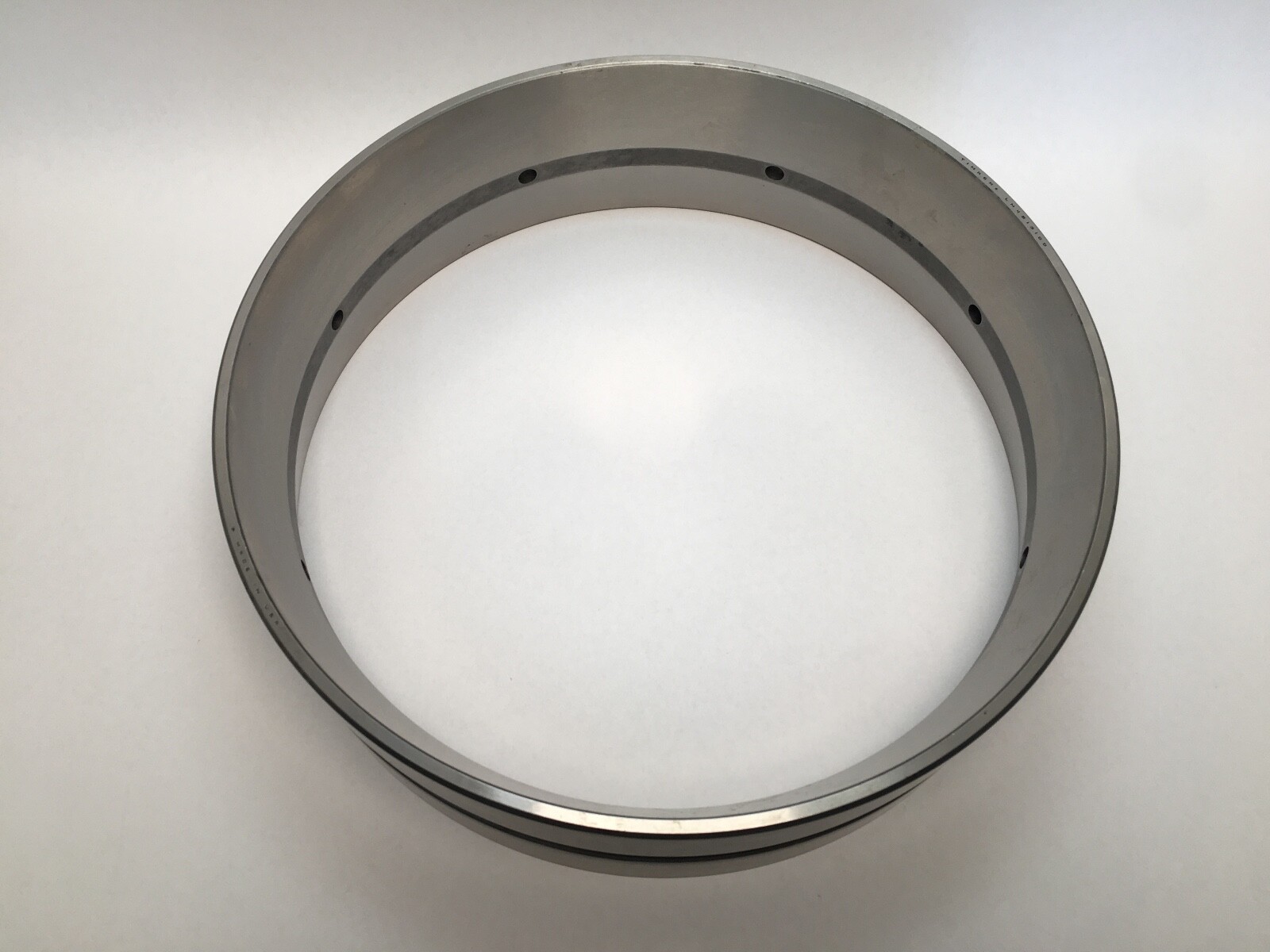

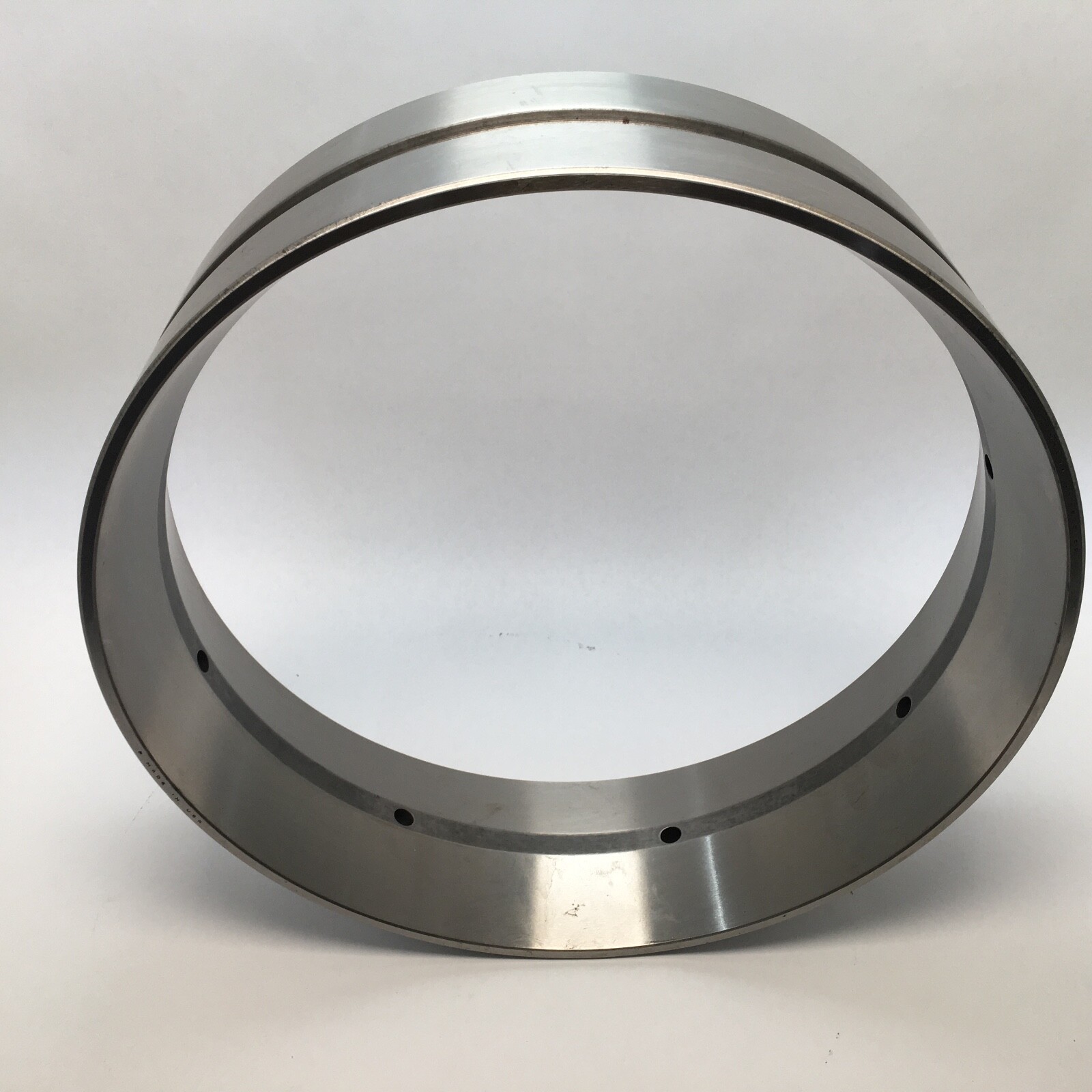

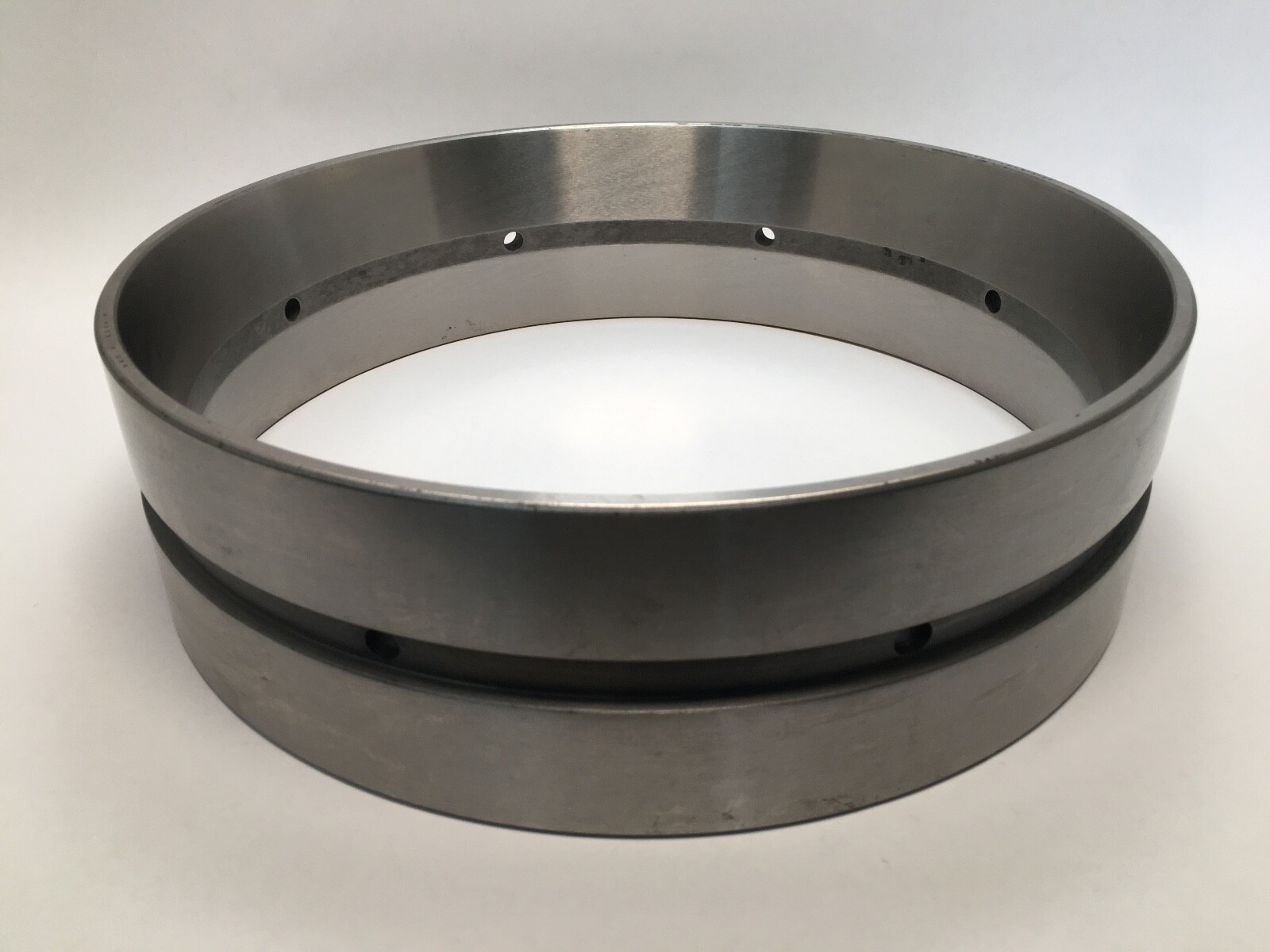

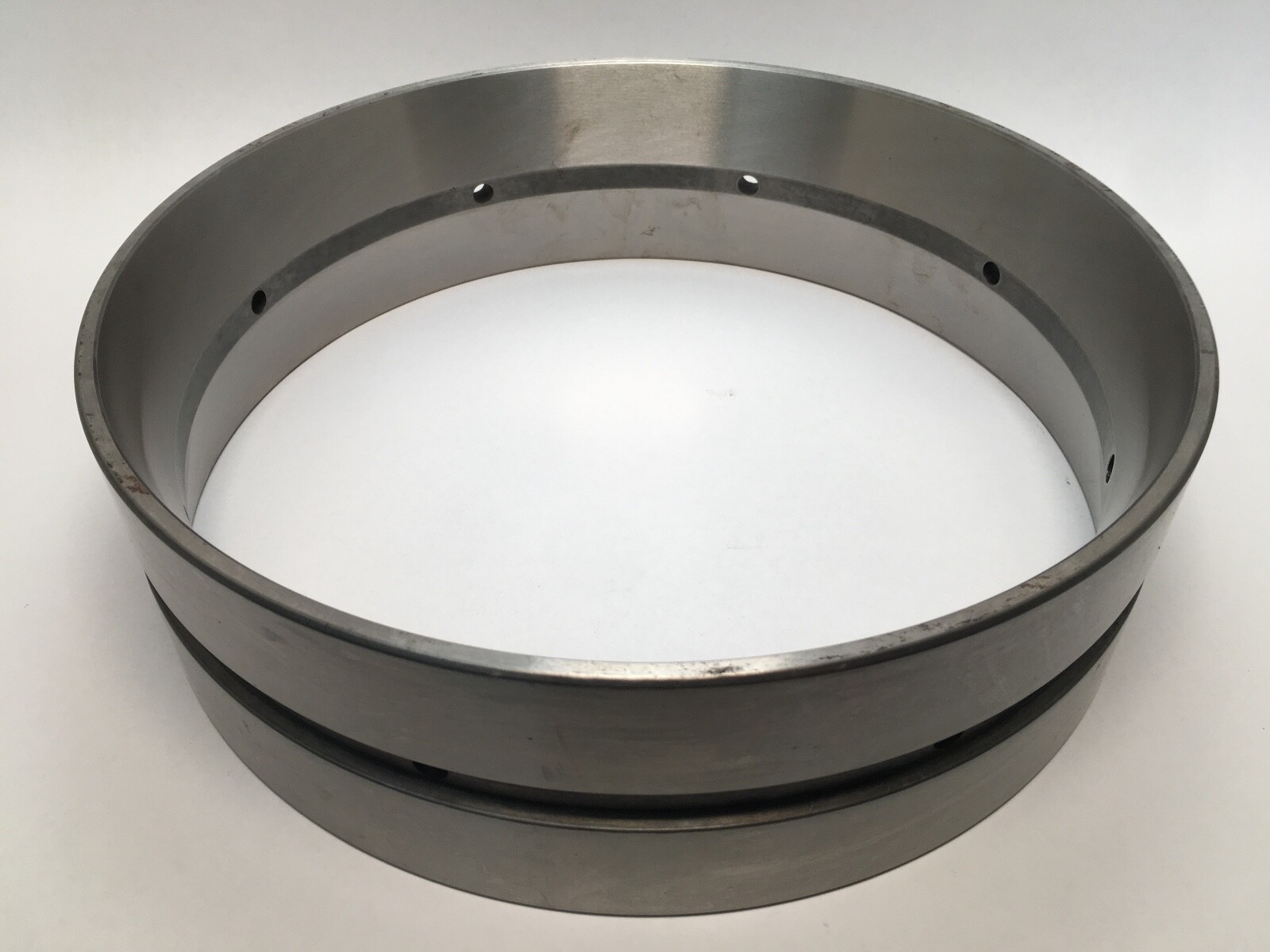

A Timken LM451310D double cup: the one-piece outer race of a two-row tapered roller bearing, with two ground tapered raceways machined into a single ring. Outside diameter is 14 in, width is 4-1/8 in (4.125 in) and the part weighs 48 lb. Material is case-carburized bearing steel. The bore-and-cup block is the imperial LM451300 series.

Decoding the designation

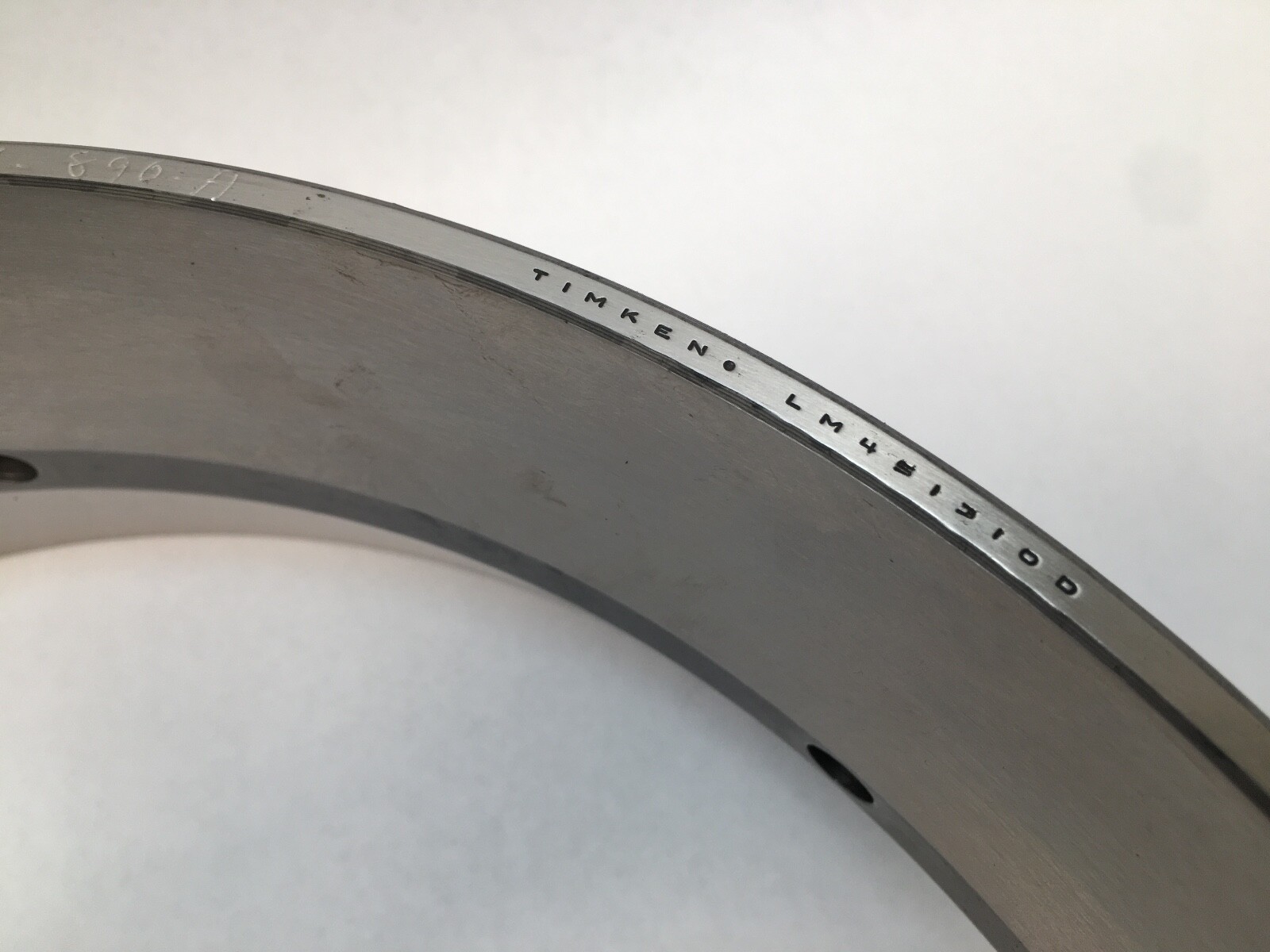

LM451310 is the cup number in the Timken LM451300 block, and the trailing D marks a double cup. A D suffix therefore means something different on each half of a tapered roller bearing: on a cup it is a double cup that takes two cones, while on a cone it is a one-piece double cone that takes two single cups.

What these specs mean in practice

Both raceways are ground in one ring, so their included angles and their axial spacing are fixed at manufacture. Row-to-row alignment is then a property of the part rather than of the housing, which is why a double cup is the usual outer race for a TDO arrangement locating a shaft in both directions from a single housing bore. It also removes one press fit from the build. At 14 in outside diameter and 48 lb the ring is stiff enough to hold both raceways round under heavy radial load, and the wide 4-1/8 in section spreads the housing contact pressure.

Bore form

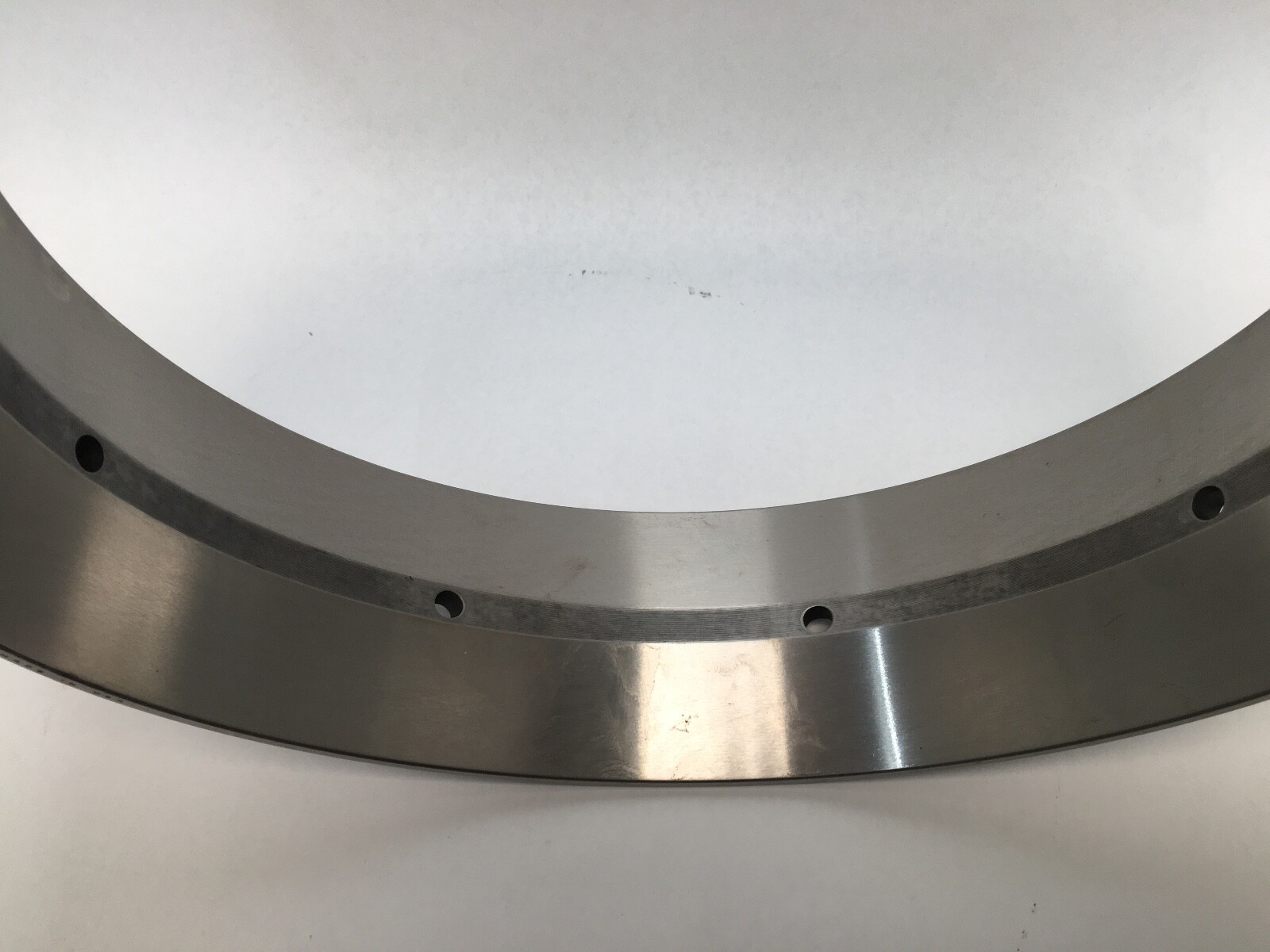

A cup has no bore and no seal. Its internal surfaces are the two ground tapered raceways and its external cylindrical surface is the housing fit. Rollers and cages are retained on the cones, not in the cup.

Quantity and configuration

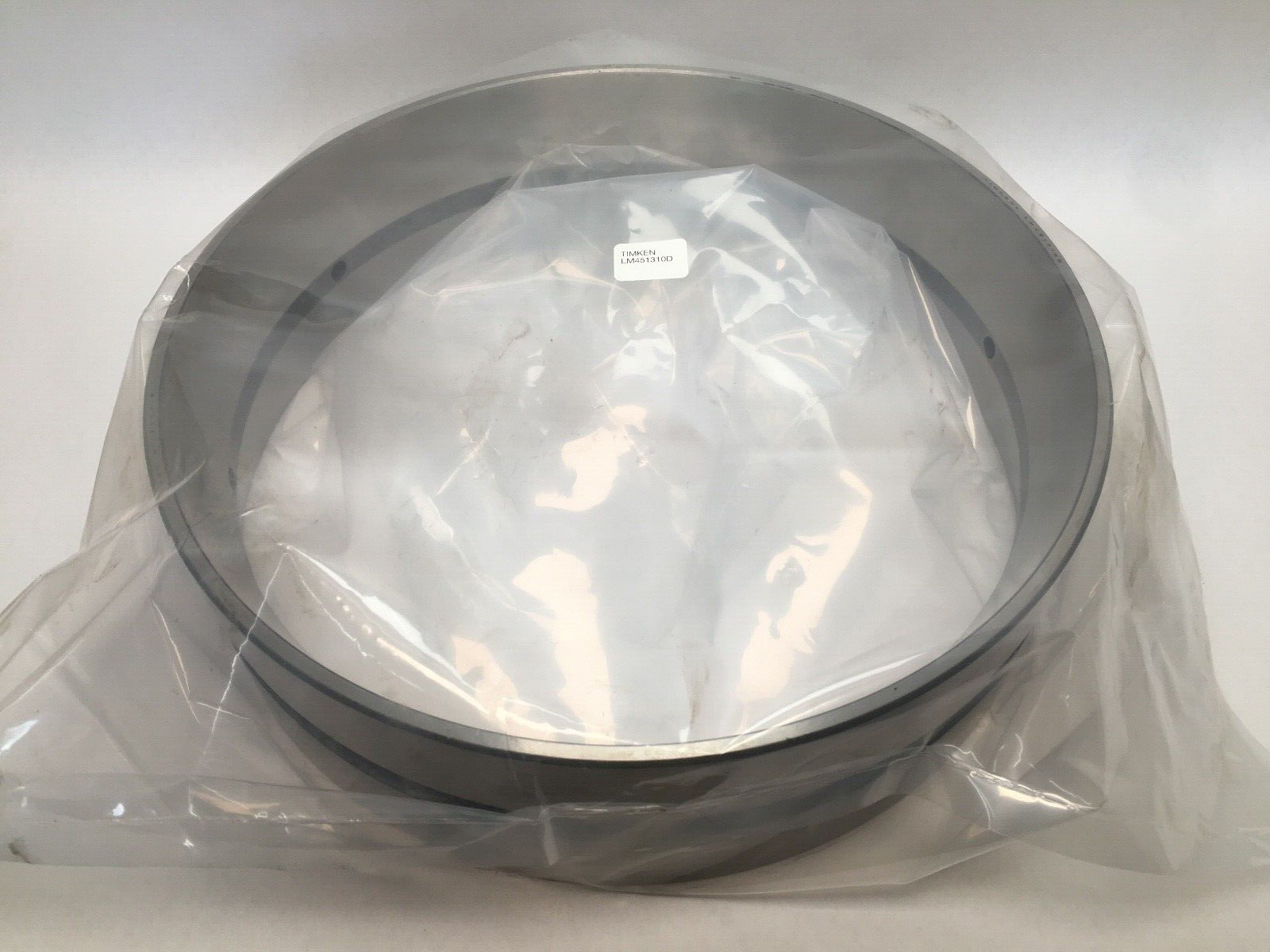

Double cup only, 2 rows, supplied open and without a snap ring. It runs against two cones, normally with a cone spacer in a TDO build. Sold as 1 Pc.

Operating range

Rated for continuous service between −54 °C and 120 °C, which is the standard range for case-carburized bearing steel without special heat stabilisation.

Fitting notes

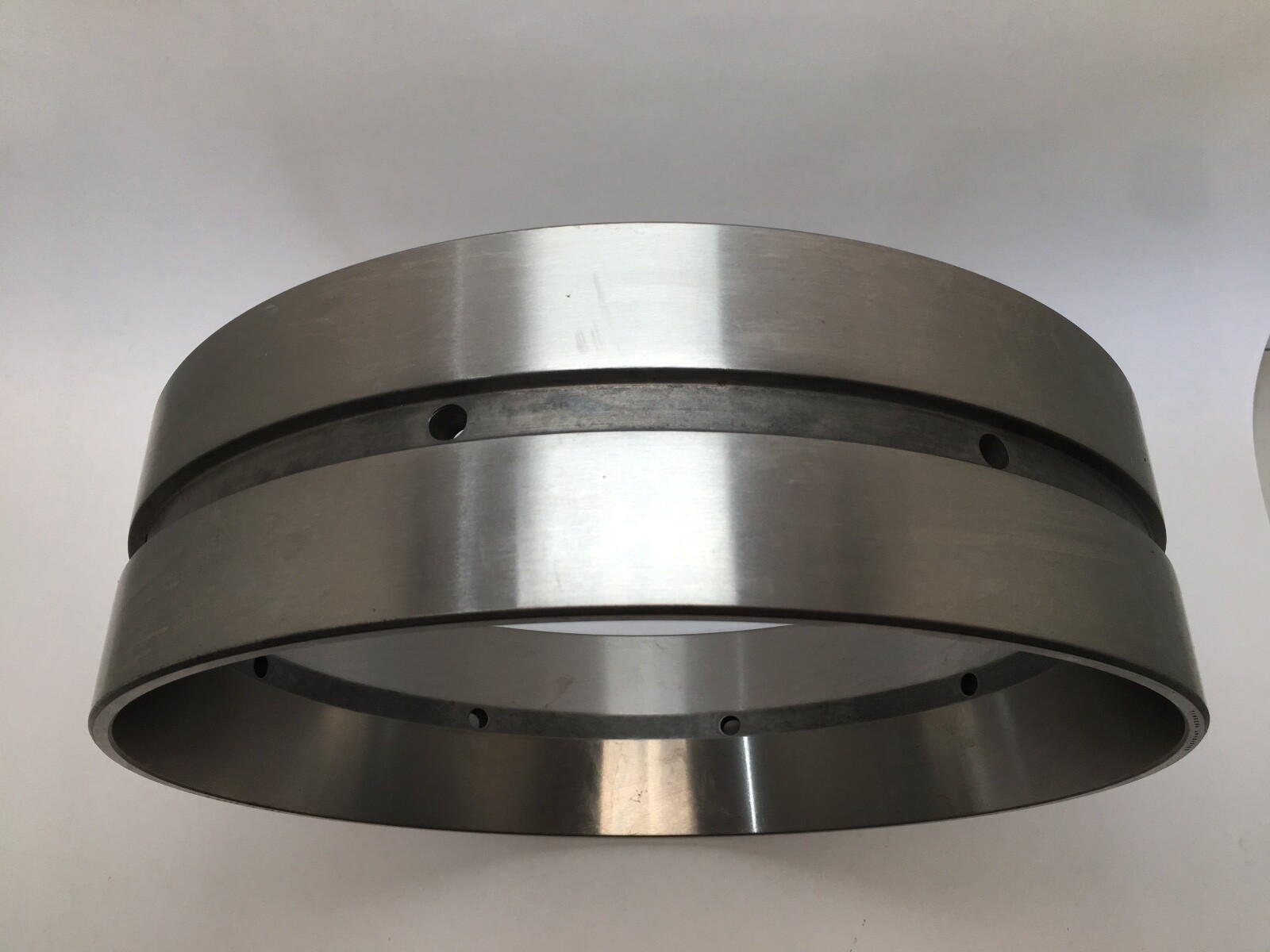

The cup presses into the housing bore as one unit and is located axially against a shoulder or a retaining cap. The two cones then enter from opposite ends and are drawn up on the shaft to set the specified endplay or preload. Support across the full 4-1/8 in of the outer surface keeps both raceways round; a relieved or interrupted housing bore concentrates load on one row.

Interchange guidance

NTN 4T-LM451310D and SKF LM 451310 D are the same double cup in other manufacturers’ numbering and are direct interchanges. A pair of single LM451310 cups is a related configuration rather than a substitution, because two separate rings take their spacing from the housing instead of from a common ring.
