Availability:
6 in stock
Matched cone and cup set, 1.2501 in assembled width, 129,000 N dynamic and 158,000 N static radial capacity, K factor 1.45, e factor 0.4.
List Price
$73.48
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 46175/46369 |
| Model | 46175 46369 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.7500 in |
| OD | 3.6875 in |
| Series | 46100 |
|---|---|
| Base Number | 46175 |
| Overall Width | 1.2501 in |
| Mpn Variants | 46175/46369; 46175 46369; 46175-46369; 46175; 46369 |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 129,000 N |
| Dynamic Load Rating | 129,000 N |
| Static Load Rating | 158,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.00 kg (2.30 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 46369 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 1.0313 in |
| Cup Backface To Clear Radius | 0.050 in |
| Cone Part Number | 46175 |
| Cone Width | 1.2500 in |
| Cone Backface To Clear Radius | 0.030 in |
| Cone Frontface Backing Diameter | 2.13 in |
| Cup Frontface Backing Diameter | 3.46 in |
| Cage Cone Frontface Clearance | 0.08 in |
| Cage Cone Backface Clearance | 0.06 in |
| Effective Center Location | -0.31 in |
| Cross Reference 1 | SKF 46175/46369 |
|---|---|
| Cross Reference 2 | FAG K-46175 / K-46369 |
| Cross Reference 3 | NSK 46175/46369 |
| Cross Reference 4 | NTN 4T-46175 / 4T-46369 |
| Cross Reference 5 | Koyo 46175/46369 |
| Cross Reference 6 | Fersa 46175/46369 |
| Cross Reference 7 | BCA/Bower 46175/46369 |
| Cross Reference 8 | PEER 46175/46369 |

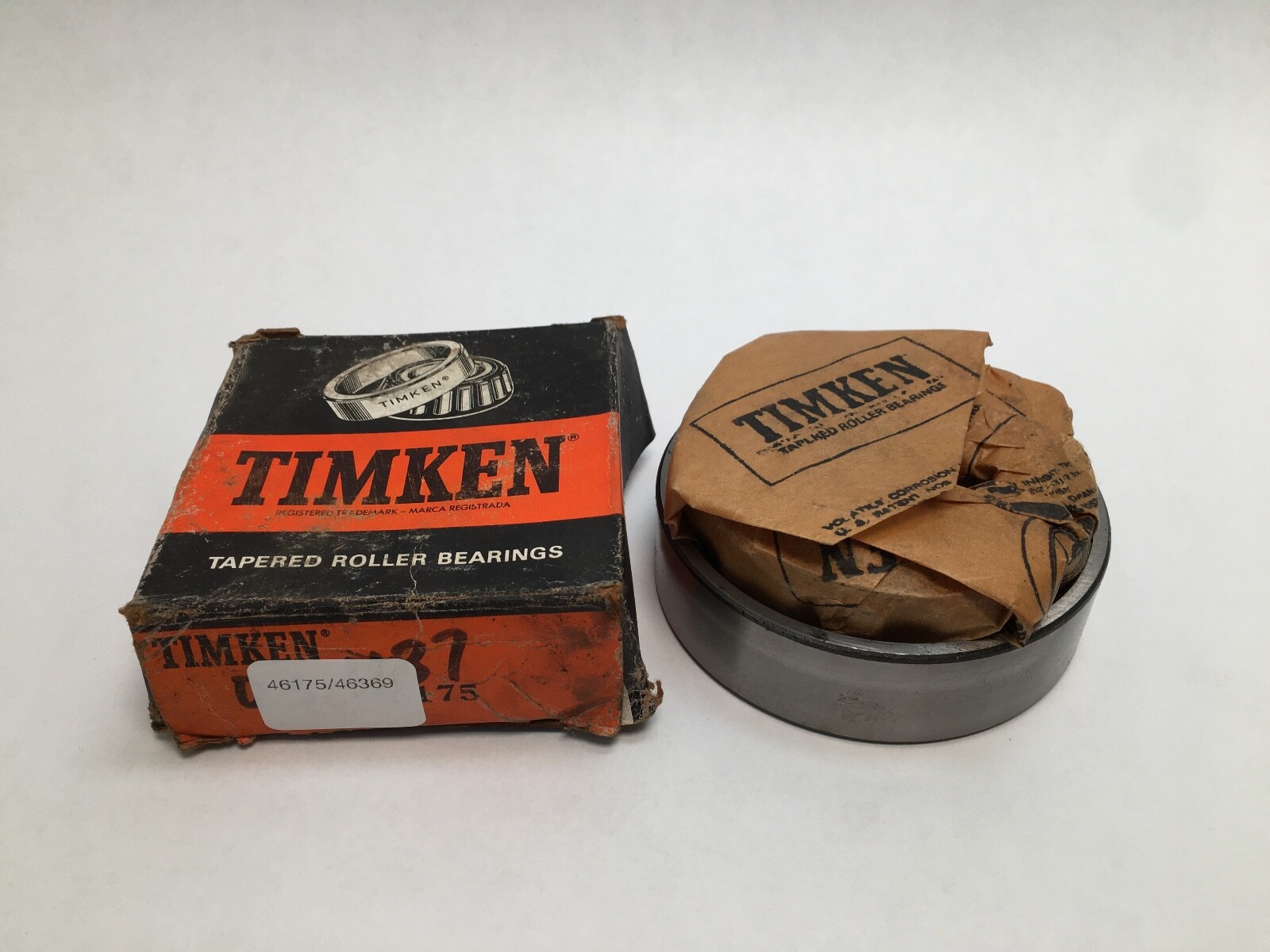

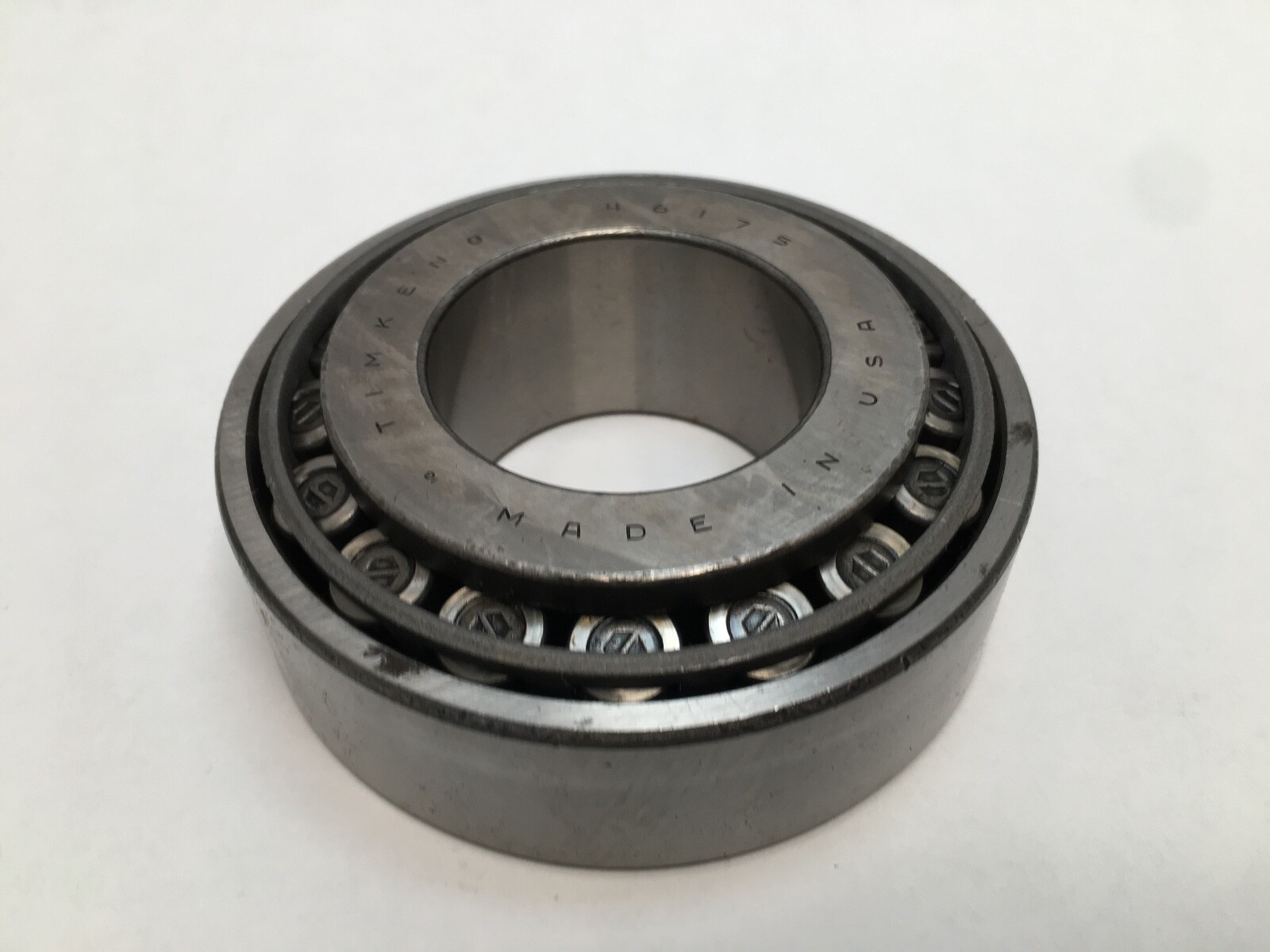

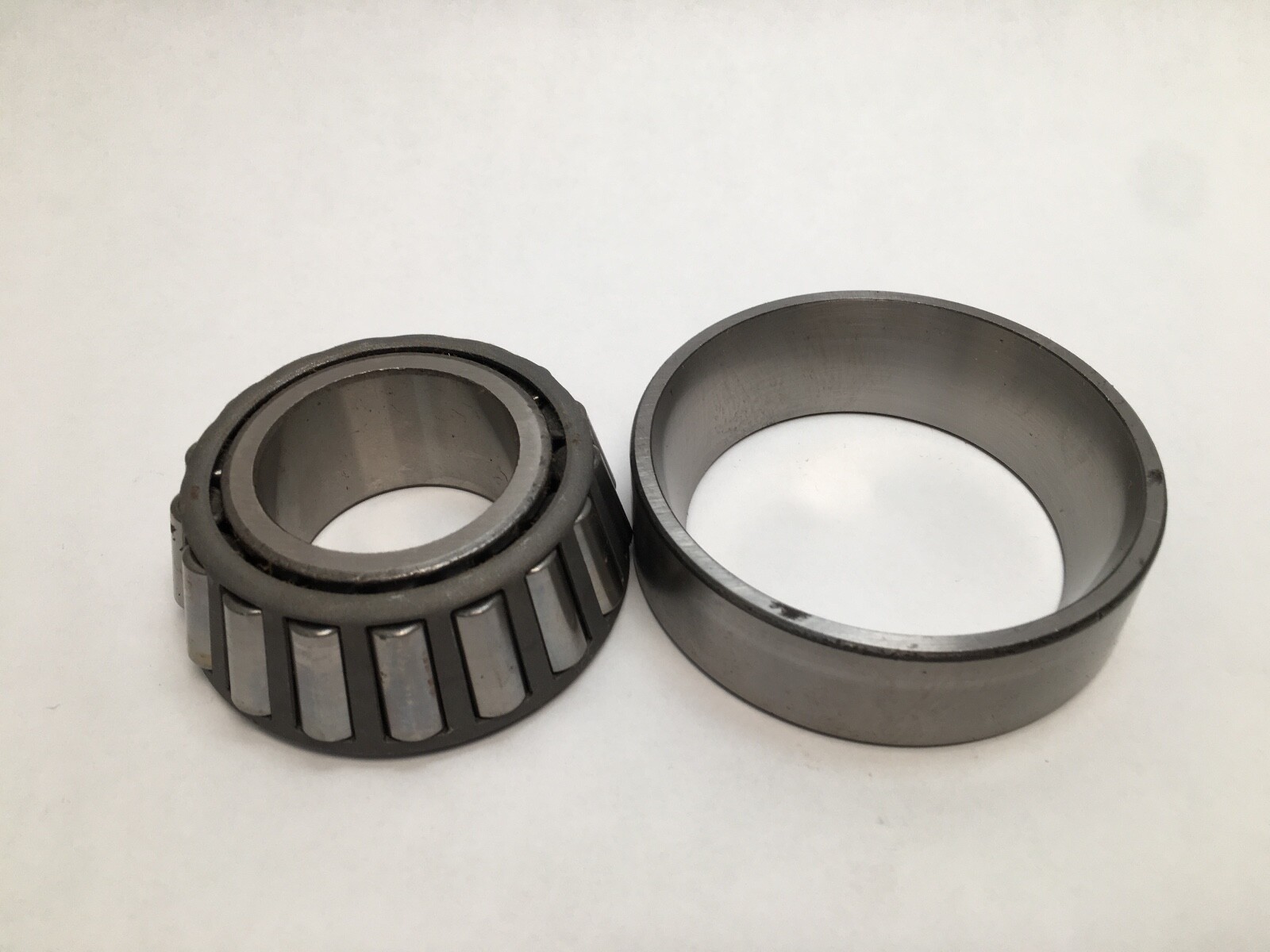

Timken 46175/46369 inch tapered roller bearing, supplied as a matched cone and cup. Cone Part Number: 46175. Cup Part Number: 46369. Base Number: 46175. Series: 46100. Design Units: Imperial. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Bearing Material: Case-Carburized Steel.

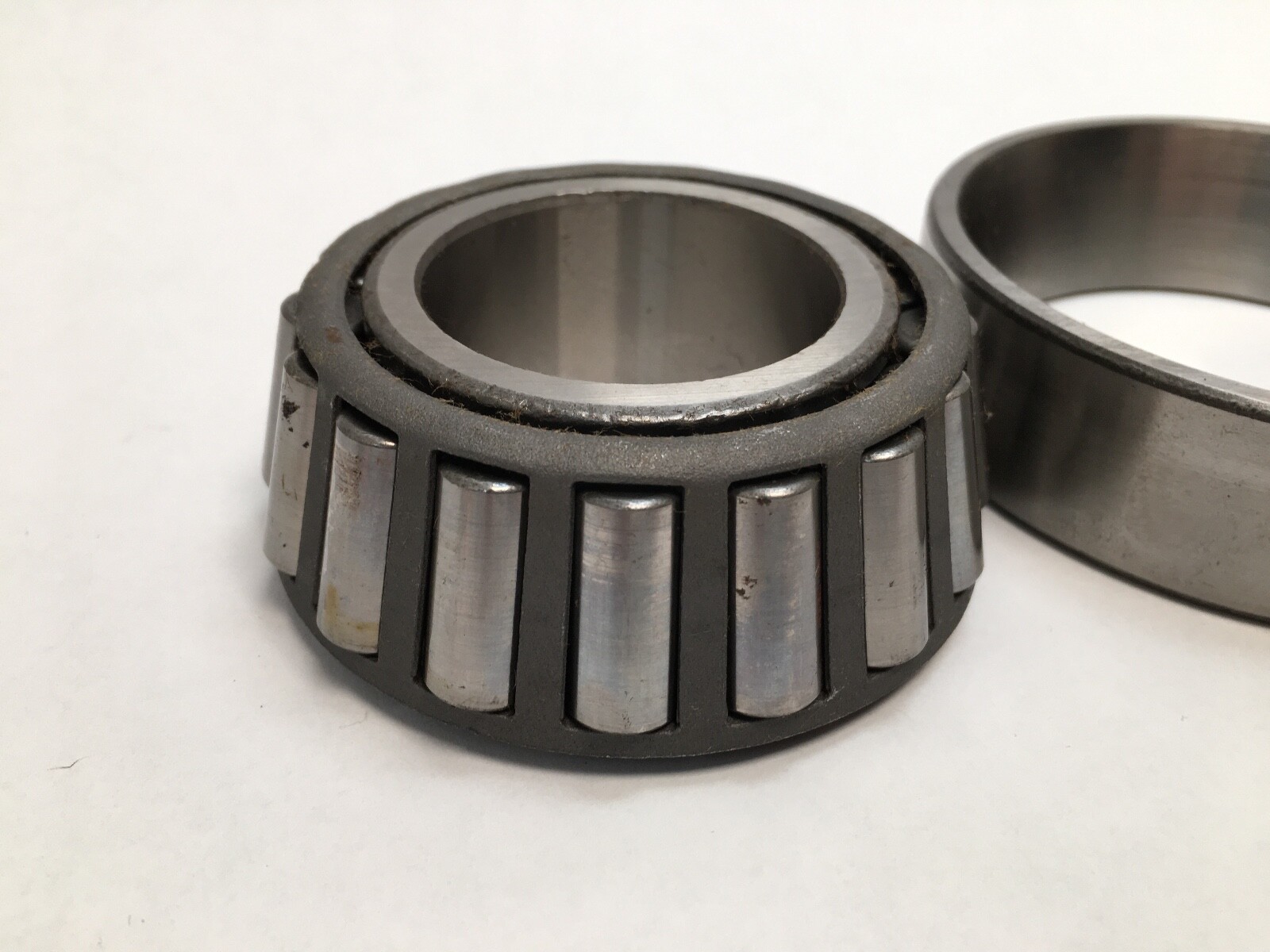

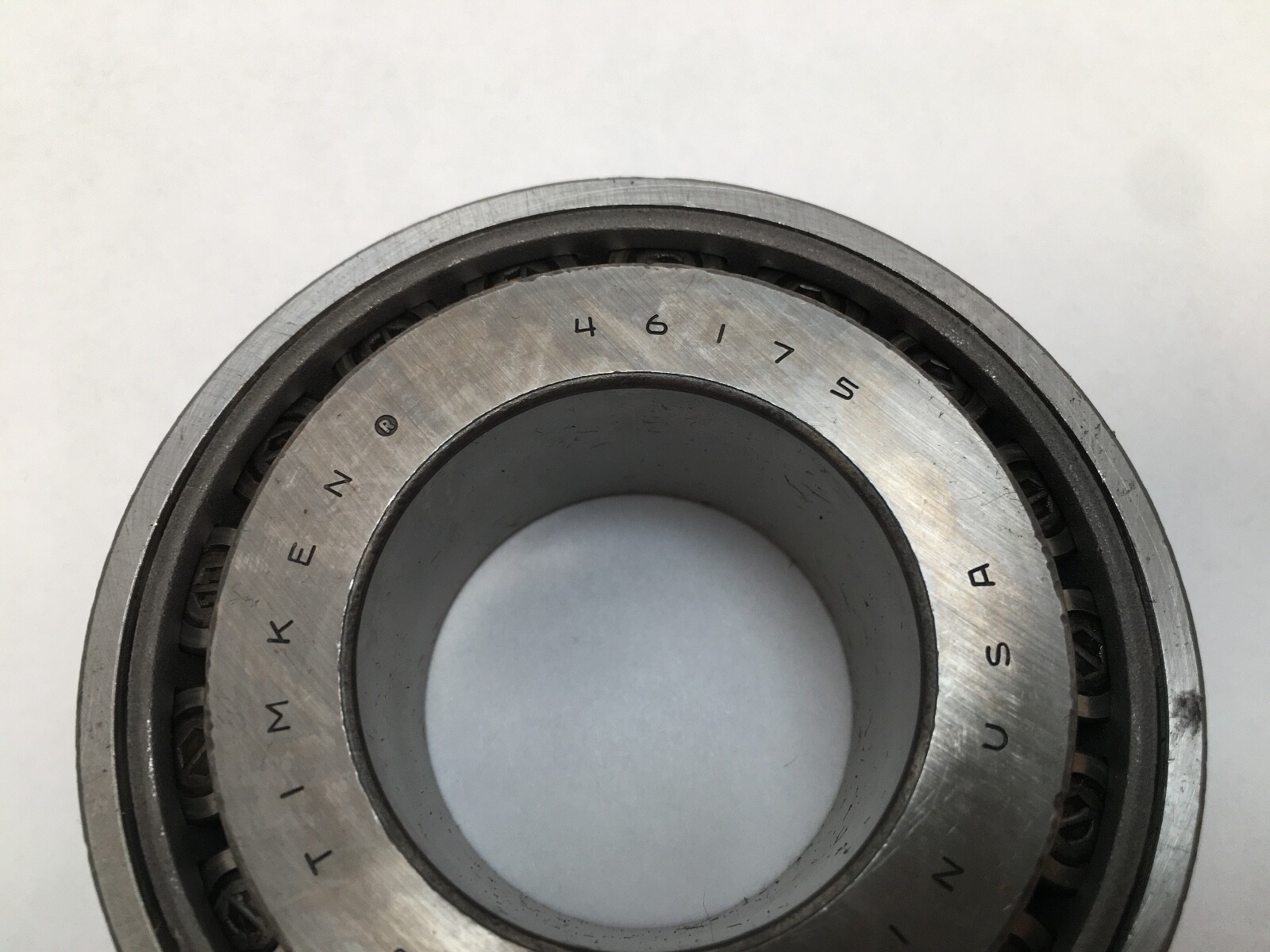

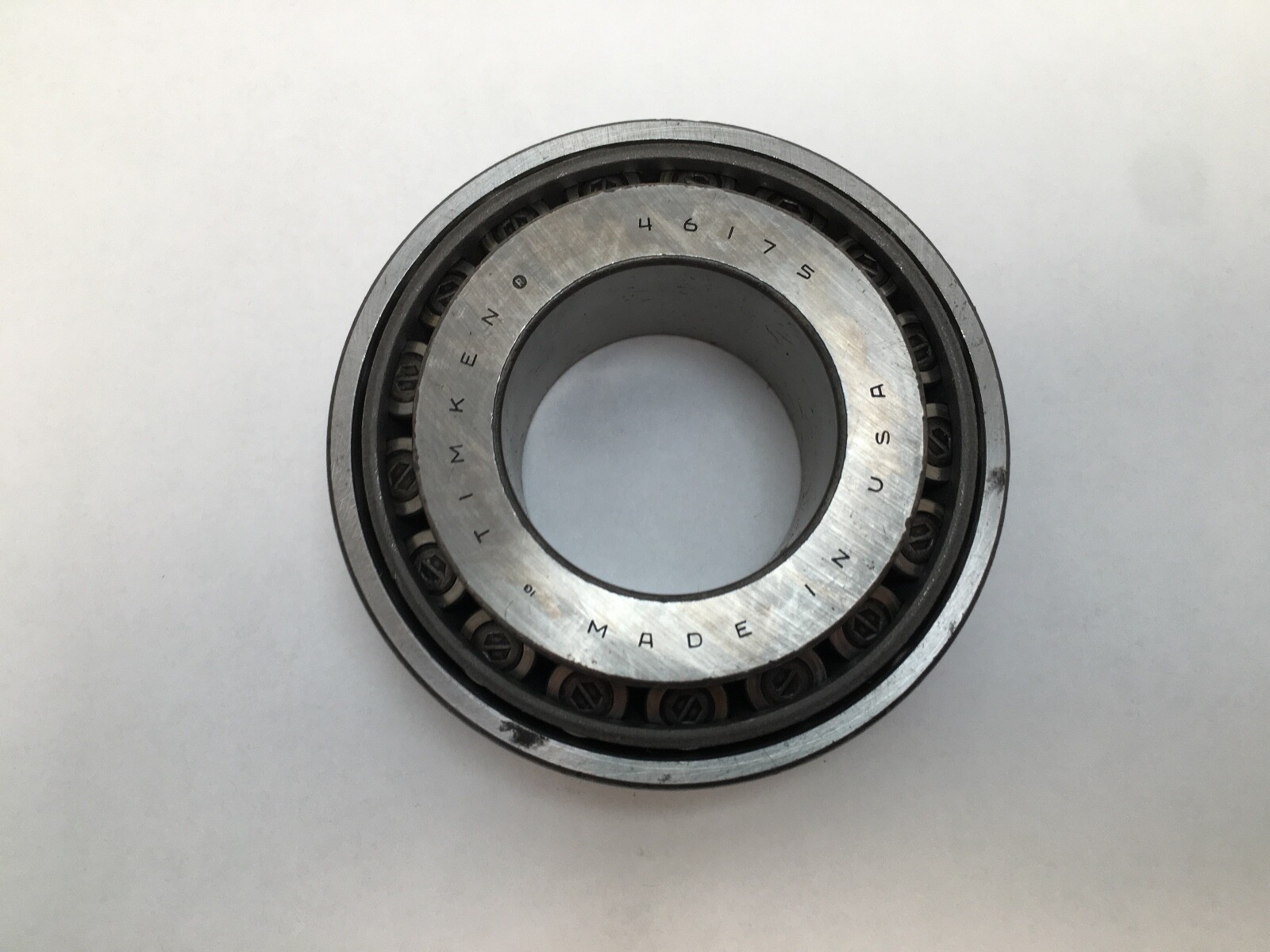

46175 — the cone, the inner ring with its roller and cage assembly, 1.7500 in bore.

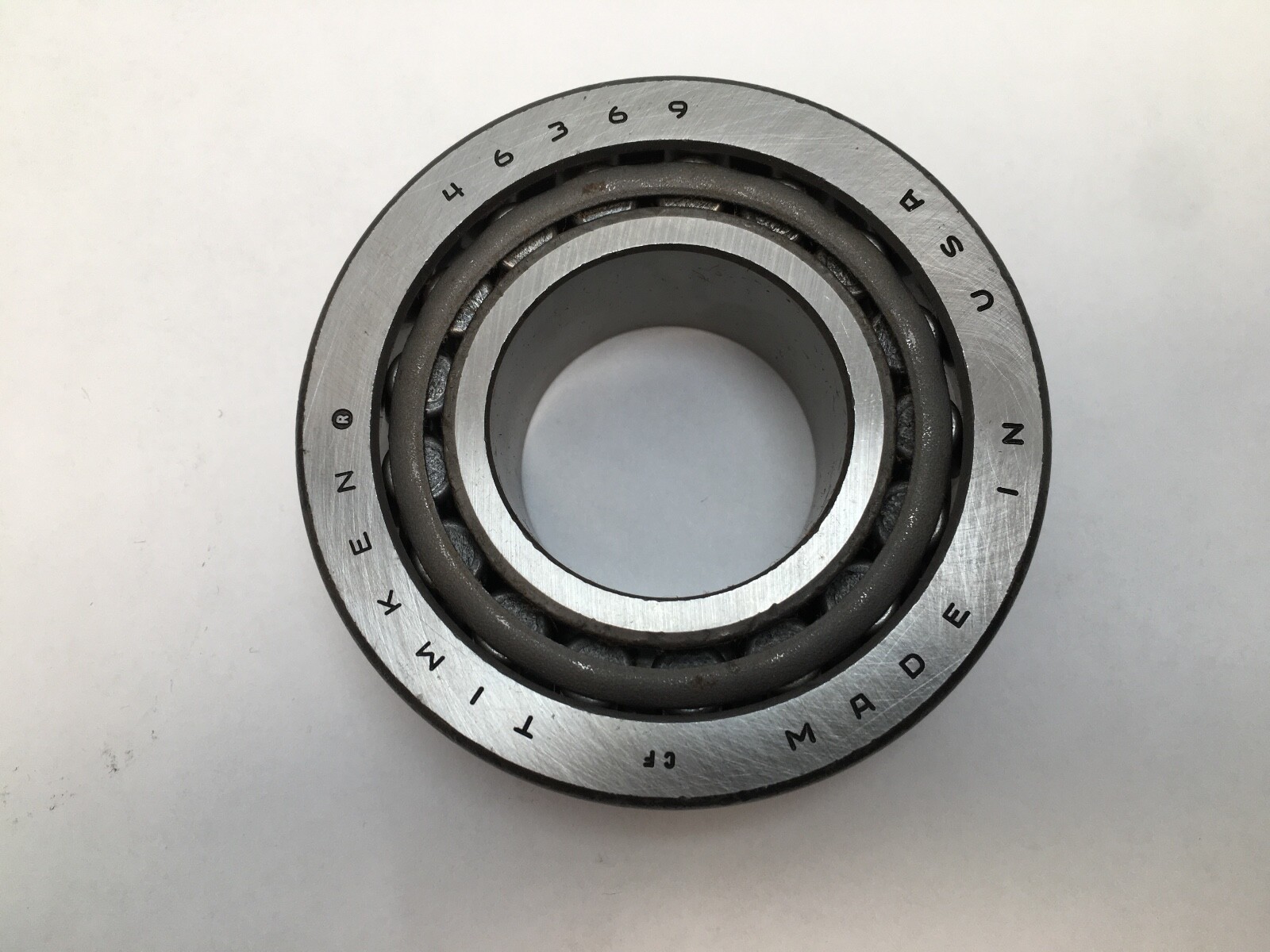

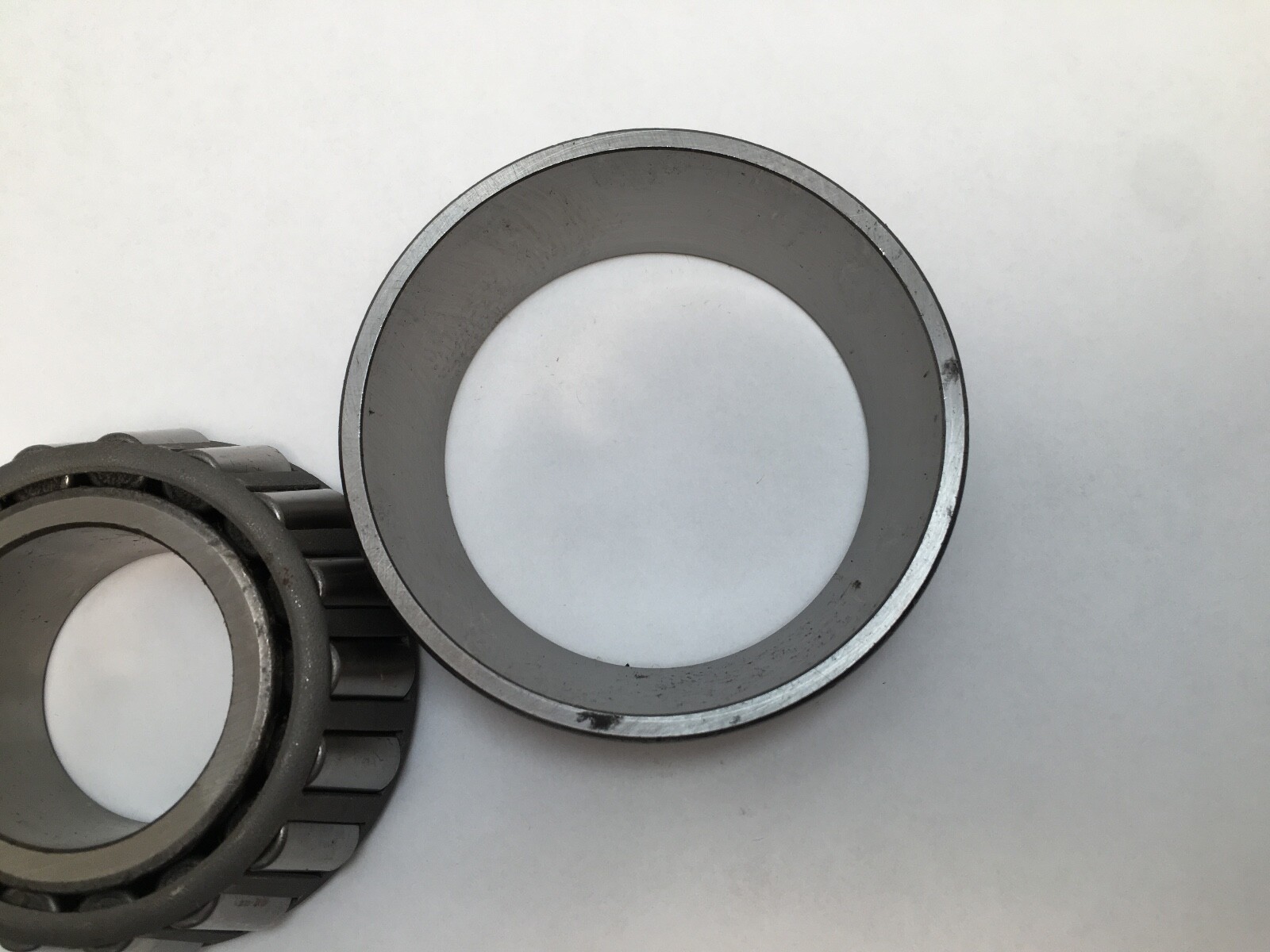

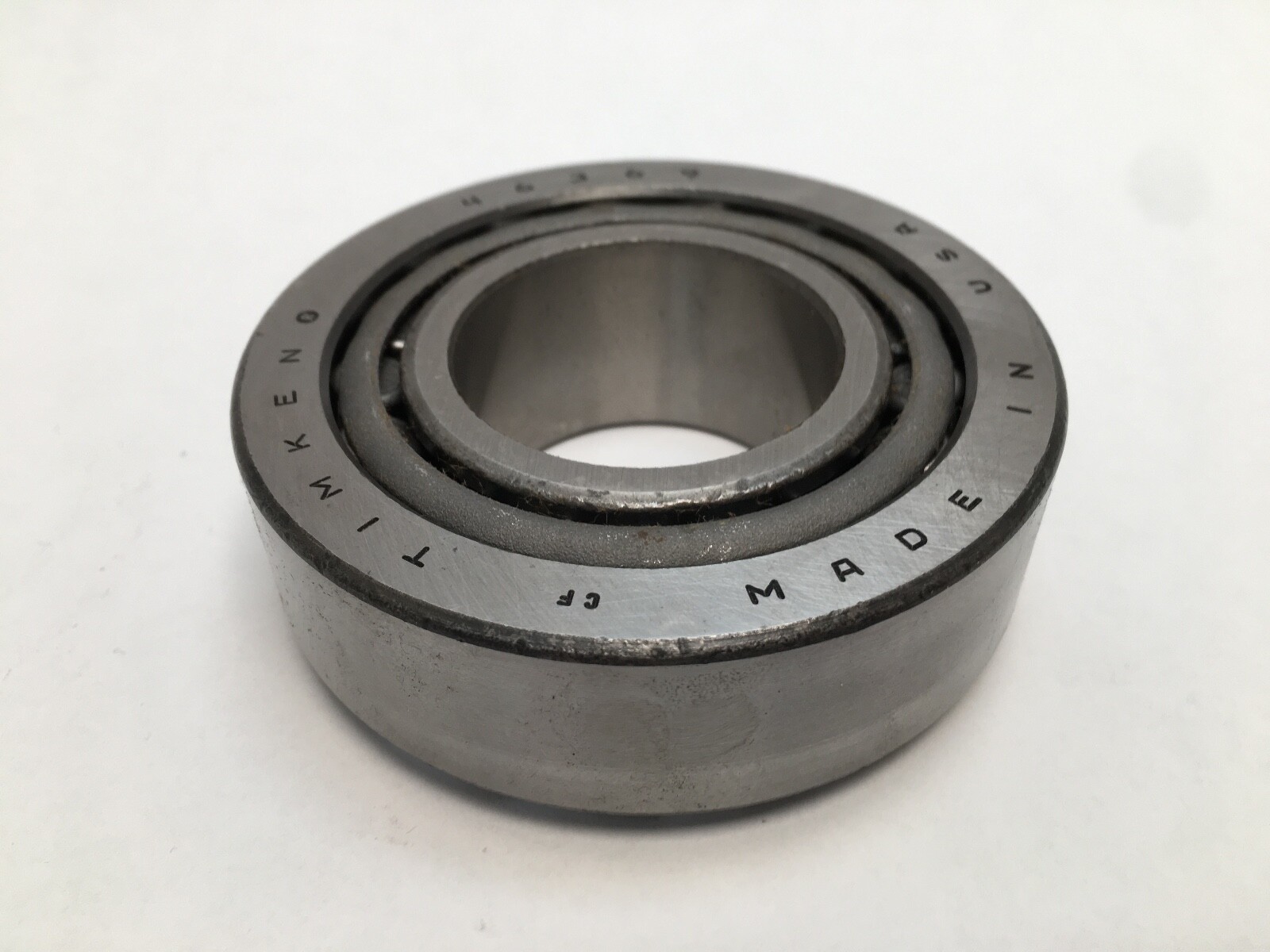

46369 — the cup, the outer race that carries the matching raceway, 3.6875 in outside diameter.
Precision Class: Not specified. The designation carries no precision suffix.
Bore Diameter: 1.7500 in (44.450 mm). Outside Diameter: 3.6875 in (93.663 mm). Overall Width: 1.2501 in (31.753 mm) assembled. Item Weight: 1.00 kg (2.30 lb).
Dynamic Load Rating: 129,000 N at one million revolutions. Static Load Rating: 158,000 N. Dynamic Radial Rating at 90 million revolutions: 33,500 N. Dynamic Axial Rating at 90 million revolutions: 23,100 N.
K Factor: 1.45. e Factor: 0.4. Y Factor: 1.49. A K factor of 1.45 marks a steeper roller taper than the general-purpose range, so a larger share of applied load is carried as thrust reaction.
The 1.2500 in inner ring width against a 3.6875 in outside diameter gives a narrow, heavily loaded envelope: 129,000 N dynamic capacity on a 1.7500 in shaft.
G1 Factor: 44.4. G2 Factor: 13.6. Geometry Factor (Cg): 0.092.
Cone Width: 1.2500 in. Cup Width: 1.0313 in. Effective Center Location: -0.31 in, inside the cone backface.
Shaft Backing Shoulder Diameter, frontface: 2.13 in. Shaft Backing Shoulder Diameter, backface: 2.17 in. Housing Backing Shoulder Diameter, frontface: 3.46 in. Housing Backing Shoulder Diameter, backface: 3.19 in.
Maximum Shaft Fillet Radius cleared by the bearing corner: 0.030 in. Maximum Housing Fillet Radius cleared by the bearing corner: 0.050 in. Cage Location relative to backface: 0.06 in. Cage Location relative to frontface: 0.08 in.
Unit Quantity: 2 Pc — one 46175 cone and one 46369 cup, the complete single-row tapered set. Mounted in opposing pairs on a shaft for two-point location.
46175 and 46369 are industry-standard inch taper numbers, so the same designation carries across makers. SKF 46175/46369. FAG K-46175/K-46369. NSK 46175/46369. NTN 4T-46175/4T-46369. Koyo 46175/46369. Fersa 46175/46369. BCA/Bower 46175/46369. PEER 46175/46369.
Searchable designation variants: 46175/46369, 46175 46369, 46175-46369, 46175, 46369.
