Availability:
Out of stock
Tapered roller bearing single cone, 2.3750 in bore, 1.183 in cone width, stamped steel cage, case-carburized steel, 3900 series Type TS geometry.
List Price
$468.12
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Taper Roller Bearing Single Cone 2-7/16" ID Class 3 Precision$120.81
Tapered Roller Bearing Cone and Cup Assembly, 1-1/16 in ID x 2-1/4 in OD x 0.6875 in Wide, Single-Row Imperial TS$29.71
Single-Row Imperial Tapered Roller Bearing Cone – 3 in Bore, 1.172 in Width, K Factor 1.31$40.79
Tapered Roller Bearing Cone – 3.7500 in Bore, 1.4219 in Width, 223,000 N Dynamic Rating$53.09| MFR / Brand | Timken |
|---|---|
| MPN | 3980W |
| Model | 3980 W |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.3750 in |
| Series | 3900 |
|---|---|
| Base Number | 3980 |
| Industry Terms | Taper roller cone; inner cone assembly; TRB inner race; tapered bearing inner ring; single cone |
| Common Misspellings | Timkin 3980; Timken 3980W cup; 3980 W bearing race; taper roler cone |
| Application Types | Gearboxes; axle and wheel ends; pump and fan shafts; conveyor head shafts; industrial drives |
| Bore Shaft Size | 2.3750 in (60.325 mm), straight bore |
| Mpn Variants | 3980W; 3980 W; 3980-W; 3980 |
| Compatible With Replaces | Mates with Timken 3920 cup to form the 3980/3920 TS assembly |
| Precision Class | Standard (Timken inch tolerance) |
| Additional Attributes | Maximum shaft fillet radius 0.140 in. Mating cup 3920 (4.4375 in OD). Complete assembly designation 3980/3920, assembly width T 1.1875 in. Data source: Timken 3980 single-cone catalogue data via Applied Industrial and MRO Supply. |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Design Units | Imperial |
| Bearing Class | Standard Timken inch precision (no Class 3 suffix marked) |
| Bearing Material | Case-carburized alloy steel |
| Part Number | 3980W |
| Cone Part Number | 3980 |
| Cage Type | Stamped Steel |
| Cross Reference 1 | 3920 (mating cup, sold separately) |
|---|---|
| Cross Reference 2 | 3980/3920 (complete tapered single assembly) |
| Cross Reference 3 | 3982 (related size, 2.5000 in bore, same 3920 cup) |
| Cross Reference 4 | 3984 (related size, 2.6250 in bore, same 3920 cup) |

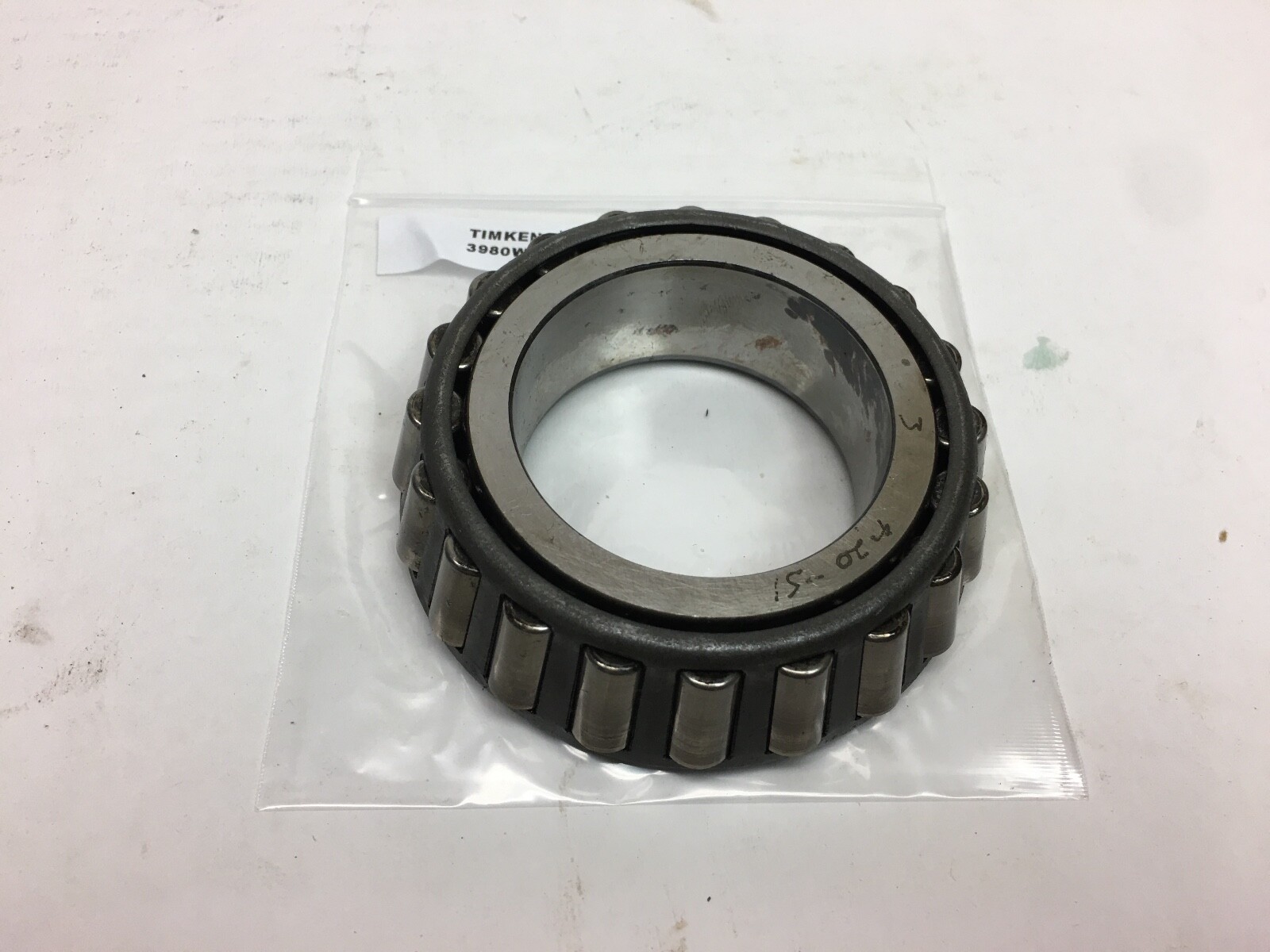

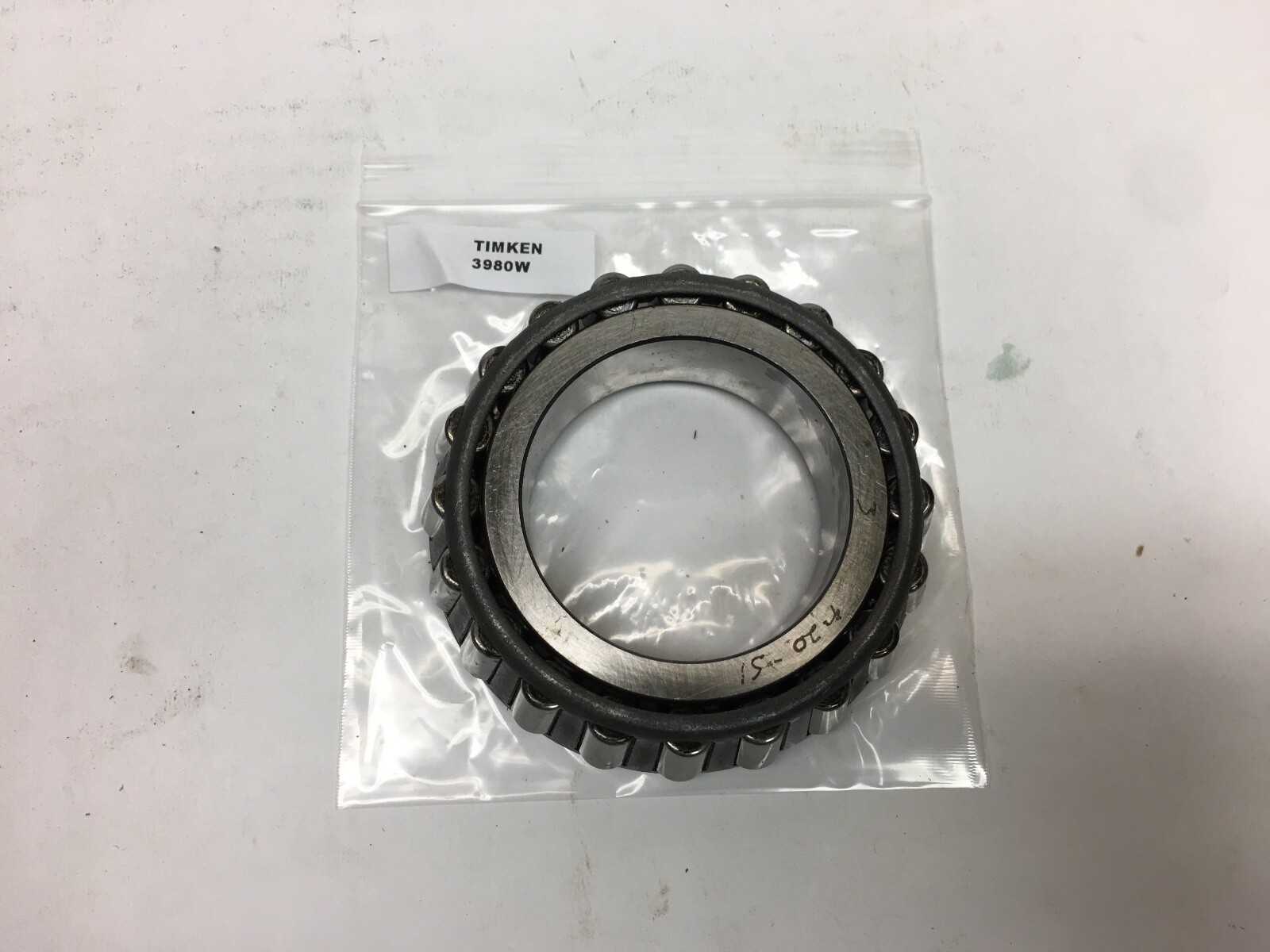

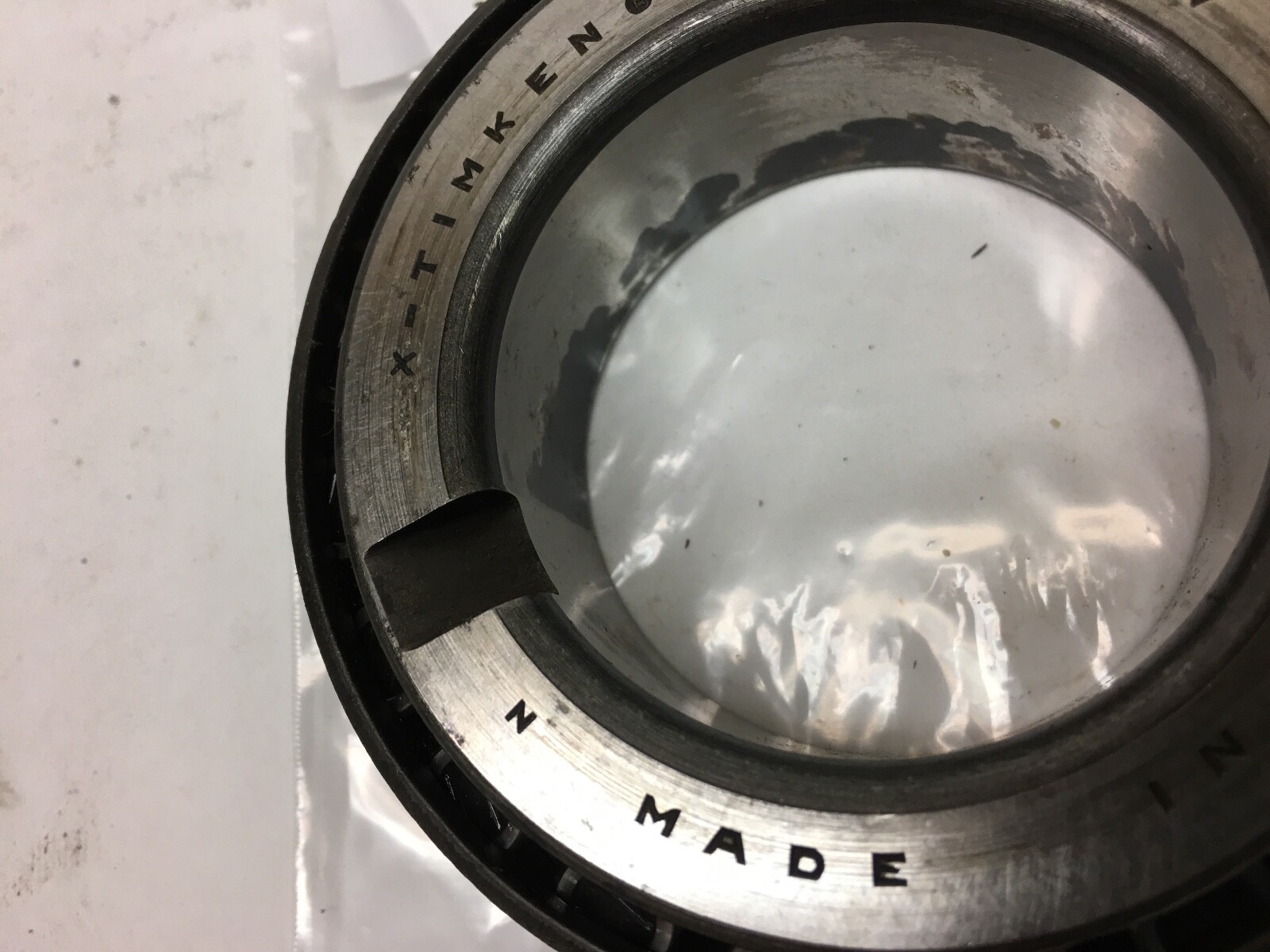

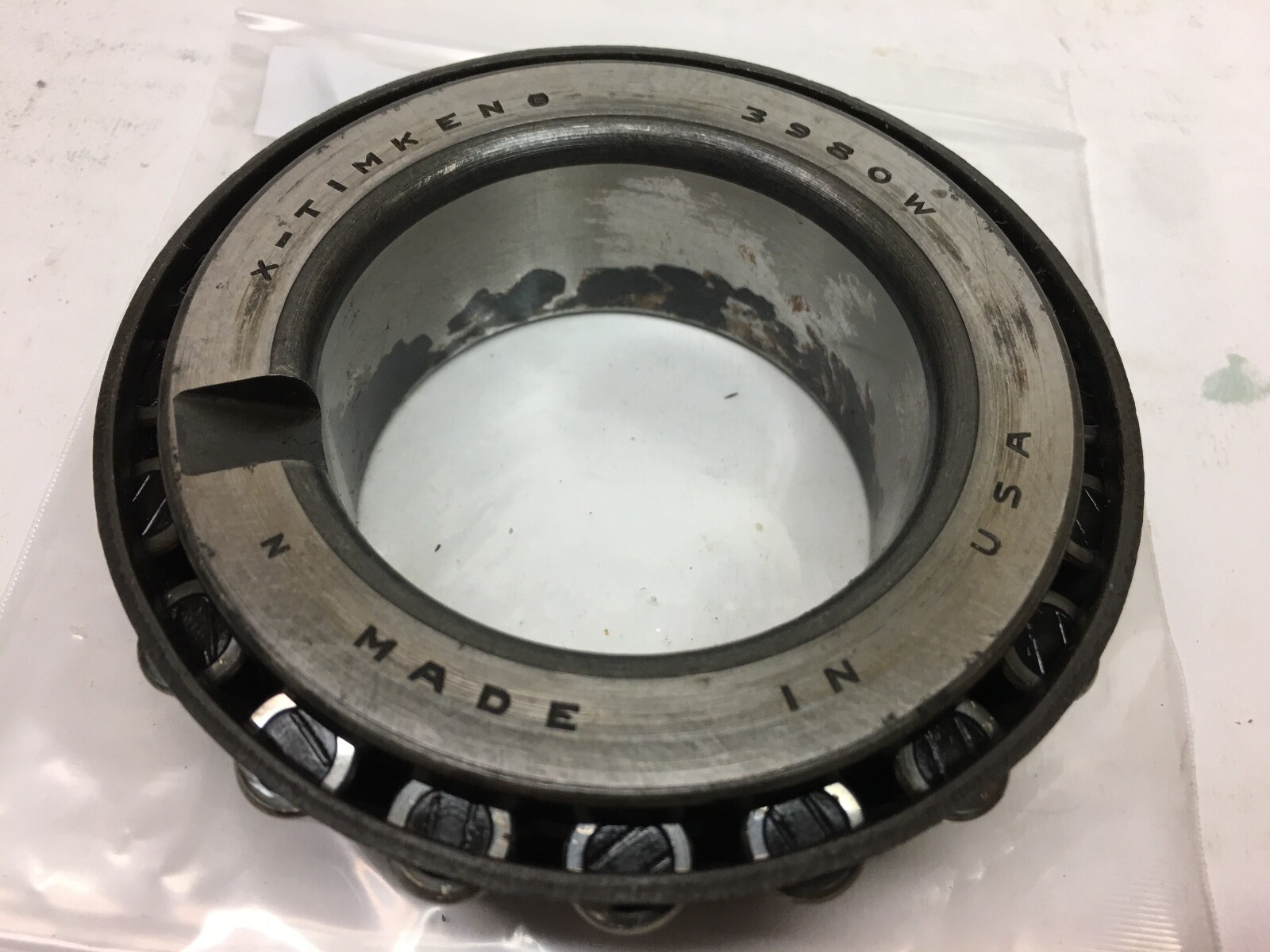

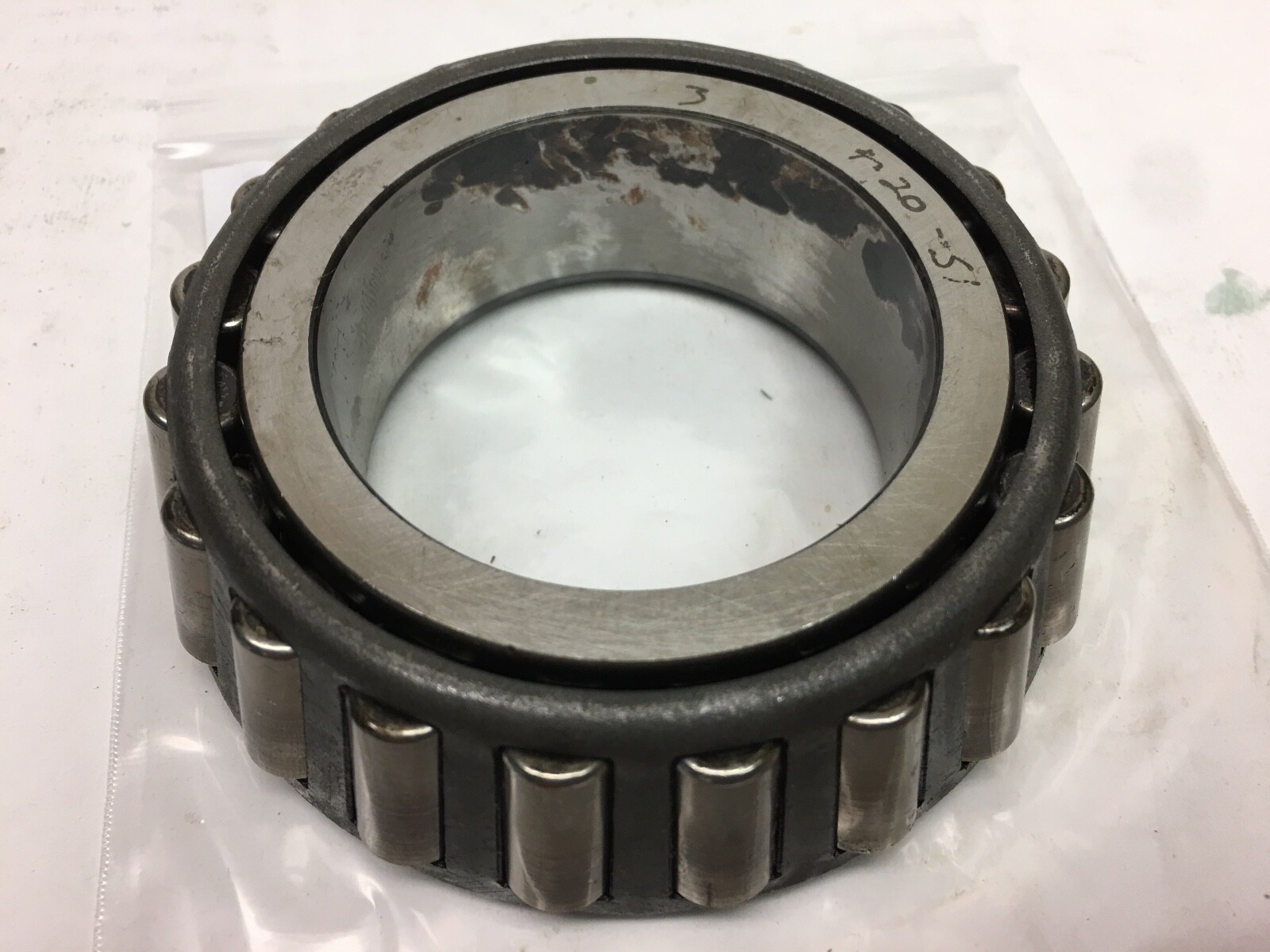

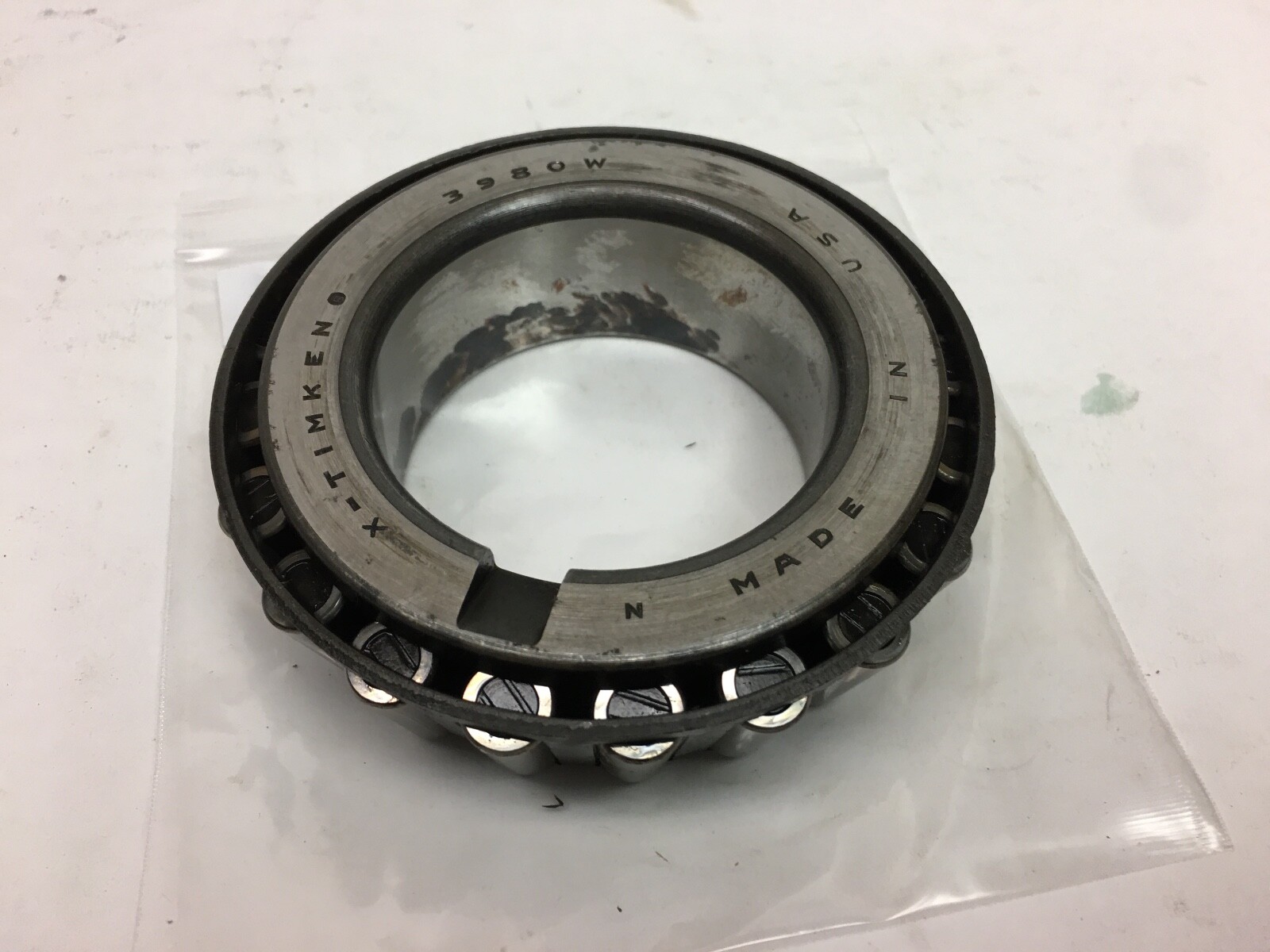

Timken 3980W tapered roller bearing single cone — the inner ring with its tapered roller and cage assembly. 2.3750 in bore, 1.183 in cone width, 3900 series Type TS geometry. Cone only. The matching cup is the Timken 3920.
3980 is the Timken cone number in the 3900 imperial series. Paired with its 3920 cup it forms the complete single-row assembly designated 3980/3920. No precision suffix is marked, so the cone is standard Timken inch tolerance; a Class 3 cone would carry a trailing –3, *3 or #3.
A tapered roller cone carries radial load and thrust in one direction through the tapered raceway, and the roller path is matched to the cup raceway angle of its published pairing. Cone and cup are supplied and replaced as separable components, which allows the same 3920 cup to serve several bore sizes in the series. The stamped steel cage and case-carburized rings give a tough core with a hard raceway surface, suited to shock loading in gearboxes, axles and wheel ends.
One cone. Straight bore. The 3900 series cone runs against a single cup in a TS arrangement, or against a double cup in a two-row mounting.
The cone bore is normally an interference fit on the shaft, seated square against the shaft shoulder. Maximum shaft fillet radius at the backing shoulder is 0.140 in, so a larger fillet is relieved or undercut to let the cone face bear fully. Bearing setting is established after mounting by axial adjustment of the cup, to end play or preload per the application.
Direct interchanges are the 3980 cone from other tapered roller makers to the same ISO/ABMA inch designation. The 3982 shares the same 3920 cup with a 2.5000 in bore, and the 3984 with a 2.6250 in bore — both are related sizes rather than substitutions. Operating temperature range is –65 to 250 °F.
