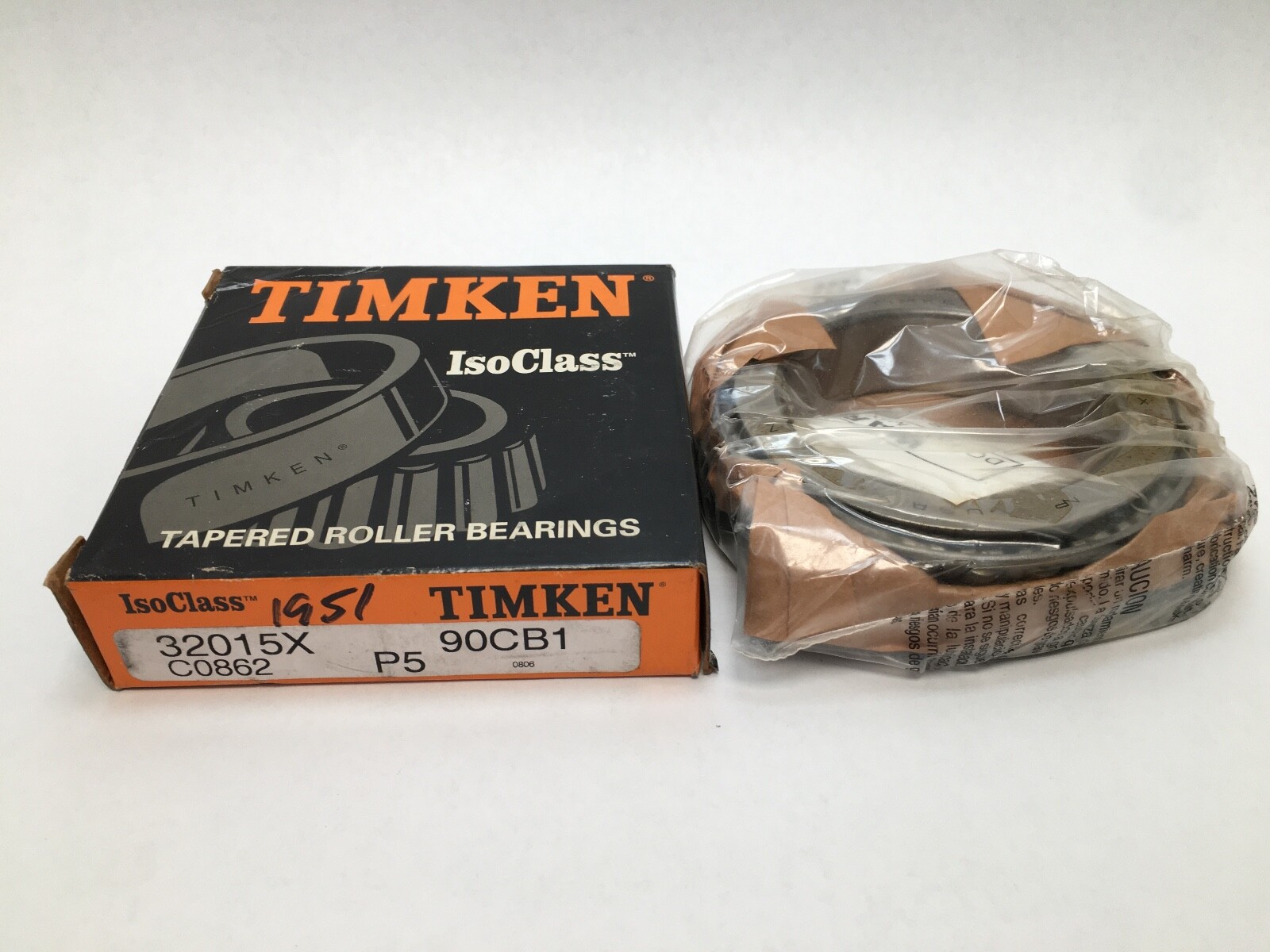

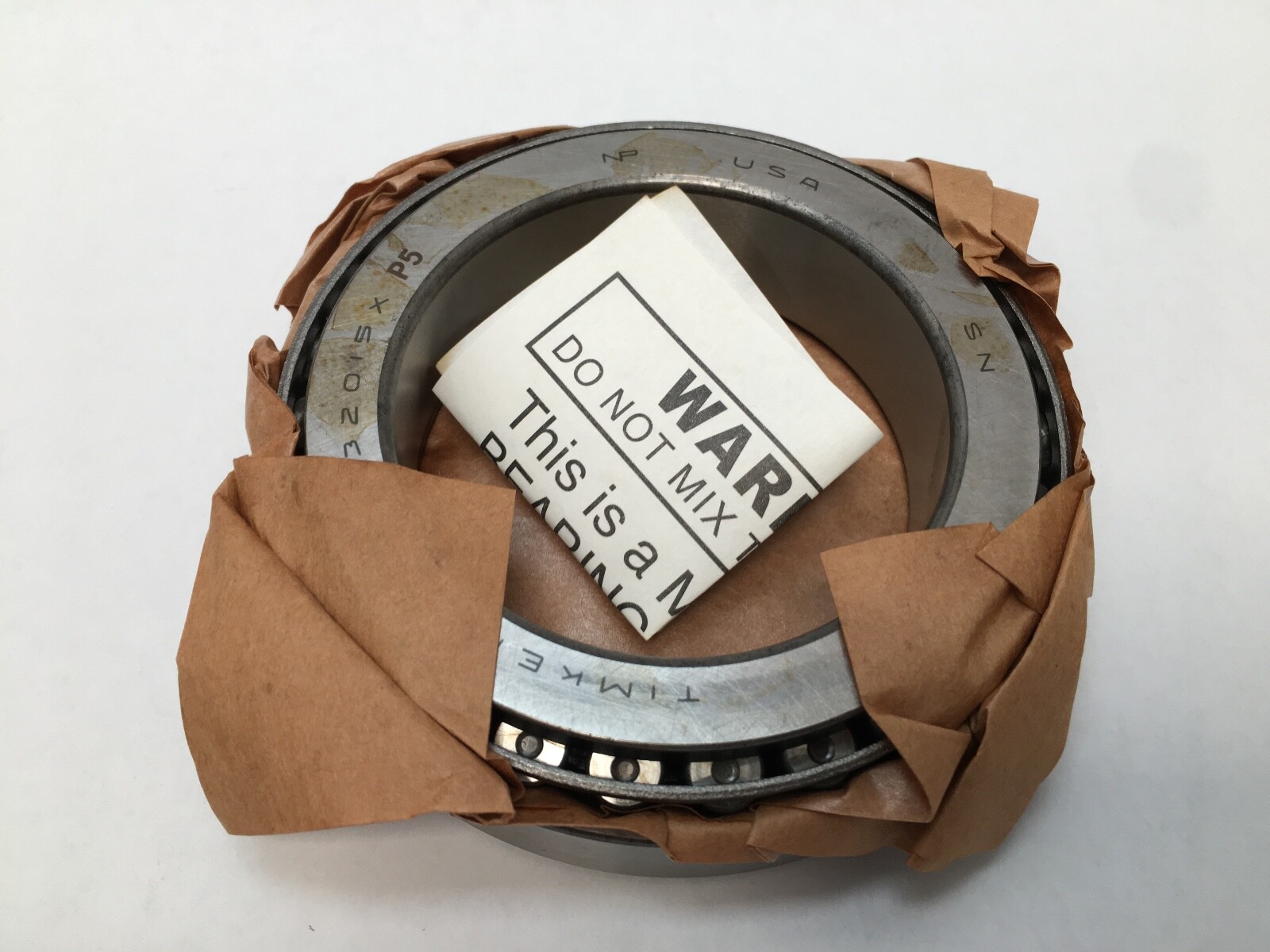

Tapered roller bearing set, 75 mm bore, 115 mm OD, 25 mm cone width, ISO P5 precision. Timken 32015X-90CB1 metric cone and matching cup, new old stock.
List Price
$95.48
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 32015X-90CB1 |
| Model | X32015X / Y32015X |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 75 mm |
| OD | 115 mm |
| Series | 32000 |
|---|---|
| Mpn Variants | 32015X-90CB1, 32015X, 32015-X, X32015X, Y32015X |
| Precision Class | ISO P5 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Bearing Material | Case-Hardened Alloy Steel |
| Cup Width | 19 mm |
| Cup Backface To Clear Radius | 1.5 mm |
| Cone Part Number | 32015X |
| Cone Width | 25 mm |
| Cone Backface To Clear Radius | 2.0 mm |
| Cone Frontface Backing Diameter | 83 mm |
| Cup Frontface Backing Diameter | 109 mm |
| Effective Center Location | 5.5 mm |
| Cross Reference 1 | SKF 32015 X |
|---|---|
| Cross Reference 2 | FAG 32015-X |
| Cross Reference 3 | NSK HR32015XJ |
| Cross Reference 4 | NTN 4T-32015X |
| Cross Reference 5 | Koyo 32015JR |

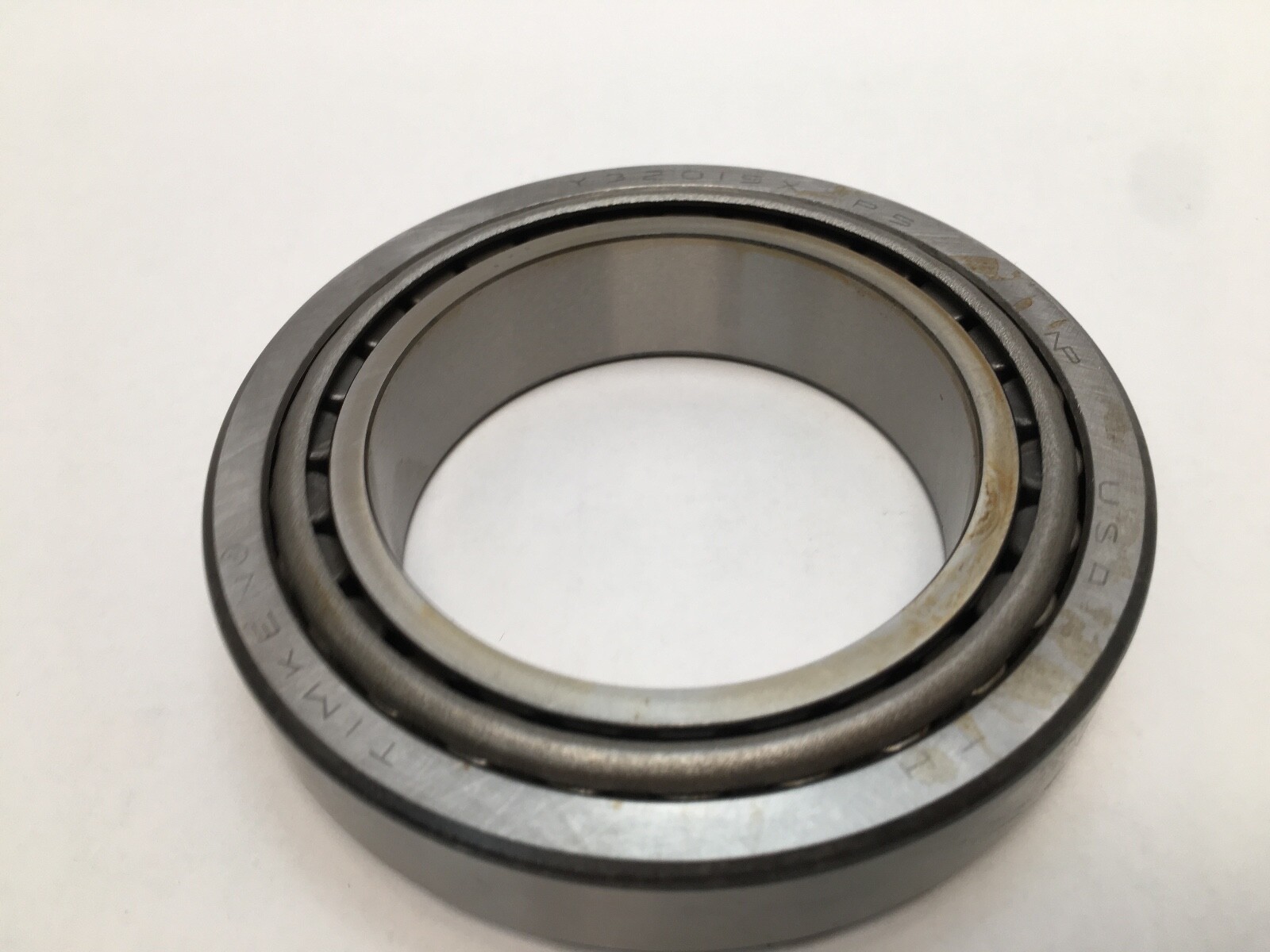

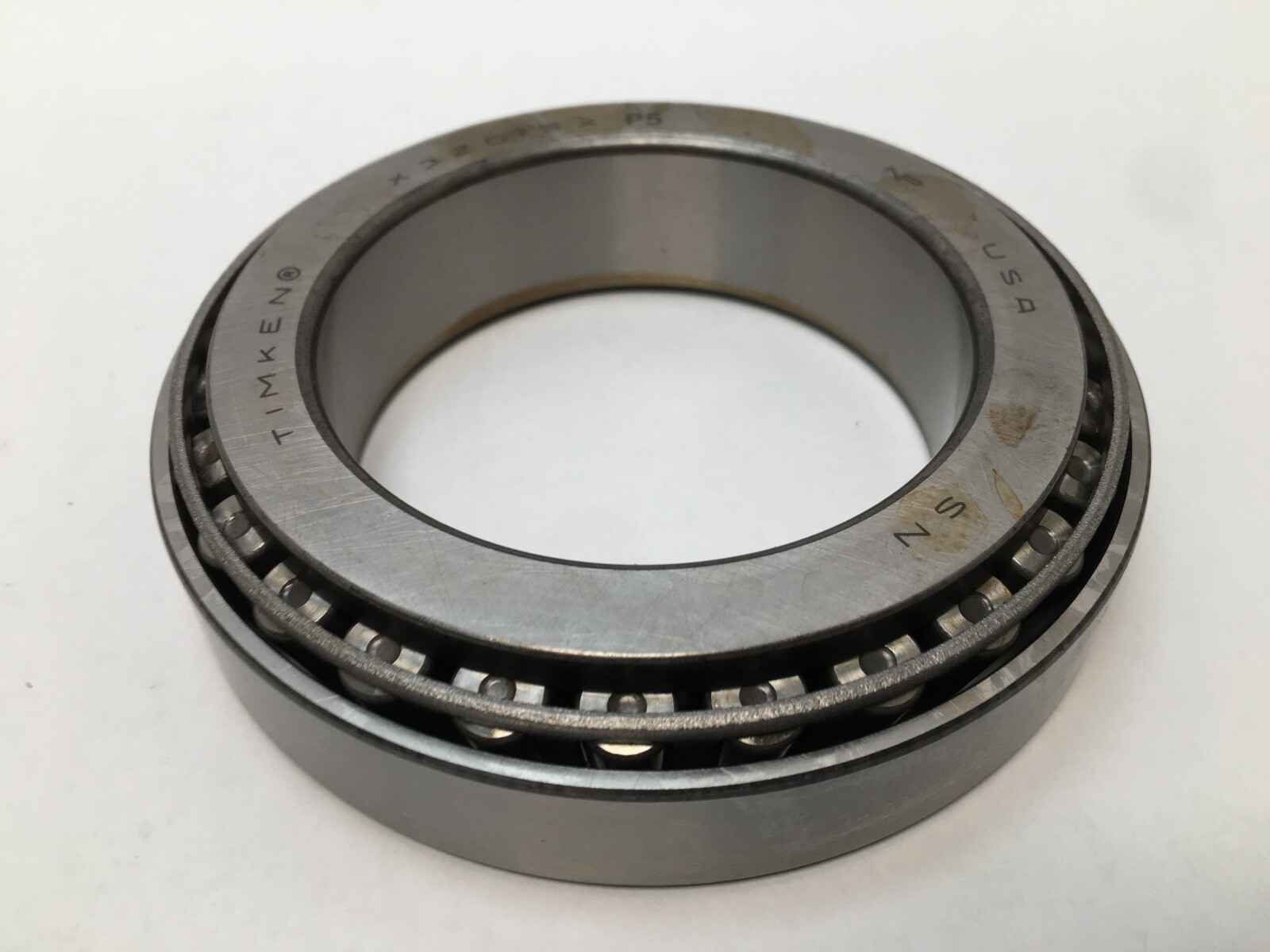

Timken 32015X-90CB1 single-row metric tapered roller bearing, cone and cup supplied as a set. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Cone Width: 25 mm. Cup Width: 19 mm. Precision Class: ISO P5. Bearing Material: Case-Hardened Alloy Steel.
32015X — ISO 32000-series metric tapered roller bearing, 75 mm bore, 115 mm outside diameter.

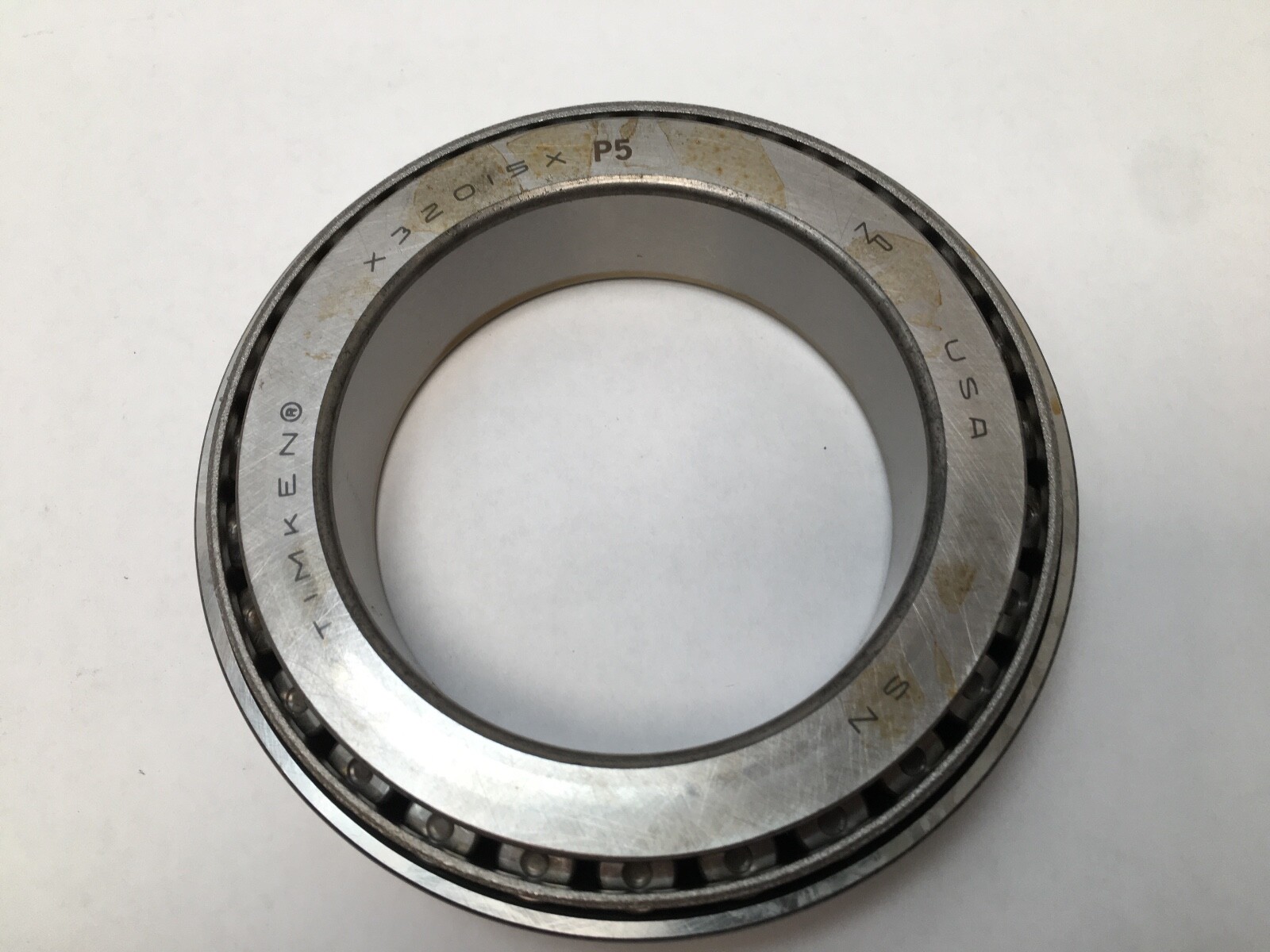

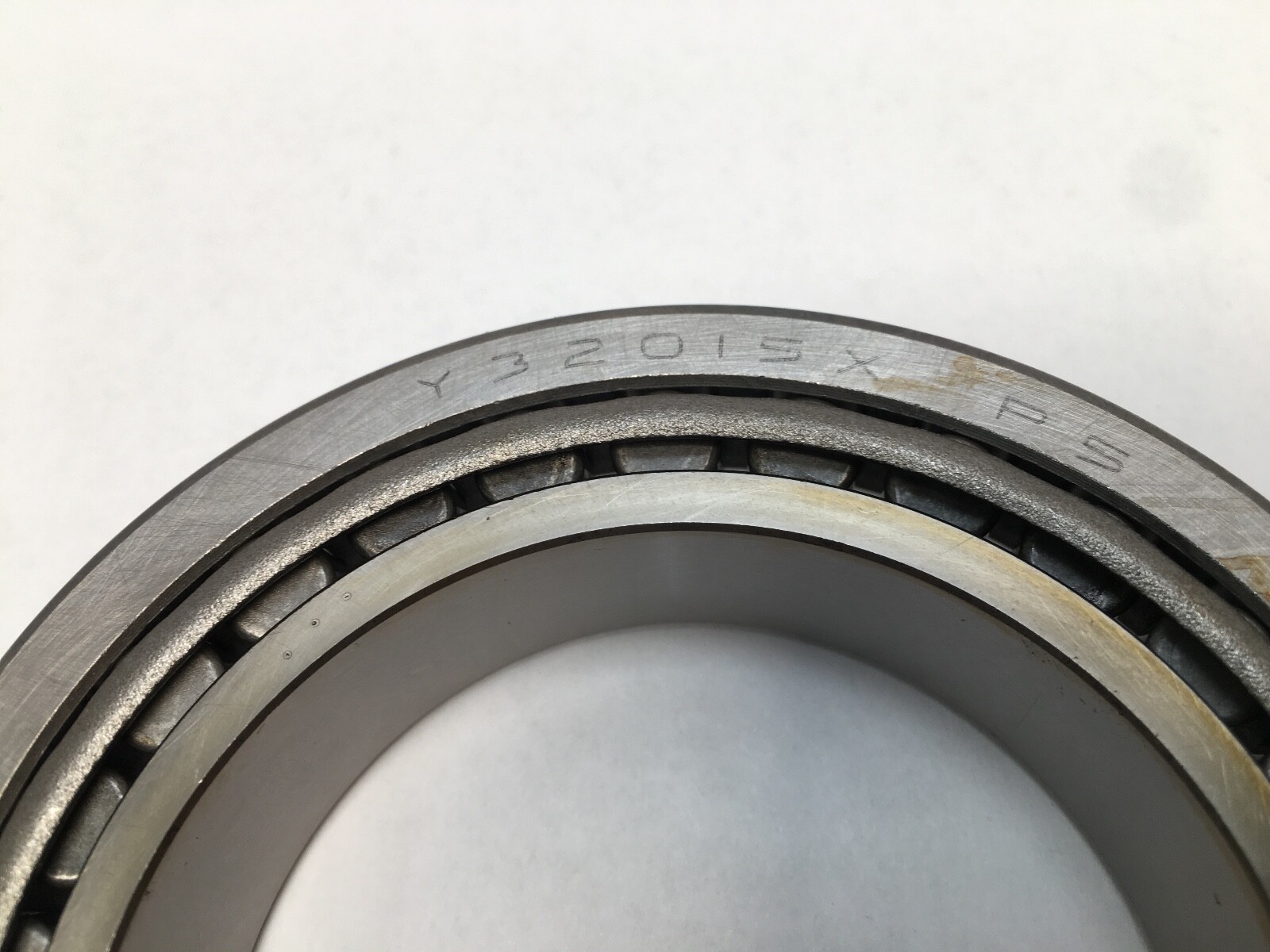

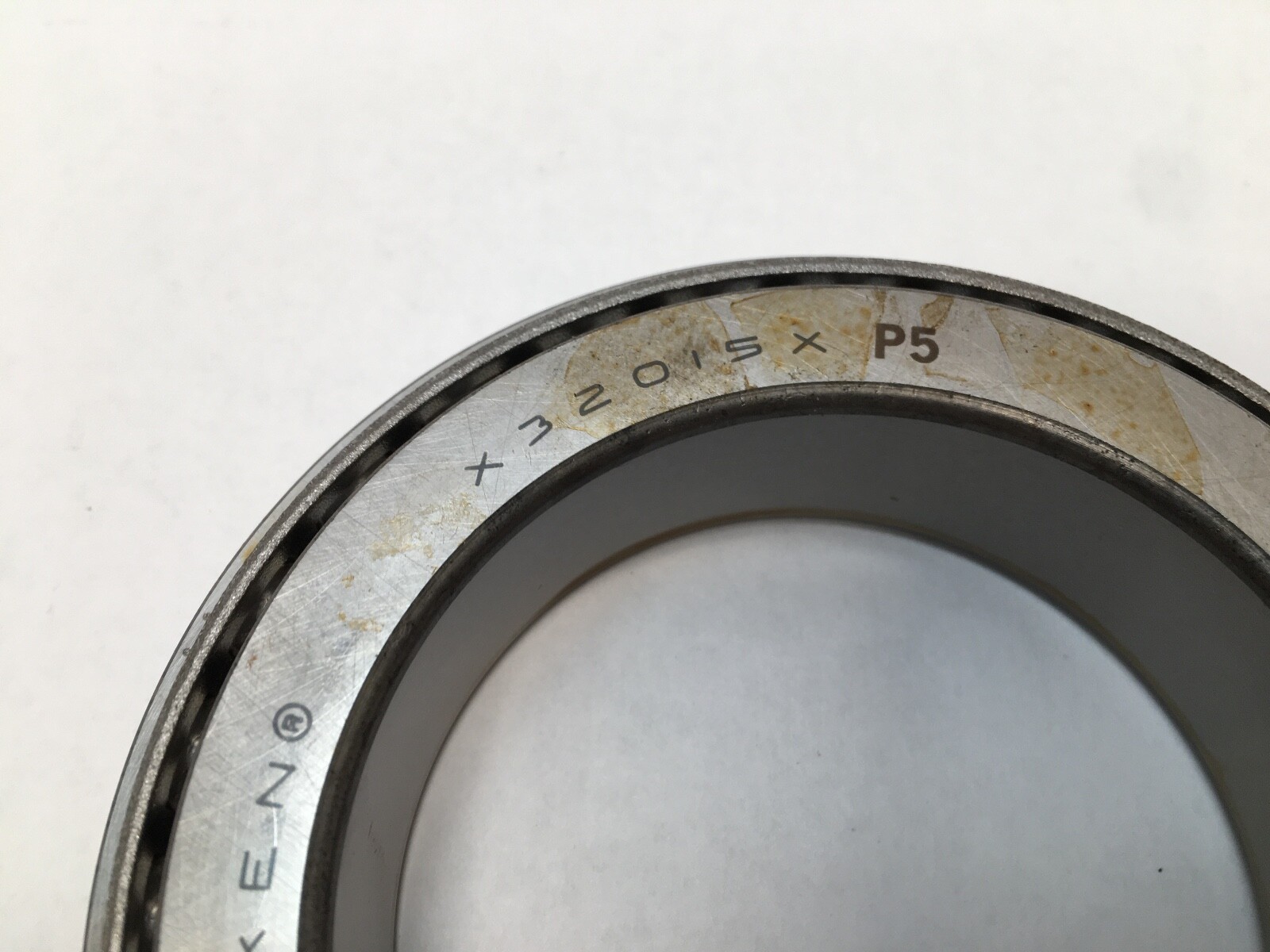

X32015X / Y32015X — Timken component numbers for the cone and cup of this set.
P5 — ISO precision class 5: tighter dimensional and running tolerances than normal-class bearings.
A single-row tapered roller bearing carries combined radial load and axial load in one direction. The P5 class gives lower runout than a normal-class bearing of the same envelope.
Cone Frontface Backing Diameter: 83 mm. Cone Backface To-Clear Radius: 2.0 mm. Cup Frontface Backing Diameter: 109 mm. Cup Backface To-Clear Radius: 1.5 mm. Effective Center Location: 5.5 mm.

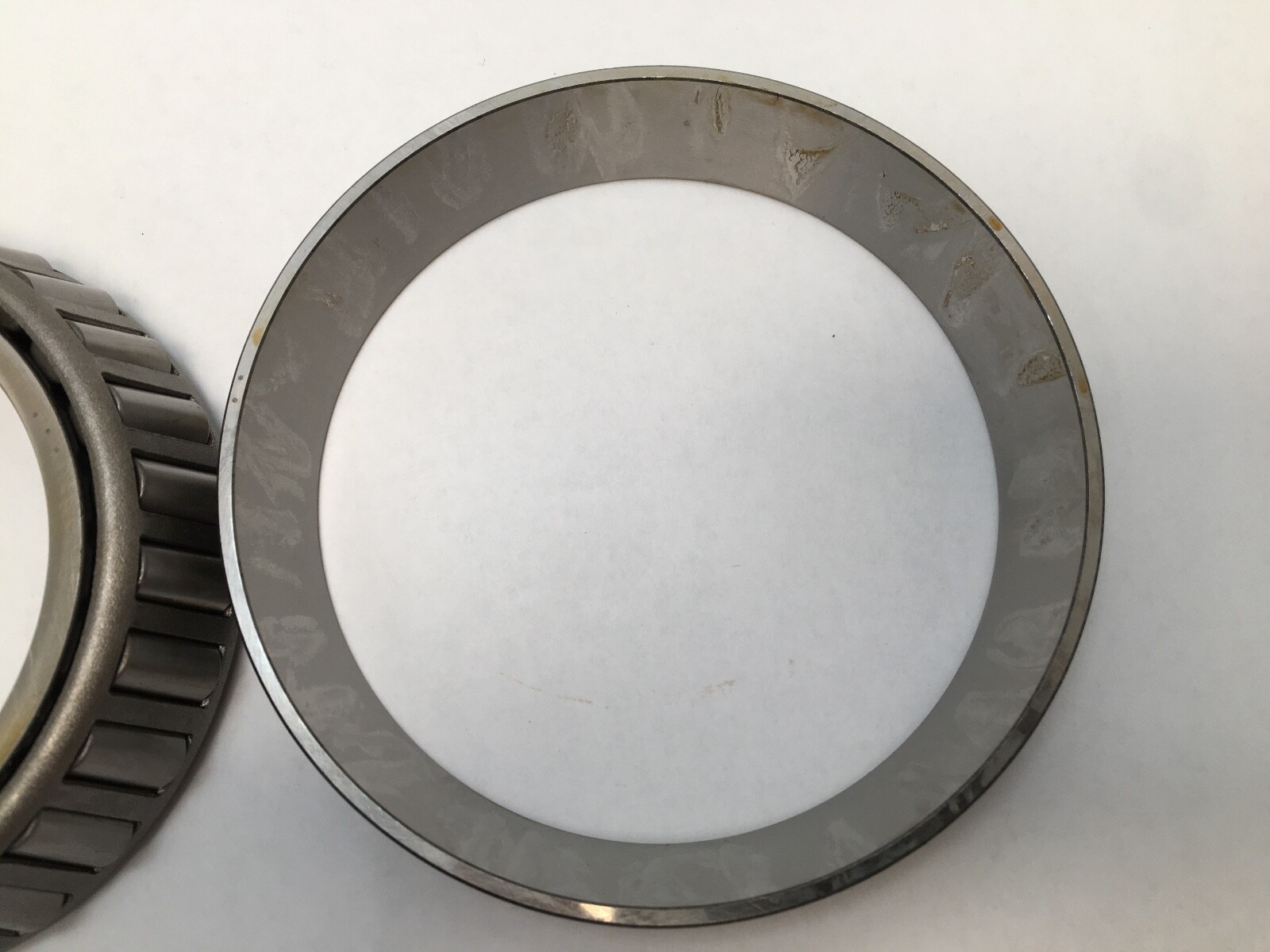

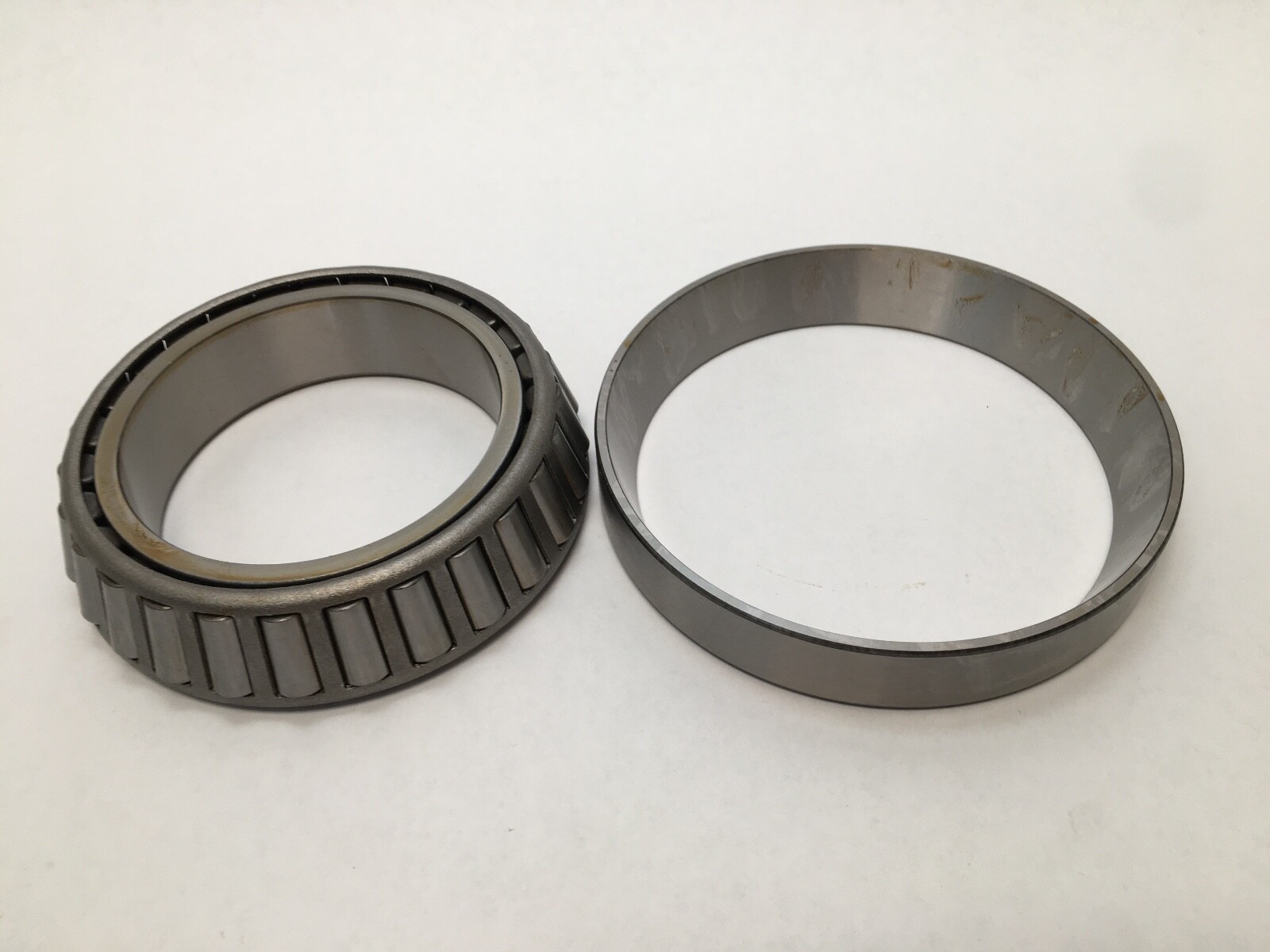

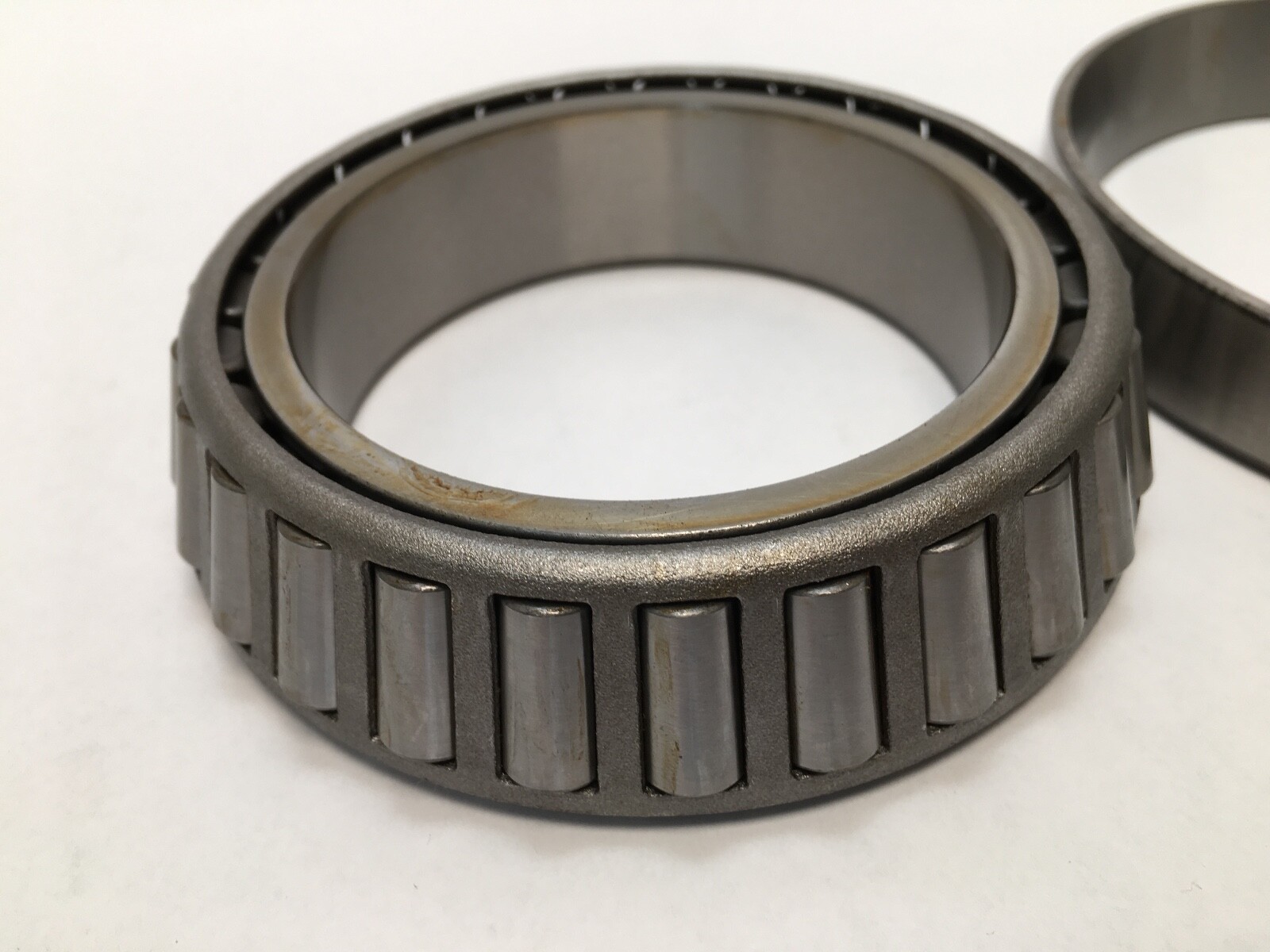

Unit Quantity: 1 Set. One 32015X cone and one matching cup.
Cross-Reference: SKF 32015 X, FAG 32015-X, NSK HR32015XJ, NTN 4T-32015X, Koyo 32015JR. These share the 75 mm bore, 115 mm OD ISO 32015X envelope at normal precision class.
