Availability:
1 in stock
Tapered roller bearing matched pair, 20x42x15 mm, RBEC 5 / P5, pressed steel cage, back-to-back. Dynamic load rating 30,500 N per bearing. HR high-capacity.
List Price
$275.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | HR32004XJP5DB+KL |
| Model | HR-32004-XJ-P5 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 20 mm |
| OD | 42 mm |
| Base Number | HR32004XJ |
|---|---|
| Industry Terms | Tapered roller bearing; taper roller cone and cup; duplex taper set; precision taper bearing |
| Common Misspellings | HR32004JXP5DB; HR32004XJP5DB; HR32004XJP5-DB-KL; HR 32004XJ P5 DB+KL |
| Application Types | Machine tool spindles; gearboxes; wheel and pinion supports; precision rotating equipment |
| Total Width | 15 mm |
| Overall Width | 15 mm |
| Mpn Variants | HR32004XJP5DB+KL; HR32004XJP5DB; HR-32004-XJ-P5; HR 32004 XJ P5 DB KL; 32004XJDBP5; 32004X |
| Precision Class | RBEC 5 / P5 |
| Additional Attributes | Inner ring width B 15 mm; outer ring width C 12 mm; calculation factors e 0.37, Y 1.6, Y0 0.88; effective load centre a 10.6 mm; jet lubrication limiting speed 17,000 rpm; shaft abutment da min 28 mm; housing abutment Da 35 to 37 mm, Db min 40 mm; max shaft fillet radius ra 0.6 mm |
| Dynamic Load Rating | 30,500 N |
| Static Load Rating | 27,400 N |
| Series | 32000 |
| Rolling Elements | Tapered Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 9,000 rpm grease; 12,000 rpm oil |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.20.00 |
| Mounting Arrangement | Back-to-back (DB) matched pair |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken 32004X – standard capacity, not HR |
|---|---|
| Cross Reference 2 | SKF 32004 X – standard capacity, not HR |
| Cross Reference 3 | FAG 32004-X – standard capacity, not HR |
| Cross Reference 4 | NTN 4T-32004X – standard capacity, not HR |
| Cross Reference 5 | Koyo 32004JR – standard capacity, not HR |

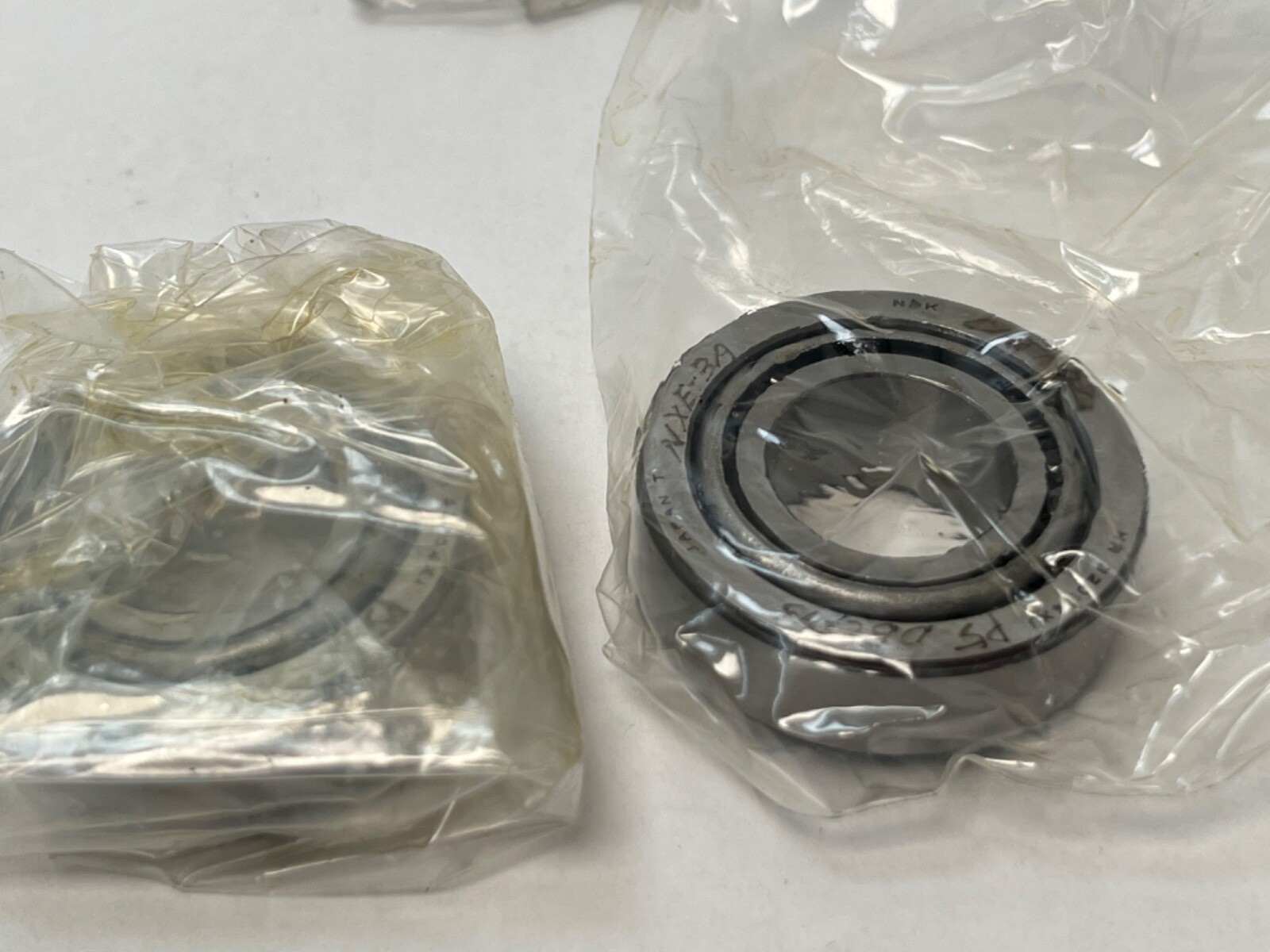

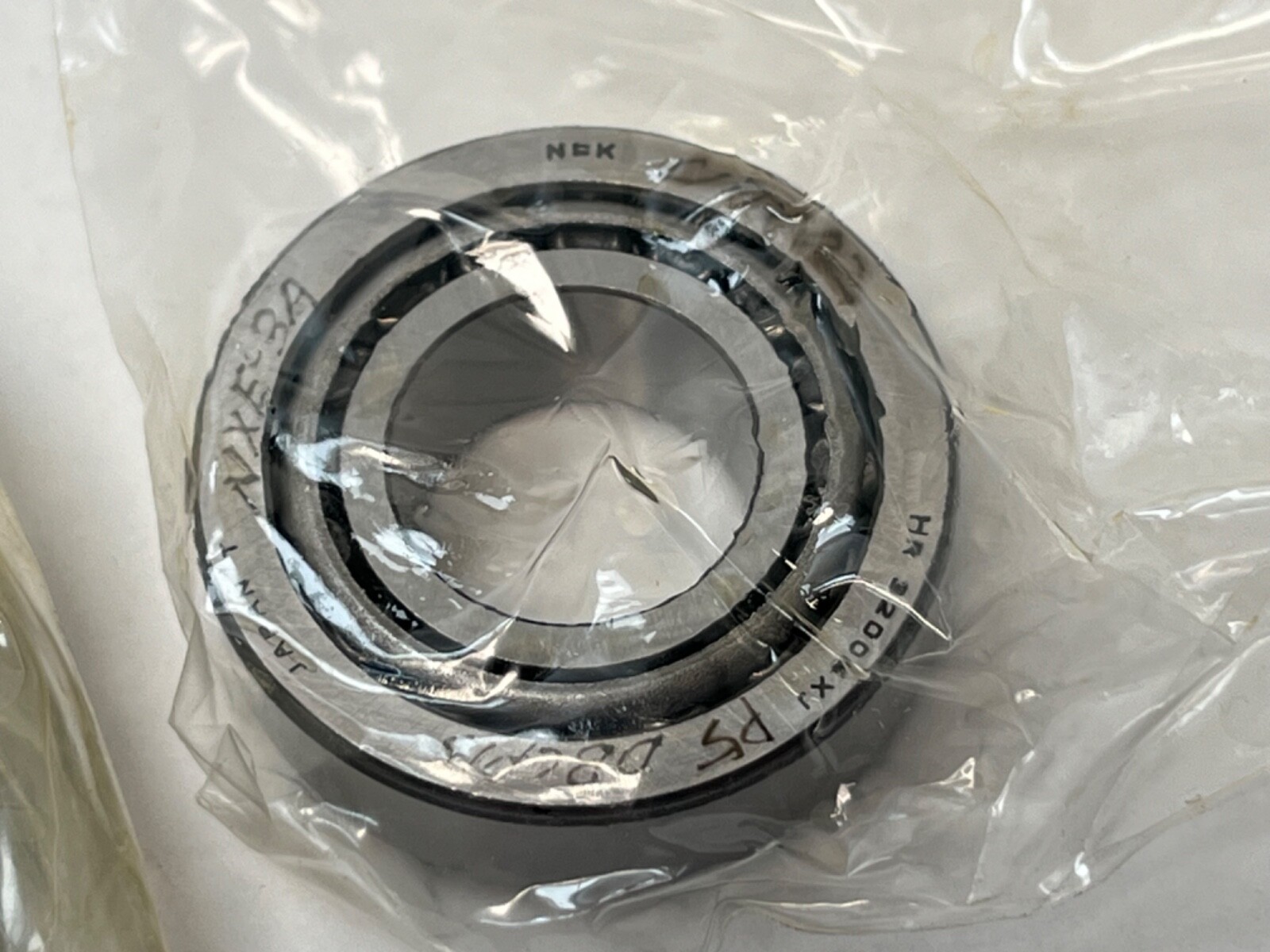

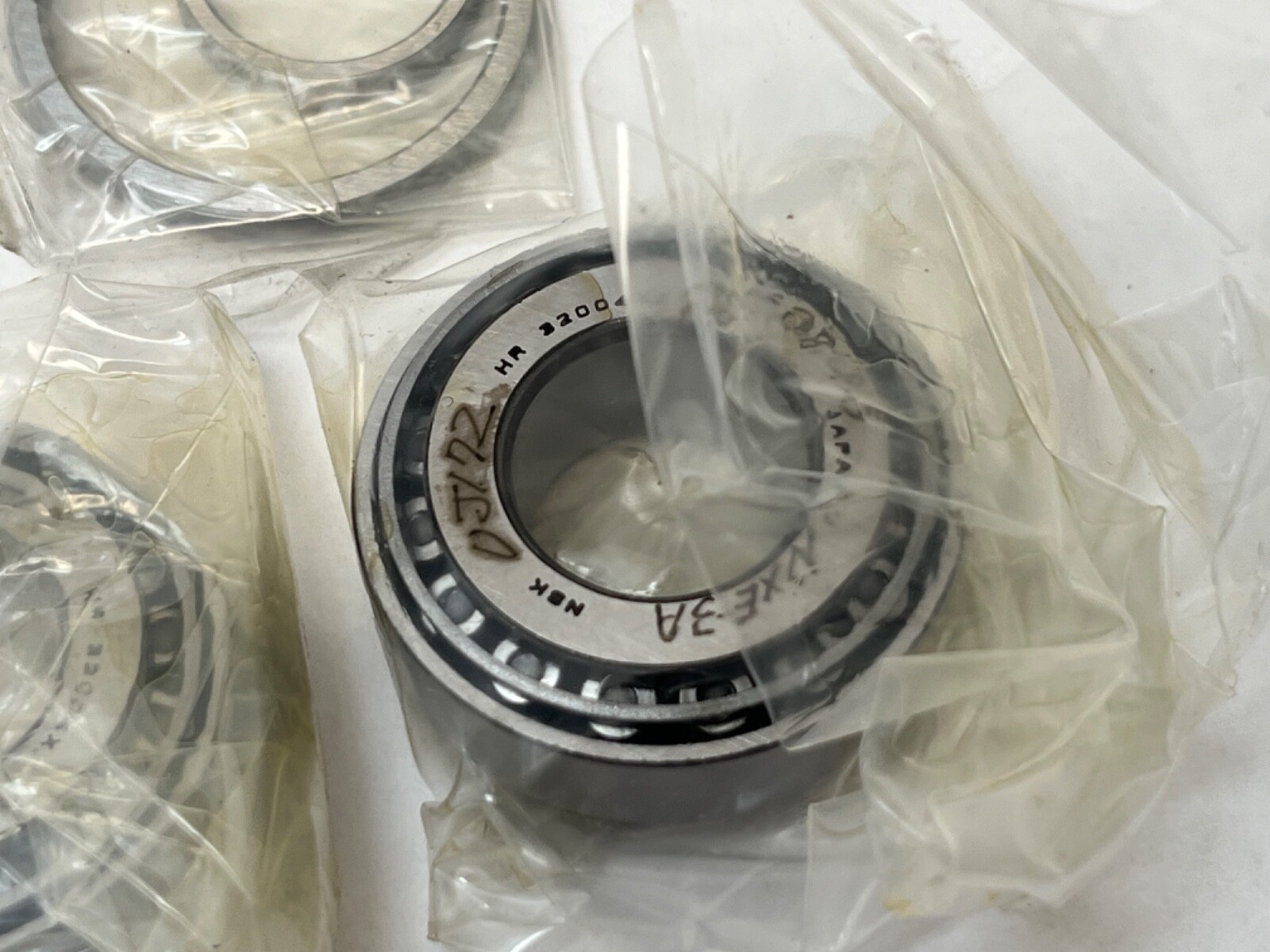

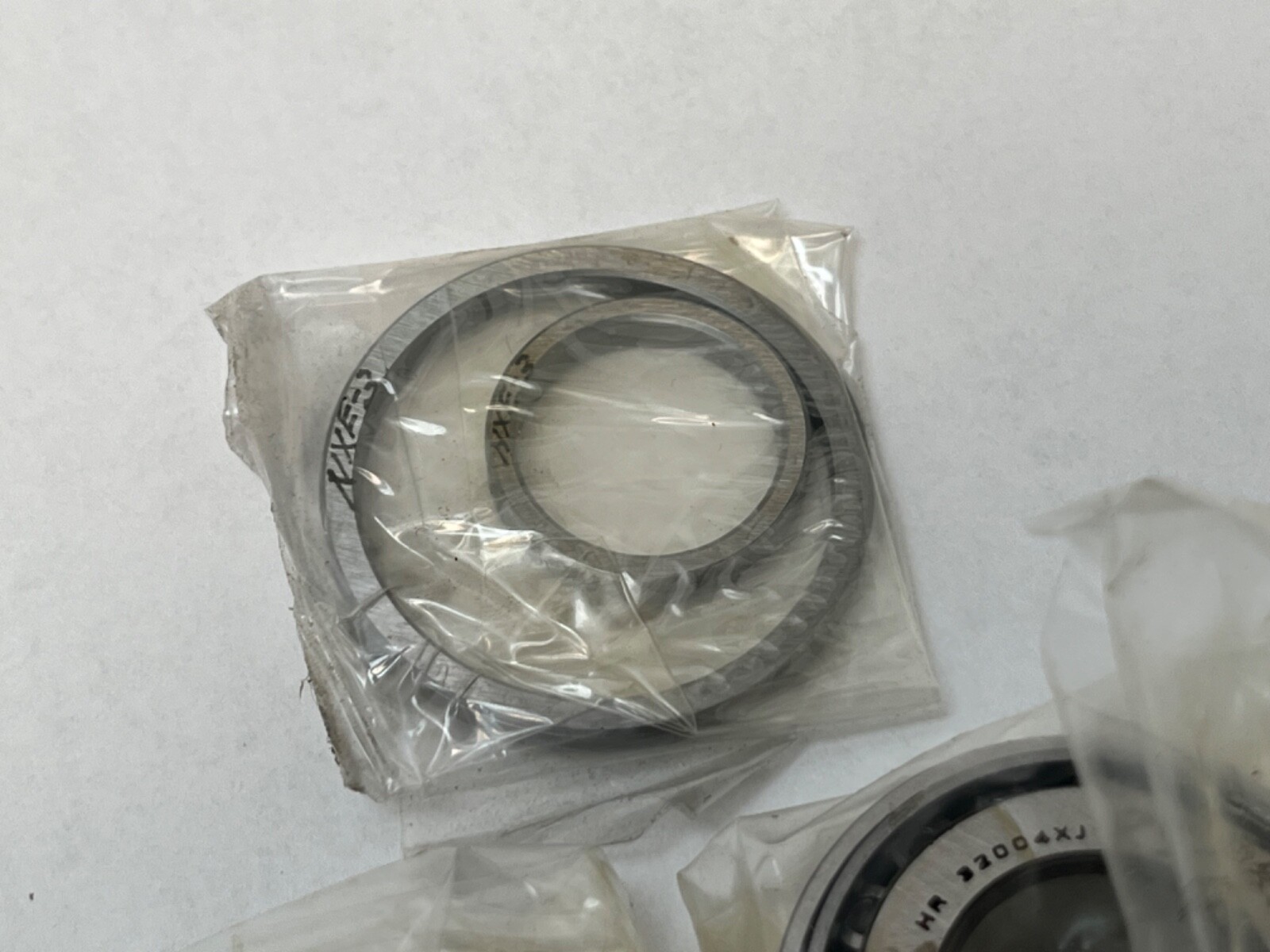

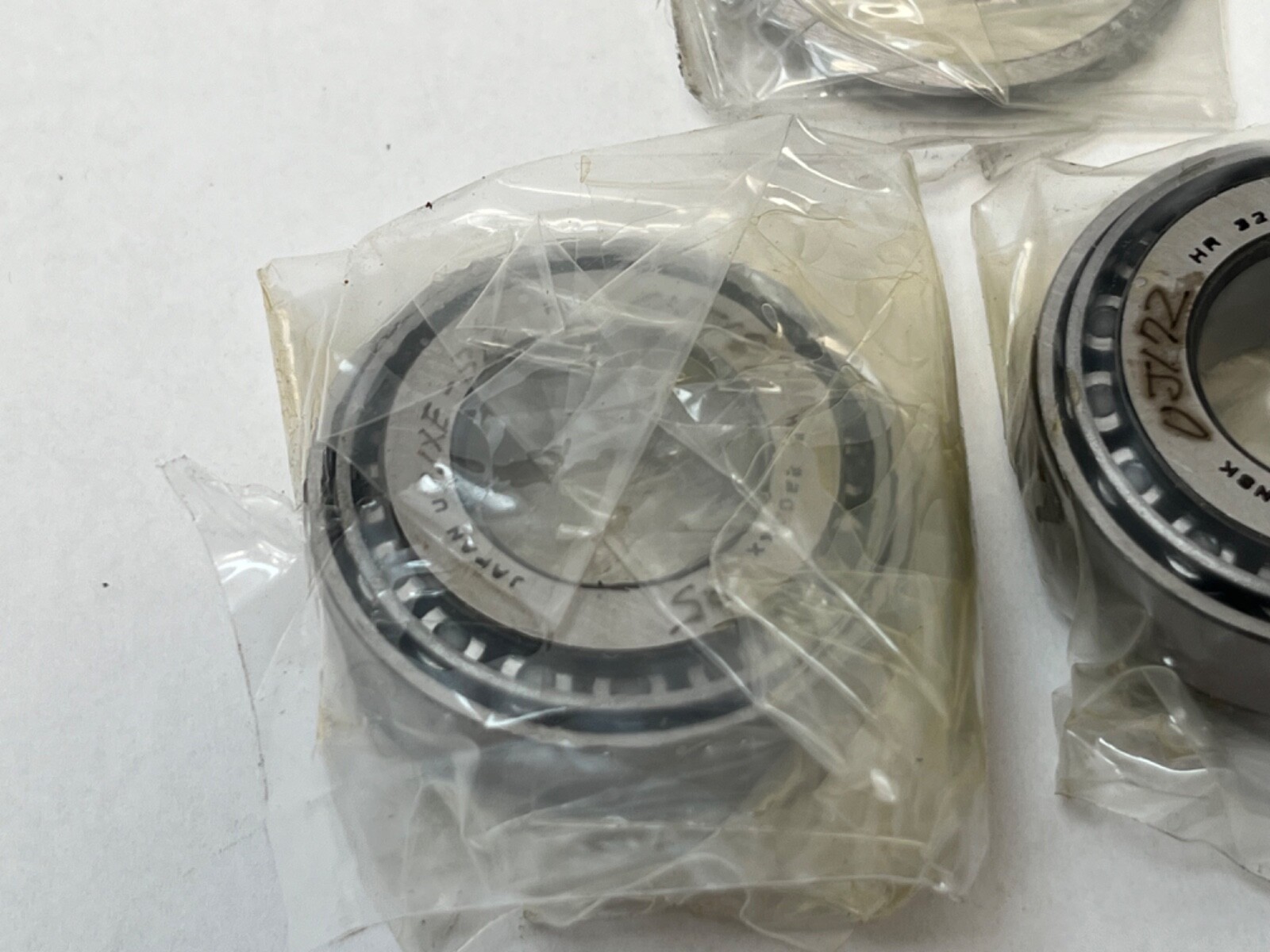

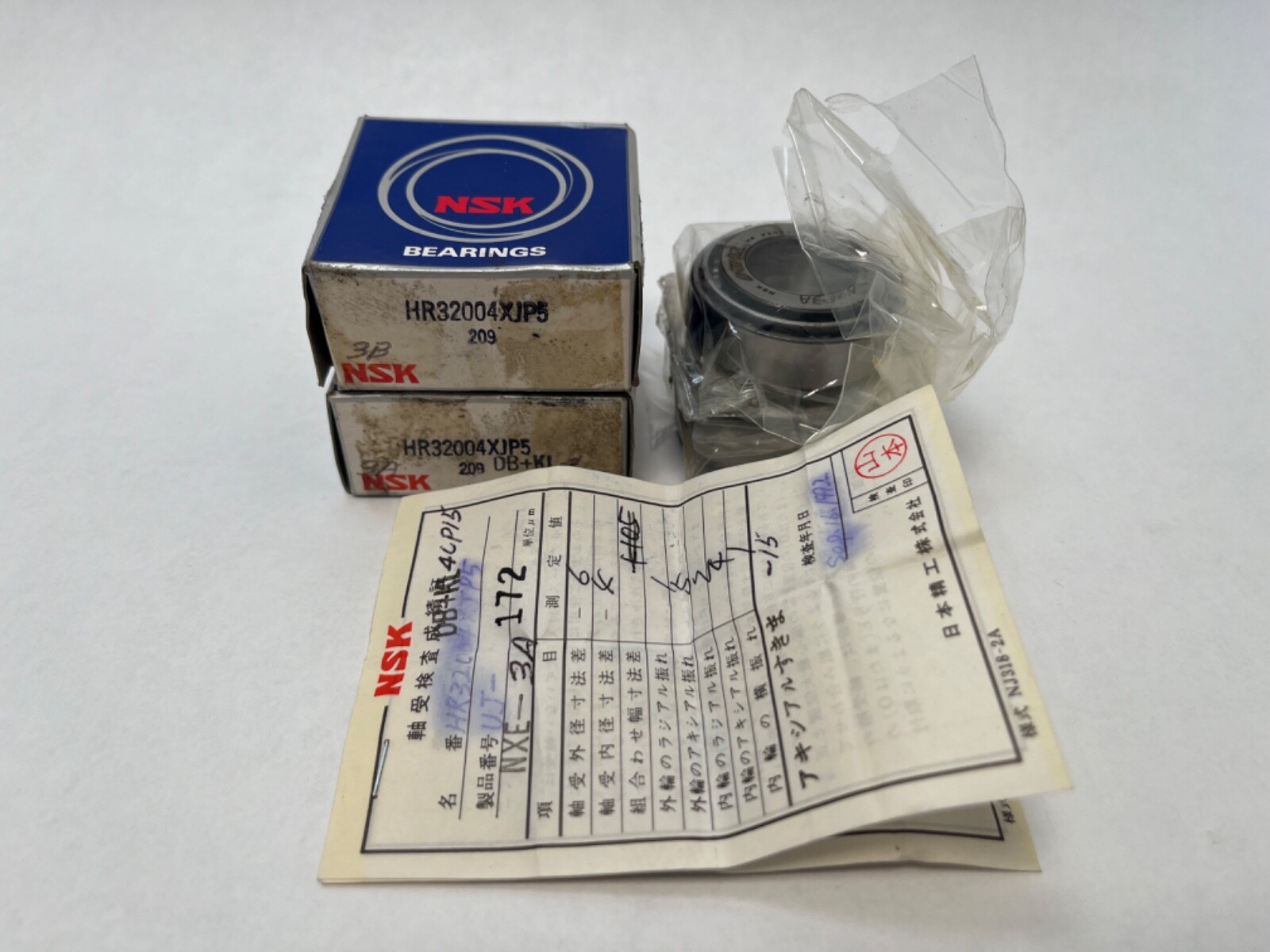

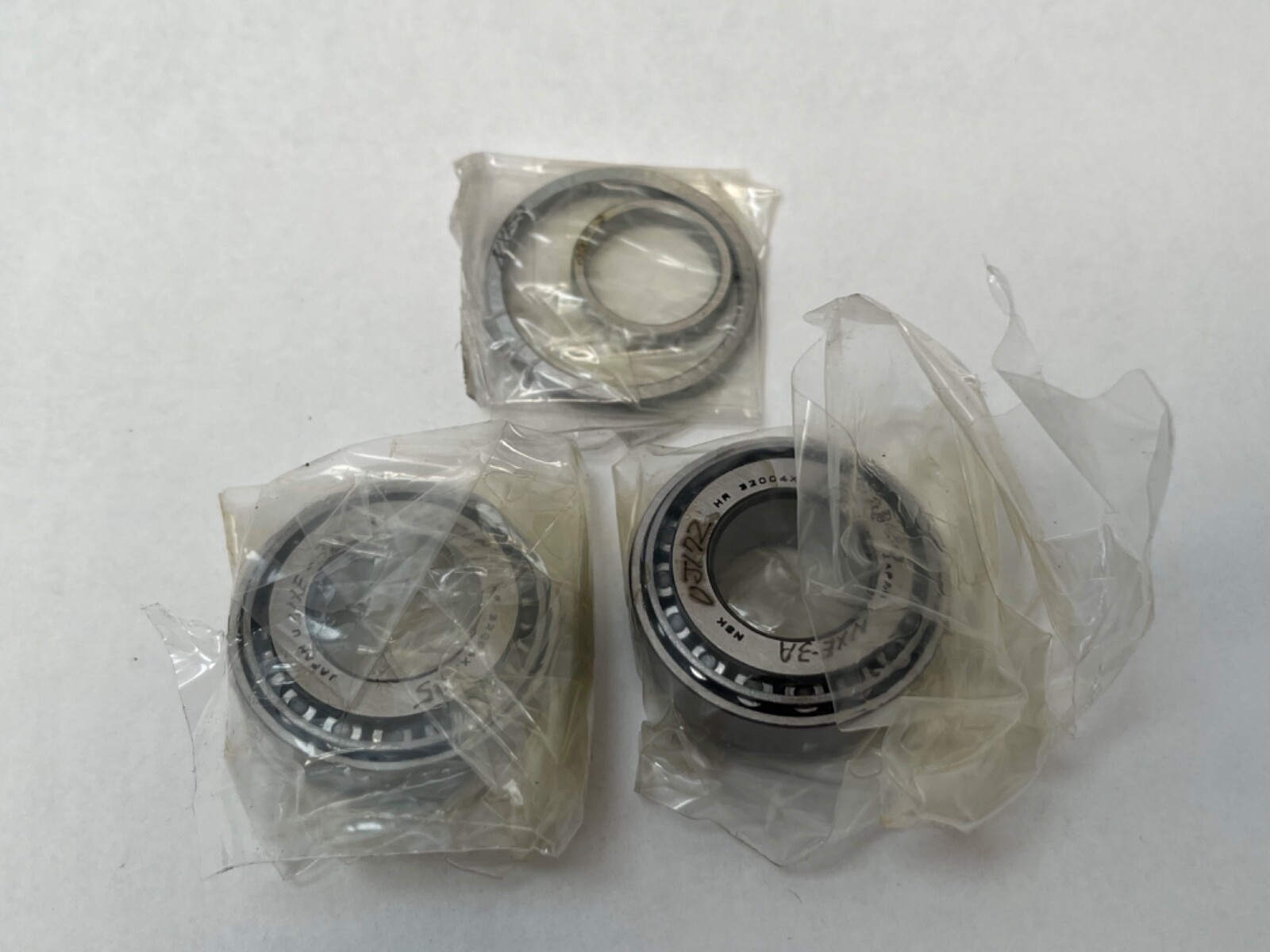

NSK HR32004XJ single-row tapered roller bearings supplied as a back-to-back matched pair, each a complete cone and cup. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Total Width T: 15 mm. Inner ring width B: 15 mm. Outer ring width C: 12 mm. Precision Class: RBEC 5 / P5. Rolling Elements: Tapered Roller. Number Of Rows: 1 per bearing. Bore Type: Straight. Bearing Material: Bearing steel.
HR — NSK high-capacity uprate. More and longer rollers inside the same boundary dimensions than the plain 32004X.
32004 — ISO 320-series tapered roller bearing, 20 x 42 x 15 mm.
X — boundary dimensions updated to the current ISO standard.
J — pressed steel cage.
P5 — ISO class 5, RBEC 5.
DB — duplex back-to-back. Two bearings ground as a matched set with their load lines diverging outward.
Dynamic Load Rating: 30,500 N (6,857 lbf). Static Load Rating: 27,400 N (6,160 lbf). Both ratings are per bearing.
Limiting Speed: 9,000 rpm grease; 12,000 rpm oil. Jet lubrication raises the ceiling to 17,000 rpm. Lubricant: grease or oil.
Cage Material: Pressed steel. Item Weight: 0.097 kg (0.21 lb) per bearing.
Calculation factors: e 0.37, Y 1.6, Y0 0.88. A tapered roller bearing takes combined radial and one-direction axial load; the back-to-back pair takes axial load in both directions and carries moment load across the spread between the two load lines.
Effective load centre a: 10.6 mm. Shaft abutment diameter da min: 28 mm. Housing abutment diameter Da: 35 to 37 mm. Housing abutment diameter Db min: 40 mm. Maximum shaft fillet radius ra: 0.6 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: back-to-back (DB) matched pair.
Timken 32004X, SKF 32004 X, FAG 32004-X, NTN 4T-32004X and Koyo 32004JR are standard single 32004X-size bearings with the same 20 x 42 x 15 mm boundary dimensions. The HR execution carries higher load ratings than a plain 32004X, so those parts match on size, not capacity, and none is a matched P5 pair.
