Availability:
1 in stock

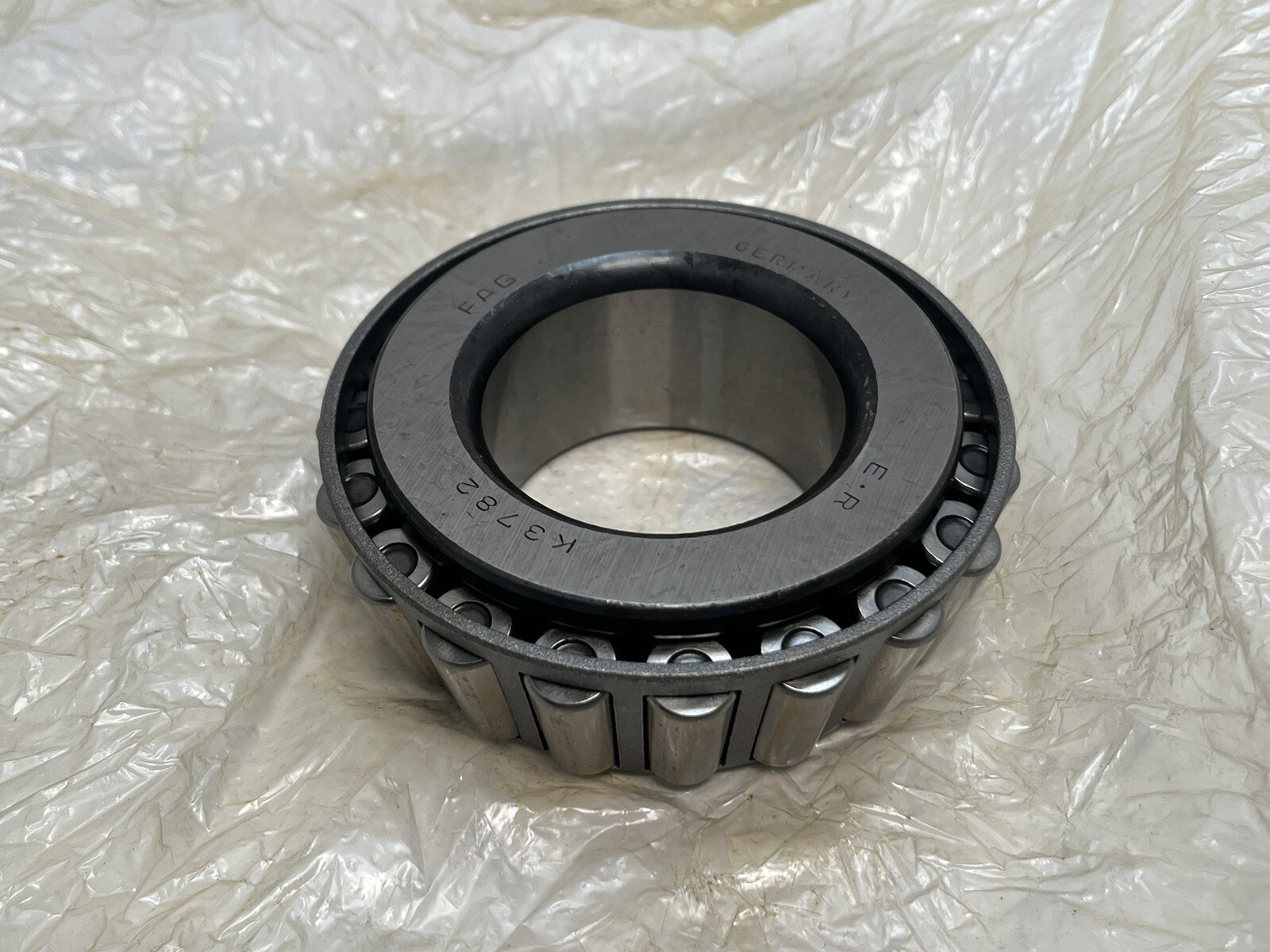

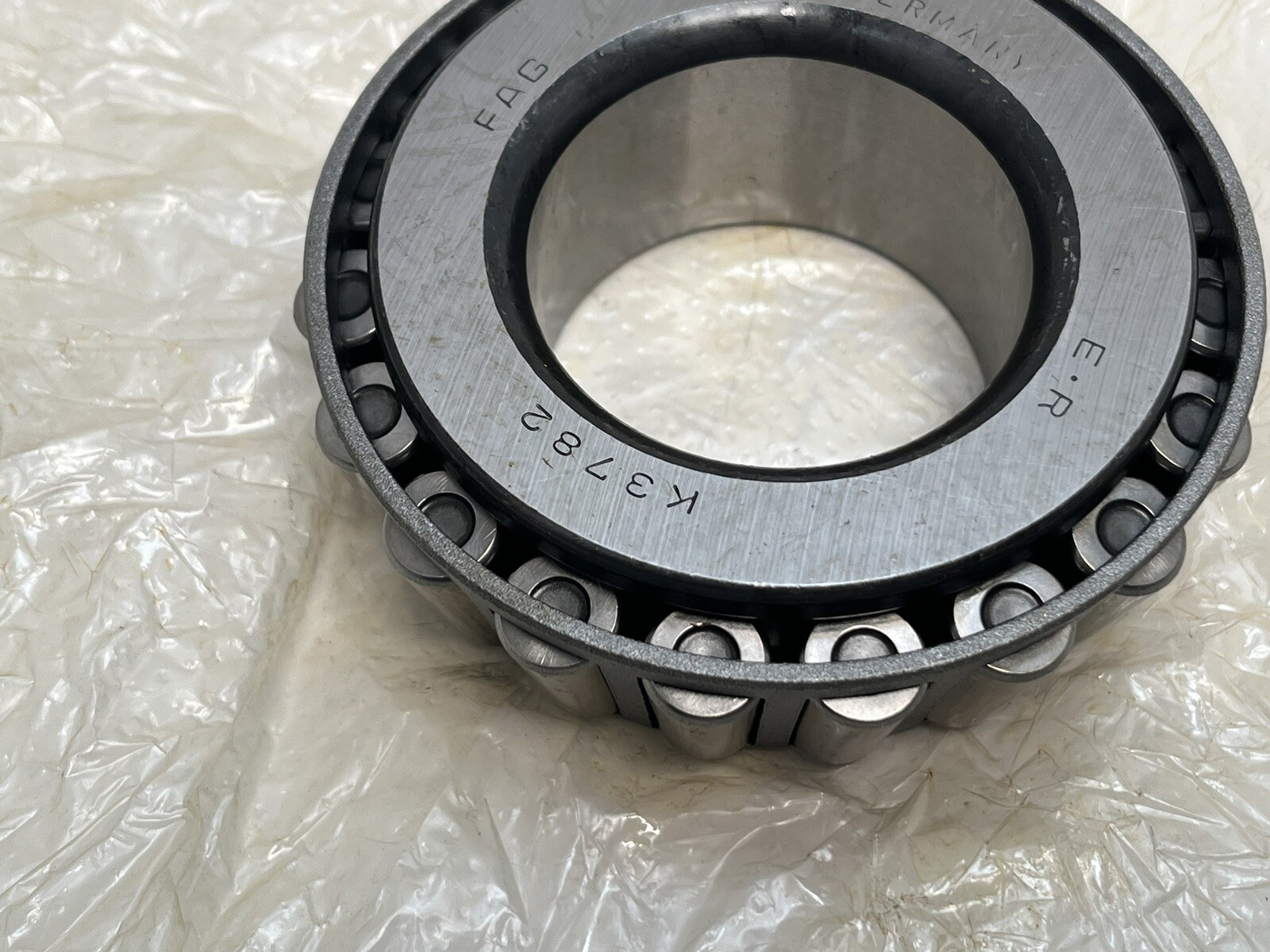

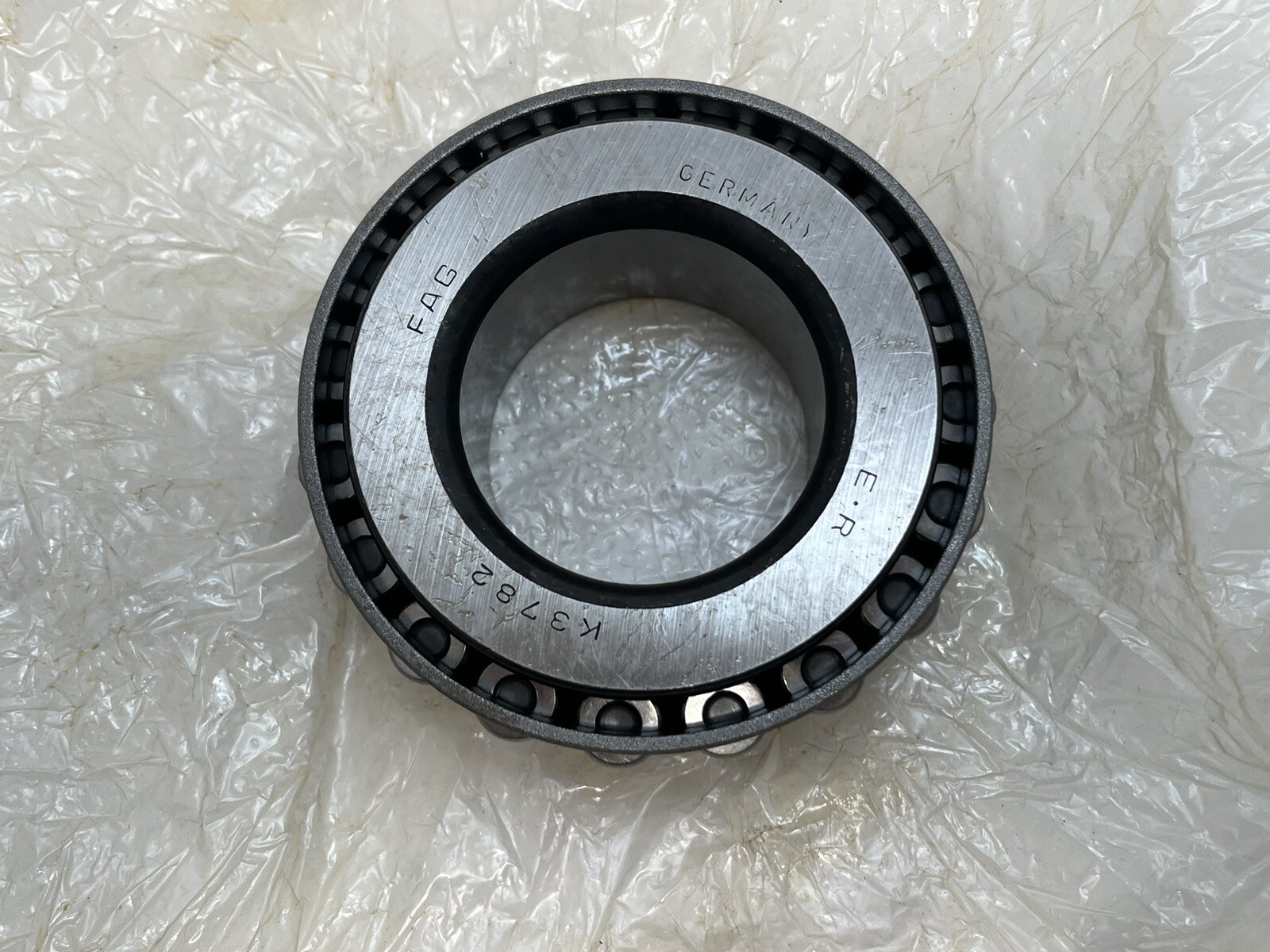

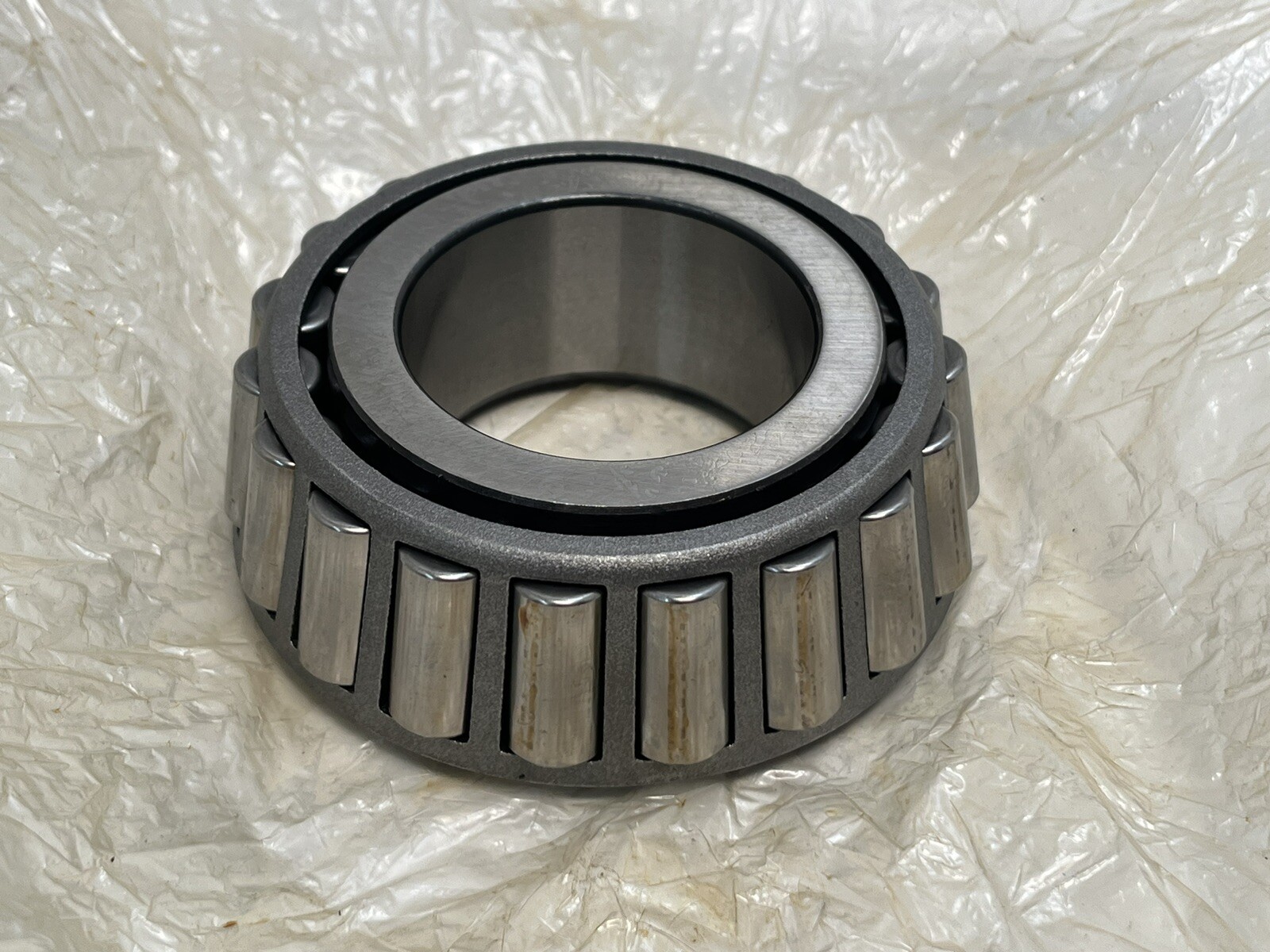

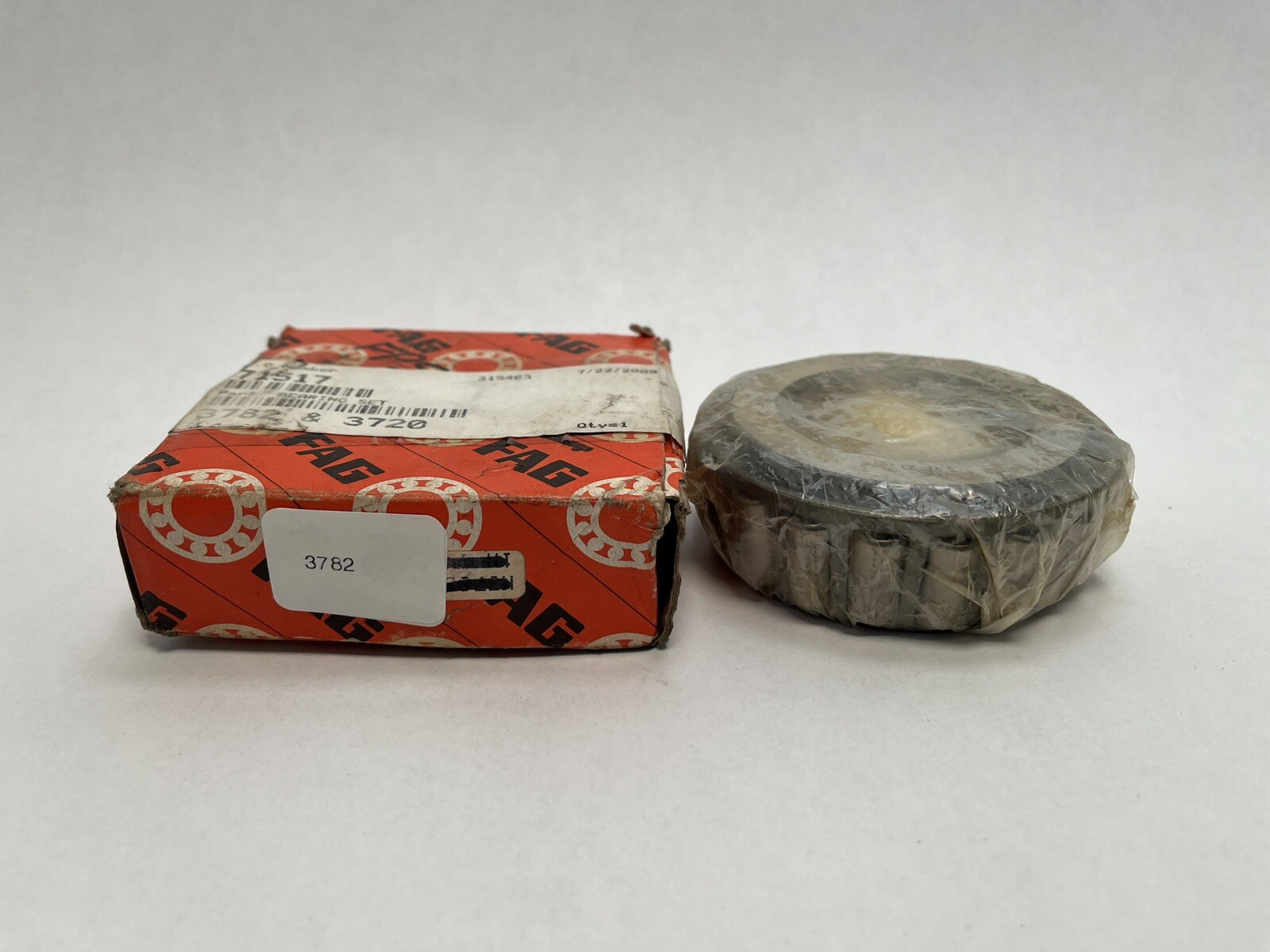

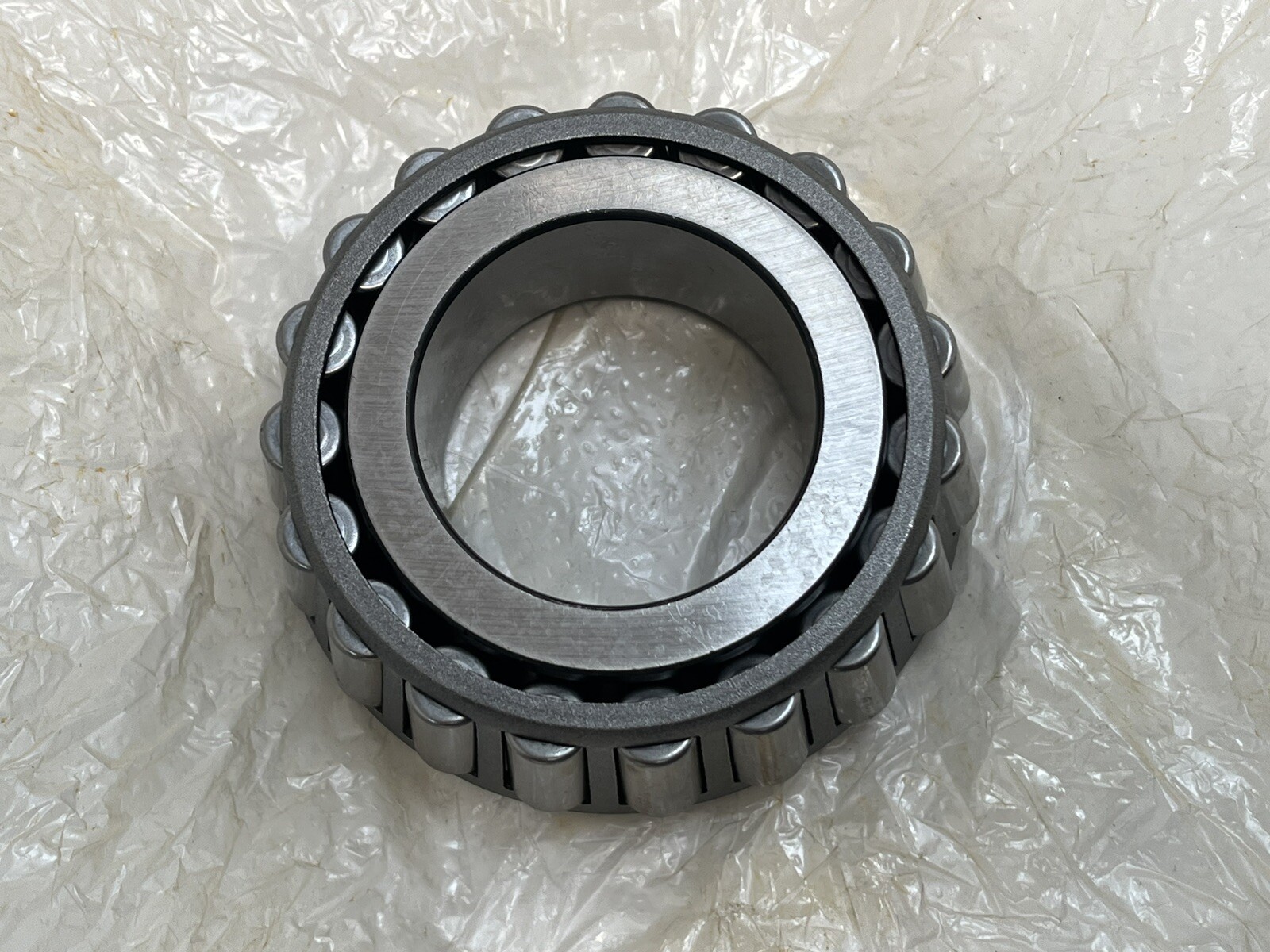

FAG K3782 tapered roller bearing cone, 1-3/4 in (44.45 mm) bore, 30.302 mm cone width. Cone only; mates with cup K3720 / Timken 3720. Interchanges with Timken 3782.
List Price
$35.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3782 |
| Model | K3782 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 1.7500 in (44.450 mm) |
| Lubricant | Oil Preservative |
|---|---|
| Series | 3700 |
| Duty Type | Standard |
| Rolling Elements | Tapered Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Base Number | 3782 |
| Industry Terms | tapered roller bearing cone, inch taper cone, inner ring assembly |
| Common Misspellings | 3782 cone, K 3782, 378-2 |
| Application Types | wheel hubs, gear drives, axles, agricultural equipment |
| Mpn Variants | K3782, 3782, FAG 3782, K-3782 |
| Compatible With Replaces | Matching cup: FAG K3720 / Timken 3720; assembly FAG K3782-3720 |
| Additional Attributes | Cone only. Outer envelope circle 89.857 mm; rib diameter 72.3 mm; max shaft shoulder 52 mm; max fillet radius 3.6 mm; effective load centre a 22 mm |
| Contact Angle | 12.72° |
| Cross Reference 1 | Timken 3782 |
|---|
FAG K3782 inch-series tapered roller bearing cone: inner ring with roller and cage assembly. Cone only. Matching cup: FAG K3720 (Timken 3720). Bore Diameter: 1.7500 in (44.450 mm). Cone Width: 1.1930 in (30.302 mm).
K — FAG prefix for an inch-series tapered roller cone.
3782 — ABMA inch-series cone number, interchangeable with Timken 3782.
Rolling Elements: Tapered Roller. Contact Angle: 12.72°. Outer envelope circle of the roller set: 89.857 mm. Inner-ring rib diameter: 72.3 mm. With cup K3720 the assembly K3782-3720 measures 44.45 x 93.264 x 30.162 mm.
Maximum shaft shoulder diameter: 52 mm. Maximum shaft fillet radius: 3.6 mm. Minimum chamfer, inner-ring back face: 3.6 mm. Effective load centre distance a: 22 mm.
Same cone number: Timken 3782. Matching cups: FAG K3720, Timken 3720. Assembly: FAG K3782-3720.
