Availability:
2 in stock
Spherical roller take-up bearing unit, 1-15/16 in bore, cast iron wide-slot block, 28,890 lbf dynamic rating, C3. Rex ZT5000, double setscrew collar.
List Price
$302.27
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Rexnord |
|---|---|
| MPN | BMT65115 |
| Model | BMT 65115 |
| ID | 1-15/16 in |
| Material | Cast Iron |
|---|---|
| Type | Take-Up Unit Bearing |
| Mpn Variants | BMT65115, BMT-65115, BMT 65115, 10408836, 02866528 |
| Dynamic Load Rating | 128,510 N (28,890 lbf) |
| Static Load Rating | 147,680 N (33,200 lbf) |
| Series | ZT5000 |
| Rolling Elements | Spherical Roller |
| Max Temp | 107 °C (225 °F) |
| Bearing Type | Spherical Roller Take-Up Unit |
| Item Weight | 6.62 kg (14.60 lb) |
| Cage Material | Engineered polymer |
| Limiting Speed | 2,500 rpm grease |
| Internal Clearance | C3 |
| Lubricant | Lithium complex NLGI 2 grease |
| Locking Device | Double Setscrew Collar |
| Relubrication Feature | Yes |
| Housing Material | Cast Iron |
| Expansion Type | Fixed |

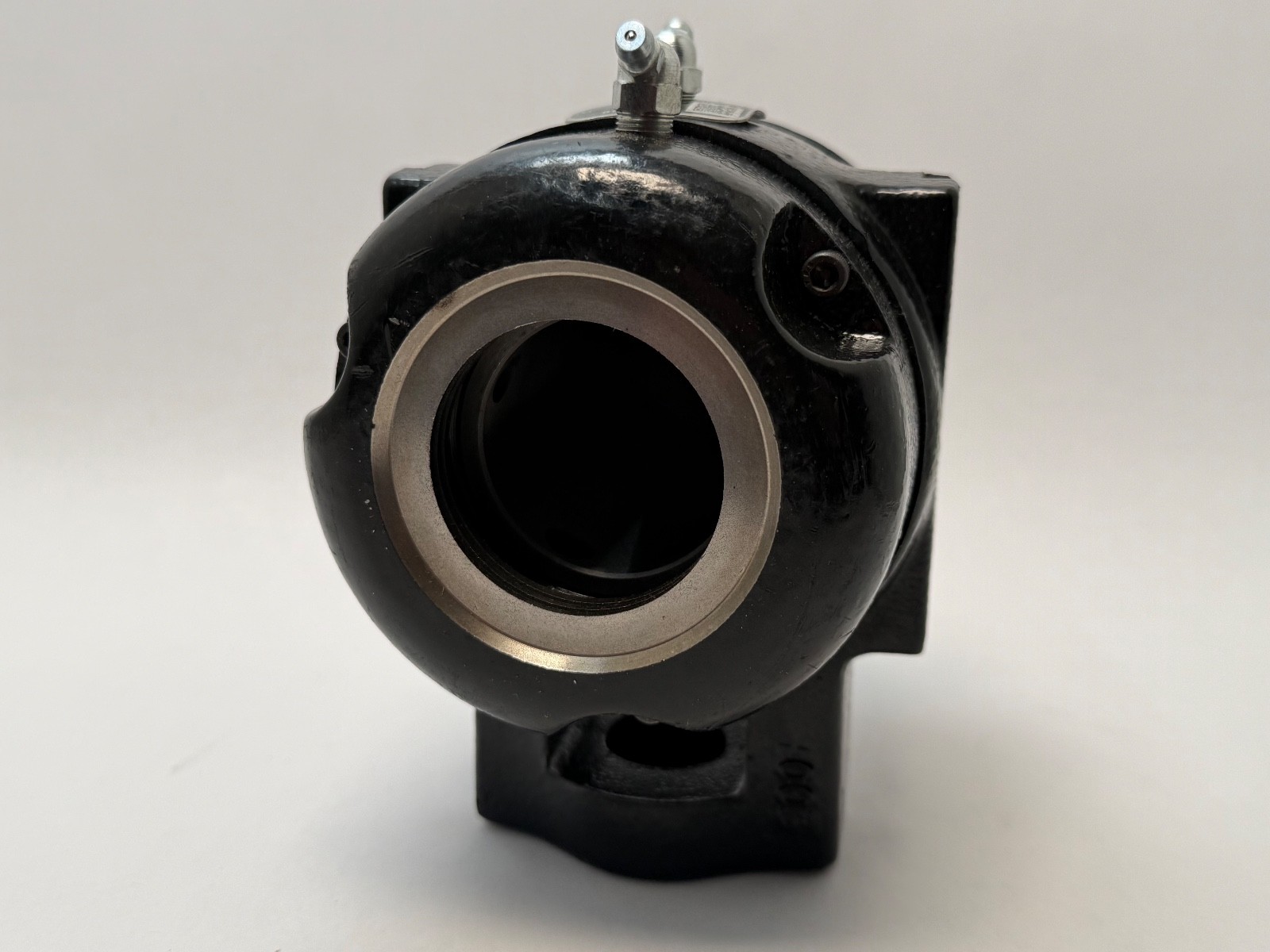

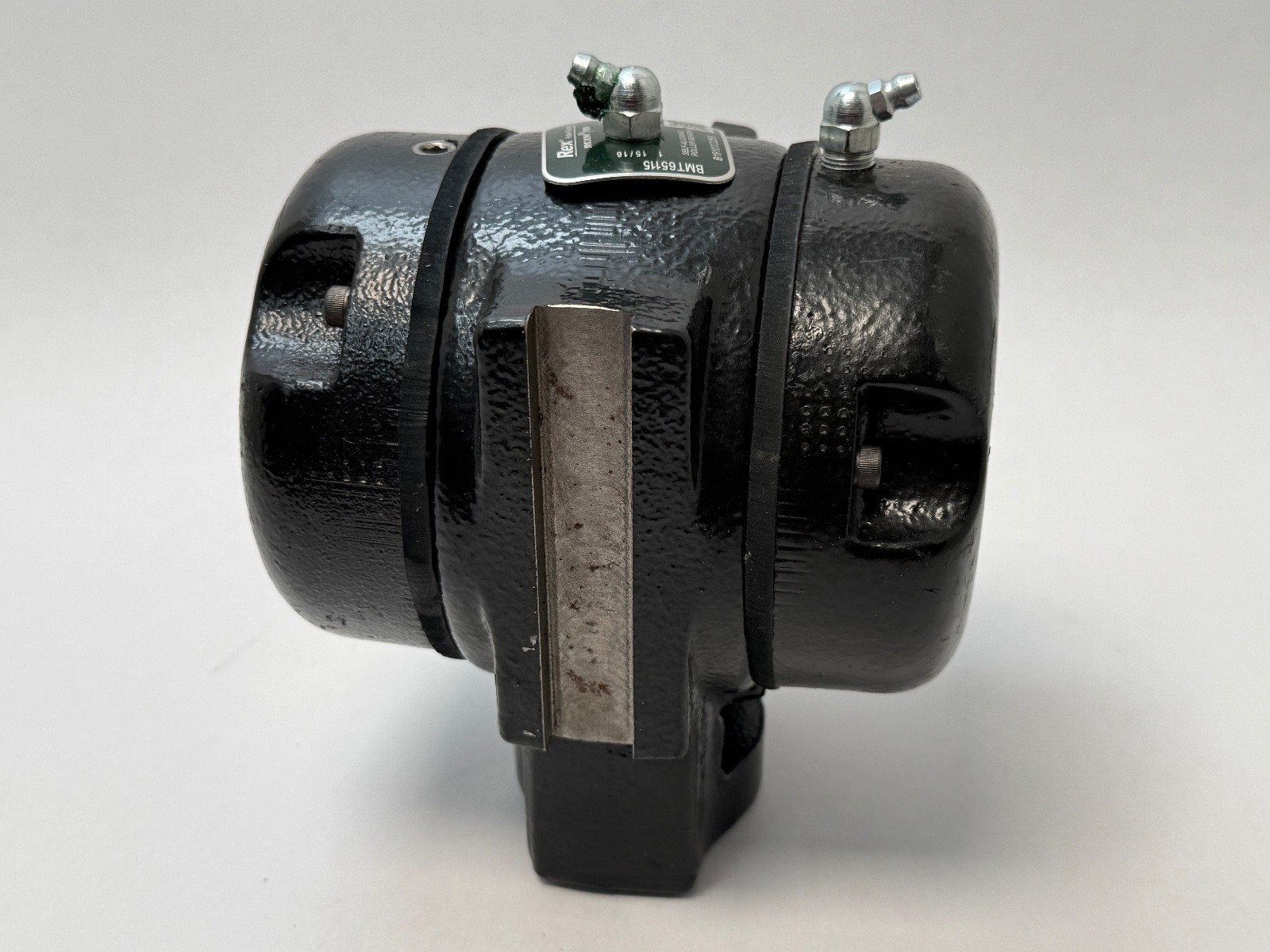

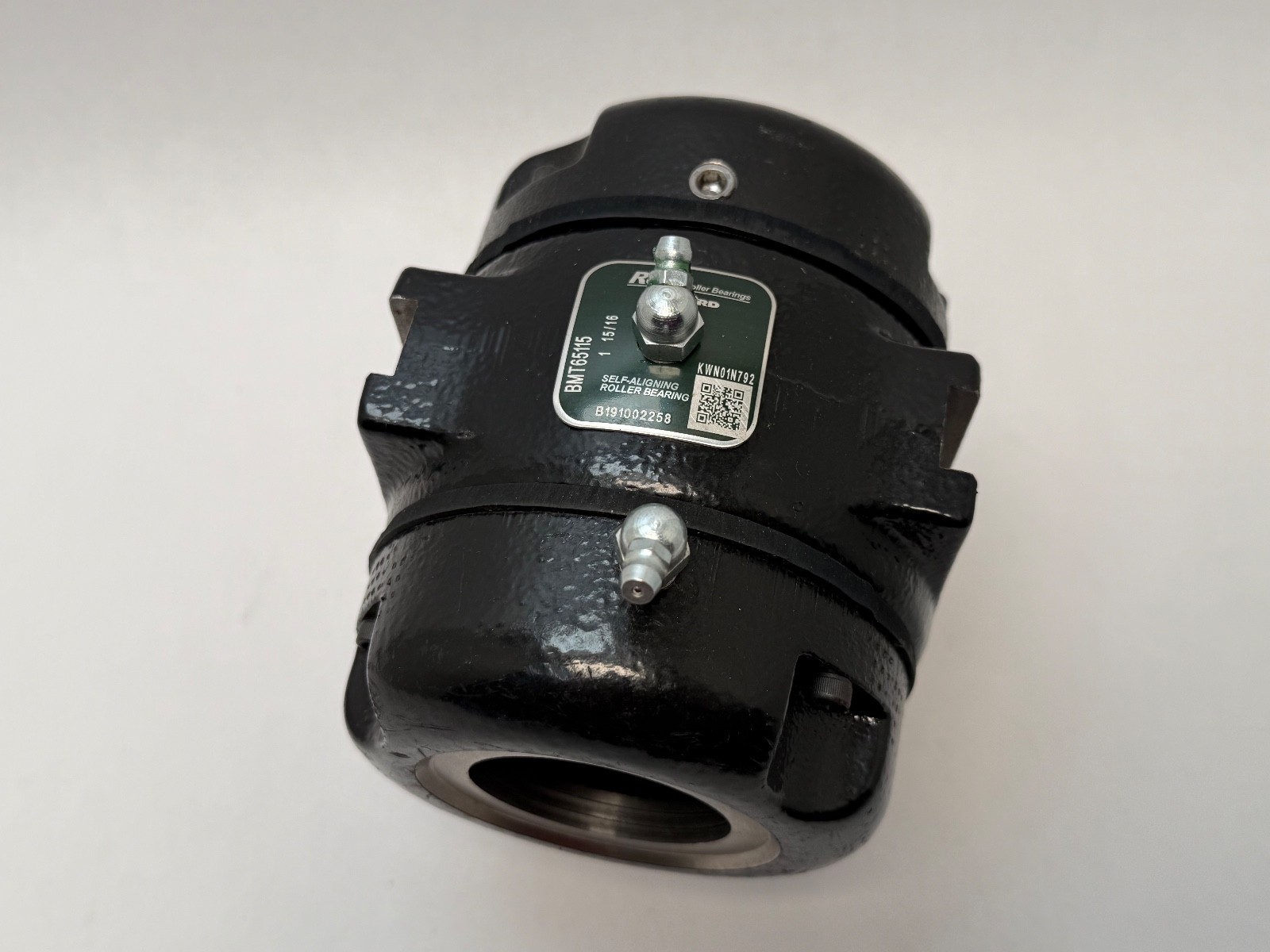

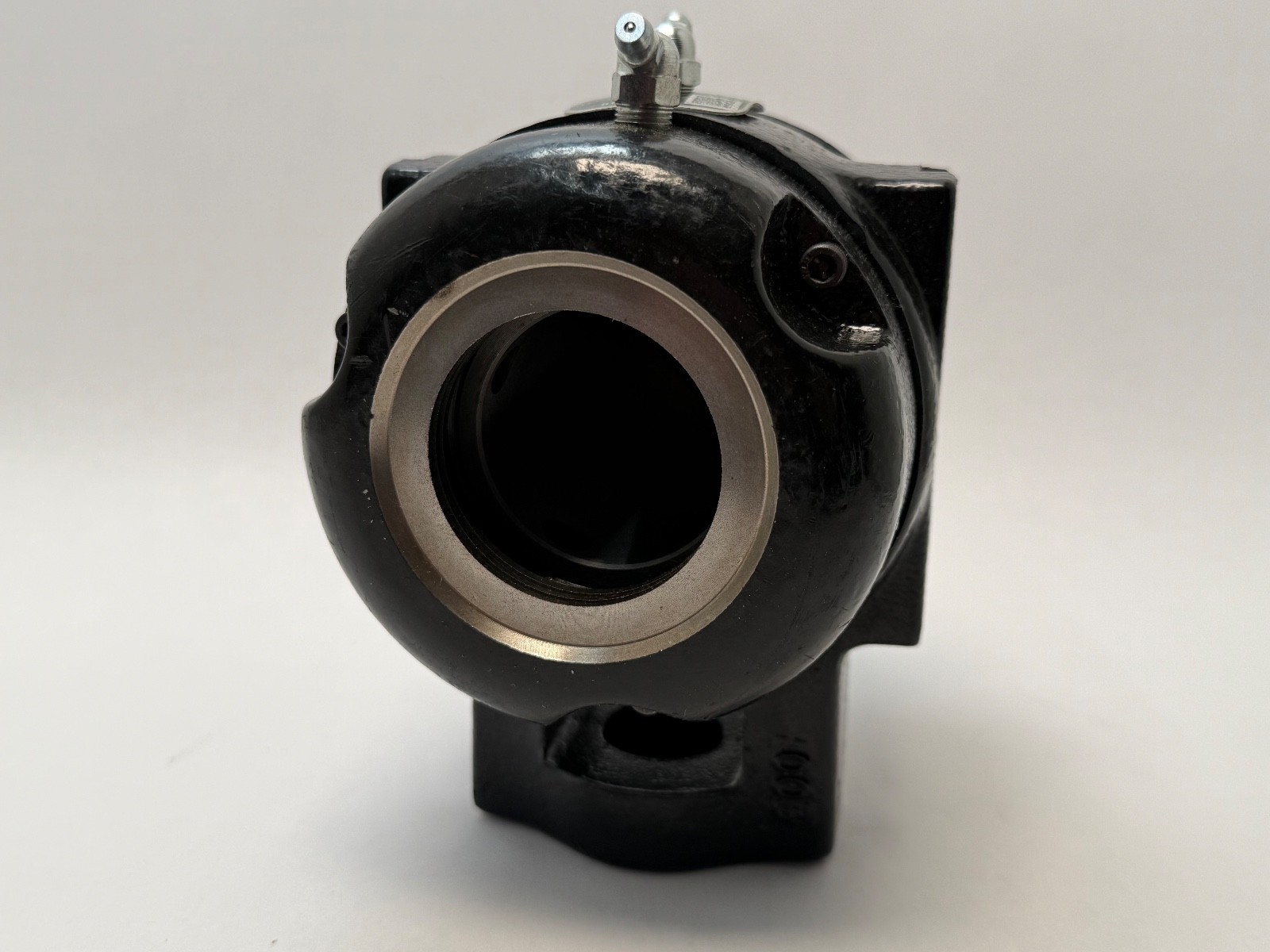

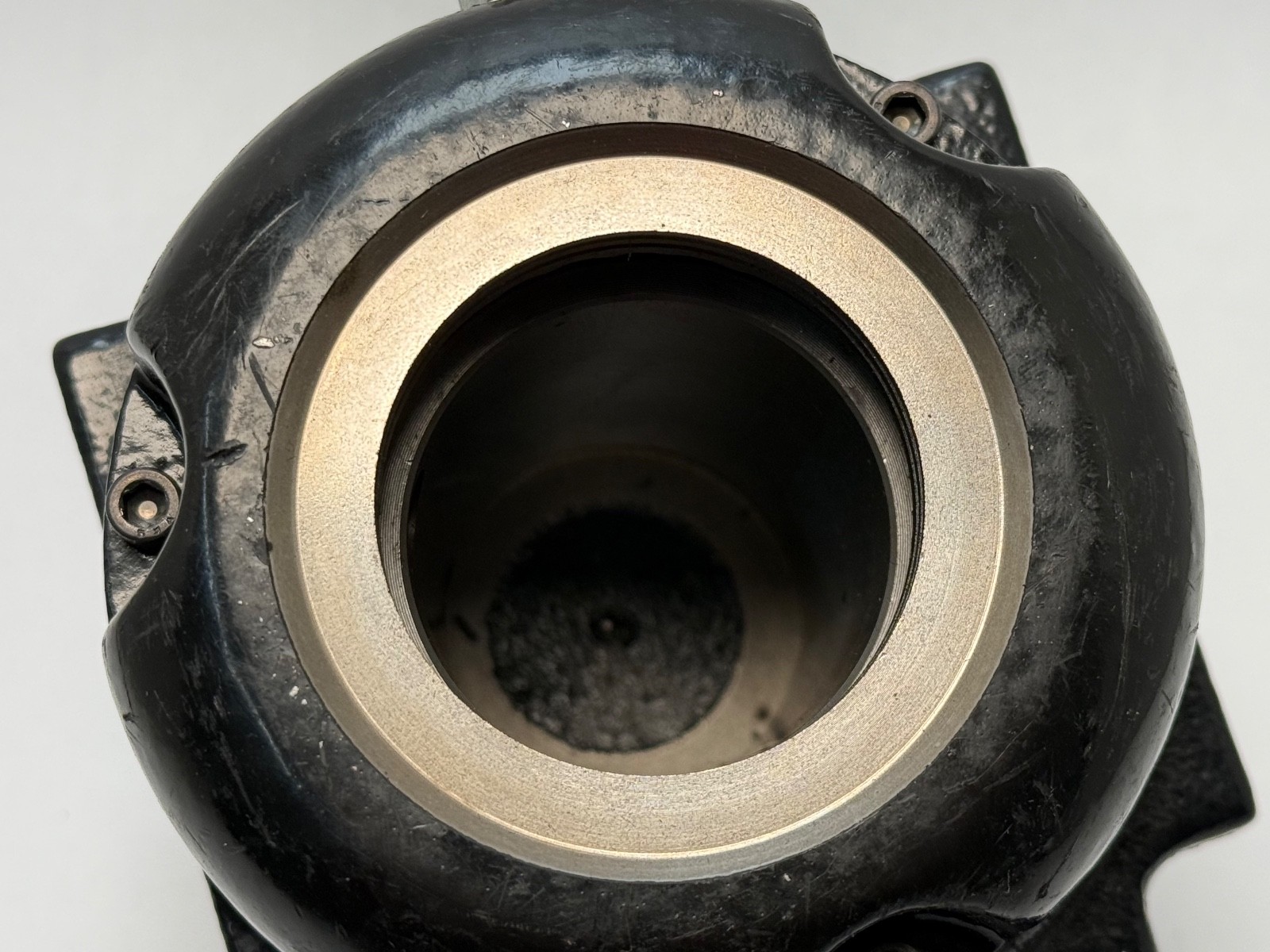

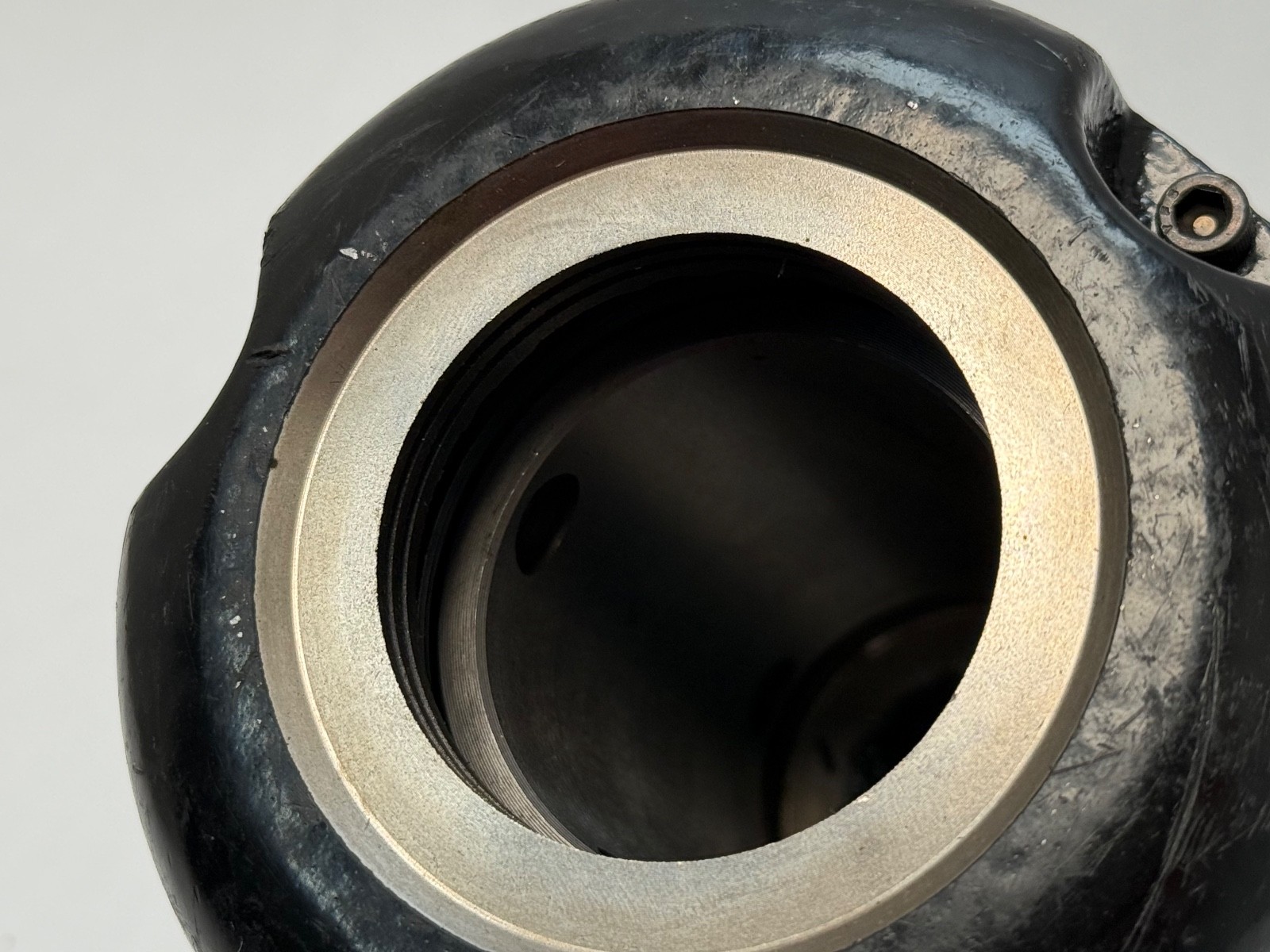

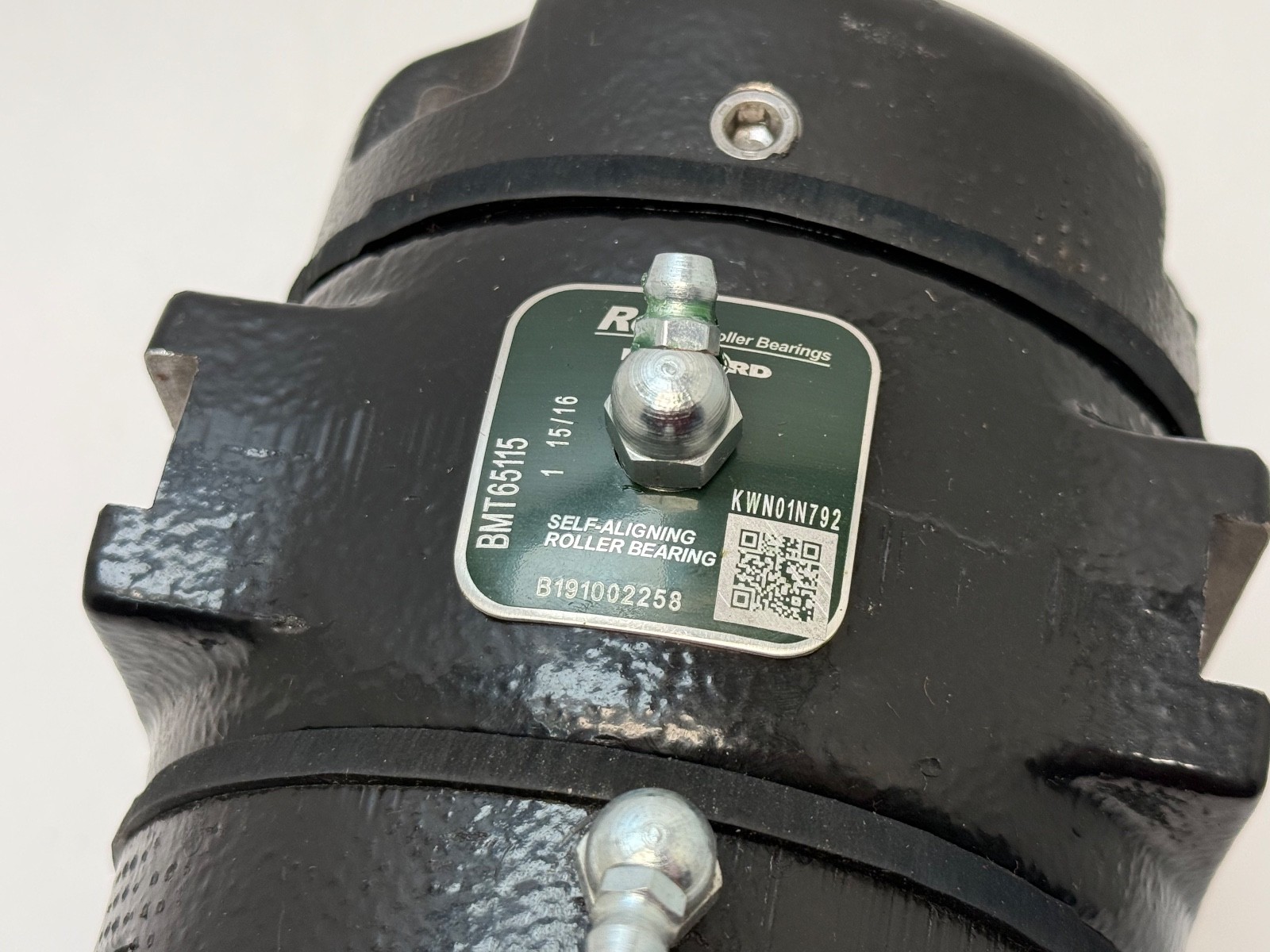

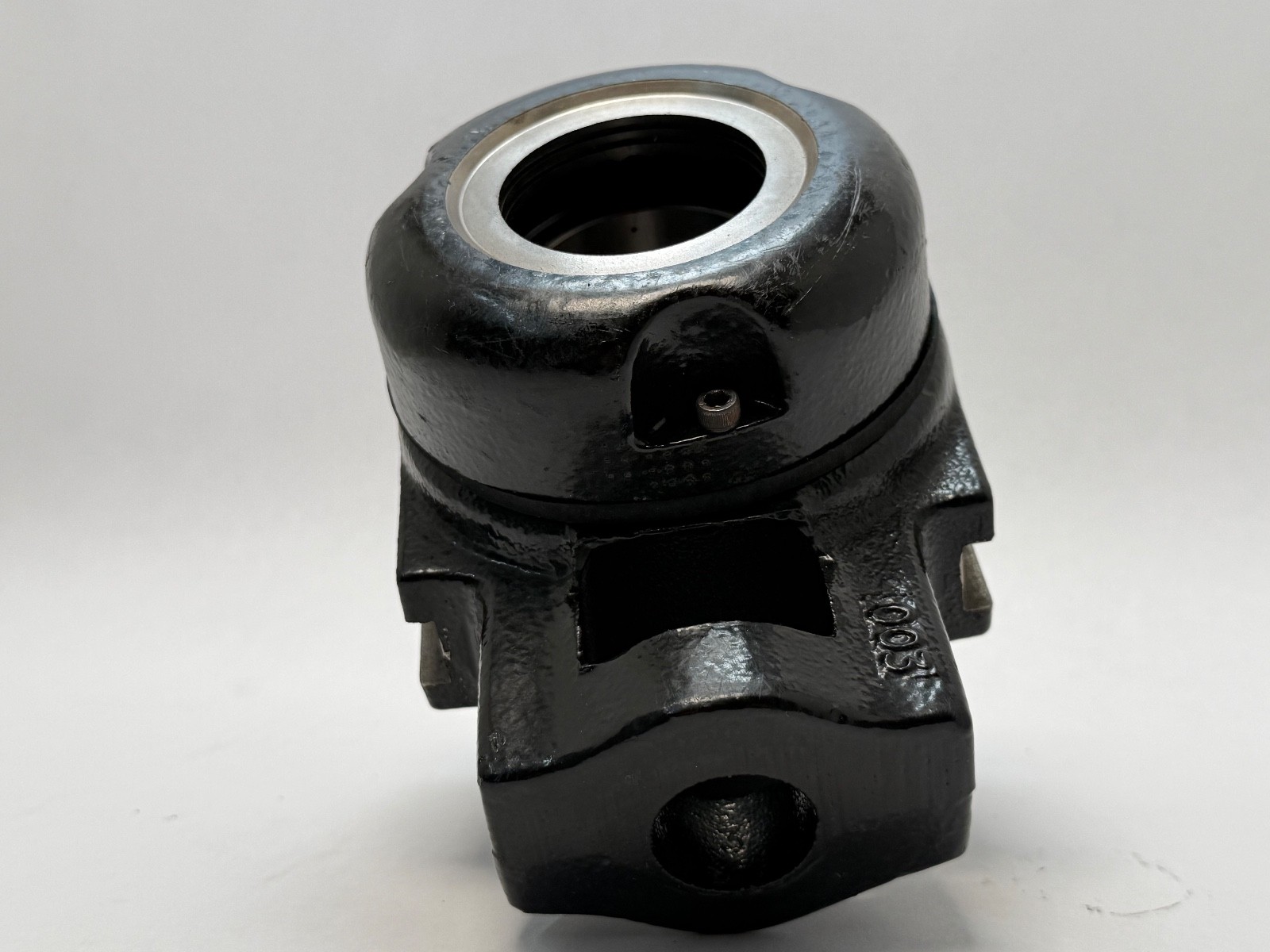

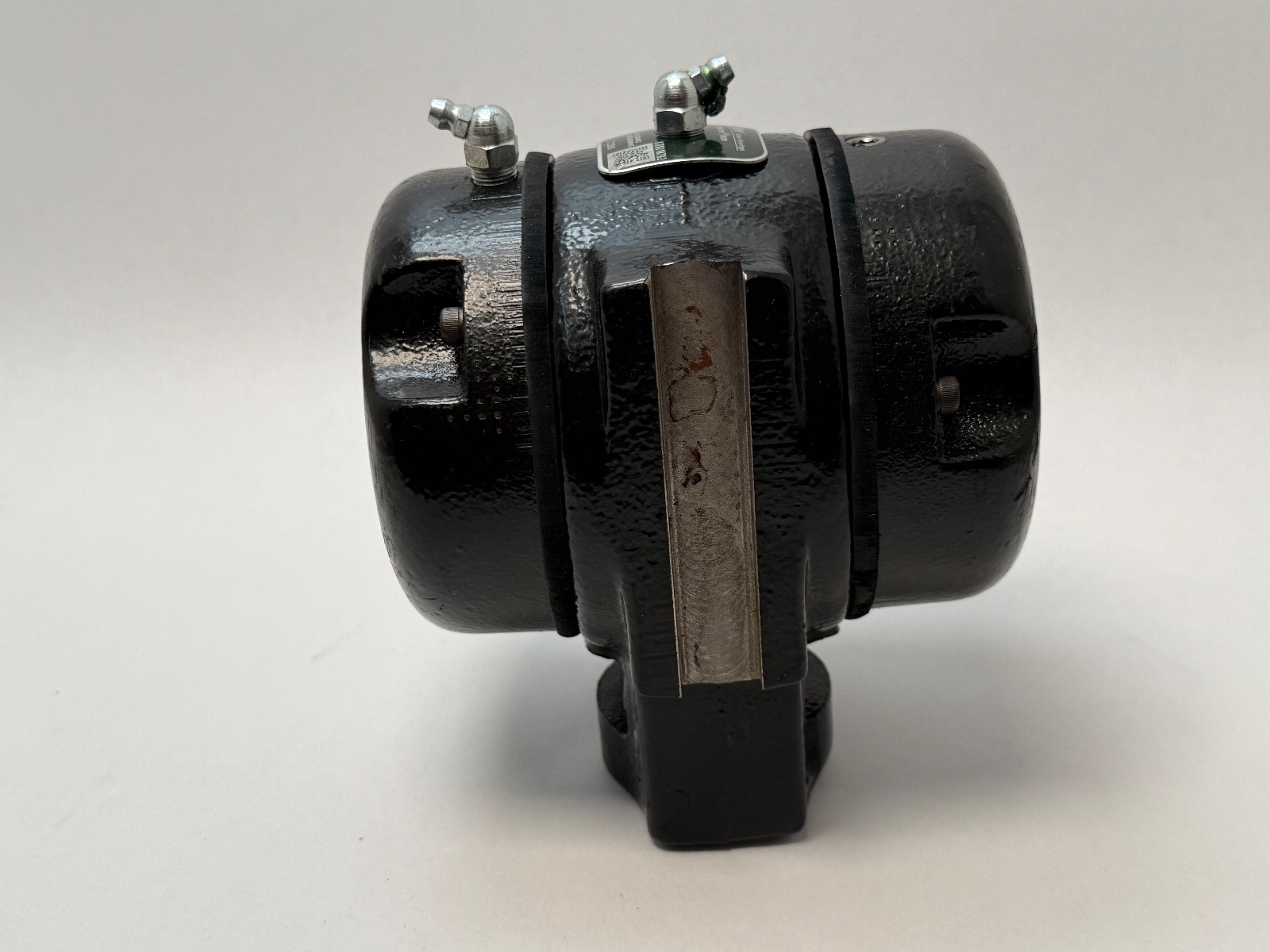

Rexnord (Rex) BMT65115 mounted spherical roller bearing in a fixed cast iron wide-slot take-up block. Rexnord material number 10408836. Bore Diameter: 1-15/16 in (1.9375 in). Housing Style: Take-up block. Housing Material: Cast iron, black powder coated. Rolling Elements: Spherical Roller. Insert: 5115U.

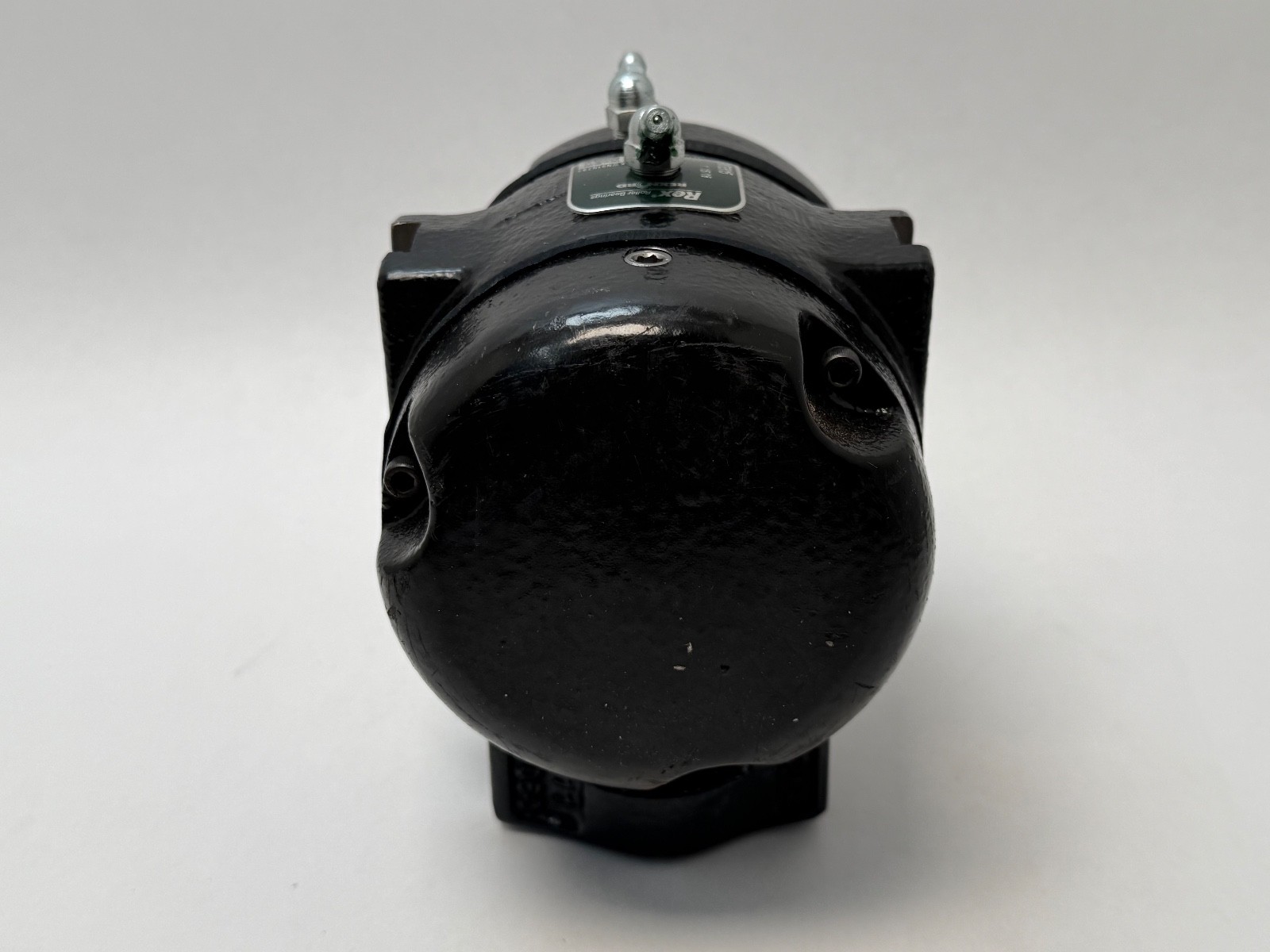

B — Rex auxiliary cap arrangement: one open and one closed cast iron cap.
M — Rex spring-loaded heavy contact lip seal (Buna).
T — Rex take-up block, ZT5000 family.
6 — housing size code 6.
5 — 5000 series, double setscrew locking collar.
115 — bore code for a 1-15/16 in shaft.
Dynamic Load Rating: 128,510 N (28,890 lbf). Static Load Rating: 147,680 N (33,200 lbf). Allowable Working Load (2/3 yield): 12,300 lb. Limiting Speed: 2,500 rpm grease. Internal Clearance: C3. Misalignment: ±2.0° dynamic. Cage Material: Engineered polymer. Lubricant: Lithium complex NLGI 2 grease, relubricatable through a 1/8 NPT fitting. Max temp: 107 °C (225 °F). Expansion Type: Fixed. Locking Device: Double setscrew collar.
Base to Center Height: 3.938 in. Slot Length: 3.38 in. Slot Width: 0.69 in. Slot Spacing: 4 in. Adjustment Slot Width: 0.75 in. Adjusting Screw Clearance Hole Diameter: 1.13 in. Adjustment Pad Height: 3.31 in. Housing Width: 2.44 in. Overall Length: 6.19 in. Overall Width: 5.56 in. Length Through Bore: 3.81 in. Item Weight: 6.62 kg (14.60 lb).

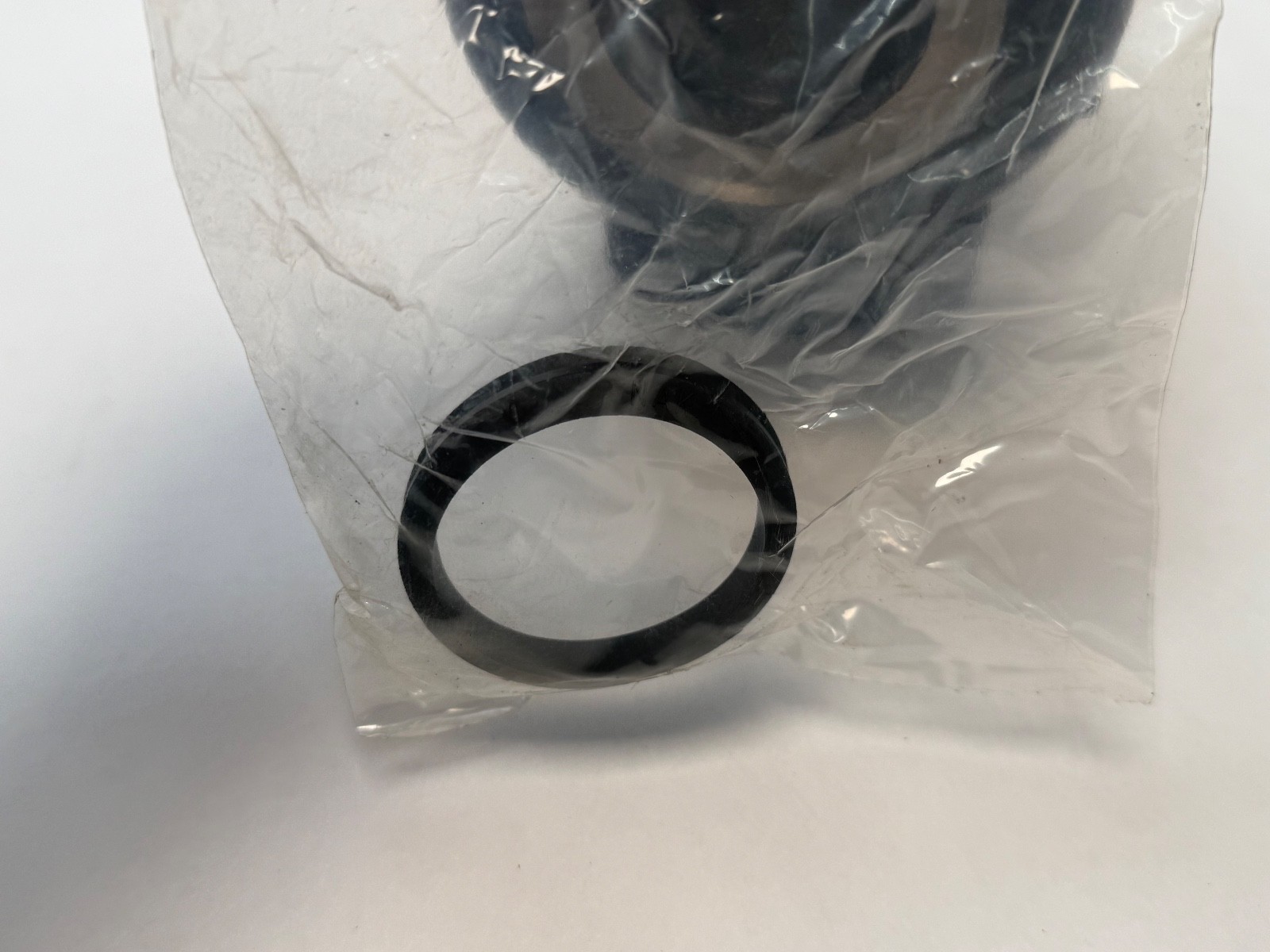

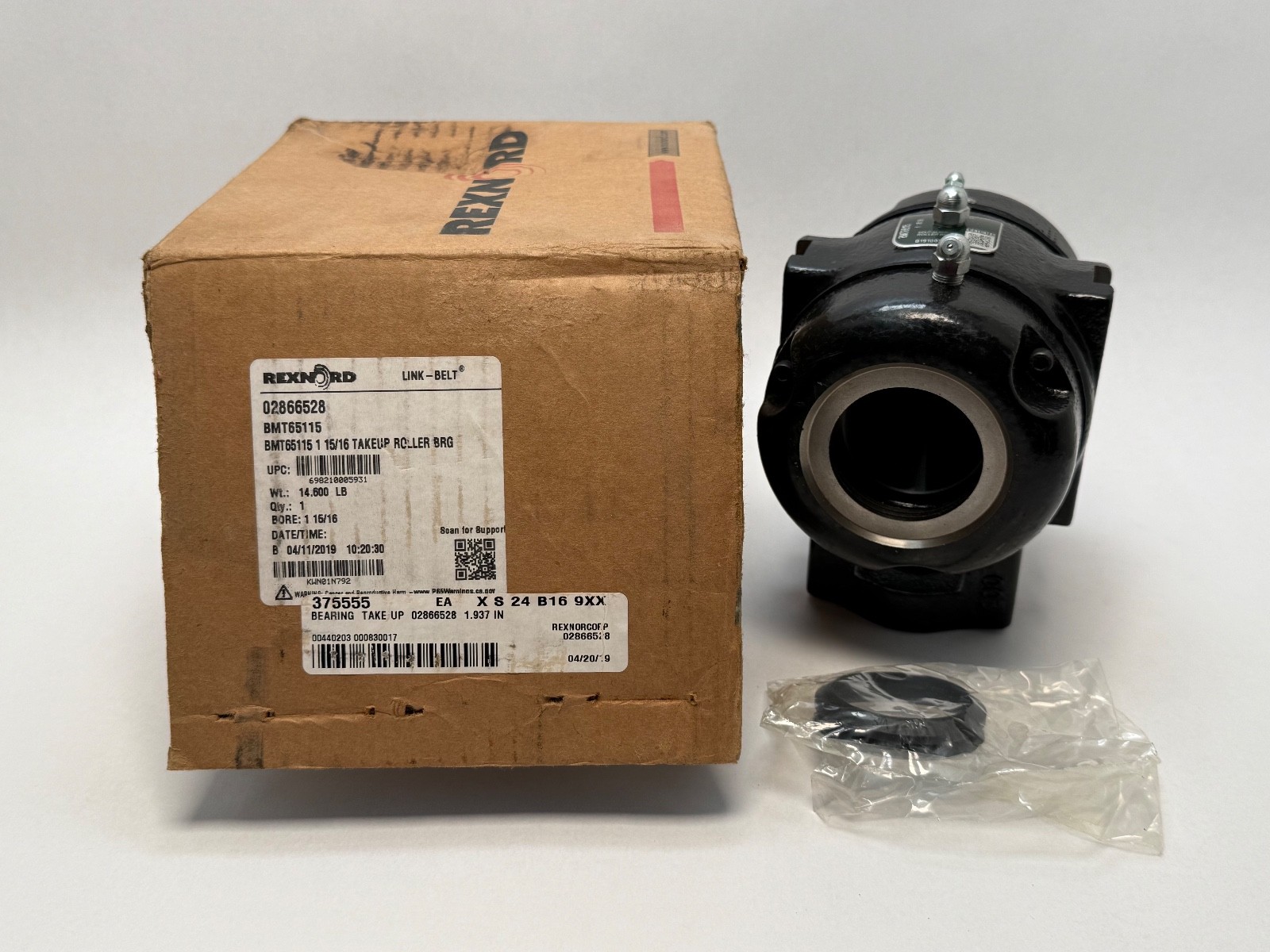

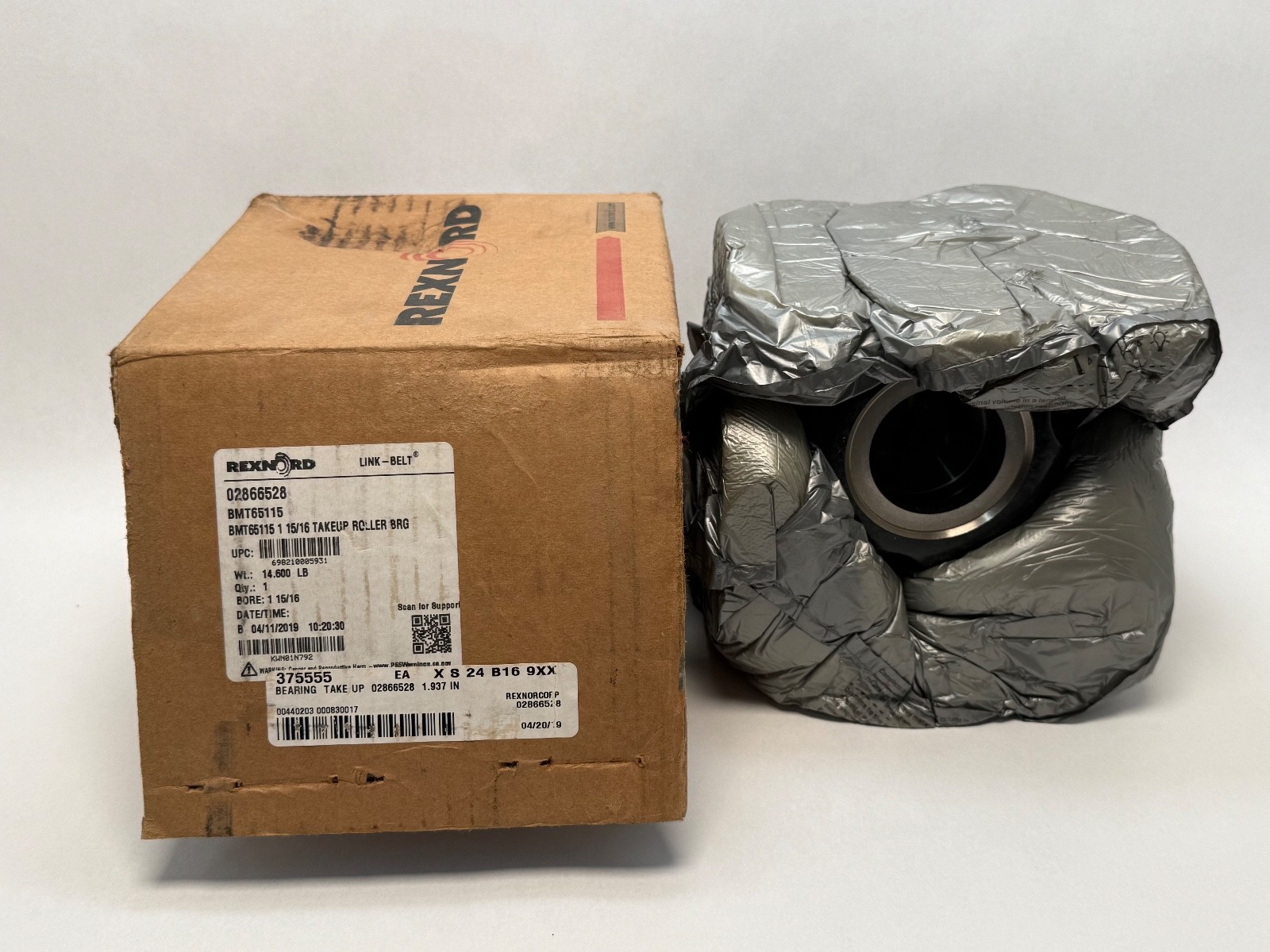

Unit Quantity: 1 Pc. Complete take-up unit with insert, collars and auxiliary caps. Seal kit MS6, locking kit SC6 (qty 2), auxiliary cap kit A6115 plus B6.
Other Rex ZT5000 seal options on the same housing: K (light contact lip), Z (clearance seal), G (triple lip). GTIN: 698210005931.
