RHP7011ETSULP4Angular Contact Ball Bearing, 55 mm ID, 90 mm OD, 18 mm Width, 25° Contact Angle, Light Preload, ABEC 7.

Condition: New

Availability:

1 in stock

RHP 7011ETSULP4 super-precision angular contact bearing, 55x90x18 mm, 25 deg contact angle, universally ground single, light preload, phenolic cage.

Same day shipment

List Price

$241.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRHP
MPN7011ETSULP4
Model7011 E T SUL P4 / B7011X3 TA DUL EP7 / 3MM9111WI CR DUL
Bearing TypeSuper Precision Angular Contact Ball Bearing, Open
ID55 mm
OD90 mm
Width18 mm

Technical Specifications

MaterialBearing Steel
Series70 (7000)
LubricantOil/Grease
PreloadLight
Base Number7011E
Industry TermsSpindle bearing, machine tool bearing, precision angular contact, universally ground single, SUL light preload
Common MisspellingsRHP 7011ETSULP4, 7011 ET SUL P4, RHP 7011 E T SUL, 7011ETUSLP4
Application TypesMachine tool spindles, grinding and finishing spindles, high-speed rotating equipment
Bore Shaft Size55 mm (2.1654 in)
Mpn Variants7011ETSULP4, 7011 E T SUL P4, 7011-E-T-SUL-P4, B7011X3TADULEP7, 7011ETSUL
Arrangement ConfigurationSU universally ground single
Precision ClassP4 (ABEC 7)
Precision RatingABEC 7
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Contact Angle25°
Part Number7011ETSULP4
Closure TypeOpen

Cross-References

Cross Reference 1SKF 7011 ACDGA/P4A - extra light preload
Cross Reference 2FAG B7011-E-T-P4S-UL
Cross Reference 3Timken Fafnir 3MM9111WI-CR-DUL
Cross Reference 4SKF 7011 CD/P4A - 15° vs 25° contact angle
Seller Part Number: B-AC2B3#75L8ZC

Product Description

What this part is:

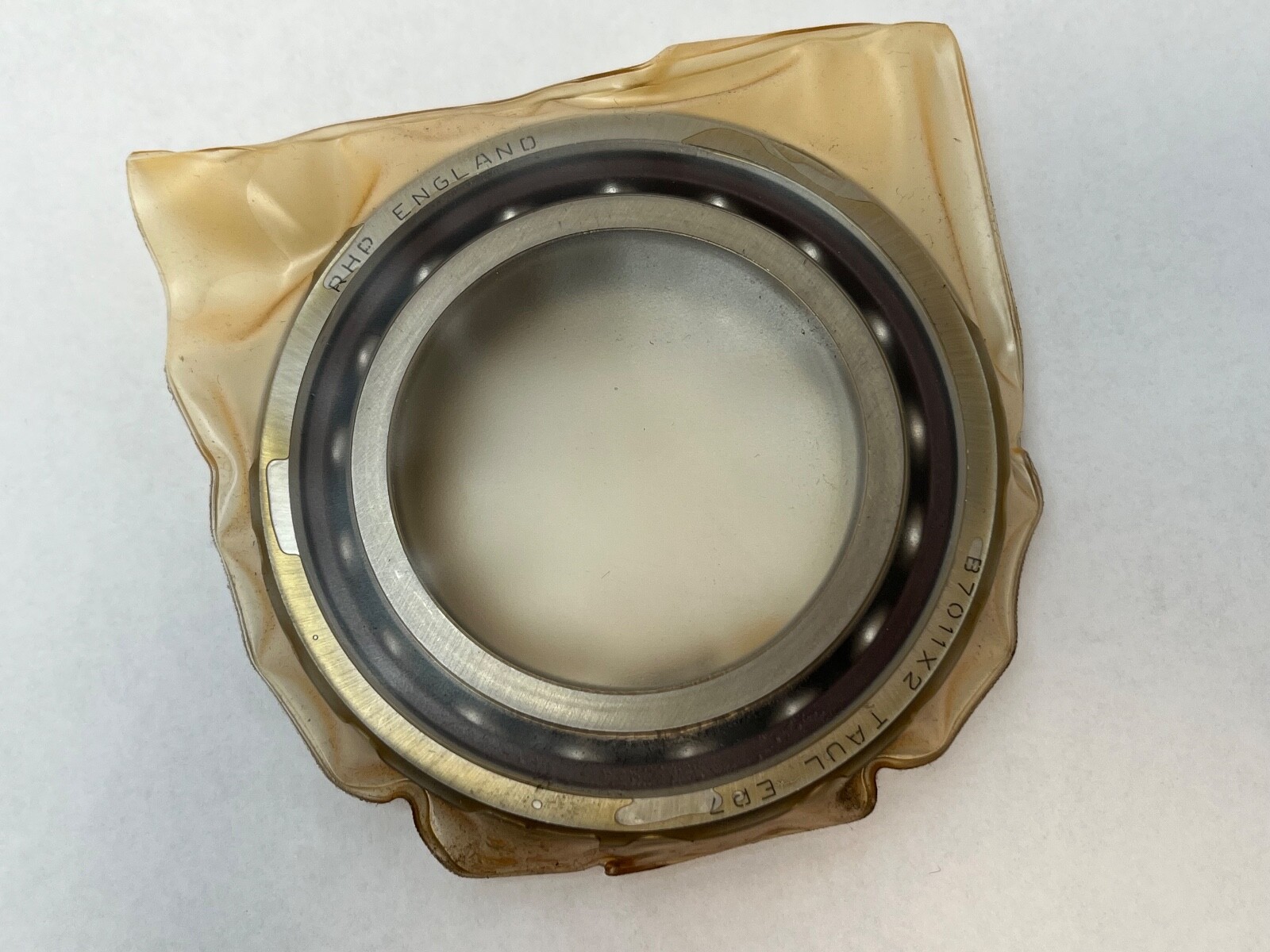

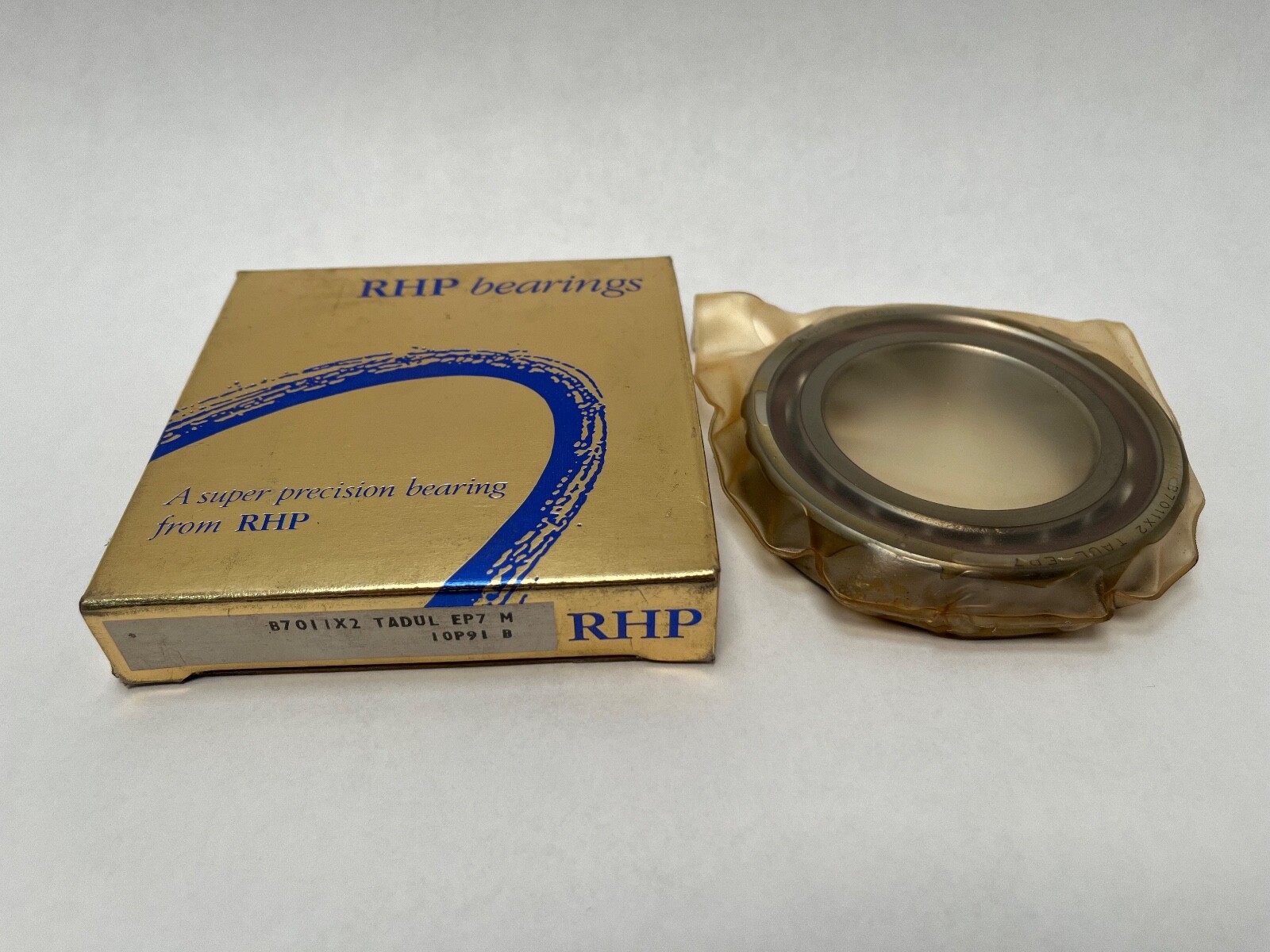

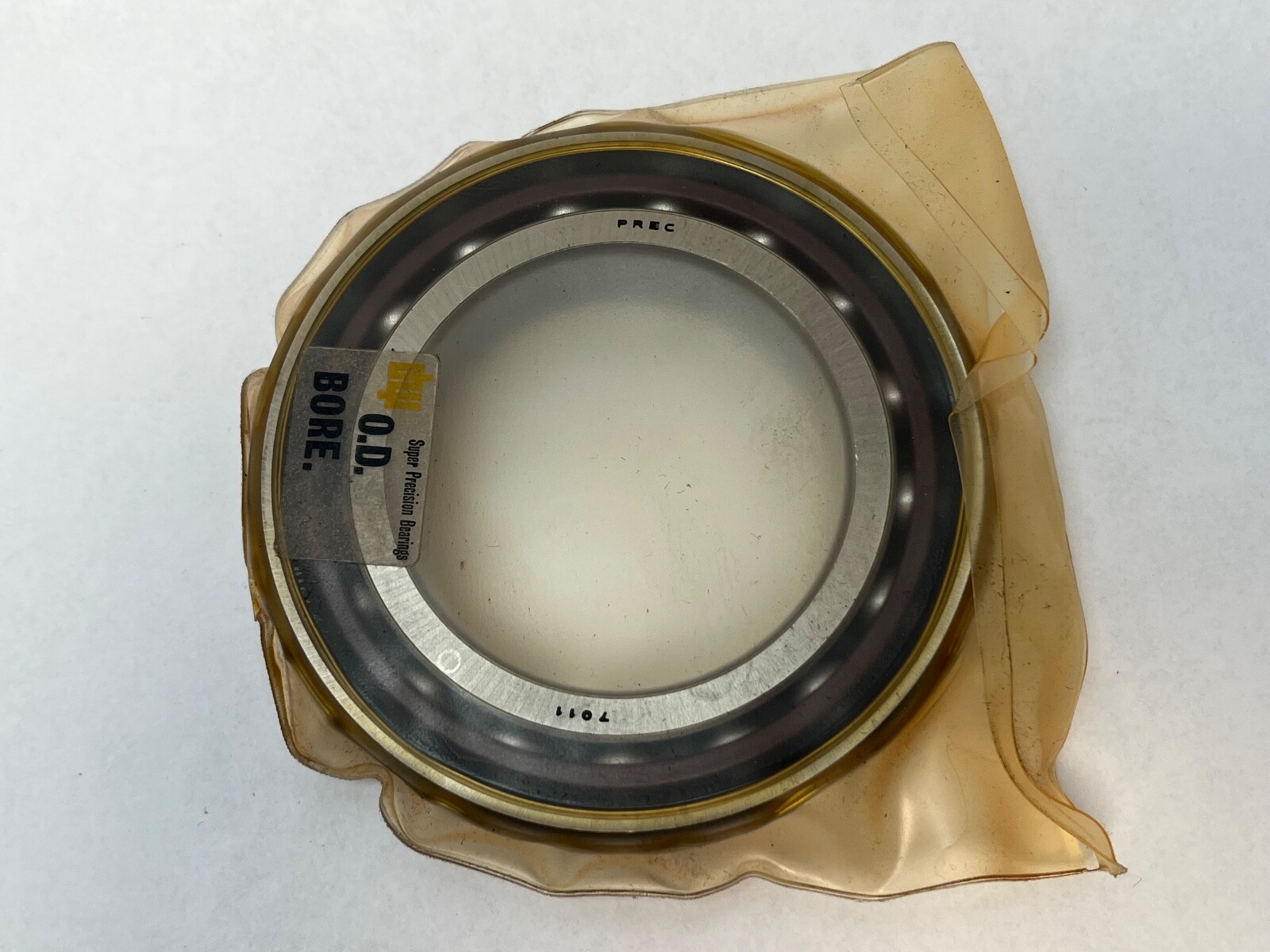

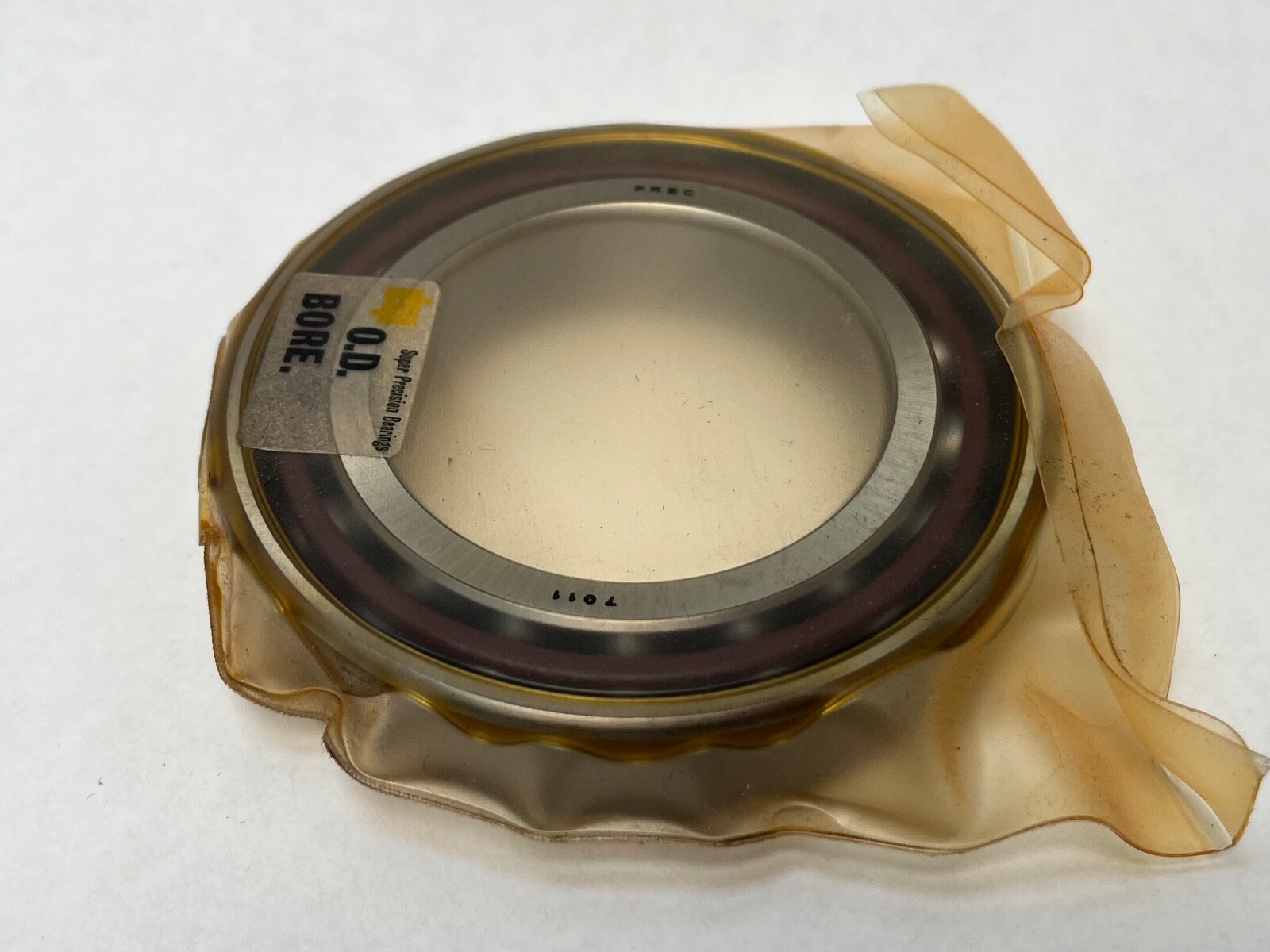

RHP 7011ETSULP4 is a super-precision single-row angular contact ball bearing, universally ground single. Bore 55 mm, outside diameter 90 mm, width 18 mm, straight bore, open on both faces, 25° contact angle, phenolic cage, light preload when mounted as a set. Unit Quantity: 1 Pc. The carton also carries B7011X3TADULEP7 and Fafnir 3MM9111WI-CR-DUL.

Decoding the designation:

7011 — ISO 70 dimension series, 55 mm bore, 55 x 90 x 18 mm.

E — 25° contact angle in the RHP and NSK scheme.

T — phenolic cage.

SU — single bearing, universally ground; it pairs back-to-back, face-to-face or in tandem with another bearing of the same family.

L — light preload for the pairing.

P4 — ABEC 7 precision class.

B7011X3TADULEP7 — RHP B-series carton designation: X3 = 25° contact angle, EP7 = ABEC 7.

3MM9111WI-CR-DUL — Timken Fafnir designation: 3MM = 25° contact angle, 9111 = ISO 7011 envelope.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 90 mm. Width: 18 mm. Contact Angle: 25°. Preload: Light. Precision Class: P4 (ABEC 7). Cage Material: Phenolic. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Unit Quantity: 1 Pc. Country of Origin: United Kingdom.

Dimensions and mounting:

Universally ground faces: the bearing pairs back-to-back, face-to-face or in tandem. Preload is set at manufacture, so no internal clearance class applies. The ISO base number is 7011E, written 7011A5 in the NSK scheme.

Compatibility and replacement:

Cross-references: SKF 7011 ACDGA/P4A (extra light preload), FAG B7011-E-T-P4S-UL, Timken Fafnir 3MM9111WI-CR-DUL. SKF 7011 CD/P4A shares the 55 x 90 x 18 mm envelope at a 15° contact angle.

Frequently asked questions:

What are the size and contact angle of the RHP 7011ETSULP4?

55 mm bore, 90 mm outside diameter, 18 mm wide, with a 25° contact angle.

Is this a single bearing or a pair?

One universally ground single bearing (SU), light preload (L), ABEC 7 (P4).

What do the E, T, SUL and P4 codes mean?

E is a 25° contact angle, T is a phenolic cage, SU is a universally ground single bearing with L light preload, and P4 is the ABEC 7 precision class.
