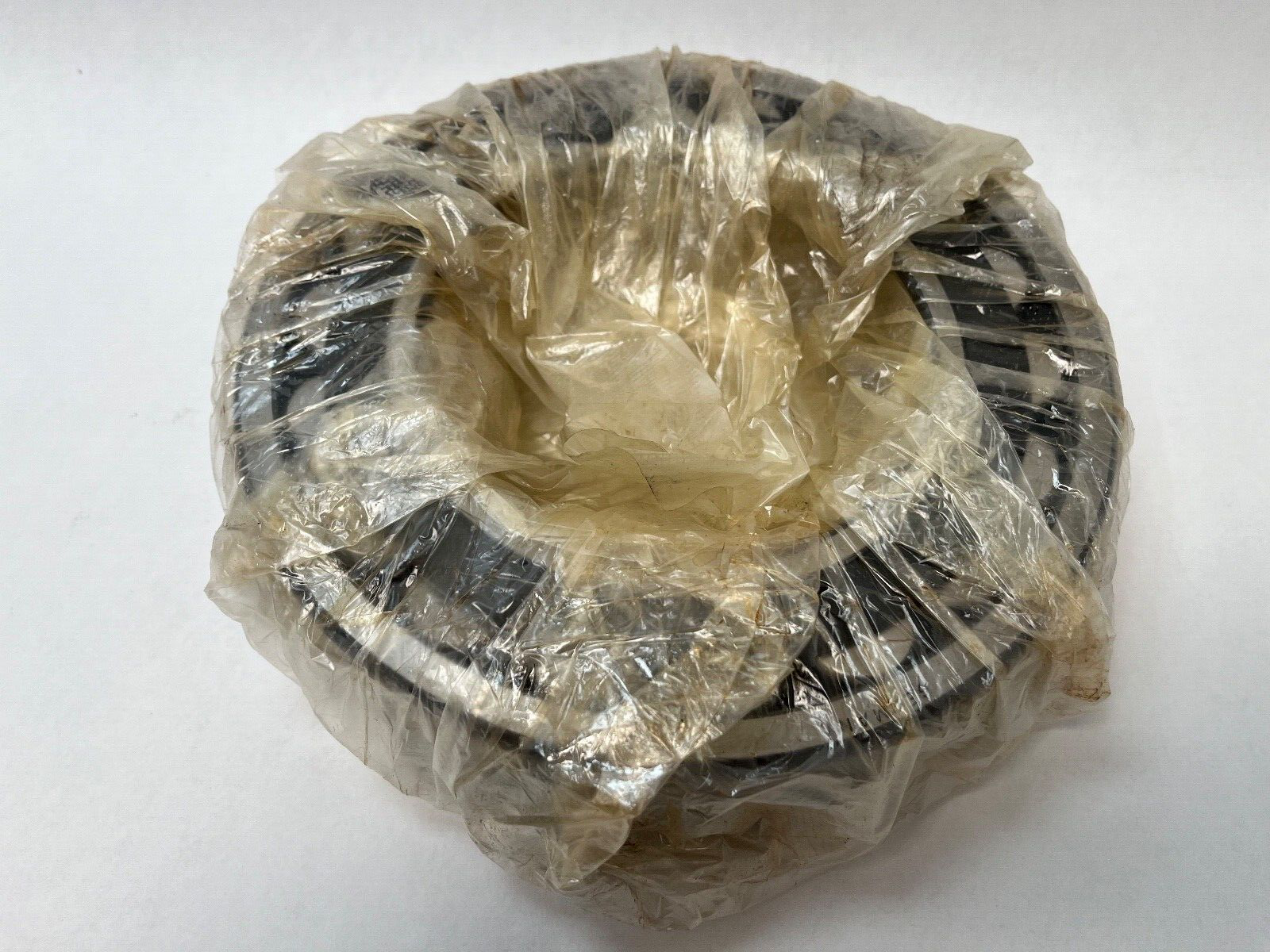

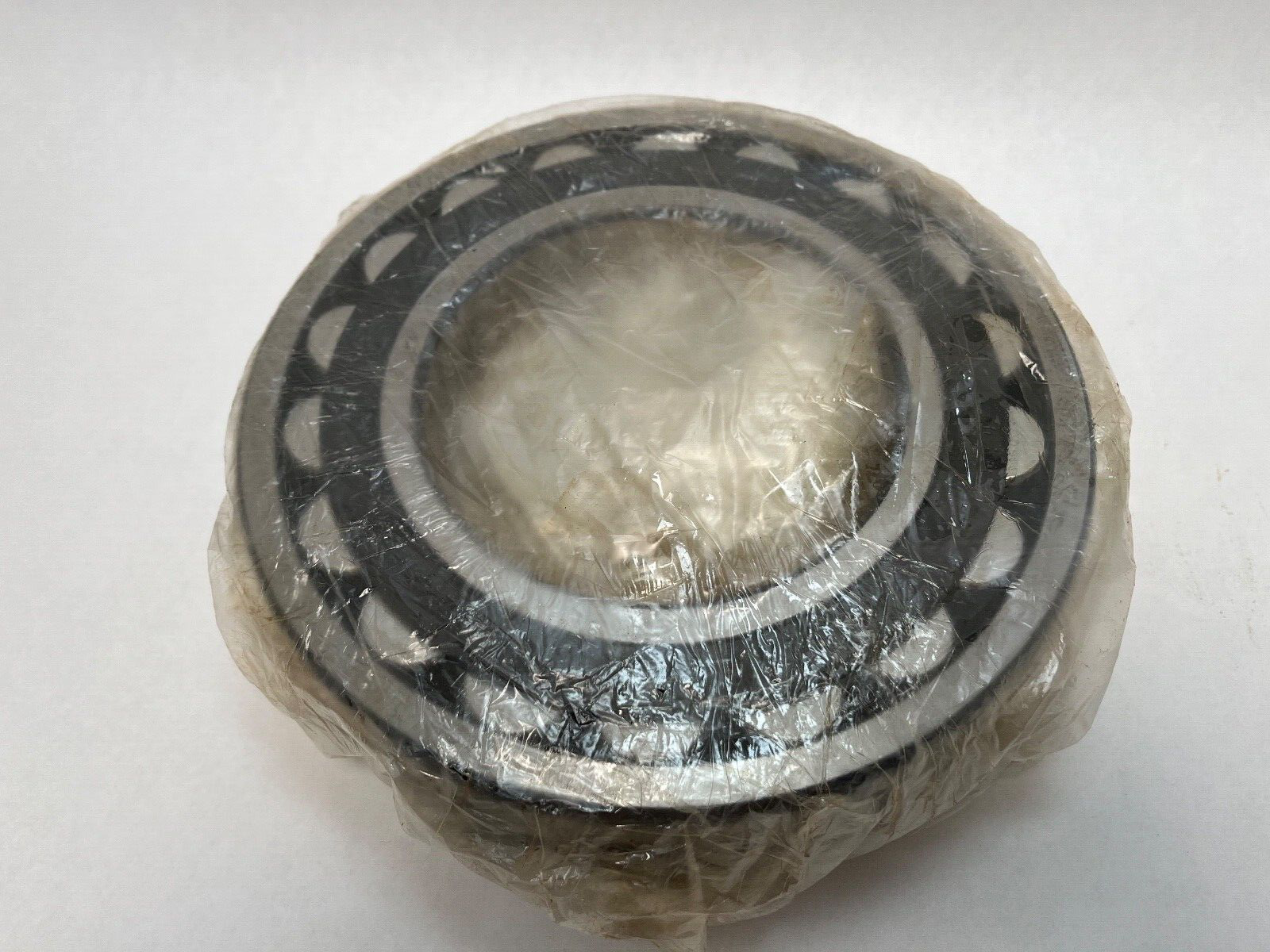

Double-row spherical roller bearing, 120 mm tapered 1:12 bore x 215 mm OD x 58 mm wide, reinforced E design, glass-fibre reinforced polyamide cage, outer-ring lube groove and three holes. 1 Pc.
List Price
$228.70
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224ESKTVPW33 |
| Model | 22224 ESK/CKY/ASK TVP W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Grease/Oil |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, SRB |
| Common Misspellings | 22224ESKTVP, 22224 ESK TVP, 2224ESK.TVP, 22224ES K.TVPB, spherical rolller bearing |
| Application Types | Conveyor pulleys and drums, fans and blowers, crushers and screens, gearboxes, pumps, plummer blocks |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224ESK.TVP, 22224 ES K TVP, 22224-ES-K-TVP-W33, 22224ESKTVP, 22224-E1-XL-K-TVPB-W33, 22224EK.TVPB |
| Compatible With Replaces | Adapter sleeve H3124 (110 mm shaft seat) - not included |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 22224ESK.TVP |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22224 EK/W33 |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4 |
| Cross Reference 3 | Timken 22224EJKW33 |

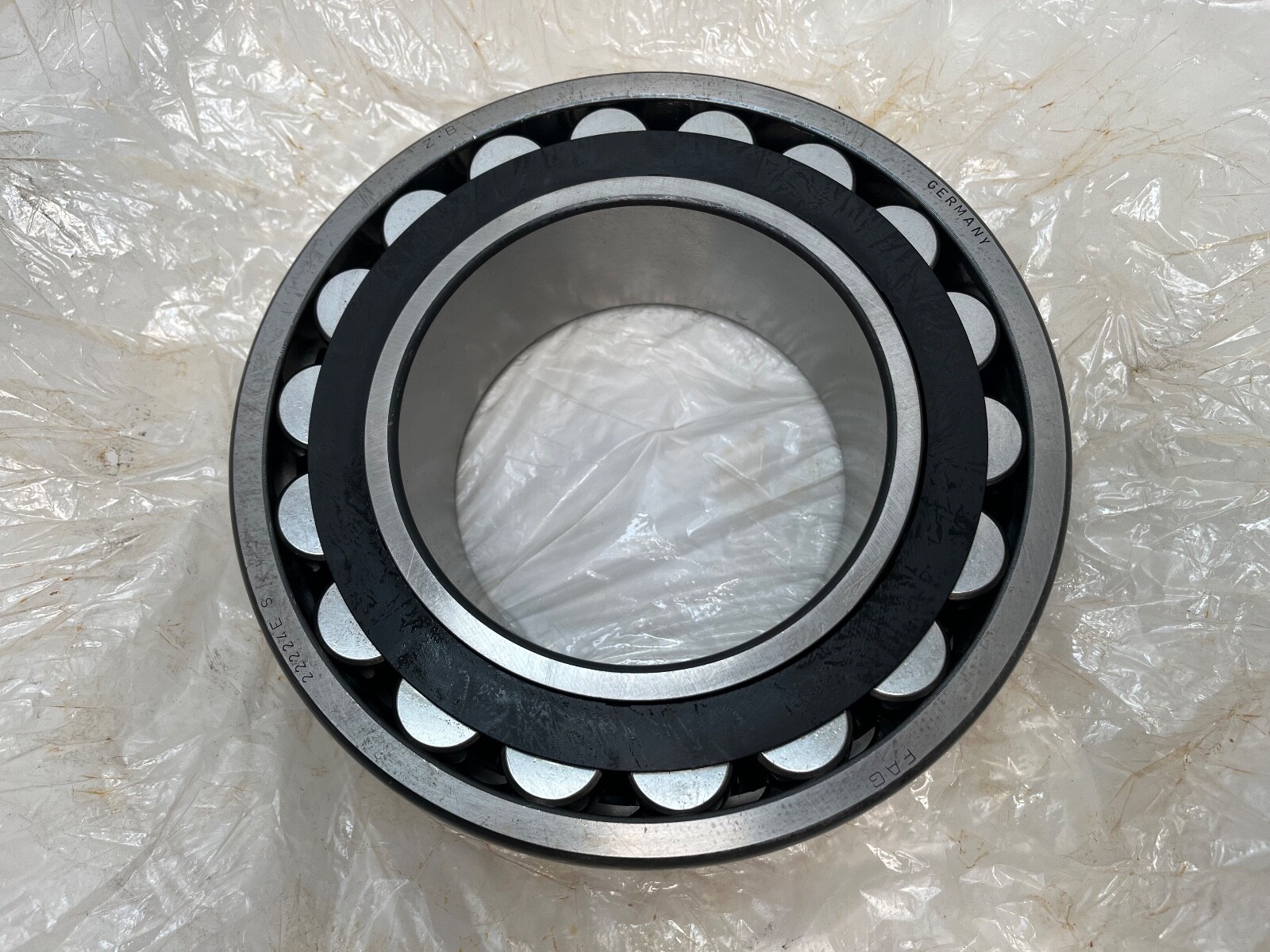

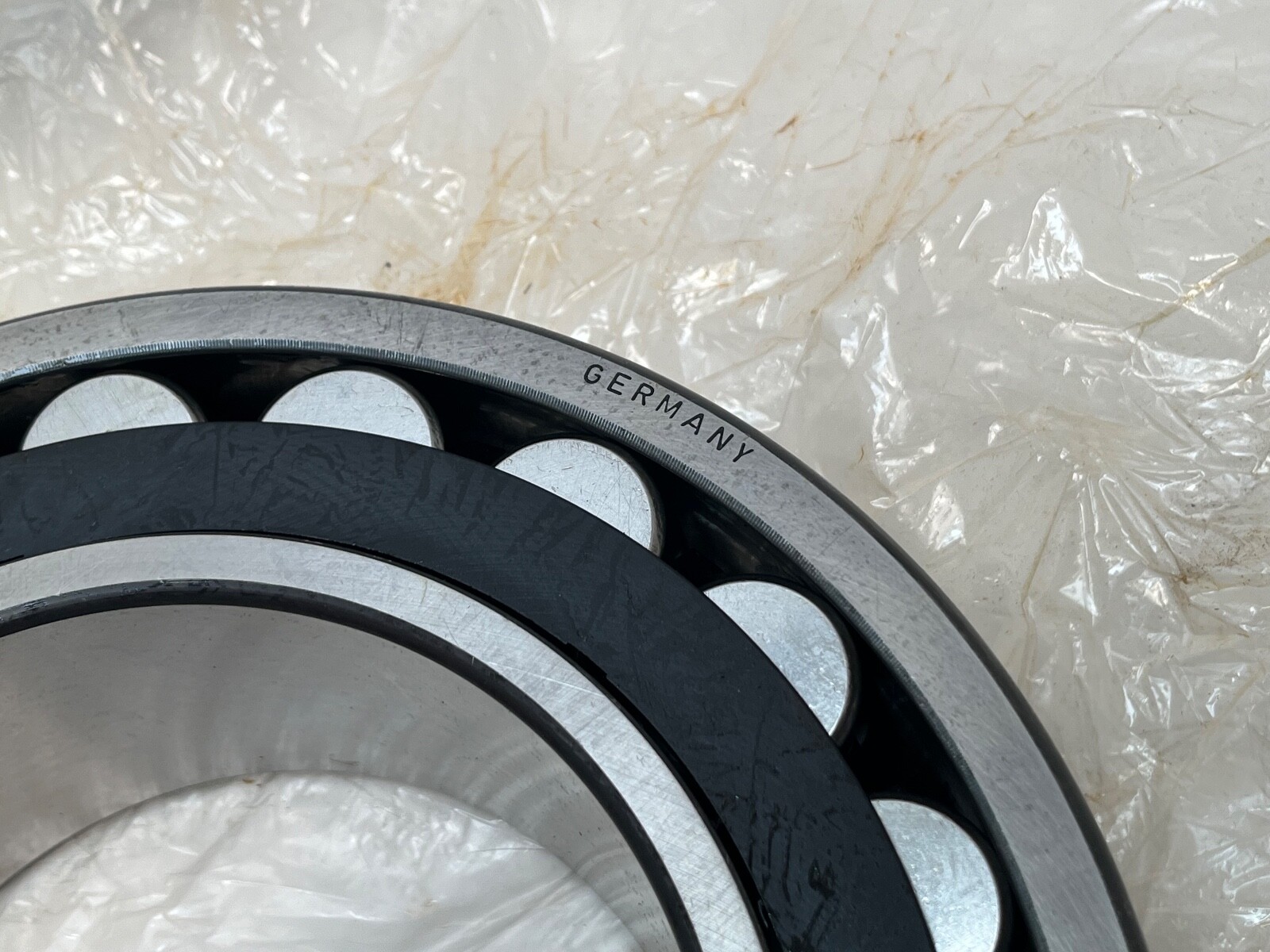

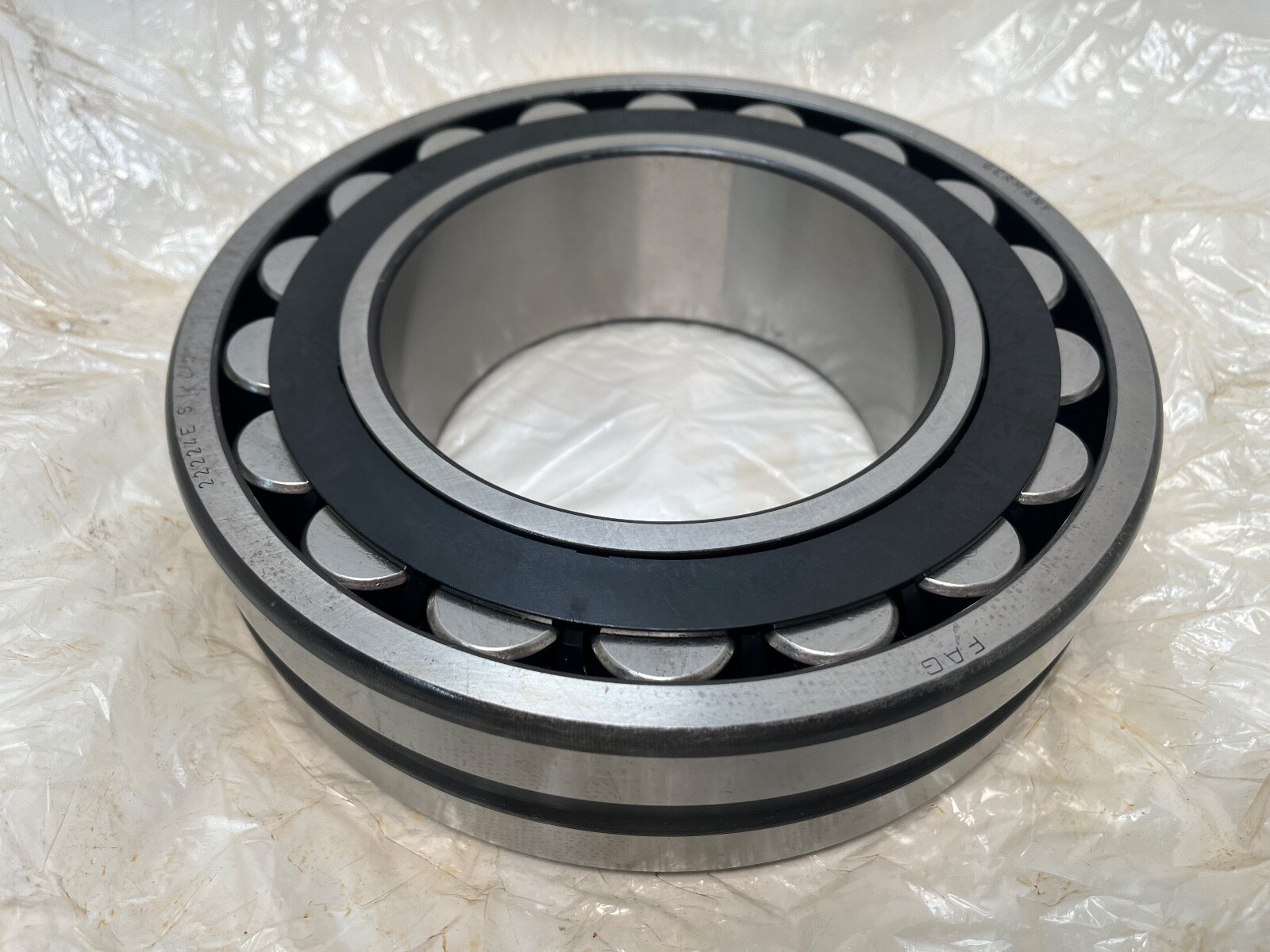

FAG 22224-ES-K-TVP double-row spherical roller bearing with a tapered 1:12 bore. Two rows of barrel rollers share one spherical outer raceway, so the inner ring and roller set swivel inside the outer ring.

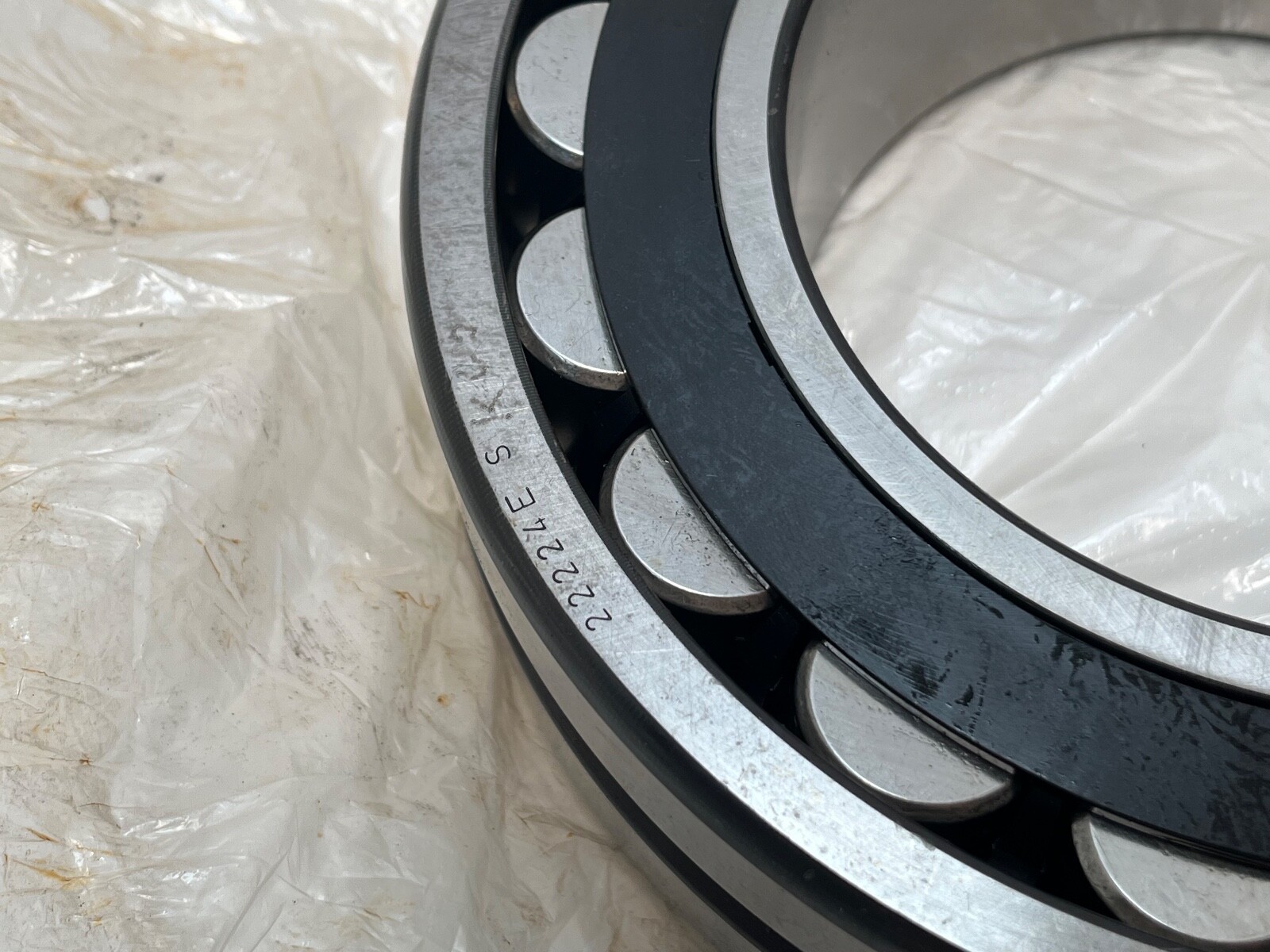

222 – double-row spherical roller bearing, dimension series 22
24 – bore code, 24 × 5 = 120 mm bore
E – reinforced internal design, larger rollers and increased load capacity
S – lubrication groove in the outer ring with three radial holes, the FAG form of W33
K – 1:12 tapered bore
TVP – glass-fibre reinforced polyamide cage, continuous service to 120 °C
The spherical outer raceway takes up static and dynamic misalignment between shaft and housing, and the double-row roller set carries radial load plus thrust in both directions. The E design fits larger rollers into the same envelope, so capacity is higher than an equivalent non-E 22224. A polyamide cage is lighter and quieter than machined brass and handles rapid acceleration well, with the trade-off being the 120 °C ceiling. No clearance suffix appears in the designation, so radial internal clearance is normal (CN).
Bore: 120 mm (4.7244 in), tapered 1:12
Outside diameter: 215 mm (8.4646 in)
Width: 58 mm (2.2835 in)
Rows: 2
Rolling elements: barrel rollers
Cage: glass-fibre reinforced polyamide (TVP / TVPB)
Internal clearance: CN (normal)
Relubrication: outer-ring groove with three radial holes
Cage temperature ceiling: 120 °C continuous

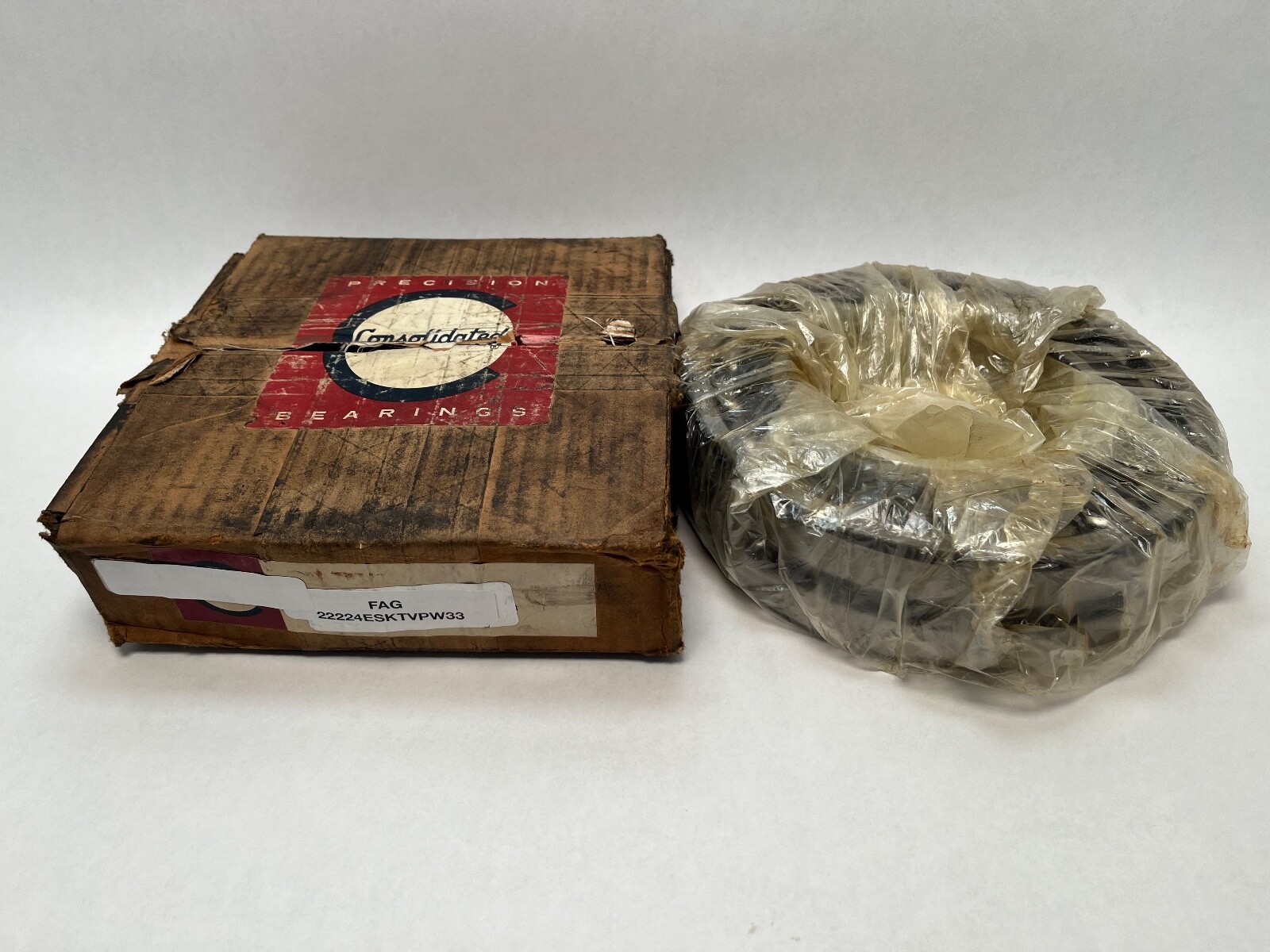

1 Pc. Bearing only. Supplied without adapter sleeve H3124.

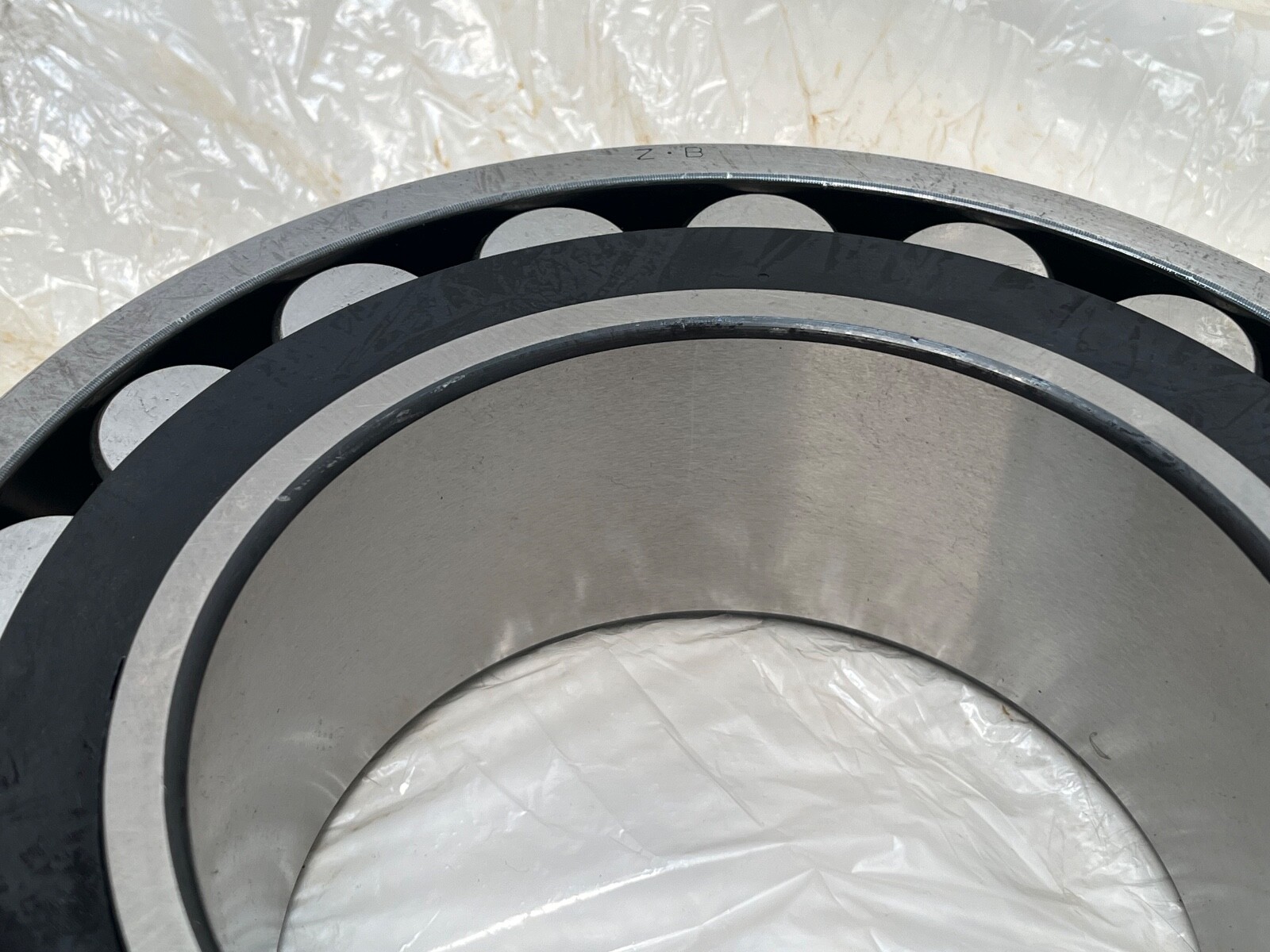

The 1:12 tapered bore seats on a matching tapered shaft journal or on an H3124 adapter sleeve, whose shaft seat is 110 mm. Drive-up distance along the taper sets the residual internal clearance, so mounted clearance follows how far the ring is pressed onto the seat. The lubrication groove aligns with the housing relubrication port.
Current Schaeffler naming for the same bearing is 22224-E1-XL-K-TVPB-W33. Tapered-bore cross-references from other makers: SKF 22224 EK/W33, NSK 22224EAKE4, Timken 22224EJKW33. Brass-cage forms (M, MB, CAM) and straight-bore 22224 forms are related sizes in the same envelope.
