Spherical Roller Bearing — 170 mm ID, 310 mm OD, 86 mm Width, Straight Bore, W33 Lubrication Groove, CN Clearance$655.78
Double Row Spherical Roller Bearing, Straight Bore, 170 x 310 x 86 mm, Open, W33 Lubrication Groove, CN Clearance$670.34
Double-Row Spherical Roller Bearing - Straight Bore, 170 mm ID, 310 mm OD, 86 mm Width, Open, W33 Lubrication Groove, Polyamide Cage, CN Clearance$709.22
Spherical Roller Bearing — 170 mm ID Tapered Bore, 310 mm OD, 86 mm Width, Polyamide Cage, Lubrication Groove$659.61| MFR / Brand | FAG |
|---|---|
| MPN | 22234EW33 |
| Model | 22234 E W33 / 22234C 22234CC 22234CJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 170 mm |
| OD | 310 mm |
| Width | 86 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Bore | Straight Bore |
| Min Temp | -30 °C |
| Cage Type | Sheet Steel |
| Dynamic Load Rating | 1140 kN / 256282 lbf |
| Static Load Rating | 1430 kN / 321477 lbf |
| Precision Rating | CN |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 58.30 lbs |
| Cage Material | Steel |
| Limiting Speed | 1900 rpm |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 22234 CC/W33 |
|---|---|
| Cross Reference 2 | Timken 22234EJ W33 |
| Cross Reference 3 | NSK 22234EAE4 |
| Cross Reference 4 | NTN 22234E |
| Cross Reference 5 | SNR 22234E |

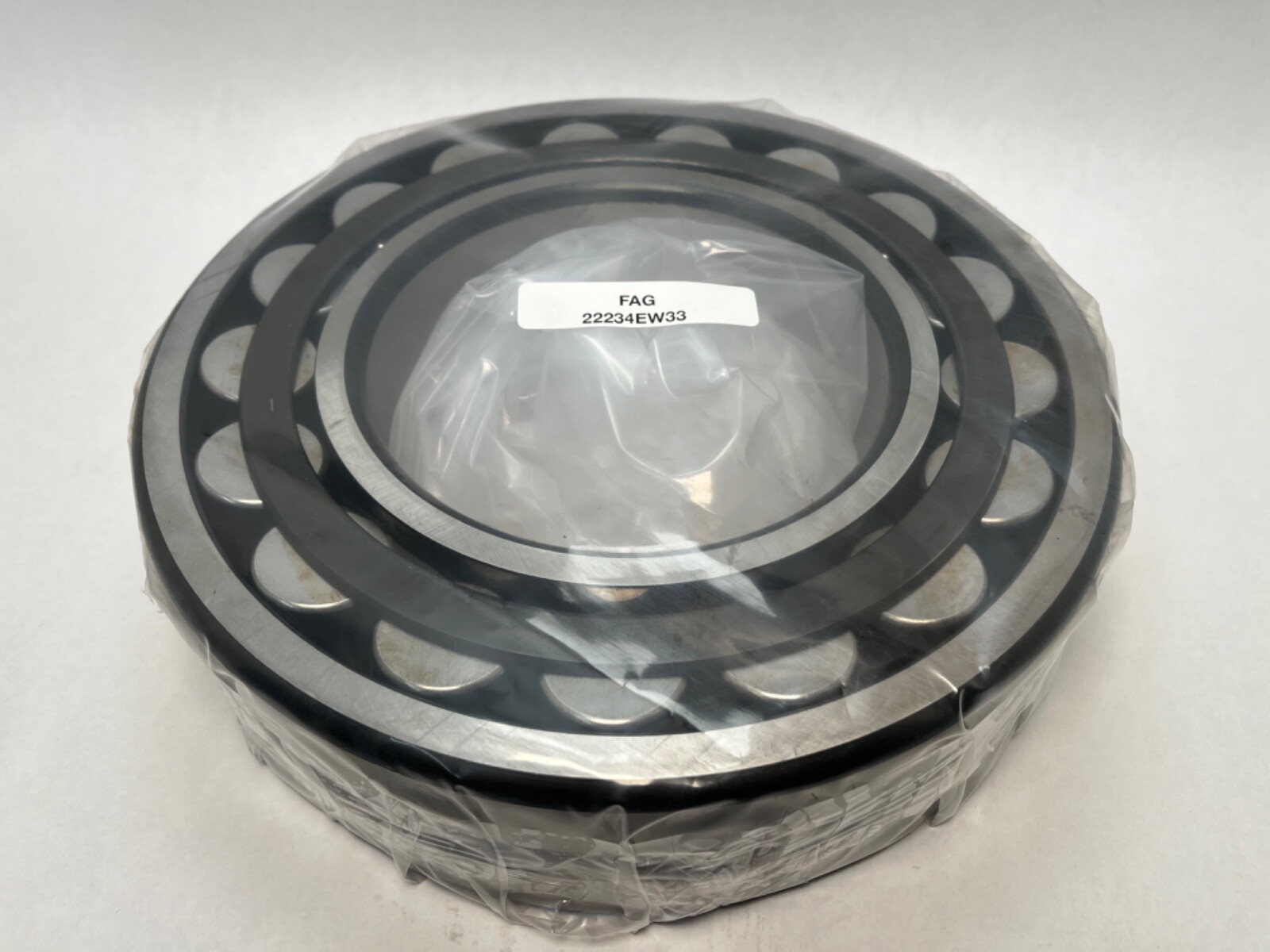

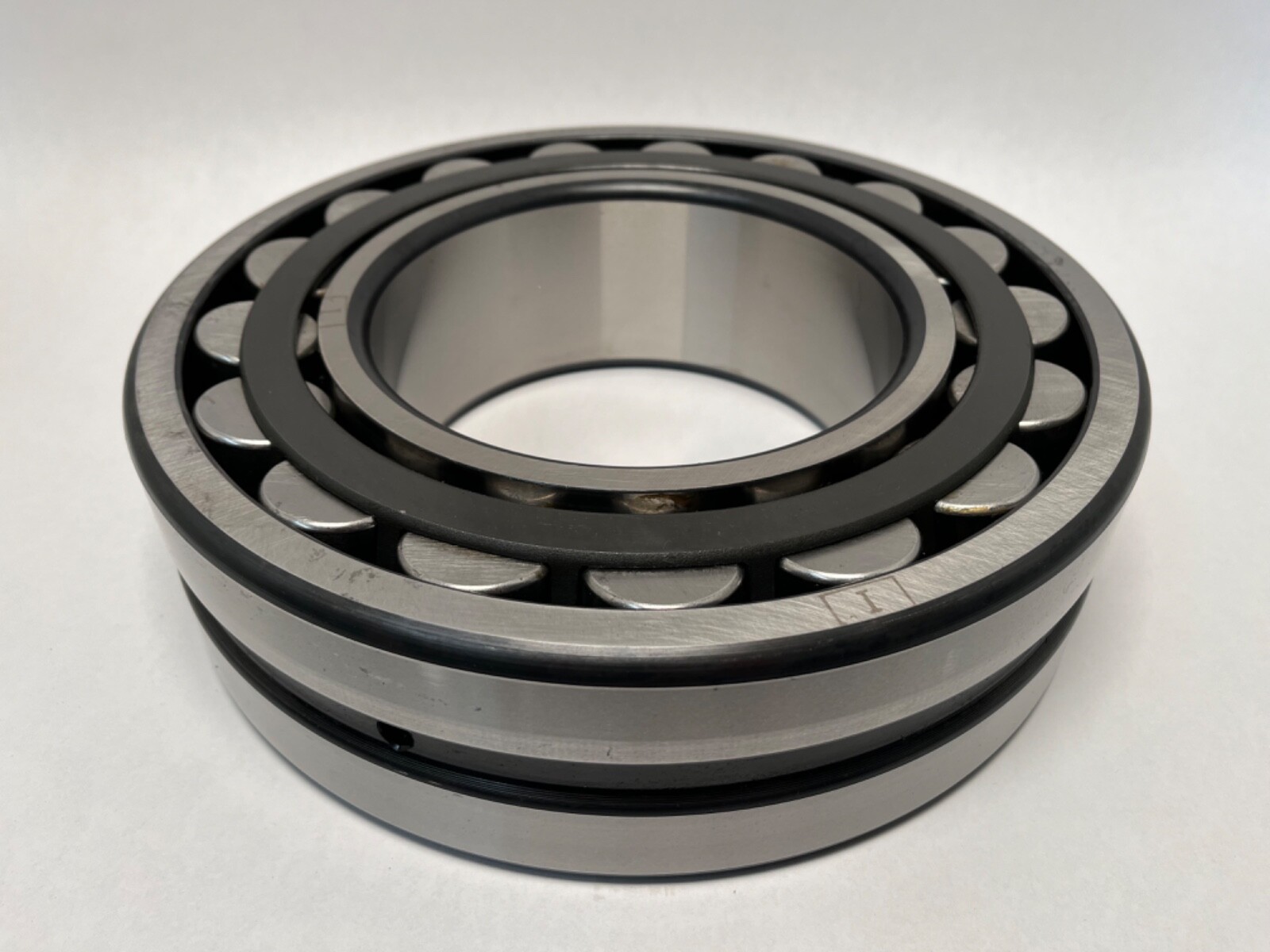

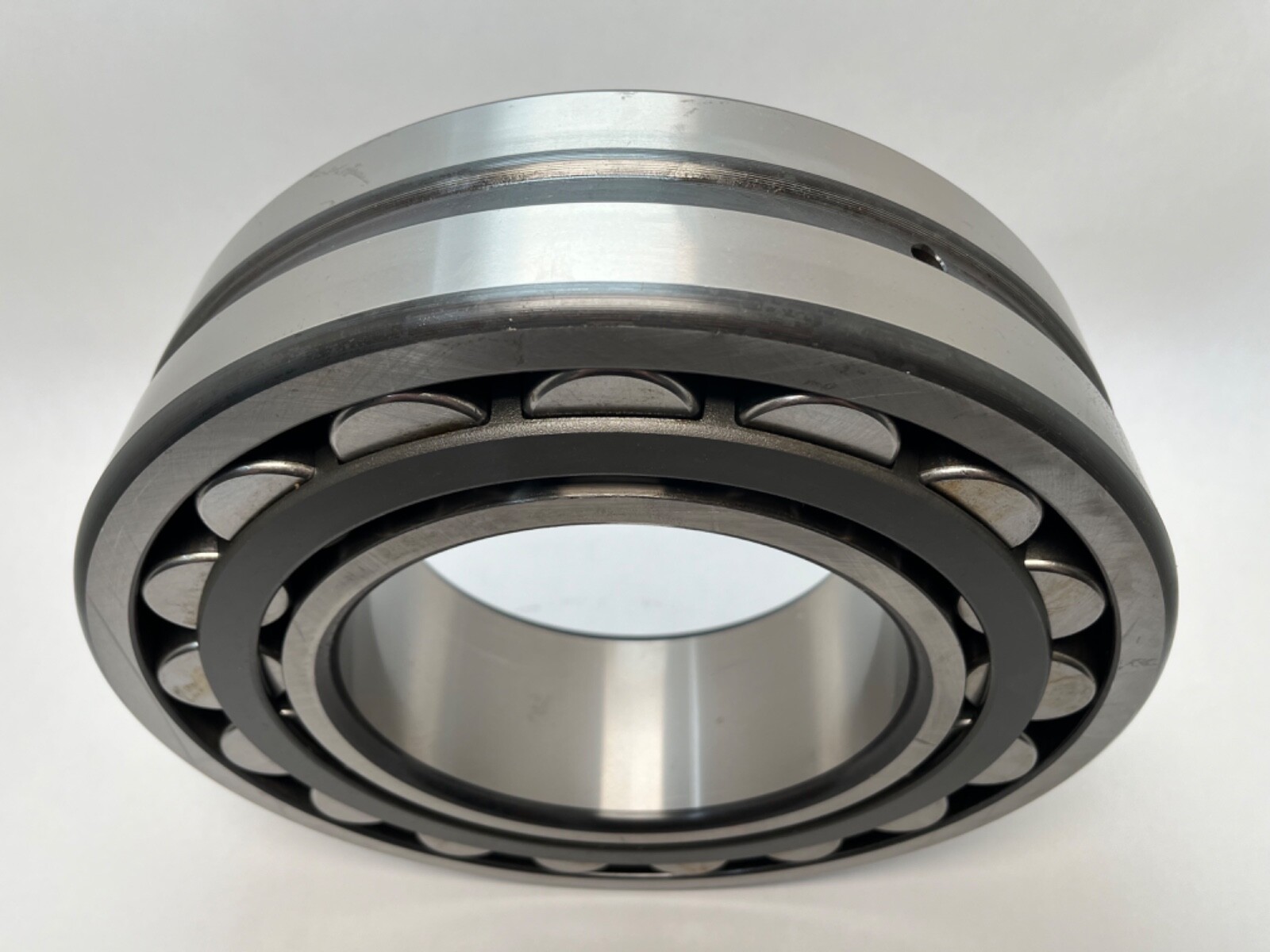

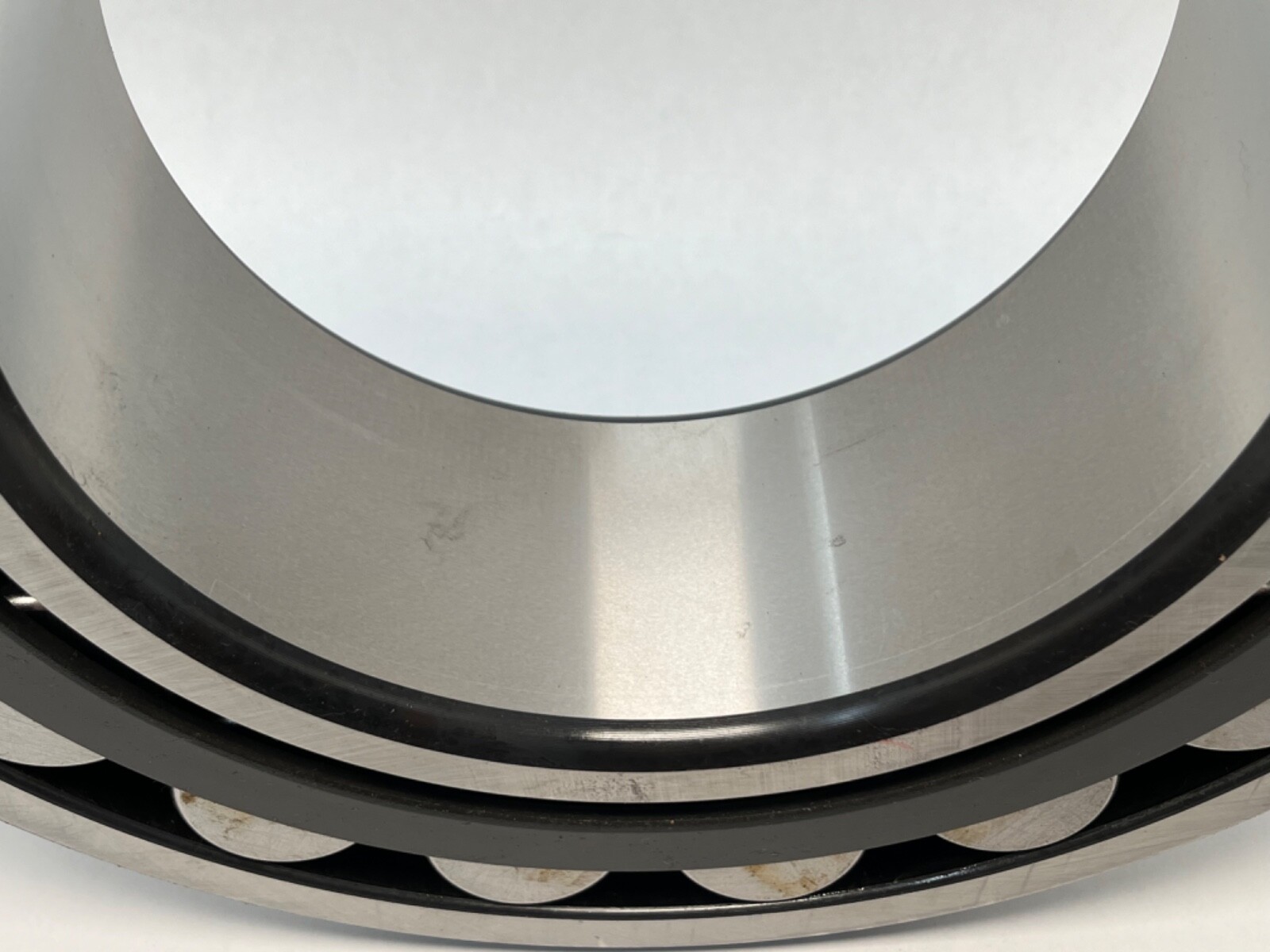

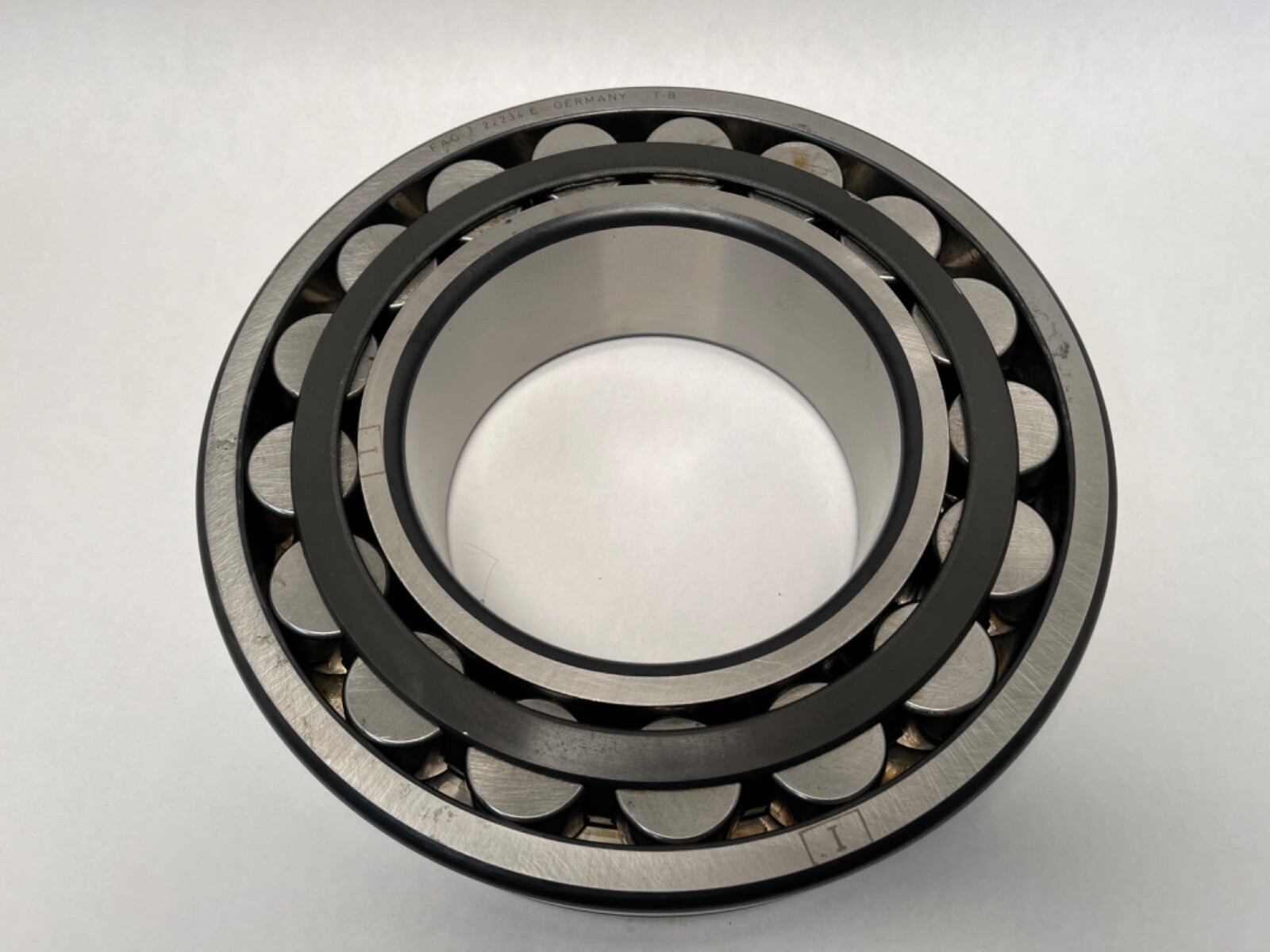

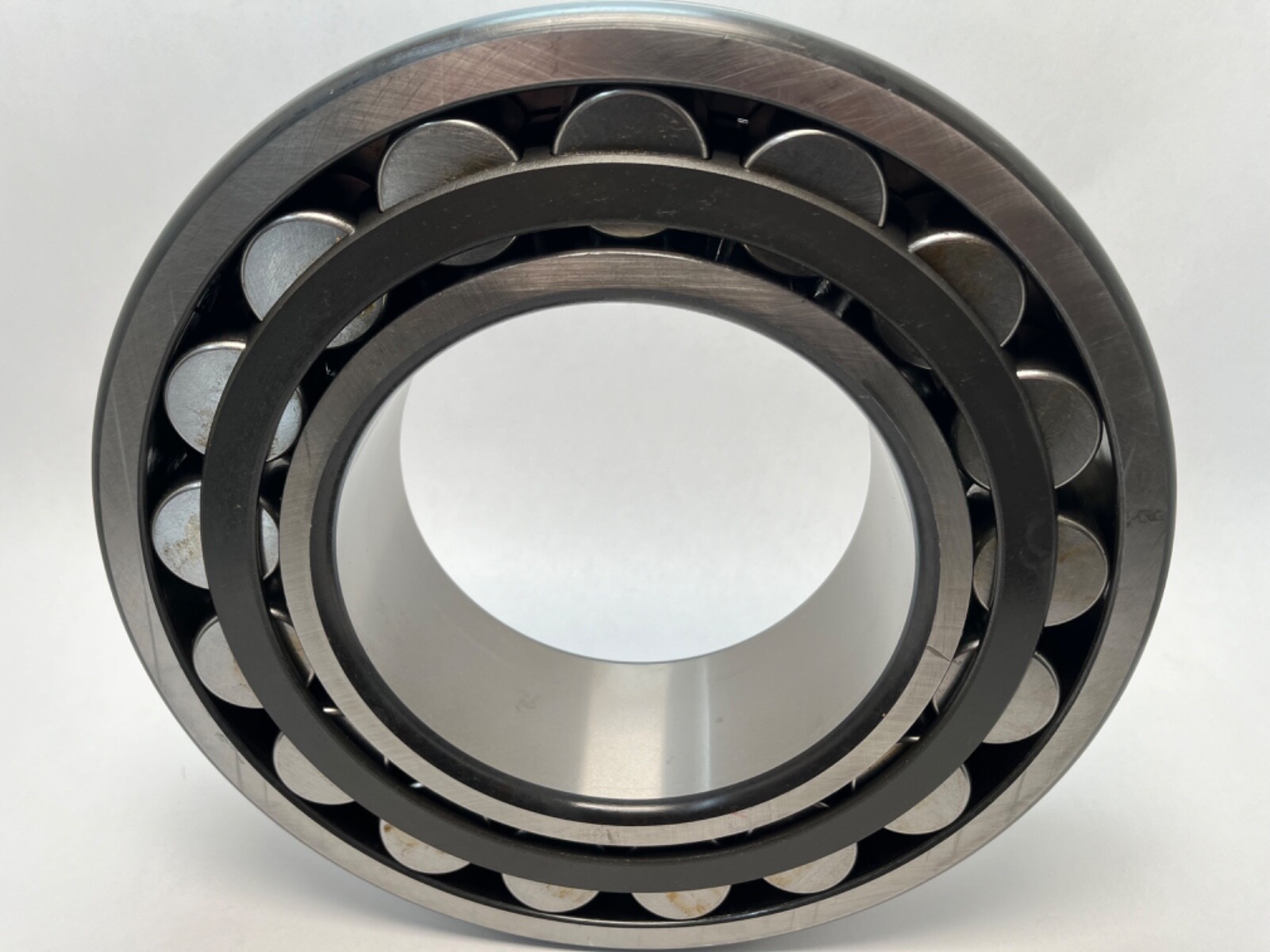

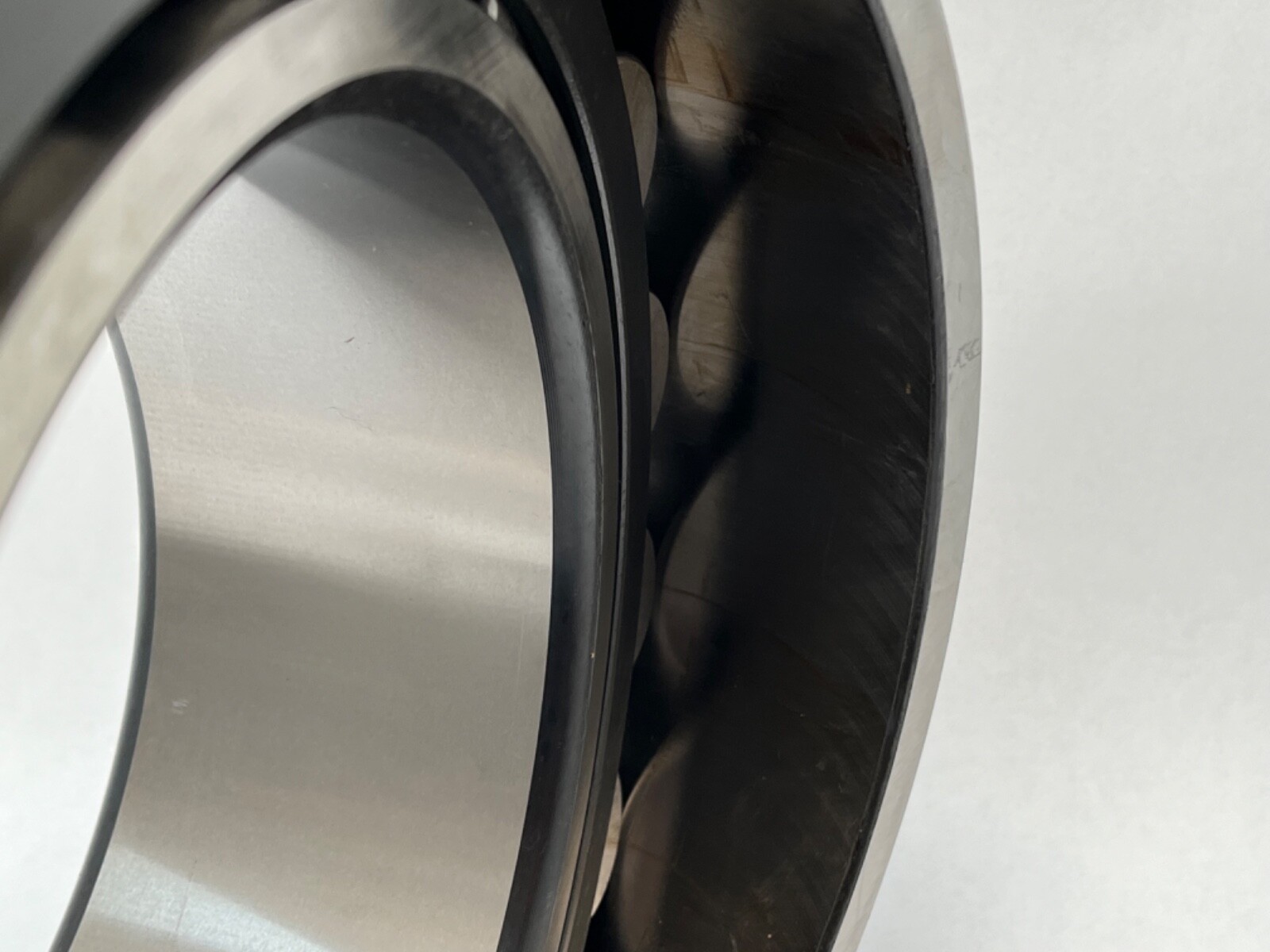

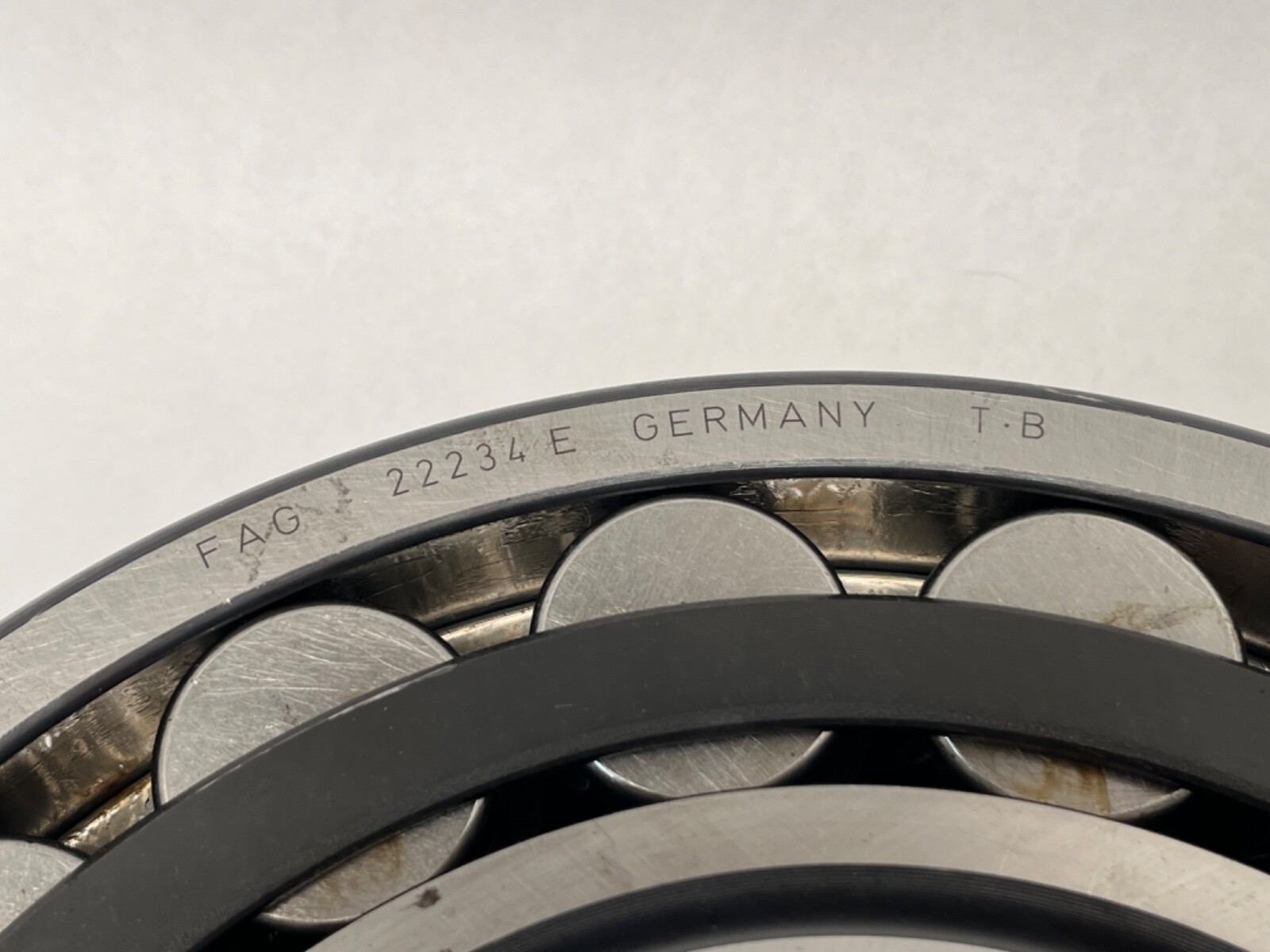

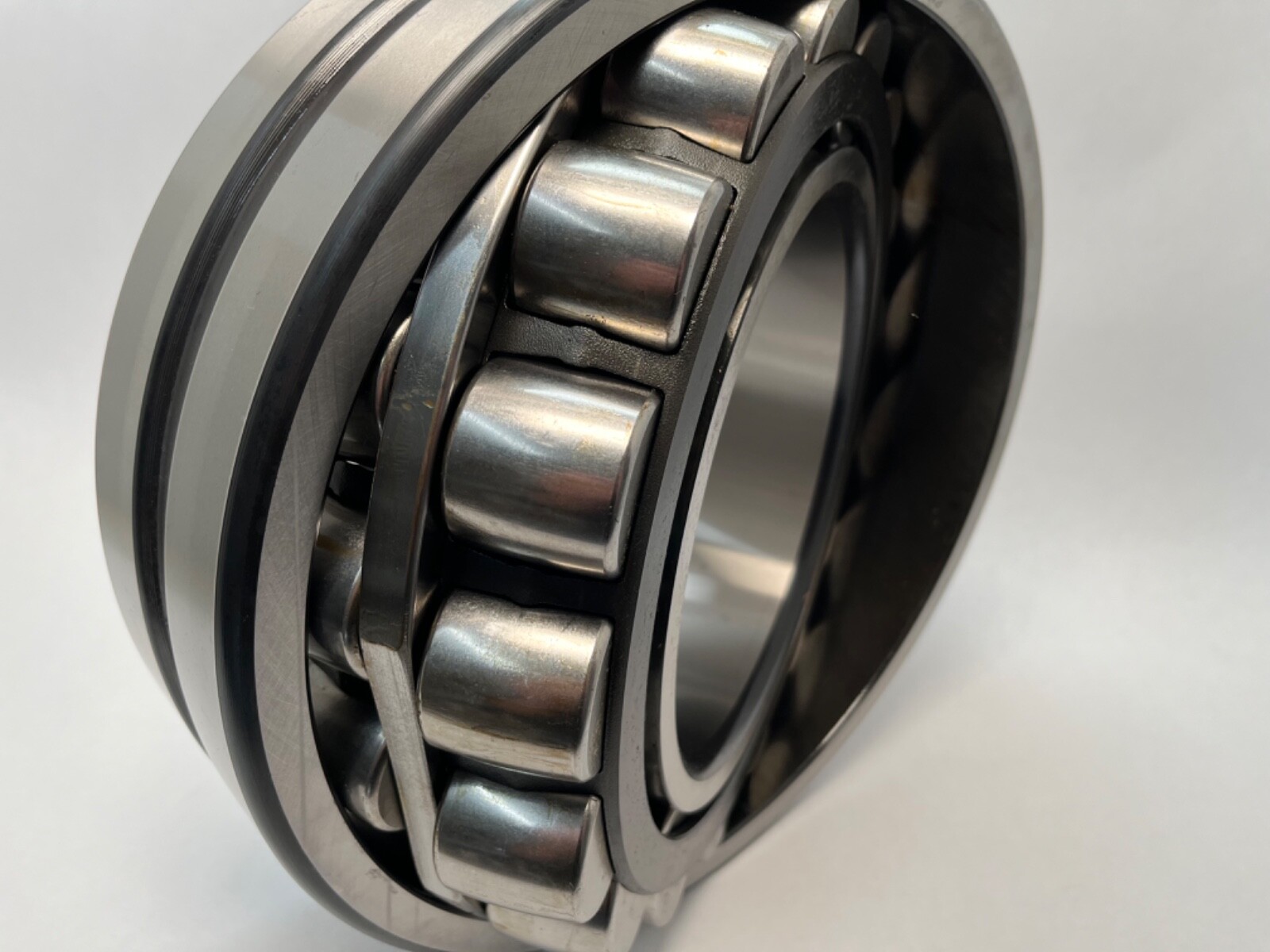

The FAG 22234E Spherical Bearing is a high-quality, durable bearing designed for industrial use. Made of steel and manufactured in Germany, this bearing features a straight bore diameter of 170mm and an outside diameter of 310mm, with a width of 86mm. The 22234E model is a self-aligning spherical roller bearing, perfect for supporting and guiding the rotating shaft of a machine or equipment. With its precision and reliability, this bearing is a great choice for industrial automation and motion control applications.
