Spherical roller bearing, 170 x 310 x 86 mm, straight bore, W33 lubrication groove and holes, normal CN clearance. FAG E increased-capacity design, 222 series.
List Price
$655.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22234-E-W33 |
| GTIN | 4026677008053 |
| Model | 22234EW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 170 mm |
| OD | 310 mm |
| Width | 86 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Mpn Variants | 22234-E-W33, 22234E, 22234EW33, 22234-E |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Harmonization Code | 8482.30.00.40 |
| Industry Terms | spherical roller bearing; double row spherical roller bearing; 170 mm bore spherical roller bearing; 222 series bearing; W33 groove bearing |
| Common Misspellings | FAG 22234EW33; FAG 22234 E W33; Fag 22234-E-W-33; FAG 22234E-W3 |
| Application Types | Industrial gearboxes; Fans and blowers; Conveyors; Crushers and screens; General heavy machinery shafts |
| Closure Type | Open |
| Cross Reference 1 | FAG 22234-E1-XL - XL reinforced design |
|---|---|
| Cross Reference 2 | SKF 22234 CC/W33 - CC design |
| Cross Reference 3 | NTN 22234E |

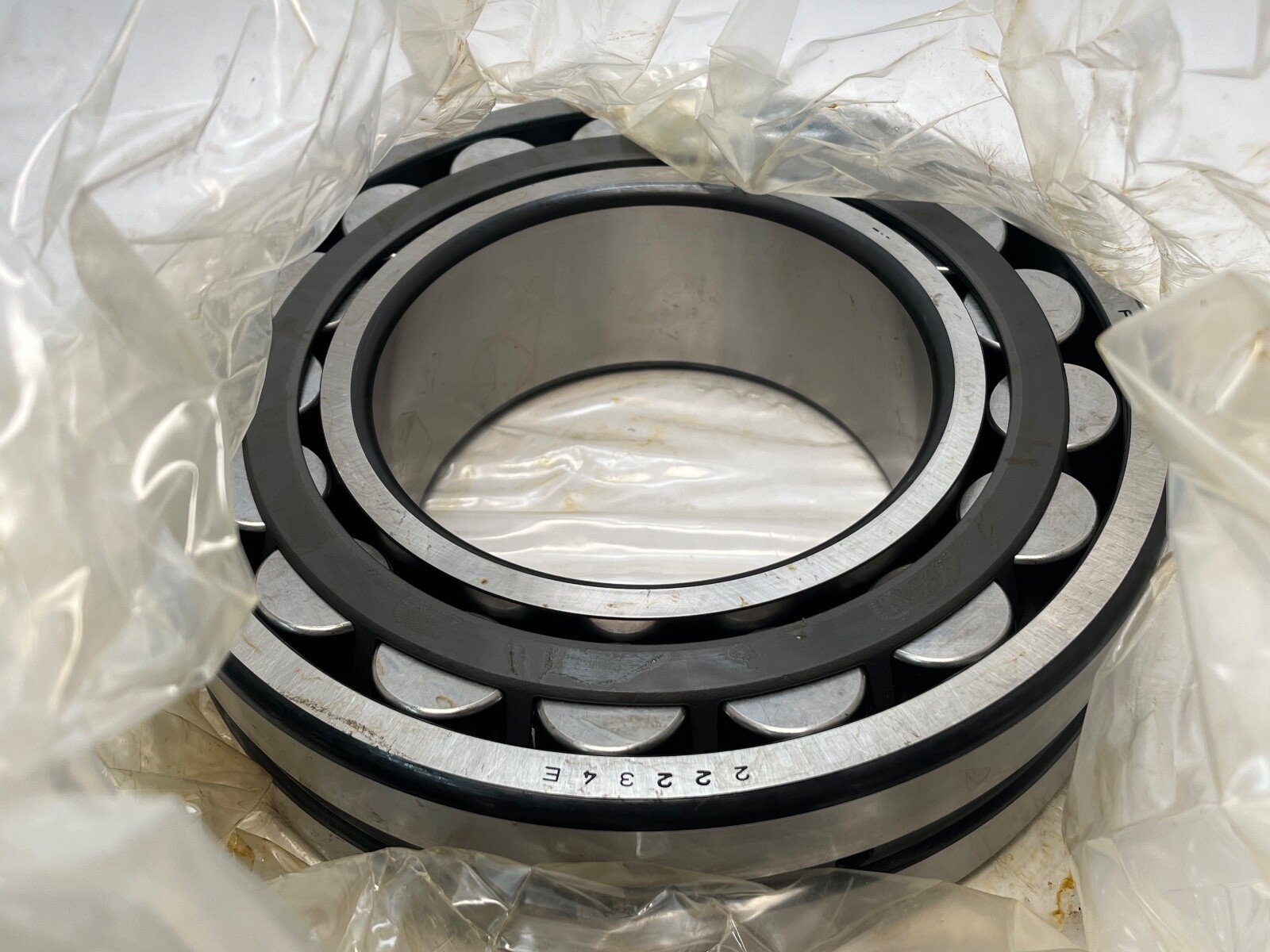

FAG 22234-E-W33 is a double-row spherical roller bearing, 222 series, with a straight bore, increased-capacity E design and a W33 lubrication groove with three radial holes in the outer ring. Unit Quantity: 1 Pc. GTIN: 4026677008053.
22234 — spherical roller bearing, 222 series; bore code 34 = 170 mm.
E — FAG increased-capacity internal design.
W33 — lubrication groove with three radial holes in the outer ring.
Bore Diameter: 170 mm. Outside Diameter: 310 mm. Overall Width: 86 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Series: 222. Internal Clearance: CN. Lubricant: grease or oil. Closure Type: Open. Material: Chrome steel.
Bore 170 mm, outside diameter 310 mm, width 86 mm. Straight (cylindrical) bore.
Cross-references: FAG 22234-E1-XL (XL reinforced design); SKF 22234 CC/W33 (CC design); NTN 22234E. MPN Variants: 22234-E-W33, 22234E, 22234EW33, 22234-E.
Bore 170 mm, outside diameter 310 mm, width 86 mm, straight bore.
W33 is a lubrication groove with three radial holes in the outer ring; the bearing takes grease or oil.
E is FAG’s increased-capacity internal design; clearance is CN (normal).
