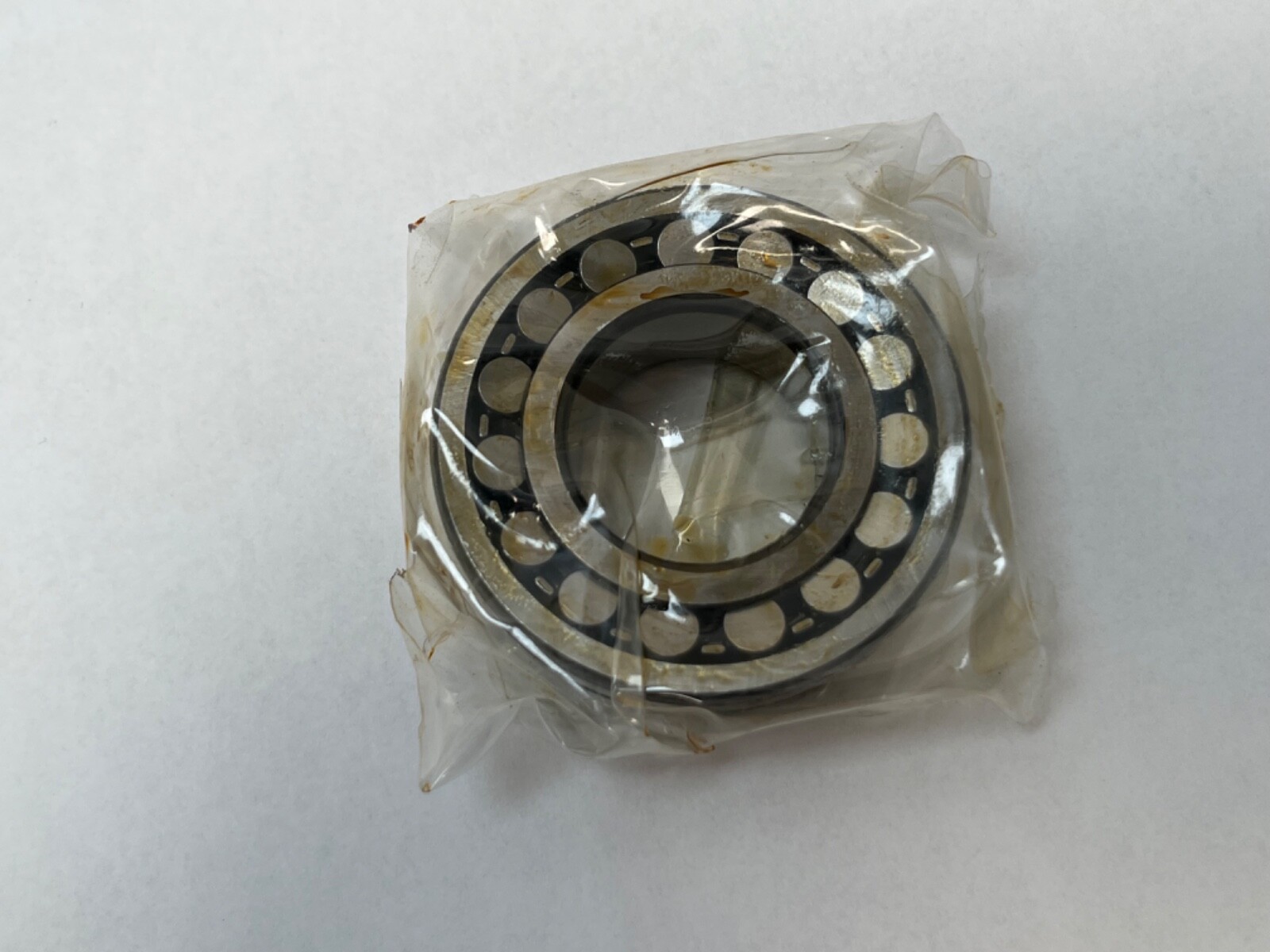

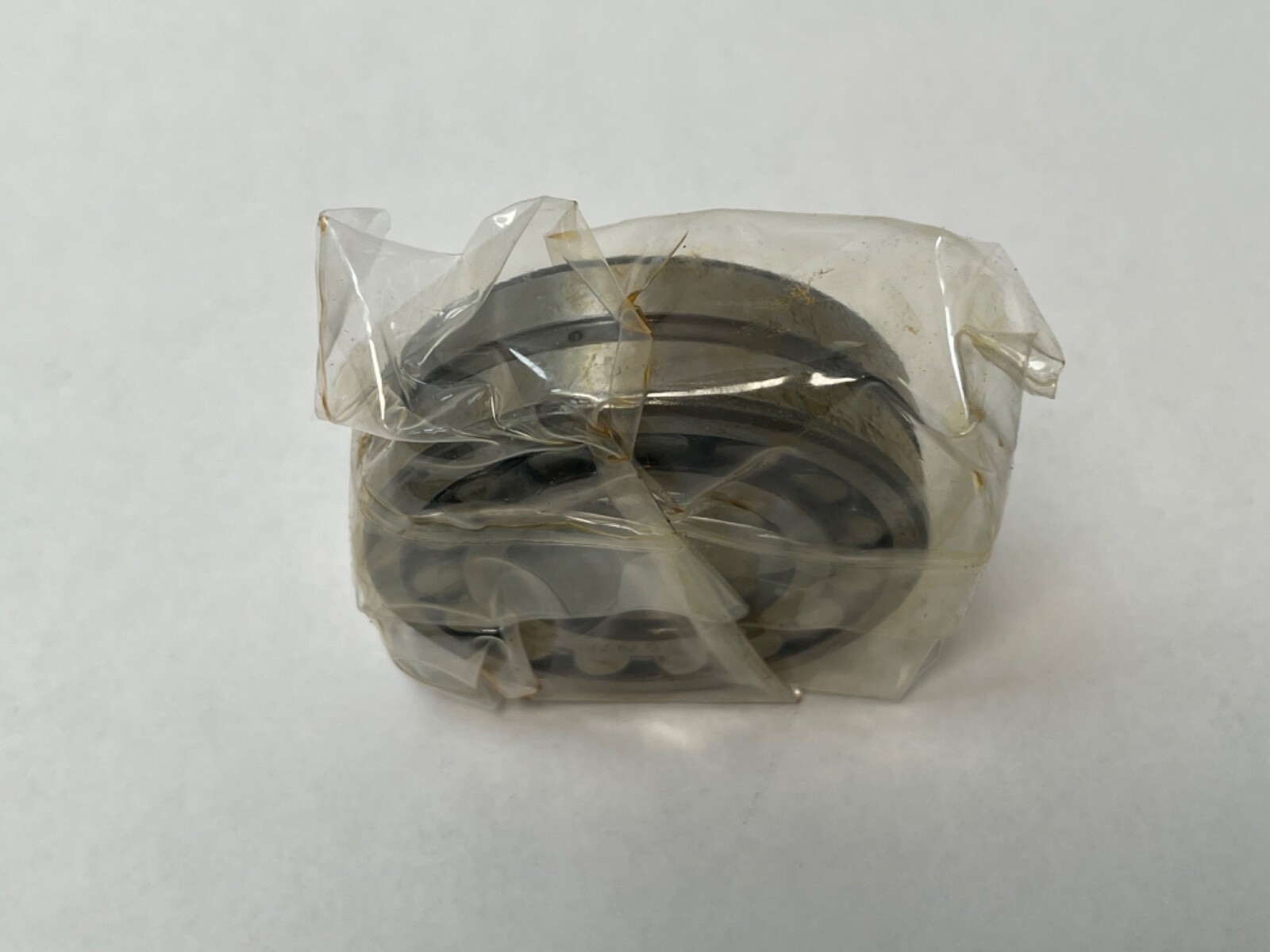

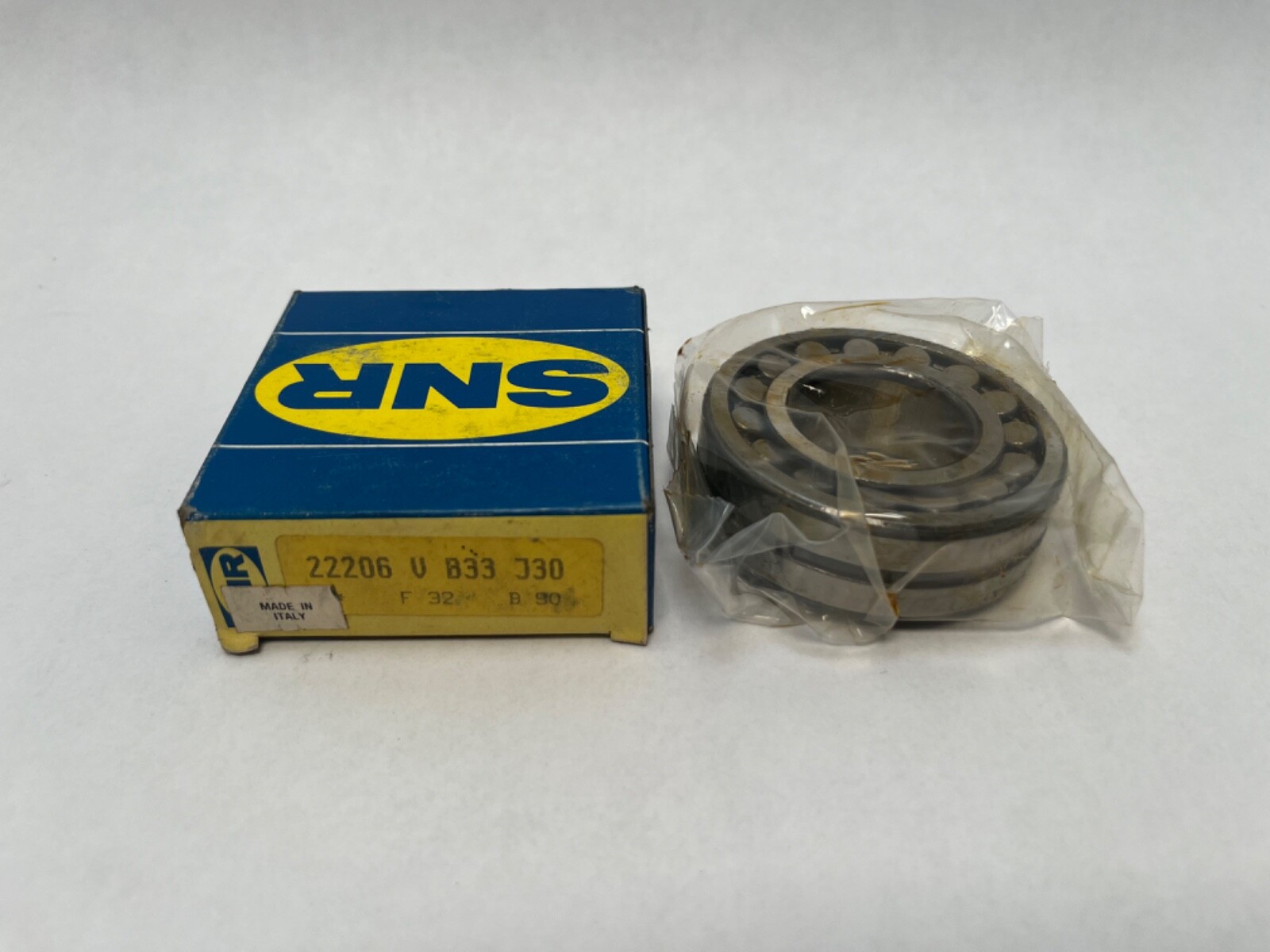

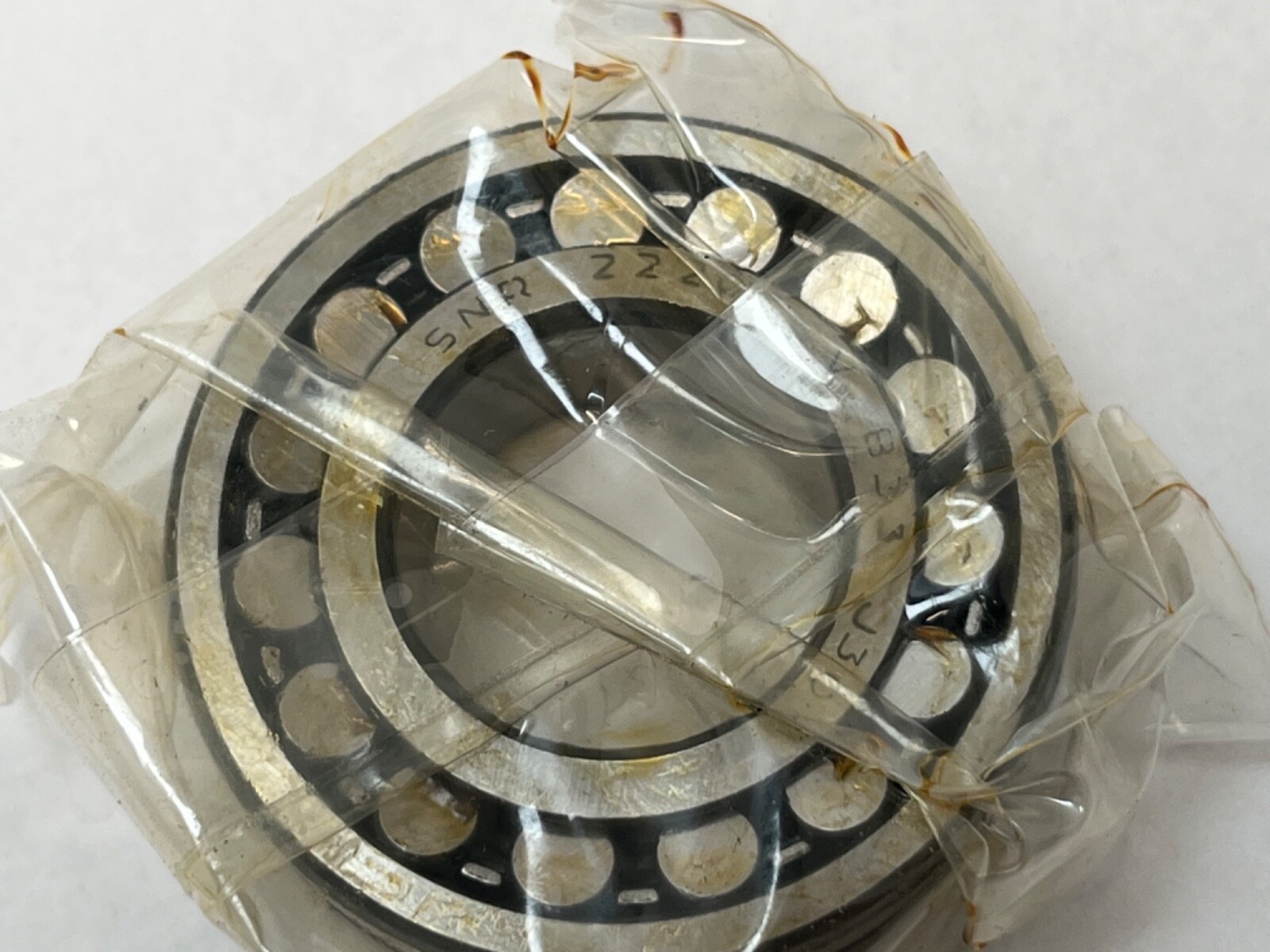

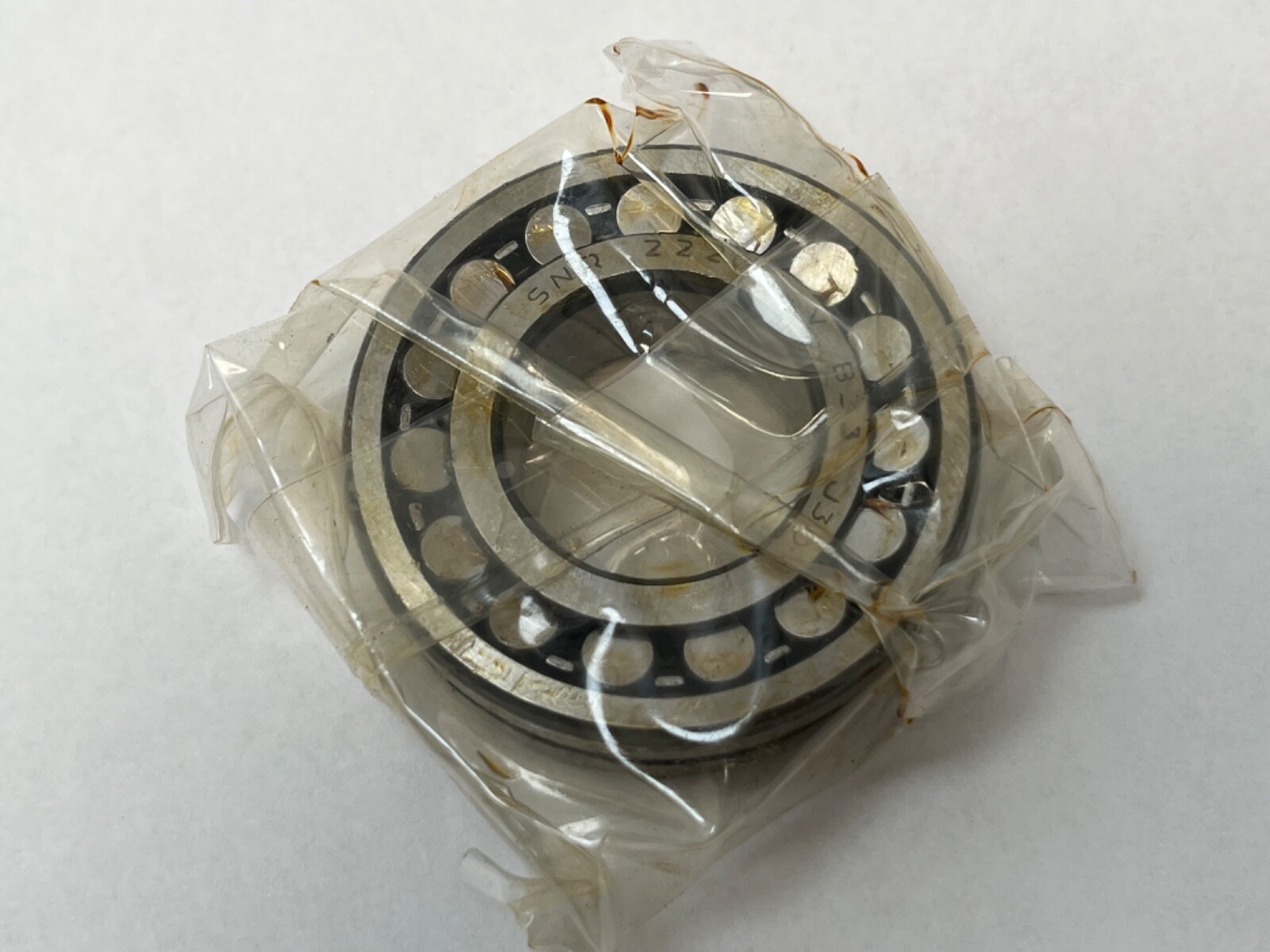

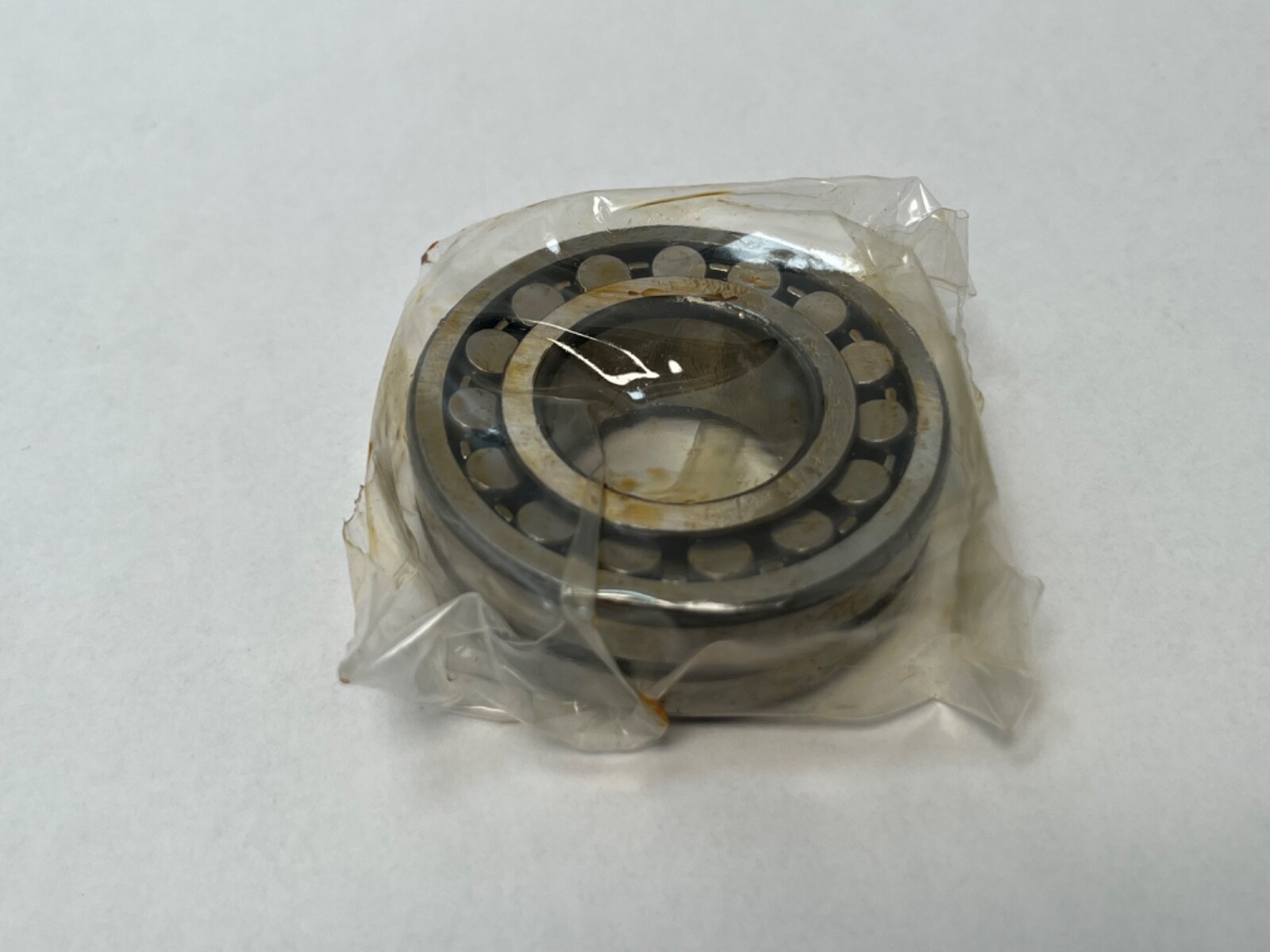

Double-row spherical roller bearing, 30 x 62 x 20 mm, straight bore, C3 clearance. Open, W33 outer-ring groove with three radial feed holes.
List Price
$38.22
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 22206.V.B33.J30 |
| Model | 22206J / 22206CJ / 22206 V W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Relubrication | W33 outer-ring groove with three radial feed holes |
| Base Number | 22206 |
| Total Width | 20 mm |
| Overall Width | 20 mm |
| Bore Shaft Size | 30 mm |
| Mpn Variants | 22206VB33J30, 22206 V W33 C3, 22206.V.B33.J30, 22206VW33C3, 22206J, 22206CJ |
| Arrangement Configuration | Double row, straight bore, open both faces |
| Precision Class | P0 (ABEC 1) |
| Min Temp | -30 °C |
| Cage Type | Pressed |
| Precision Rating | P0 (ABEC 1) |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Cage Material | Pressed Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Relubrication Feature | W33 outer-ring groove with three radial feed holes |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Bearing Material | Chrome Bearing Steel |
| Part Number | 22206.V.B33.J30 |
| Maximum Permissible Misalignment | 1.5 degrees |
| Cross Reference 1 | SKF 22206 E - E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22206-E1 - E1 design, higher ratings |
| Cross Reference 3 | NTN 22206EAW33 - E design, W33 groove |
| Cross Reference 4 | Koyo 22206RHR - RHR execution |
| Cross Reference 5 | NSK 22206EAE4 - E design, W33 groove |
SNR 22206VB33J30 double-row spherical roller bearing, straight bore, open on both faces. Manufacturer Part Number: 22206.V.B33.J30. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 20 mm. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Cage Material: Pressed Steel. Cage Type: Pressed. Unit Quantity: 1 Pc.
V — SNR conventional design generation: symmetrical rollers and no central rib on the inner ring, which opens the space between the two roller rows to lubricant flow.
B33 — annular groove machined into the outer ring outside diameter with three radial feed holes, the SNR form of the W33 lubrication feature.
J30 — C3 internal clearance, greater than normal.
Precision Class: P0, ABEC 1. Bearing Material: Chrome bearing steel. Operating Temperature Range: -30 to +200 °C. Maximum Permissible Misalignment: 1.5°. Lubricant: grease or oil. Harmonization Code: 8482.30.00.
Two rows of spherical rollers run on a common sphered outer raceway, so the bearing carries heavy radial load together with thrust in either axial direction. The inner ring and roller set swivel inside the outer ring to take up shaft deflection and angular error between two housings. Straight bore for a direct cylindrical shaft seat. The B33 groove and three radial holes feed lubricant from the outer ring to the rolling elements.
Same-envelope 30 x 62 x 20 mm spherical rollers: SKF 22206 E, FAG 22206-E1, NTN 22206EAW33, Koyo 22206RHR, NSK 22206EAE4. These are current E-generation executions on the same boundary dimensions, with load ratings that differ from the conventional V design. Searchable forms: 22206VB33J30, 22206 V W33 C3, 22206.V.B33.J30, 22206VW33C3, 22206J, 22206CJ.
30 mm bore, 62 mm outside diameter, 20 mm width.
An annular groove in the outer ring outside diameter with three radial feed holes, the SNR form of the W33 feature.
C3, internal clearance greater than normal, coded J30.
