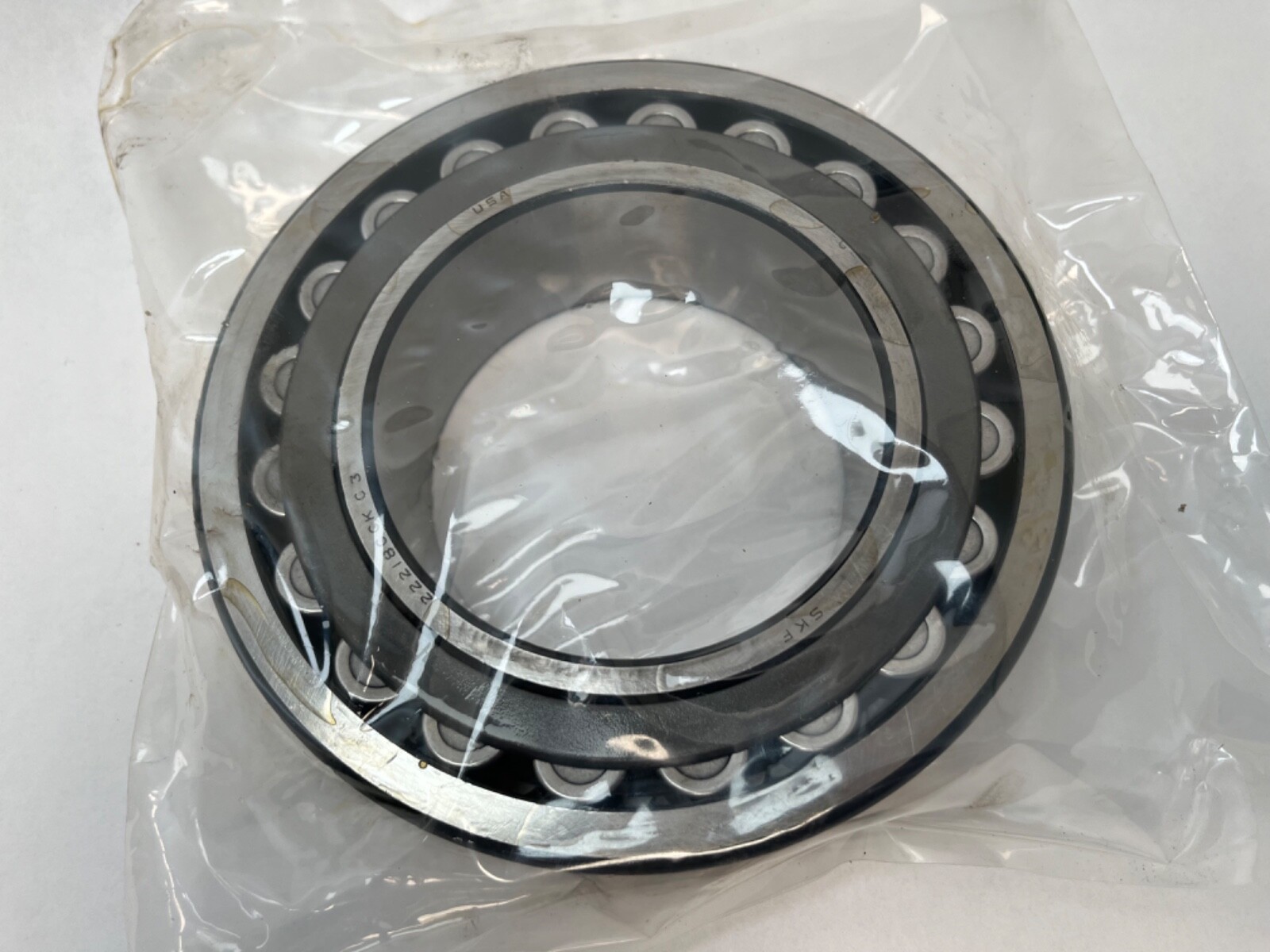

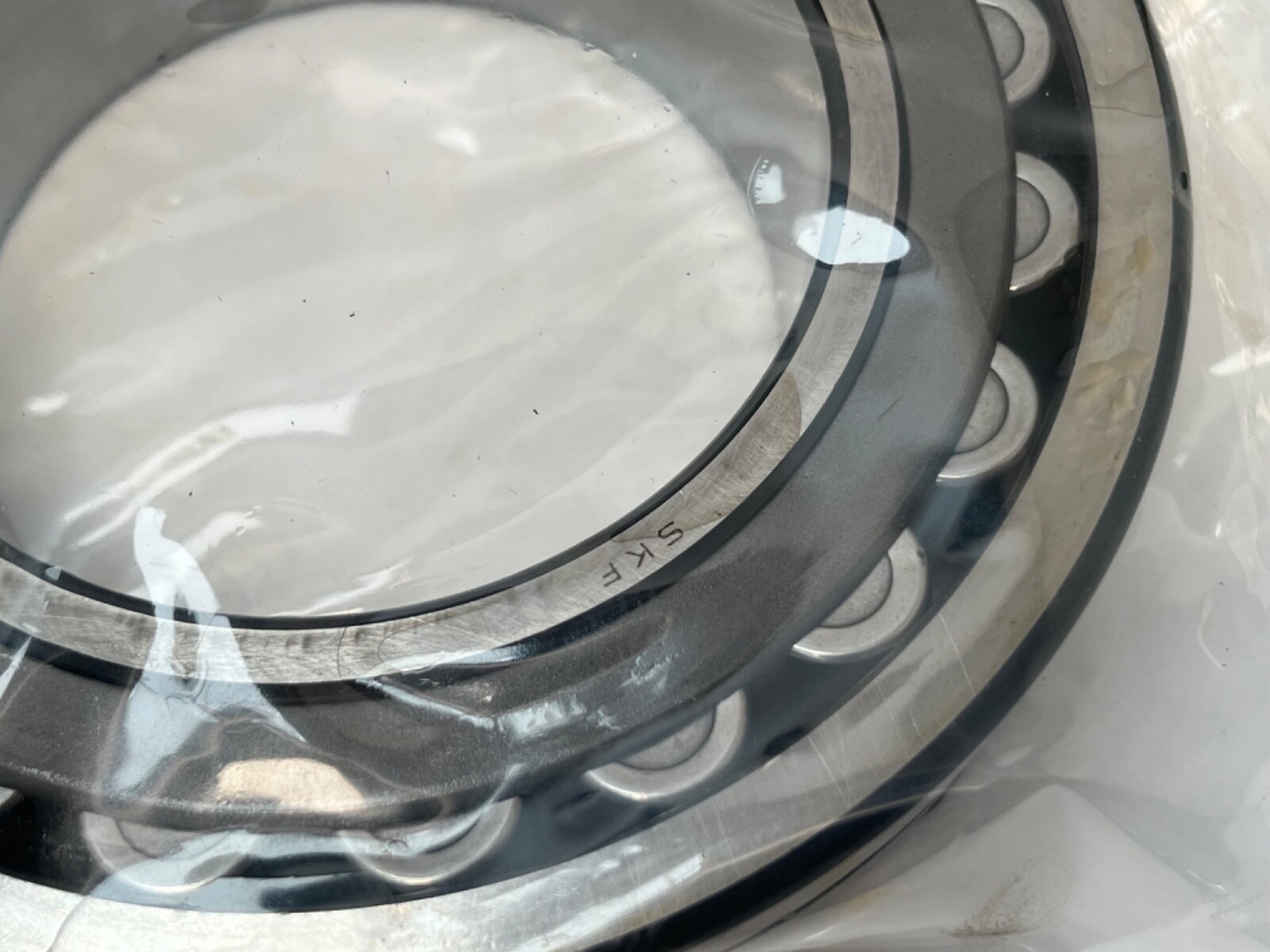

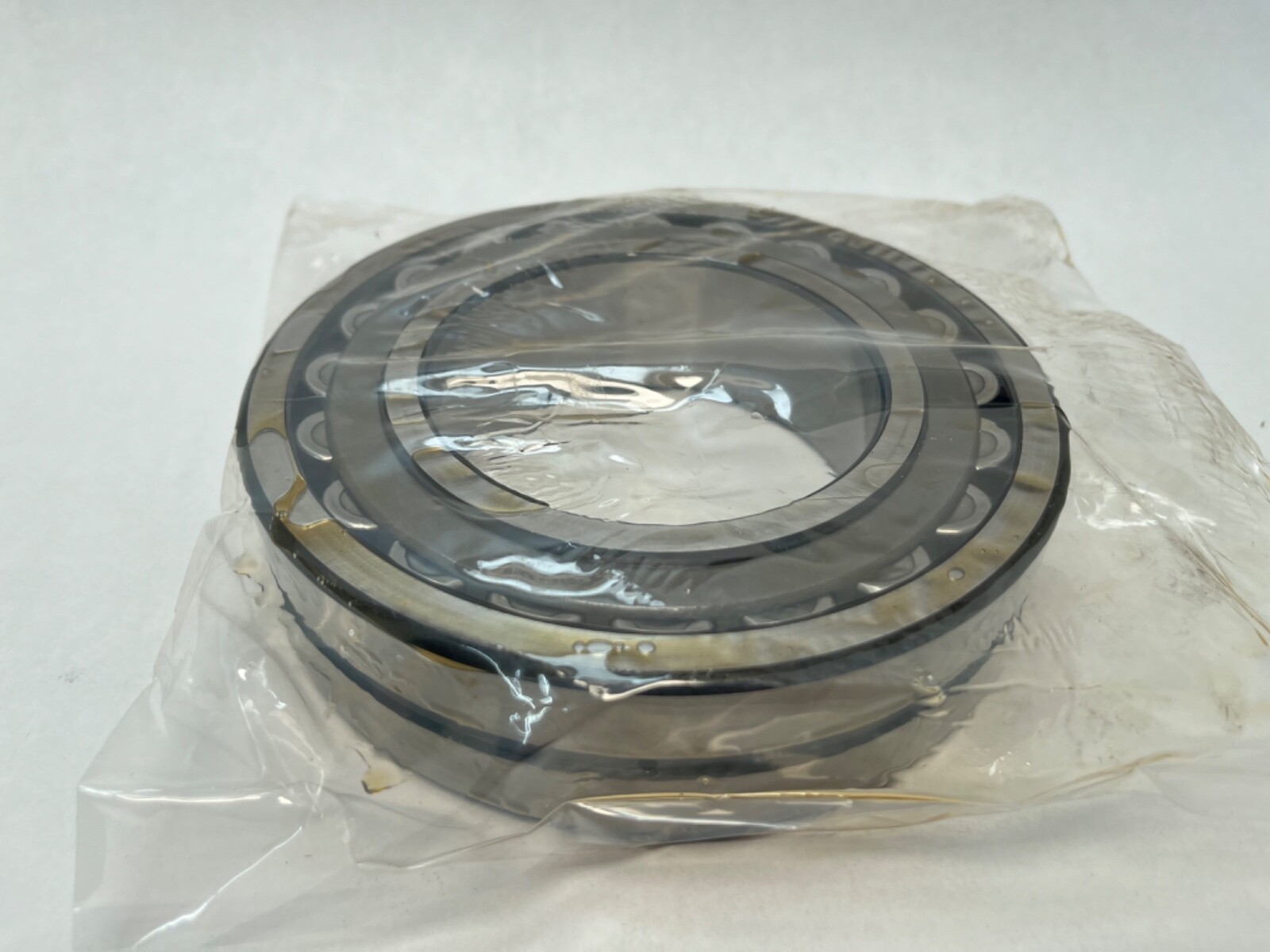

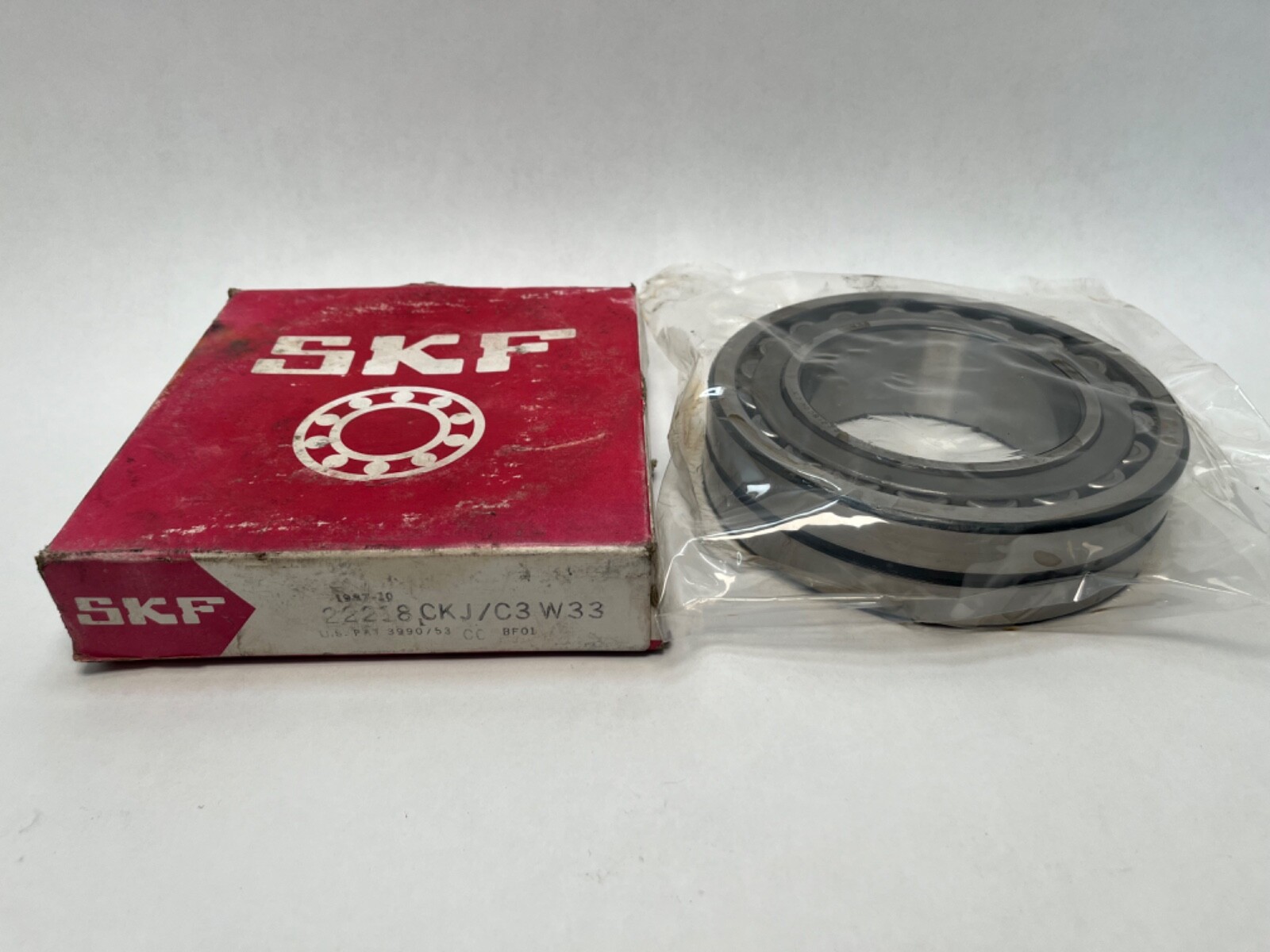

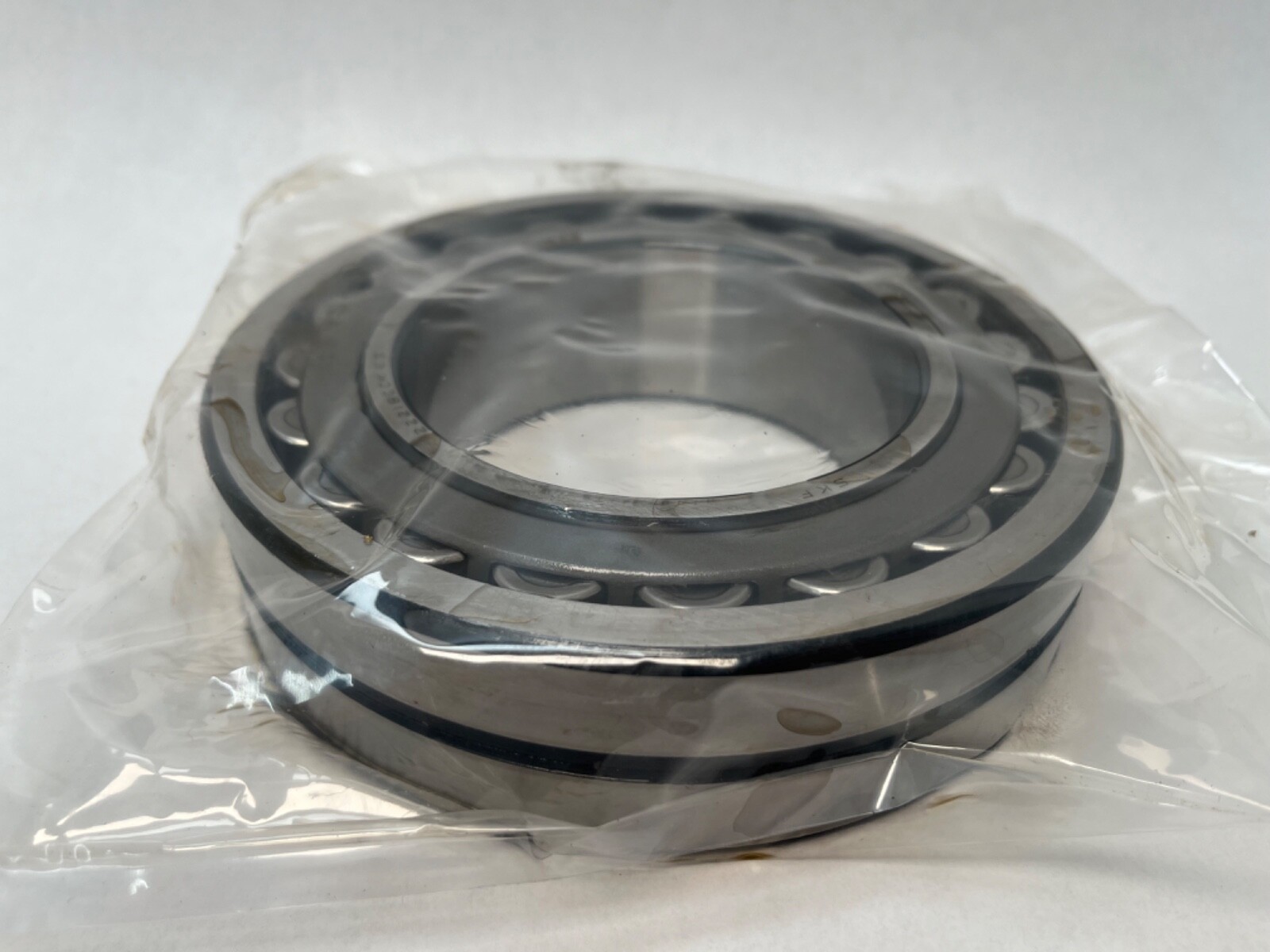

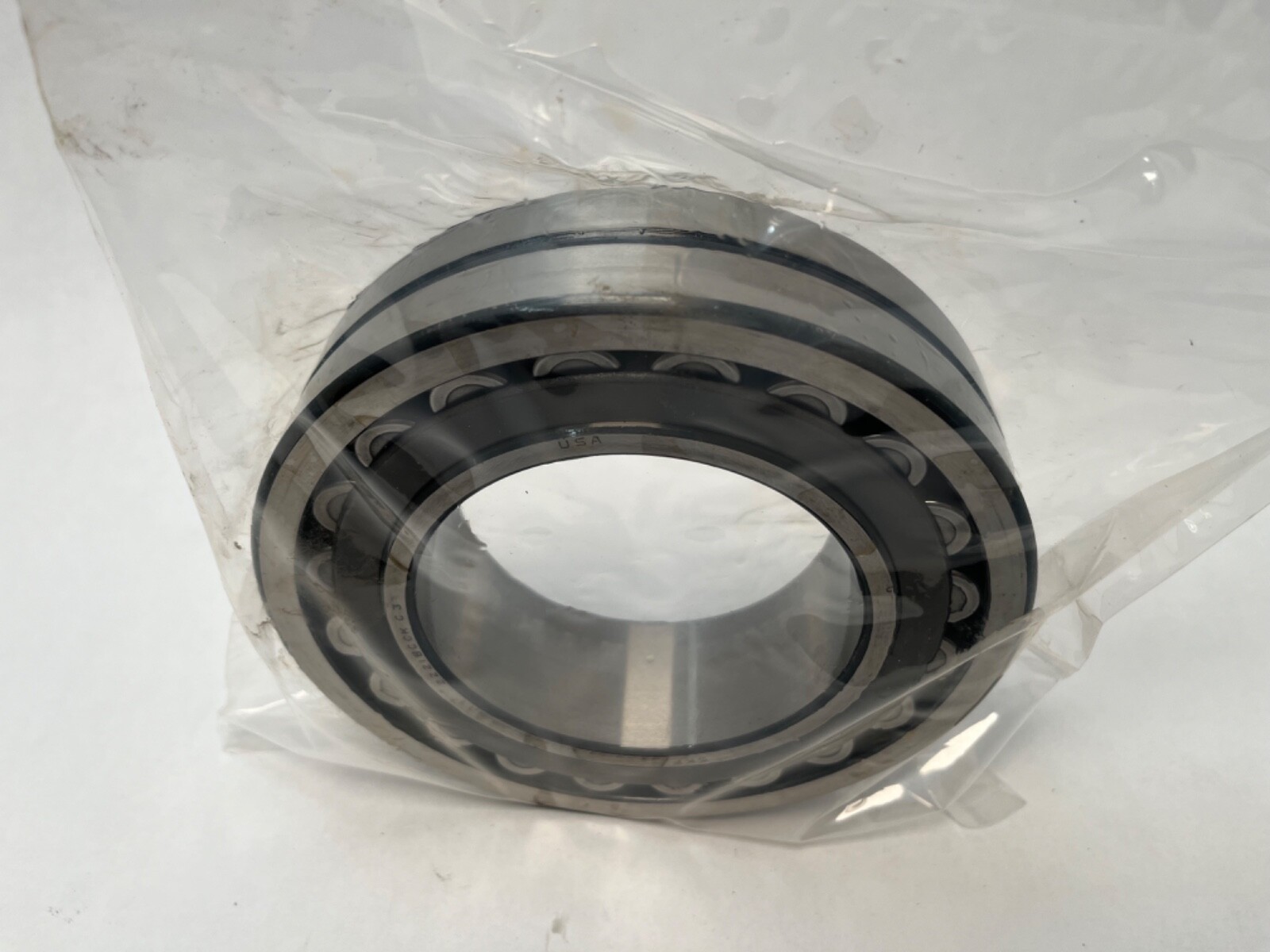

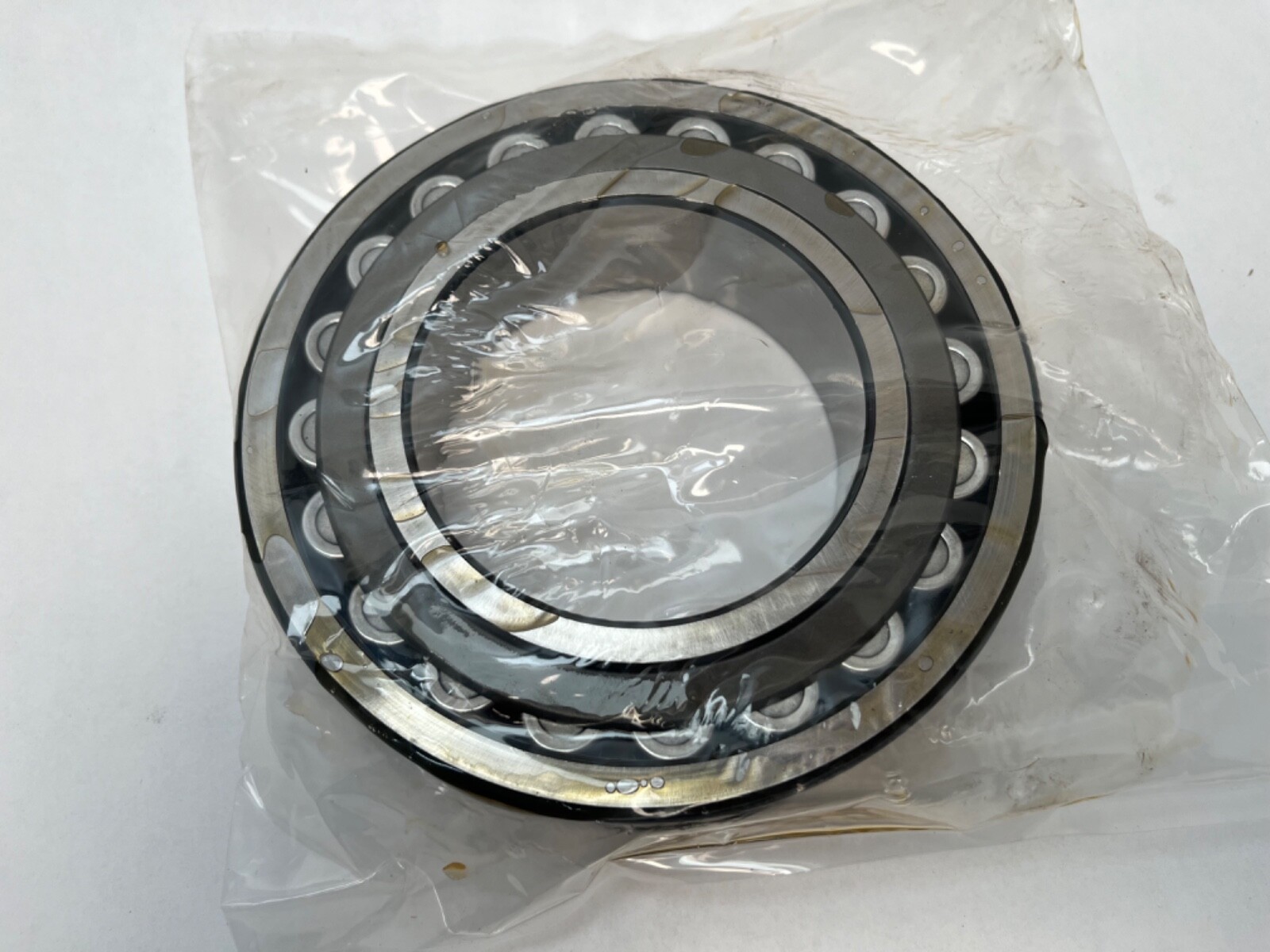

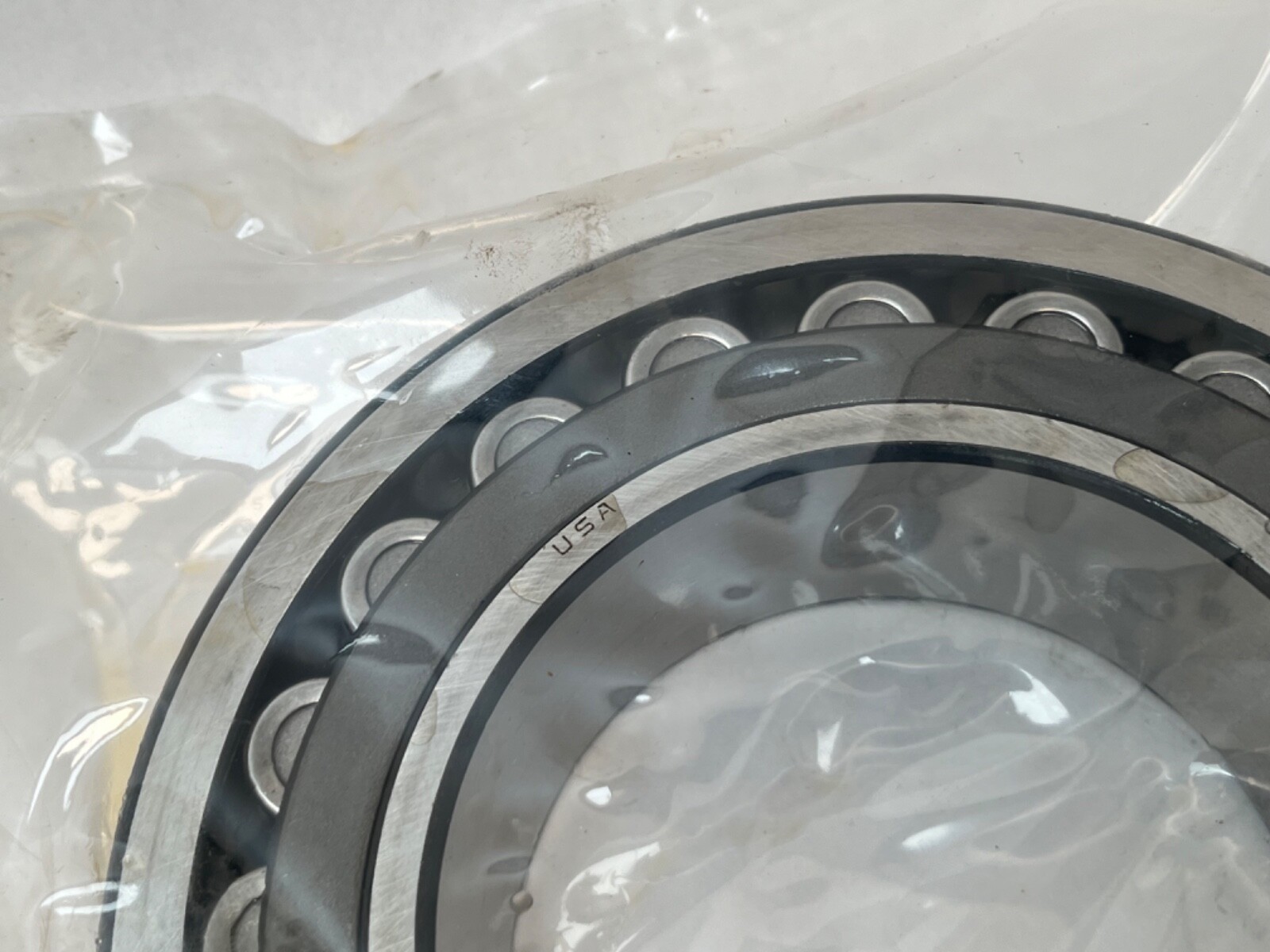

SKF22218-CKJ-C3-W33Spherical Roller Bearing – Tapered Bore, 90 mm ID, 160 mm OD, 40 mm Width, Open, C3 Internal Clearance.

Product Description

What this part is:

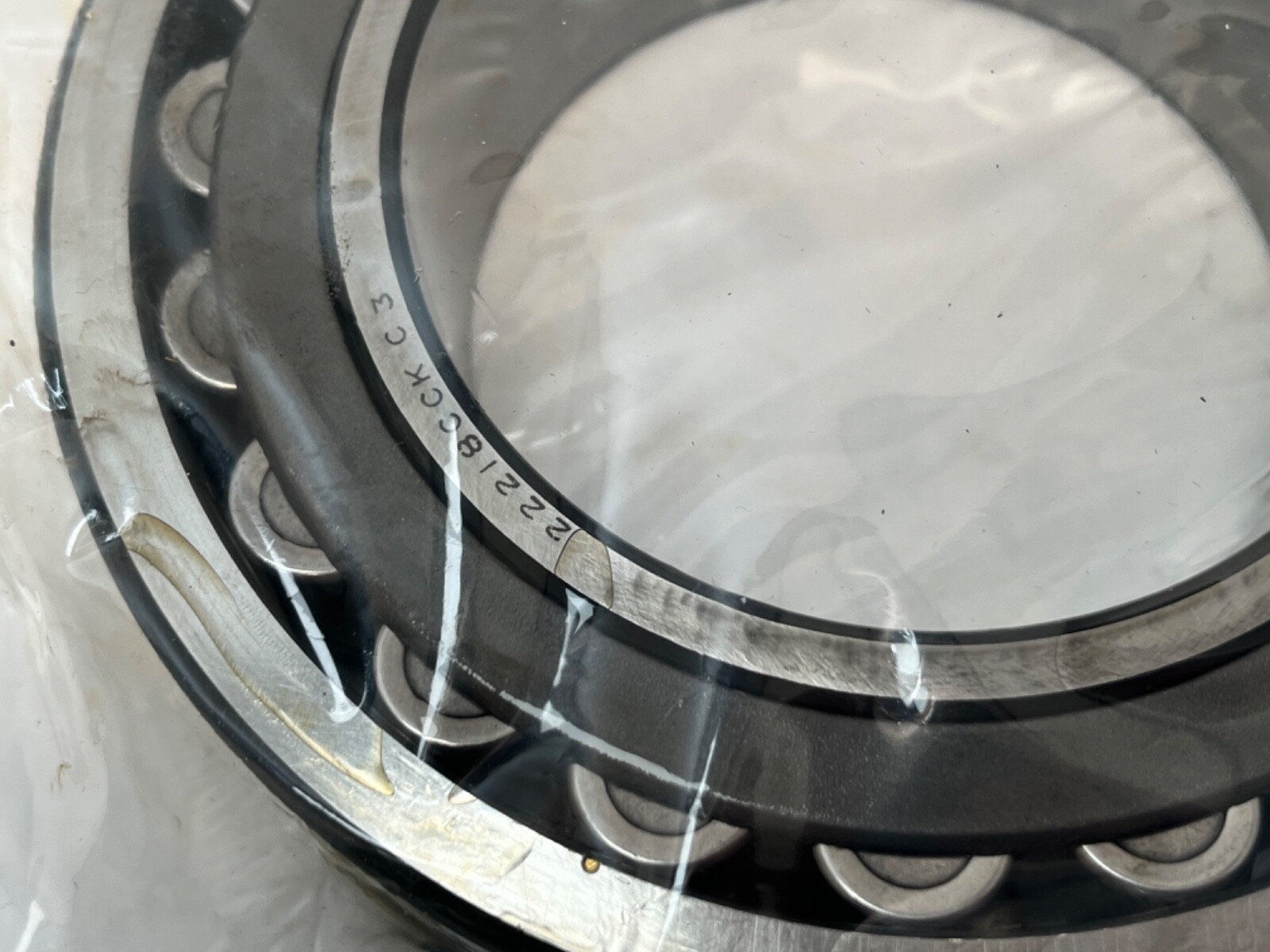

SKF 22218-CKJ-C3-W33 is a double-row spherical roller bearing with a 90 mm 1:12 tapered bore, 160 mm outside diameter and 40 mm width. The bearing is self-aligning. Unit Quantity: 1 Pc. Open bearing, no seals.

Decoding the designation:

22218 — SKF spherical roller bearing, ISO 222 series, 90 x 160 x 40 mm envelope.

K — tapered bore, taper 1:12.

J — pressed-steel window-type cage.

C3 — radial internal clearance greater than normal.

W33 — lubrication groove and three radial holes in the outer ring, grease or oil.

Specifications:

Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Cage Material: Pressed steel. Closure Type: Open. Lubricant: Grease or oil. Bearing Material: Bearing Steel.

Dimensions and mounting:

Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Bore Type: Tapered 1:12. The tapered bore mounts on a tapered shaft seat or an adapter sleeve.

Compatibility and replacement:

Cross-references for the 90 x 160 x 40 mm tapered-bore C3 size, all without the W33 groove: FAG 22218-E1-K-C3, NTN 22218CKC3, NSK 22218EAKC3.

Frequently asked questions:

What are the dimensions of the SKF 22218-CKJ-C3-W33?

Bore Diameter: 90 mm, tapered 1:12. Outside Diameter: 160 mm. Overall Width: 40 mm.

What does the W33 suffix mean?

W33 is a lubrication groove and three radial holes in the outer ring, for grease or oil.

What internal clearance does the 22218-CKJ-C3-W33 have?

C3, radial internal clearance greater than normal.
