This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing - 80 mm ID, 140 mm OD, 33 mm Width, 1:12 Tapered Bore, Machined Brass Cage, Lubrication Groove$74.35
Spherical Roller Bearing 80 x 140 x 33 mm, Double Row, 1:12 Taper Bore, W33 Lubrication Groove, Polyamide Cage$75.82
Spherical Roller Bearing - 1:12 Tapered Bore, 80 mm ID, 140 mm OD, 33 mm Width, Open, CN Clearance, E4 Lubrication Groove$75.82
Spherical Roller Bearing - 1:12 Tapered Bore, 80 mm ID, 140 mm OD, 33 mm Width, Open, C3 Clearance, W33 Lubrication Groove$85.95| MFR / Brand | SKF |
|---|---|
| MPN | 22216EK |
| Model | 22216 E K / 22216CK 22216CCK 22216CKJ 22216CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | 52100 Chrome Steel |
|---|---|
| Series | 22200 |
| Bore | Taper Bore |
| Cage Type | Caged |
| Dynamic Load Rating | 243 kN / 54628 lbf |
| Static Load Rating | 270 kN / 60698 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 4.5 lbs |
| Cage Material | Steel |
| Limiting Speed | 5600 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Harmonization Code | 8482.30.0040 |
| Internal Clearance | CN |
| Cross Reference 1 | FAG 22216-E1-K |
|---|

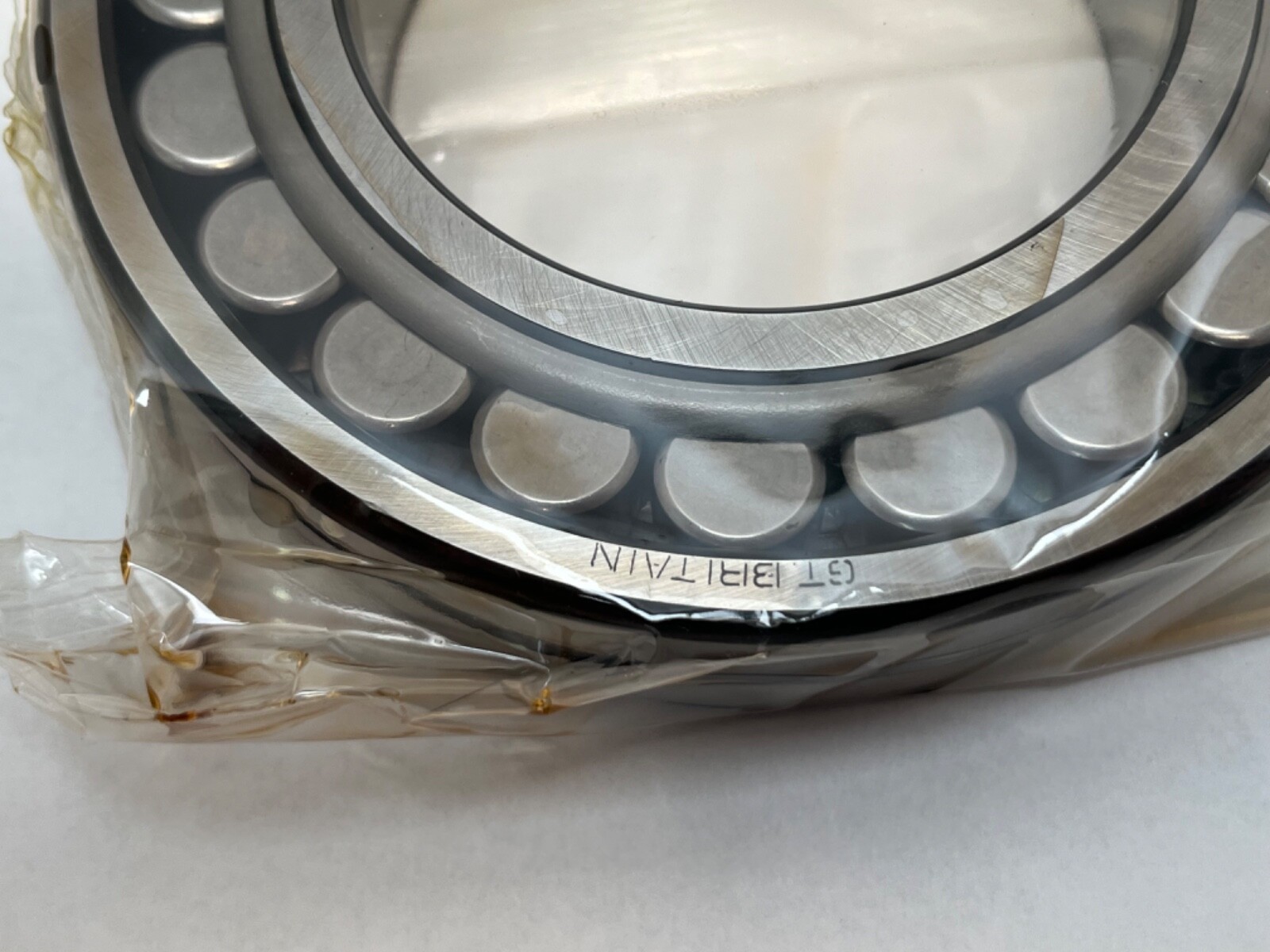

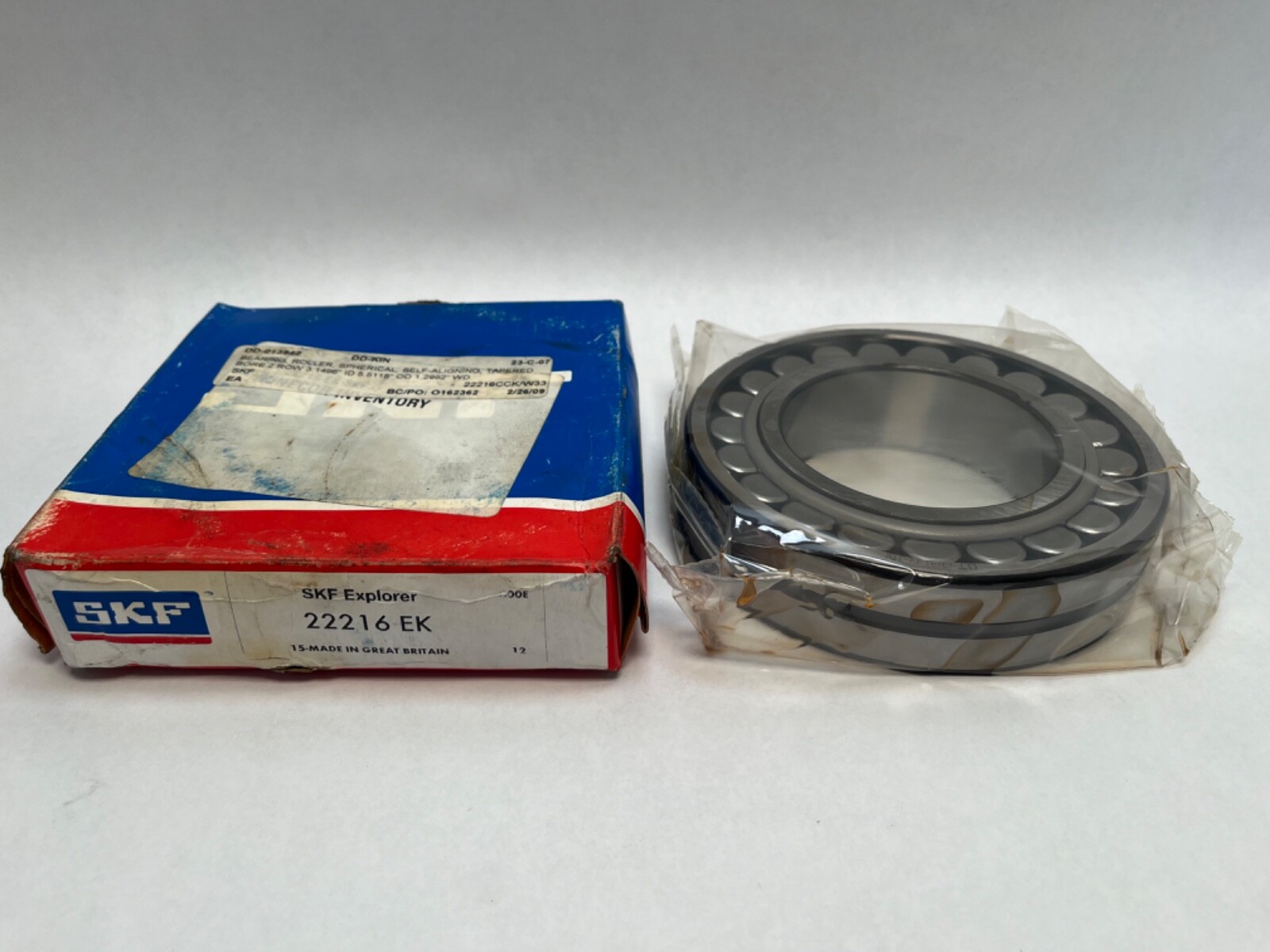

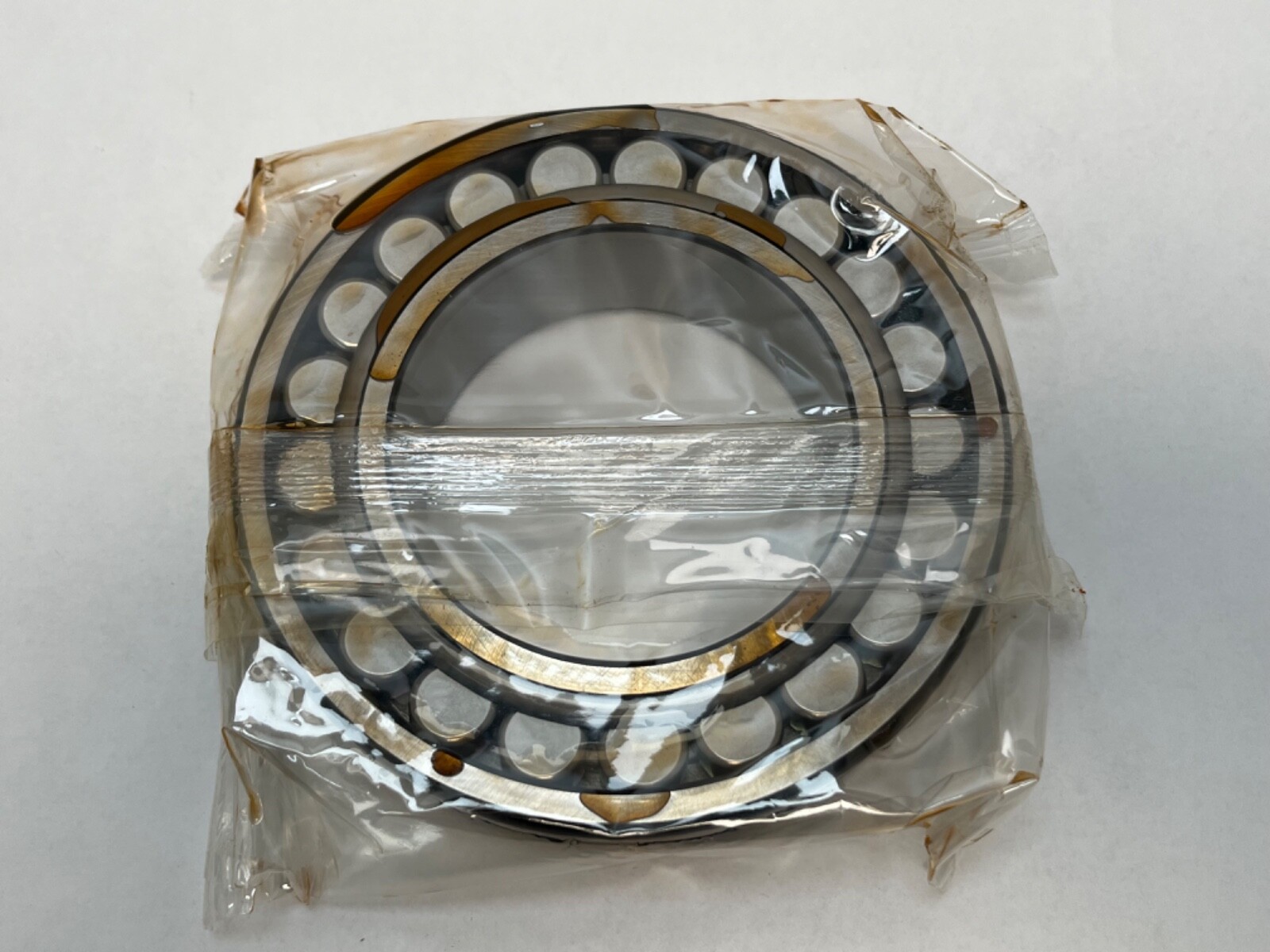

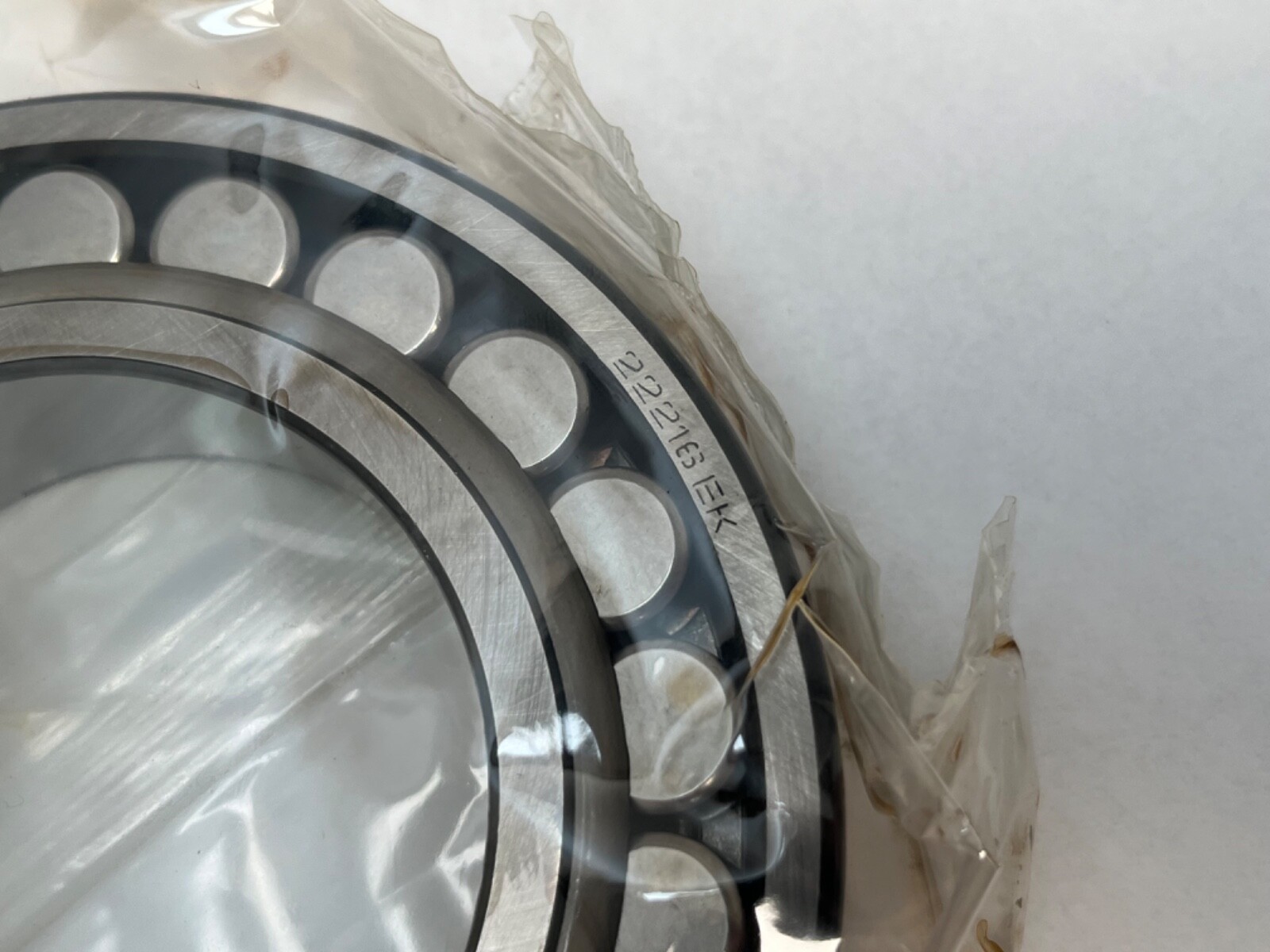

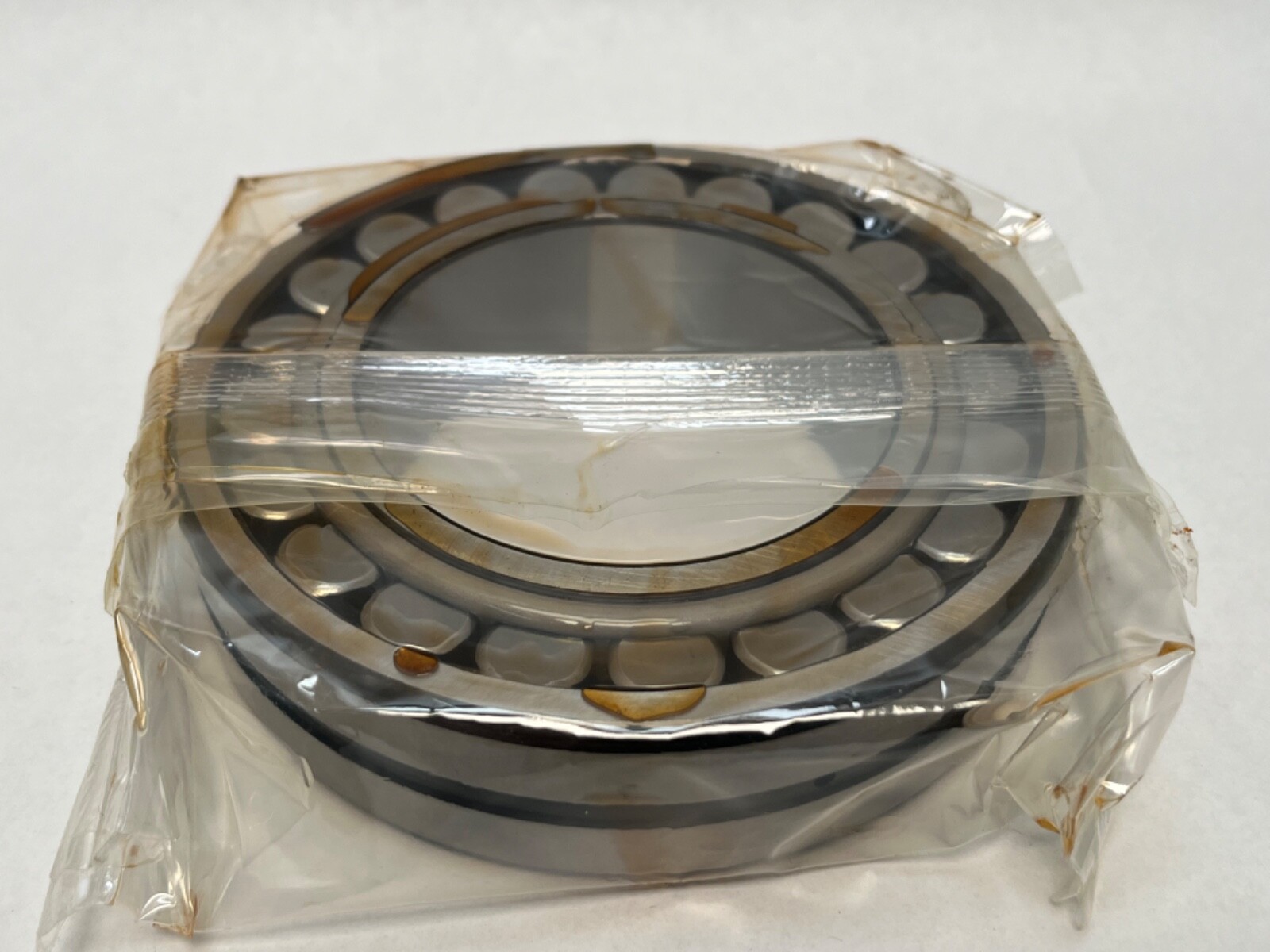

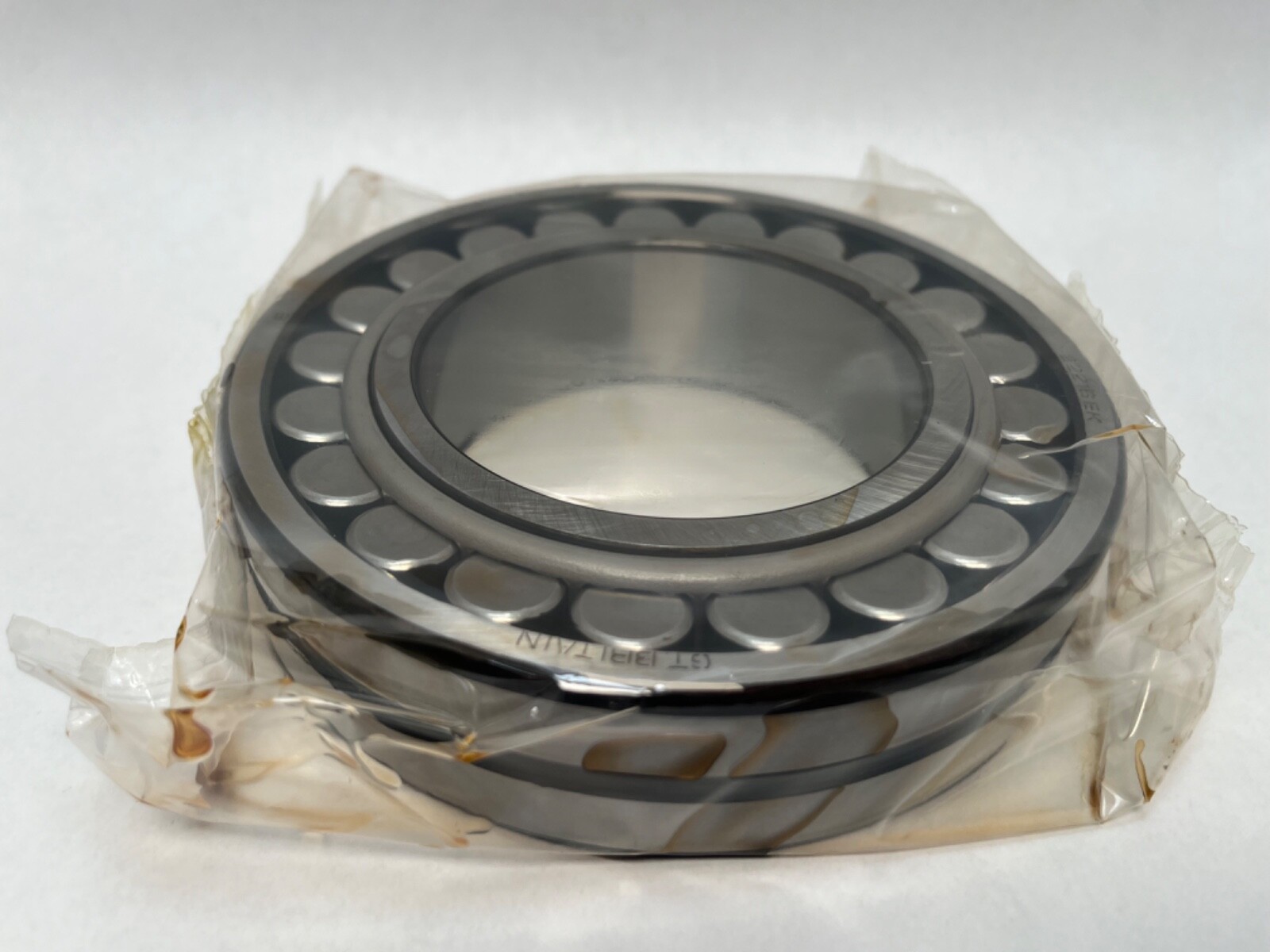

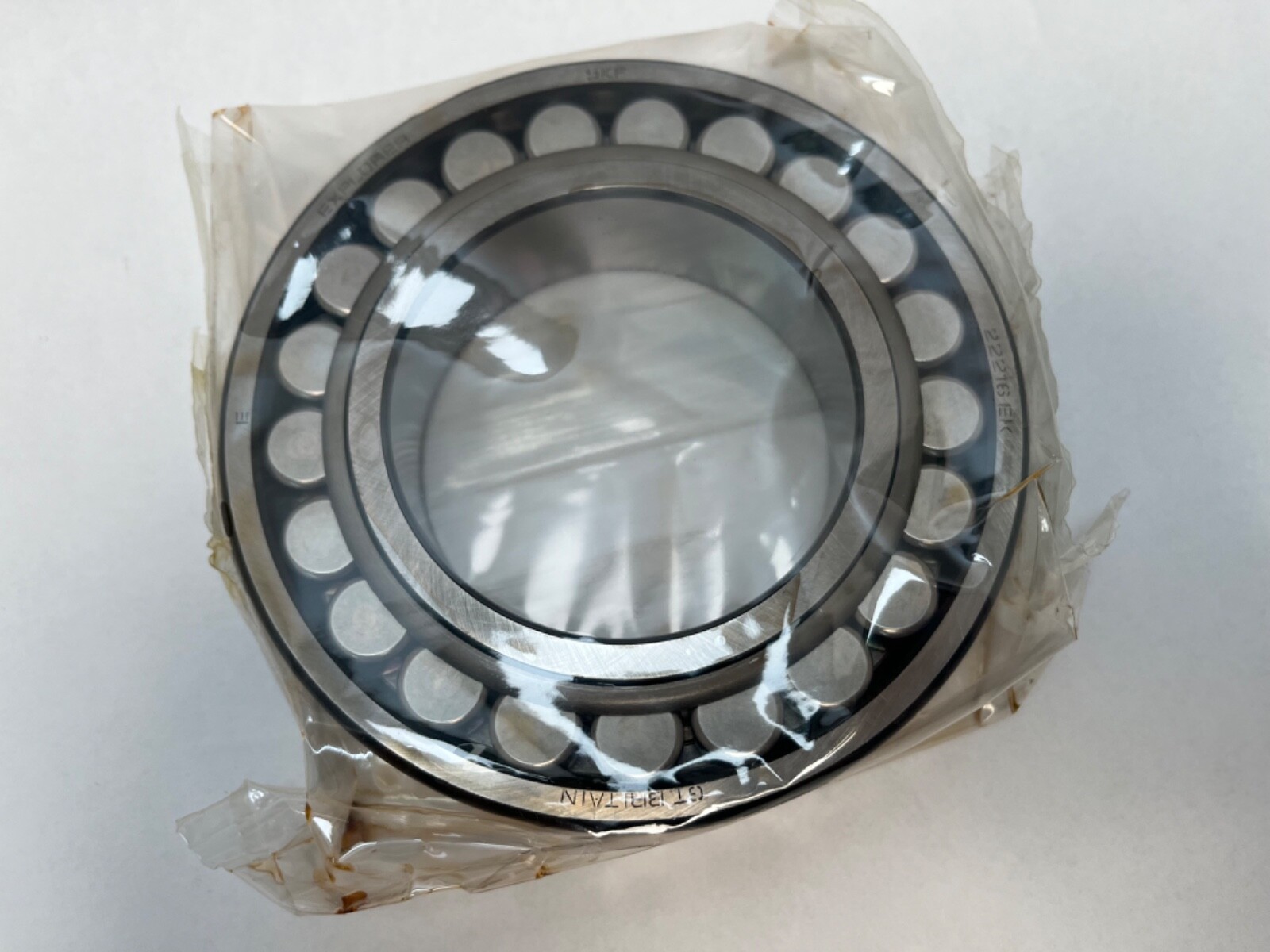

The SKF 22216-EK Spherical Bearing is a precision bearing with a dynamic load rating of 243 kN and a static load rating of 270 kN. Made of 52100 Chrome Steel, this bearing features spherical roller elements for smooth operation and a limiting speed of 5600 rpm. With a bore diameter of 80 mm and an outside diameter of 140 mm, this open bearing is suitable for a variety of industrial applications. Manufactured in Britain, this high-quality bearing is designed for reliability and performance in demanding environments.
$44.26
14 in stock
$151.33
29 in stock
$67.31
10 in stock
$51.83
10 in stock
