SKF22216CCKC3Spherical Roller Bearing – 80 mm Tapered Bore, 140 mm OD, 33 mm Width, C3 Clearance

Product Description

What this part is

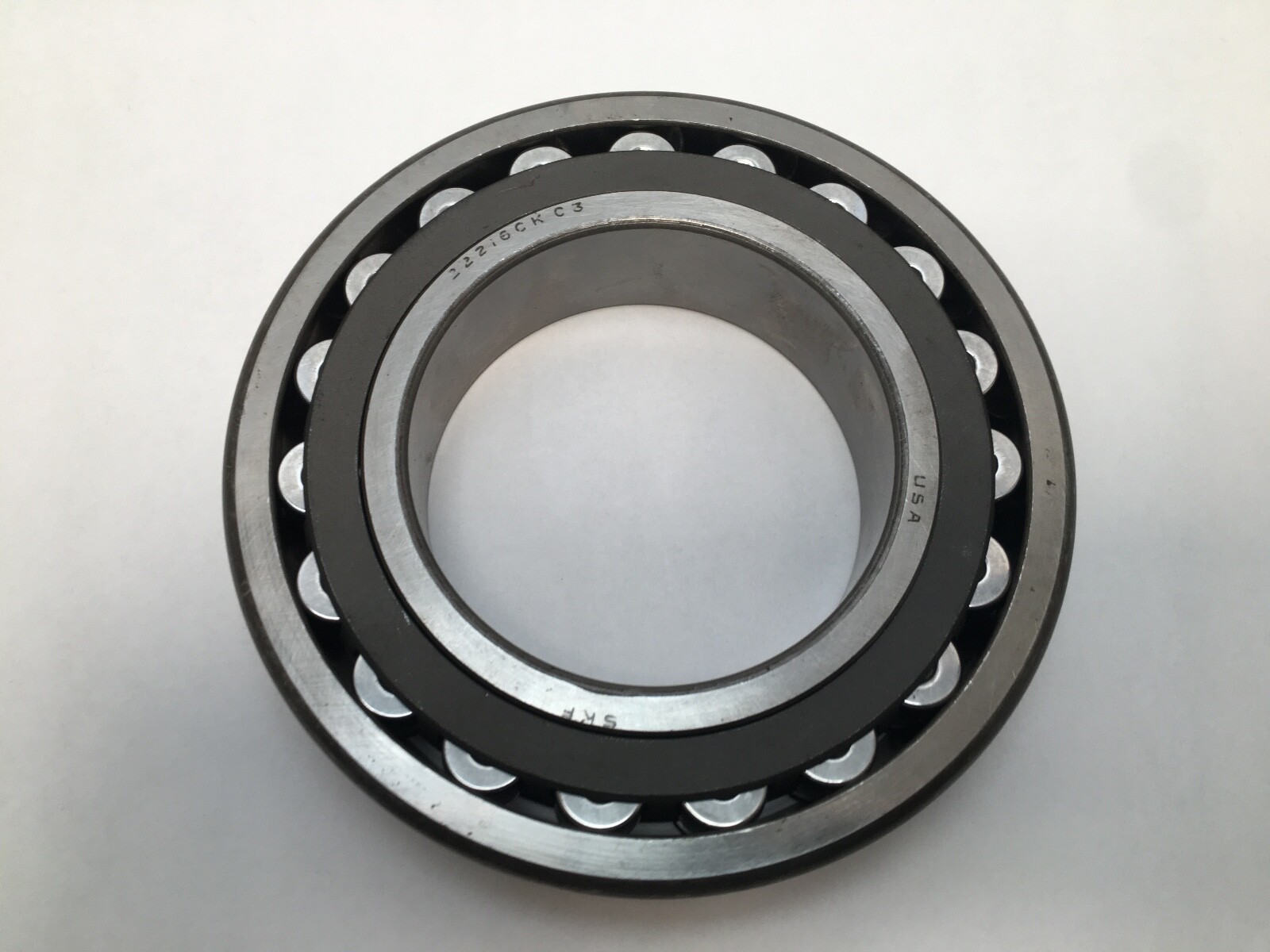

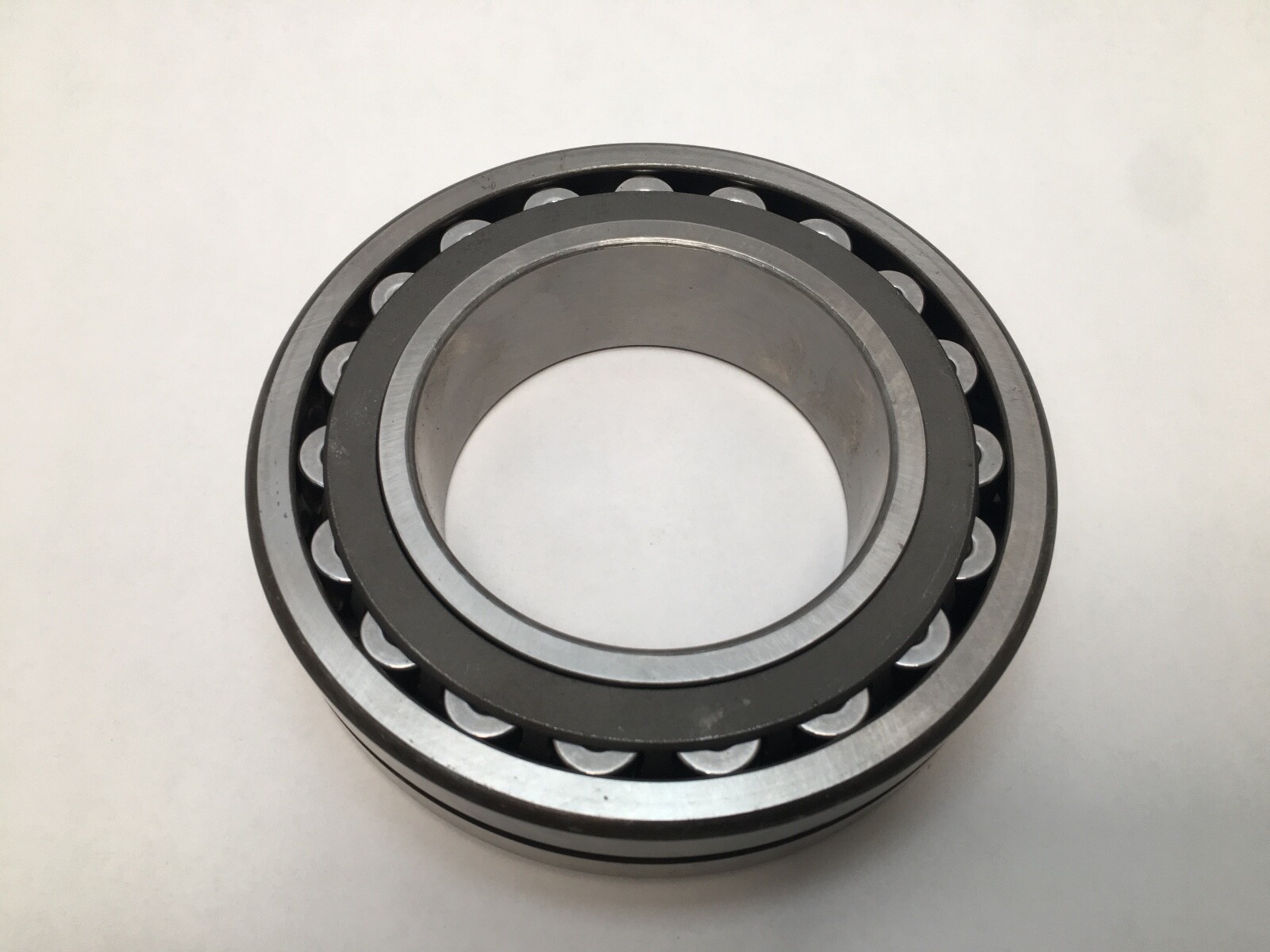

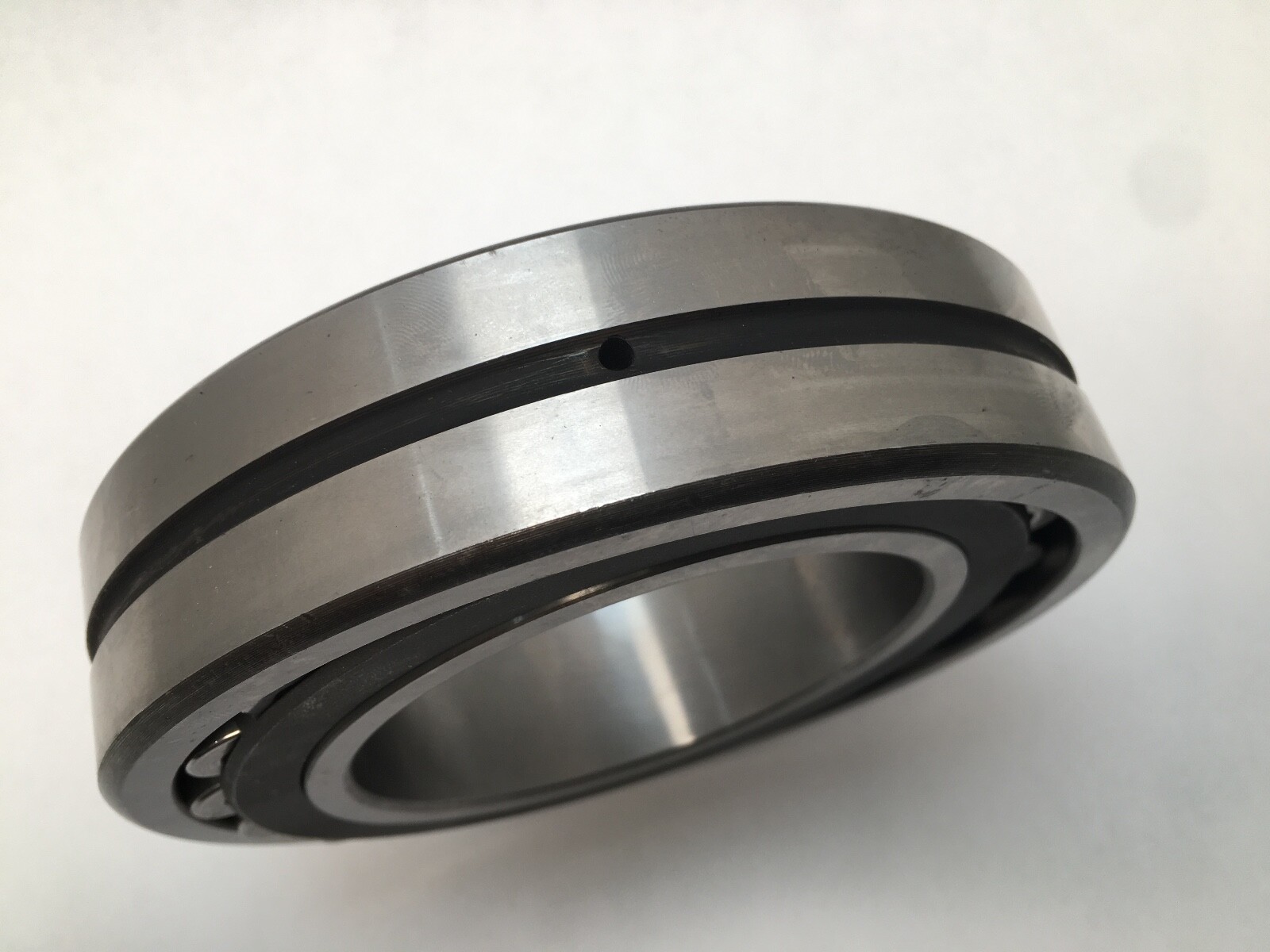

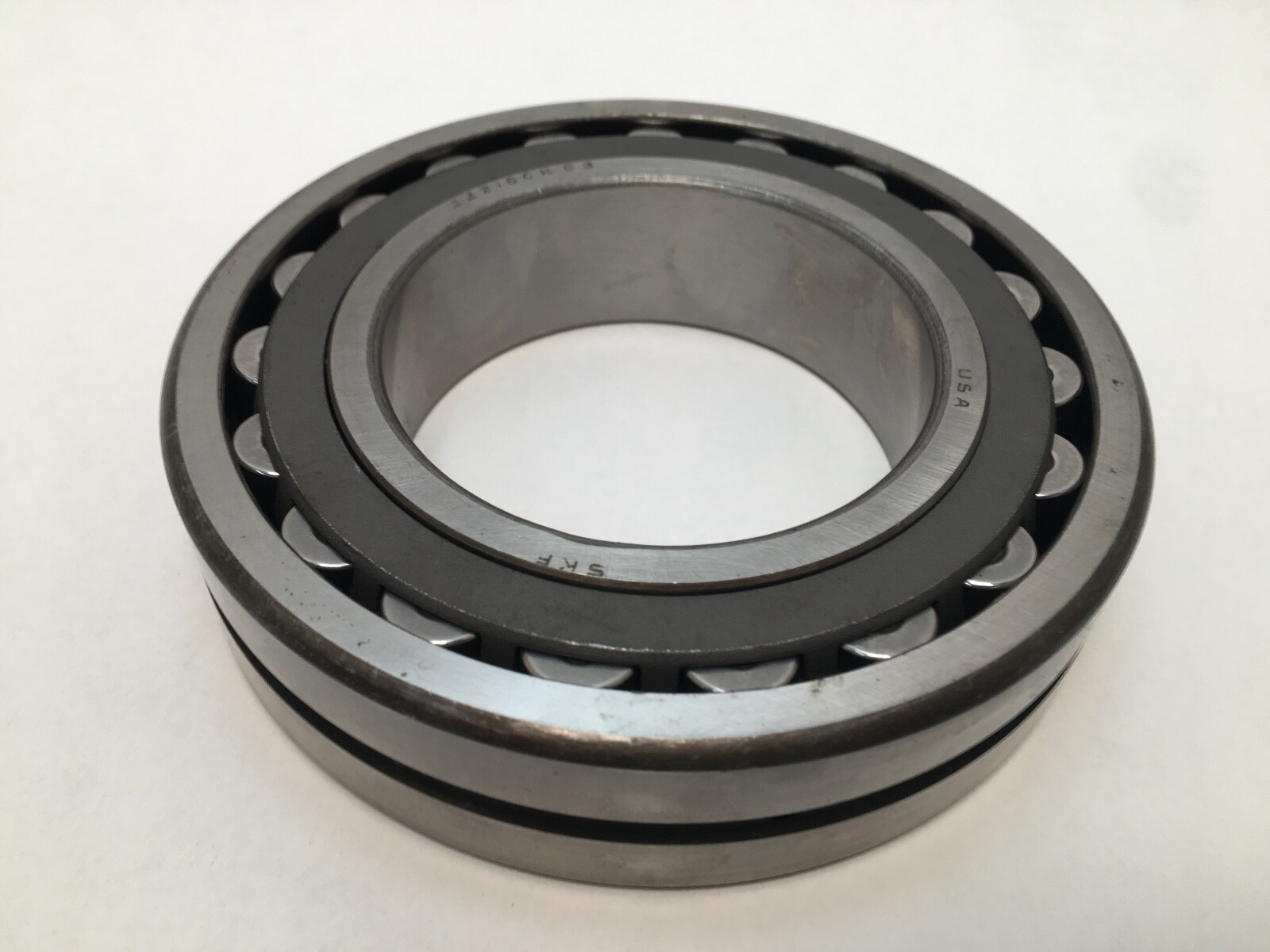

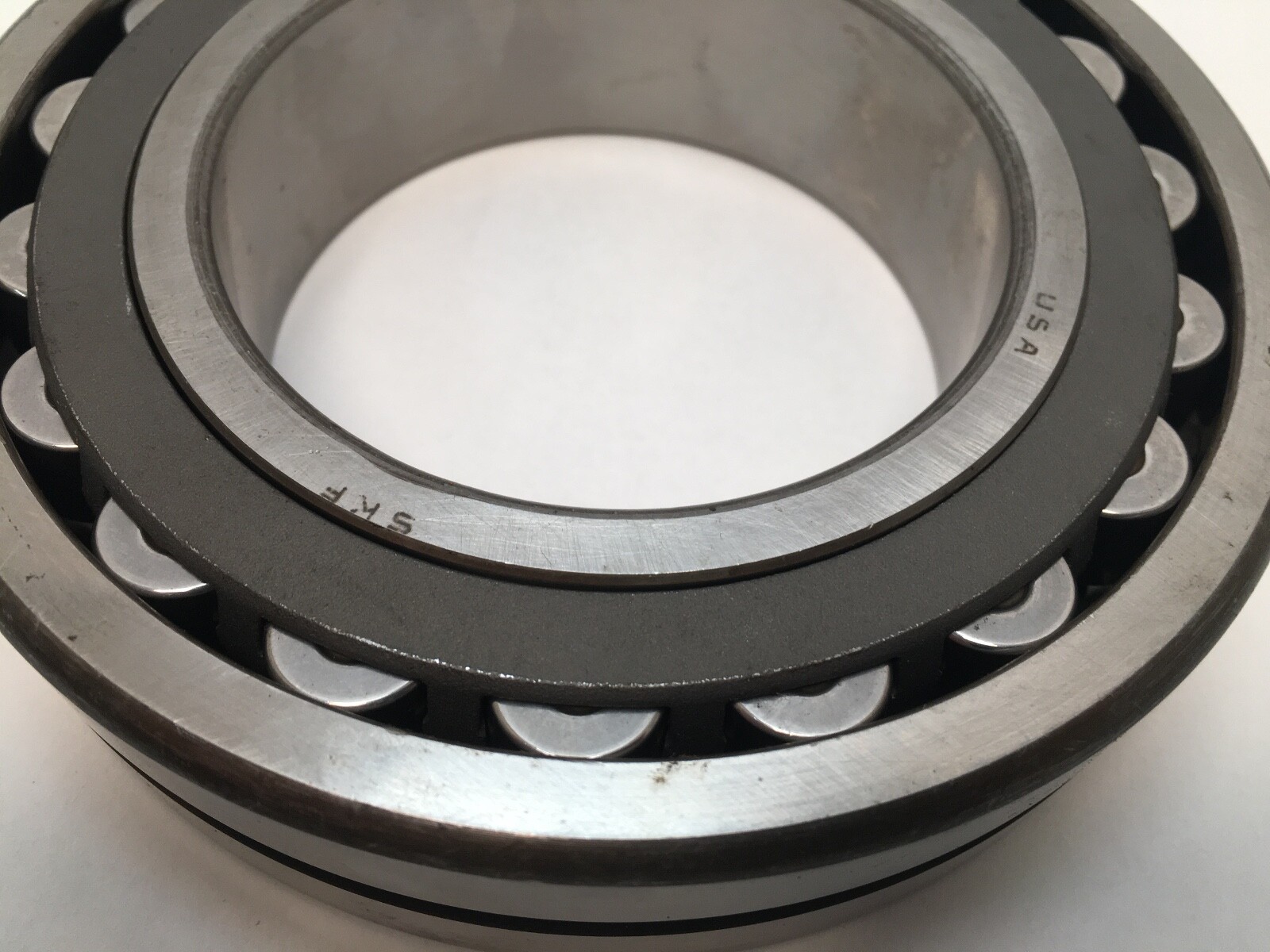

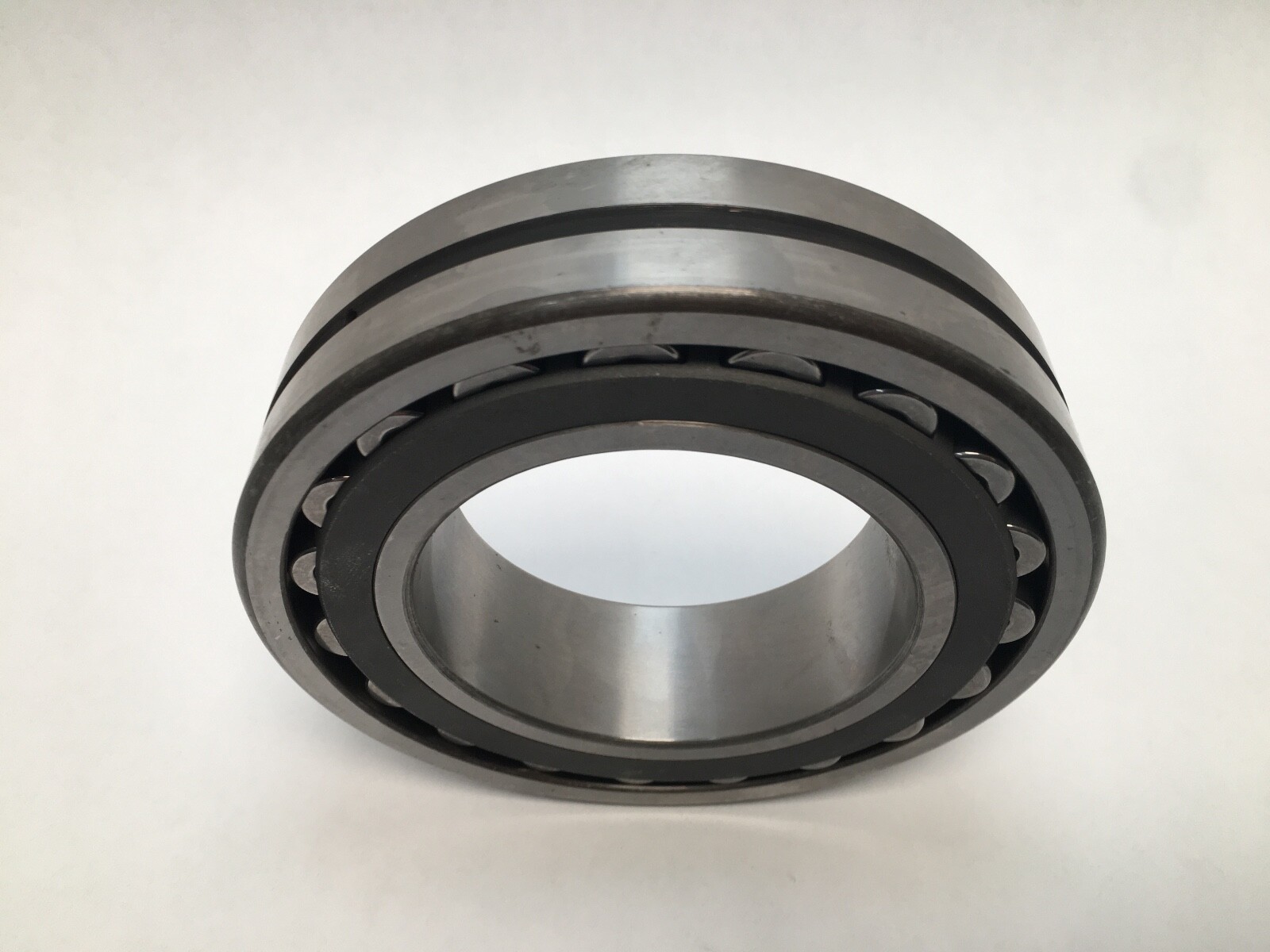

SKF 22216 CCK/C3 double-row spherical roller bearing with a tapered bore. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered 1:12. Cage Material: Pressed steel. Cage Type: Window type, inner-ring guided. Internal Clearance: C3. Closure Type: Open. Bearing Material: Bearing steel. Series: 222. Base Number: 22216.

Decoding the designation

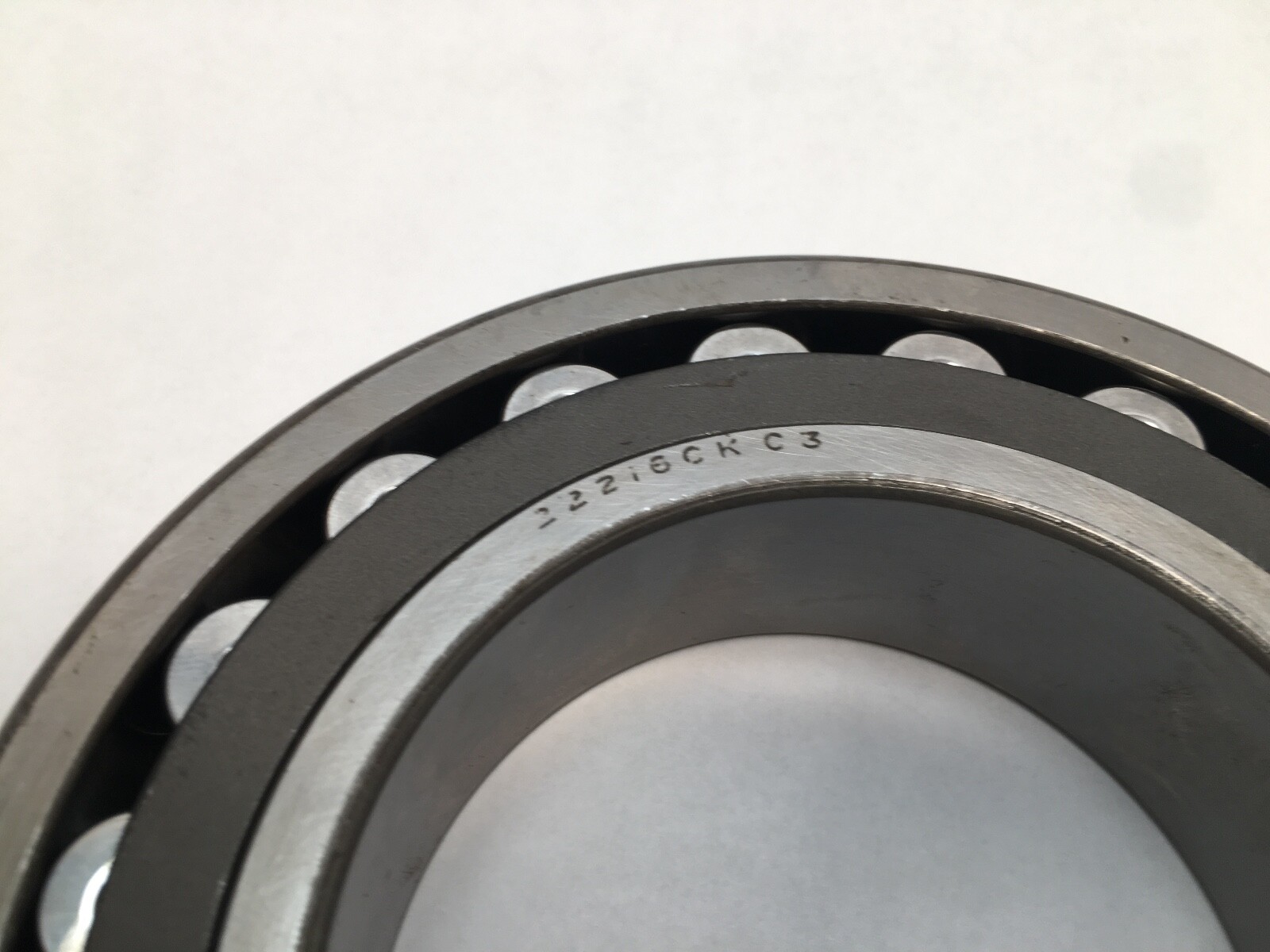

22216 is the 222 spherical roller series at an 80 mm bore. CC is SKF’s pressed steel window cage, guided on the inner ring. K is a 1:12 tapered bore. C3 is radial internal clearance greater than normal. Written as 22216-CCK-C3, 22216-CC-K-C3, 22216CCKC3 and 22216K.

What these specs mean in practice

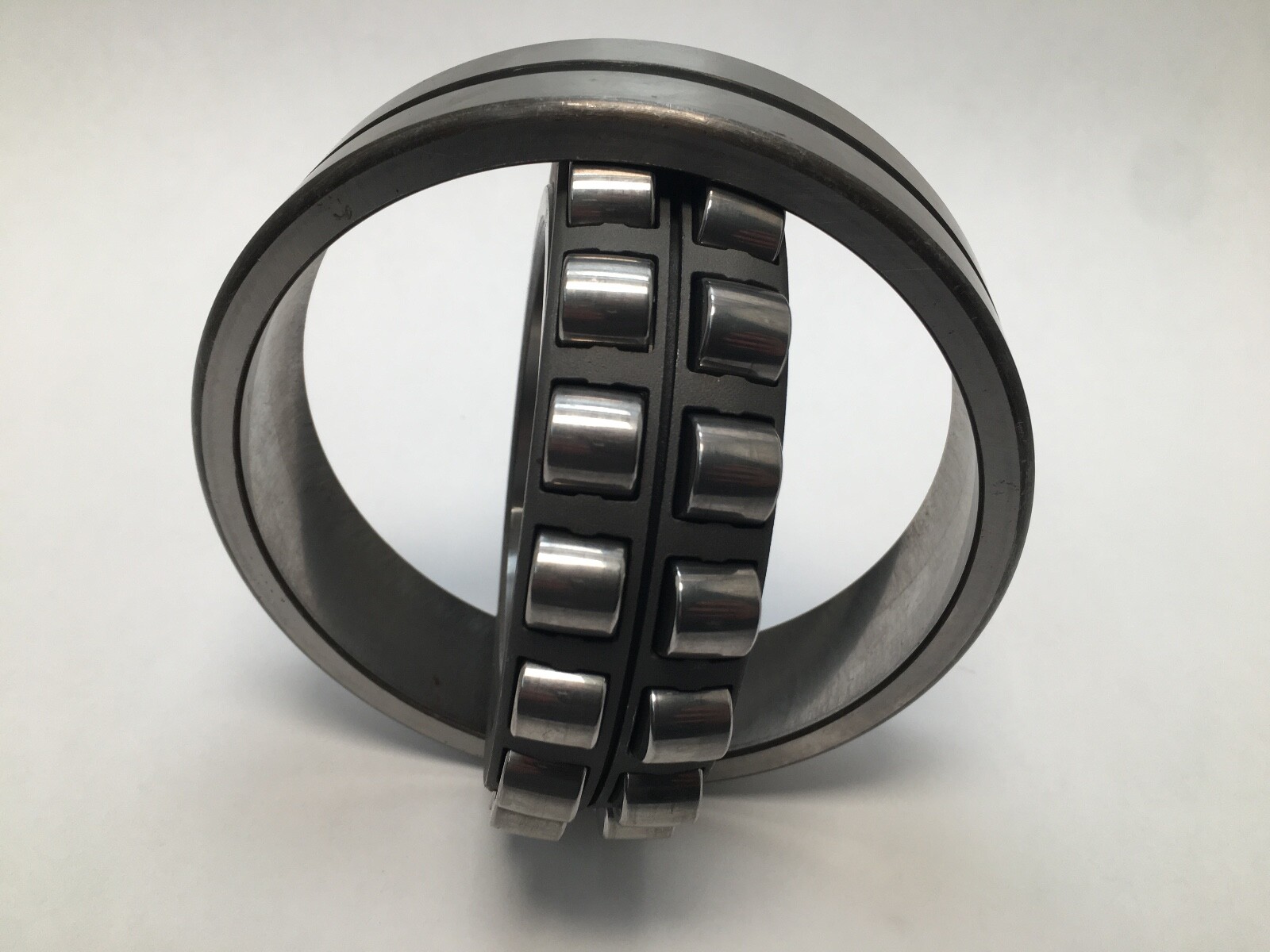

Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the inner ring and roller set swivel inside the outer ring. That takes up shaft deflection and housing misalignment without loading the roller ends, and it carries heavy radial load plus thrust in both directions. C3 clearance is the normal choice on a tapered-bore spherical roller, because driving the inner ring up the sleeve taper is itself what sets the final running clearance — starting from C3 leaves room for that drive-up.

Quantity and configuration

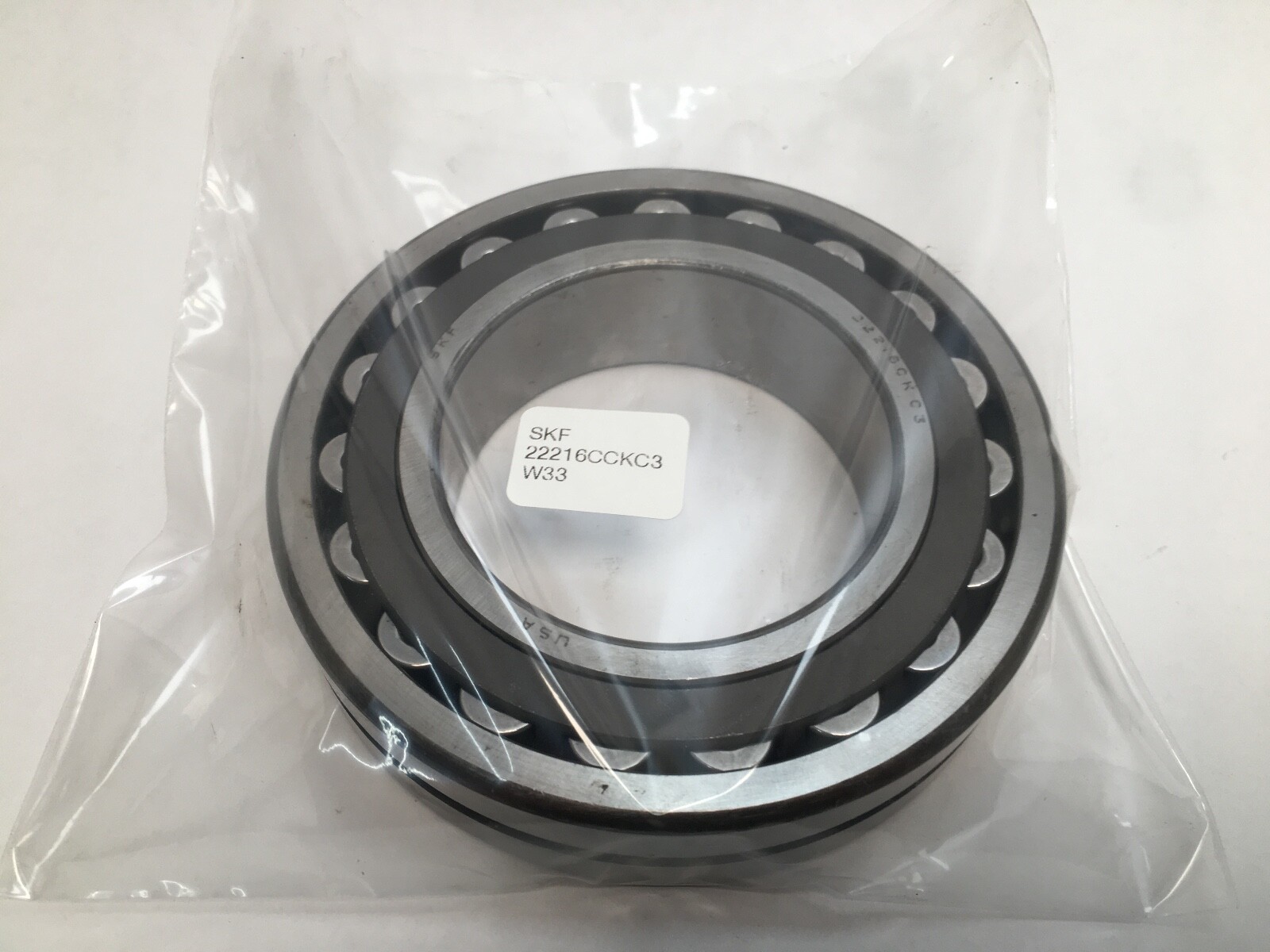

Unit Quantity: 1 Pc. One bearing per sale unit, open on both faces.

Mounting data

The 1:12 tapered bore mounts on an H316 adapter sleeve, whose tapered outside diameter is 80 mm to match this bore and whose parallel bore takes a 70 mm shaft. The sleeve is secured with a KM 16 lock nut and an MB 16 lock washer. Shaft abutment diameter: 91 mm minimum. Housing abutment diameter: 129 mm maximum. Shaft and housing fillet radius: 2 mm maximum. Bearing chamfer r1,2: 2 mm minimum.

Interchange guidance

22216 is an ISO-pattern designation and the K tapered-bore and C3 clearance codes translate directly. Cross-Reference 1: FAG 22216-E1-K-C3. Cross-Reference 2: NSK 22216EAKE4C3. Cross-Reference 3: NTN 22216KC3. Cross-Reference 4: Koyo 22216RKC3. Cross-Reference 5: Timken 22216KEJW33C3. Cross-Reference 6: Torrington 22216KCJW33C3. Searchable forms: 22216-CCK-C3, 22216-CC-K-C3, 22216CCKC3, 22216K, 22216.
