SKF22216CCJW33Spherical Roller Bearing – 80 mm Bore, 140 mm OD, 33 mm Width, W33 Lubrication Groove

Product Description

What this part is

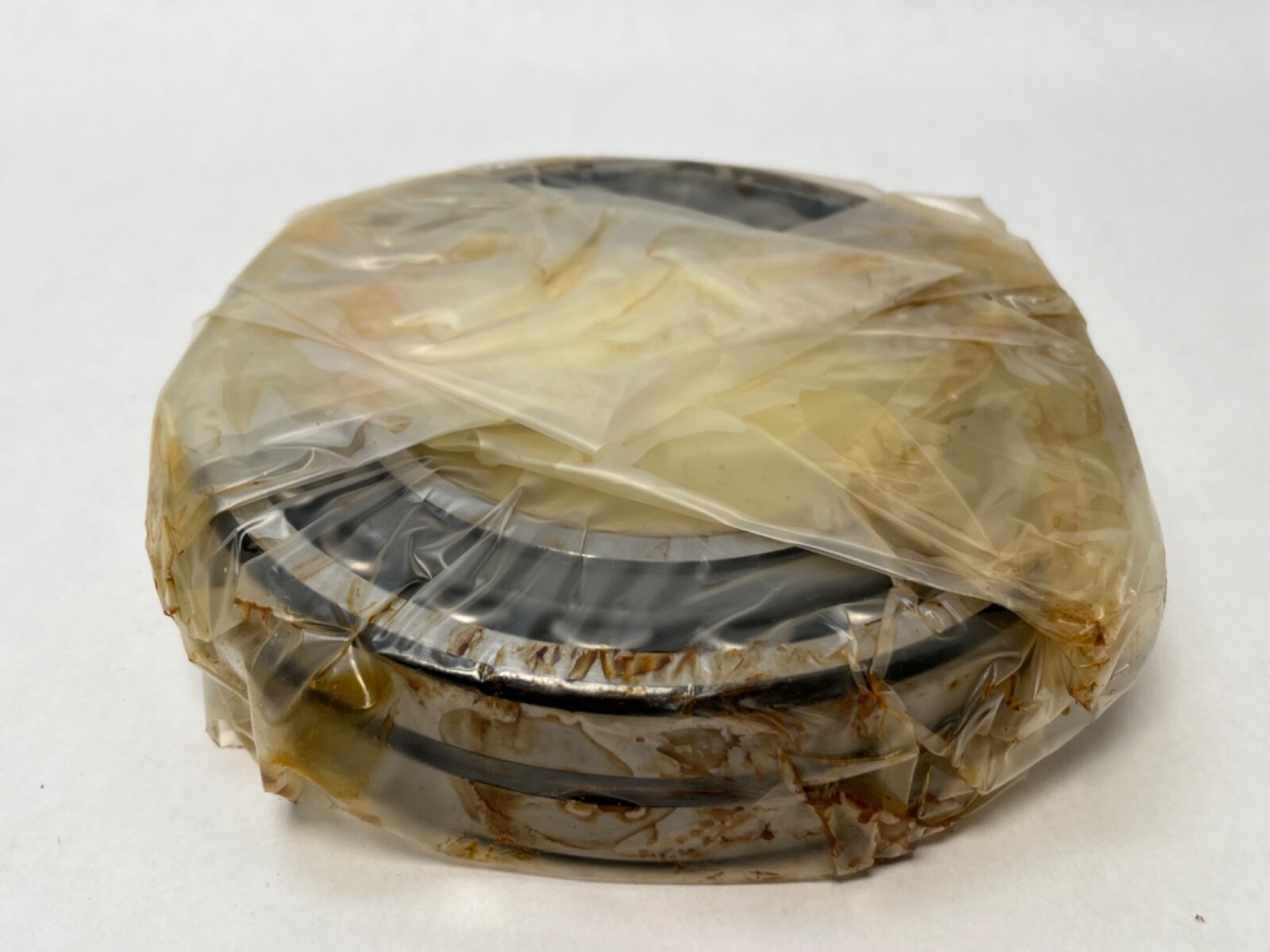

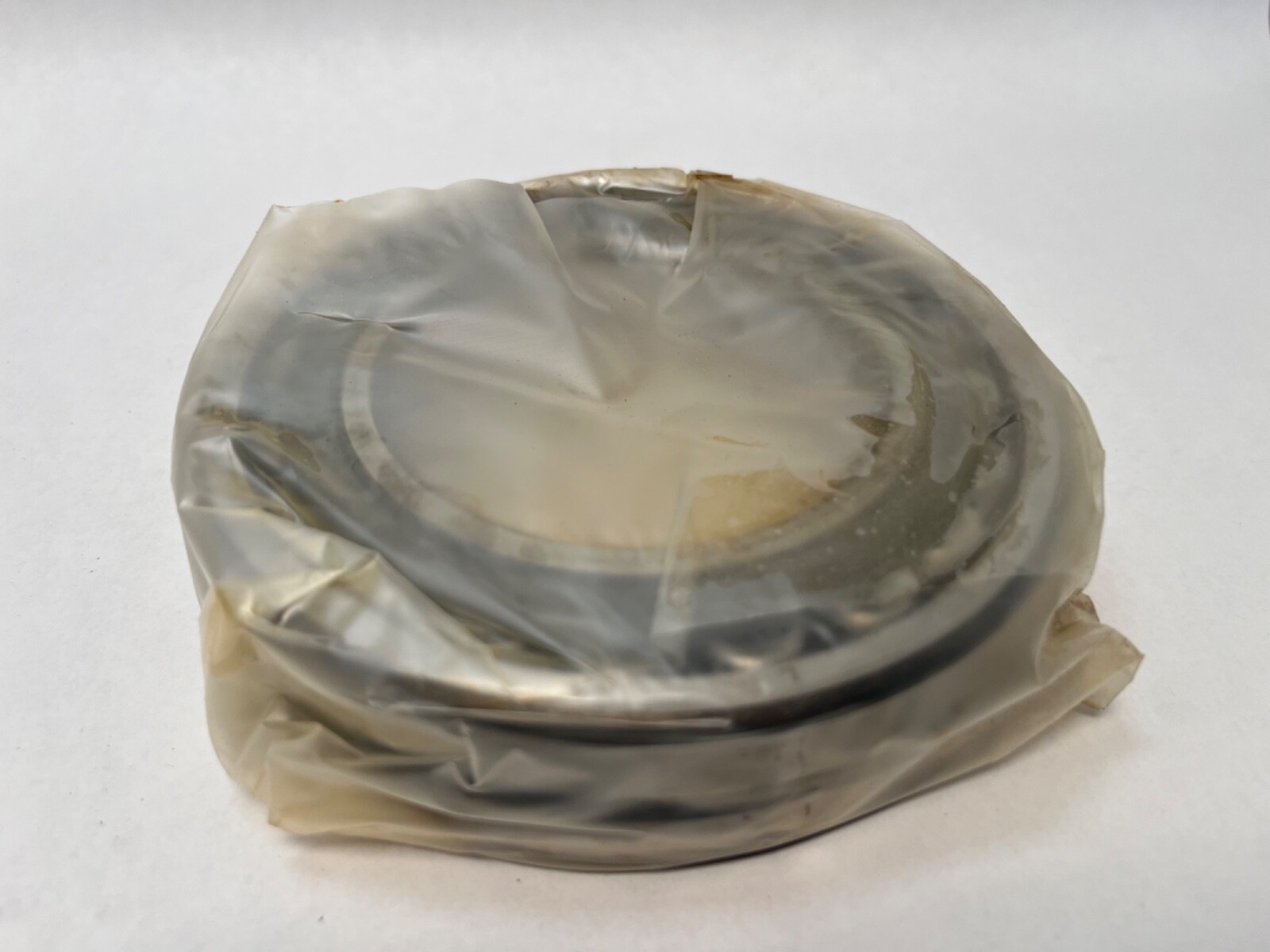

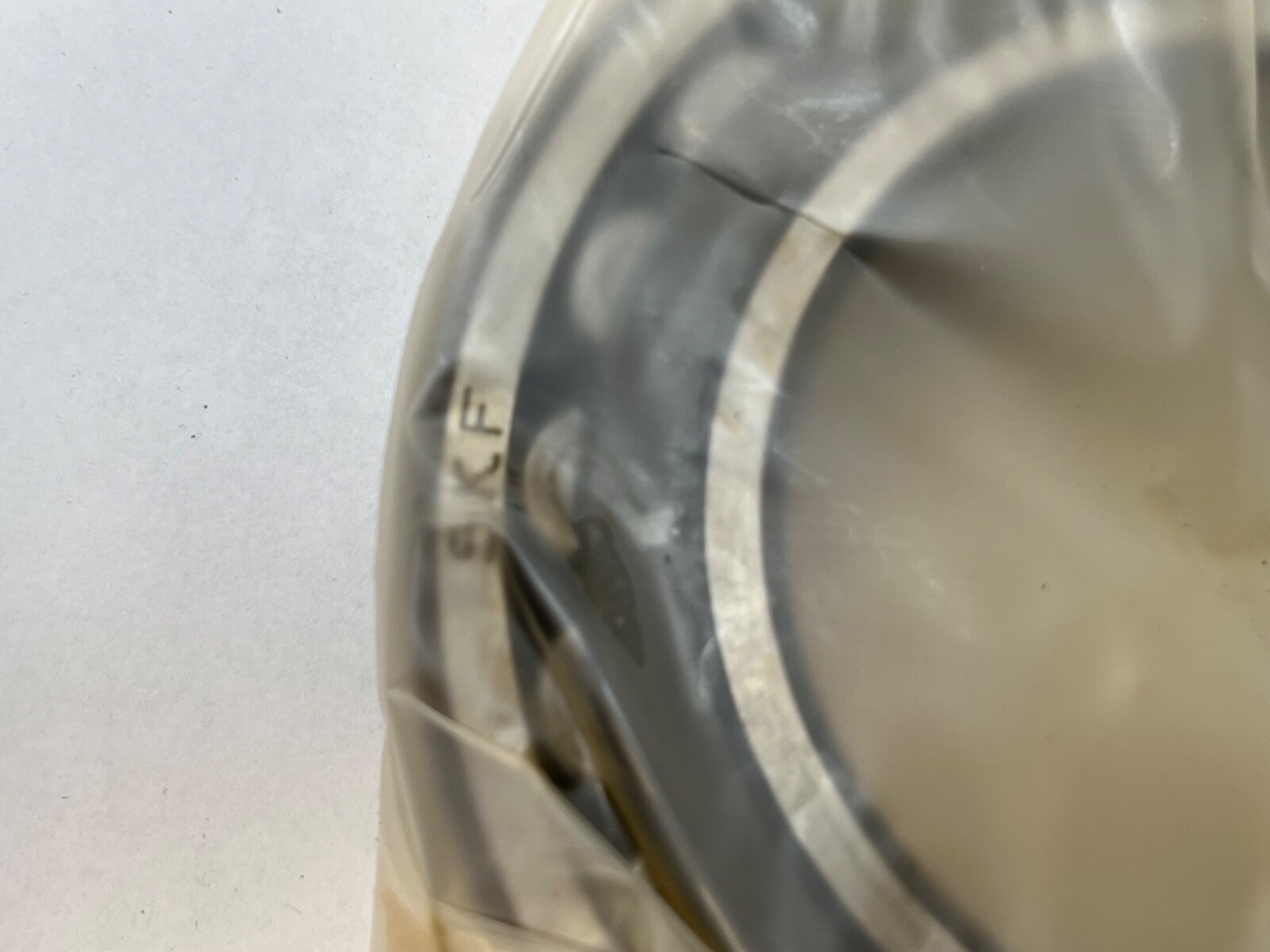

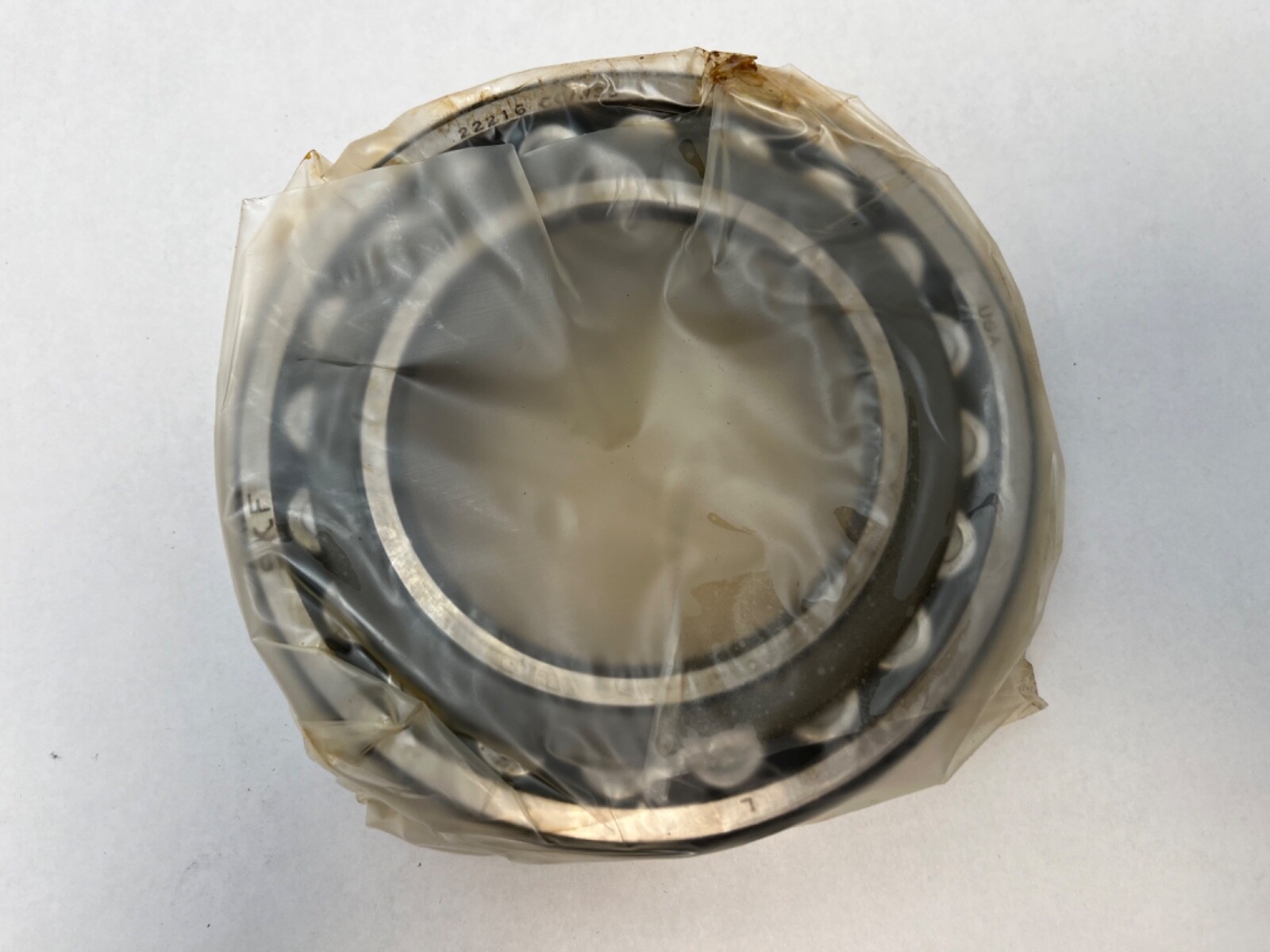

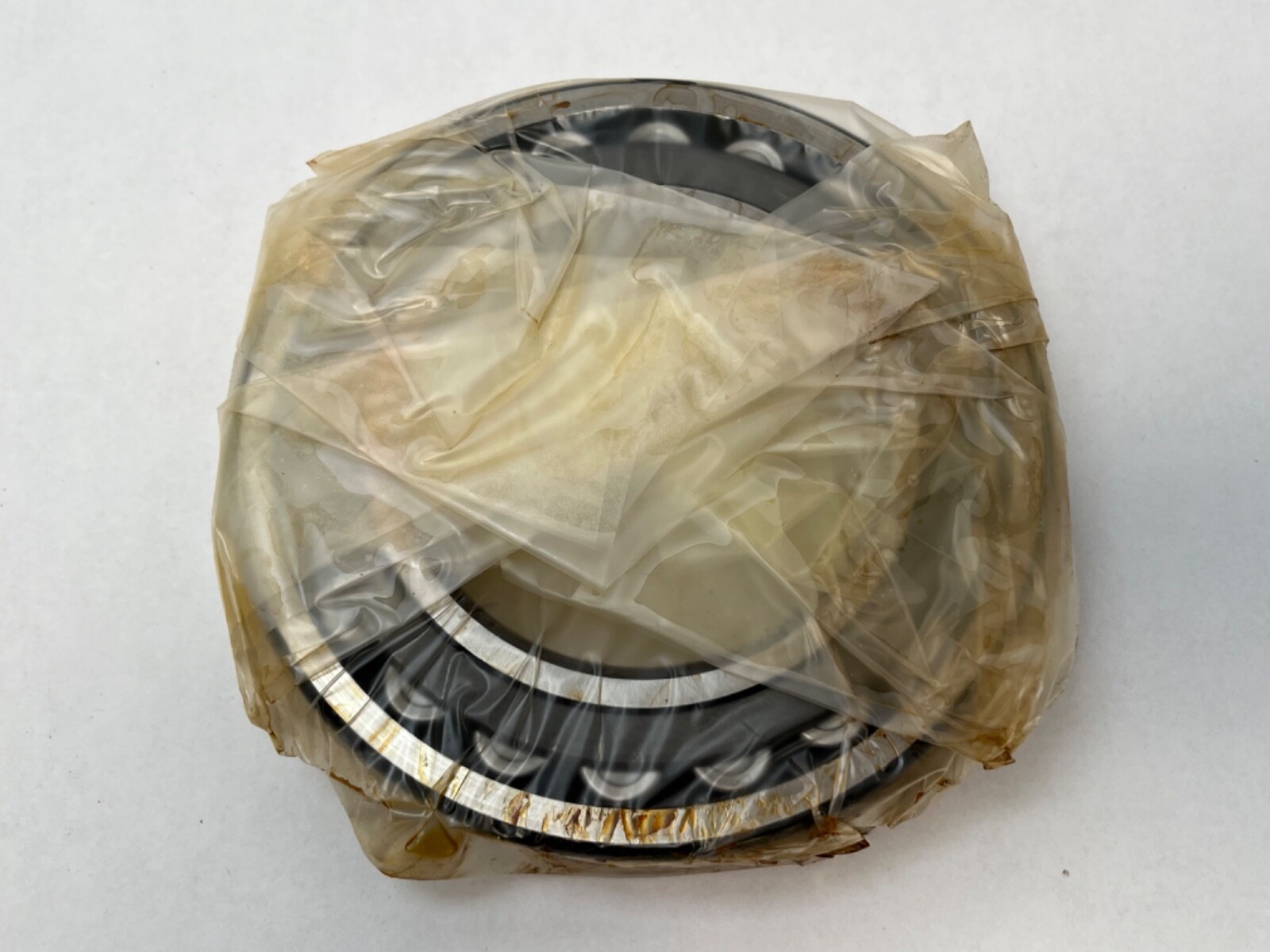

SKF 22216 CC/W33 double-row spherical roller bearing with a cylindrical bore. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Cylindrical. Cage Material: Pressed steel. Cage Type: Window type, inner-ring guided. Internal Clearance: CN. Closure Type: Open. Lubricant: Grease or oil. Bearing Material: Bearing steel. Series: 222. Base Number: 22216.

Decoding the designation

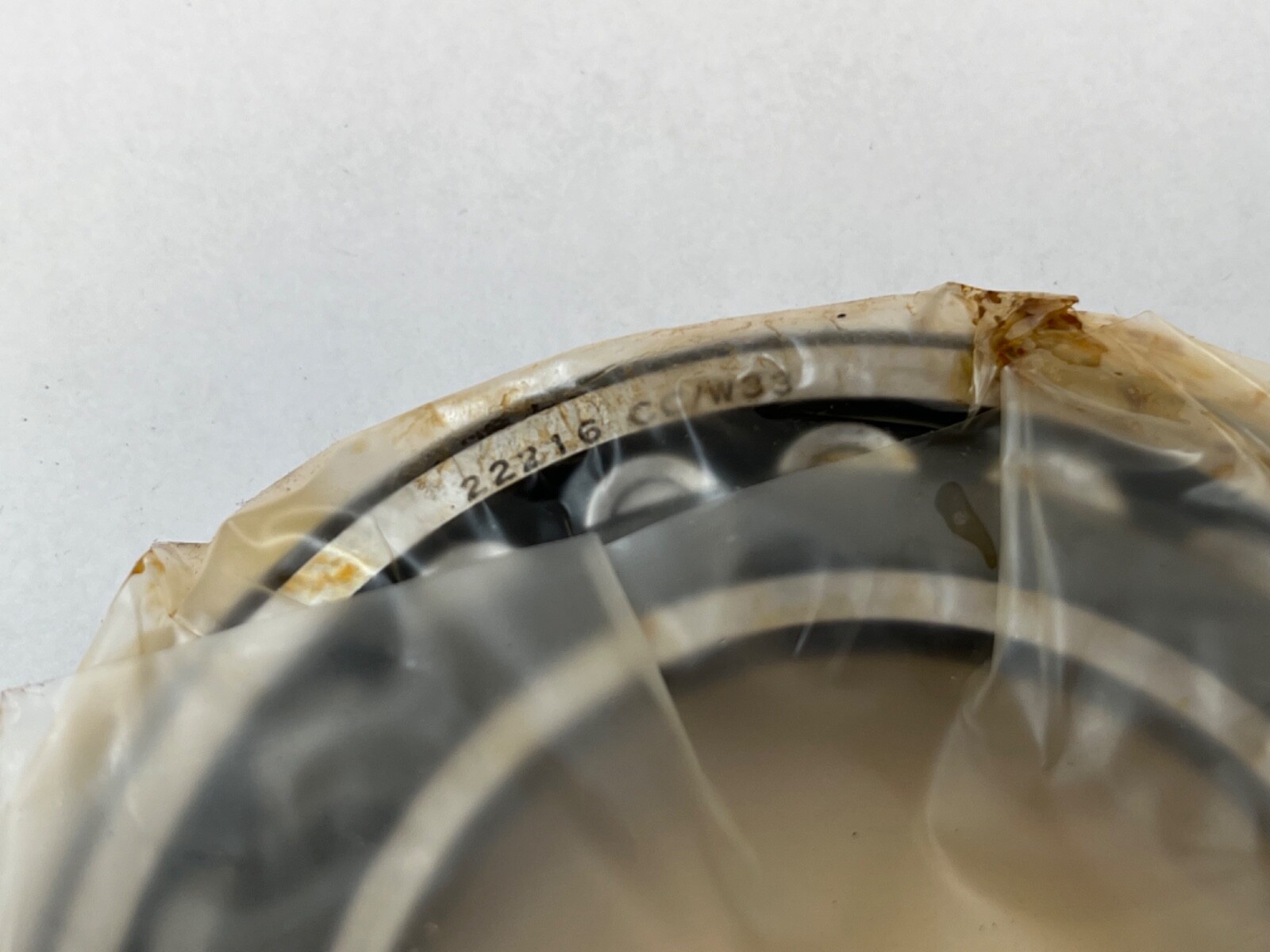

22216 is the 222 spherical roller series at an 80 mm bore. CC is SKF’s pressed steel window cage, guided on the inner ring. W33 is an annular groove machined into the outer ring outside diameter with three radial holes through to the rolling elements. No K appears, so the bore is cylindrical. No clearance suffix appears, so the bearing is supplied to normal radial internal clearance. Written as 22216-CCJ/W33, 22216-CCJ-W33, 22216CJ and 22216 CC/W33.

What these specs mean in practice

Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the inner ring and roller set swivel inside the outer ring. That takes up shaft deflection and housing misalignment without loading the roller ends, and it carries heavy radial load plus thrust in both directions. The W33 groove distributes lubricant circumferentially around the outer ring and the three radial holes carry it inward to the rolling elements; the same passages suit grease from a gun, a single-point lubricator or a centralised system, and equally suit circulating oil or oil mist. Groove width: 6 mm. Lubrication hole diameter: 3 mm.

Quantity and configuration

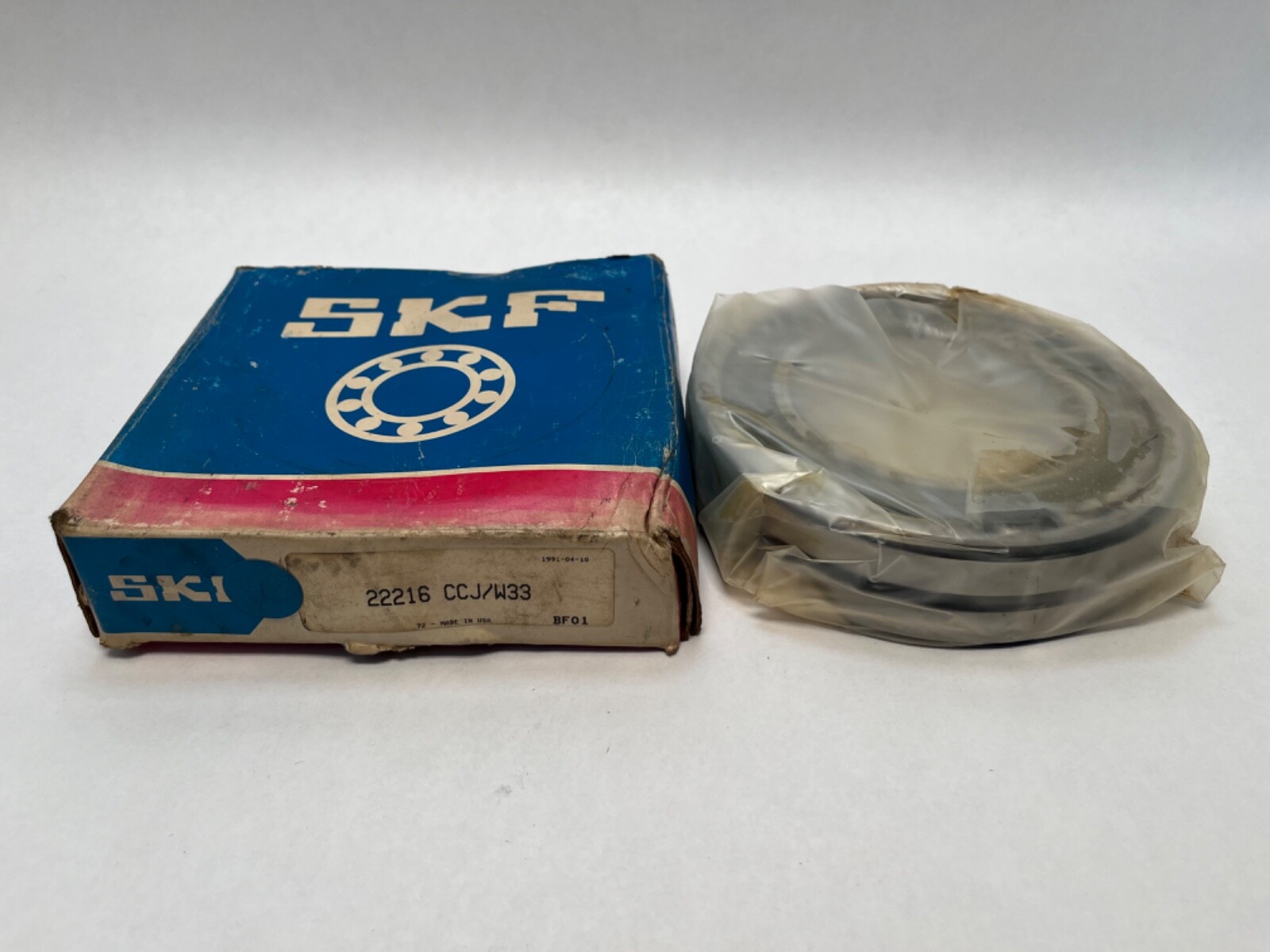

Unit Quantity: 1 Pc. One bearing per sale unit, open on both faces.

Mounting data

The cylindrical bore seats directly on an 80 mm shaft journal with an interference fit. Shaft abutment diameter: 91 mm minimum. Housing abutment diameter: 129 mm maximum. Shaft and housing fillet radius: 2 mm maximum. Bearing chamfer r1,2: 2 mm minimum. The W33 groove aligns with the lubrication port in the housing.

Interchange guidance

22216 is an ISO-pattern designation and the W33 lubrication feature carries its own code on every maker. Cross-Reference 1: FAG 22216-E1. Cross-Reference 2: NSK 22216EAE4. Cross-Reference 3: NTN 22216. Cross-Reference 4: Koyo 22216RW33. Cross-Reference 5: Timken 22216EJW33. Cross-Reference 6: Torrington 22216CJW33. On NSK the E4 suffix is the same groove-and-three-holes feature as SKF’s W33. Searchable forms: 22216-CCJ/W33, 22216-CCJ-W33, 22216CJ, 22216CCW33, 22216.
