Availability:
2 in stock
Single-row barrel roller bearing, 30 mm bore x 62 mm OD x 16 mm wide. Cylindrical bore, machined brass cage, radial load with self-alignment. 1 Pc.
List Price
$60.40
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | 20206M |
| Model | 20206 M MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 20200 |
| Condition | New – Open box |
| Lubricant | Oil |
| Base Number | 20206 |
| Condition Note | Made In USA |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | 20206-M, 20206M, 20206 |
| Min Temp | -30°C |
| Cage Type | Machined Brass |
| Dynamic Load Rating | 38 kN |
| Static Load Rating | 37.5 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200°C |
| Item Weight | 0.55 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | FAG 20206-MB |
|---|---|
| Cross Reference 2 | NTN 20206 |
SKF 20206-M, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 30 mm bore × 62 mm outside diameter × 16 mm width. Cylindrical bore.
20 – barrel roller, single row2 – ISO dimension series06 – bore code, 6 × 5 = 30 mm boreM – machined brass cage

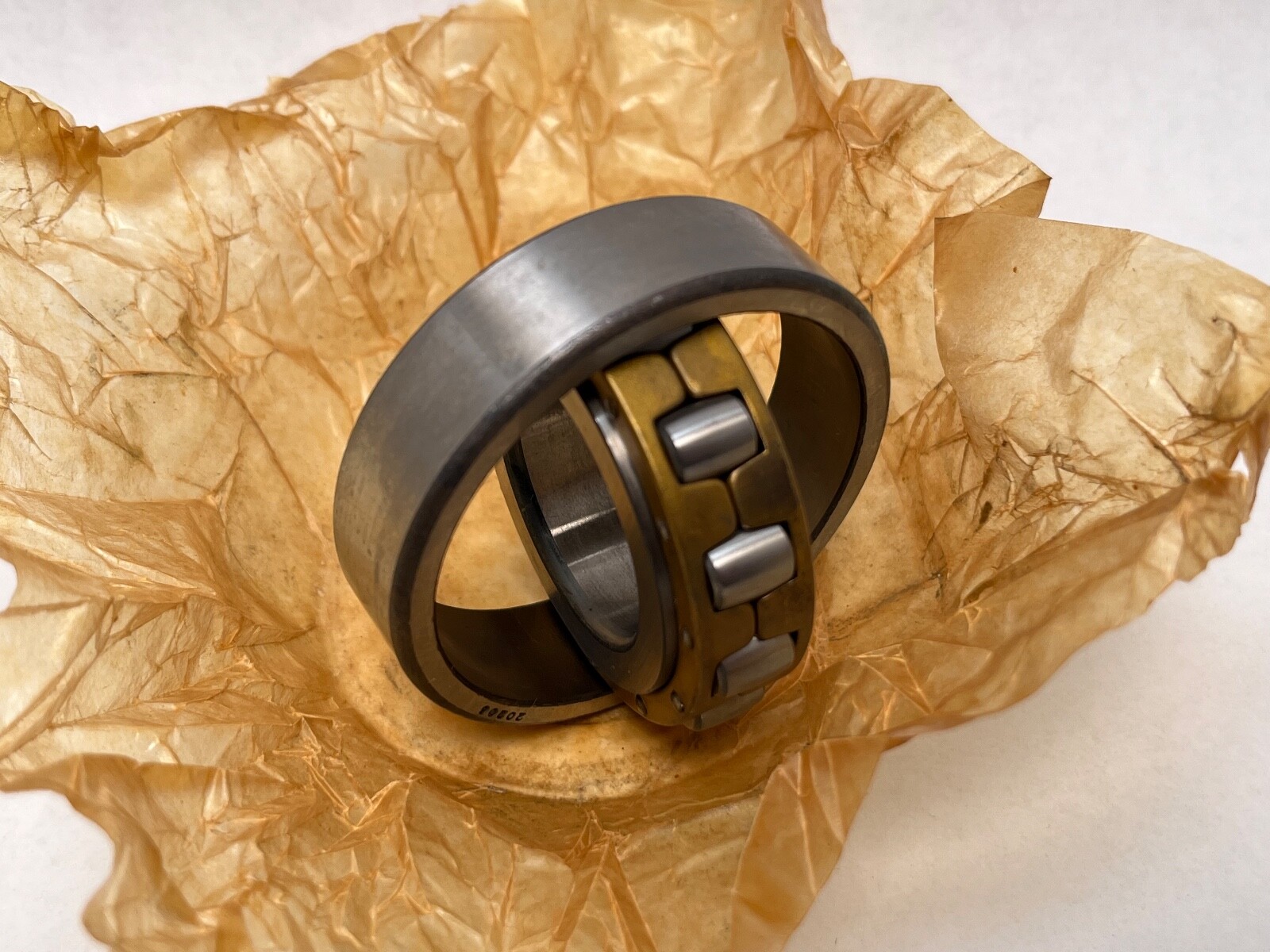

The barrel roller carries radial load and self-aligns on its spherical outer raceway, taking shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. The machined brass cage runs at higher speed and temperature than a pressed steel cage.
Bore: 30 mm (1.1811 in)Outside diameter: 62 mm (2.4409 in)Width: 16 mm (0.6299 in)Rows: 1Bore form: cylindricalCage: machined brass, MInternal clearance: CN (normal)
1 Pc. Bearing only, cylindrical bore, mounted directly on the shaft seat.
Alternate written forms of the same bearing: 20206-M, 20206M, 20206. The FAG 20206-TVP is the same ISO size with a polyamide cage and is a related size. The 22206 is a double-row spherical roller bearing, a different bearing type.
