This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing, 85 mm Bore, 180 mm OD, 41 mm, C3$213.40
Spherical Roller Bearing - 85 mm ID, 180 mm OD, 41 mm Width, Polyamide Cage, Cylindrical Bore$136.42
Spherical Roller Bearing — 85 mm Tapered Bore, 180 mm OD, 41 mm Width, C3 Clearance, Brass Cage$152.21
Spherical Roller Bearing - Straight Bore, 85 mm ID, 150 mm OD, 36 mm Width, W33 Lubrication Groove$46.69| MFR / Brand | RIV |
|---|---|
| MPN | 21317 |
| Model | 21317 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 180 mm |
| Width | 41 mm |
| Material | Bearing Steel |
|---|---|
| Series | 21300 |
| Min Temp | -40 °C |
| Cage Type | Stamped Steel |
| Dynamic Load Rating | 331 kN |
| Static Load Rating | 375 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical |
| Max Temp | 200 °C |
| Item Weight | 11.70 lbs |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Limiting Speed | 3800 rpm |
| Cross Reference 1 | SKF 21317 E |
|---|---|
| Cross Reference 2 | FAG 21317-E1 |
| Cross Reference 3 | NSK 21317 |

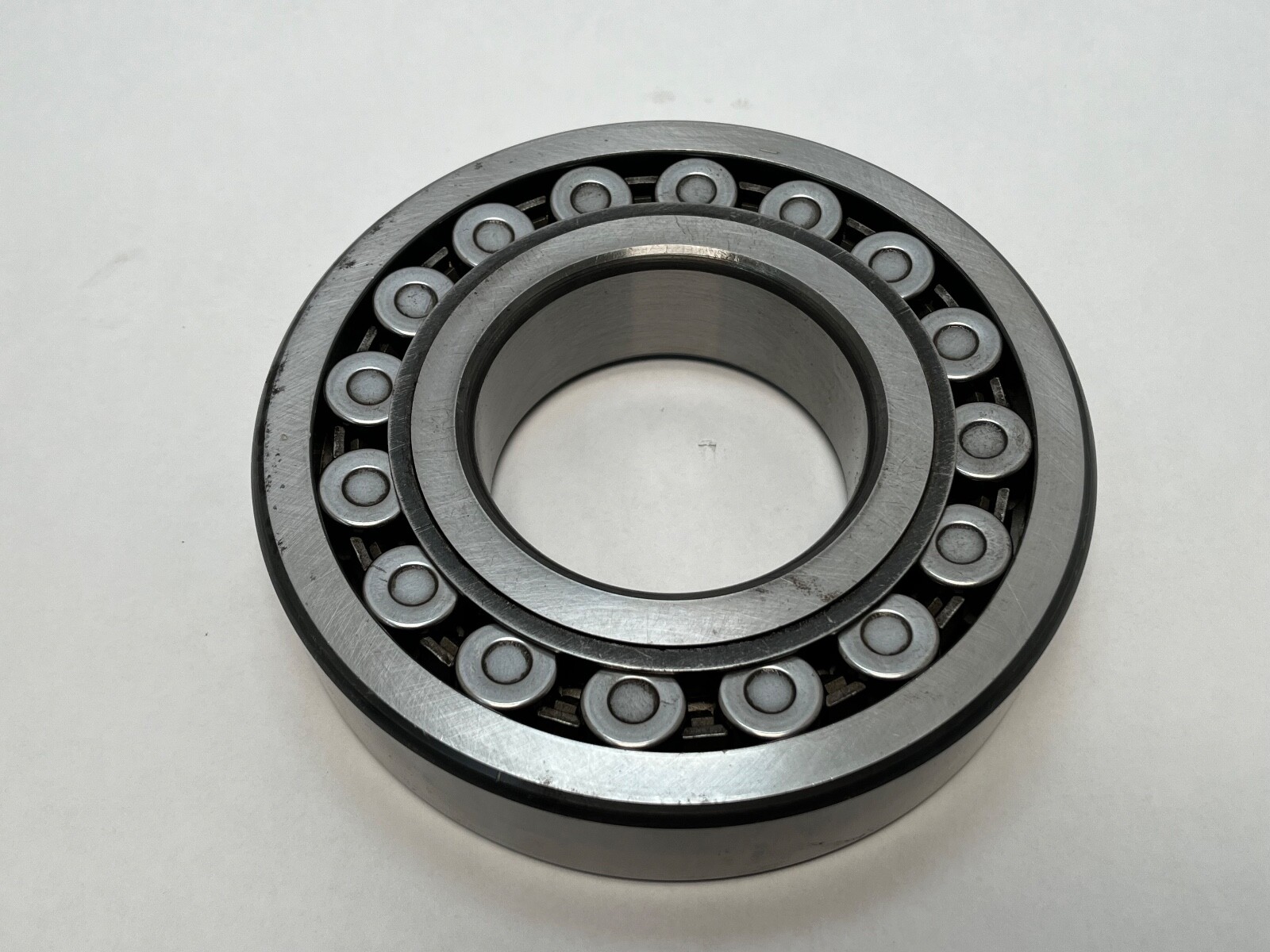

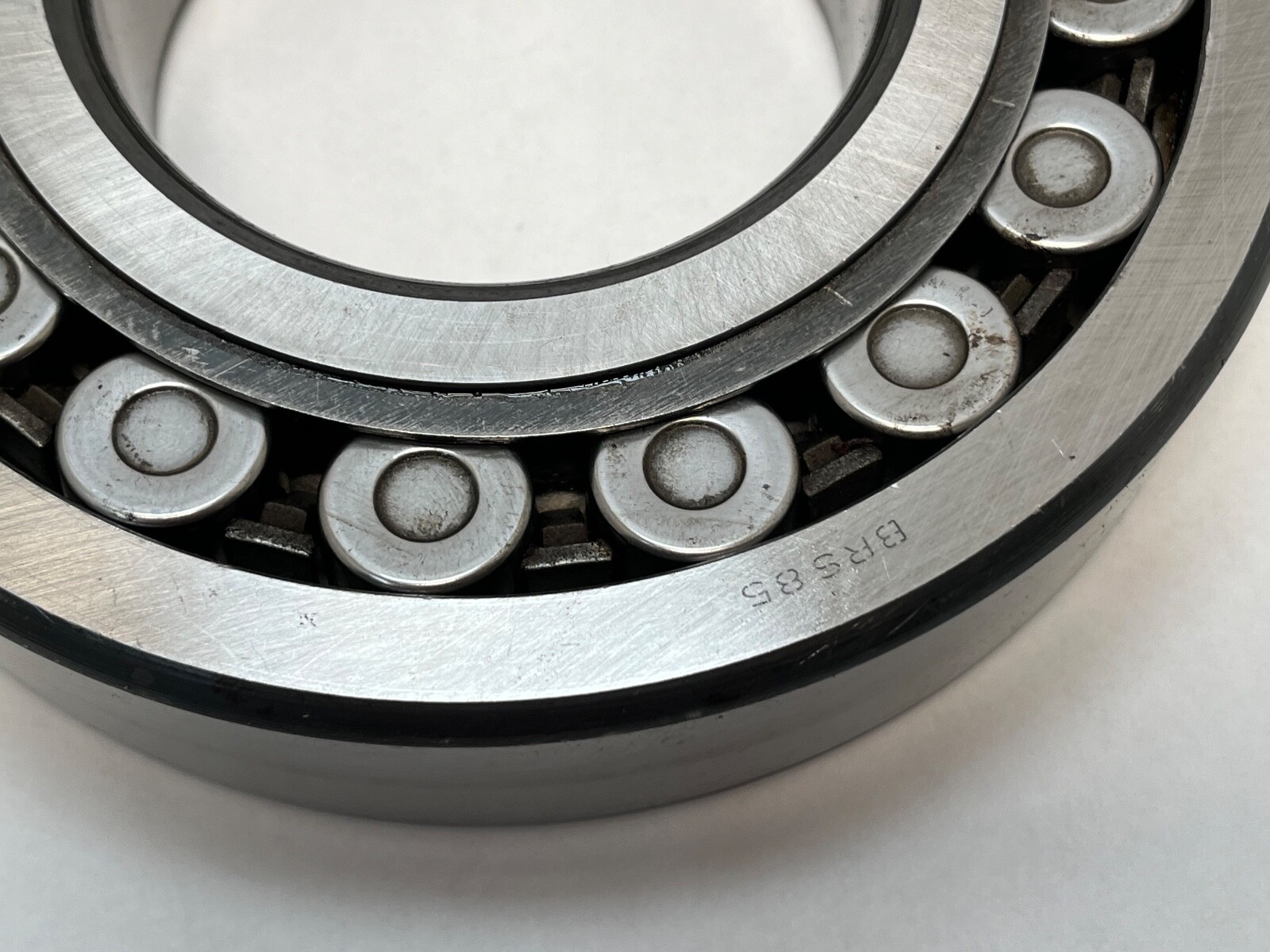

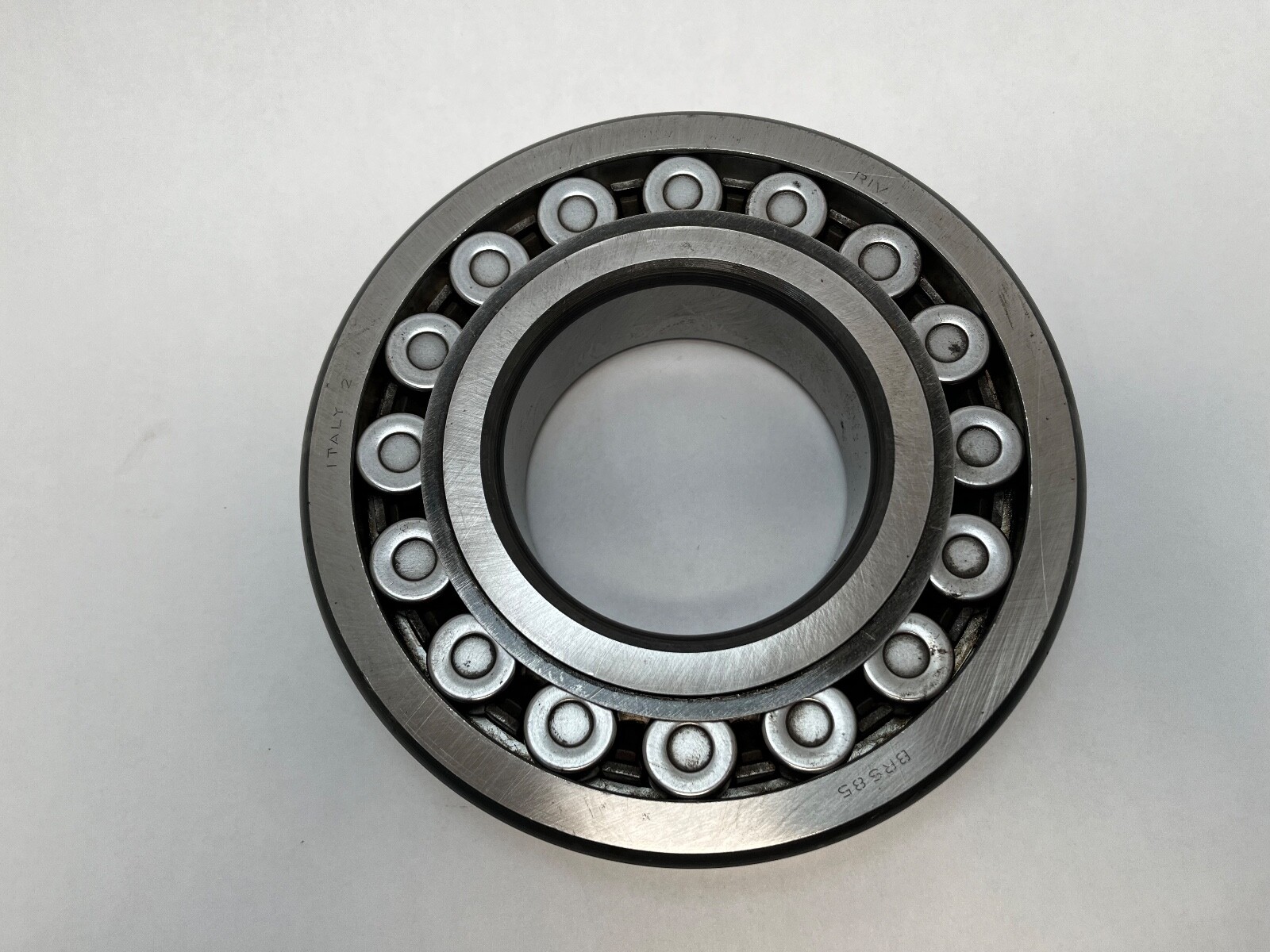

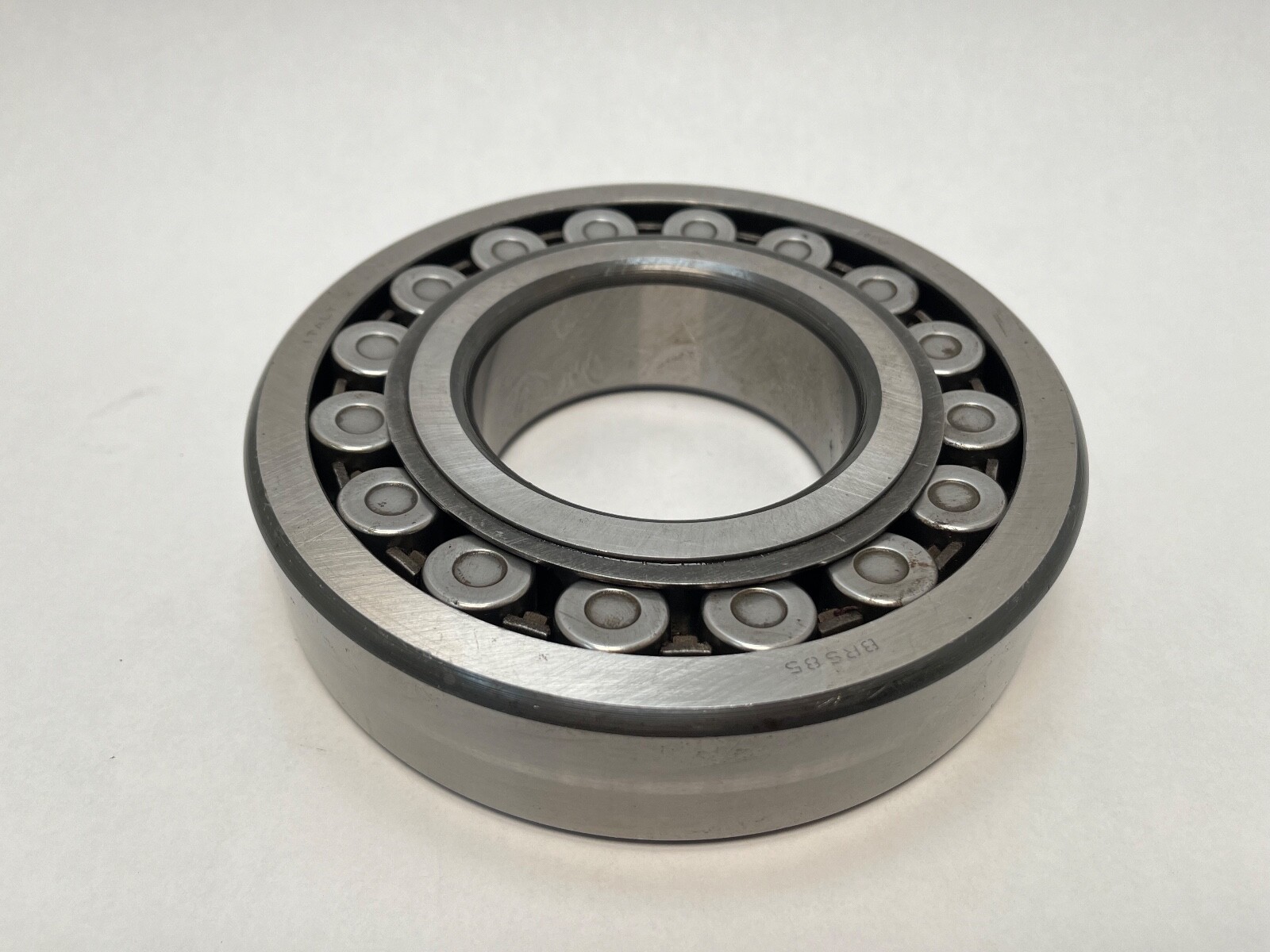

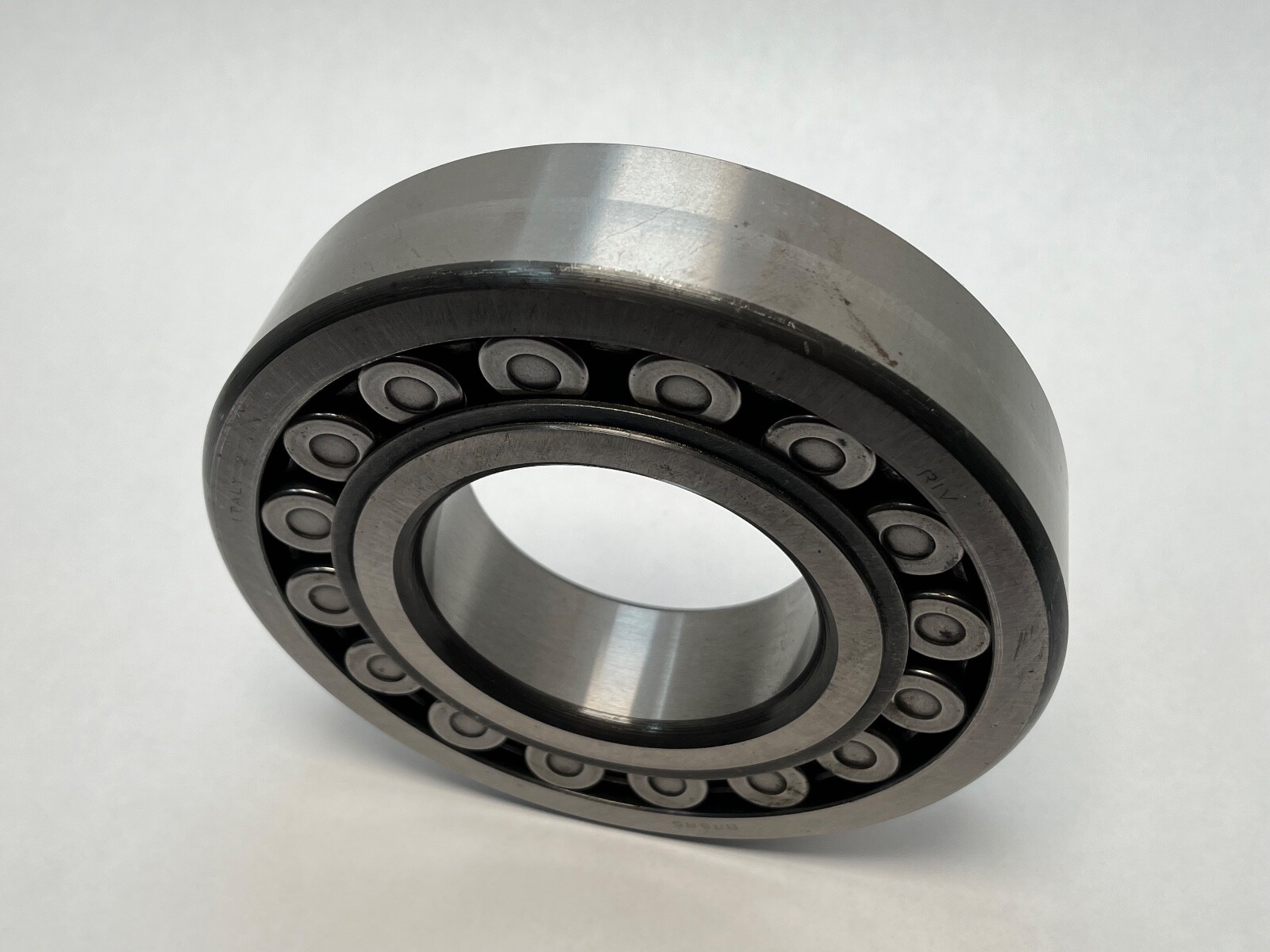

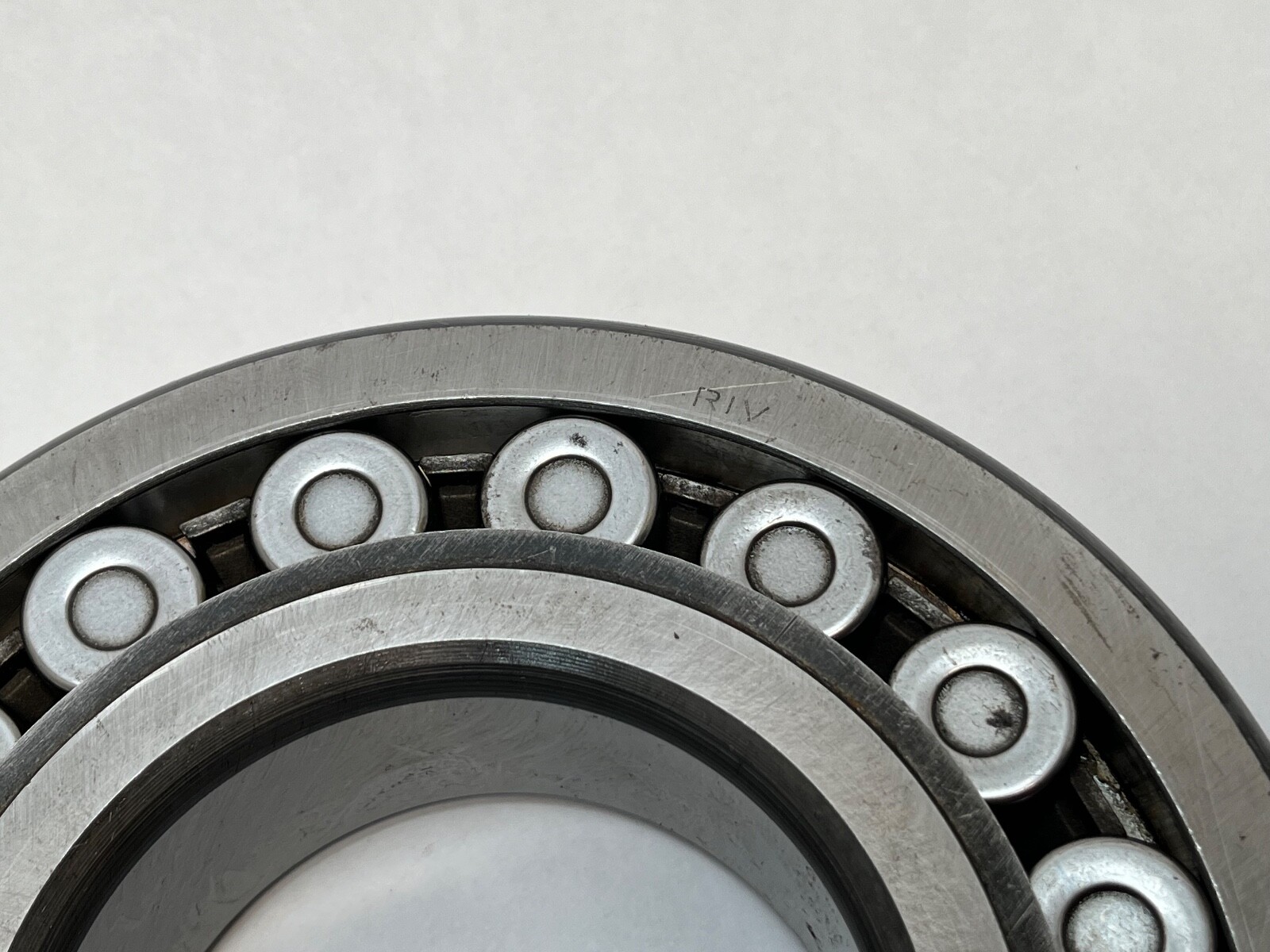

RIV 21317 Spherical Bearing (BRS85) – 85x180x41 mm
Unlock superior performance for your machinery with the RIV 21317 Spherical Bearing, expertly engineered in Italy. This remarkable bearing, featuring an inner diameter of 85 mm, an outer diameter of 180 mm, and a width of 41 mm, assures top-notch load distribution and friction reduction, making it integral for a multitude of engineering applications.
Brand: RIV – A name synonymous with quality and reliability in engineering components.
Type: Spherical Roller Bearing – Perfect for handling high radial and axial loads efficiently.
Model: 21317 – A preferred choice among industry professionals for its trusted performance.

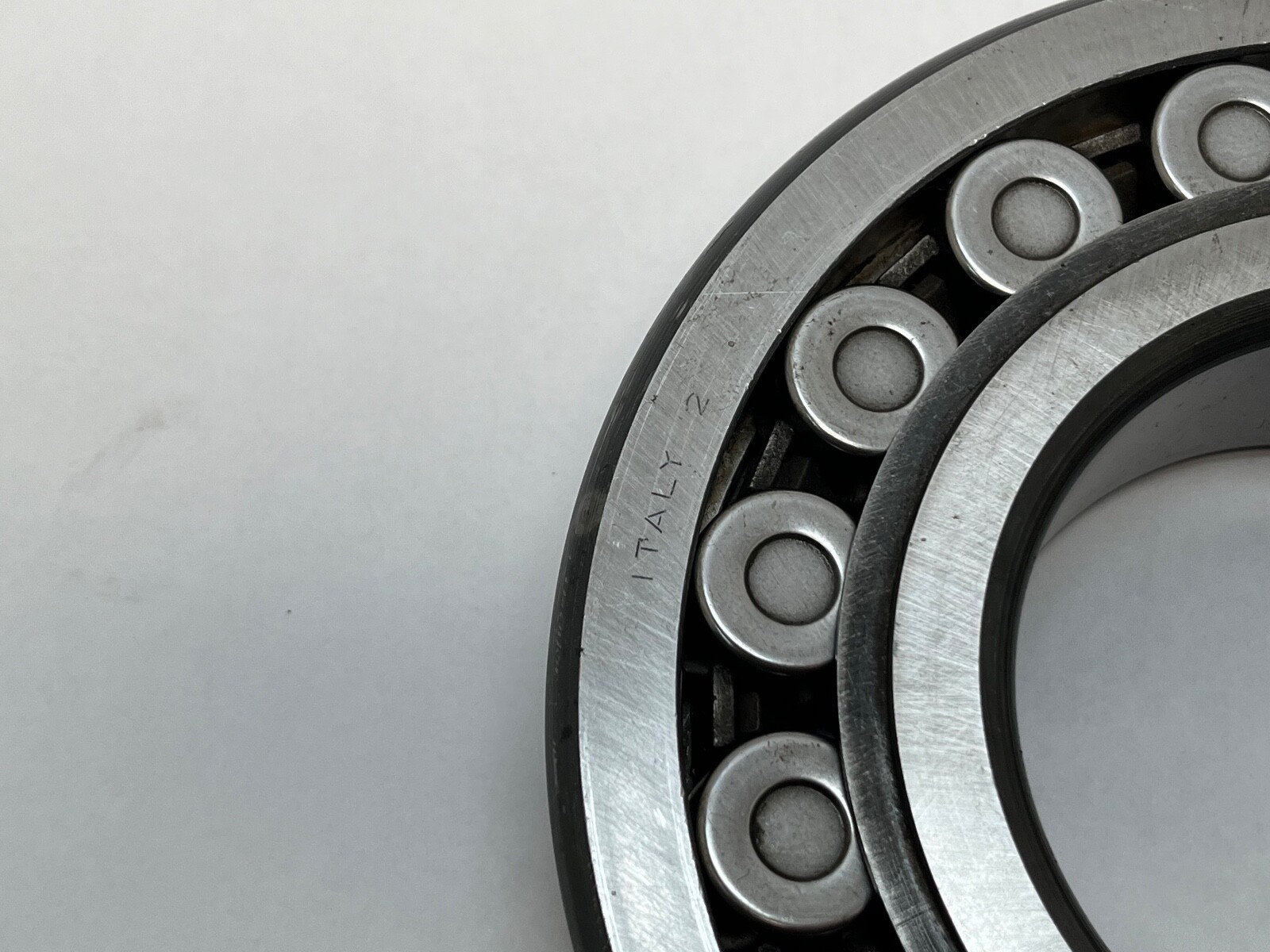

Country of Manufacture: Italy – A hallmark of premium craftsmanship.

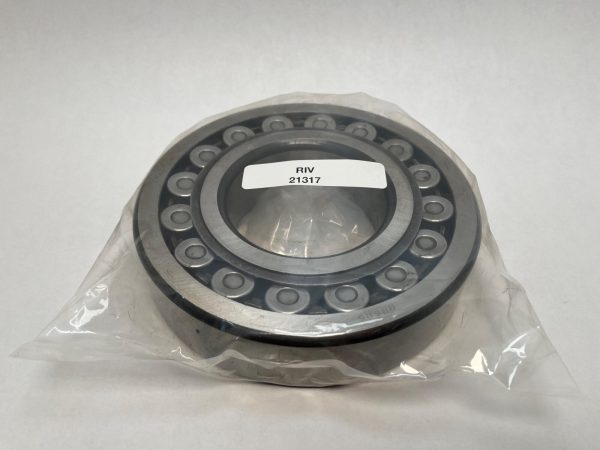

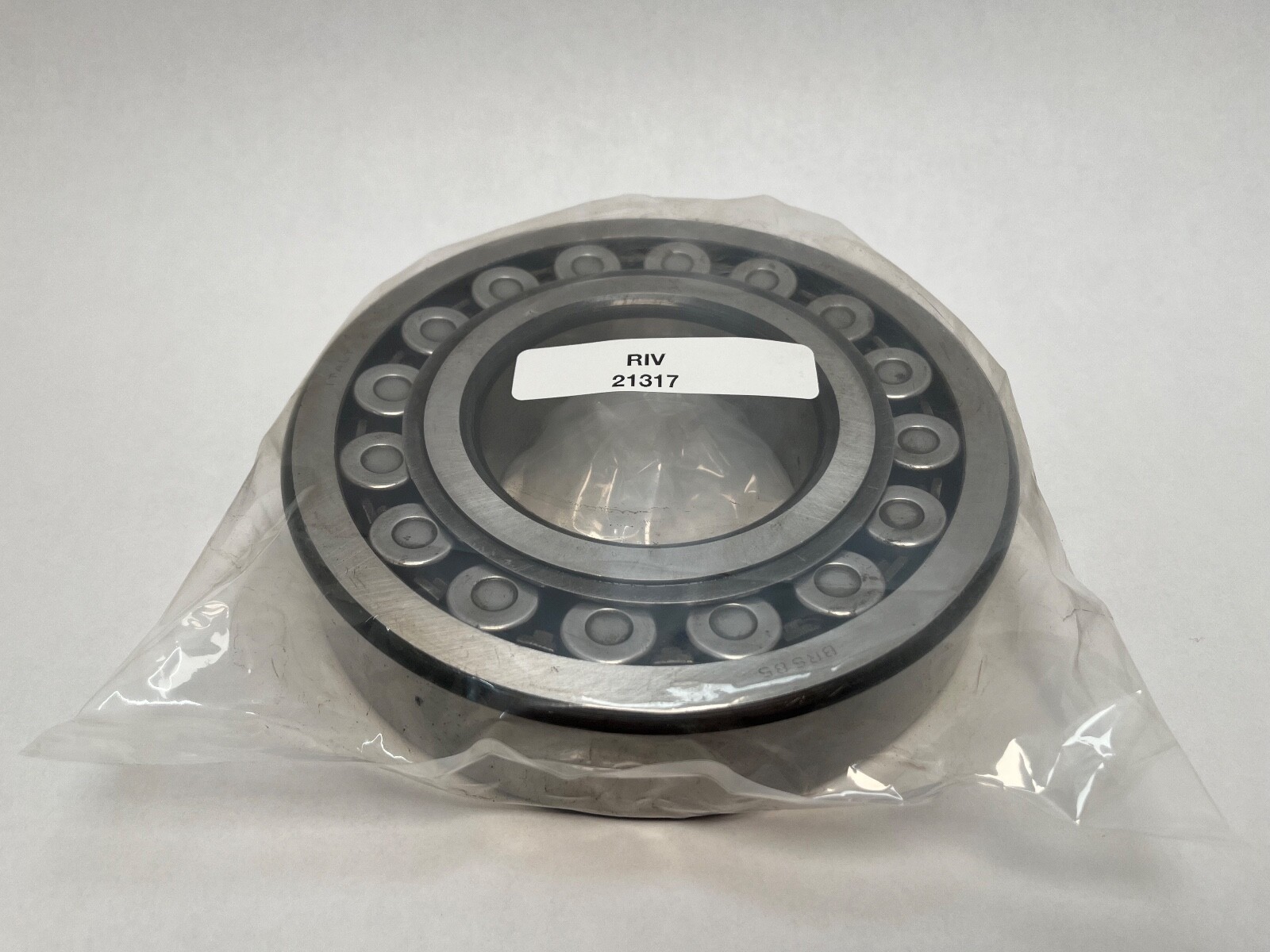

Condition: New – Open Box – Unused and available for immediate installation.
We pride ourselves on customer satisfaction, providing same-day shipping and next-day options at checkout. Enjoy hassle-free international shipping on every order and benefit from our combined shipping features.
If you cannot locate the specific part you need, do not hesitate to contact us. We are dedicated to helping you secure all essential components at competitive prices. Your engineering success begins with the RIV 21317 Spherical Bearing – where quality meets performance.
