Availability:
2 in stock
Double-row spherical roller bearing, 90 x 160 x 40 mm, self-aligning, C3 clearance, W33 lubrication groove, 384 kN dynamic rating, 3,200 rpm grease.
List Price
$146.85
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle

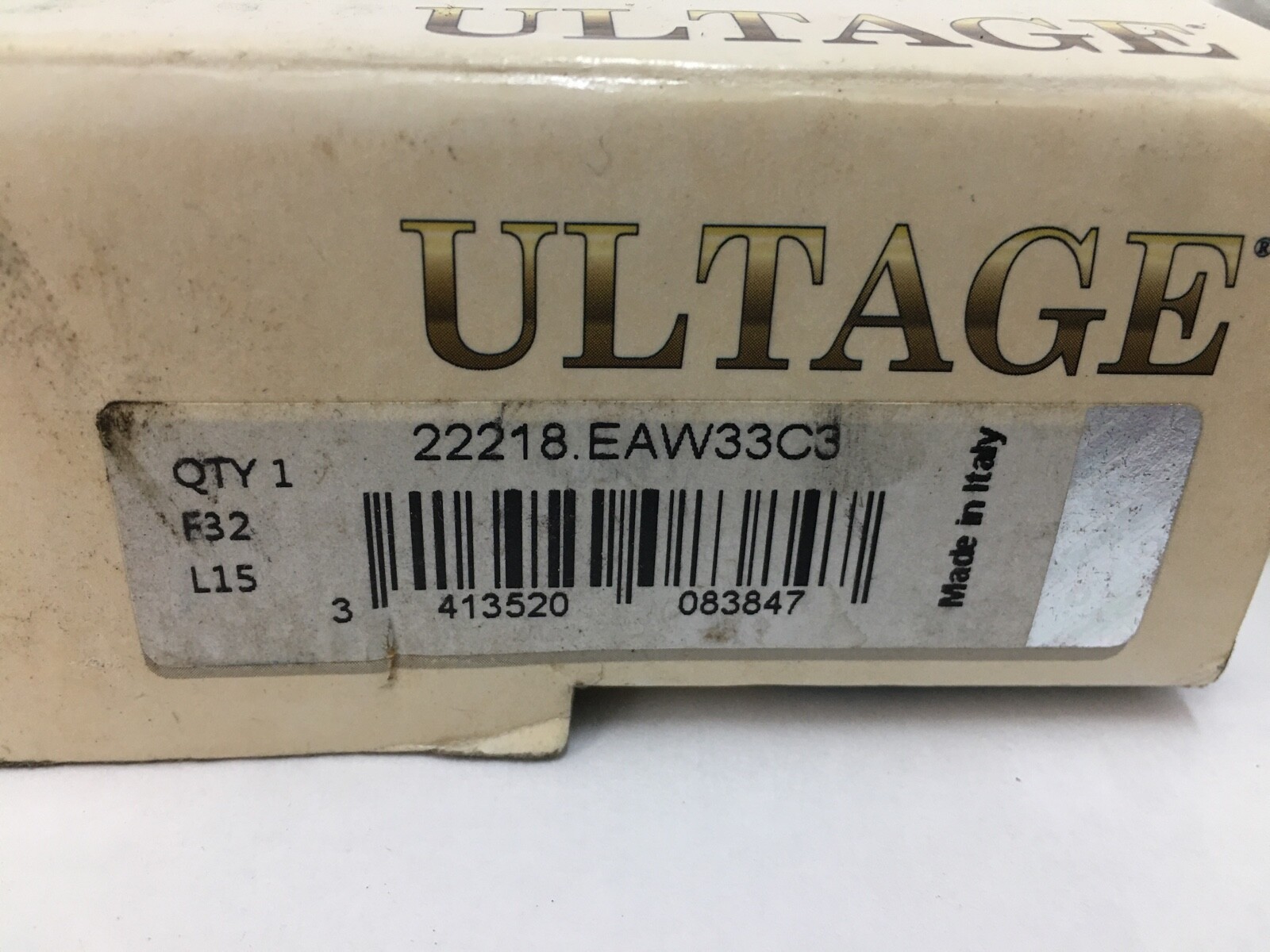

| MFR / Brand | NTN |
|---|---|
| MPN | 22218EAW33C3 |
| GTIN | 3413520083847 |
| Model | 22218EA W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| OD | 160 mm |
| Base Number | 22218 |
|---|---|
| Overall Width | 40 mm |
| Bore Shaft Size | 90 mm |
| Relubrication | W33 lubrication groove with three radial feed holes |
| Mpn Variants | 22218 EA W33 C3; 22218EAW33; 22218E C3 |
| Precision Class | JIS Class 0 |
| Additional Attributes | r min 2.0 mm; da min 101 mm; Da max 149 mm; outer land diameter D1 144 mm; e 0.23; Y1 2.90; Y2 4.31; Y0 2.83; W33 groove width W0 10 mm; W33 groove diameter d1 105 mm; three radial feed holes d0 4.5 mm |
| Material | Through-hardened steel |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 384.00 kN (86,500 lbf) |
| Static Load Rating | 398.00 kN (89,500 lbf) |
| Precision Rating | RBEC 1 |
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 3.280 kg (7.231 lb) |
| Cage Material | Pressed Steel |
| Limiting Speed | 3200 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Design Units | Metric |
| Part Number | 22218EAW33C3 |

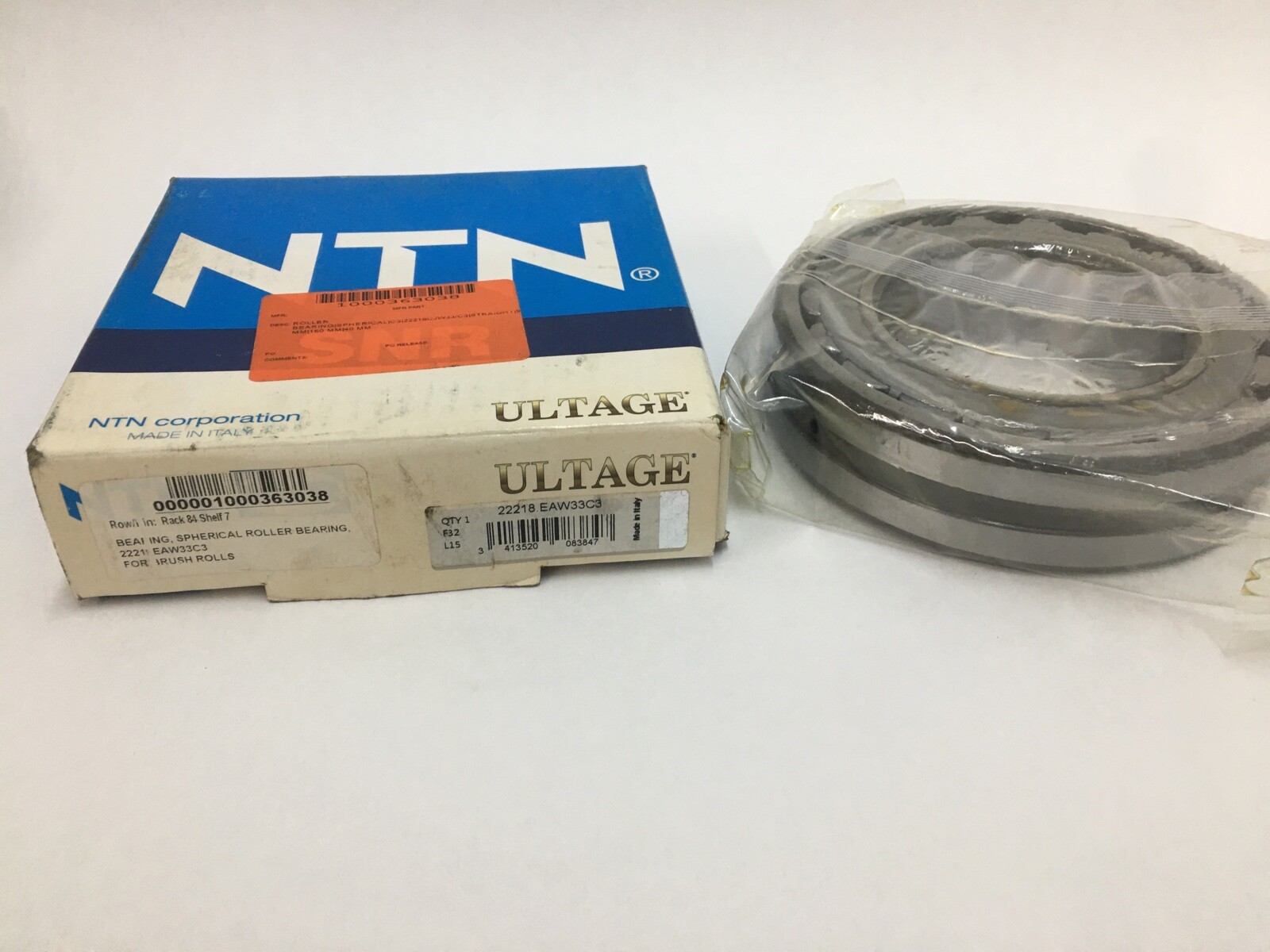

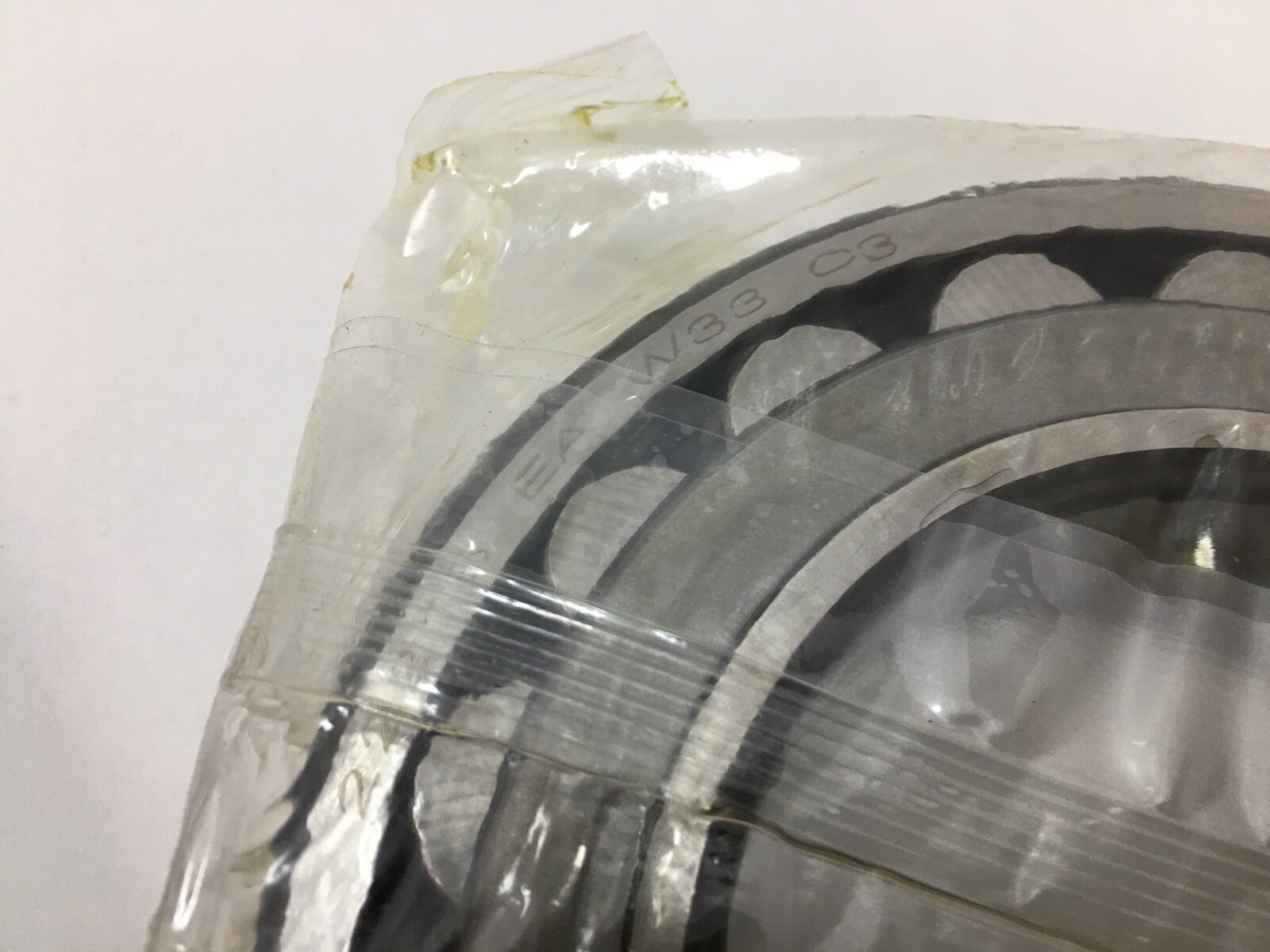

This is an NTN 22218EAW33C3 double-row spherical roller bearing in the 90 x 160 x 40 mm envelope. Bore / Shaft Size: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Series: 22200. Base Number: 22218. Design Units: Metric. Material: Through-hardened steel. Cage Material: Pressed Steel. Cage Type: Pressed. Item weight: 3.280 kg (7.231 lb).
22218 — the ISO 22218 double-row spherical roller size, 90 x 160 x 40 mm.
EA — NTN’s high-capacity design.

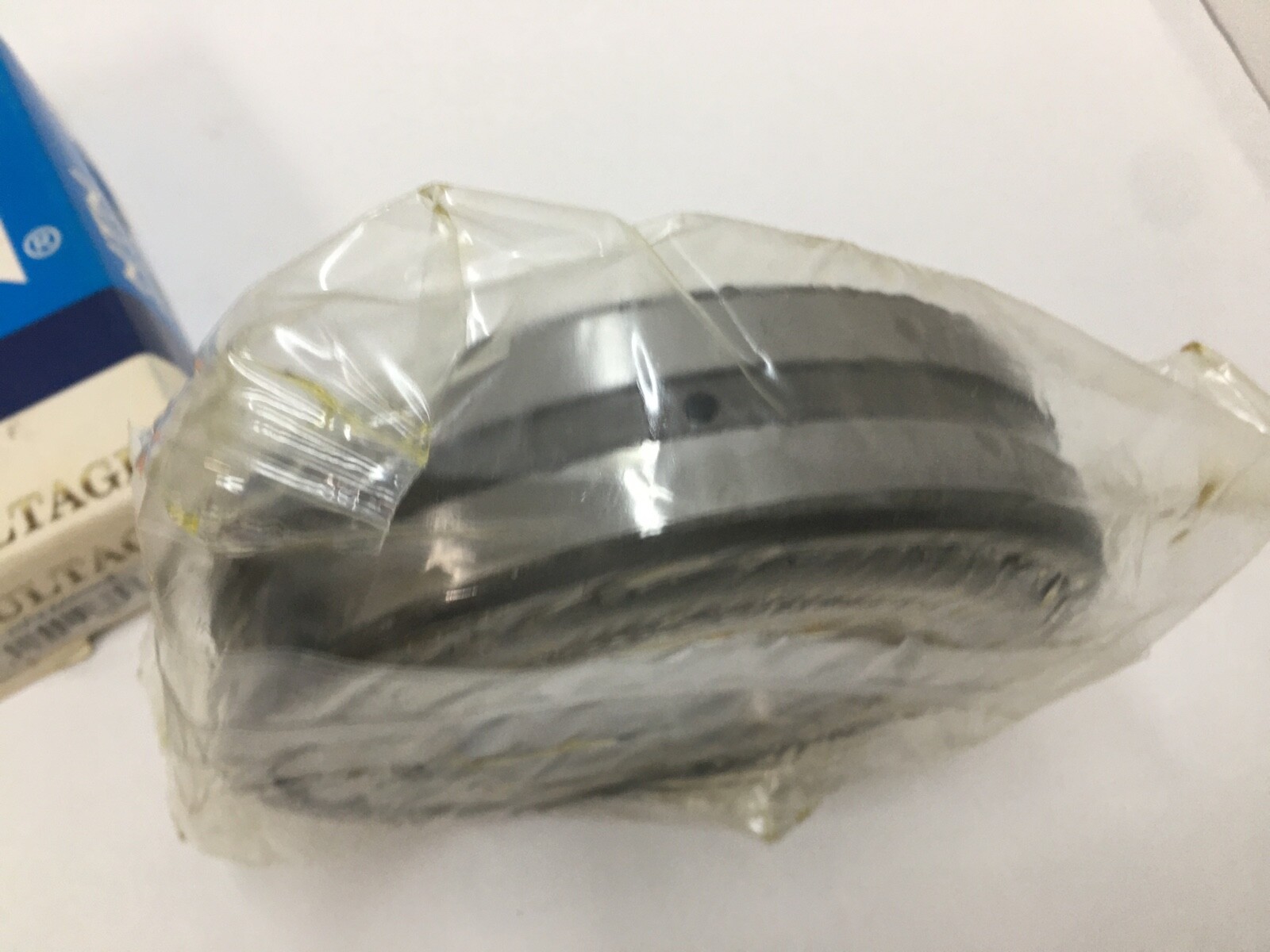

W33 — an annular lubrication groove in the outer ring outside diameter with three radial feed holes into the rolling elements.
C3 — internal radial clearance greater than normal.

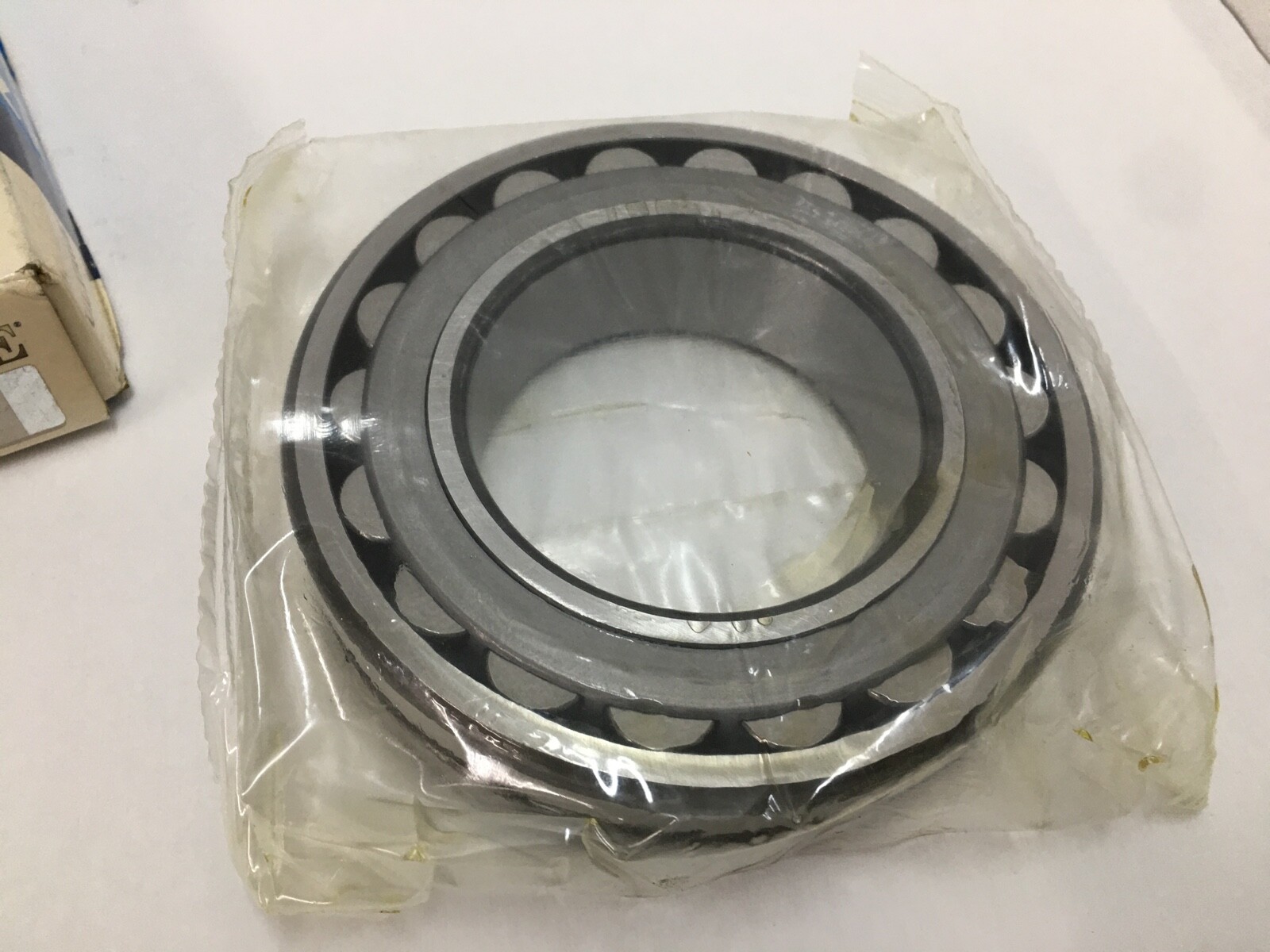

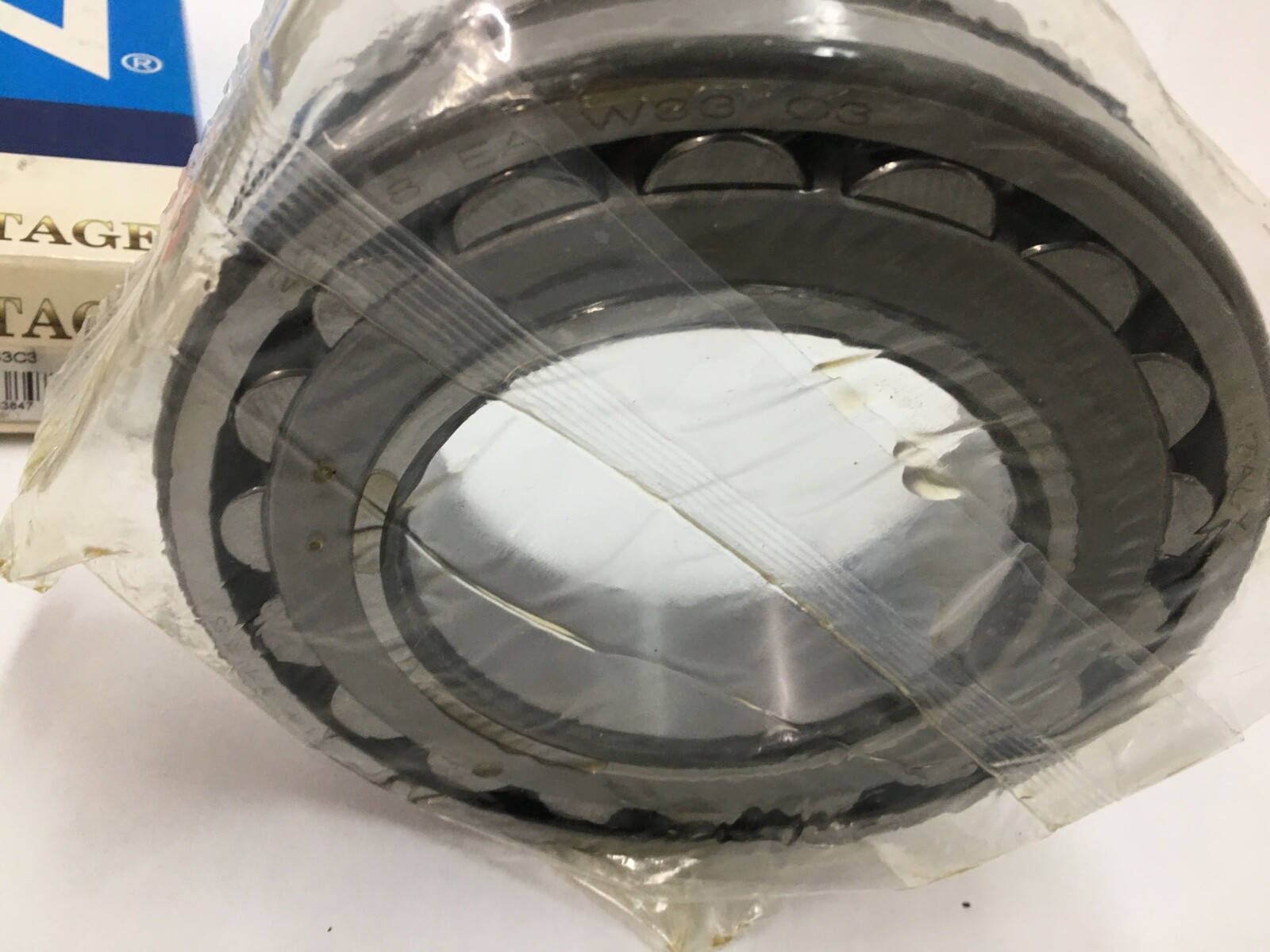

Two rows of barrel rollers run on a spherical outer raceway, so the bearing takes thrust in both directions and self-aligns to accommodate shaft-to-housing misalignment. Dynamic load rating: 384.00 kN (86,500 lbf). Static load rating: 398.00 kN (89,500 lbf). Limiting Speed: 3,200 rpm grease / 4,000 rpm oil. Internal Clearance: C3. Precision Class: JIS Class 0. Precision rating: RBEC 1. Lubricant: Grease or oil. Relubrication: W33 lubrication groove with three radial feed holes, suiting either grease or an oil feed. Max temp: 200 °C. Min temp: -40 °C.
Chamfer dimension r min: 2.0 mm. Shaft abutment da min: 101 mm. Housing abutment Da max: 149 mm. Outer land diameter D1: 144 mm. W33 groove width W0: 10 mm, groove diameter d1: 105 mm, with three radial feed holes at d0: 4.5 mm. Calculation factors run e: 0.23, Y1: 2.90, Y2: 4.31 and Y0: 2.83 for equivalent load work.
Unit Quantity: 1 Pc, supplied as a single open double-row bearing on a straight cylindrical bore for direct shaft fitting.
Part Number: 22218EAW33C3. MPN Variants: 22218 EA W33 C3, 22218EAW33, 22218E C3. Match the size, the double-row spherical roller form, the W33 groove and the C3 clearance grade together when comparing designations across manufacturers.
